MitsubishiQX80DC Input Module — MELSEC-Q, 16 points, 24 V DC, negative common

Product Description

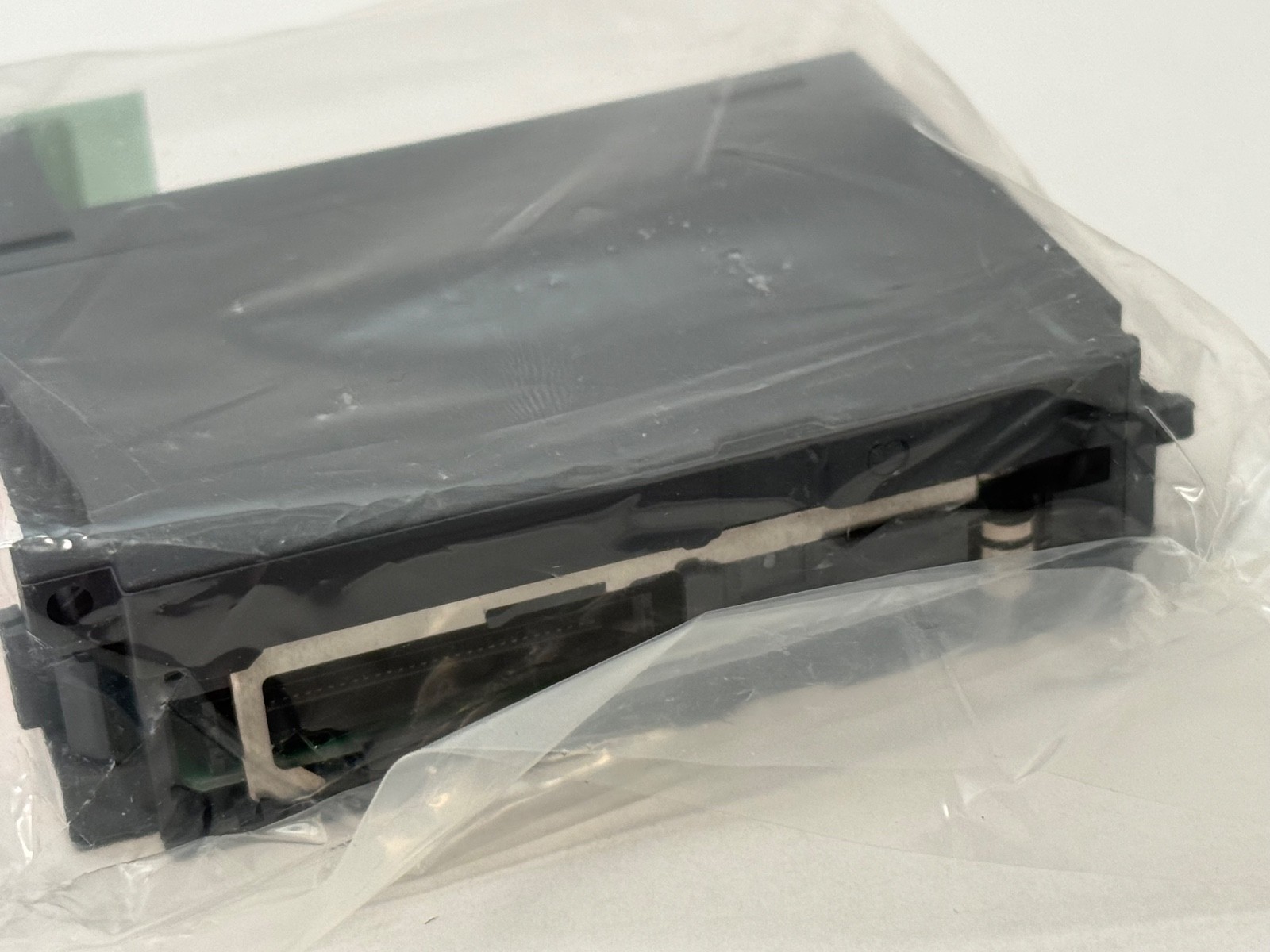

What this part isThe Mitsubishi Electric QX80 is a DC input module (negative common type) for the MELSEC-Q Series programmable controller. It provides 16 inputs rated 24 V DC, wired through an 18-point screw terminal block, and occupies 16 I/O points on the PLC.

SpecificationsInput type: DC input (negative common type)

Number of input points: 16 points

Rated input voltage: 24 V DC (+20/-15 %, ripple ratio within 5 %)

Rated input current: Approx. 4 mA

Maximum number of simultaneous input points: 100 %

ON voltage/ON current: 19 V or more/3 mA or more

OFF voltage/OFF current: 11 V or less/1.7 mA or less

Input resistance: Approx. 5.6 kΩ

Input response time (OFF to ON and ON to OFF): 1 ms, 5 ms, 10 ms, 20 ms, 70 ms or less

Input common terminal arrangement: 16 points/common

Isolation method: Photocoupler

Dielectric withstand voltage: 560 V AC rms/3 cycles (altitude 2000 m)

Insulation resistance: 10 MΩ or higher by insulation resistance tester

Protection degree: IP2X

Operation indication: ON indication (LED)

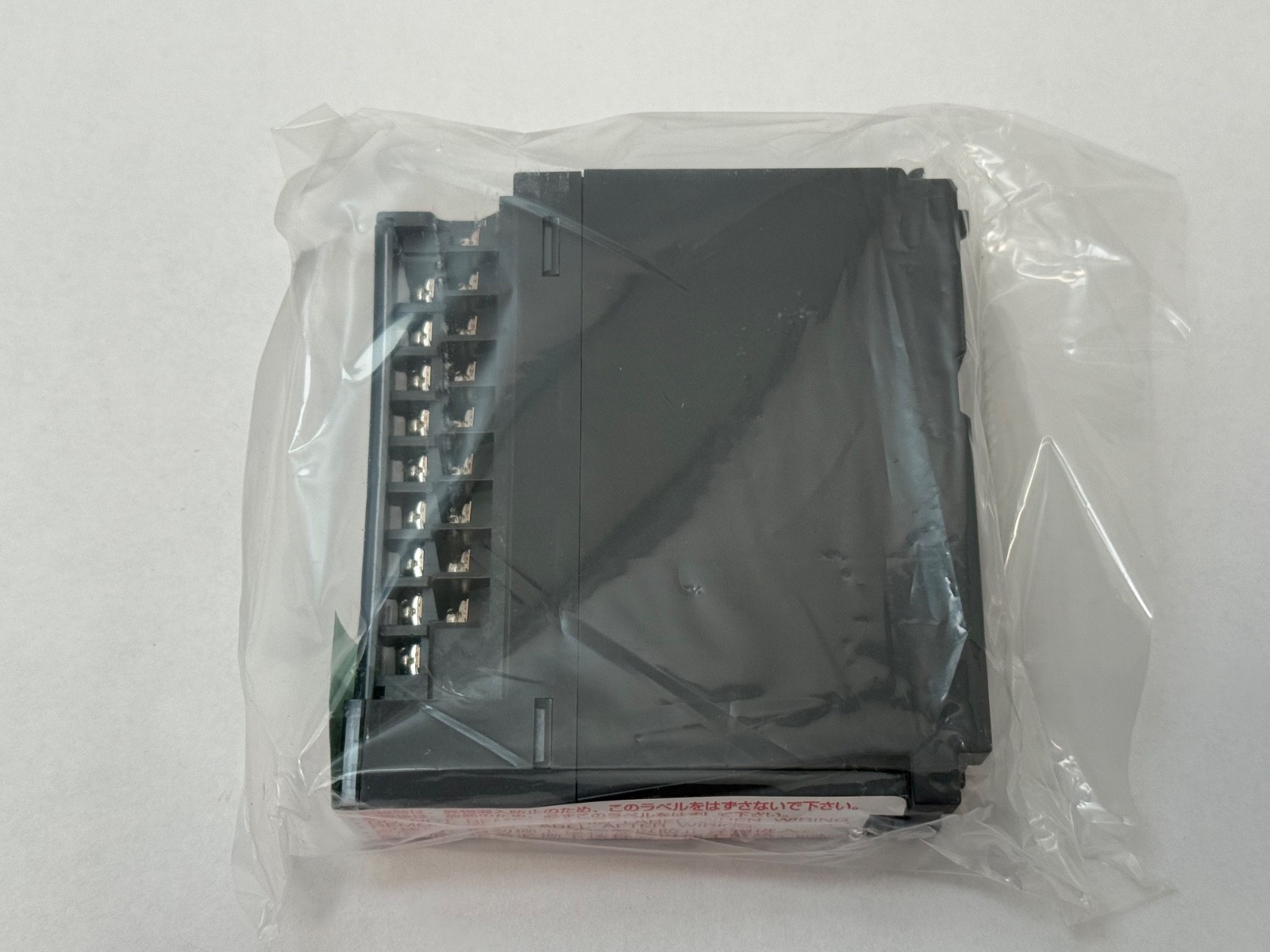

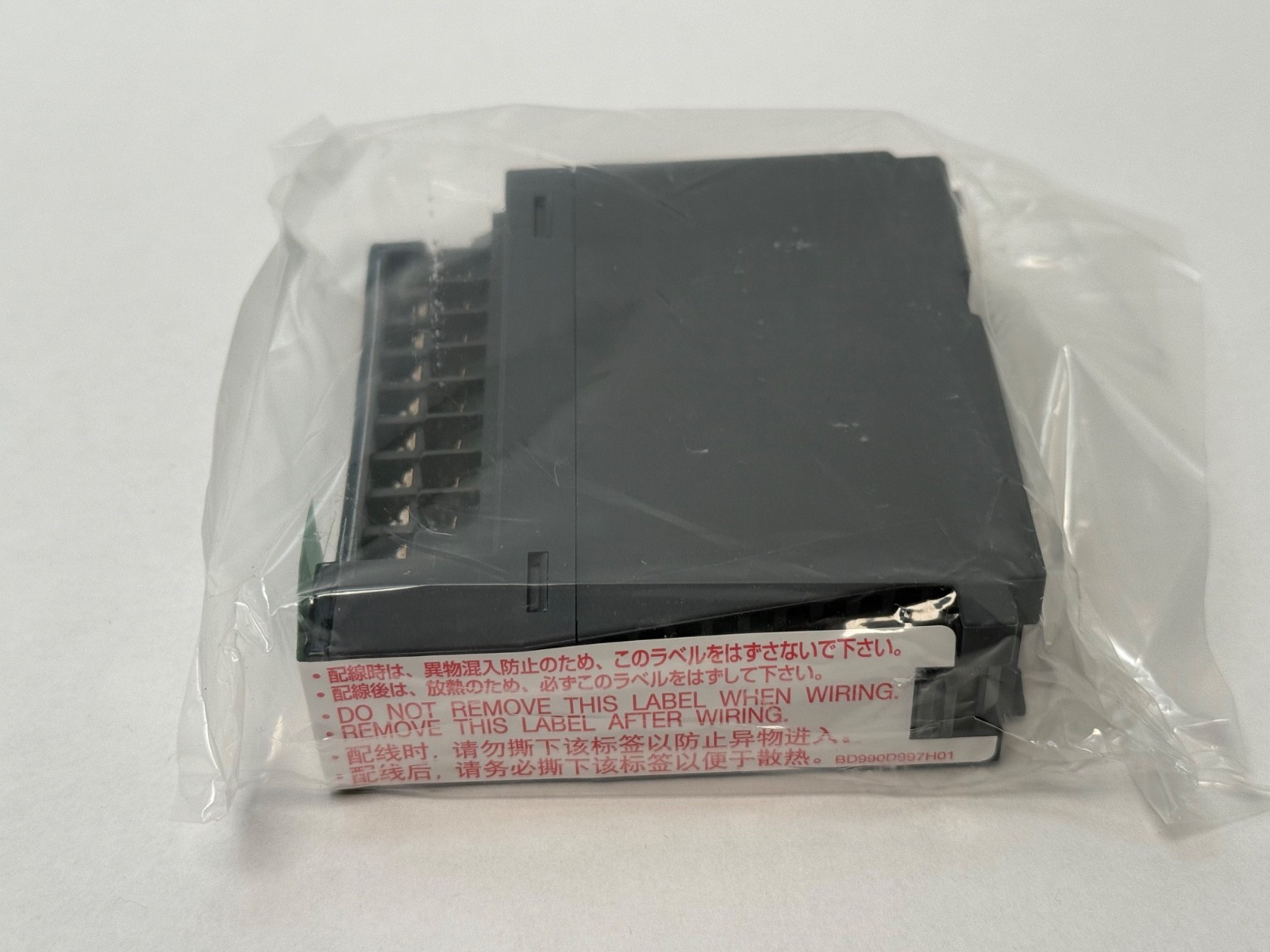

External interface: 18-point terminal block (M3 screw)

Number of occupied I/O points: 16 points (I/O assignment: Input 16 points)

Internal current consumption (5 V DC): 50 mA (TYP. all points ON)

Series: MELSEC-Q Series

Mitsubishi Electric Europe order code: 127587

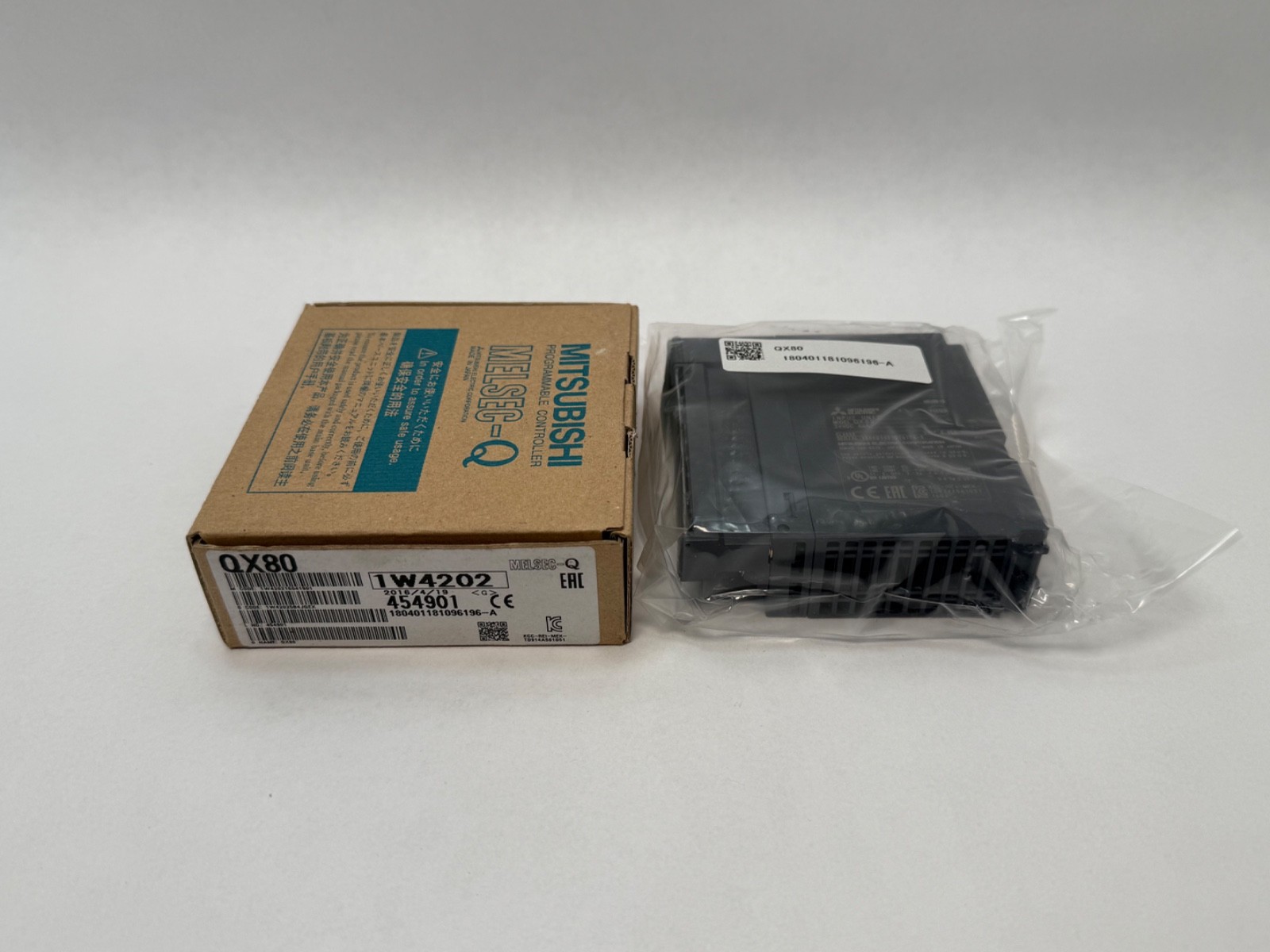

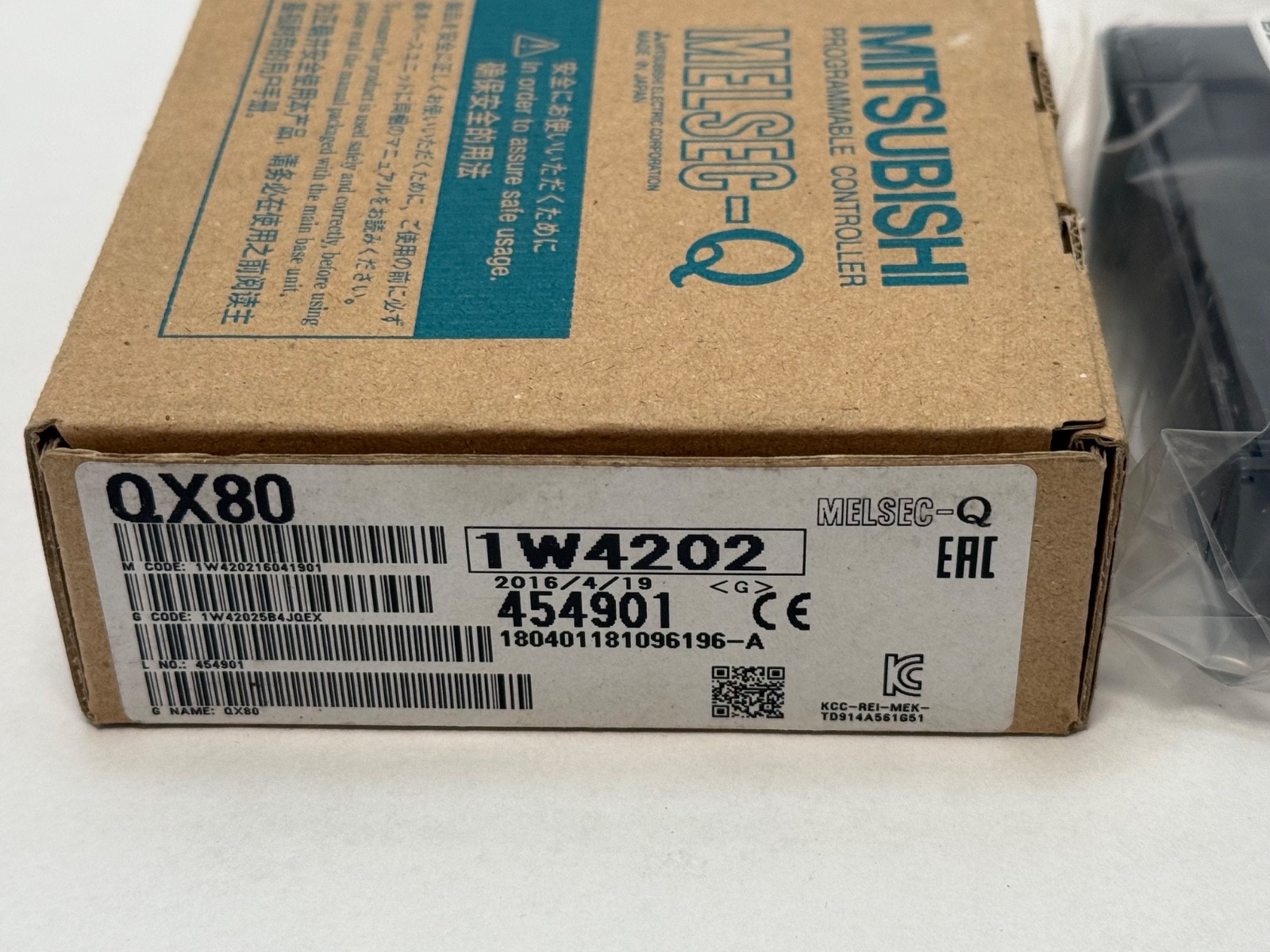

Global order code: 1W4202

Dimensions and weightHeight: 98 mm

Width: 27.4 mm

Depth: 90 mm

Weight: 0.16 kg (0.35 lb)

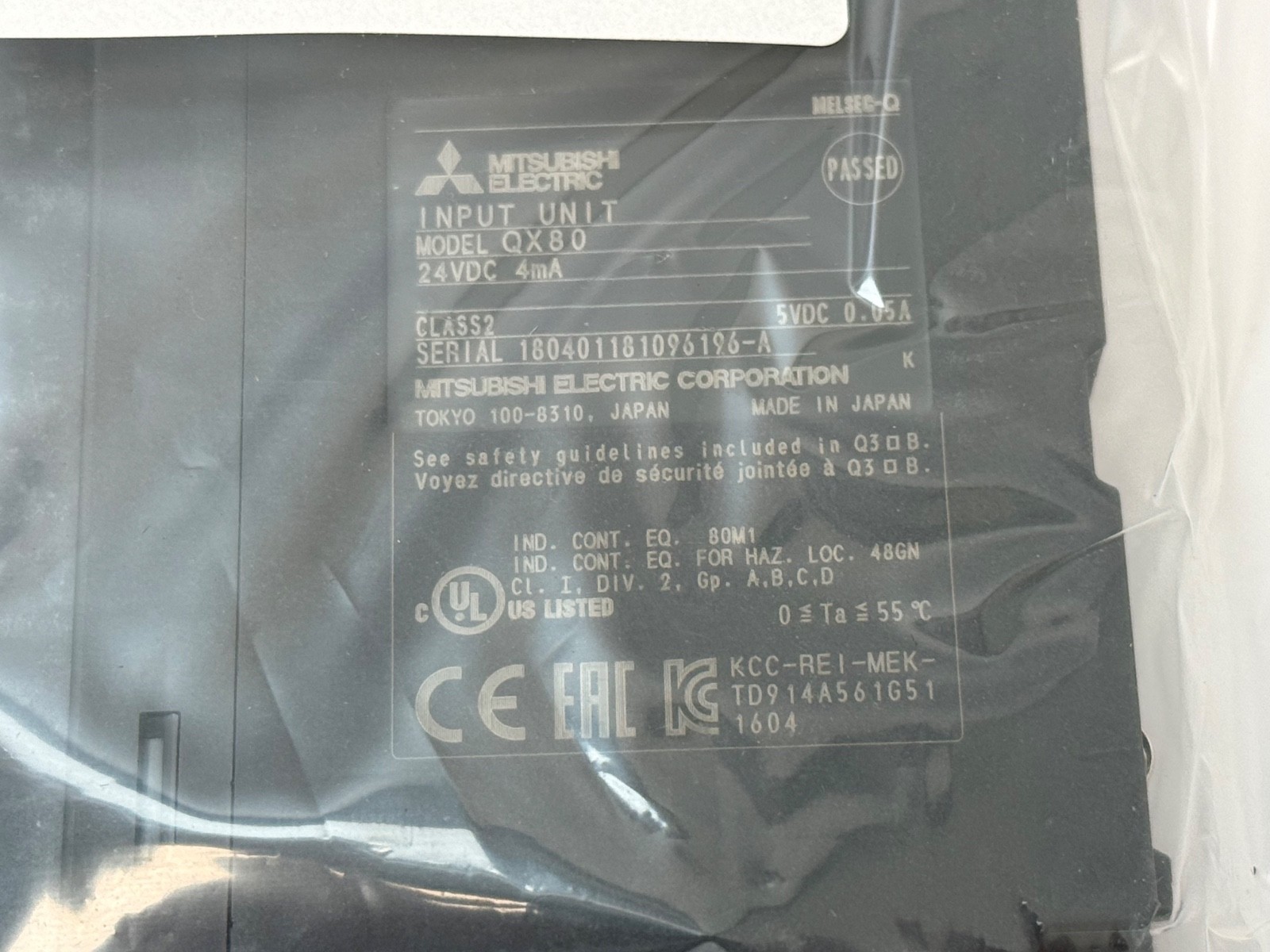

ApprovalsConformity: CE, UL/cUL, UKCA

Shipping approvals: ABS, BV, DNV GL, LR, NK, RINA

RoHS: Compliant

Compatibility and replacementPlatform: Mitsubishi Electric MELSEC-Q Series

Related product: QX80-TS (spring clamp terminal version, 16 inputs, 24 V DC)

Compatible accessories listed by Mitsubishi Electric: FA-CBL10YM20, FA-CBL30YM20, FA-CBL06TMV20, FA-CBL30TMV20, FA1-TESV38COM
