MitsubishiA172SENCA-Series Motion Pulser / Synchronous Encoder Interface Unit

Condition: New – Open box

Availability:

1 in stock

Mitsubishi A172SENC A-series motion pulser/sync encoder interface: 32 axis signal inputs, tracking input, MR-HDP01 and MR-HENC inputs, 12/24 V DC. NOS.

List Price

$29.74

1 in stock

Prefer eBay? Buy this item on our store (opens in a new tab)

Small green outline icon of a shipping box with a clock, indicating delivery time
Availability

1 in stock

On the Shelf & Ready to Ship

Green shield badge reading "Same-Day Shipping" with box and delivery truck icons
Free US Shipping

Ships same day by 6pm ET

Green shield icon with box and arrow graphic labeled "Free Returns"
Free Returns

No Risk, No Hassle

Specifications

Key Specifications

MFR / BrandMitsubishi
MPNA172SENC
ModelA172SENC

Technical Specifications

TypeEncoder Unit
Industry TermsManual pulse generator interface; synchronous encoder interface; encoder unit; motion controller I/O unit; servo external signal input unit; MELSEC-A motion module
Common MisspellingsA172-SENC; A172SEN C; A172SNEC; A17SENC; A172SECN; A172SEMC
Application TypesAxis stroke limit, STOP and DOG signal input; manual pulse generator (handwheel) input; serial absolute synchronous encoder input; tracking input; electromagnetic brake output
Input Voltage12/24 V DC (10.2-26.4 V DC) signal inputs
Controller PlatformMELSEC-A Motion (A173UHCPU, A172SHCPUN, A171SHCPUN)
Mpn VariantsA172SENC; A172-SENC; A172 SENC
Compatible With ReplacesMitsubishi A173UHCPU(-S1), A172SHCPUN, A171SHCPUN motion CPUs; MR-HDP01 manual pulse generator; MR-HENC synchronous encoder; MR-HSCBL cable

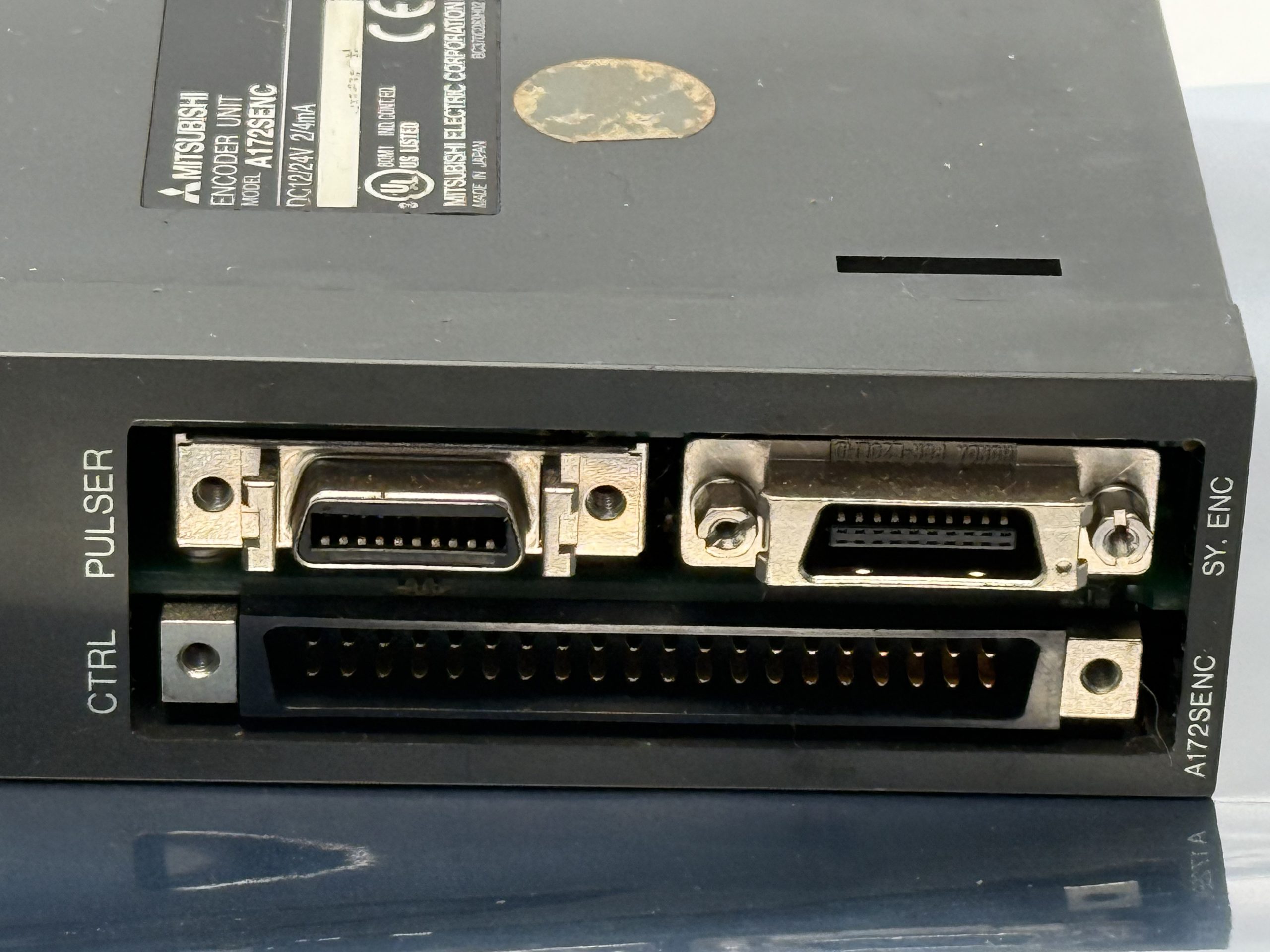

Additional AttributesMotion control signal inputs 32 (8 axes x upper/lower stroke limit, STOP, DOG/speed-position changeover); tracking input 1; rated 12/24 V DC, 2 mA/4 mA; operating 10.2-26.4 V DC; ON 7.0 V DC/1.0 mA min; OFF 1.8 V DC/0.18 mA max; response OFF-ON 2 ms, ON-OFF 3 ms max; tracking response 0.5 ms max; brake output 1, 24 V DC (21.6-30 V DC), 0.1 A max (0.4 A inrush 10 ms); manual pulse generator input 1, 100 kpps max, H 3.0-5.25 V / L 0-1.0 V, MR-HDP01 or 26LS31 differential; serial absolute sync encoder input 1, MR-HENC, 16384 pulses/rev; 5 V DC current 0.42 A; mass 0.22 kg; connectors CTRL, PULSER, SY.ENC; LEDs PX0-PX1F, TRA; label DC 12/24 V 24 mA, UL, CE
SeriesMELSEC-A
Item Weight0.22 kg
Part NumberA172SENC
Mounting TypeMain base P I/O (motion slot)
Seller Part Number: AQ1B4#RINVWT

Product Description

What this part is:

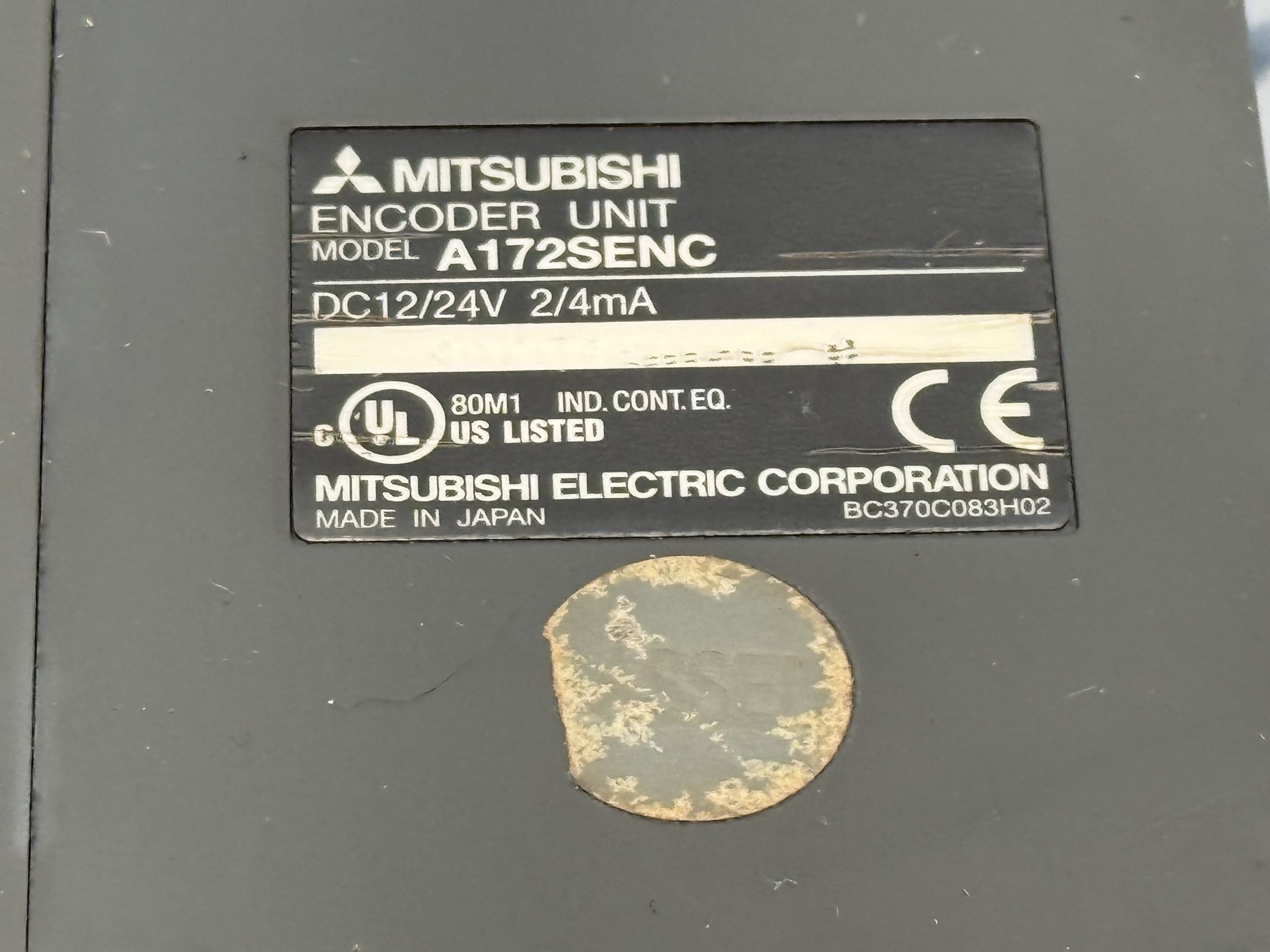

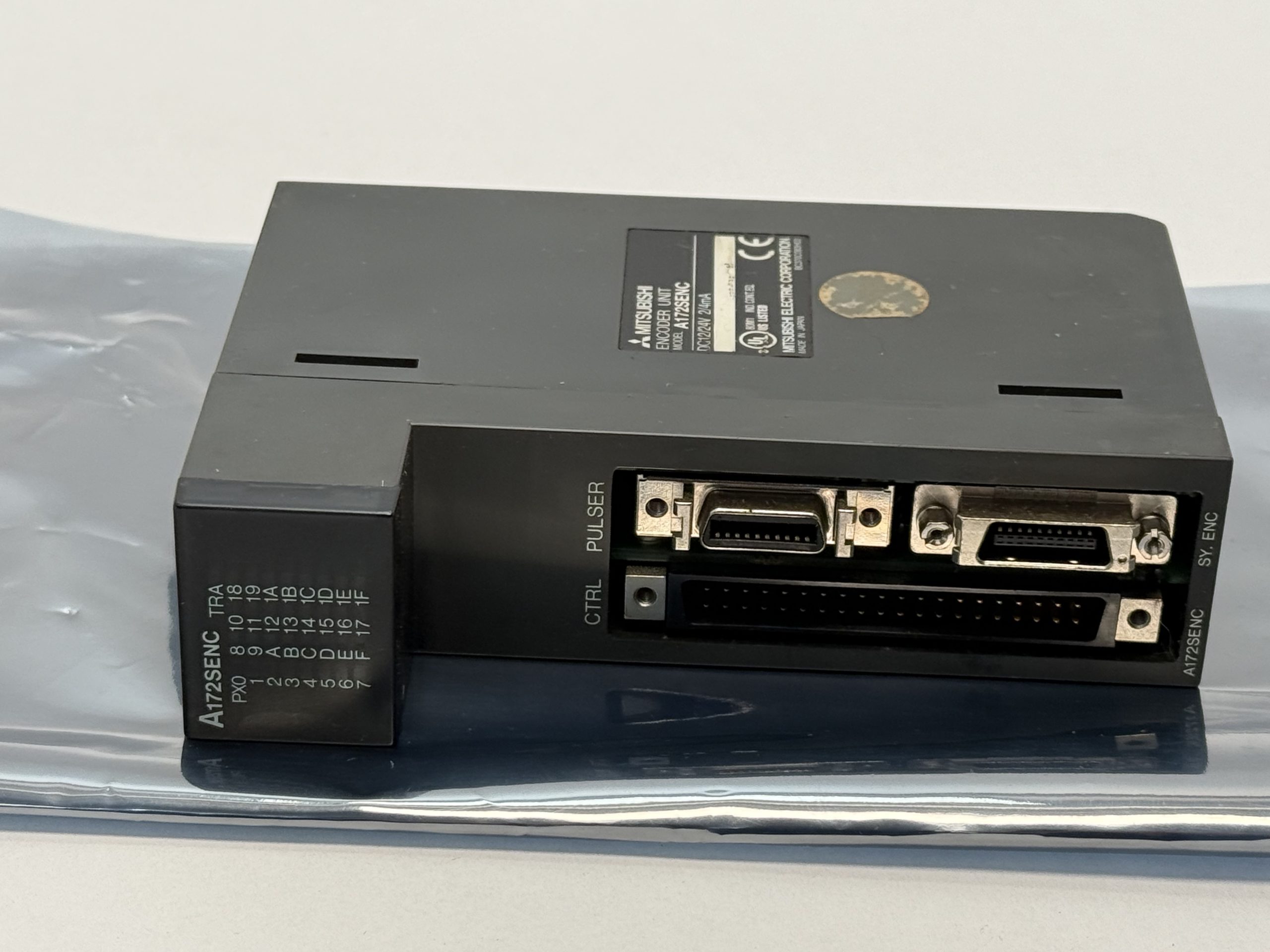

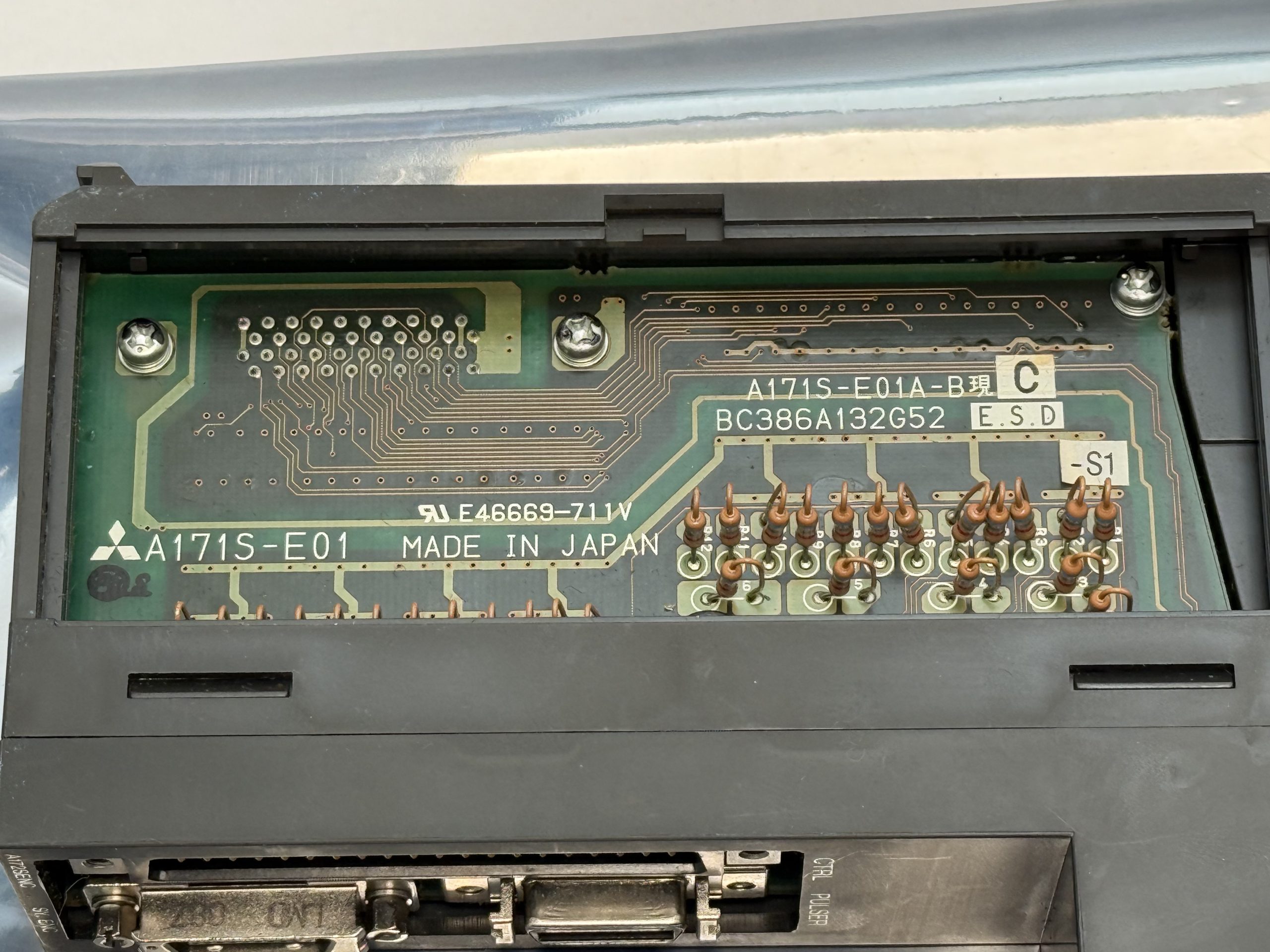

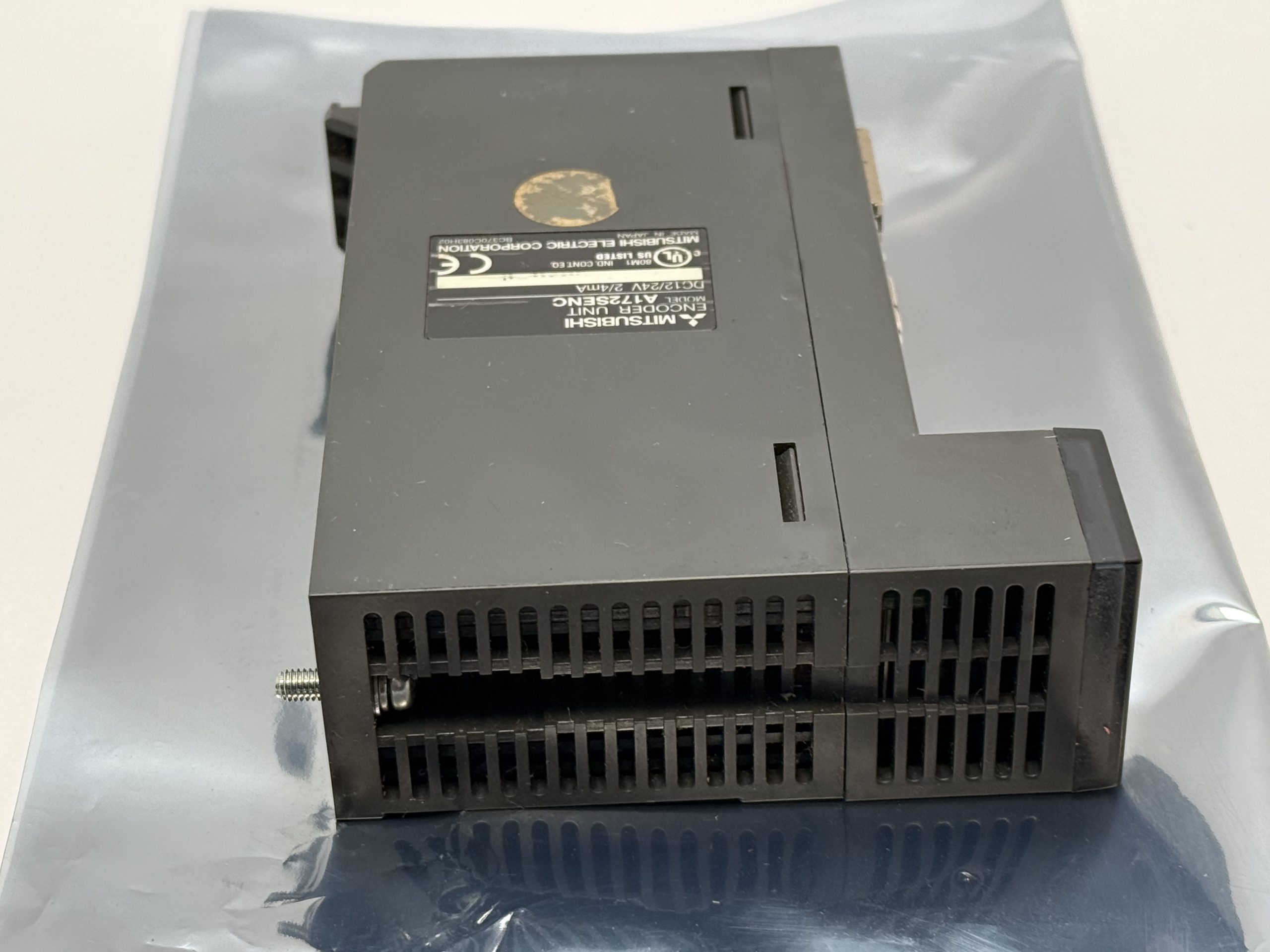

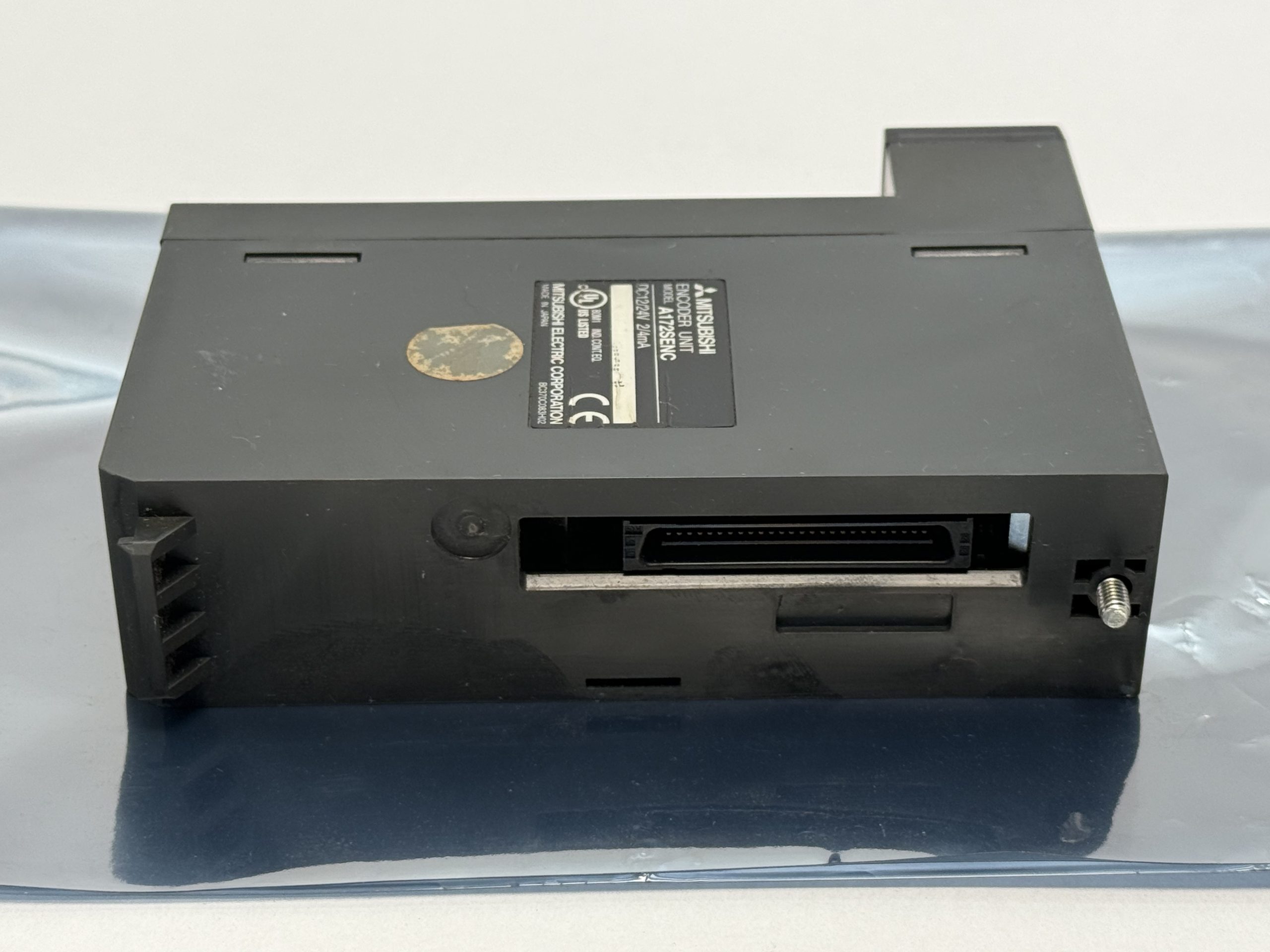

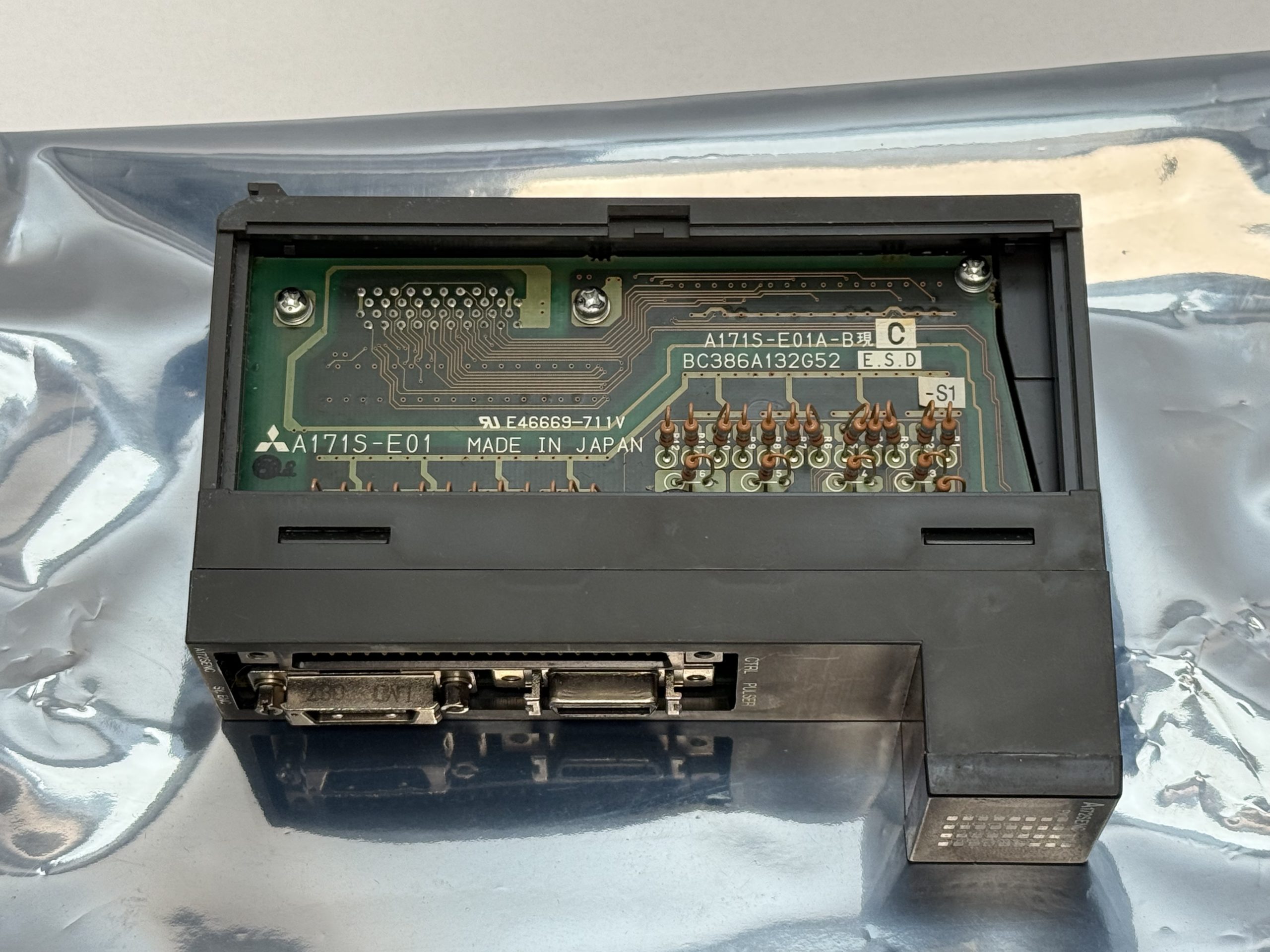

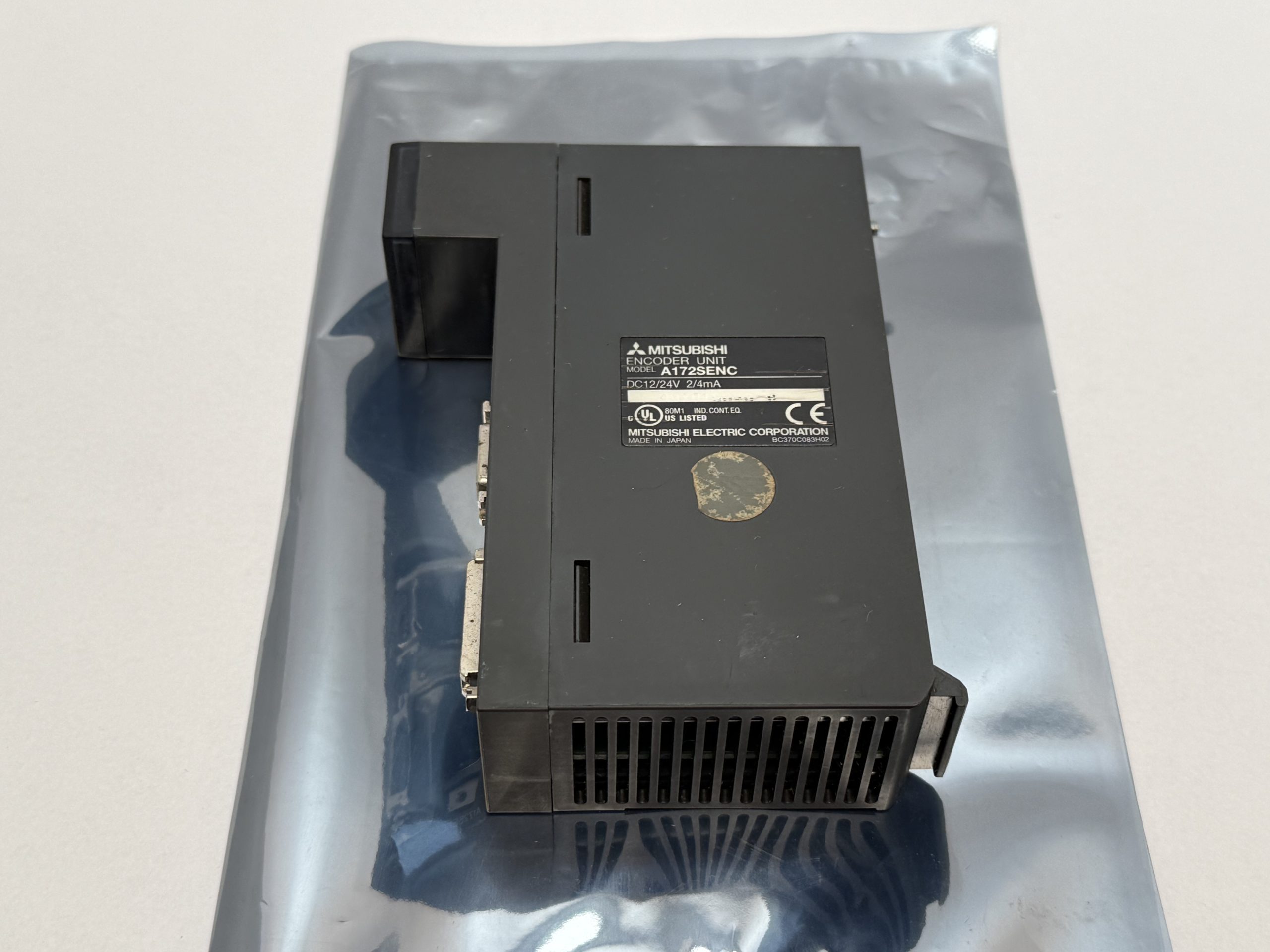

Mitsubishi Electric A172SENC is the manual pulse generator / synchronous encoder interface unit for MELSEC-A motion controllers A173UHCPU(-S1), A172SHCPUN and A171SHCPUN. It takes the motion control signal inputs for 8 axes (upper and lower stroke limit, STOP, near-zero point DOG / speed-position changeover), 1 tracking enable input, 1 manual pulse generator input and 1 serial absolute synchronous encoder input, and has 1 electromagnetic brake output. Unit Quantity: 1 Pc. Condition: new old stock, opened box, as pictured. Made in Japan.

Decoding the designation:

A172SENC — Mitsubishi model name for the MELSEC-A motion controller manual pulse generator / synchronous encoder interface unit. Also written A172-SENC.

Specifications:

Motion Control Signal Inputs: 32 points (8 each: upper stroke limit, lower stroke limit, STOP, near-zero point DOG / speed-position changeover). Tracking Enable Input: 1 point. Rated Input Voltage/Current: 12/24 V DC; 2 mA at 12 V DC, 4 mA at 24 V DC. Operating Voltage Range: 10.2–26.4 V DC. ON Voltage/Current: 7.0 V DC min / 1.0 mA min. OFF Voltage/Current: 1.8 V DC max / 0.18 mA max. Input Response Time: OFF to ON 2 ms max, ON to OFF 3 ms max. Tracking Input Response Time: 0.5 ms max. Brake Output: 1 point, 24 V DC rated (21.6–30 V DC), 0.1 A max load current (0.4 A inrush, 10 ms max), response 2 ms max. Manual Pulse Generator Input: 1; high level 3.0–5.25 V, low level 0–1.0 V; maximum input frequency 100 kpps; voltage-output type (5 V DC, recommended MR-HDP01) or differential-output type (26LS31 or equivalent). Serial Absolute Synchronous Encoder Input: 1; applicable encoder MR-HENC; resolution 16384 pulses/rev. 5 V DC Current Consumption: 0.42 A. Mass: 0.22 kg. Connectors: CTRL (motion control and tracking signals), PULSER (manual pulse generator / incremental synchronous encoder), SY.ENC (serial absolute synchronous encoder). Indicators: PX0–PX1F signal input LEDs and TRA LED. Label: DC 12/24 V, 24 mA; UL, CE. Country of origin: Japan.

Dimensions and mounting:

Installs in the P I/O (motion slot) of the motion controller main base unit, not in a sequencer slot.

Compatibility and replacement:

For Mitsubishi A173UHCPU(-S1) (up to 4 A172SENC units, 32 axes), A172SHCPUN (1 unit, 8 axes) and A171SHCPUN (1 unit; uses the first 4 axes, PX0–PX0F). Manual pulse generator: Mitsubishi MR-HDP01. Serial absolute synchronous encoder: Mitsubishi MR-HENC, on MR-HSCBL□M cable (2, 5, 10, 20 or 30 m).

Frequently asked questions:

Which motion CPUs use the Mitsubishi A172SENC?

A173UHCPU(-S1) (up to 4 units), A172SHCPUN (1 unit) and A171SHCPUN (1 unit).

What does the A172SENC connect to?

Axis limit, STOP and DOG signals plus a tracking input on CTRL, a manual pulse generator such as the MR-HDP01 on PULSER, and an MR-HENC serial absolute synchronous encoder on SY.ENC.

What supply does the input circuit use?

12/24 V DC (10.2–26.4 V DC) for the signal inputs, and 0.42 A from the 5 V DC system supply.
