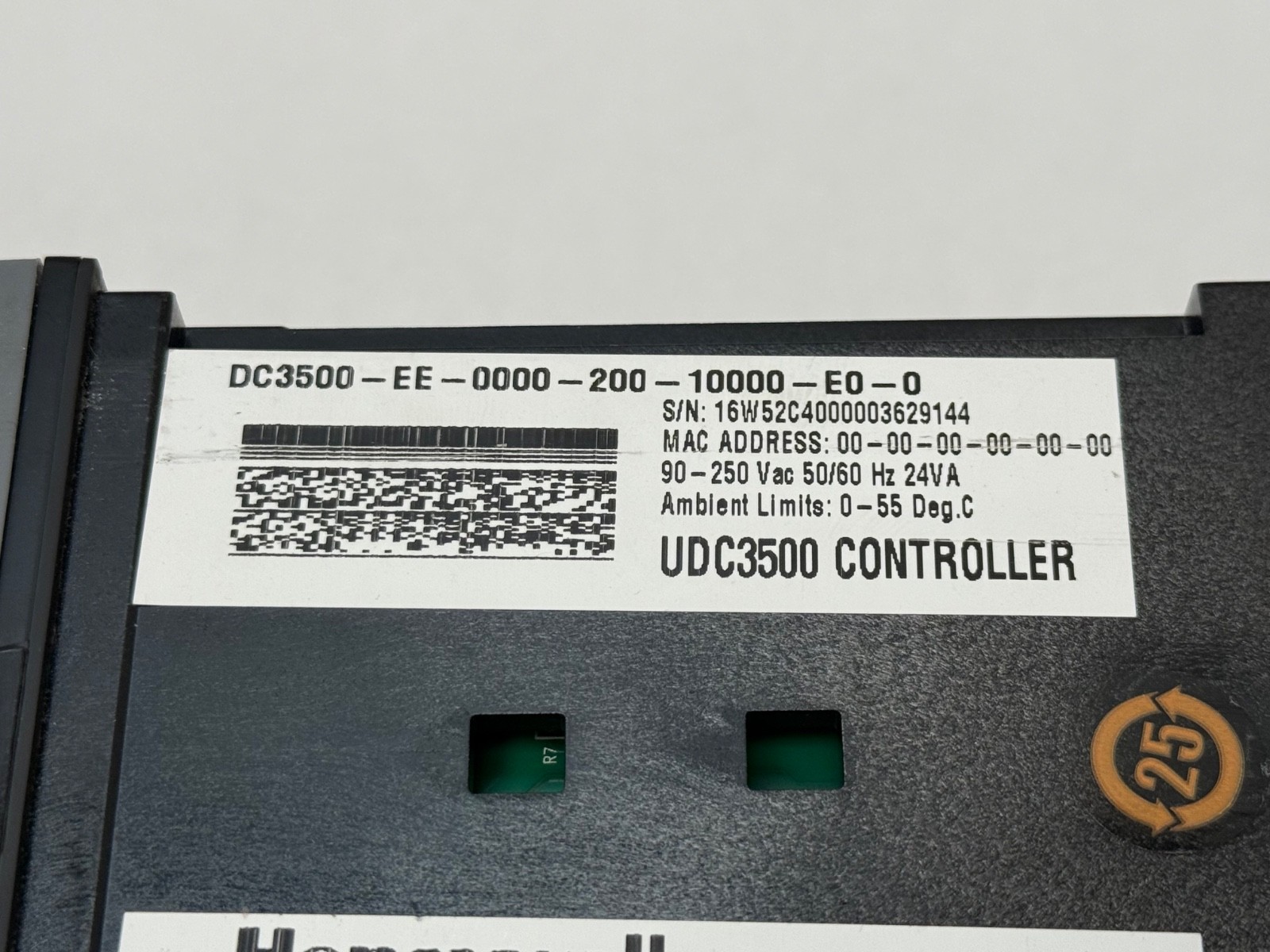

Honeywell DC3500-EE-0000-200-10000-E0-0 UDC3500 1/4 DIN single-loop controller, 90-264 Vac, four 5 A Form C relays plus current output. CE, UL and CSA approved.
List Price
$1,665.35
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Honeywell |
|---|---|
| MPN | DC3500-EE-0000-200-10000-E0-0 |
| Model | DC3500EE000020010000E00 |
| Base Number | DC3500 |
|---|---|
| Industry Terms | PID controller, temperature controller, process controller, 1/4 DIN controller |
| Application Types | Temperature, pressure, flow and level process control |
| Input Voltage | 90-264 V AC |
| Controller Platform | Honeywell UDC3500 |
| Current Rating | 5 A (relay outputs) |
| Mpn Variants | DC3500-EE-0000-200-10000-E0-0, DC3500EE000020010000E00, DC3500 EE 0000 200 10000 E0 0, UDC3500 |
| Compatible With Replaces | Honeywell UDC3300 (predecessor) |
| Additional Attributes | Input accuracy: ±0.10% FS; Sampling: 166 ms; Case depth: 148 mm; Approvals: CE, UL, CSA; Infrared configuration port |
| Series | UDC3500 |
| Type | Universal Digital Controller |
| Ip Rating | IP66 (front face, with 4 screws) |

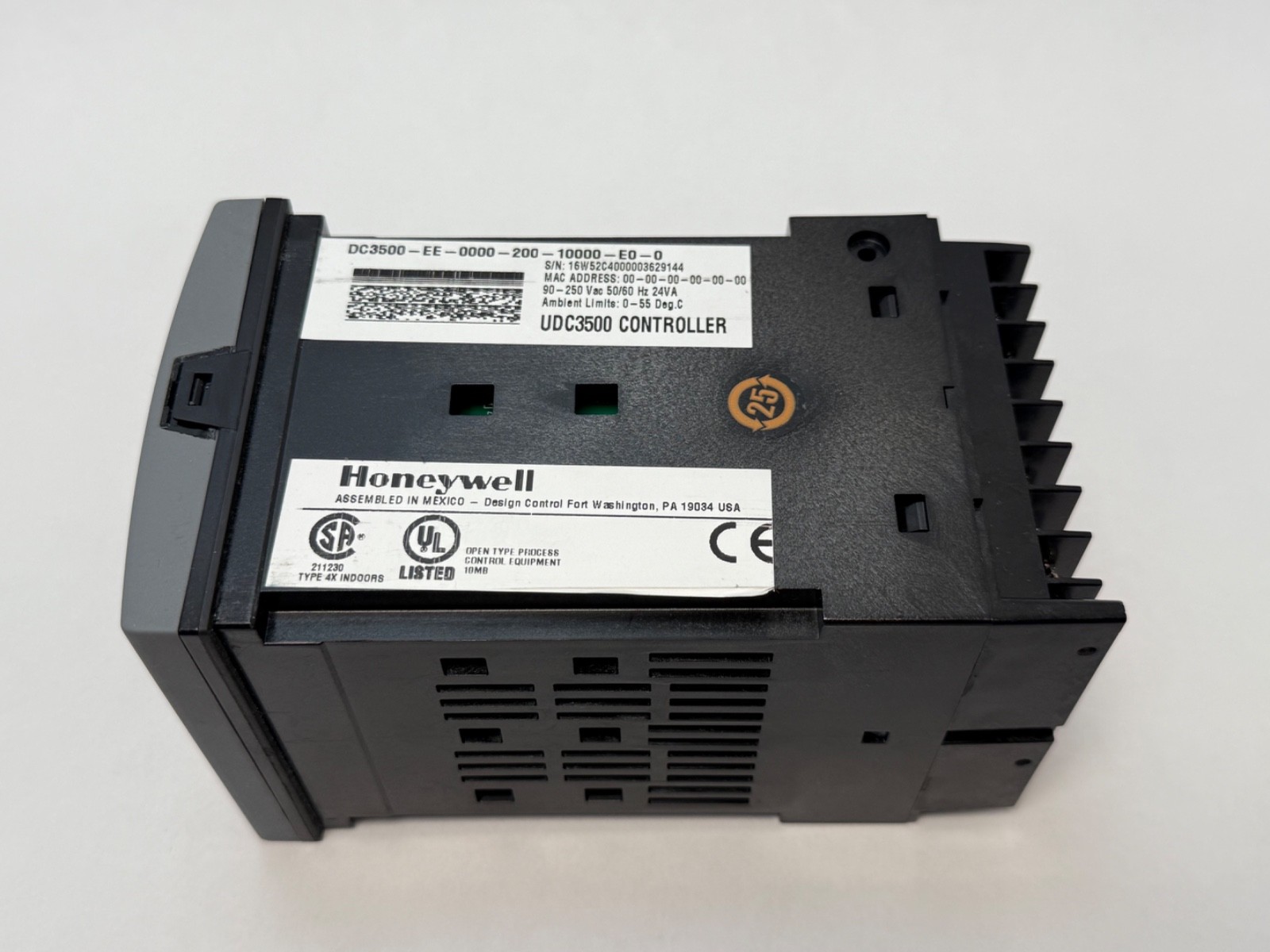

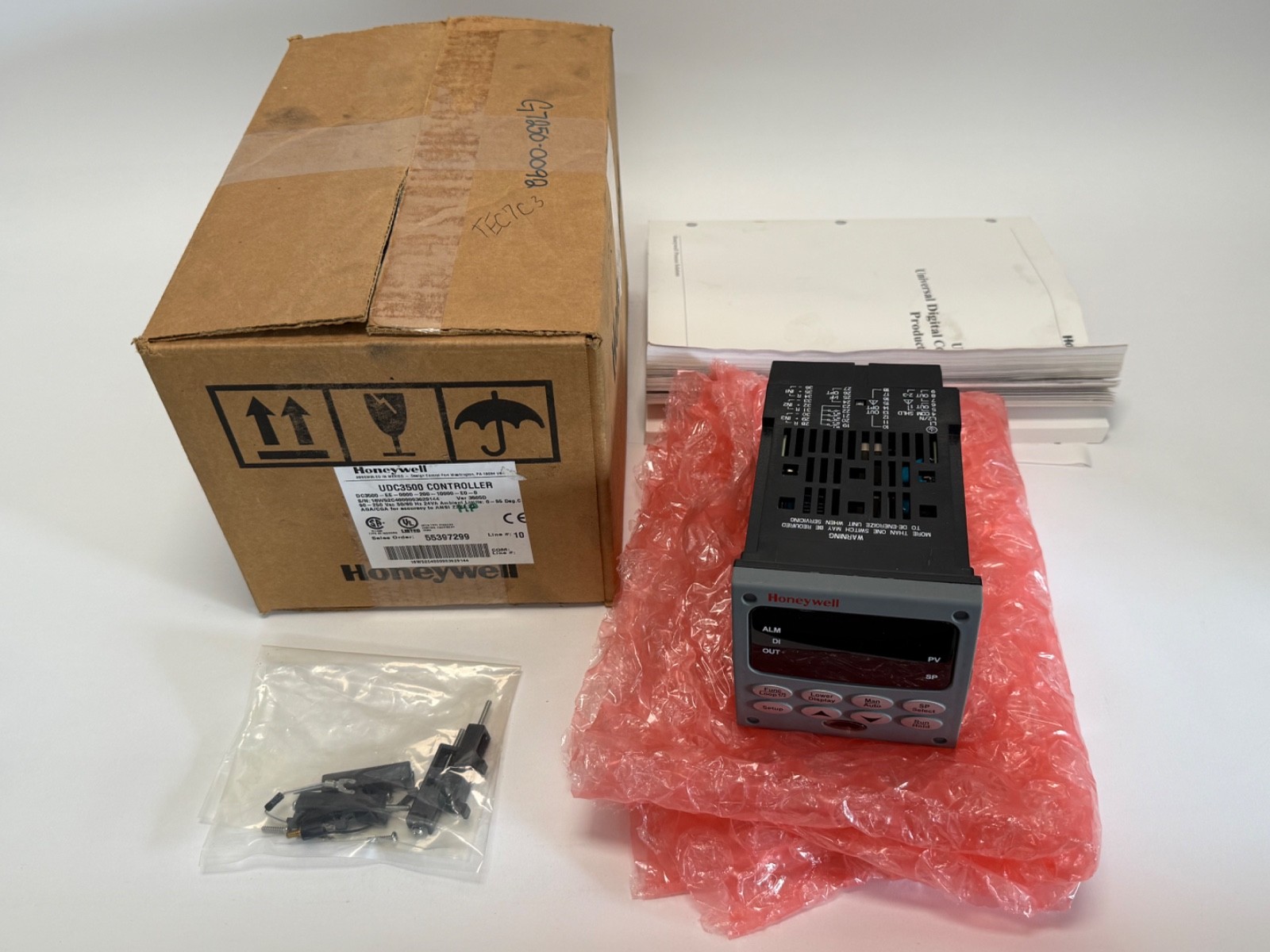

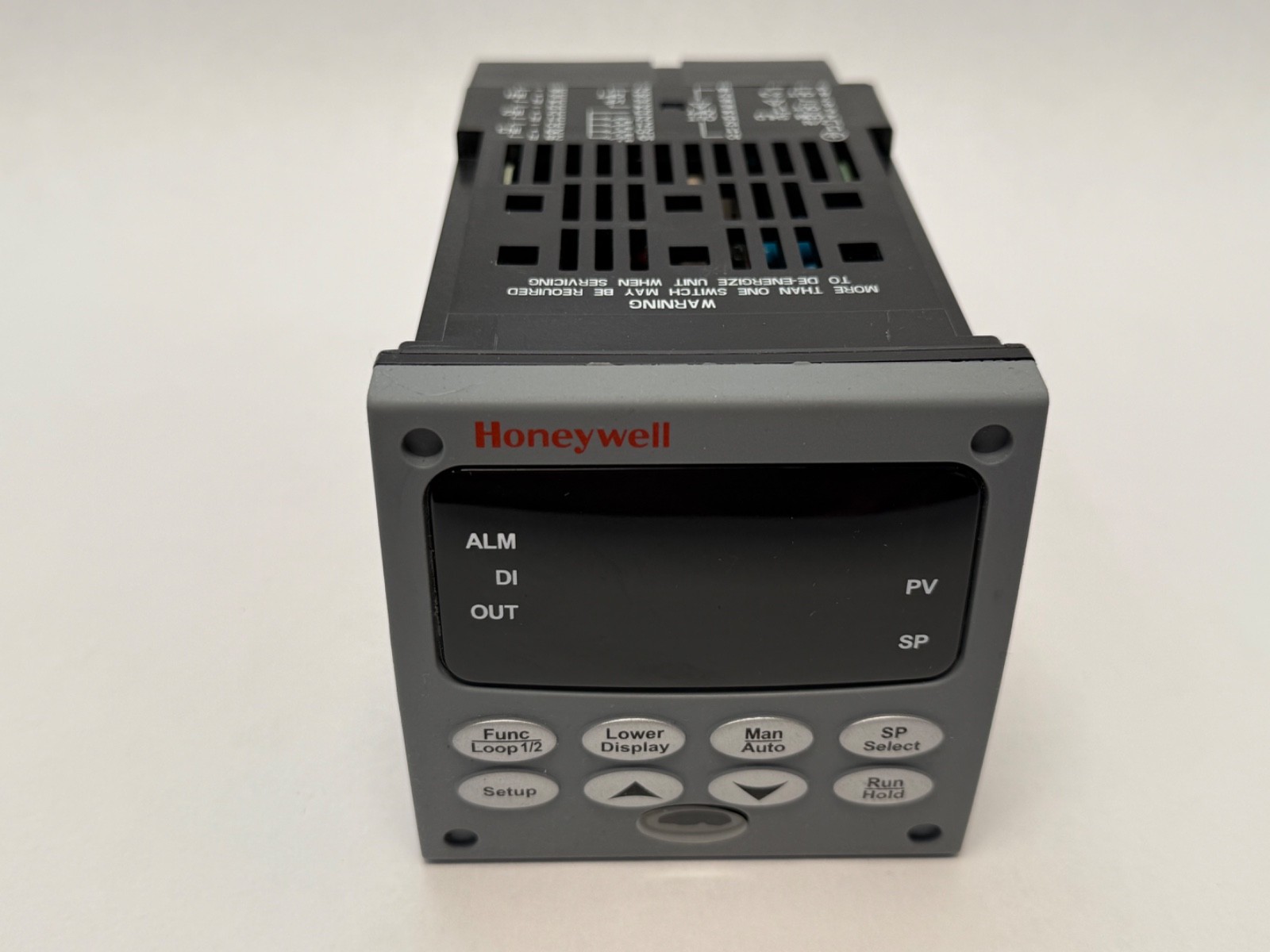

Honeywell DC3500-EE-0000-200-10000-E0-0 is a UDC3500 Universal Digital Controller, a 1/4 DIN panel-mount single-loop PID process controller. Series: UDC3500. Input Voltage: 90 to 264 Vac, 50/60 Hz. Control Loops: 1. Analog Inputs: 1 universal. Outputs: Current Output #1 plus four electromechanical relays, 5 A Form C. Approvals: CE, UL and CSA. Front Face Rating: NEMA 4X / IP66 with 4 screws.
DC3500 — UDC3500 controller for 90 to 264 Vac power, with Current Output #1 (4 to 20 mA or 0 to 20 mA).
EE — Output #2: electromechanical relay, 5 A Form C. Relay Outputs #3, #4 and #5: three electromechanical relays, 5 A Form C.
0000 — no communications option, standard functions including Accutune, single loop of control, no real-time clock.
200 — Input 1 accepts thermocouple, RTD, mV, 0–5 V, 1–5 V, 0–20 mA and 4–20 mA. Inputs 2 and 3: none.

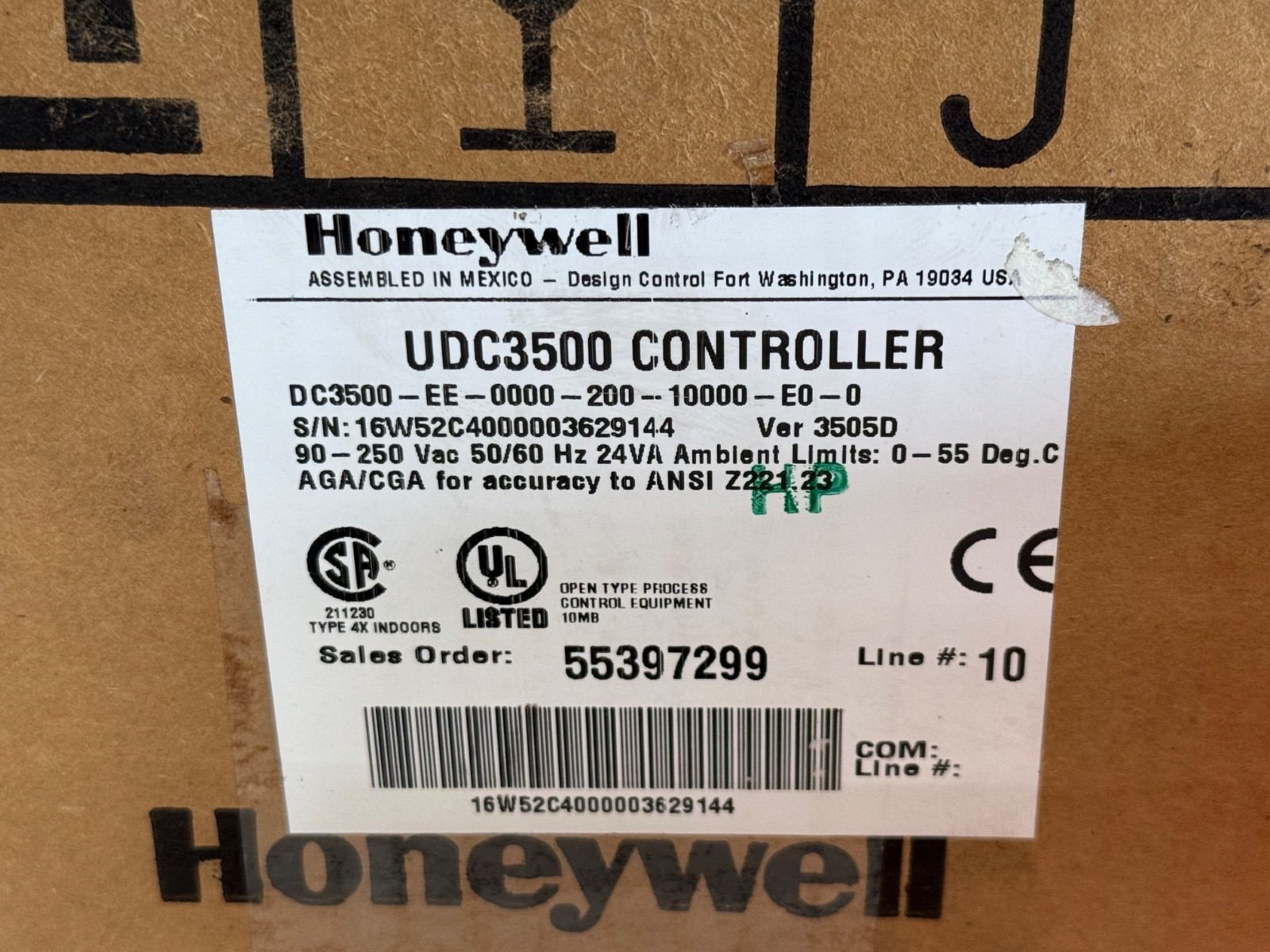

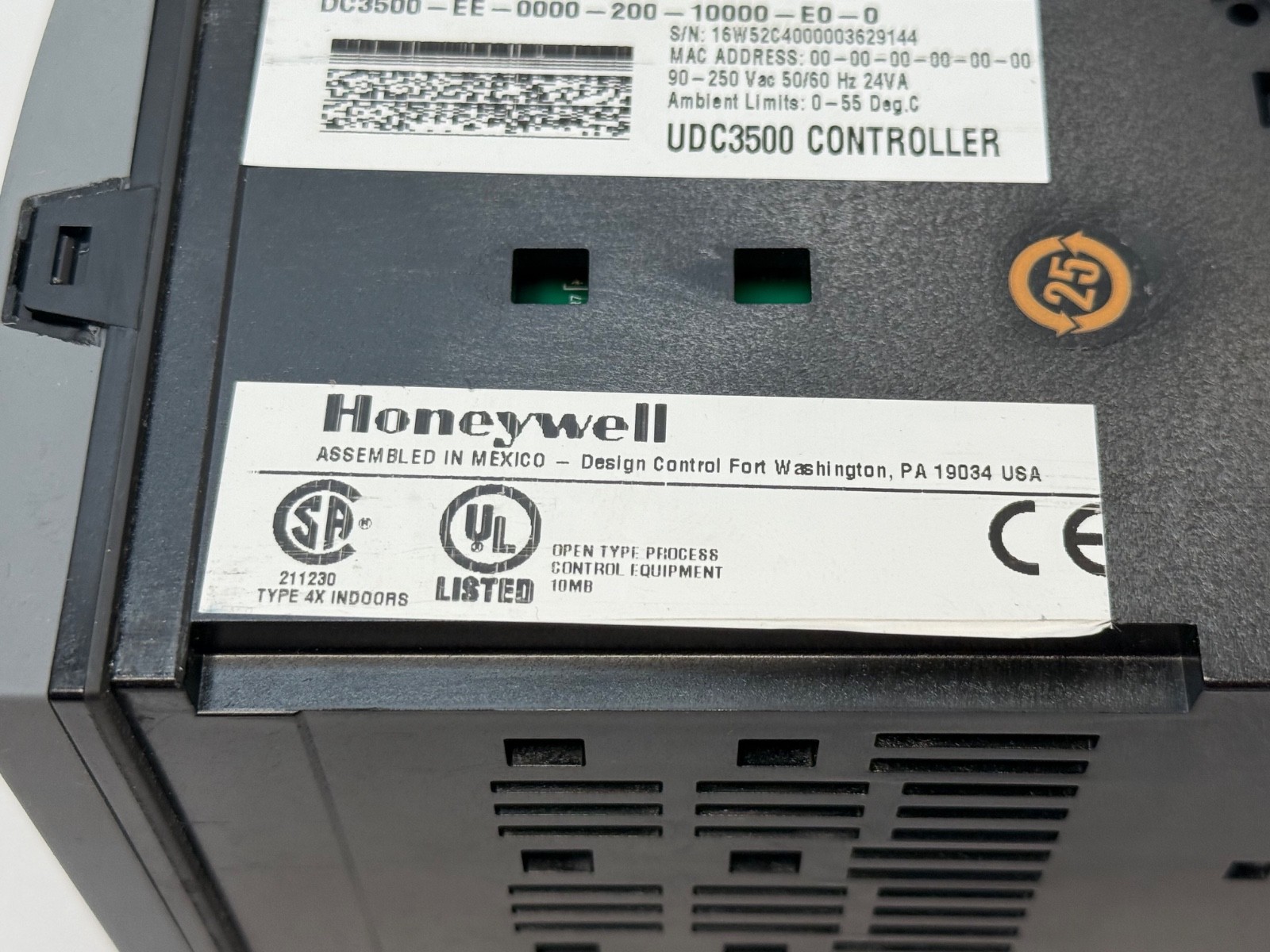

10000 — CE, UL and CSA approvals; no tag, no custom calibration.

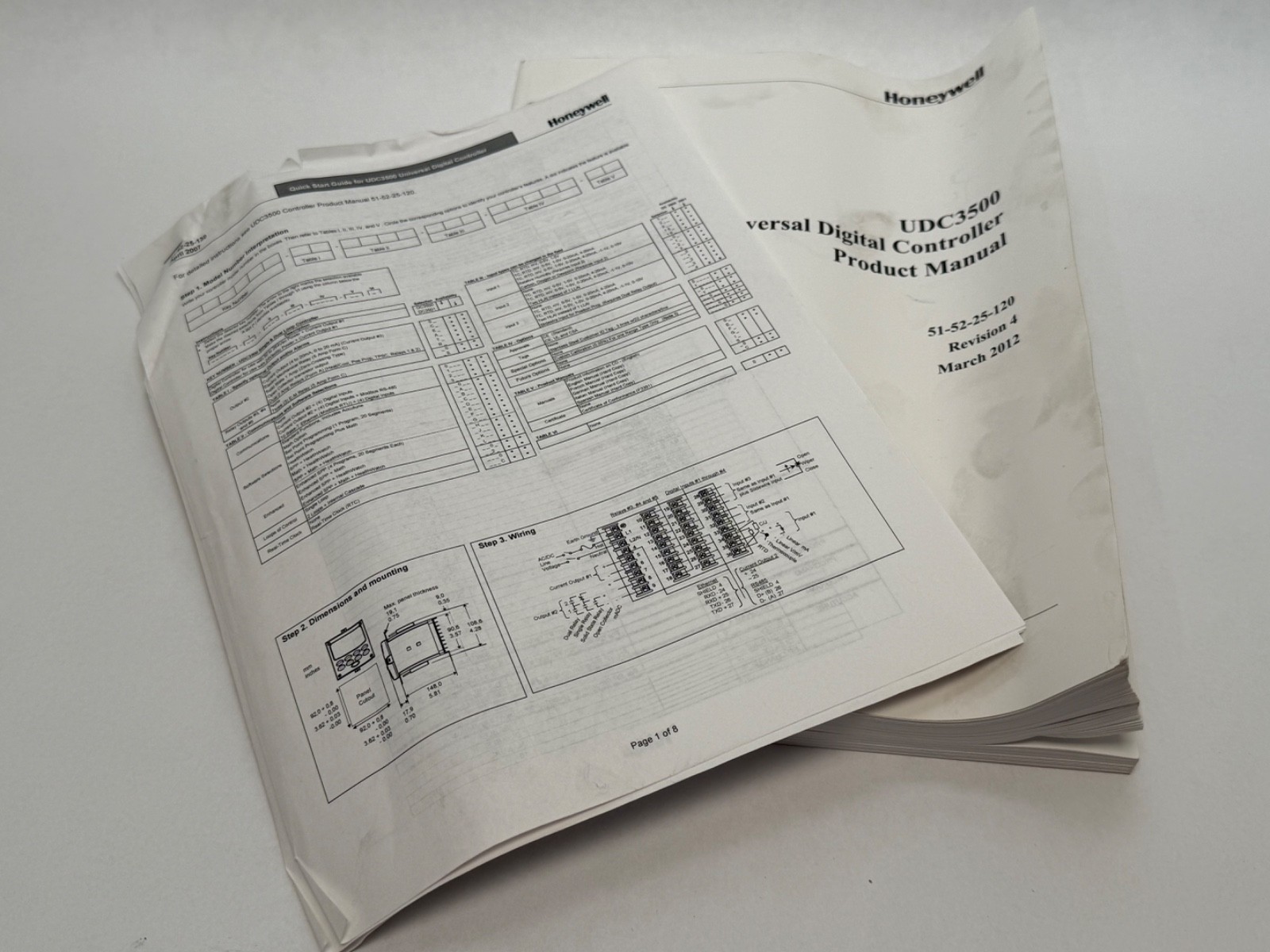

E0 — English hard-copy manual, no certificate of conformance.
0 — Table VI, none.
Input Accuracy: ±0.10% of full scale typical. Input Resolution: 16-bit typical. Sampling Rate: 166 ms (six times per second). Current Output: 0 to 21 mA, isolated, 0 to 1000 ohm load. The four 5 A relays serve as control or alarm outputs; up to four alarms, each with two setpoints. Accutune III tuning with fuzzy-logic overshoot suppression is standard. An infrared port is standard for configuration with Honeywell Process Instrument Explorer software.

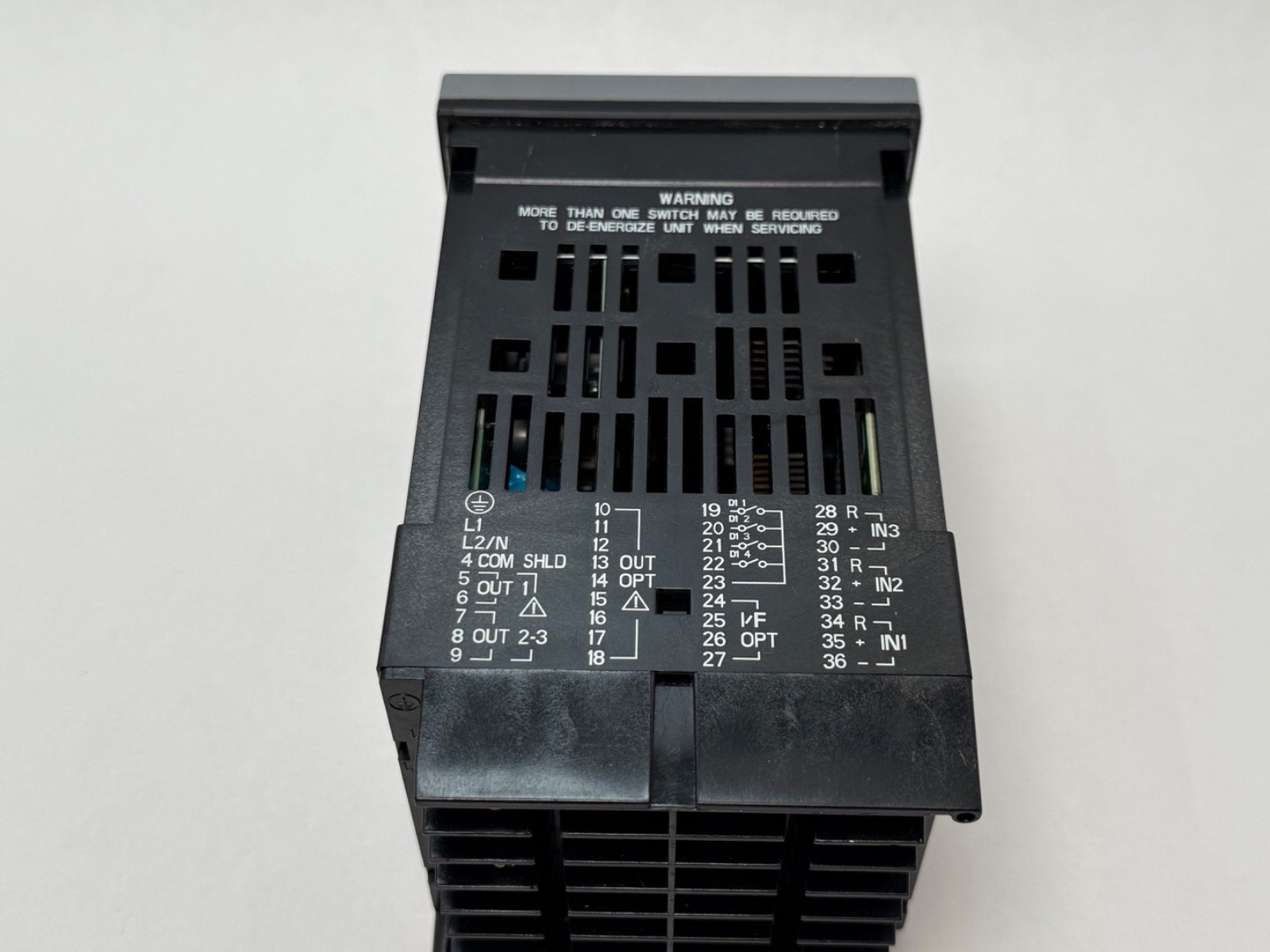

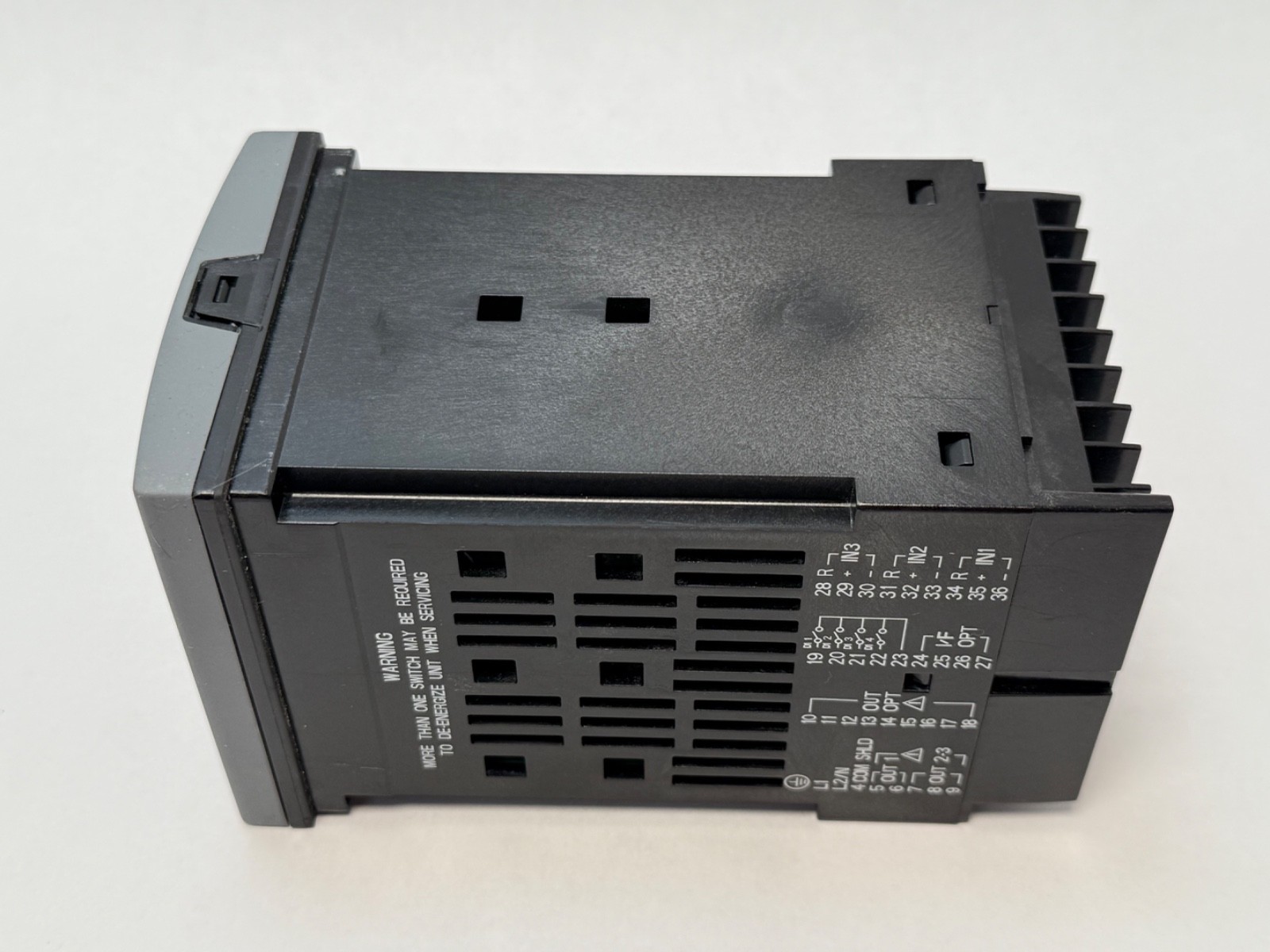

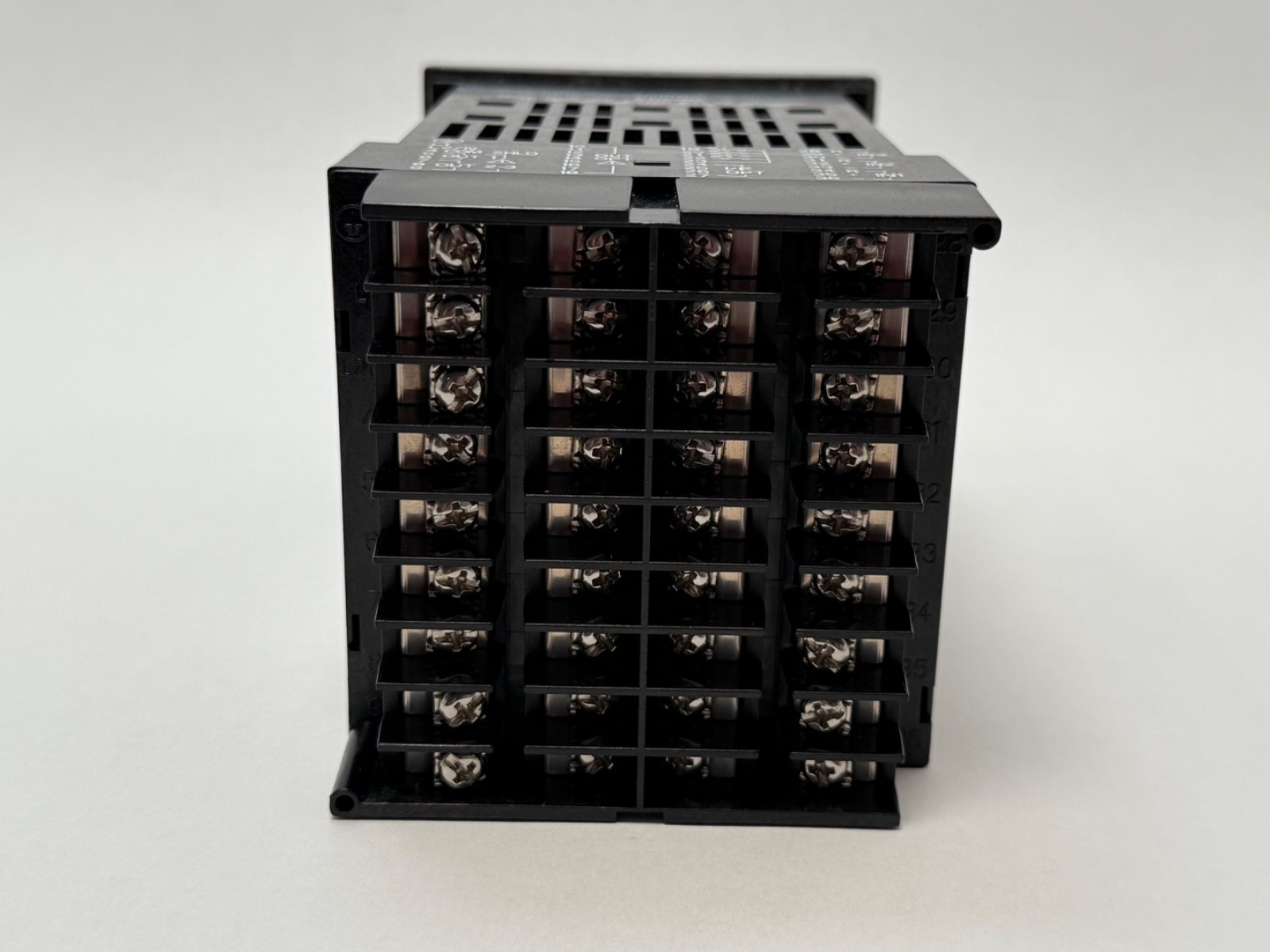

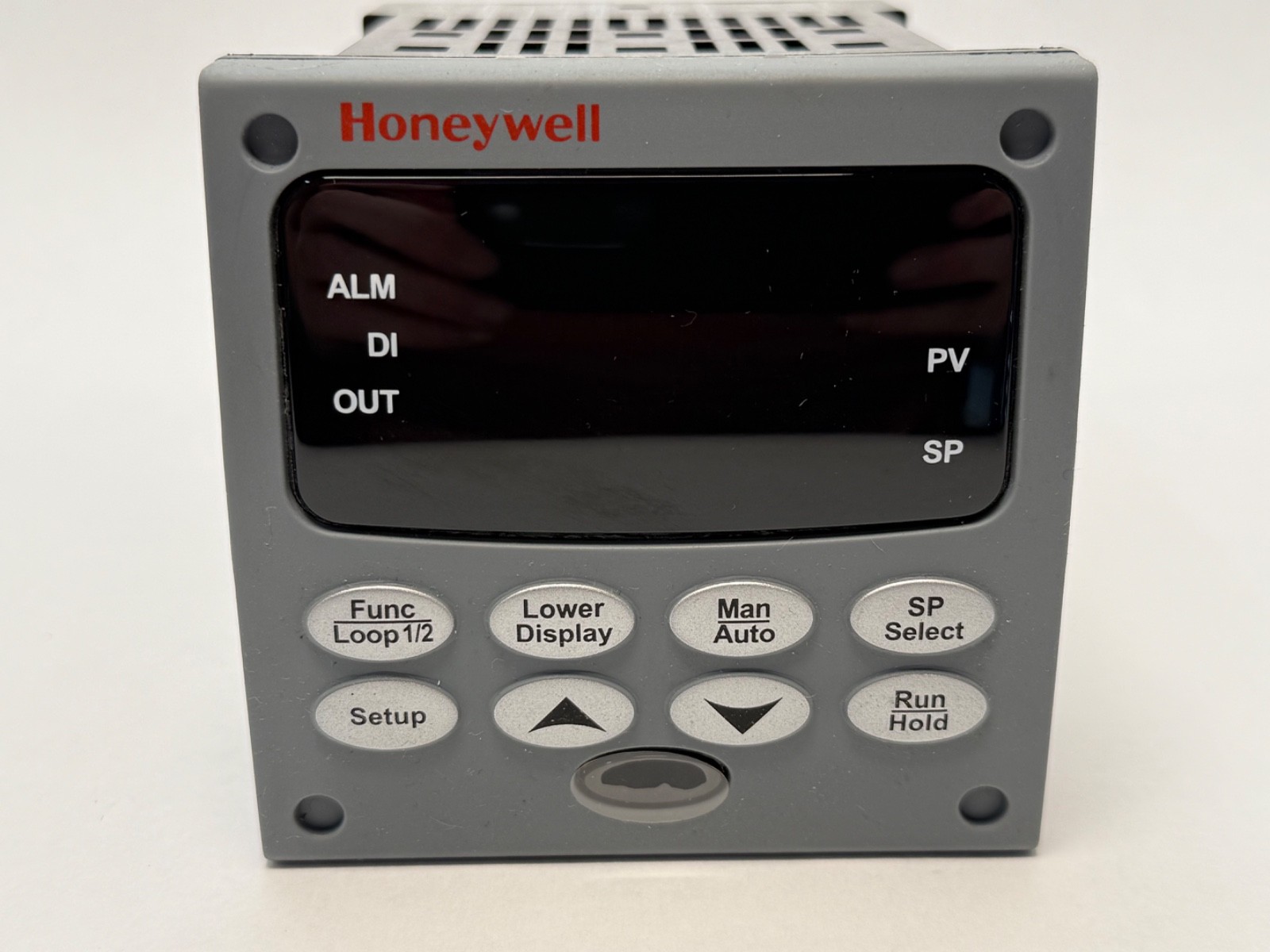

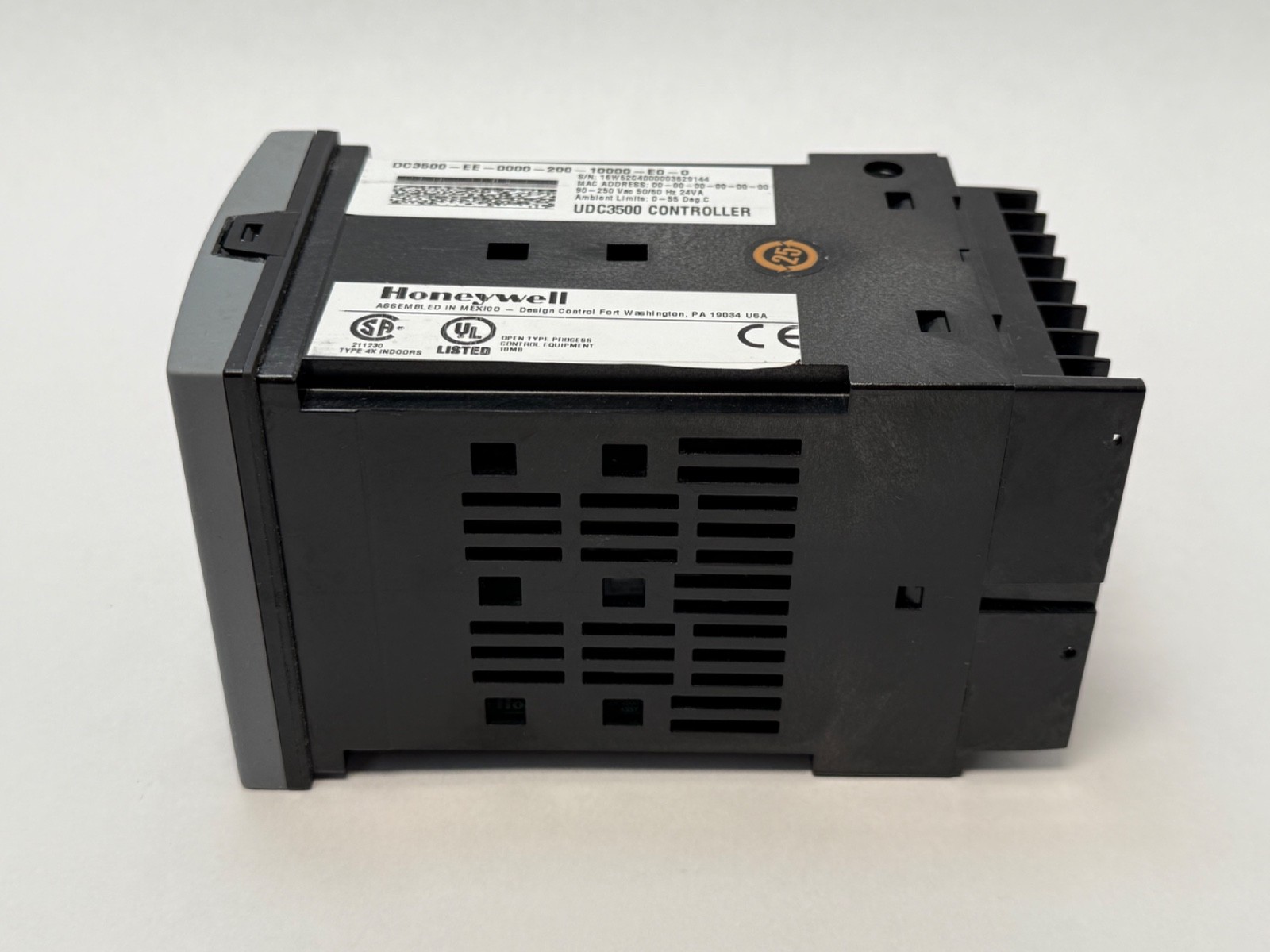

Panel Cutout: 1/4 DIN. Case Depth: 148 mm (5.8 in). Case: black plastic, dark grey elastomer bezel, plug-in chassis, rear screw terminals. Front Bezel: NEMA 3R / IP54, or NEMA 4X / IP66 with 4 screws.
The UDC3500 succeeded the Honeywell UDC3300. Features are field upgradeable with Honeywell kits, including Math (50004636-501), SPP (50004636-502), HealthWatch (50004636-503) and Two Loops/Cascade (50004636-504).
