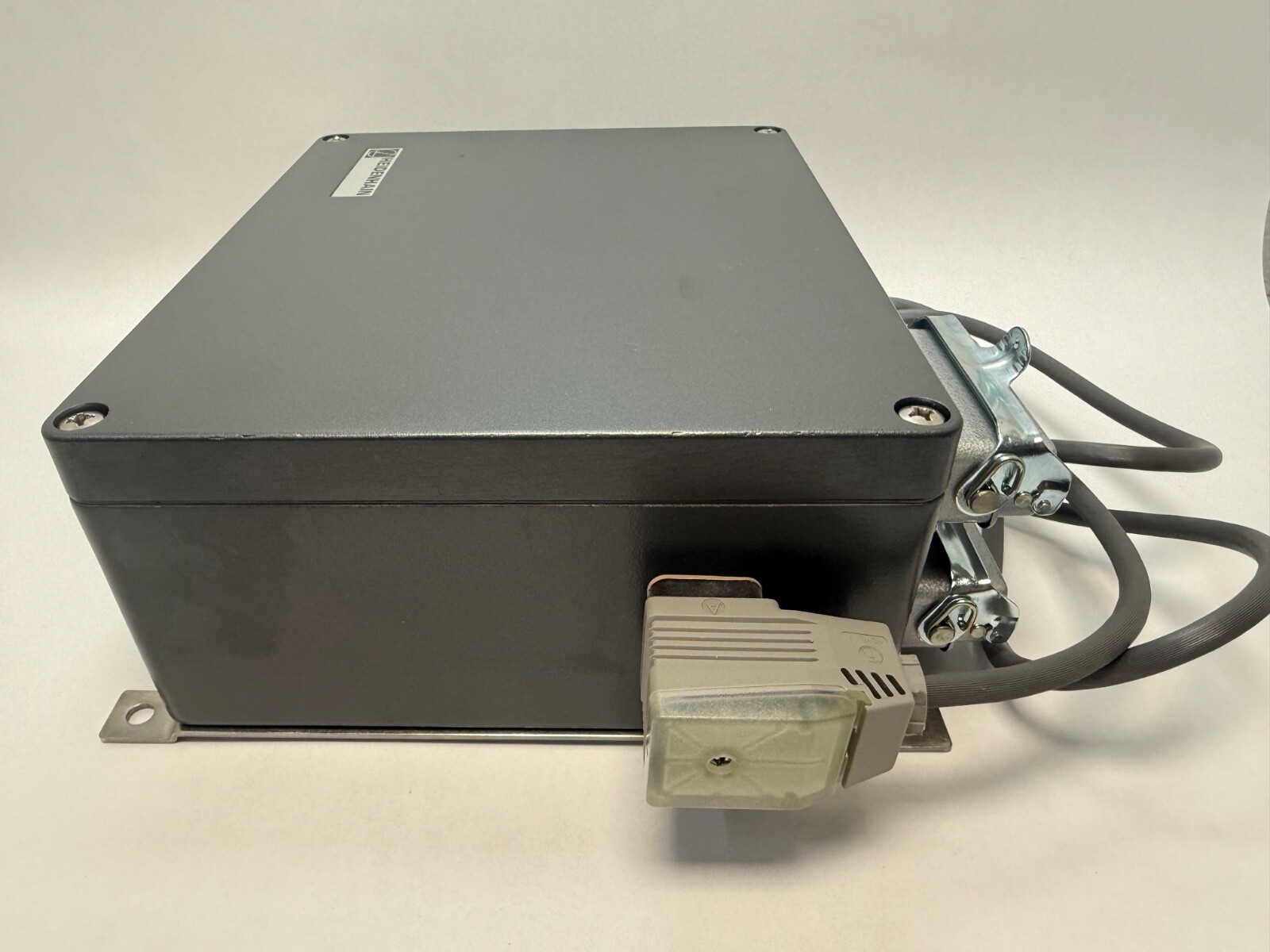

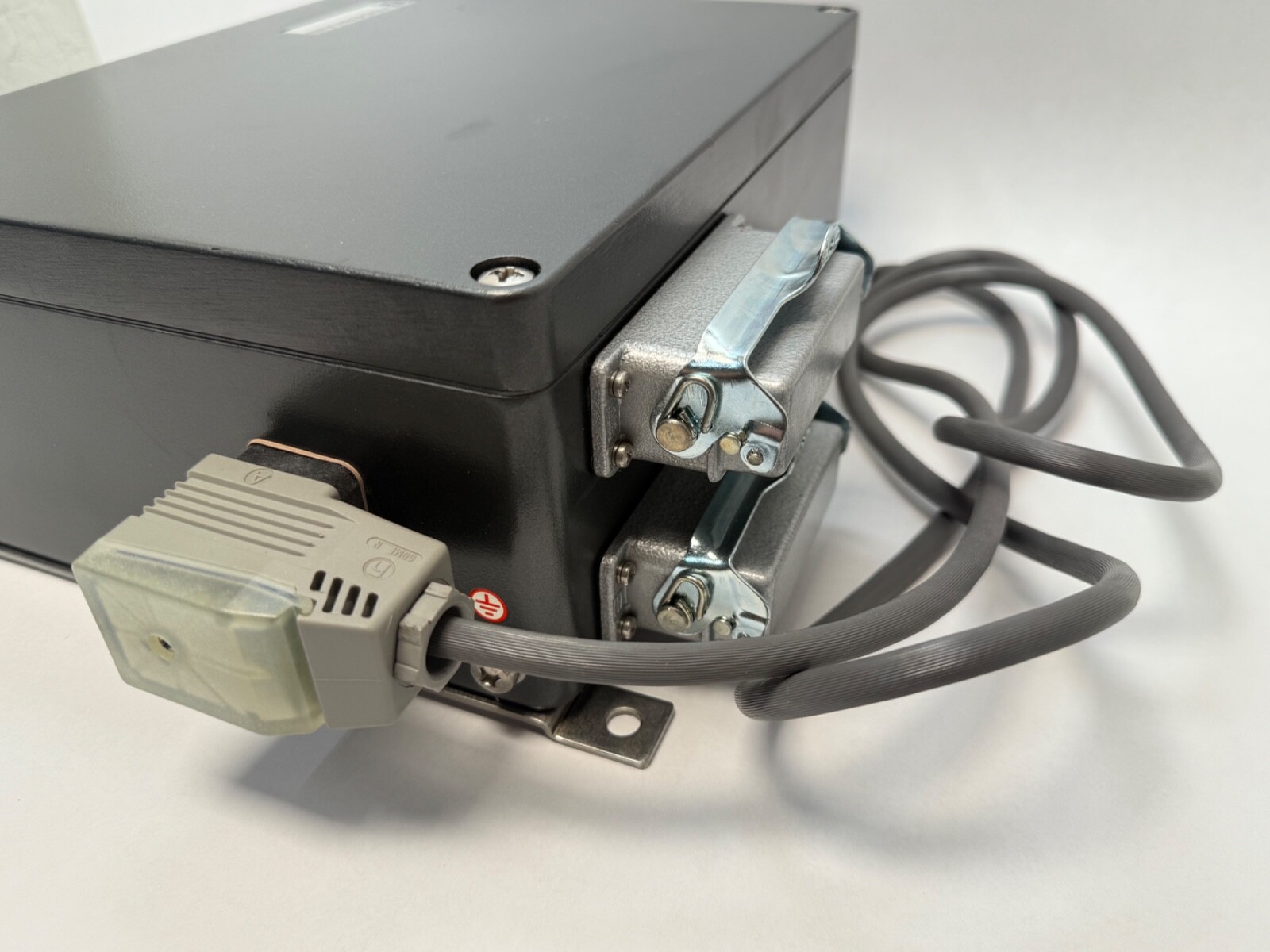

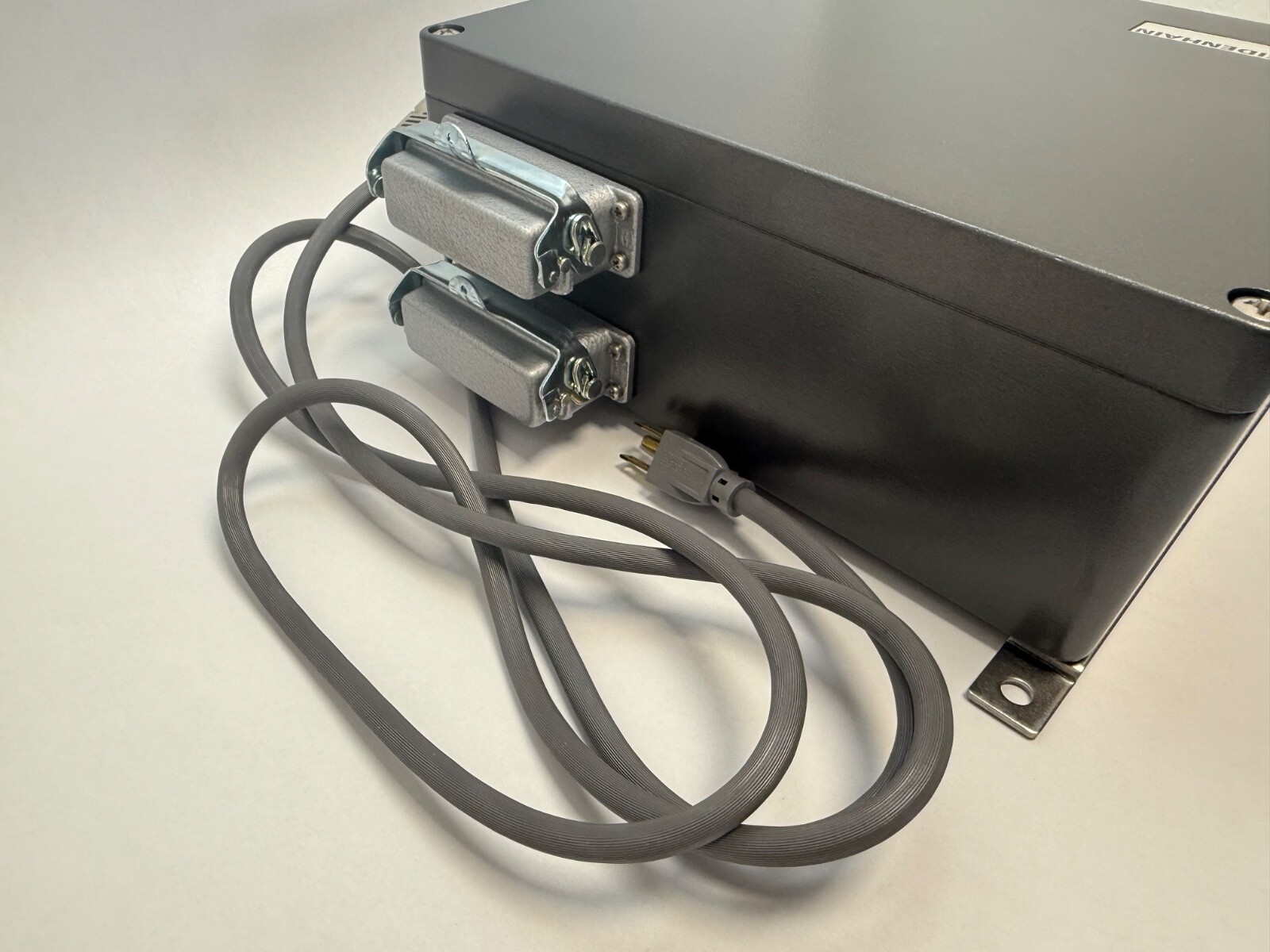

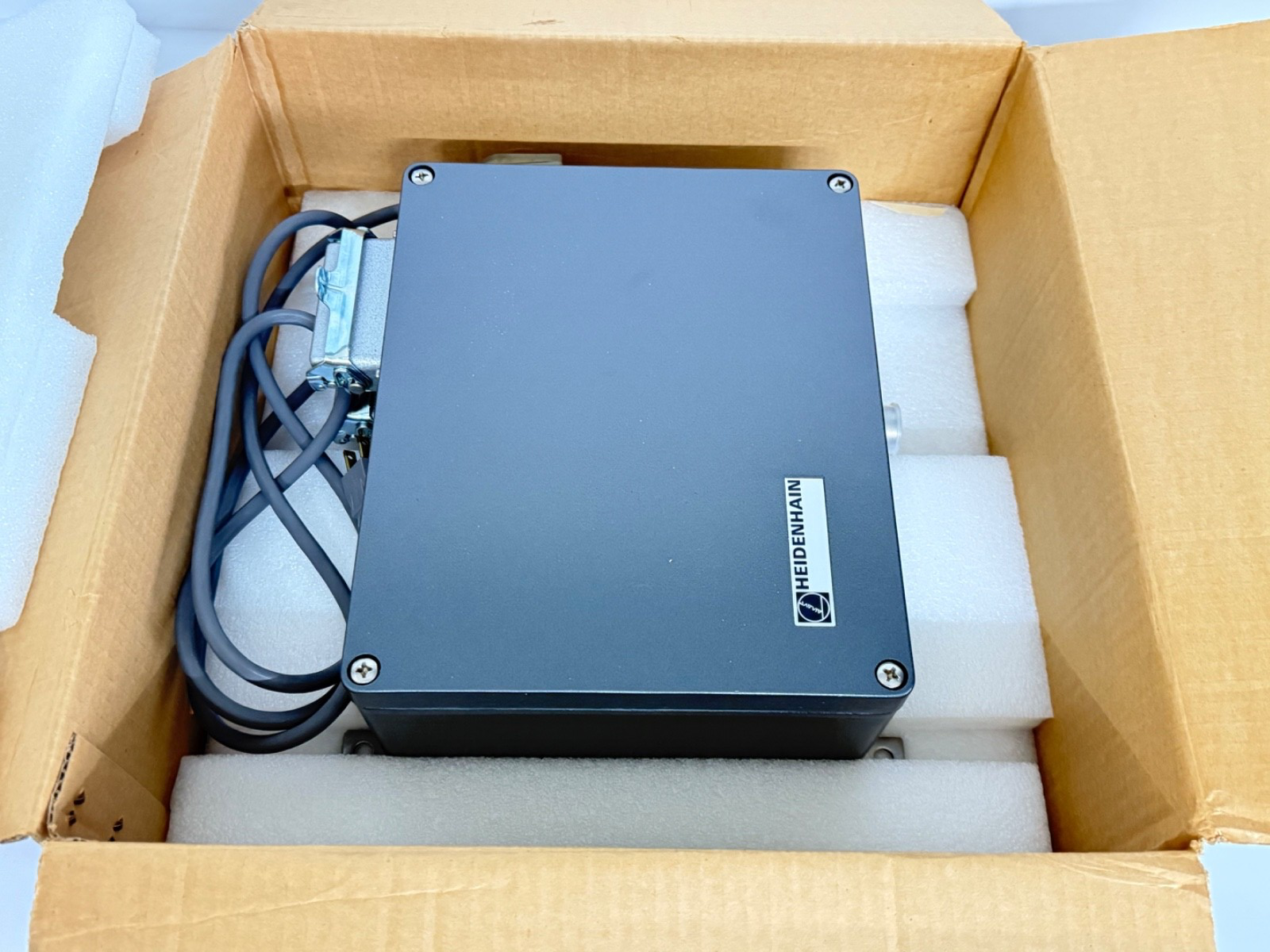

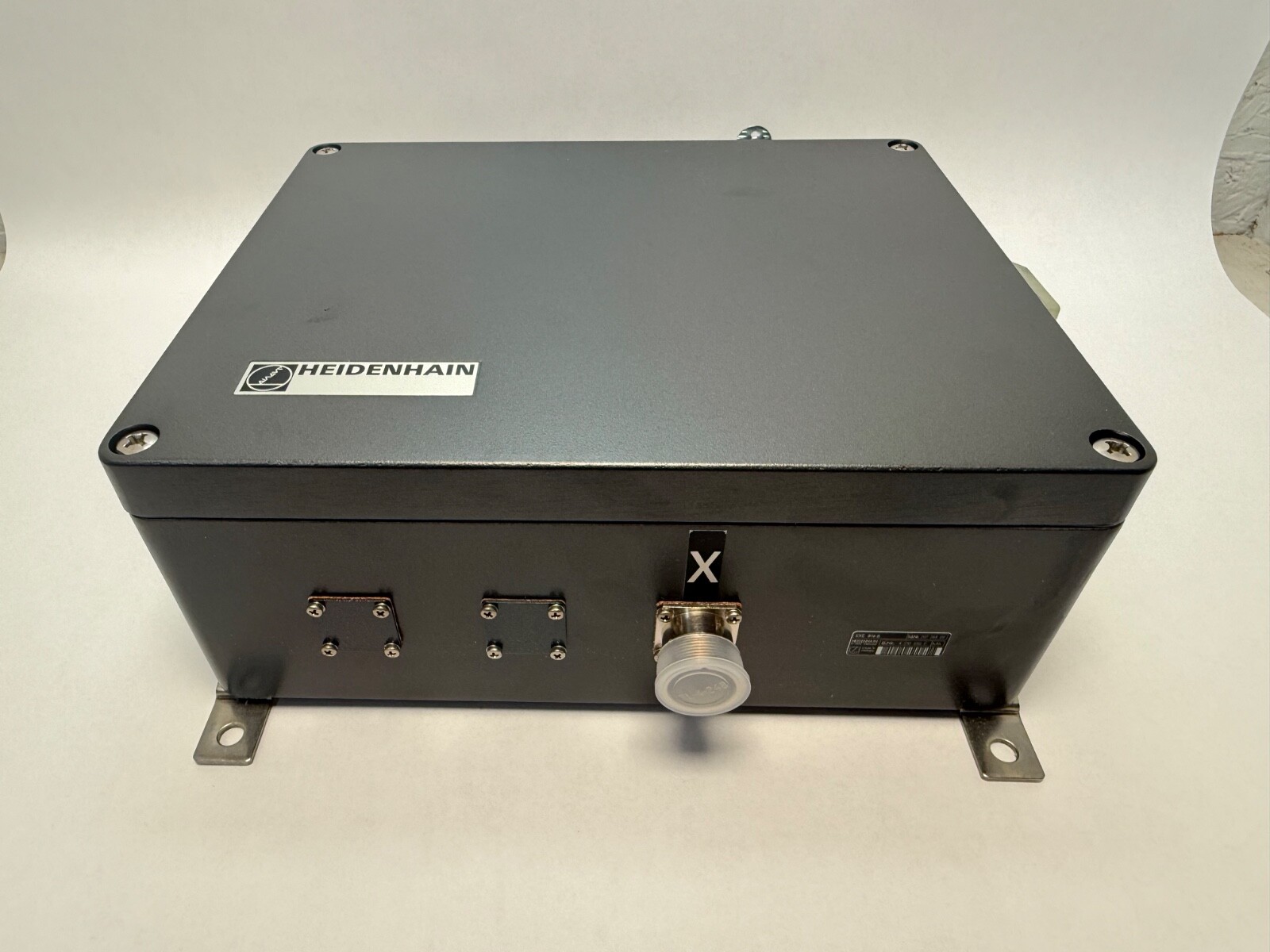

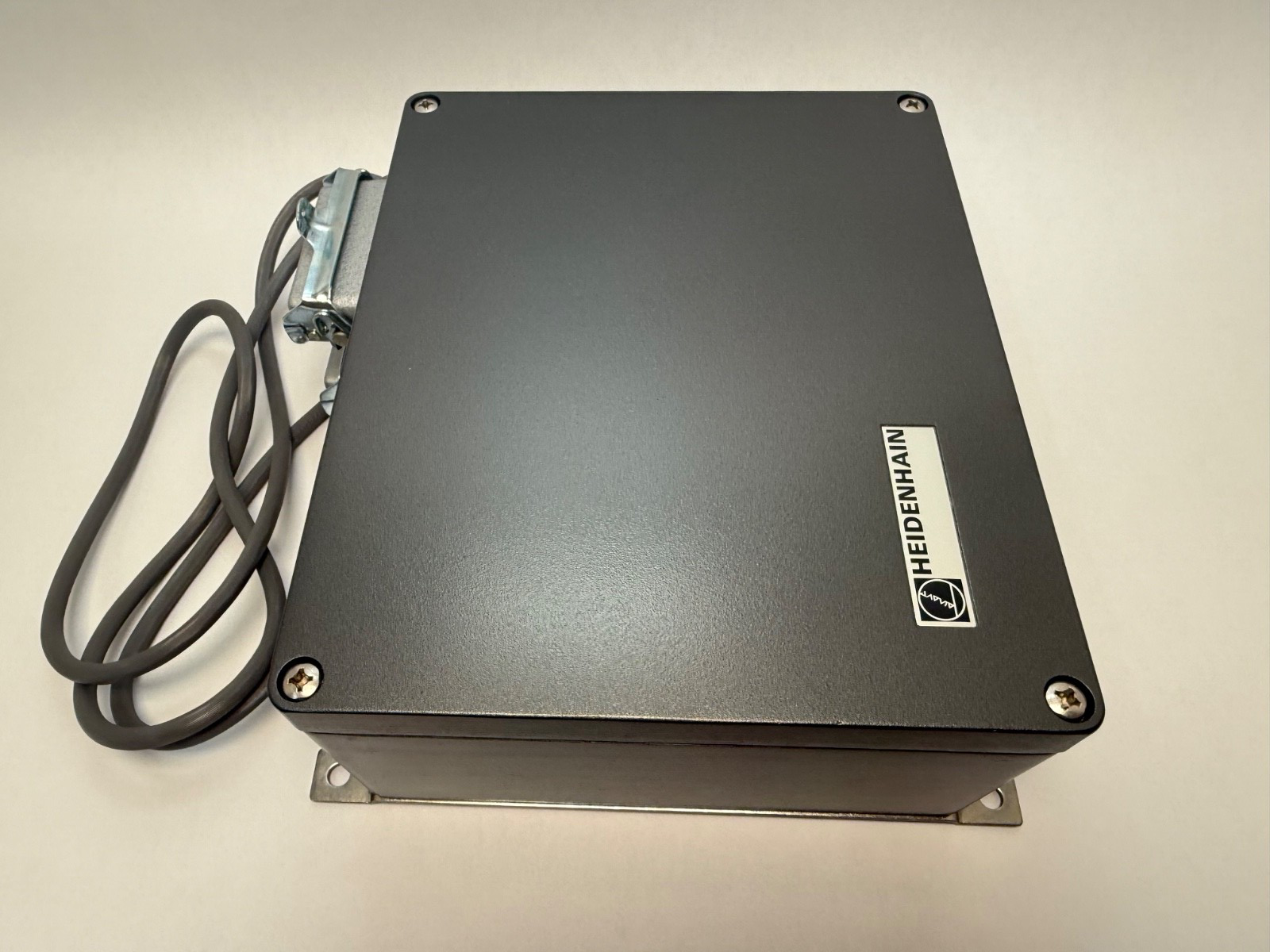

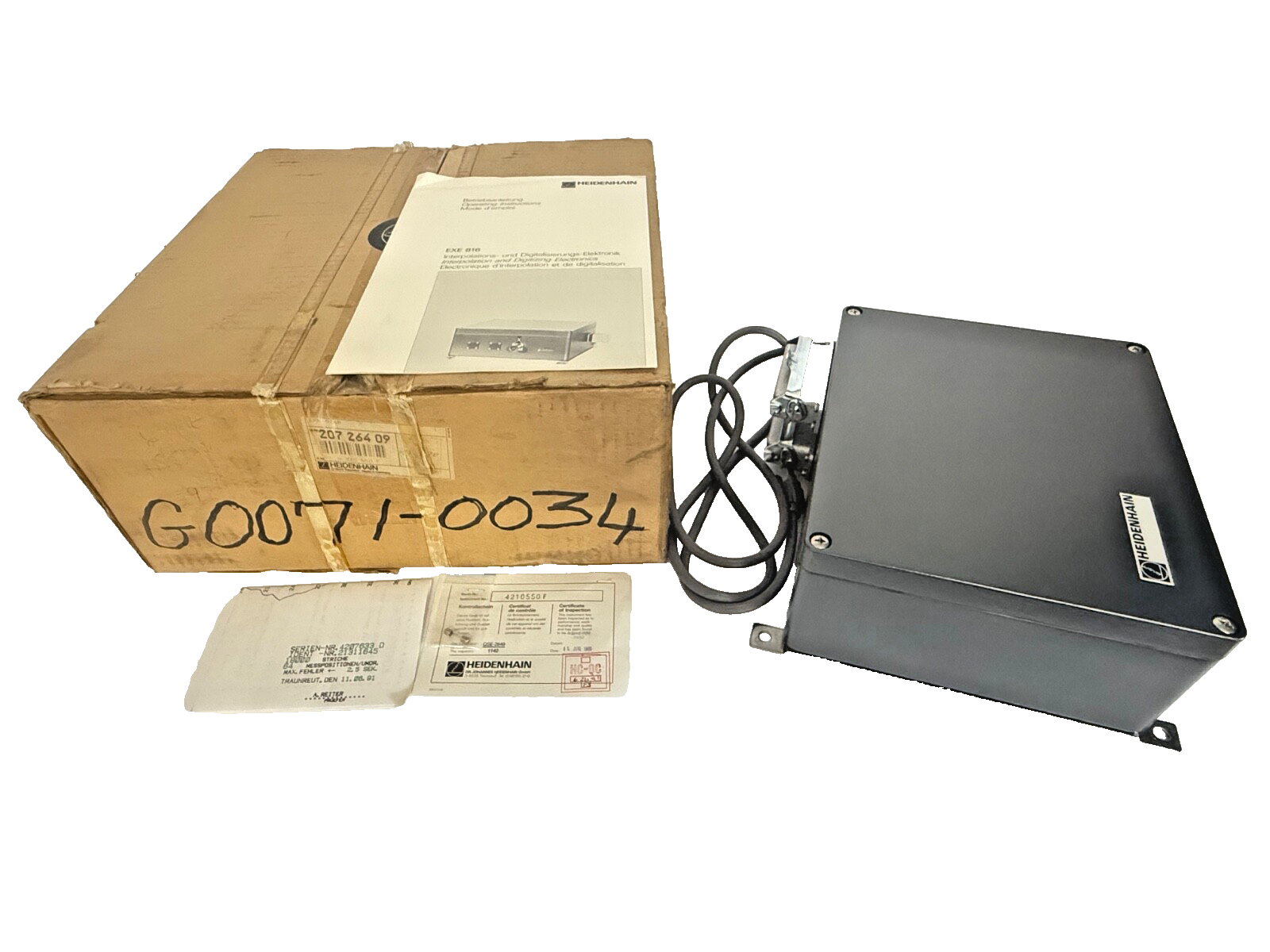

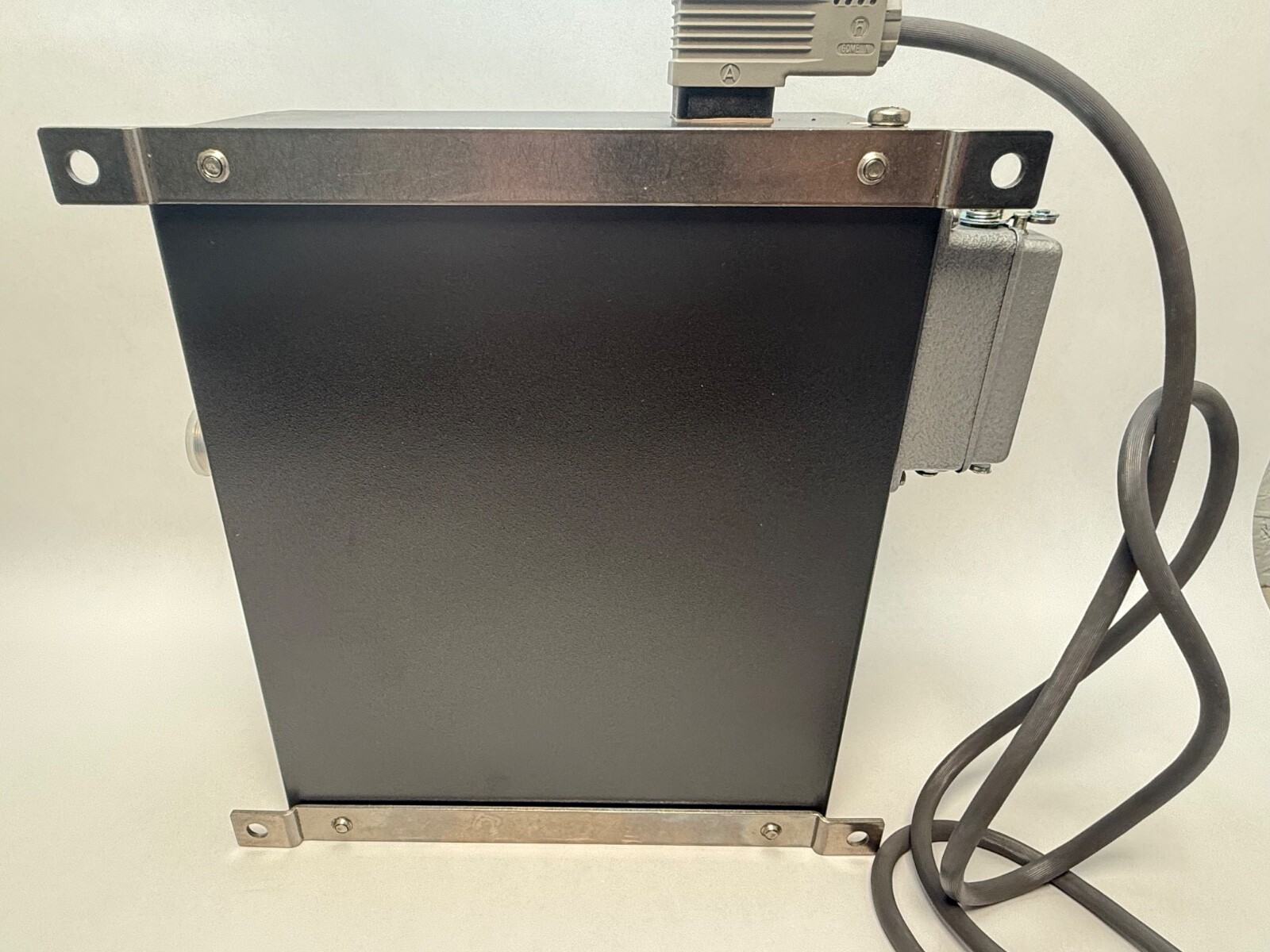

Heidenhain 207264-09 EXE 816 interpolation and digitizing electronics, 25-fold, sinusoidal encoder input to TTL square-wave output, 220/115 V mains.
List Price
$601.24
3 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Heidenhain |
|---|---|
| MPN | 207264-09 EXE 816 |
| Model | 207264-09 EXE 816 |
| Type | Interpolation and Digitizing Electronics |
|---|---|
| Base Number | EXE 816 |
| Industry Terms | Interpolation electronics; digitizing electronics; pulse shaping electronics; signal converter; encoder interpolator; Interpolations- und Digitalisierungs-Elektronik |
| Common Misspellings | Heidenhein; Heidenhan; EXE816 interpolater |
| Input Voltage | 220 V AC or 115 V AC, selectable |
| Output Type | TTL square-wave (Ua1, Ua2, Ua0, fault detection) |
| Analog Digital | Analog input, digital output |
| Number Of Ports | 2 outputs |
| Number Of Pins | 25 (output sockets) |
| Minimum Operating Temperature | 0 °C (32 °F) |
| Maximum Operating Temperature | 40 °C (104 °F) |
| Mpn Variants | 207264-09; 207 264 09; 207-264-09; 20726409; EXE 816; EXE816; EXE-816 |
| Additional Attributes | Interpolation: 25-fold; Maximum Input Frequency: 10 kHz; Power Consumption: approx. 40 VA; Storage Temperature: -30 to 70 °C; Input Cable Length: max. 20 m; Output Cable Length: max. 50 m; Included: mains cable 2.7 m |
| Current Type | AC |
| Item Weight | approx. 7 kg (15.5 lb) |
| Application | Interpolation of HEIDENHAIN encoder signals for NC controls and counters |
| Ac Frequency Rating | 50-60 Hz |
Heidenhain EXE 816, ID 207264-09, is an interpolation and digitizing electronics unit. Type: Interpolation and Digitizing Electronics. It amplifies the two sinusoidal scanning signals of a HEIDENHAIN encoder, interpolates them 25-fold and converts them into square-wave pulse trains for subsequent electronics such as an NC control.

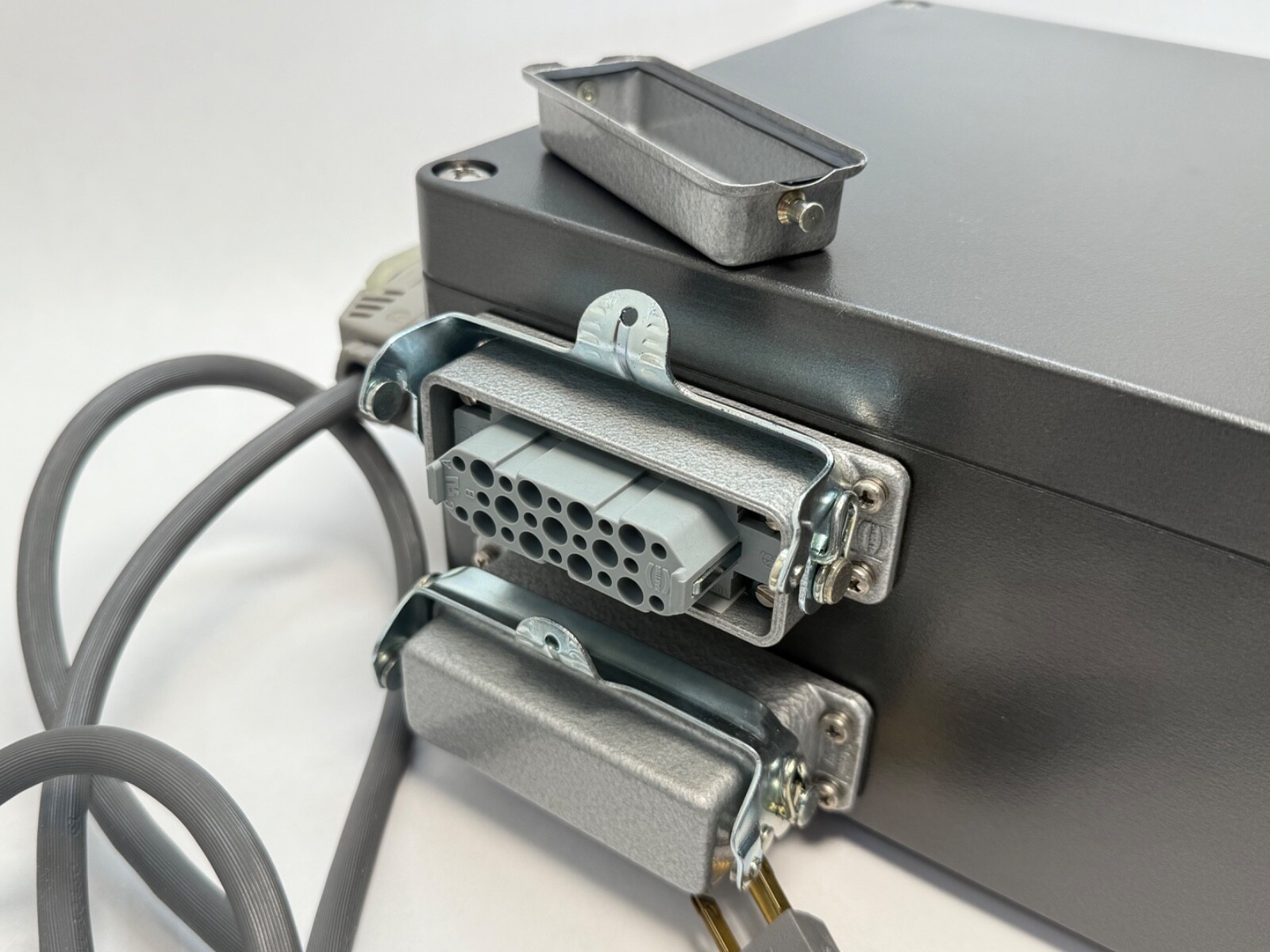

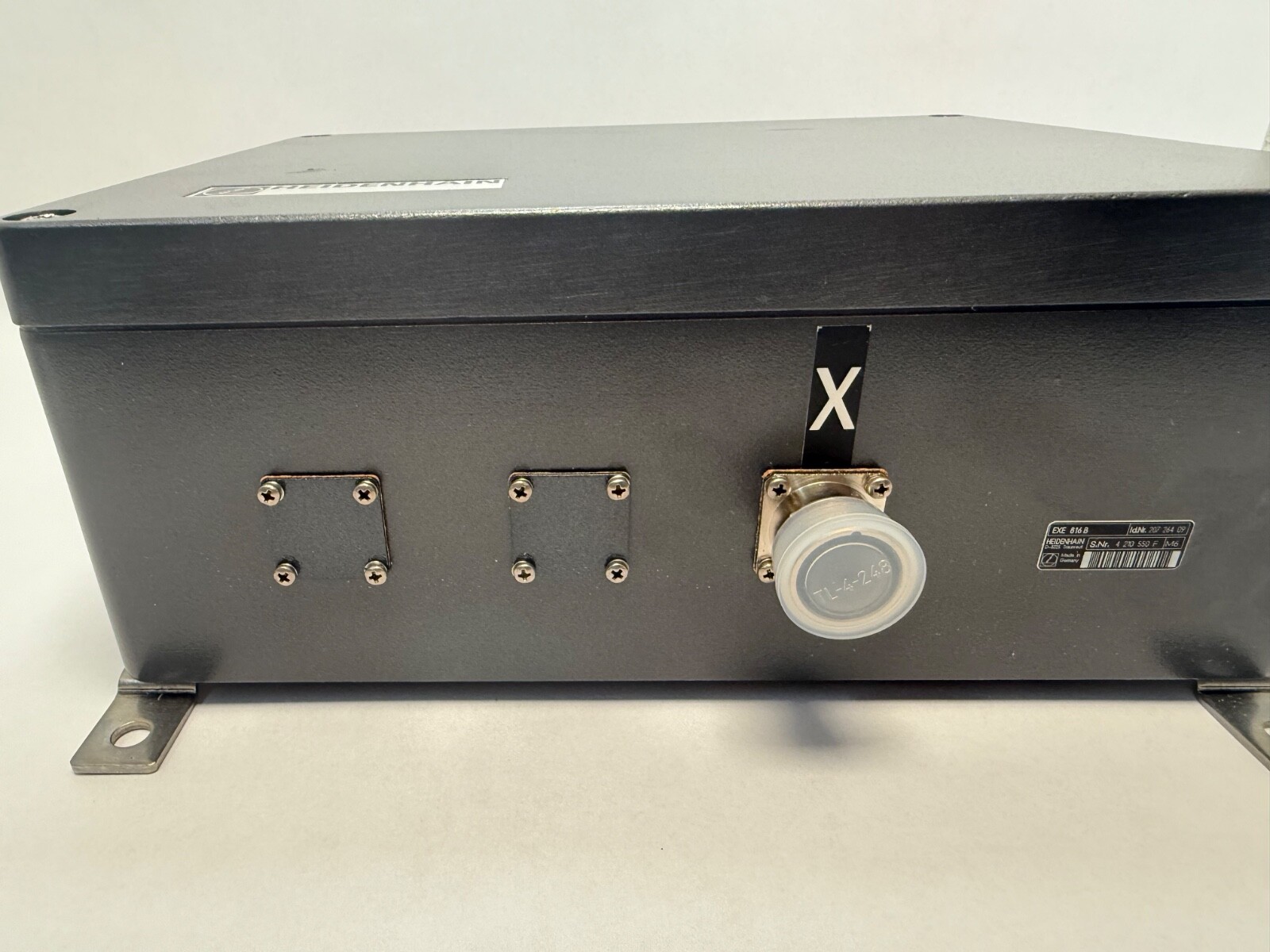

Input Signals: two approximately sinusoidal encoder signals plus reference signal. Interpolation: 25-fold. Output Signals: TTL square-wave pulse trains Ua1, Ua2, reference pulse Ua0 and their inverted signals, with fault detection signal. Number of Outputs: 2, each on a 25-pin socket at the rear of the unit. Output Clock Frequency: adjustable by bridges on the clock board. Maximum Input Frequency: 10 kHz, limited by the clock frequency set. Outputs: momentary short circuit to 0 V permissible. Input Cable Length: max. 20 m. Output Cable Length: max. 50 m with HEIDENHAIN cable.
Mains Voltage: 220 V or 115 V, selectable, factory set to 220 V. Mains Frequency: 50 to 60 Hz. Power Consumption: approx. 40 VA. Operating Temperature: 0 to 40 °C (32 to 104 °F). Storage Temperature: -30 to 70 °C (-22 to 158 °F). Weight: approx. 7 kg (15.5 lb). Mains cable 2.7 m supplied with the unit.

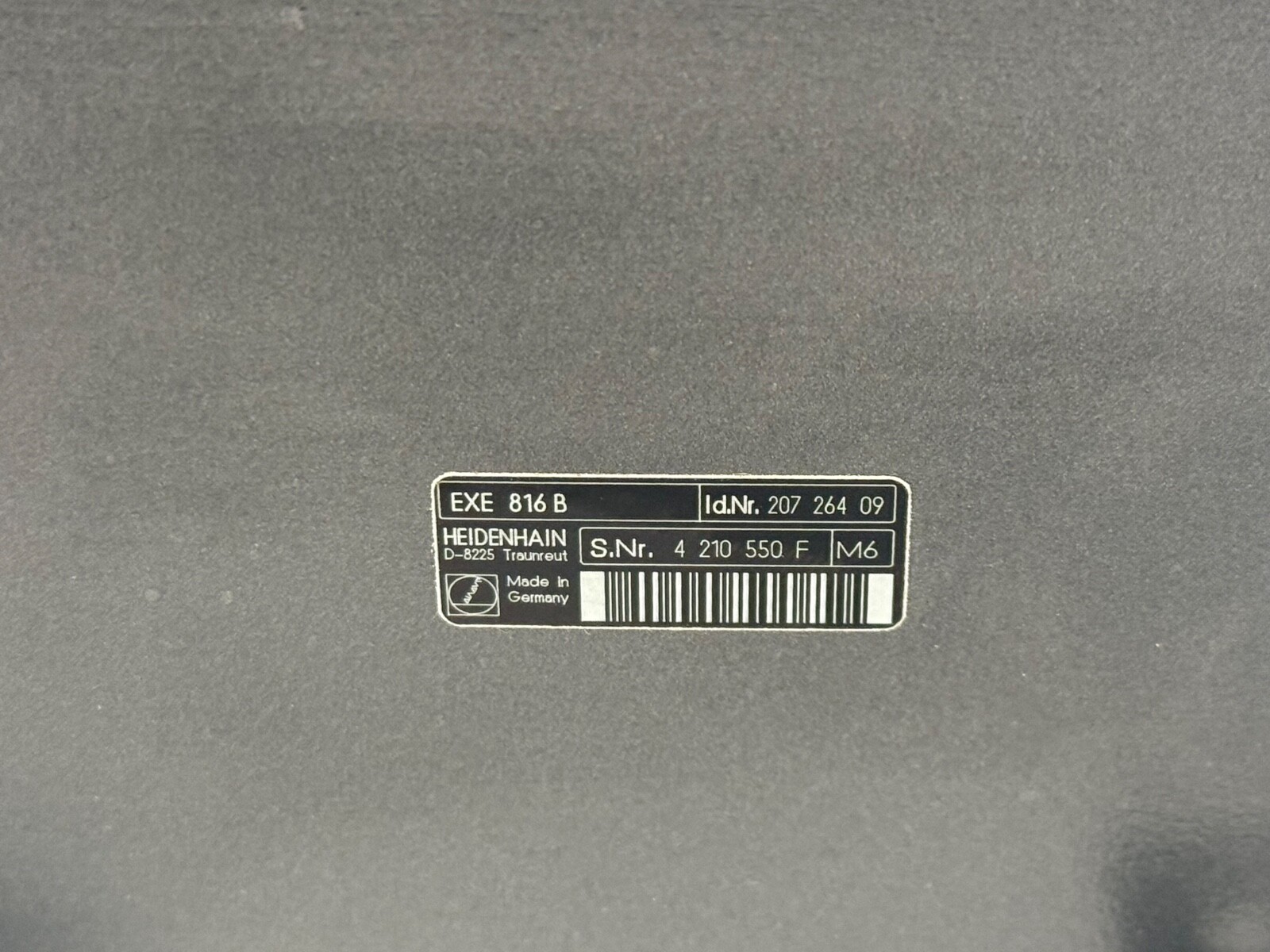

Heidenhain ID 207264-09 identifies this exact EXE 816 execution. Other EXE 800-series units differ in interpolation factor and inputs.
