GEIC600CB504ASeries Six Internal Memory Module, 8K 16-Bit Words Battery-Backed CMOS, Table & Scratchpad

Product Description

What this part is

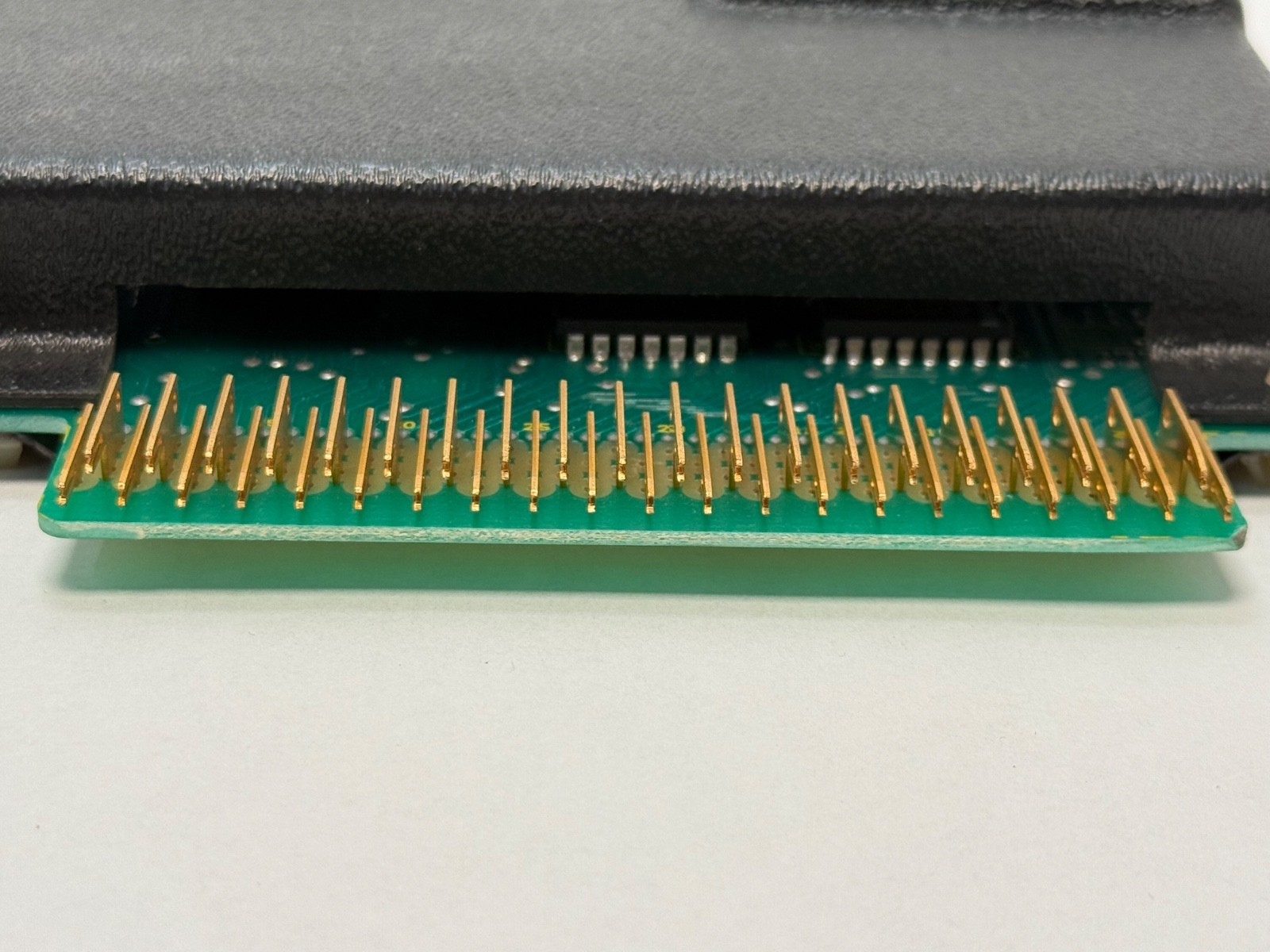

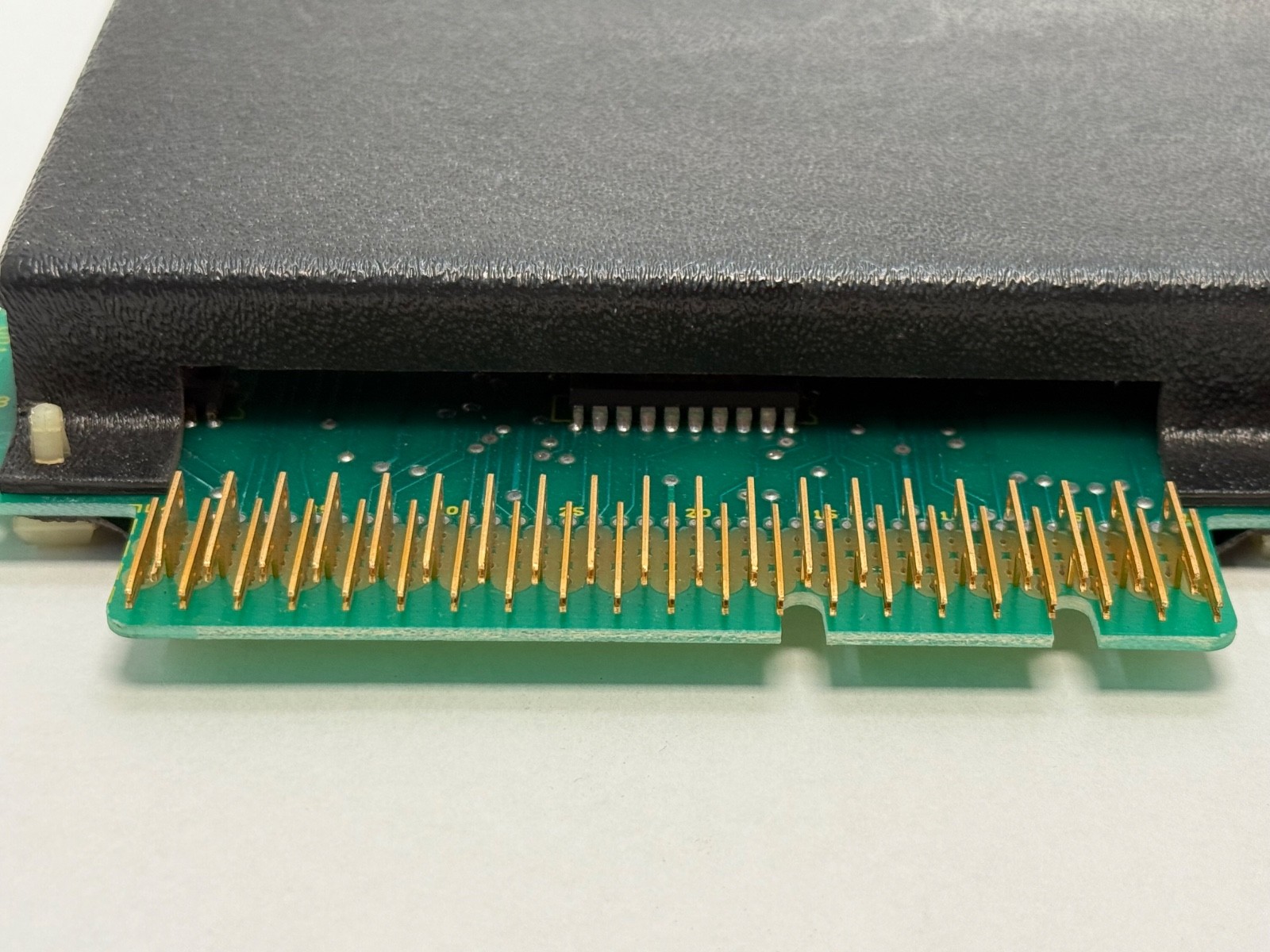

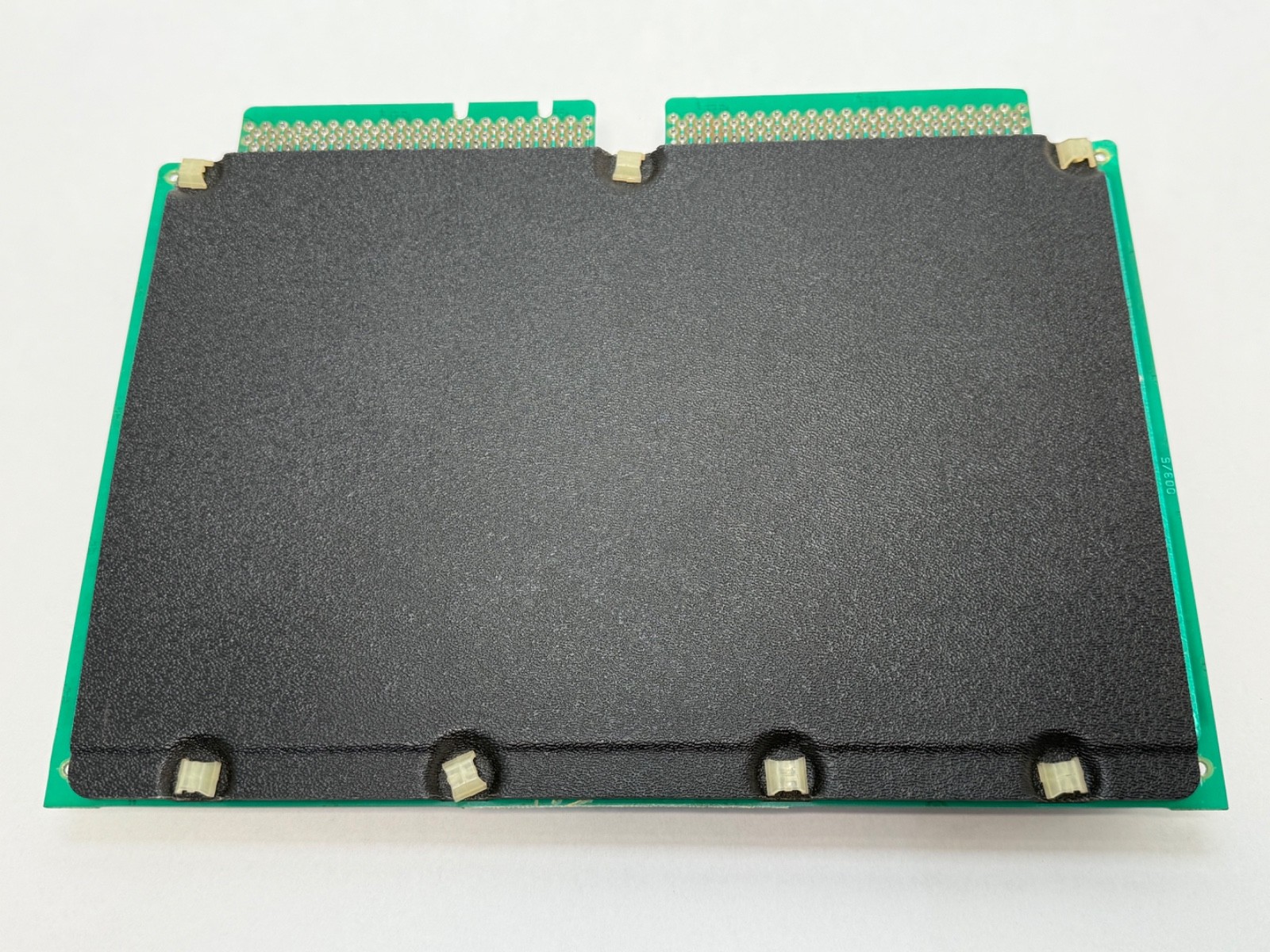

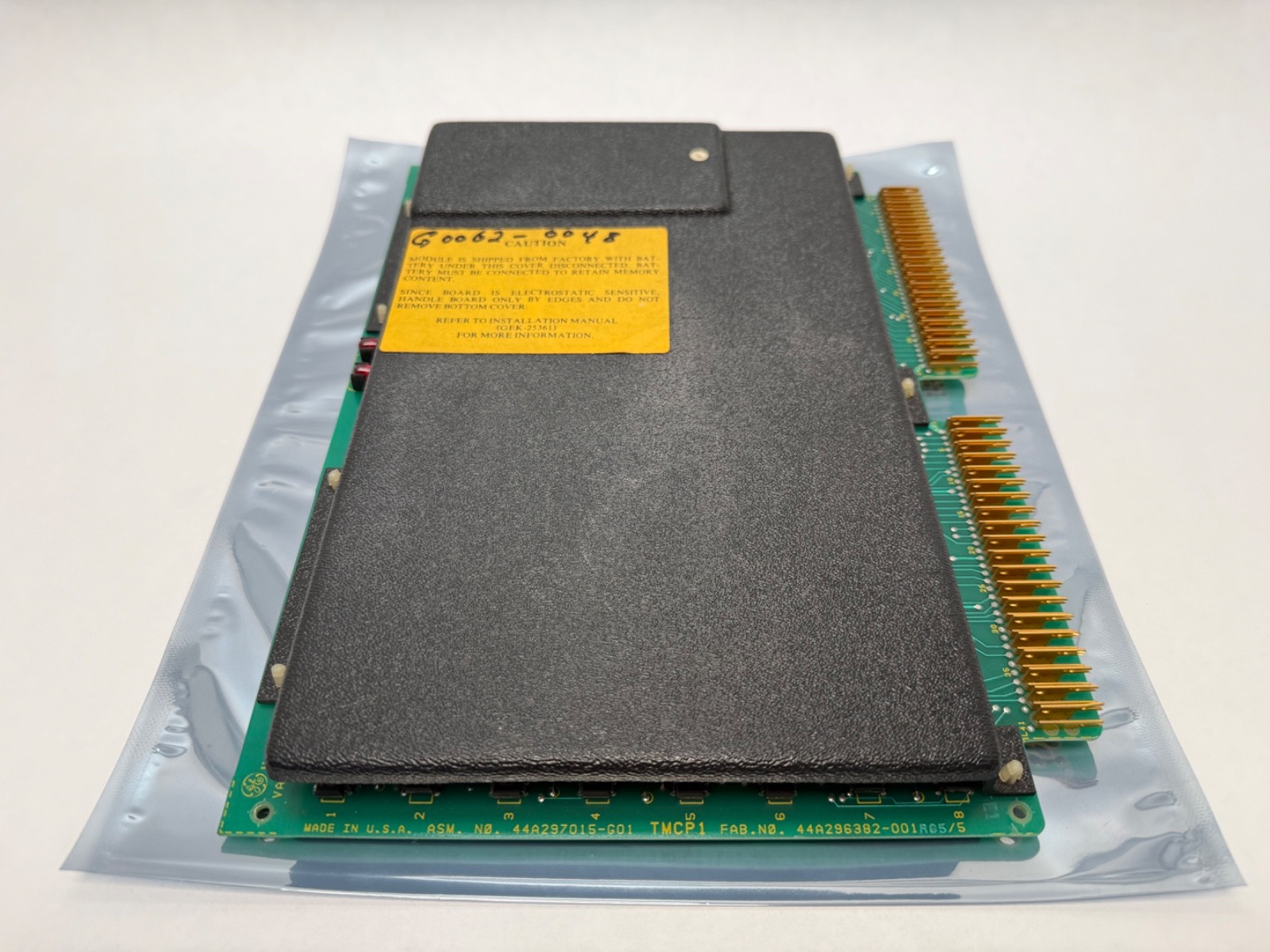

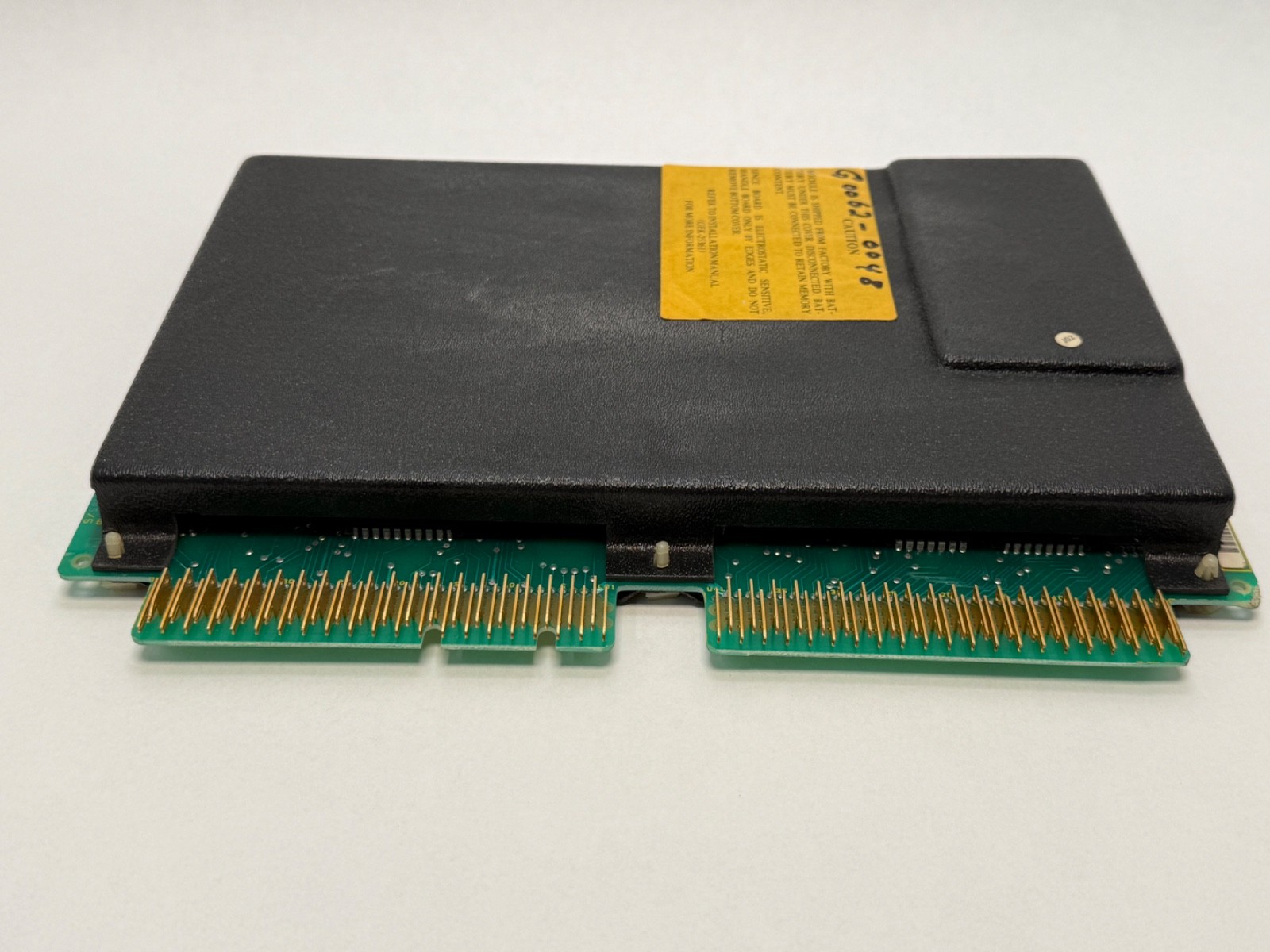

A GE Fanuc Series Six Internal Memory module, catalogue number IC600CB504A. It is a full-size circuit module that lives in the Series Six Model 600 or Model 6000 CPU rack and provides 8K 16-bit words of battery-backed CMOS memory for the PLC’s own housekeeping data.

Correcting the source data

Earlier copy described this as a plug-in memory card with storage capacity for user programs. It is neither. This is a rack-resident CPU-rack module, not removable media, and the memory it holds is system data — the Status Table, Override Table, Transition Table and Scratchpad. Your ladder program lives on the separate Logic Memory modules, and register data lives on the Register Memory module IC600CB508. If you are looking for somewhere to store a program, this is not the part.

Decoding the order code

IC600 — GE Fanuc Series Six product lineCB — circuit board with faceplate, CPU-rack class module (as opposed to BF, the I/O-rack class)504 — Internal Memory moduleA — revision suffix. A unit with an equal or higher alpha suffix directly replaces one with a lower suffix.

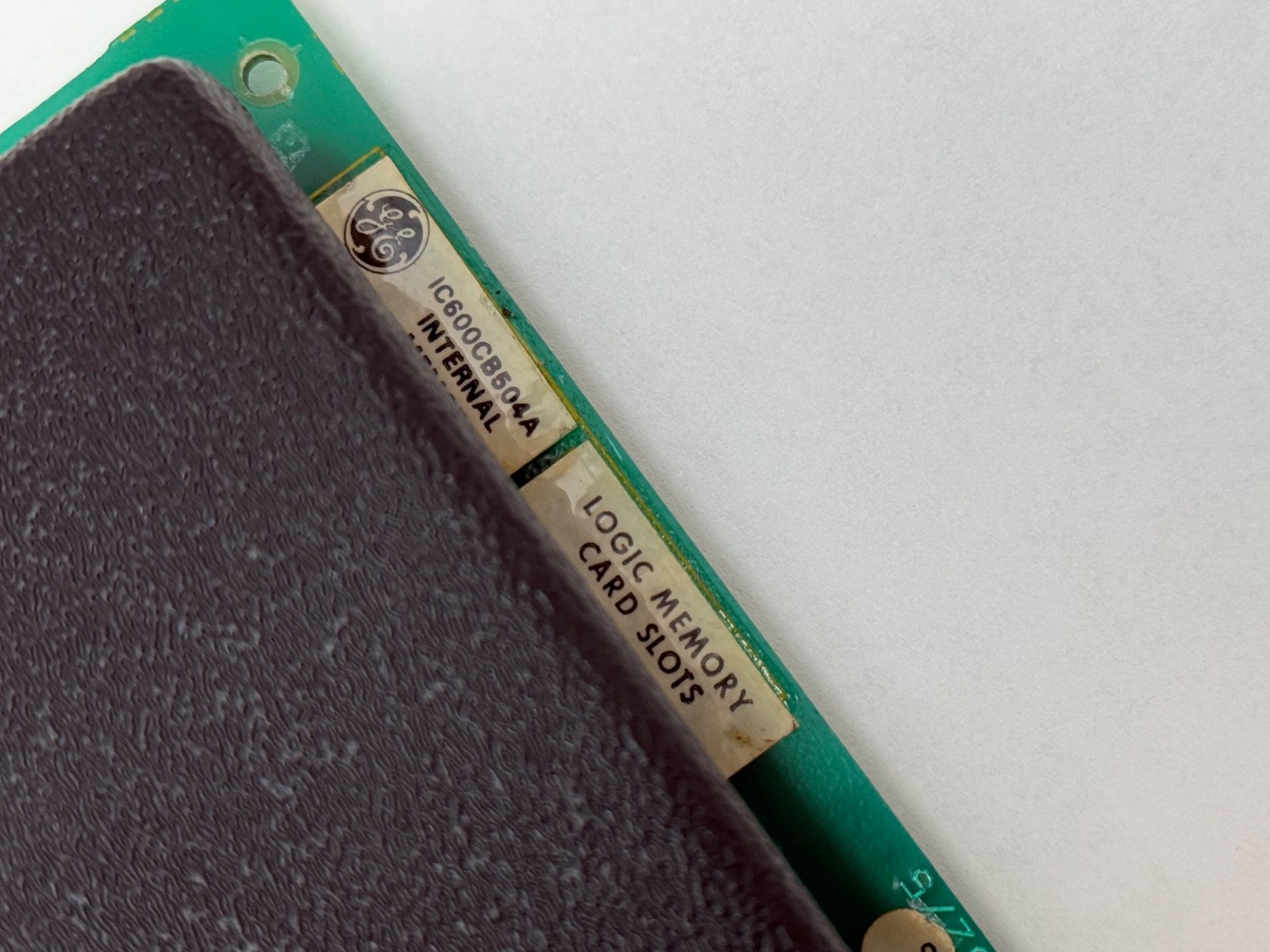

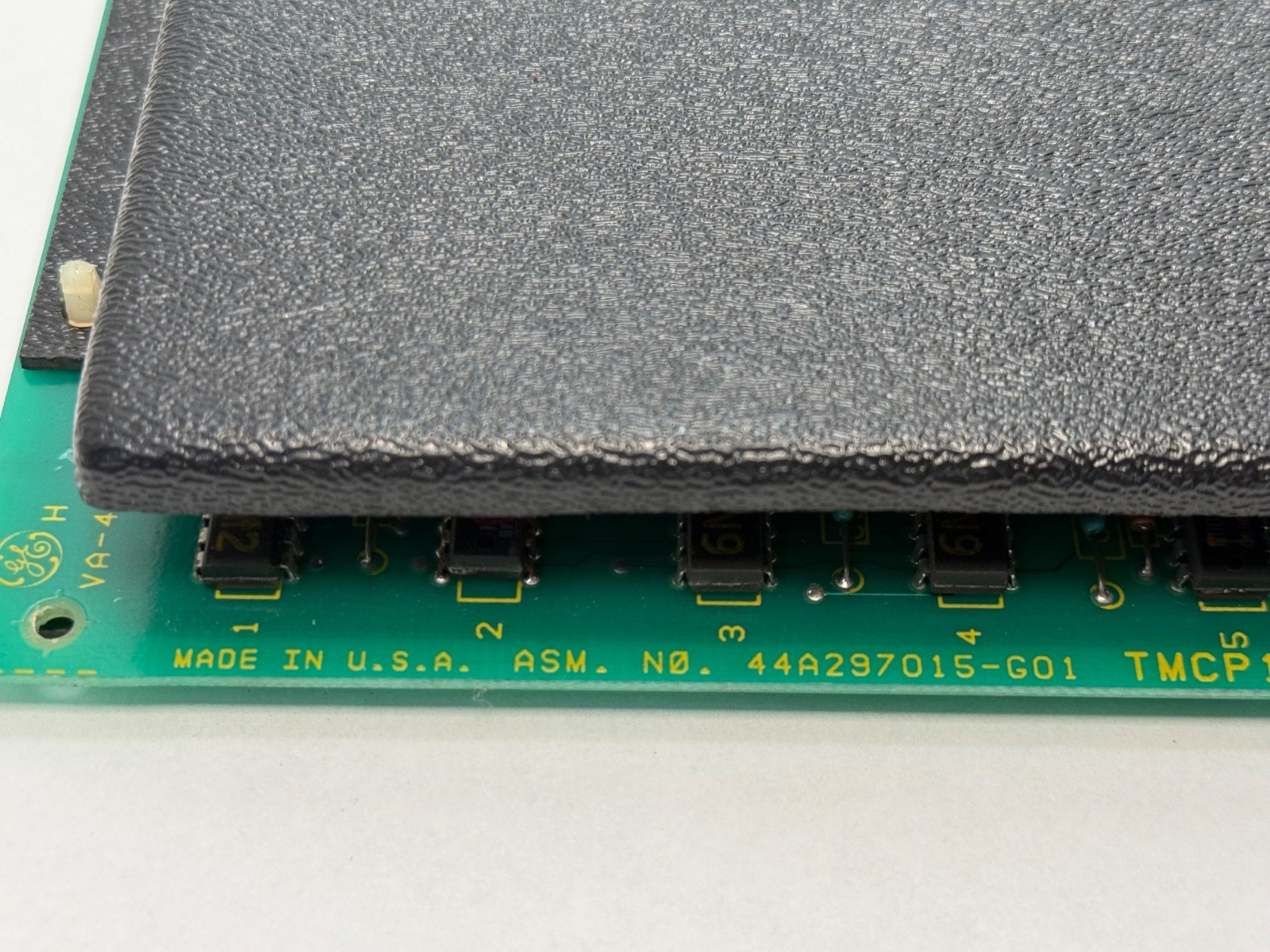

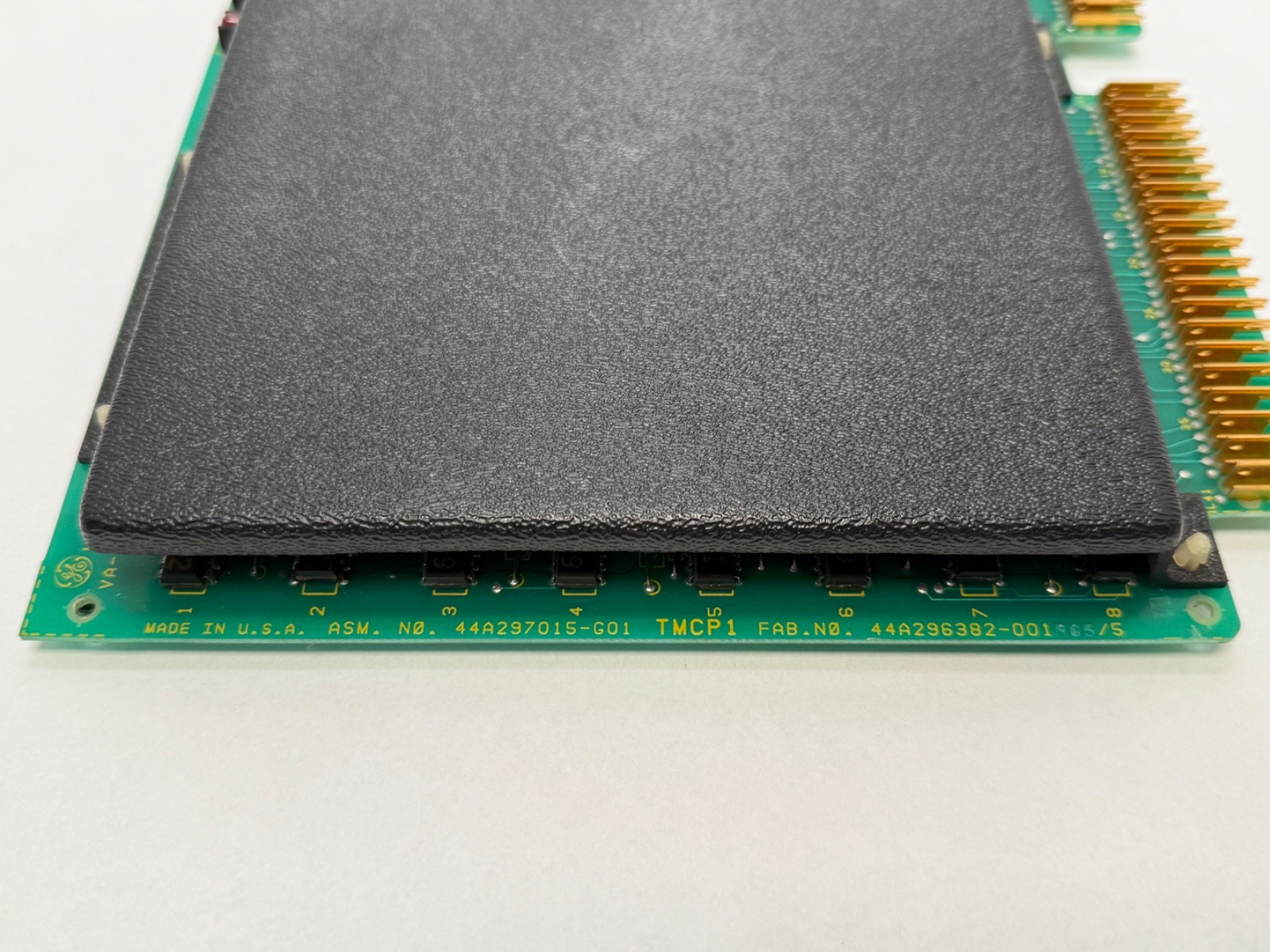

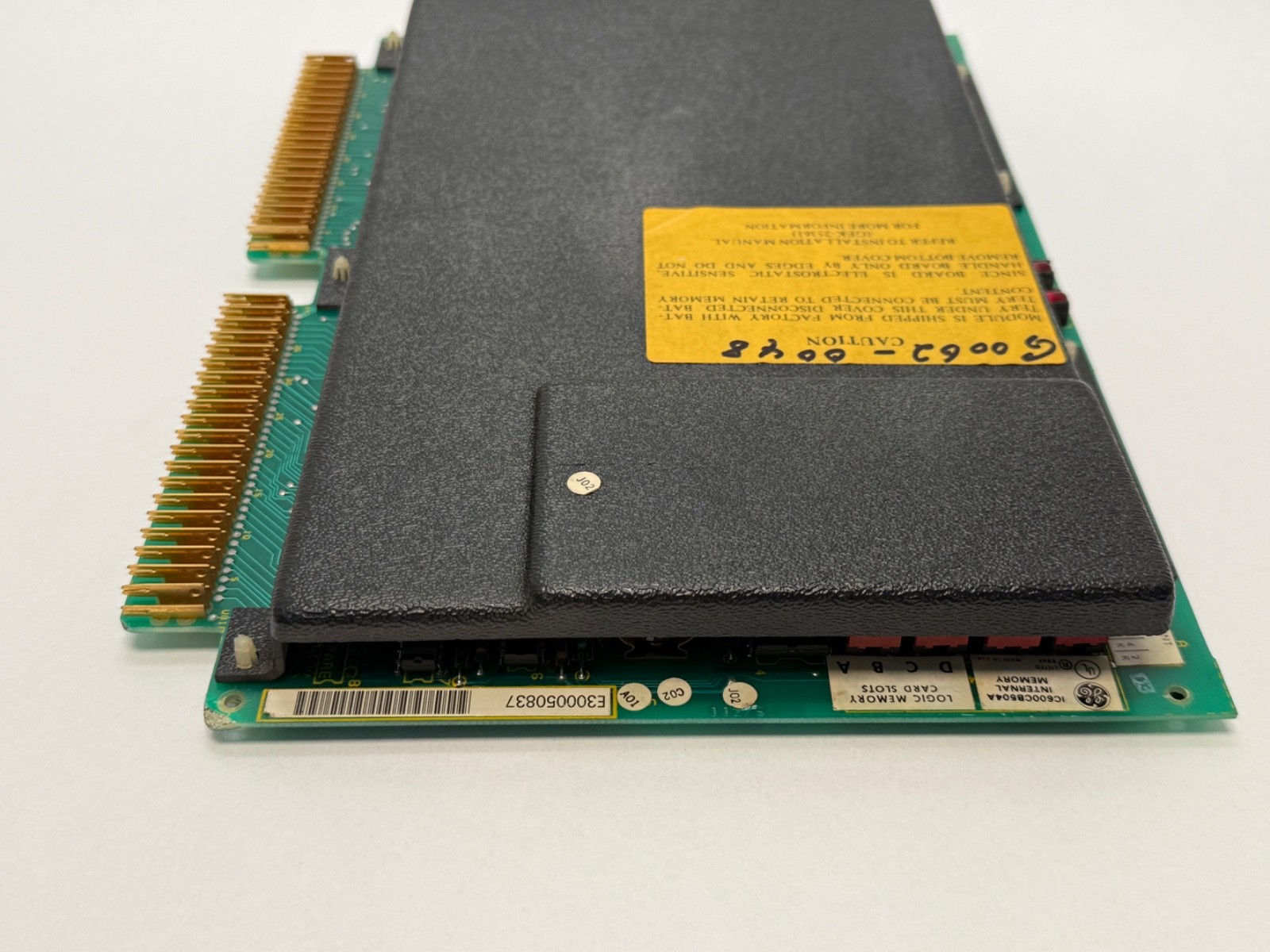

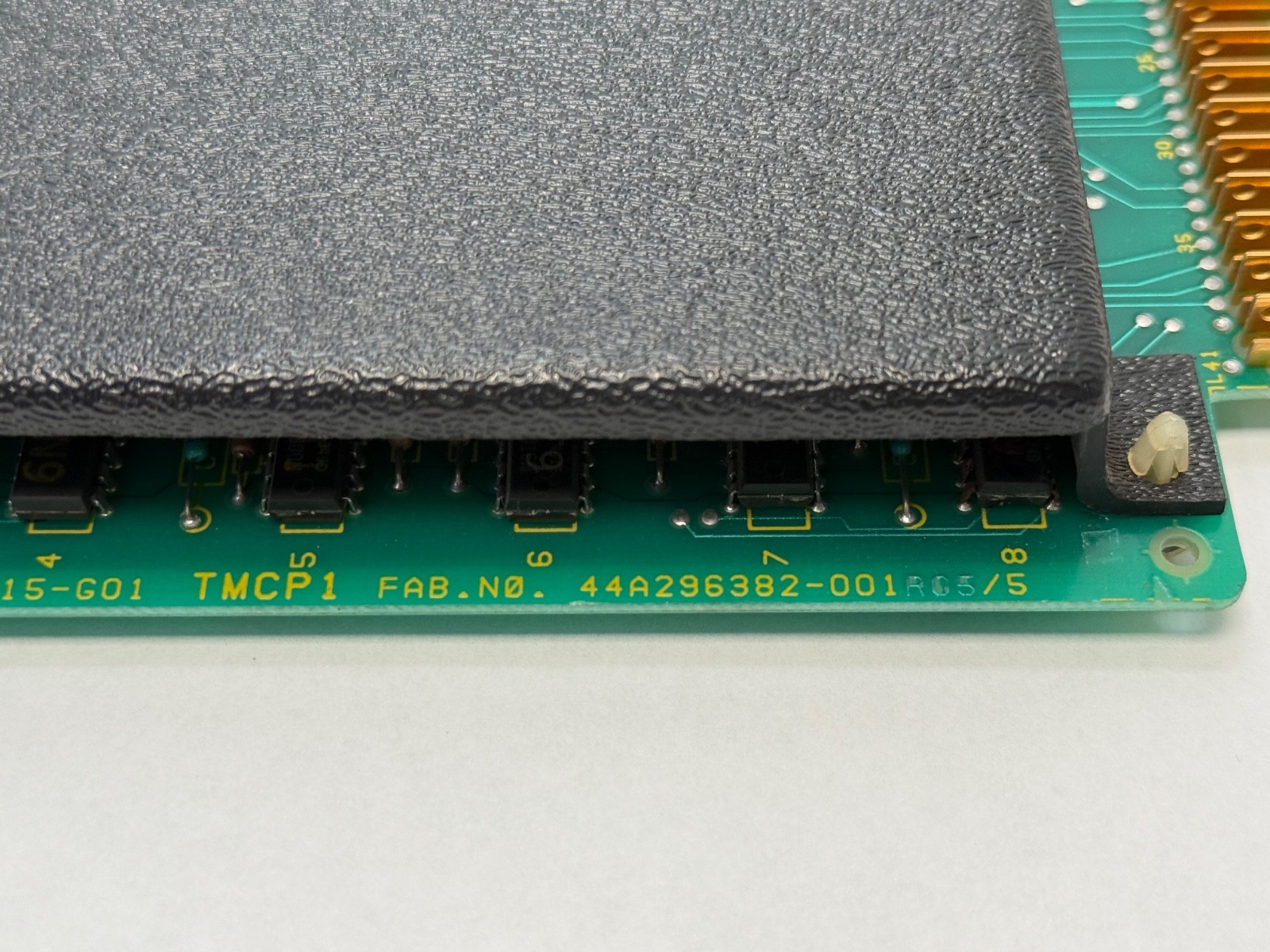

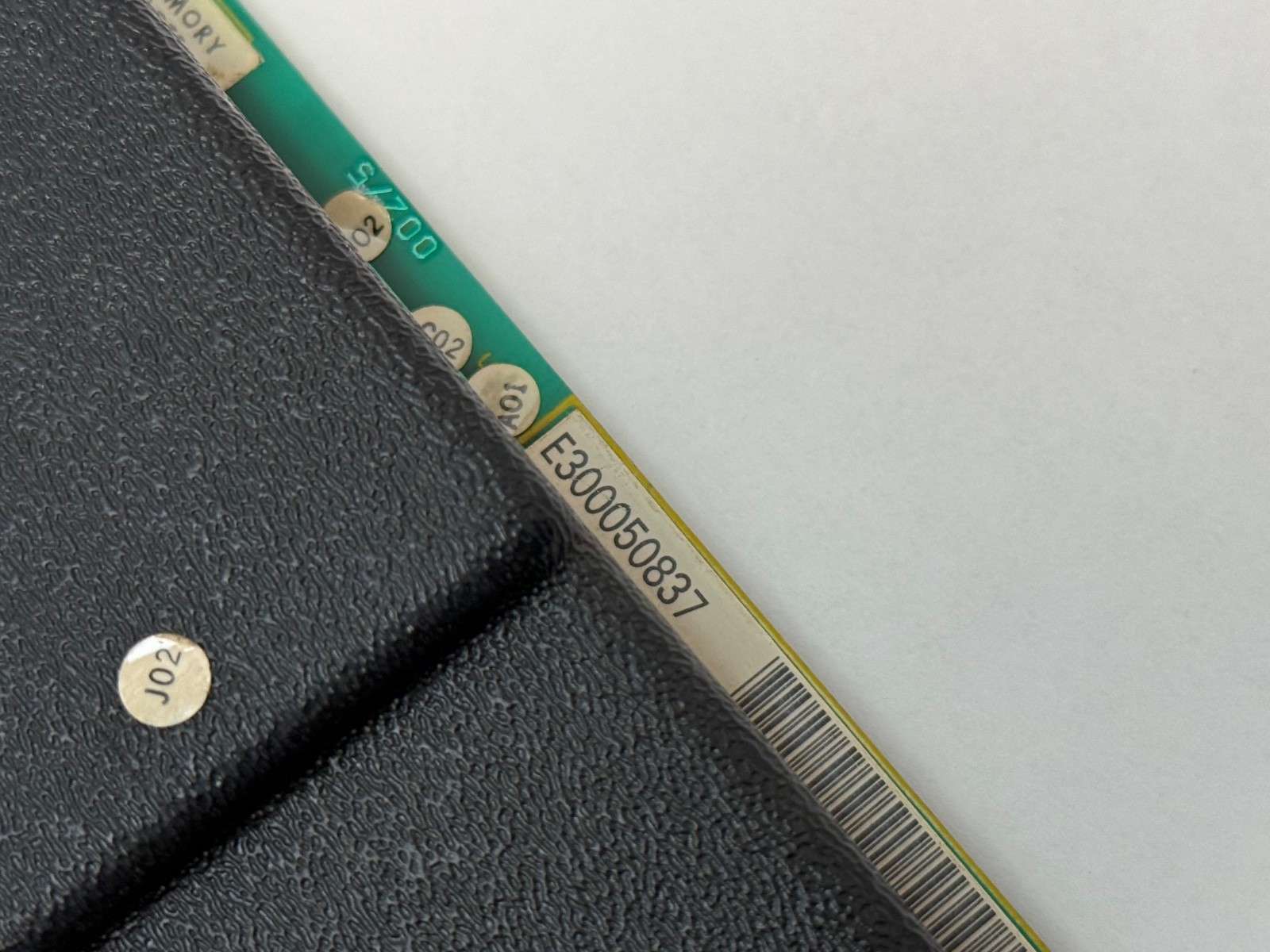

The numbers E300050837, 44A297015-G01 and 44A296382-001 are GE internal drawing and assembly numbers marked on the board and its subassemblies. Buyers often search on those, which is why they are kept here, but the catalogue number to order against is IC600CB504A.

What this module actually does

Two jobs, and the second one catches people out. First, it holds Table and Scratchpad memory in battery-backed CMOS so I/O status, overrides and transition states survive a power failure. Second, it carries a DIP-switch array by which you declare to the CPU how much Logic Memory is installed, in 2K increments, and in which of the Logic Memory board slots (A, B, C, D) it sits. A Model 600 CPU uses slot A only; a Model 6000 CPU accepts up to 32K of Logic Memory across the four slots. Get those switches wrong and the CPU addresses memory that is not there.

Published specifications

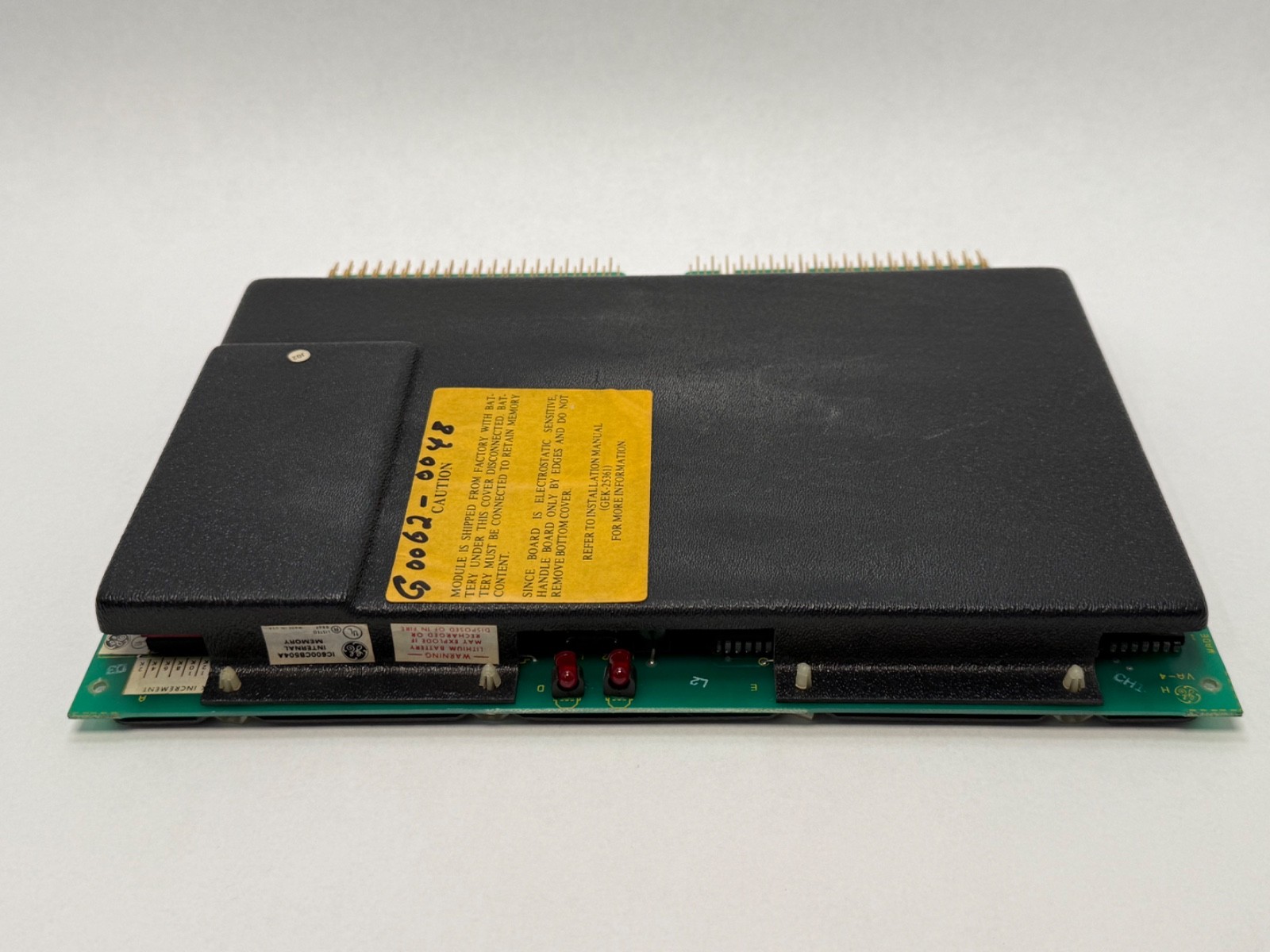

Function: Internal Memory module — Table and Scratchpad memory, Series Six CPU rackCapacity: 8K 16-bit wordsMemory type: CMOS, battery-backed by an on-board lithium cellContents: Status Table, Override Table, Transition Table, ScratchpadConfiguration: DIP-switch array declaring Logic Memory size in 2K increments and slot positionIndicators: BATTERY LED (lithium cell state) and PARITY LED (Logic Memory access parity error), visible through a faceplate lens; both operate only in a powered CPU rackPower requirement: 5 V DC, 650 mA maximum, supplied by the CPU power supplyCircuit board: 8.15 x 11.0 in / 208 x 280 mmFaceplate: 12.45 x 1.175 in / 317 x 30 mmOperating temperature: 0 to 60 °CStorage temperature: 0 to 70 °CHumidity: 5% to 95%, non-condensingCompatible CPUs: Series Six Model 600 and Model 6000Reference document: GEK-83501B, Internal Memory Module

Installation and setup notes

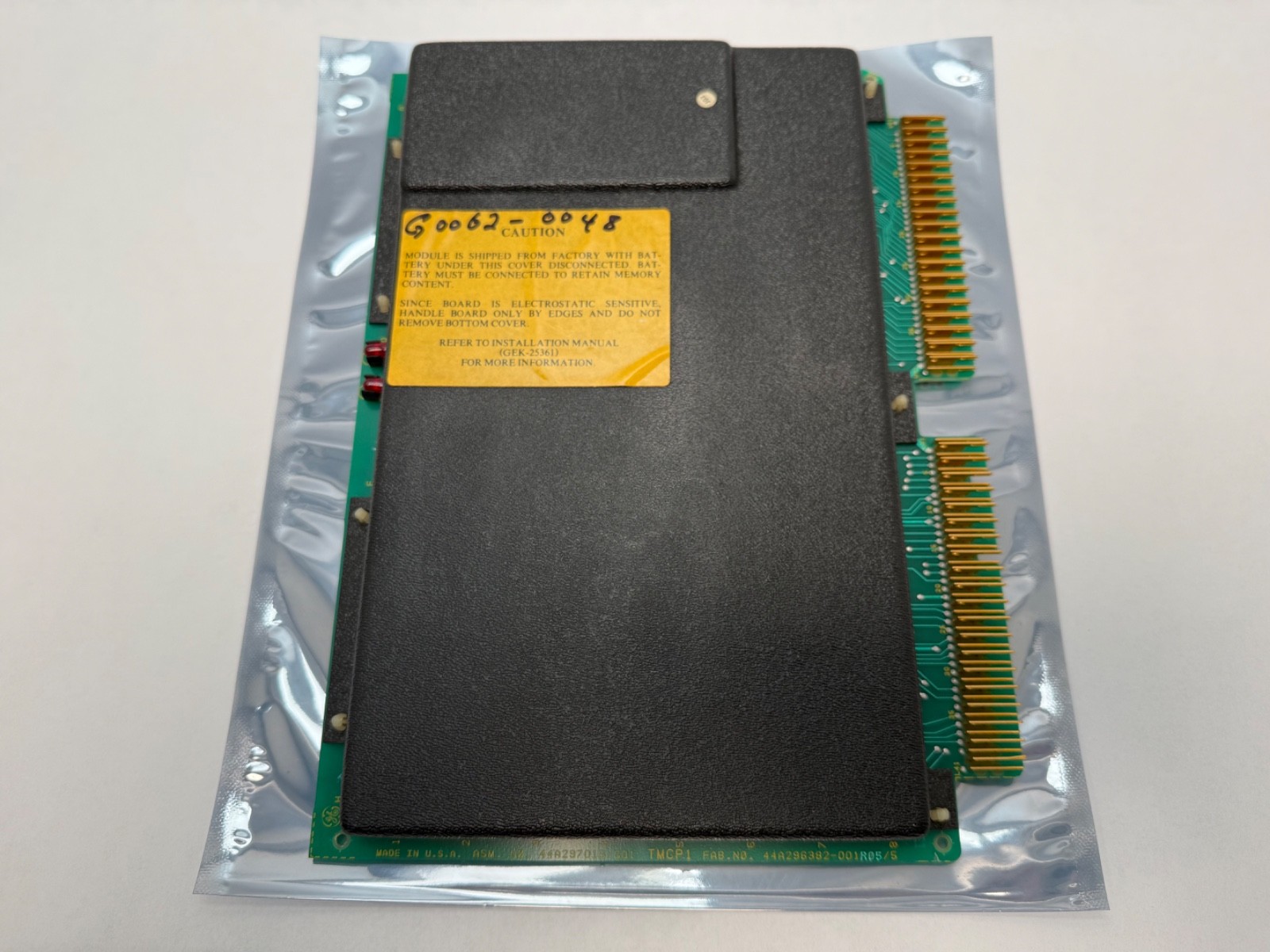

Set the DIP-switch array to match your Logic Memory fit before inserting the module, and use a consecutive addressing scheme starting from slot A. No more than 8K (four 2K increments) may be assigned to any one Logic Memory slot. Do not change these switches with a program already loaded into logic memory — GE warns this will cause the user program to run out of sequence, with the equipment damage and injury risk that implies. Connect the two-pin lithium battery lead to one of the male jacks beneath the battery before fitting the top board cover, and use the extraction/insertion tool furnished with the CPU. Expect to clear parity errors at first power-up per Chapter 2 of the Series Six Programming Manual, GEK-25362. These are CMOS devices: handle by the edges with the covers on. Never short the battery contacts and never attempt to recharge the cell.

Quantity and configuration

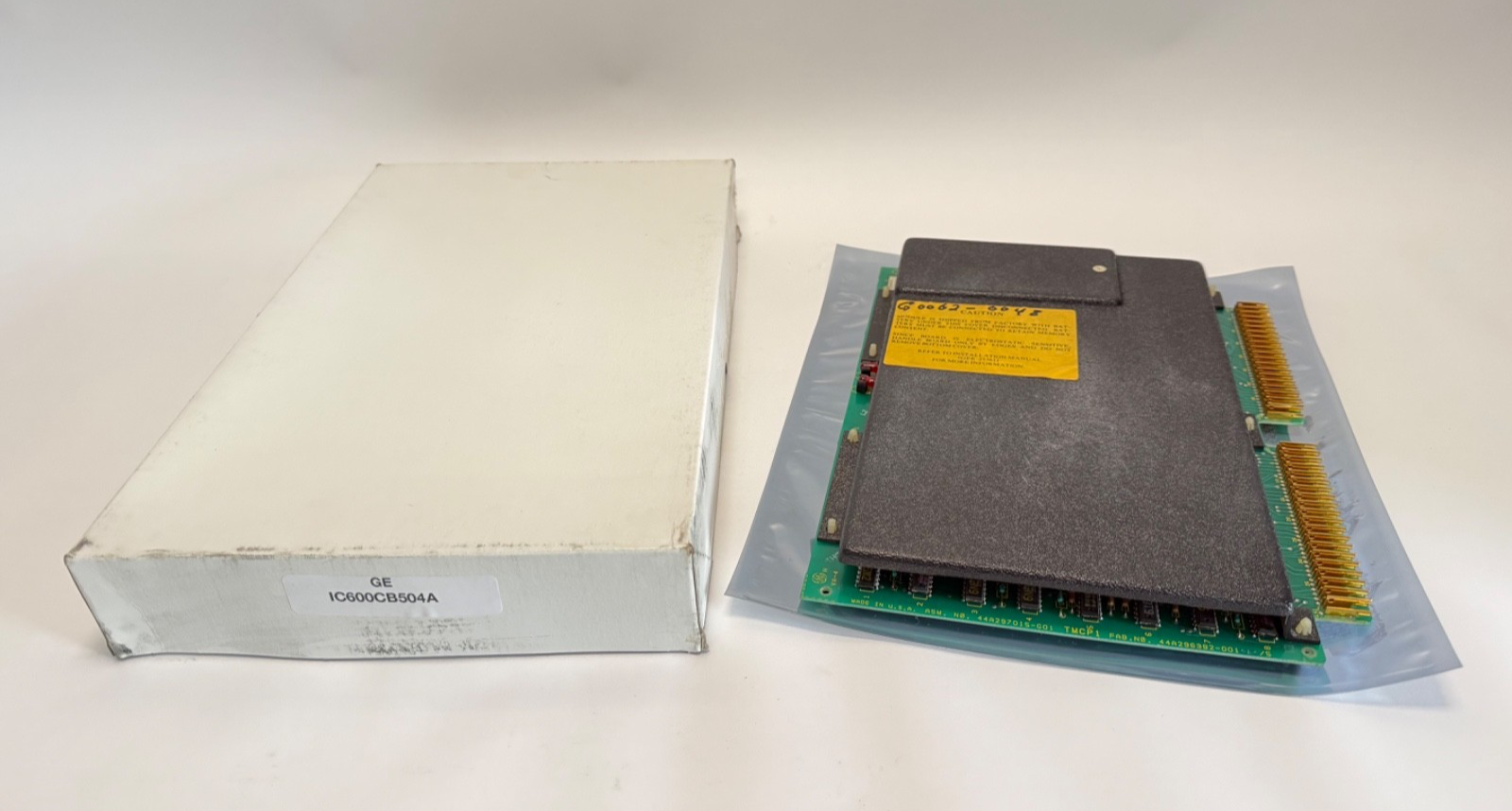

One module. The CPU rack, CPU power supply, Logic Memory modules, Register Memory module, extraction tool, programming terminal and a fresh lithium battery are not included — on a legacy board of this age, budget for a replacement cell.

Interchange guidance

Direct replacement for lower-suffix IC600CB504 units, and superseded by higher suffixes. Related but different parts on the same platform, not interchangeable with this one: IC600CB508 Register Memory module (1K 16-bit words of register data), IC600CB503 I/O Control module, IC600CB507 8K Logic Memory module, IC600CB513 and the IC600LX Logic Memory family. IC600FP504 is the faceplate alone and IC600BF504 the alternate board designation. Also written IC600-CB504A, IC600 CB504A, IC6OOCB504A (letter O for zero) and CB504A.
