GE-FanucIC693ADC311HAlphanumeric Display Coprocessor Module — Runs CIMPLICITY 90-ADS, Drives an External Terminal, Single Slot, CPU Baseplate Only

Product Description

What this part is:

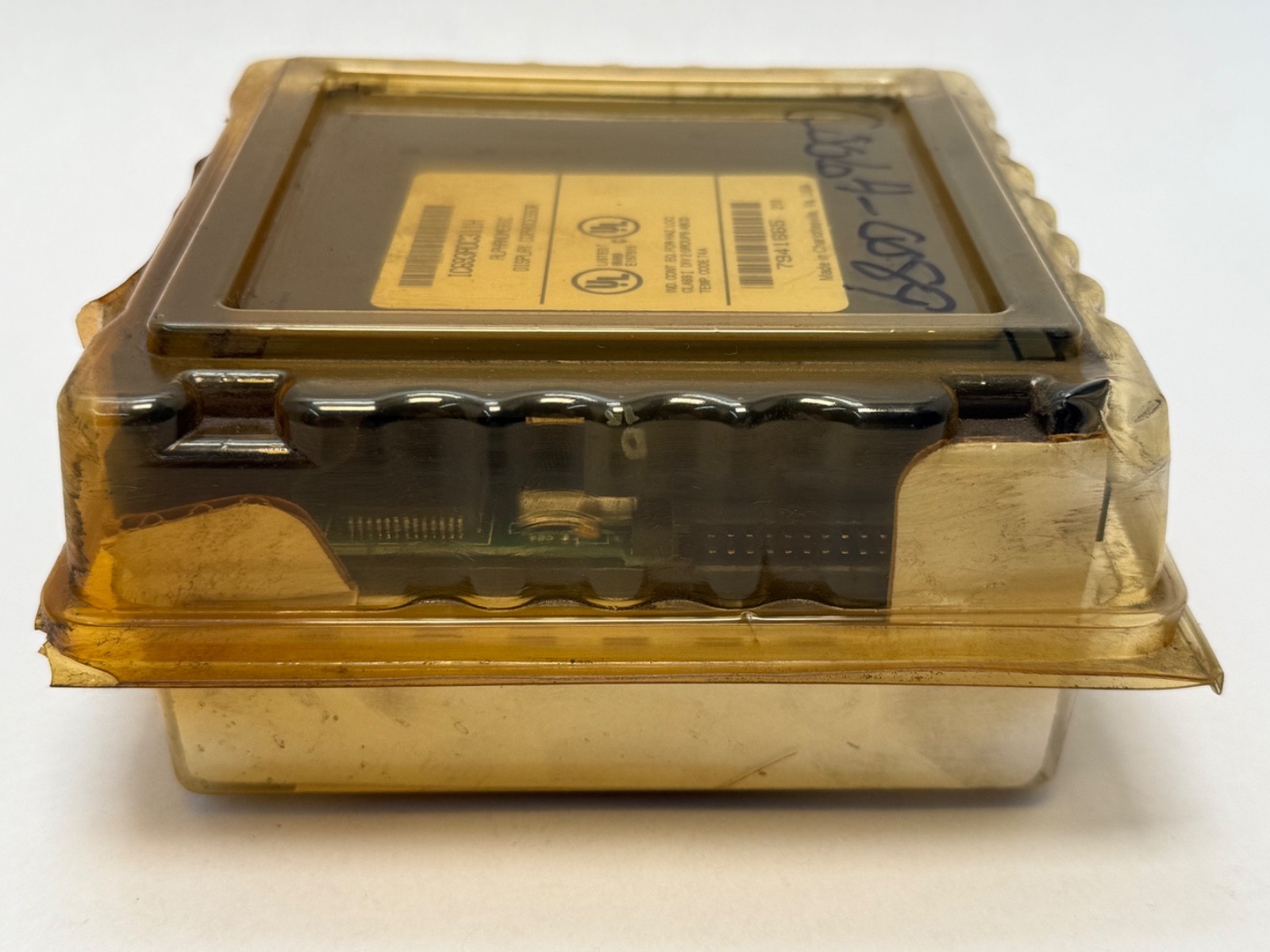

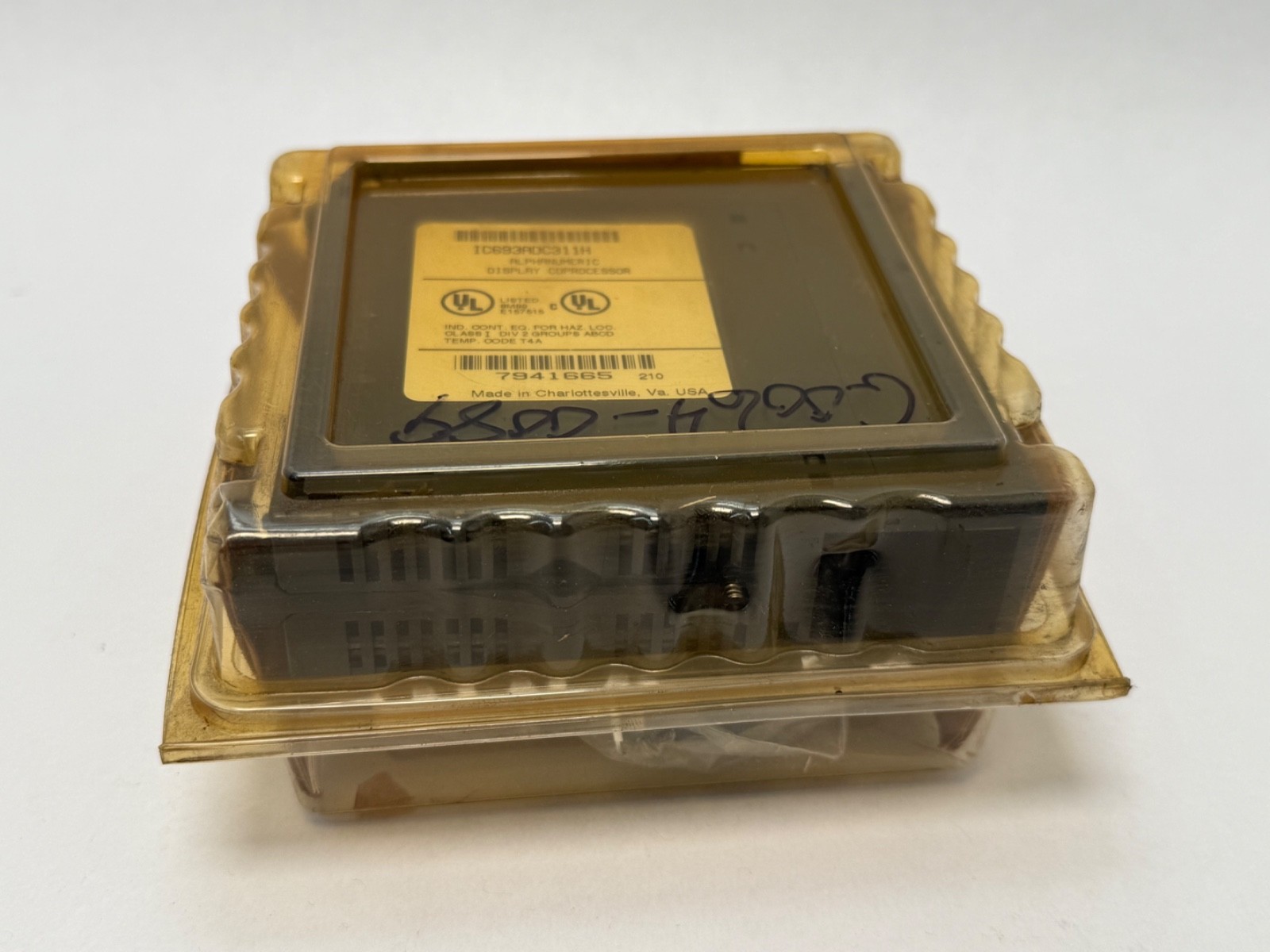

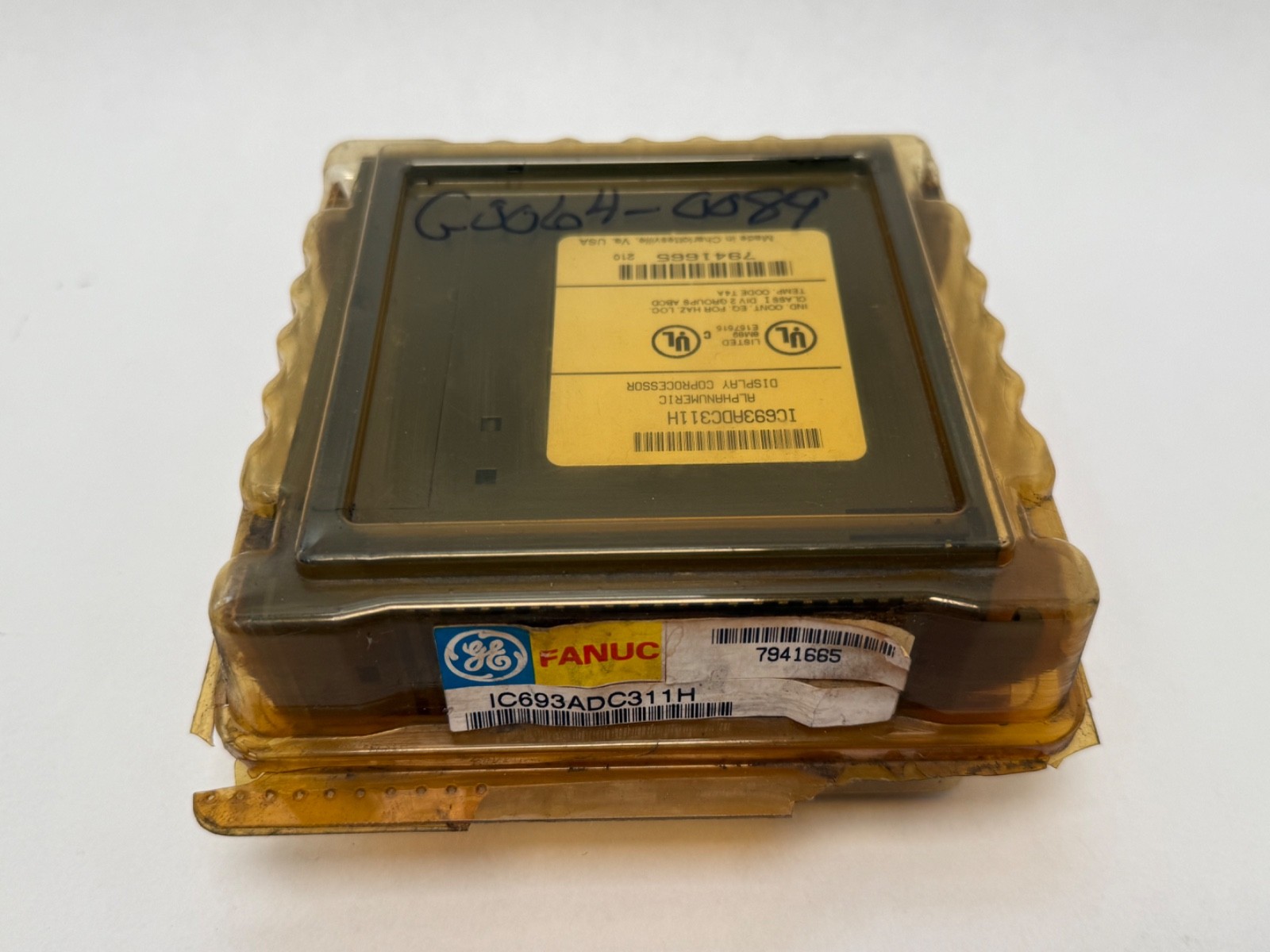

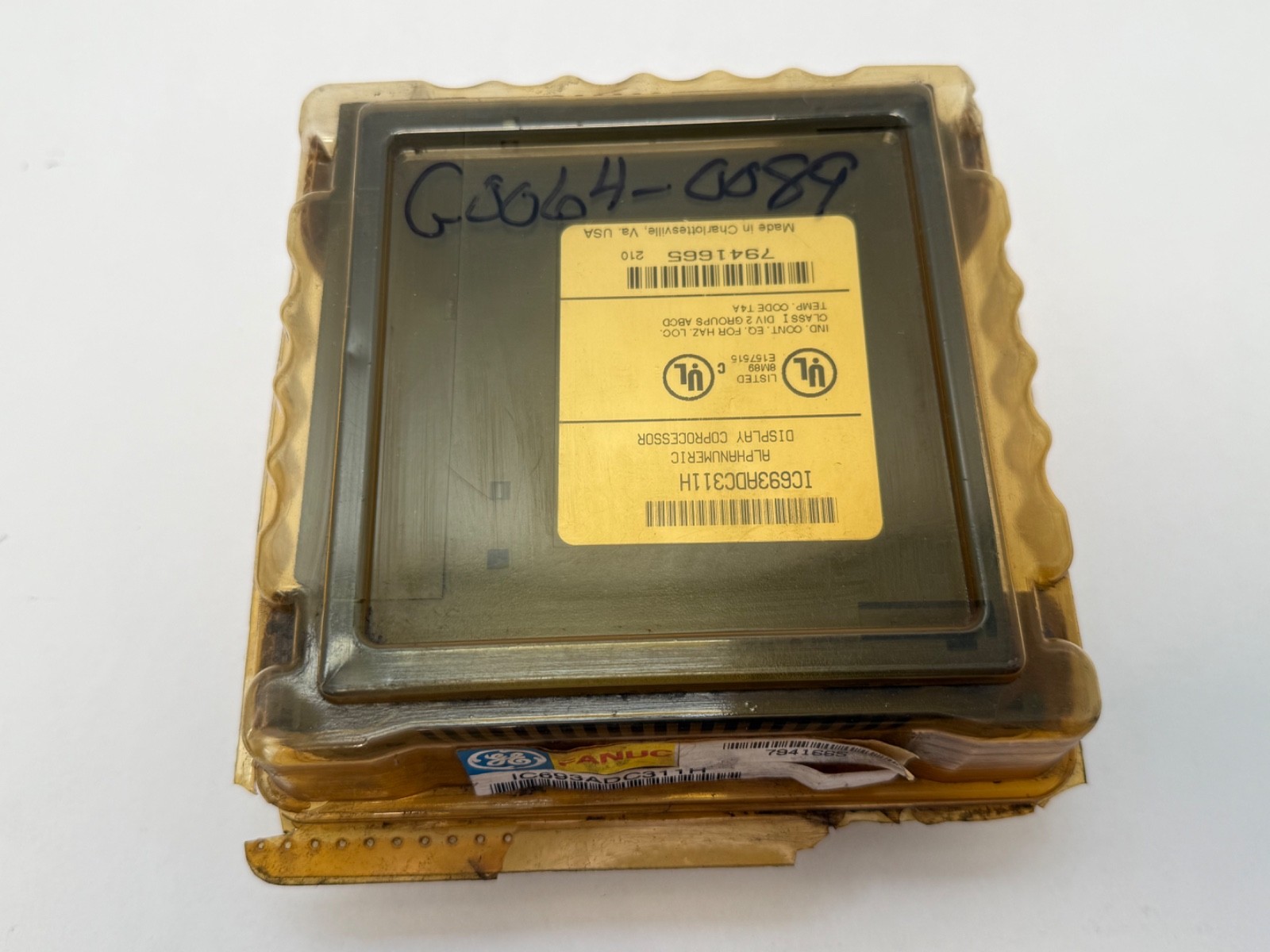

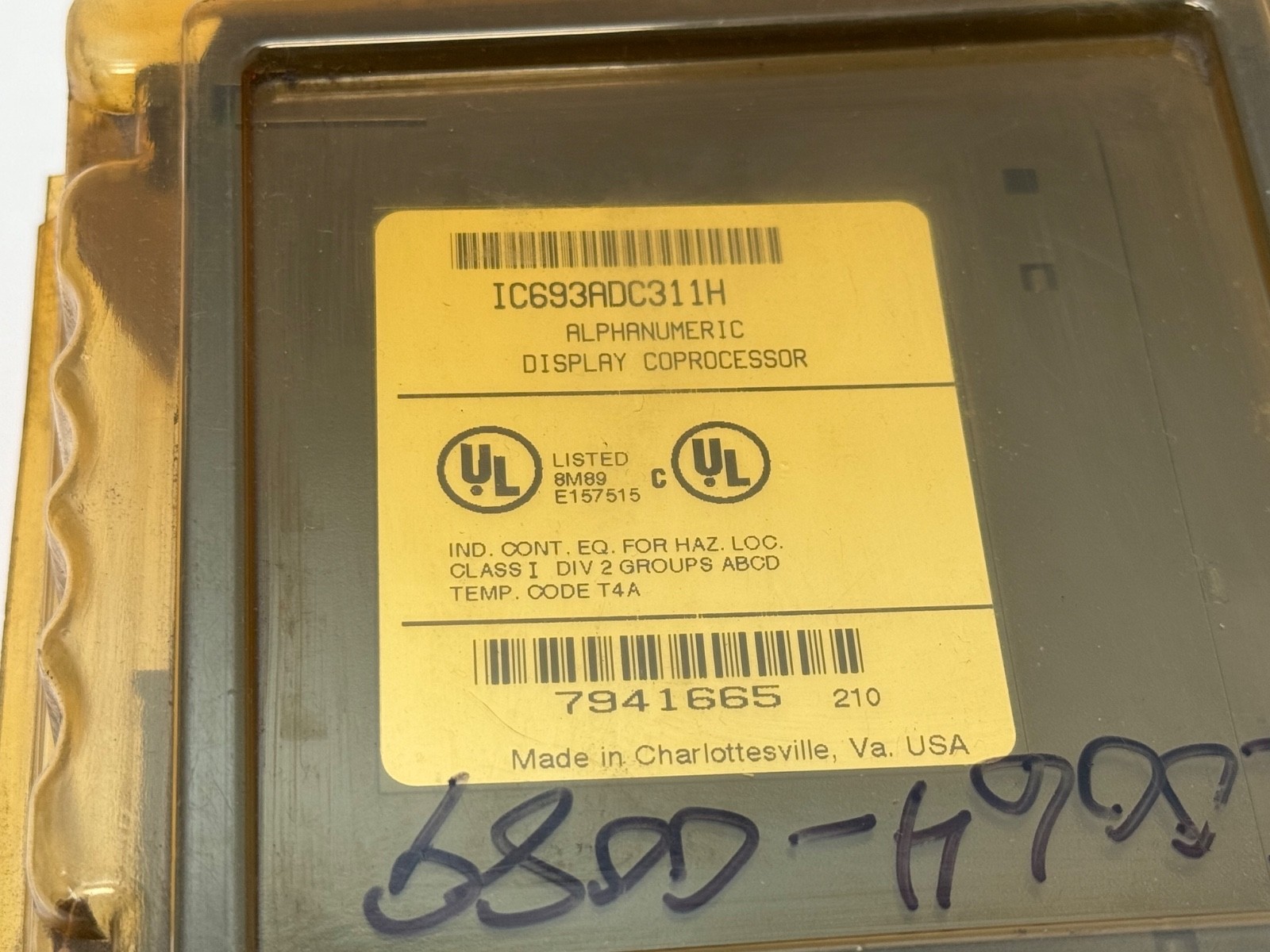

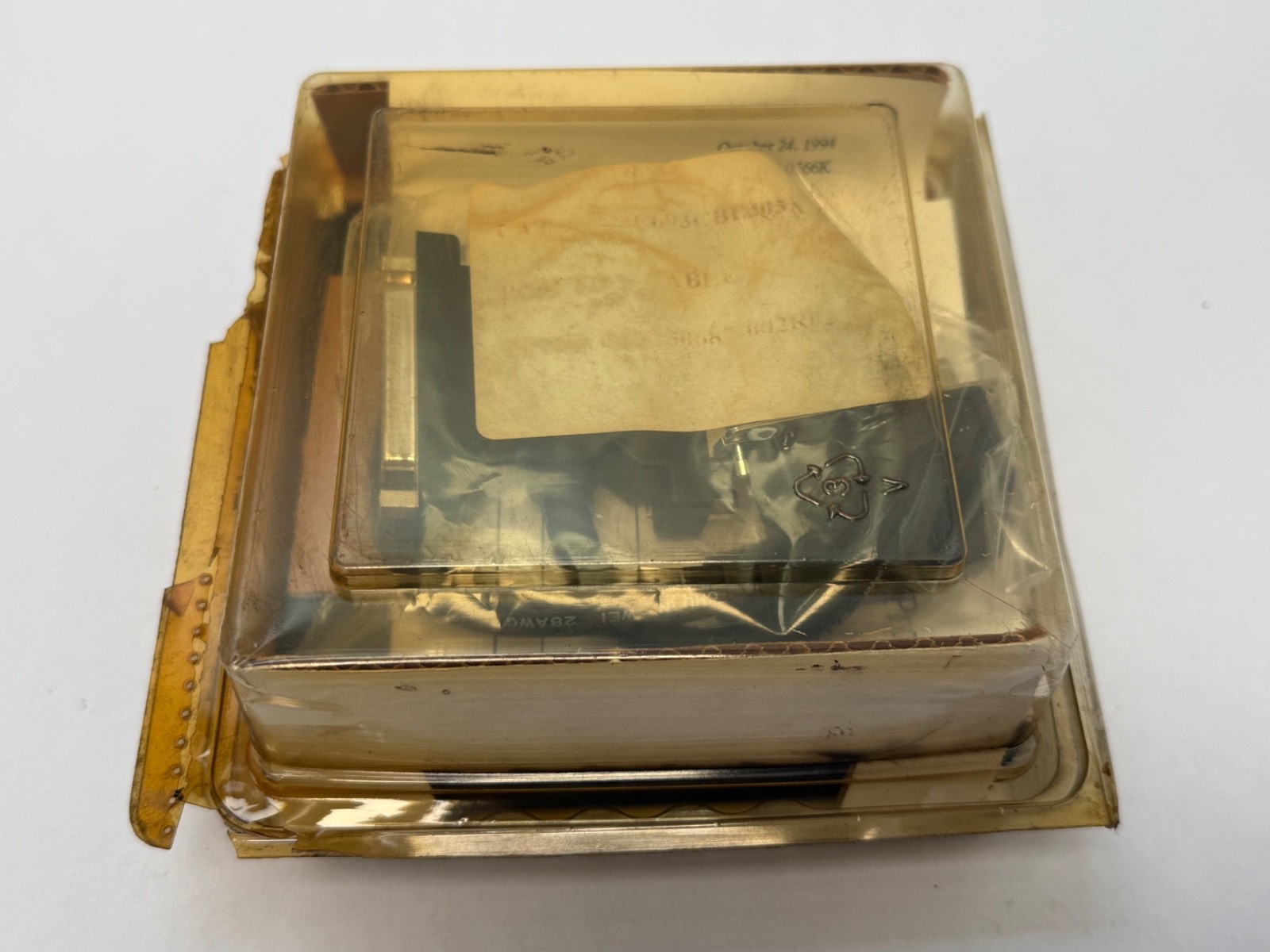

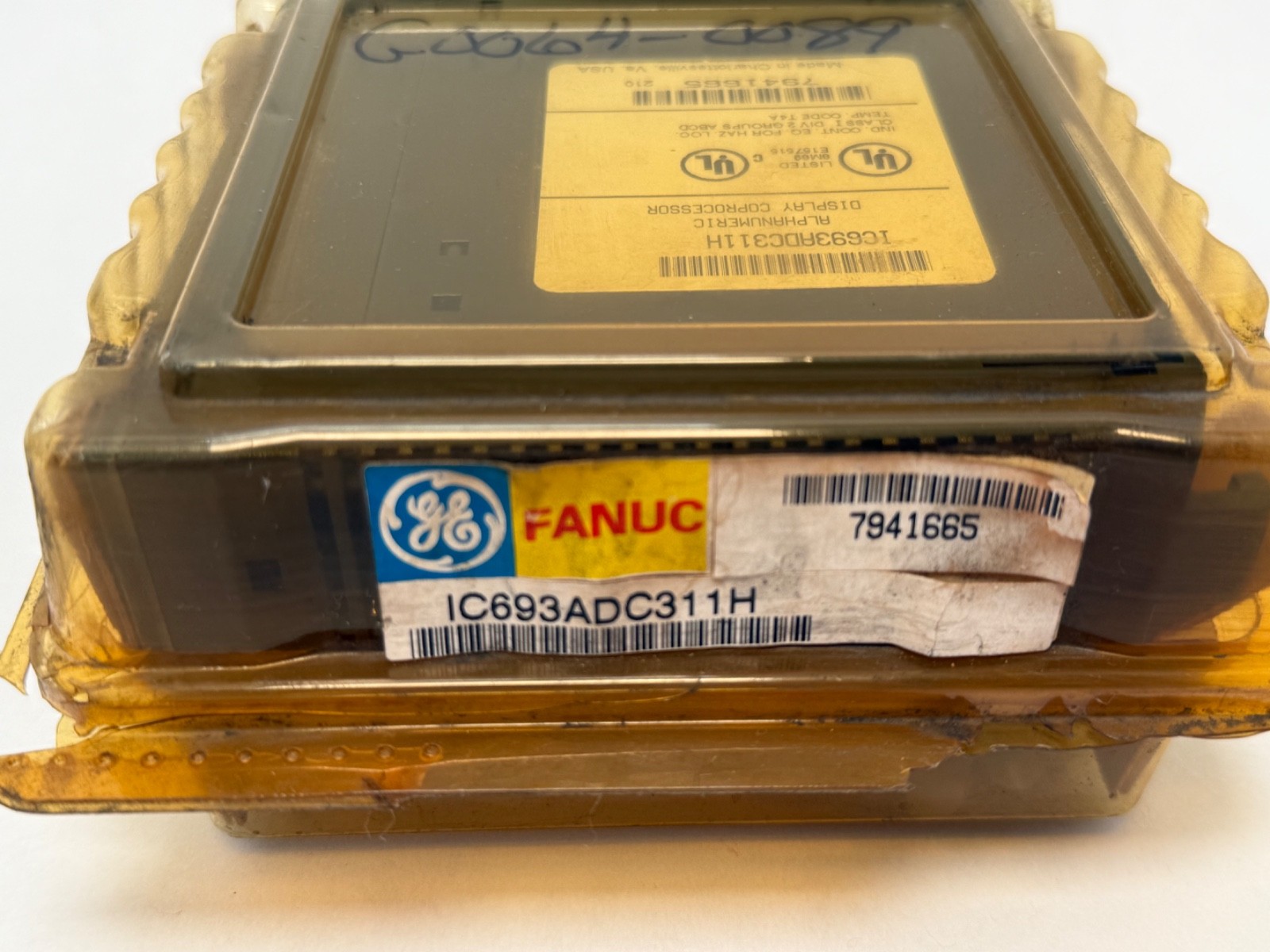

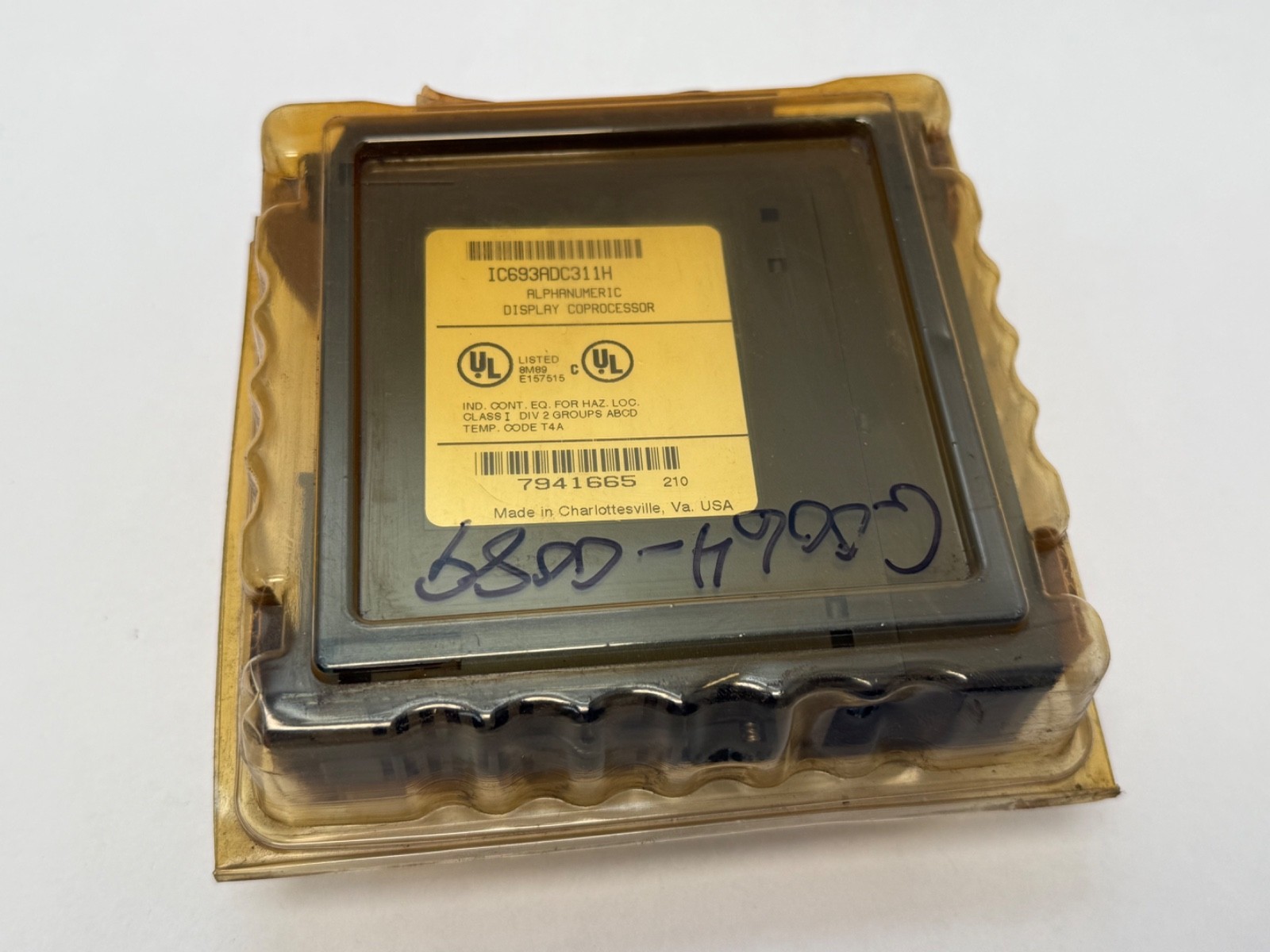

GE Fanuc IC693ADC311H Alphanumeric Display Coprocessor for the Series 90-30 PLC, a single-slot coprocessor module. It runs CIMPLICITY 90-ADS system software and performs 90-ADS display, report and alarm functions, communicating with the Series 90-30 CPU across the PLC backplane. The module generates alphanumeric screens and drives them out to a separate device: a GE Fanuc Operator Interface Terminal, any VT100-compatible terminal, or an IBM-compatible PC running TERMF. The module has no display of its own. Unit Quantity: 1 Pc.

Decoding the designation:

IC693 — GE Fanuc Series 90-30 hardware.

ADC — Alphanumeric Display Coprocessor.

311 — the model within the Series 90-30 coprocessor group.

Specifications:

Processor: 80C188 at 8 MHz. Slot Width: single slot. Software: CIMPLICITY 90-ADS system software. Real-time calendar clock synchronised to the PLC.

Front Panel: reset pushbutton and three status LEDs. Configuration: soft configuration, with no DIP switches and no jumpers.

Number Of Serial Ports: 2, behind a single front connector. Port 1: RS-232, default 19,200 bps, used for programming and configuration from a PC running PCM Development Software (PCOP), or for an RS-232 printer for report logging. Port 2: pre-configured 19.2 kbaud RS-232 port for a terminal, carrying keyboard input and screen output.

User Interface: fifteen user-definable function keys per screen, pop-up windows, pull-down menus and fill-in-the-blank system building forms. Item Weight: approximately 0.45 kg.

Dimensions and mounting:

Placement: CPU baseplate of the Series 90-30 system, single slot. Multiple ADCs may be installed in one Series 90-30 system that uses a modular CPU, model 331 or higher.

IC693CBL305 is the Wye cable that splits the two ADC ports out of the single front connector. IC690CBL702 is a direct RS-232 cable from the ADC to a PC or other serial device.

The 90-ADS software is installed onto the module using PCM Development Software (PCOP) from a Workmaster, Workmaster II or IBM-compatible PC.

Compatibility and replacement:

Manufacturer Status: obsolete with no factory replacement. Ownership trail: GE Fanuc Automation, GE Intelligent Platforms, Emerson. The installation manual is GFK-0356, Series 90-30 PLC Installation and Hardware Manual, which carries the ADC connection diagram (Figure 8-21).

Related Series 90-30 coprocessors: IC693PCM300, IC693PCM301, IC693PCM311 (Programmable Coprocessor), IC693CMM311 (Communications Coprocessor), IC693TCM302, IC693TCM303 (Temperature Control).

MPN Variants: IC693ADC311H, IC693ADC311, IC693ADC311C, IC693-ADC-311-H, IC693-ADC-311, IC693 ADC 311 H, IC693ADC31.

Frequently asked questions:

What does the GE Fanuc IC693ADC311H do?

It is a Series 90-30 coprocessor that runs CIMPLICITY 90-ADS and drives an external terminal, Operator Interface Terminal or PC running TERMF.

Where does the IC693ADC311H install?

It installs in a single slot of the Series 90-30 CPU baseplate, in a system with a modular CPU model 331 or higher.

What serial ports does the IC693ADC311H have?

It has two RS-232 ports behind one front connector. Port 1 is for programming, configuration or a report printer and Port 2 is for a terminal, both at a 19.2 kbaud default.
