FANUCA20B-2200-0011Serial / DMA Add-On Option PCB for Series 15 CNC Control

Product Description

What this part is

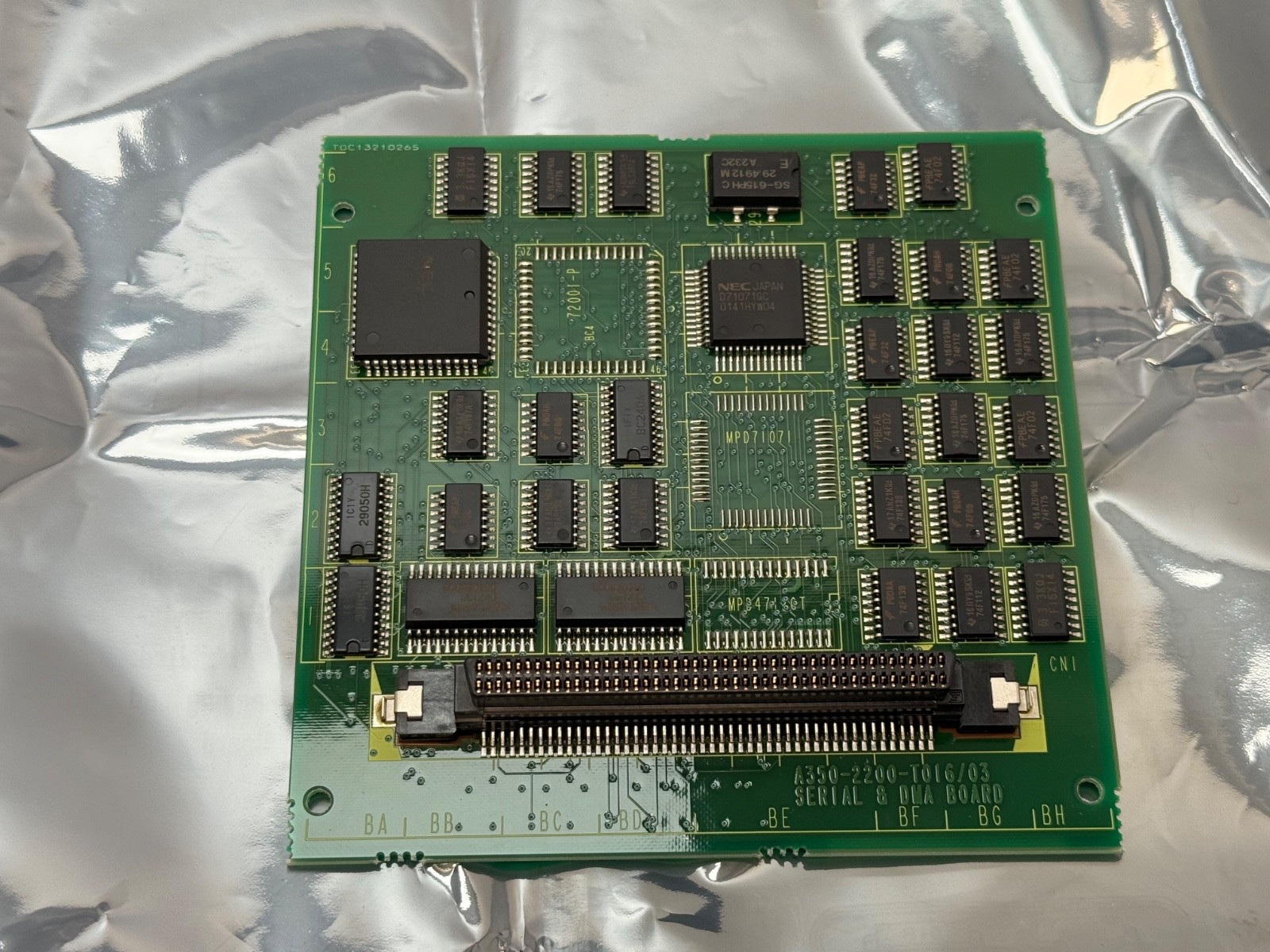

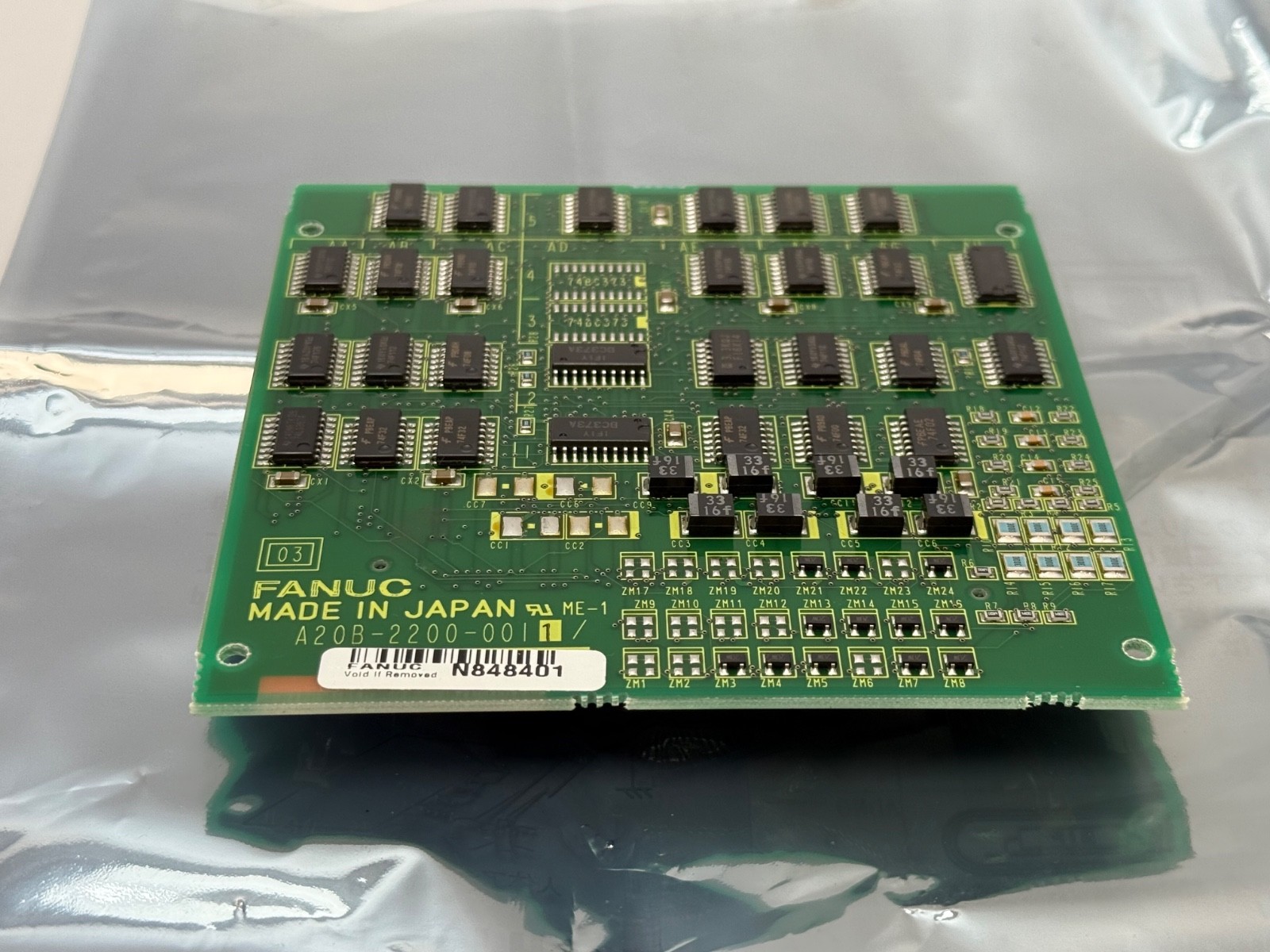

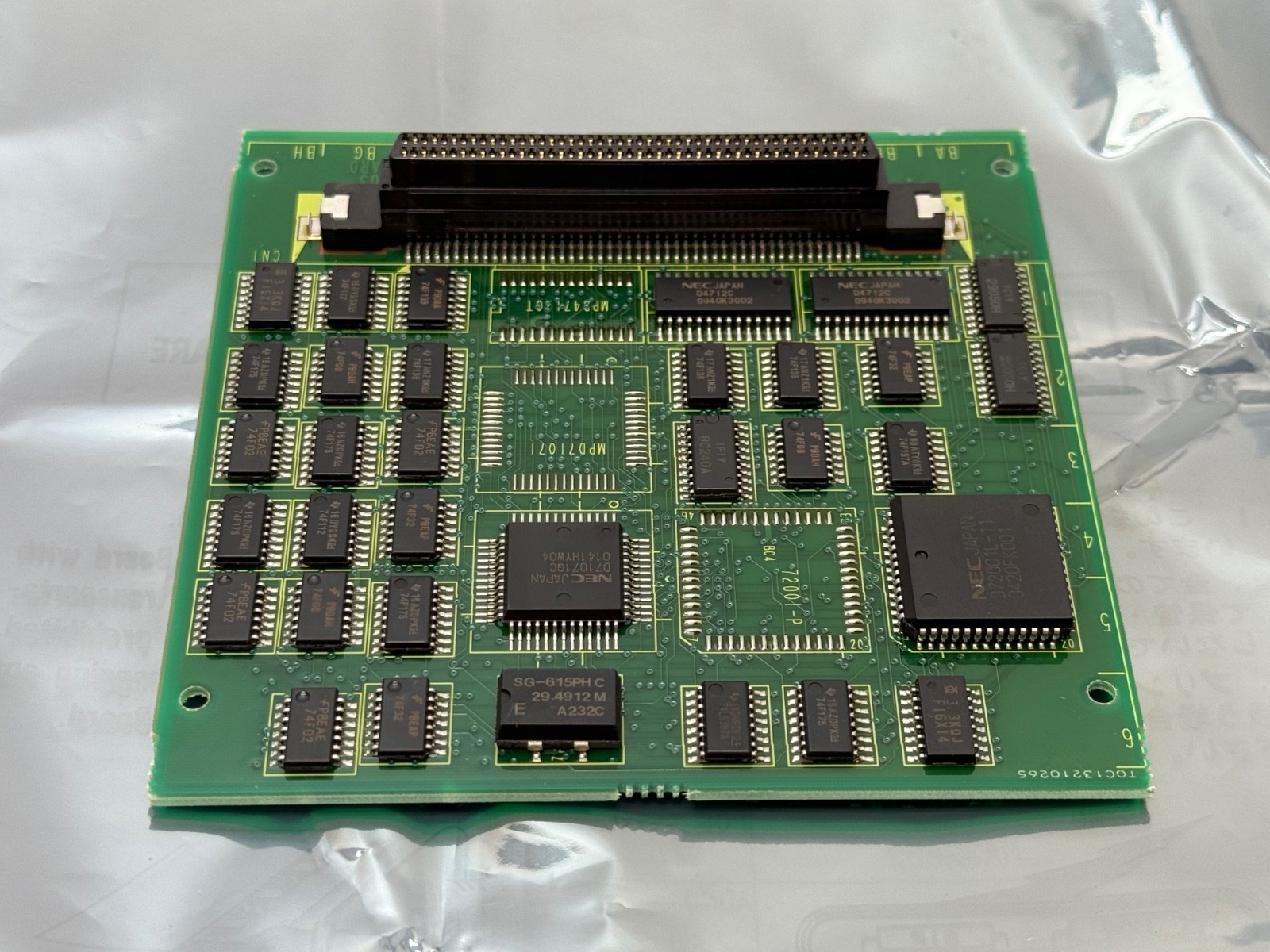

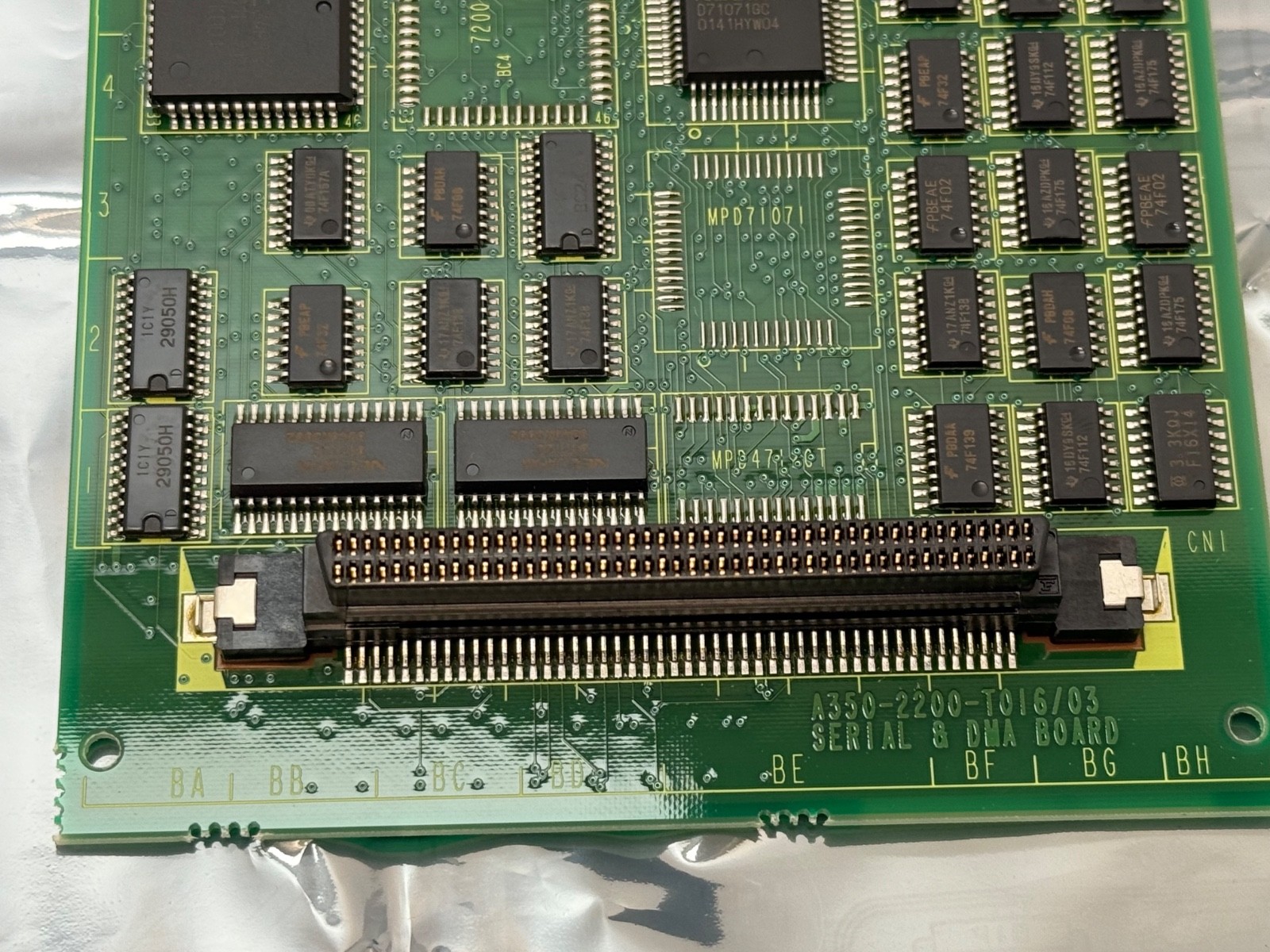

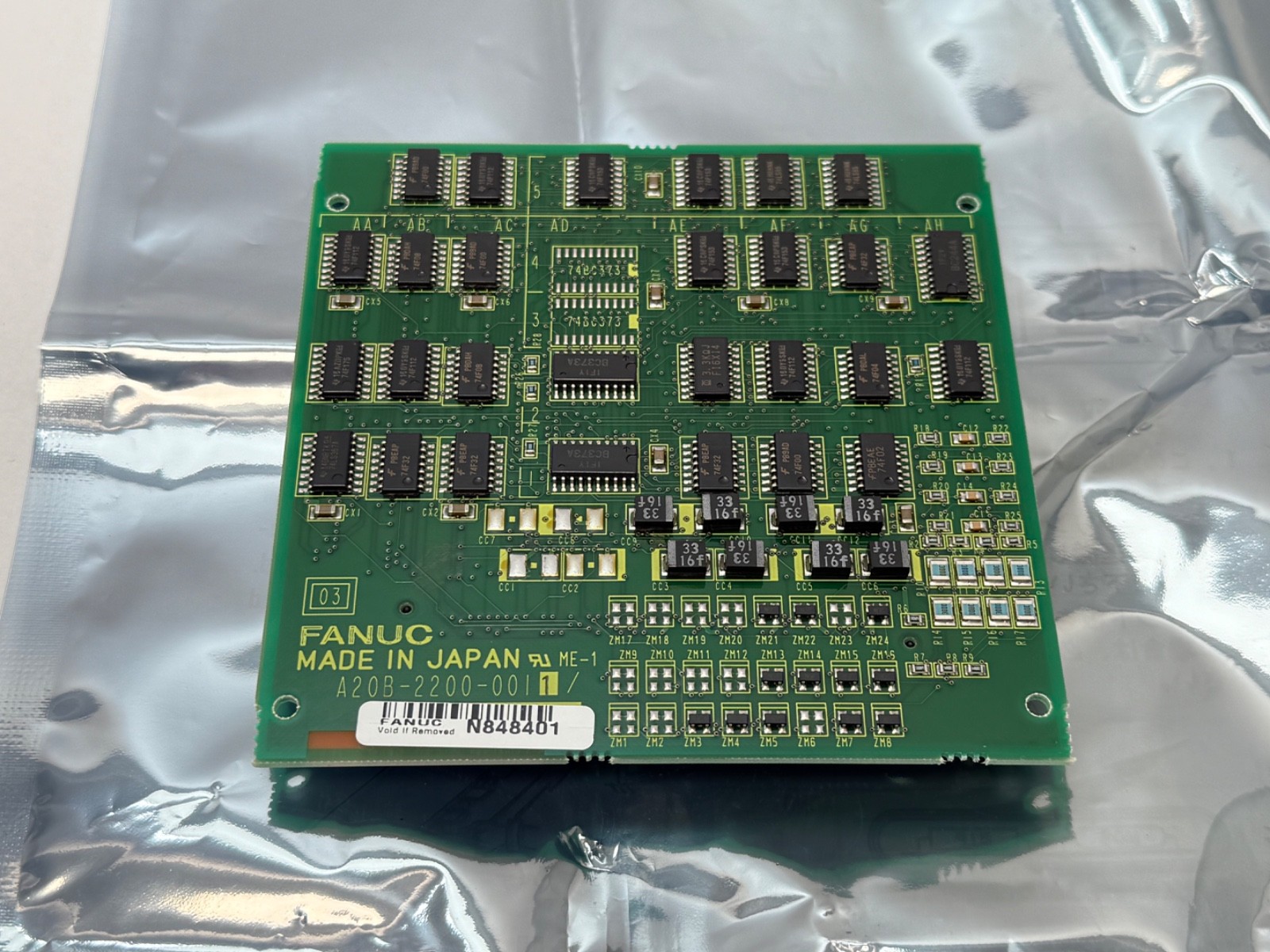

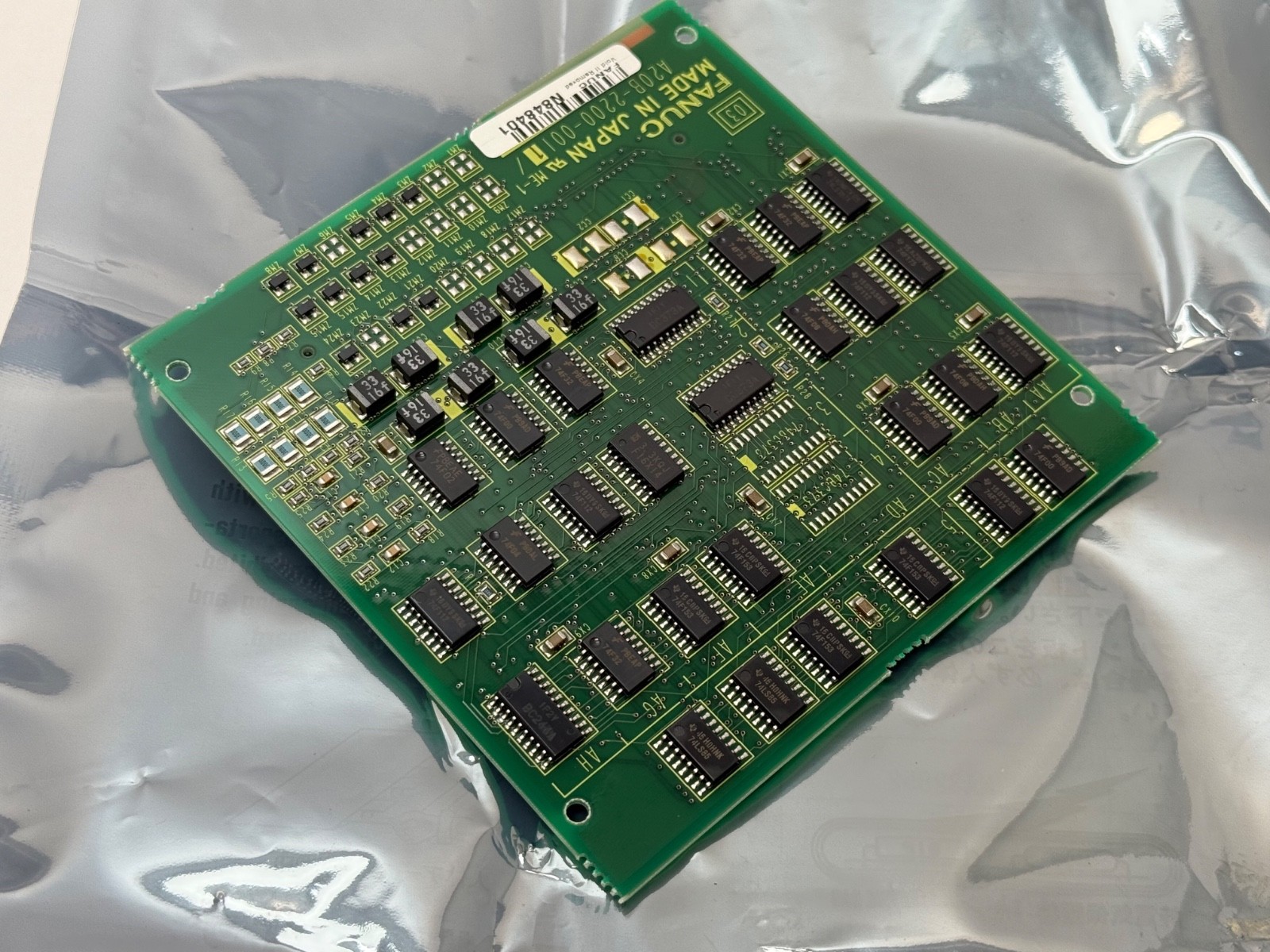

A Fanuc A20B-2200-0011 printed circuit board — a plug-in serial / DMA add-on option card that mounts onto a Fanuc Series 15 CNC main board and adds serial communication and direct-memory-access transfer capability to the control. It is an option board, not a CPU and not a standalone unit: it has no enclosure, no power supply and no operator interface of its own, and it only functions once seated in the host Series 15 control.

Decoding the order code

Fanuc part numbers are structured, and the field breakdown is what tells you whether a board will fit your control:

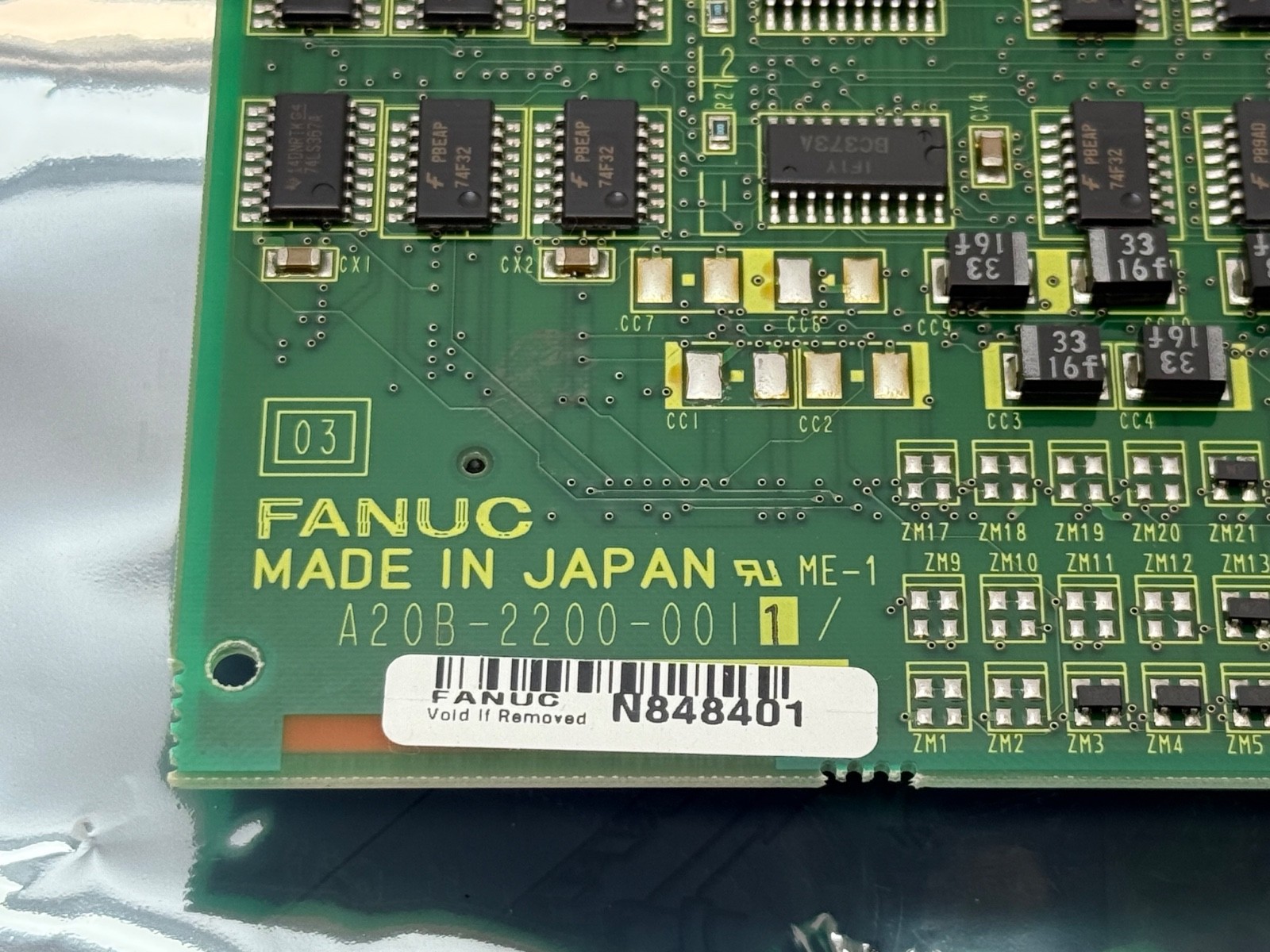

A20B – Fanuc printed-circuit-board prefix. A20B covers sub-boards, add-on option cards and plug-in daughter boards; A16B is the prefix used for the larger multi-layer main and master boards.2200 – the control generation. The 2200 / 2201 group is the Fanuc Series 15 family (15A, 15B, 15M, 15T, 15P, 15G).0011 – the specific board within that generation, here the serial / DMA add-on function.A trailing /nnA style suffix seen on many Fanuc boards (for example /02A, /05C, /07E) is the board edition or revision level, not a different part. Revisions are normally interchangeable within the same base number.

What these specs mean in practice

Because this is an option card tied to the Series 15 generation, the base number is the compatibility test. A20B-2200 boards will not seat in a Series 0, Series 16/18/21 or 160i/180i control — those generations use different base groups (8100, 2900, 3300 and so on). Confirm the number silk-screened on your existing board before ordering, and note the revision letter so you can match firmware expectations if the machine builder specified one.

What is not included

This listing is the bare add-on PCB. It does not include the Series 15 main board or master card it plugs into, the card rack or backplane, the CNC power supply, ribbon or serial cables, connector kits, memory modules or memory cartridges, the backup battery, an operator panel or MDI keyboard, or any software, parameter tape or option-enable code. Fanuc option boards frequently also require a corresponding option parameter to be set in the control; that parameter setting is not supplied.

Quantity and configuration

Sold as 1 piece — one bare printed circuit board. New old stock, in an opened box.

Installation and setup notes

Power down and lock out the control fully before removing or seating any Fanuc card — the Series 15 backplane is not hot-swappable. Handle the board by its edges with a wrist strap; the DMA and serial devices on it are static-sensitive. Note the original slot position and connector orientation before removal, because Fanuc add-on cards are keyed to specific positions on the host board.

Interchange guidance

Searchable equivalents of the same part number: A20B-2200-0011, A20B22000011, A20B 2200 0011. Do not treat neighbouring numbers in the same group as substitutes — A20B-2200-0012 and similar adjacent numbers are different functions on the same platform, not interchanges.
