SmartDriveD110/9Eurocard Stepper Motor Drive – 11.0 A Peak / 7.8 A rms, 27-94 V DC, Half/Full Step, 3U x 160 mm 9HP Module, DIN 41612 Type D

Condition: New
Condition Note: Made In United Kingdom, New Old Stock, Sealed In Antistatic Bag

Availability:

1 in stock

Bipolar chopper stepper motor drive card, 3U x 160 mm Eurocard, 9HP wide, 11.0 A peak / 7.8 A rms, 27-94 V DC supply, half and full step, DIN 41612 type D.

Same day shipment

List Price

$719.99

1 in stock

Prefer eBay? Buy this item on our store (opens in a new tab)

Small green outline icon of a shipping box with a clock, indicating delivery time
Availability

1 in stock

On the Shelf & Ready to Ship

Green shield badge reading "Same-Day Shipping" with box and delivery truck icons
Free US Shipping

Ships same day by 6pm ET

Green shield icon with box and arrow graphic labeled "Free Returns"
Free Returns

No Risk, No Hassle

Specifications

Key Specifications

MFR / BrandSmartDrive
MPND110/9
ModelD110

Technical Specifications

Base NumberD110
Industry TermsEurocard stepper drive; rack mount stepper driver; bipolar chopper stepper drive; DIN 41612 stepper card; 19 inch rack stepper drive; half step drive; MOSFET stepper drive
Common MisspellingsSmart Drive D110/9; SmartDrive D110-9; Smartdrive D1109; DM110/9 (different product - microstepping); Digiplan D110/9; Maclennan; McLennan
Application TypesMulti-axis stage motion, laboratory and test rigs, semiconductor and optical handling, telescope and antenna drives, OEM machine builds using 19-inch rack automation hardware
Connector StyleDIN 41612 type D, 32-way backplane edge connector
Output Amperage11.0 A peak / 7.8 A rms maximum per phase; 3.5 A peak / 2.5 A rms minimum setting
Housing StyleOpen Eurocard plug-in module with aluminium front panel and integral heat sinking
Mpn VariantsD110/9; D110-9; D1109; D110 9; D-110/9; SmartDrive D110/9; Mclennan D110/9
Manufacturer StatusSmartDrive Limited closed; Mclennan Servo Supplies acquired the D and DM series design and manufacturing rights in January 2017 and supplies form-fit replacements. Original SmartDrive-branded cards are obsolete
Compatible With ReplacesSmartDrive and Mclennan 3U Eurorack stepper systems with DIN 41612 type D backplanes; replaces any earlier SmartDrive D110/9 card
Additional AttributesCDP protection reacts to winding faults within 5 microseconds; overtemperature protection; automatic current reduction to 50% one second after motion stops (CRRD link); Boost input adds 33% current; winding supply fuse 8 A fast blow; minimum motor inductance 0.5 mH; configuration links RST, EN, EXCR, CRRD, BST
TypeStepper Drive
Nominal Rated Input VoltageWinding (motor) supply 27-94 V DC, 85 V DC typical, 250 mA standby. Logic supply 15-33 V DC, 24 V typical, 80 mA
Part NumberD110/9
Mounting TypeEurocard / Eurorack plug-in module, 3U x 160 mm, 9HP wide
SeriesSmartDrive / Mclennan D Series Eurocard Stepper Drives (half/full step family)
Overall Width9HP / 1.8 in (module 172 x 42 x 112 mm; PCB 160 x 112 mm)
MaterialChopped MOSFET power stage; aluminium front panel; natural convection heat sink

Cross-References

Cross Reference 1Mclennan D110/9 - current production, same card
Cross Reference 2Mclennan DM110/9 - microstepping version
Cross Reference 5SmartDrive SA14 - cased single-axis stepper system that hosts D and DM series cards on an 85 V DC / 24 V logic supply
Seller Part Number: P1#VRVYH5

Product Description

What this part is:

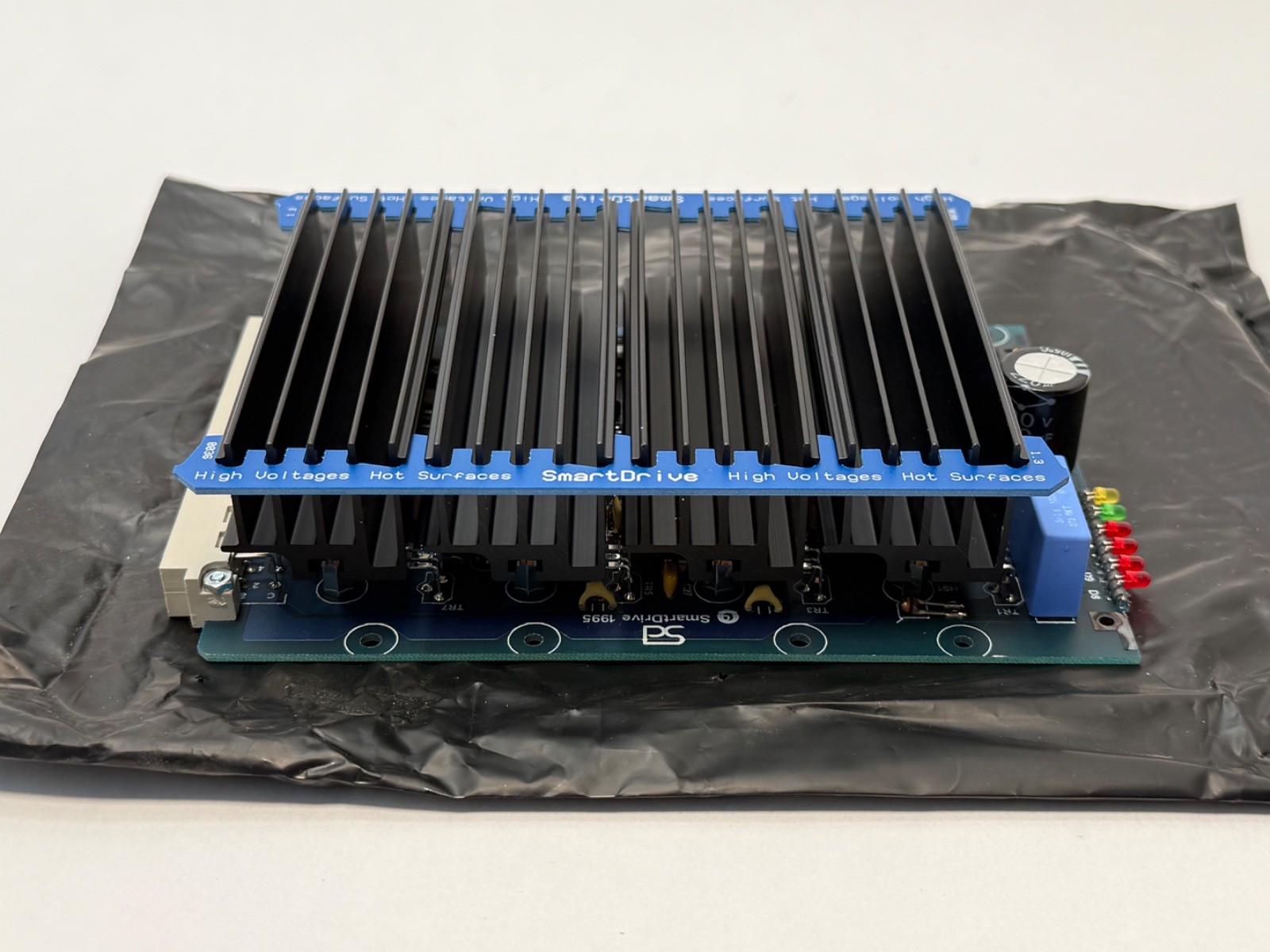

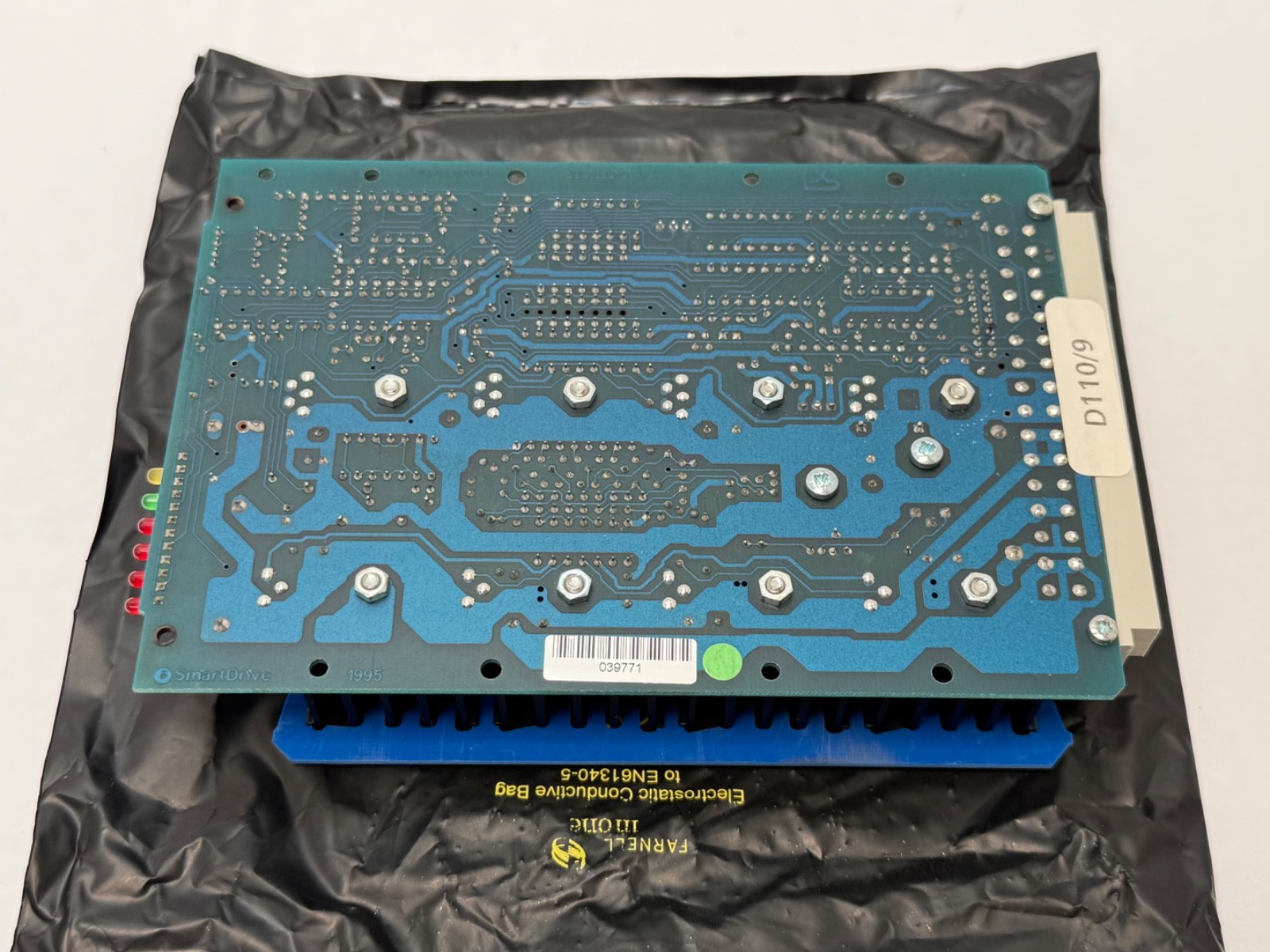

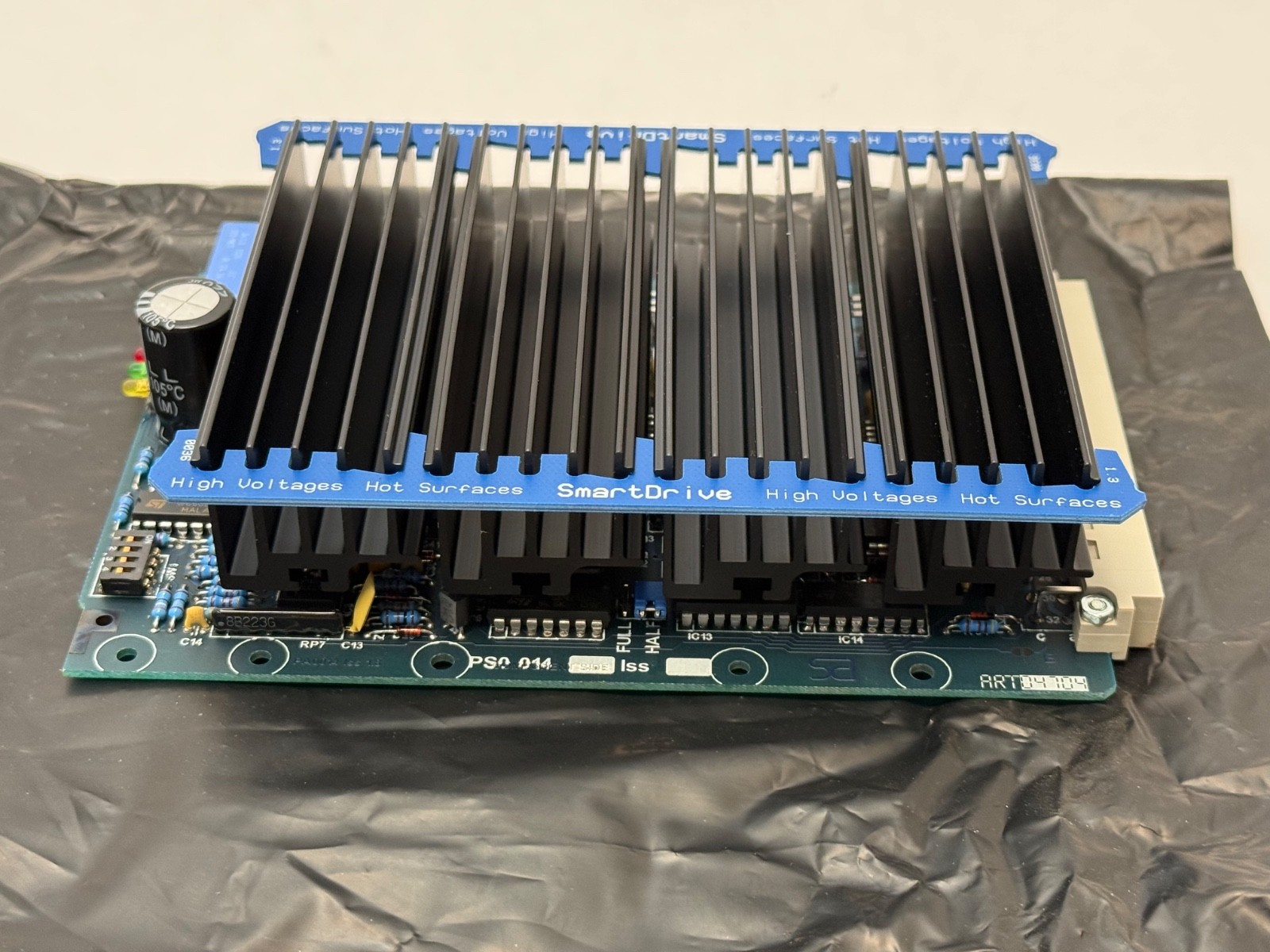

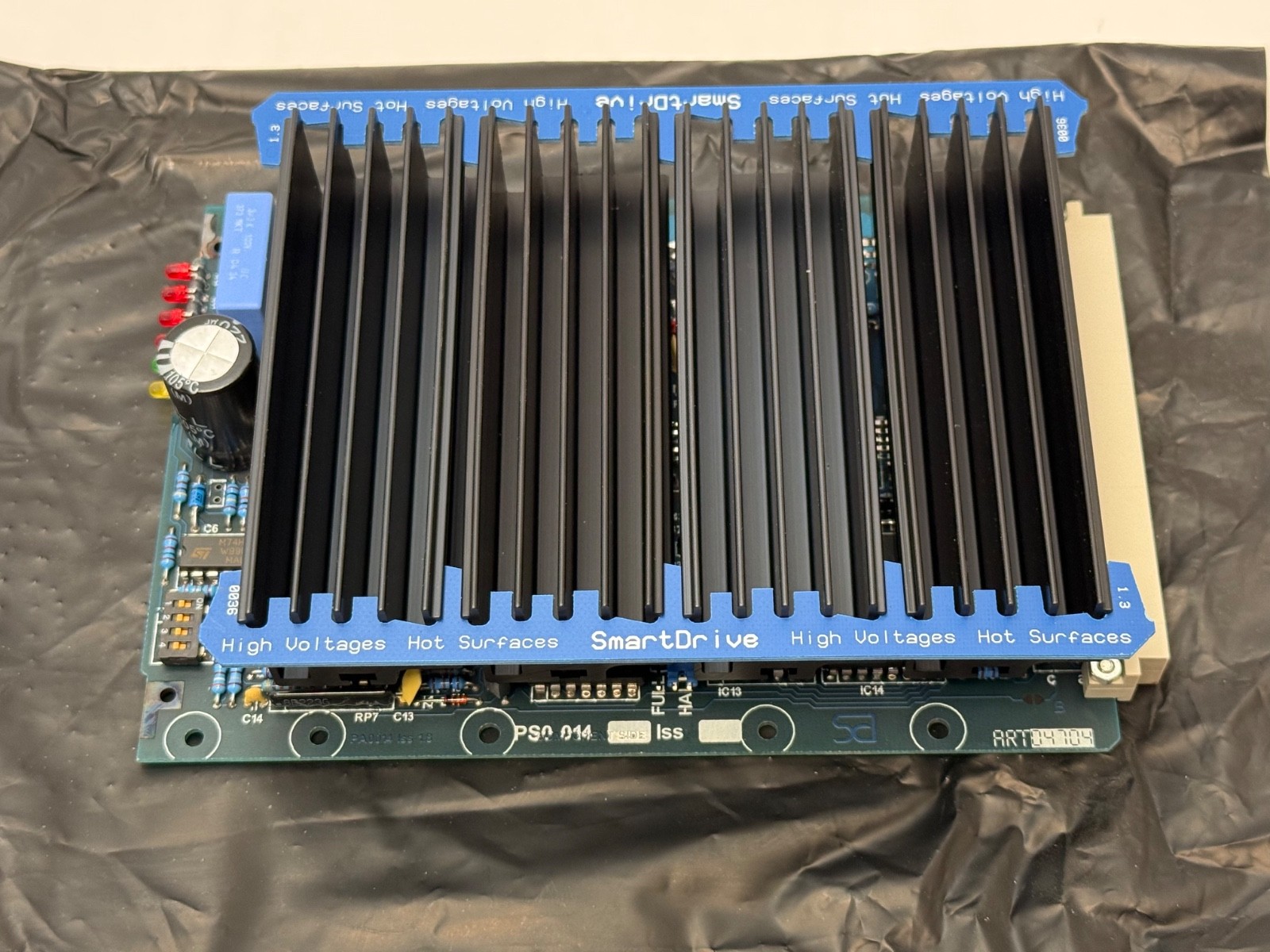

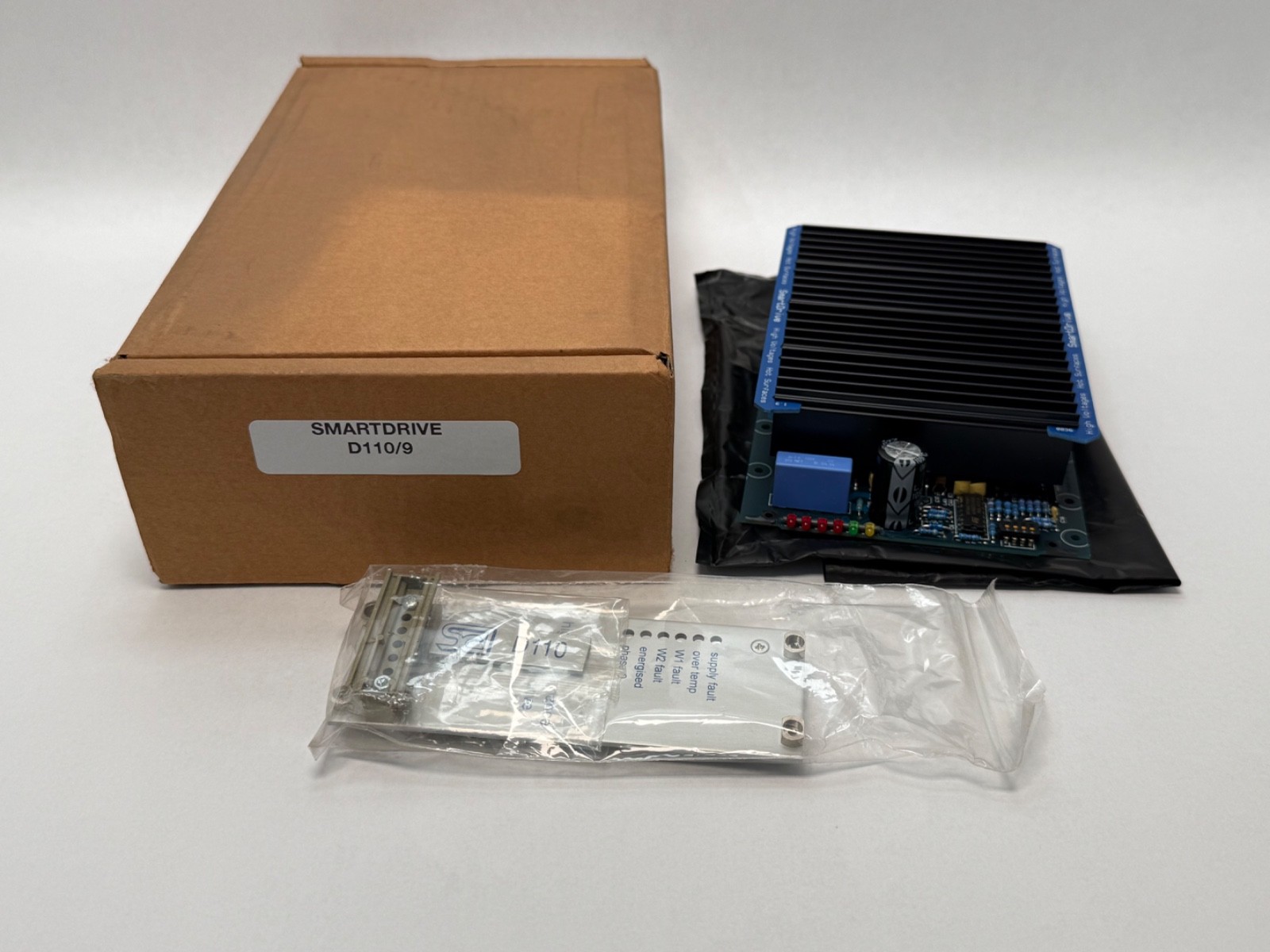

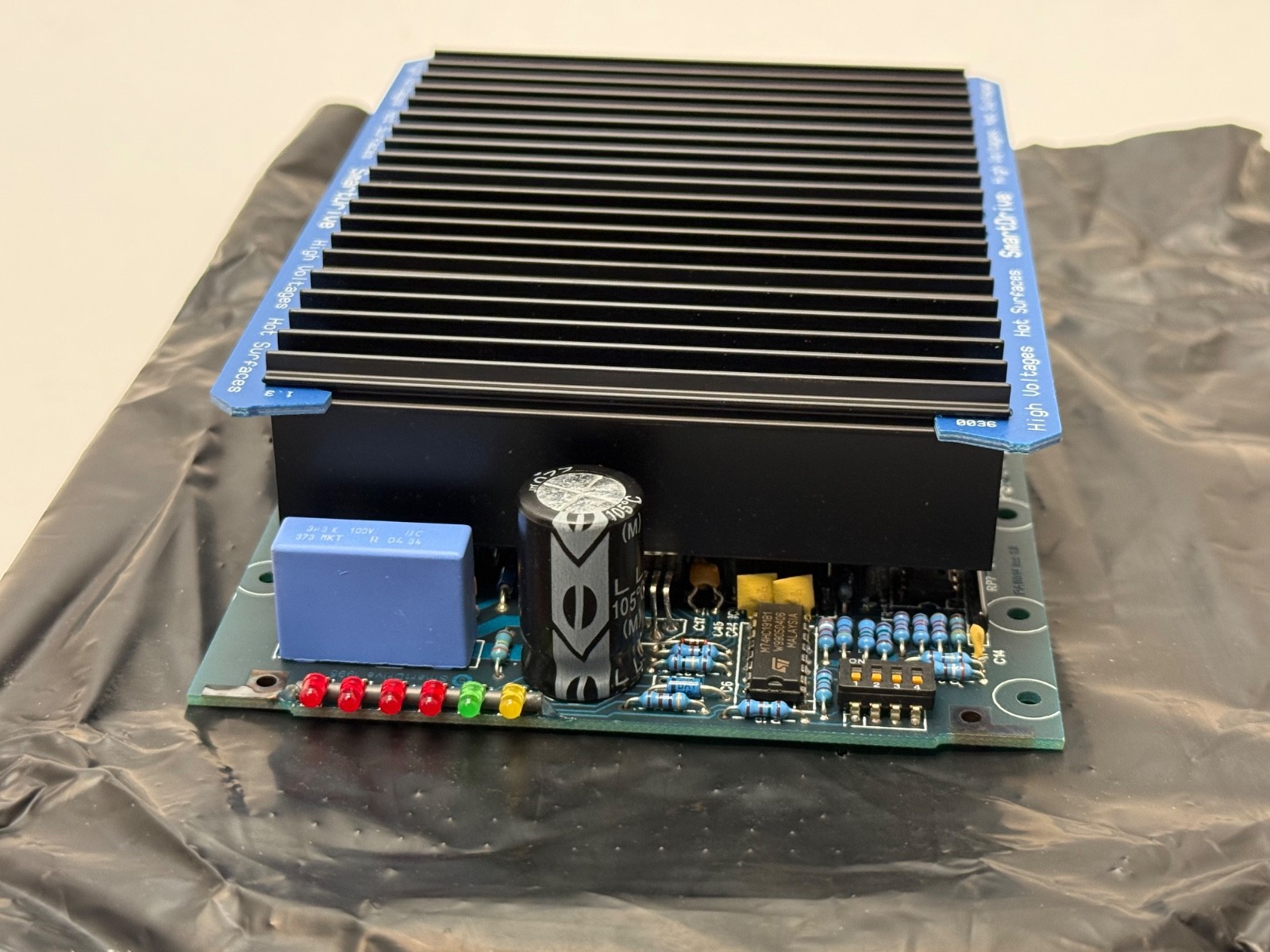

SmartDrive D110/9 bipolar chopper stepper motor drive card in 3U x 160 mm Eurocard (Euromodule) format, 9HP (1.8 in) wide. Rated 11.0 A peak / 7.8 A rms per phase, half and full step. Unit Quantity: 1 Pc. Condition: new old stock, sealed in antistatic bag, not functionally tested. The drive card only, with front panel.

Decoding the designation:

D — D series, the half/full step family (the microstepping equivalent is the DM series).

110 — 11.0 A maximum peak winding current, 7.8 A rms.

/9 — 9HP module width, 1.8 in.

Specifications:

Output Amperage: 11.0 A peak / 7.8 A rms maximum per phase; 3.5 A peak / 2.5 A rms minimum setting. Winding supply: 27 V min, 85 V typical, 94 V max DC, 250 mA standby. Logic supply: 15 V min, 24 V typical, 33 V max DC, 80 mA. Winding supply fuse: 8 A fast blow. Resolution: 200 / 400 steps per revolution on a 1.8° motor (full / half step). Step rate: 0 to 500 kHz. Minimum motor inductance: 0.5 mH. Power stage: chopped MOSFET output. Protection: CDP (Comprehensive Dynamic Protection) reacts to motor winding faults within 5 microseconds. Cooling: natural convection. Inputs: open-collector NPN, 24 V, 10 mA: Clock, Direction, Energise, Boost, Reset, Set Current. Outputs: open-collector NPN: Fault, Phase 0. Boost raises current by 33 percent. Automatic current reduction to 50 percent one second after motion stops (CRRD link).

Dimensions and mounting:

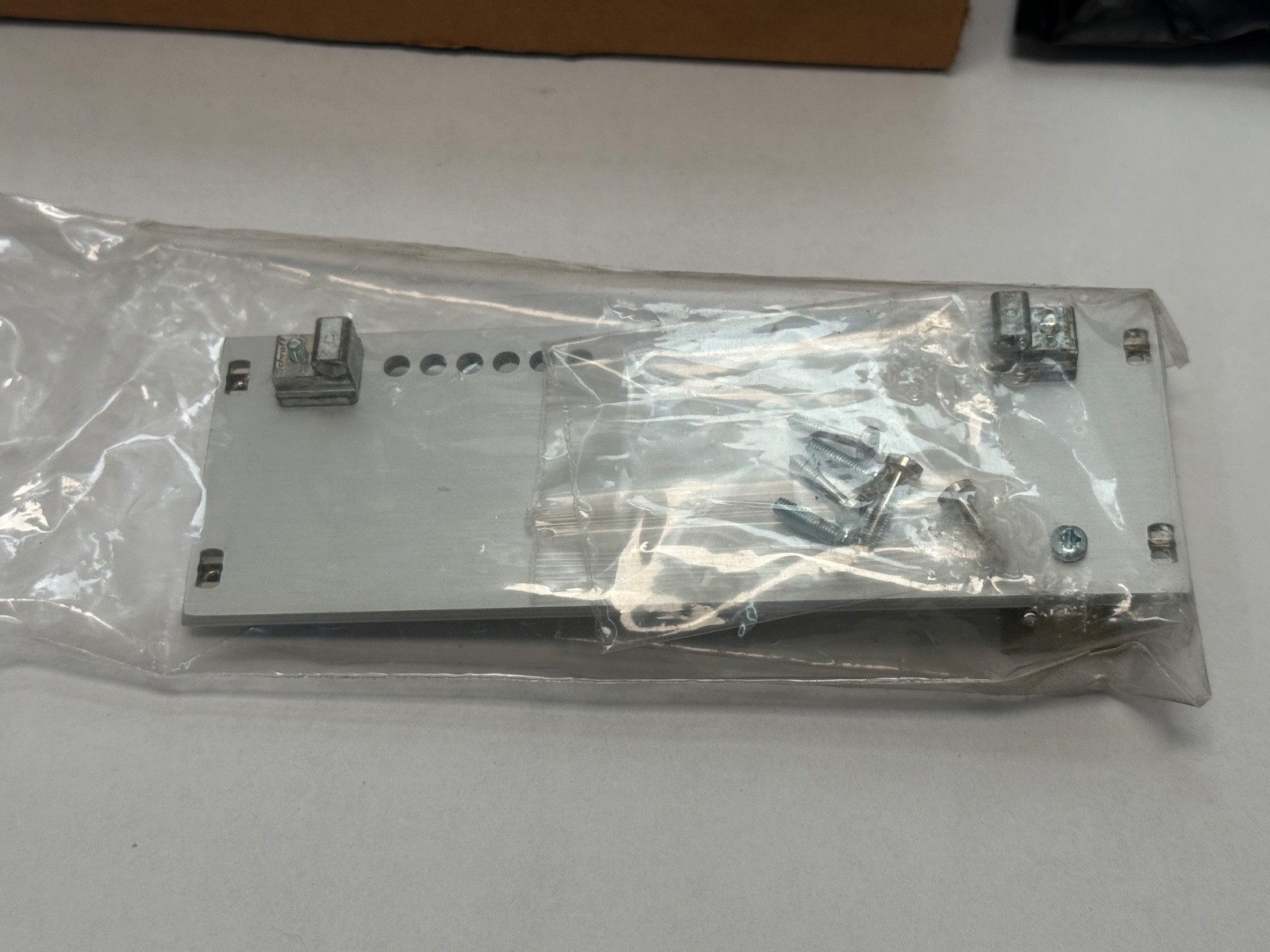

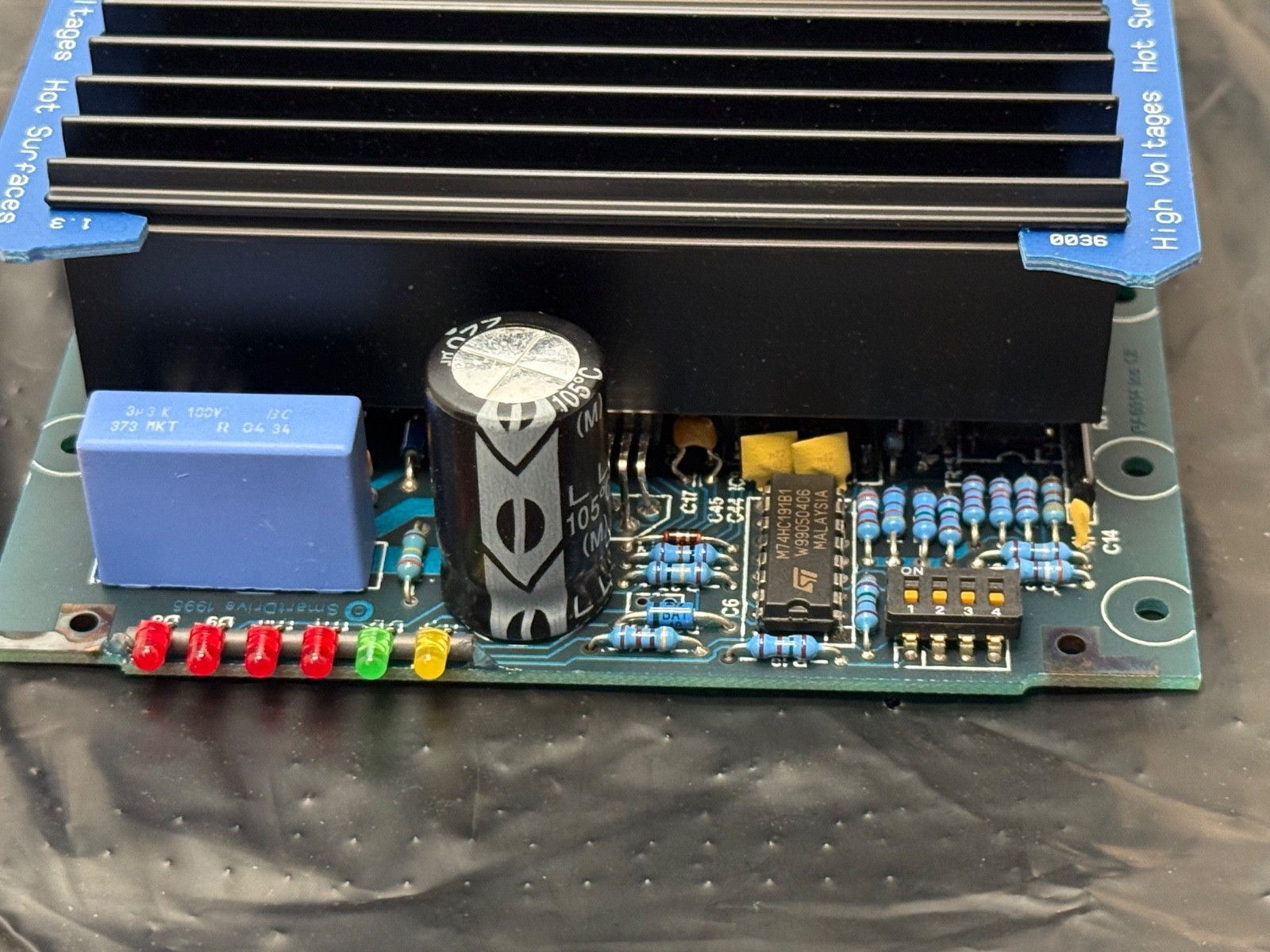

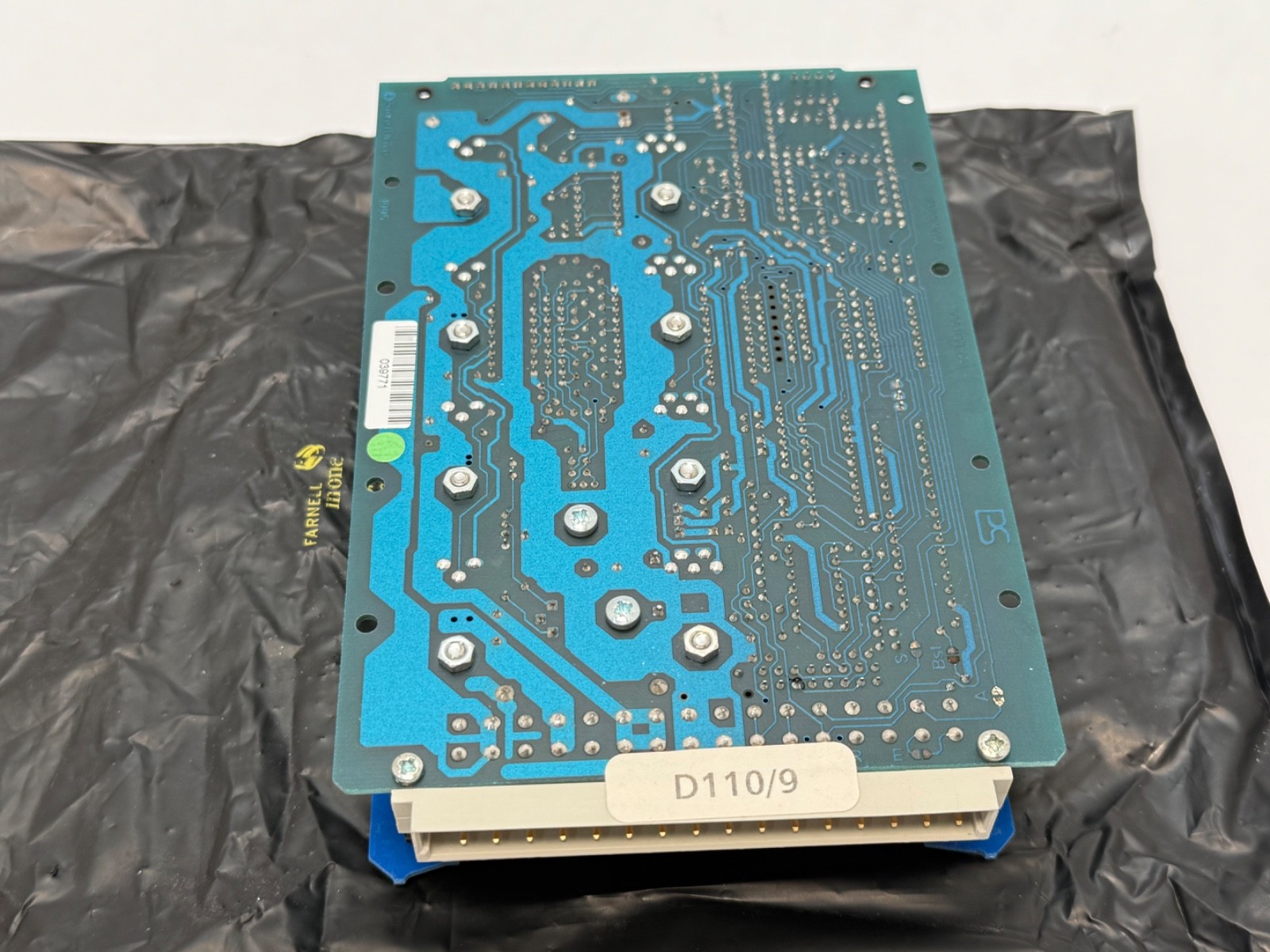

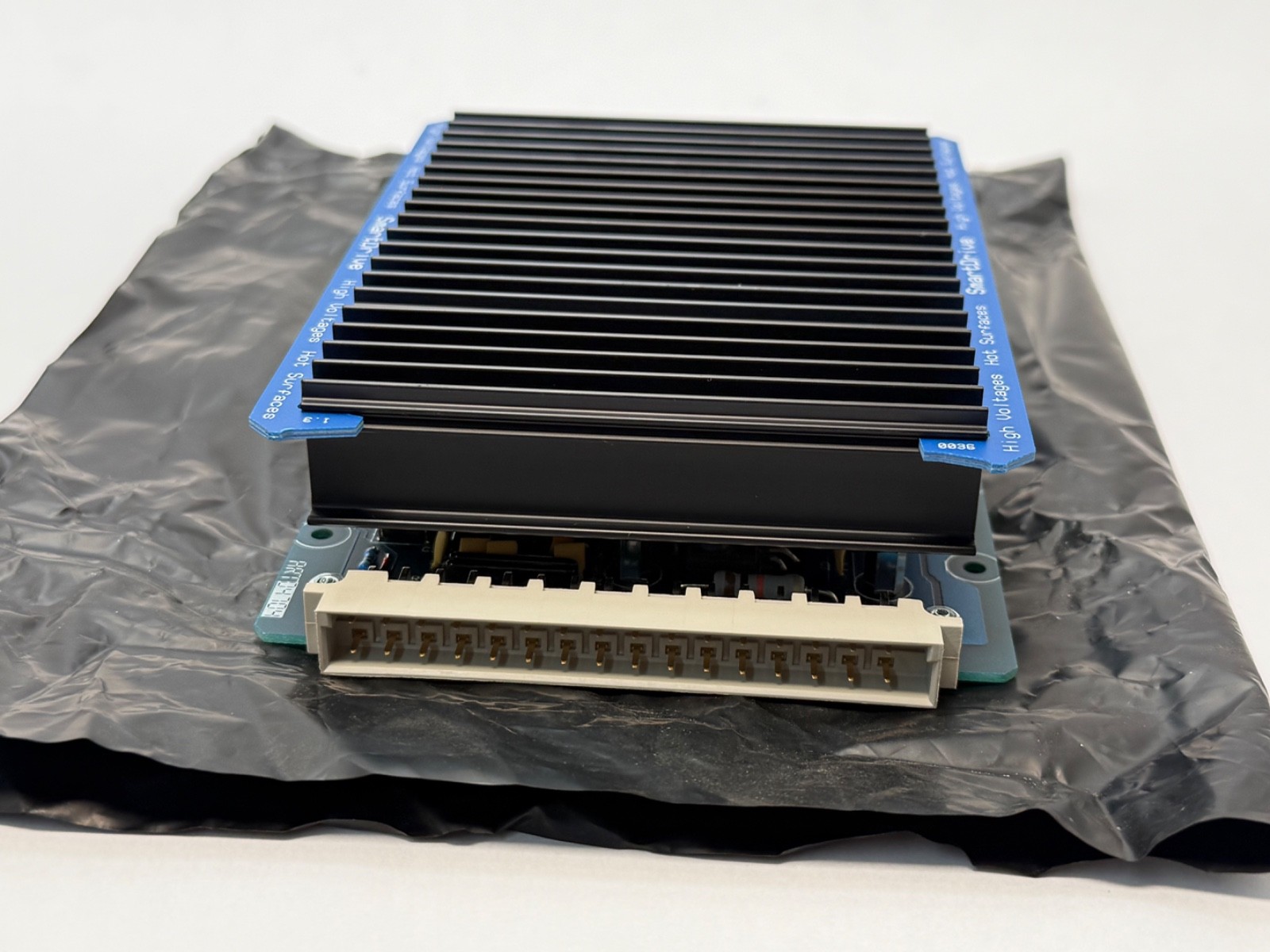

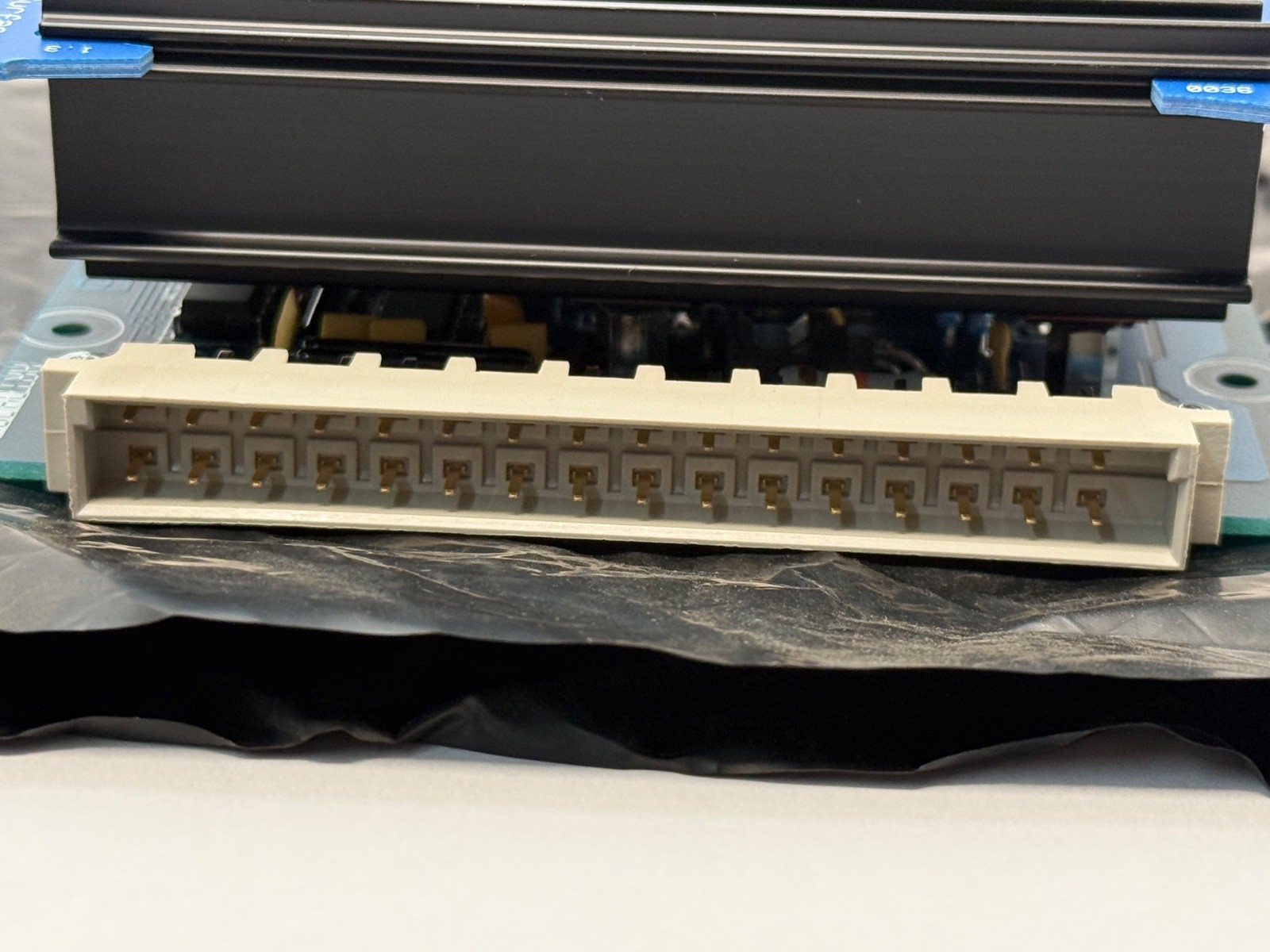

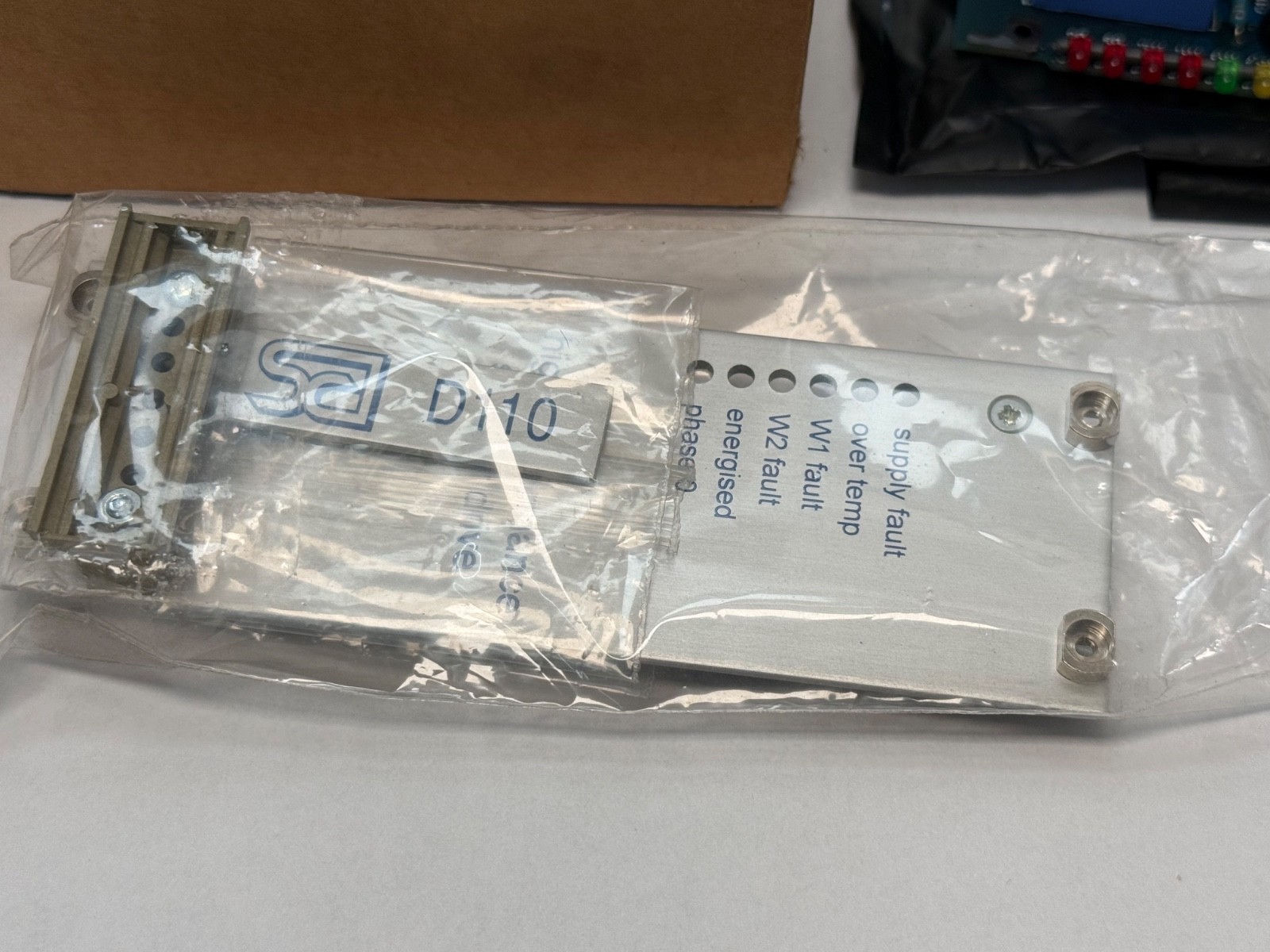

PCB: 160 x 112 mm. Drive module: 172 x 42 x 112 mm (9HP). Mounting: 3U high Eurorack, or on PCB posts. Backplane connector: DIN 41612 type D, 32 way. Front panel carries the sd SmartDrive logo, D110 and six status LEDs: supply fault, over temp, W1 fault, W2 fault, energised, phase 0.

Compatibility and replacement:

SmartDrive Limited designed and built the D and DM series in the United Kingdom. In January 2017 Mclennan Servo Supplies acquired the design and manufacturing rights, and supplies the D110/9 as a form-fit replacement. Mclennan DM110/9 is the microstepping counterpart with identical current and supply ratings (51,200 steps/rev binary or 50,000 decimal). Host systems: SmartDrive and Mclennan 3U Eurorack stepper systems with DIN 41612 type D backplanes. Also written as D110-9, D1109, D110 9, D-110/9.

Frequently asked questions:

What is the current rating of the SmartDrive D110/9?

11.0 A peak and 7.8 A rms per phase maximum, adjustable down to 3.5 A peak and 2.5 A rms.

What supply voltages does the D110/9 use?

Winding supply 27 to 94 V DC (85 V typical) and logic supply 15 to 33 V DC (24 V typical).

What step resolution and step rate does the D110/9 have?

200 steps per revolution full step and 400 half step on a 1.8 degree motor, with a step rate up to 500 kHz.
