EatonAN19GN0NEMA Size 2 Starter Contactor 45A 600V 3 Pole 120V Coil

Product Description

What this part is:

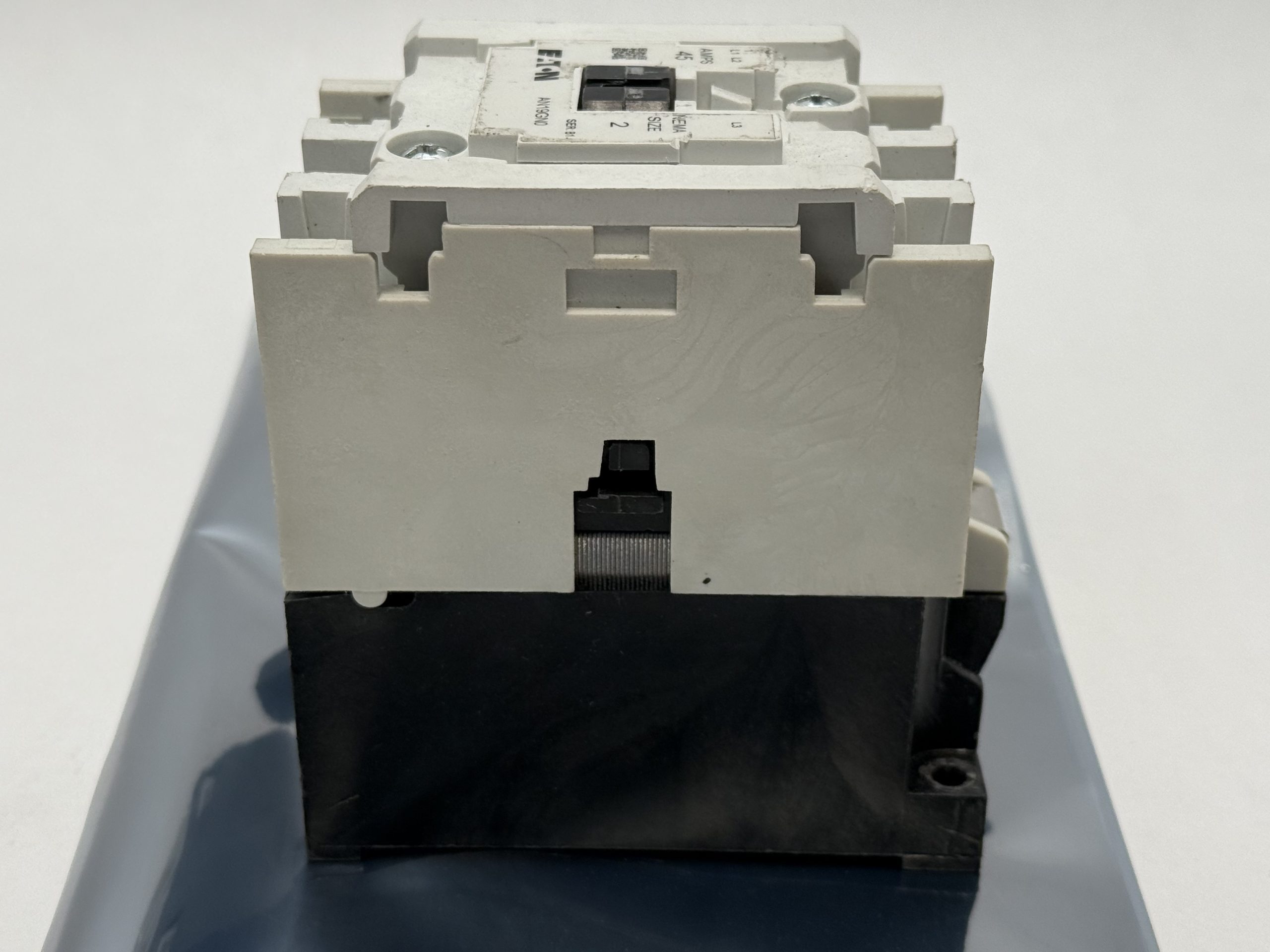

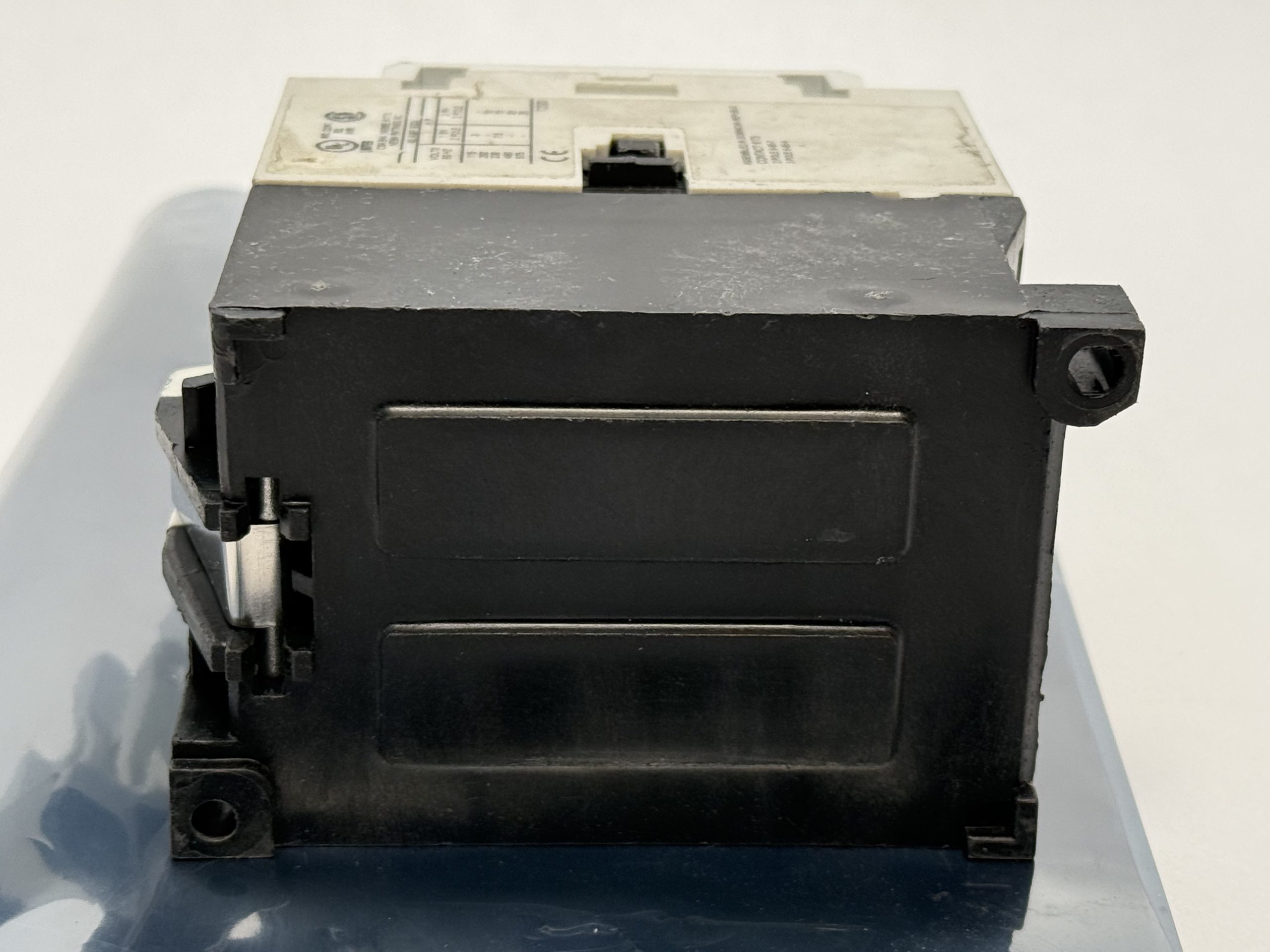

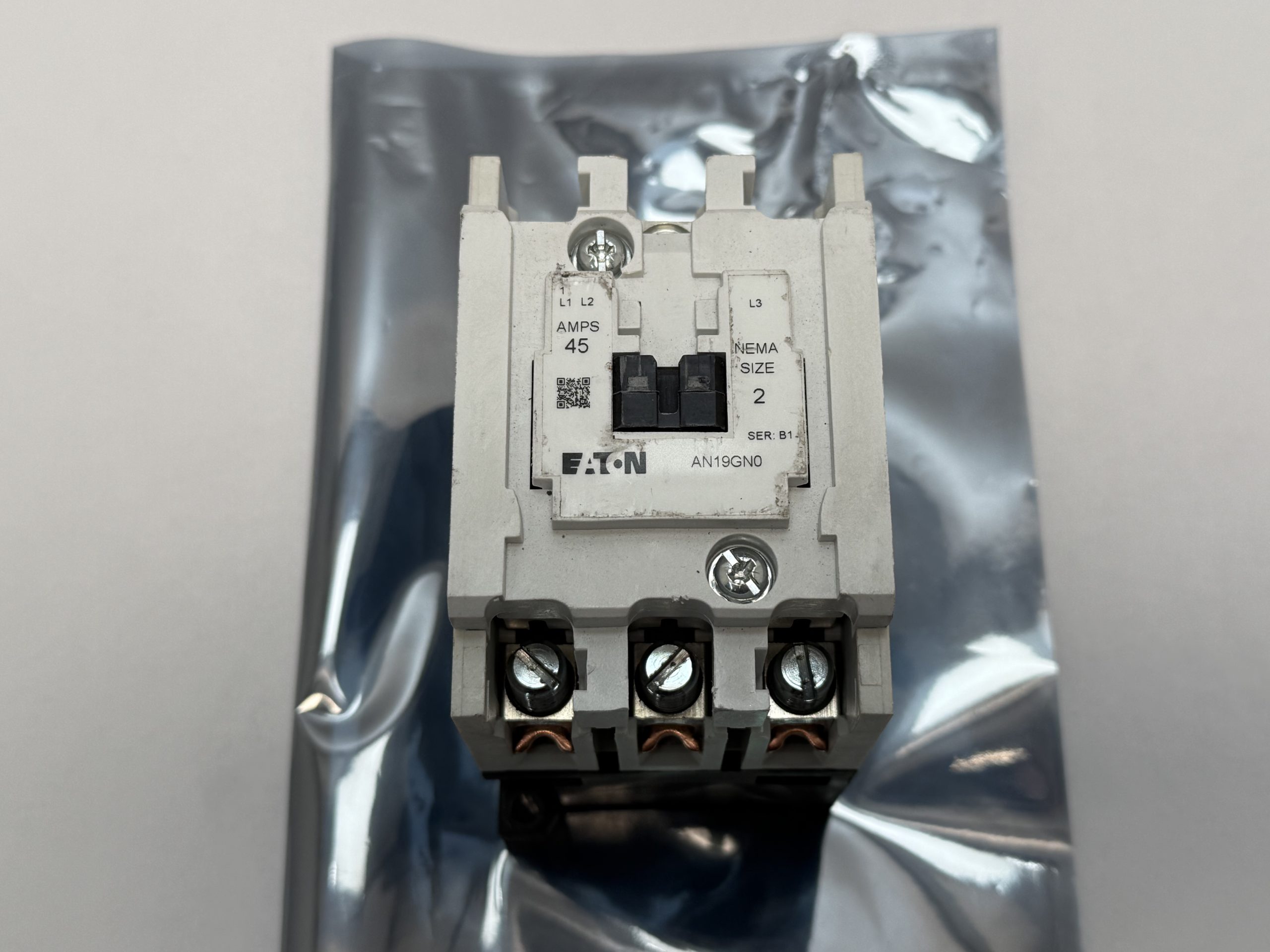

Used Eaton AN19GN0 NEMA Size 2 starter contactor, Series B1, 3 pole, 45 A, 600 V, with a 110-120 V 50/60 Hz coil. Contactor section only, as pictured; no overload relay is attached. Assembled in the Dominican Republic.

Decoding the designation:

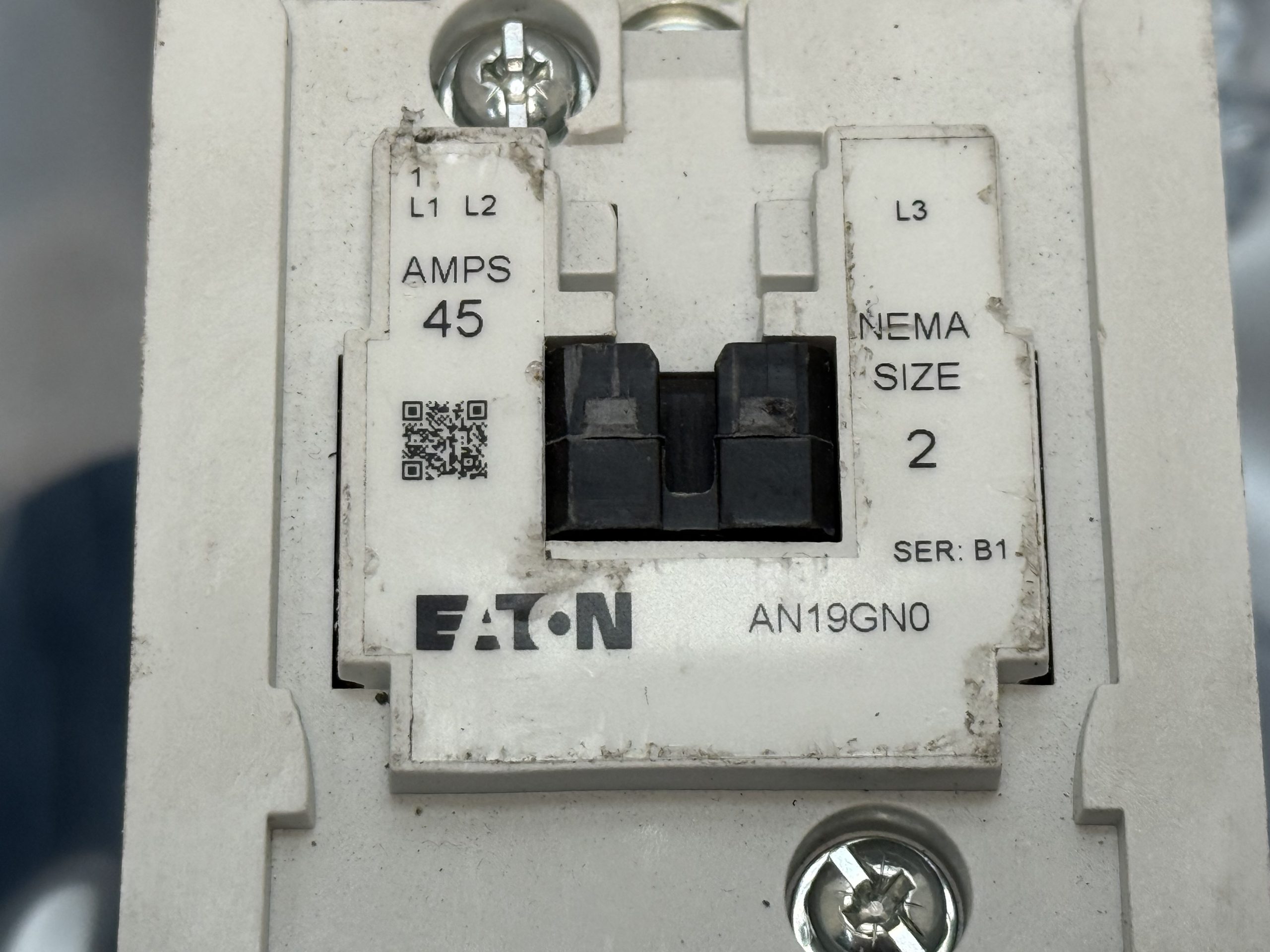

AN19GN0 — Eaton base catalog number for the NEMA Size 2 non-reversing starter, as printed on the nameplate.

9-3285-1 — coil part number, marked 110-120V 50-60HZ.

Specifications:

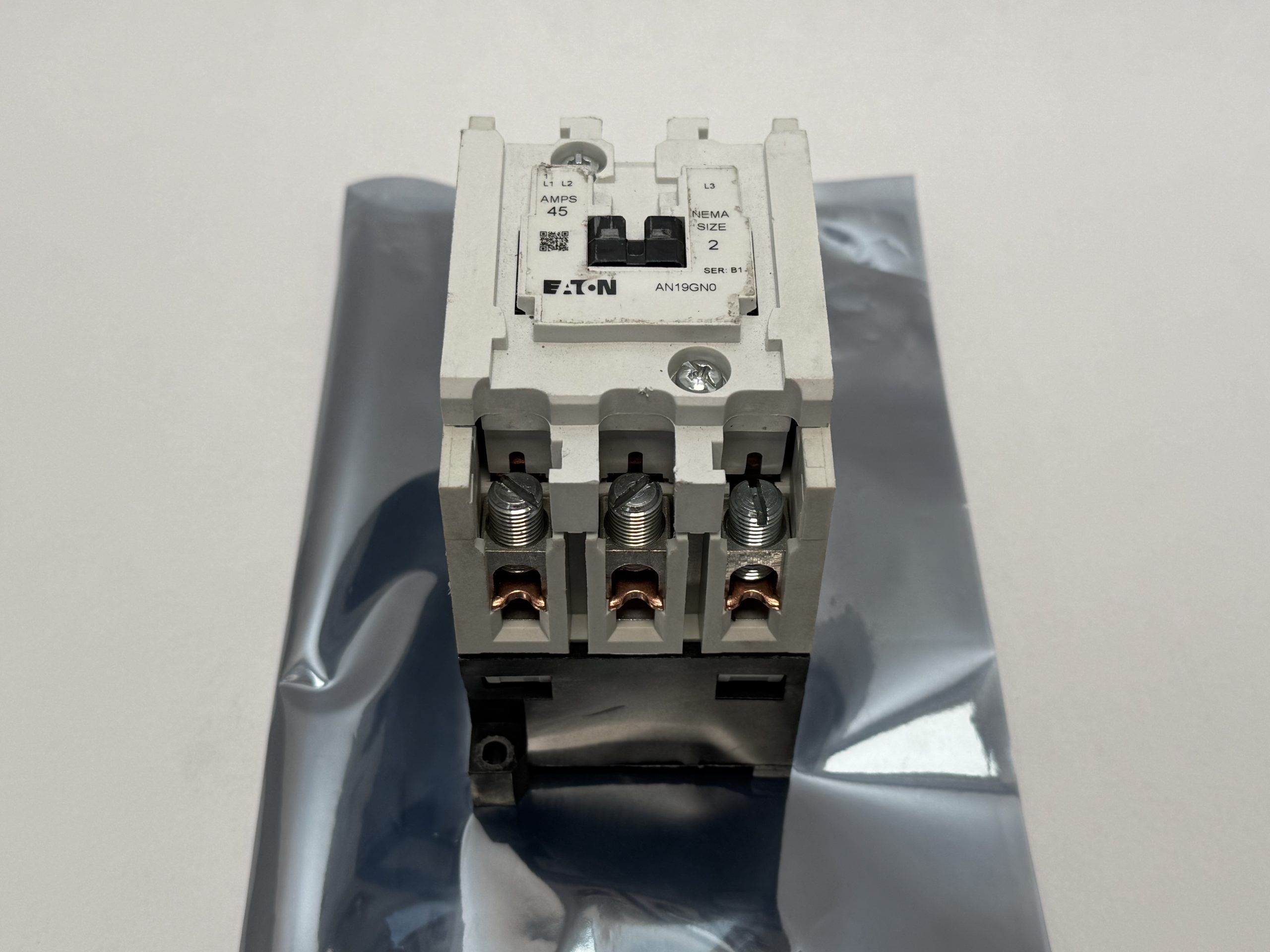

NEMA Size: 2.

Rating: 45 A, 600 V AC.

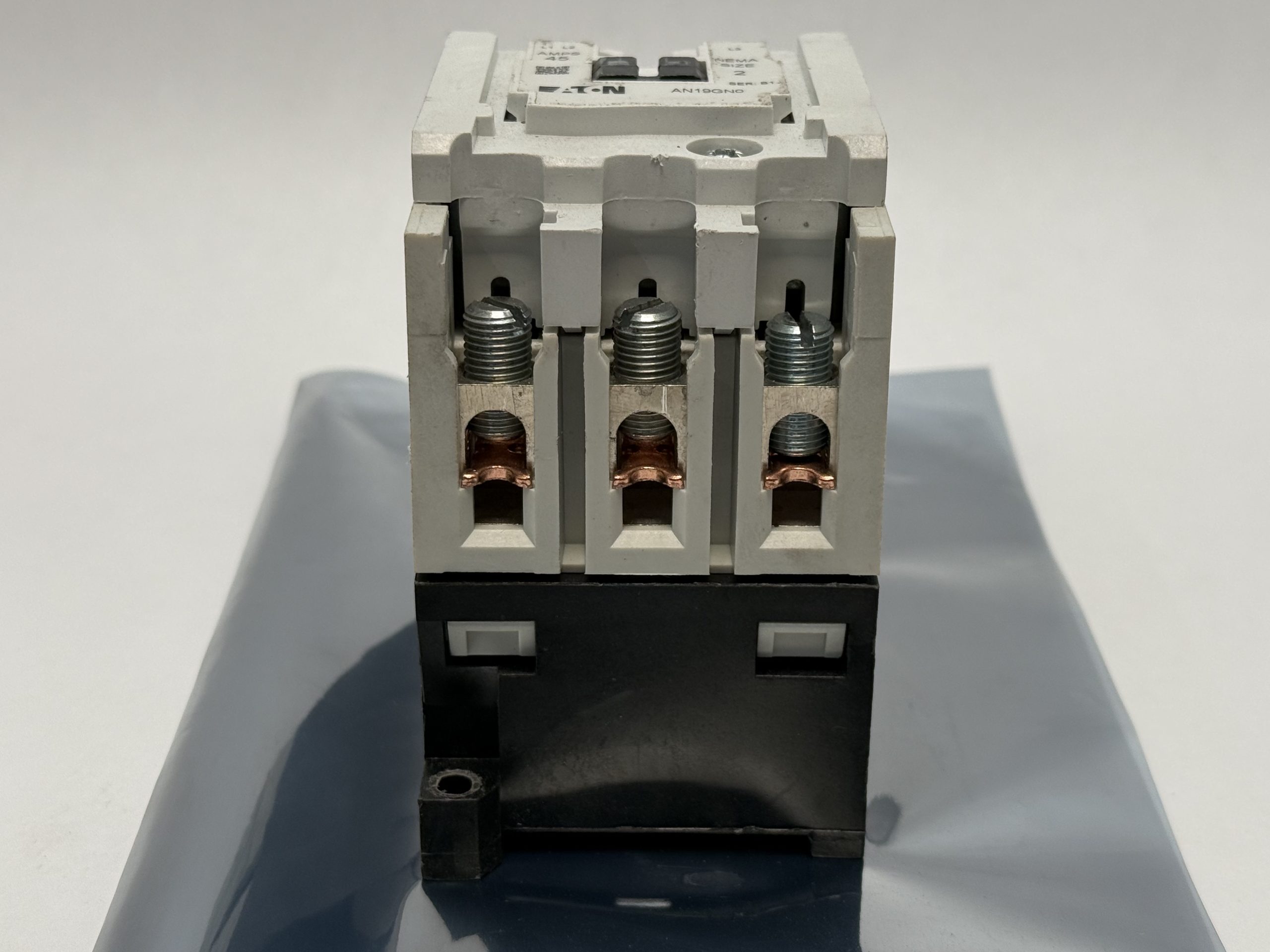

Poles: 3 (L1, L2, L3).

Horsepower, 3 Phase: 10 HP at 200 V, 15 HP at 230 V, 25 HP at 460 V, 25 HP at 575 V.

Horsepower, 1 Phase (2 pole): 3 HP at 115 V, 7.5 HP at 230 V.

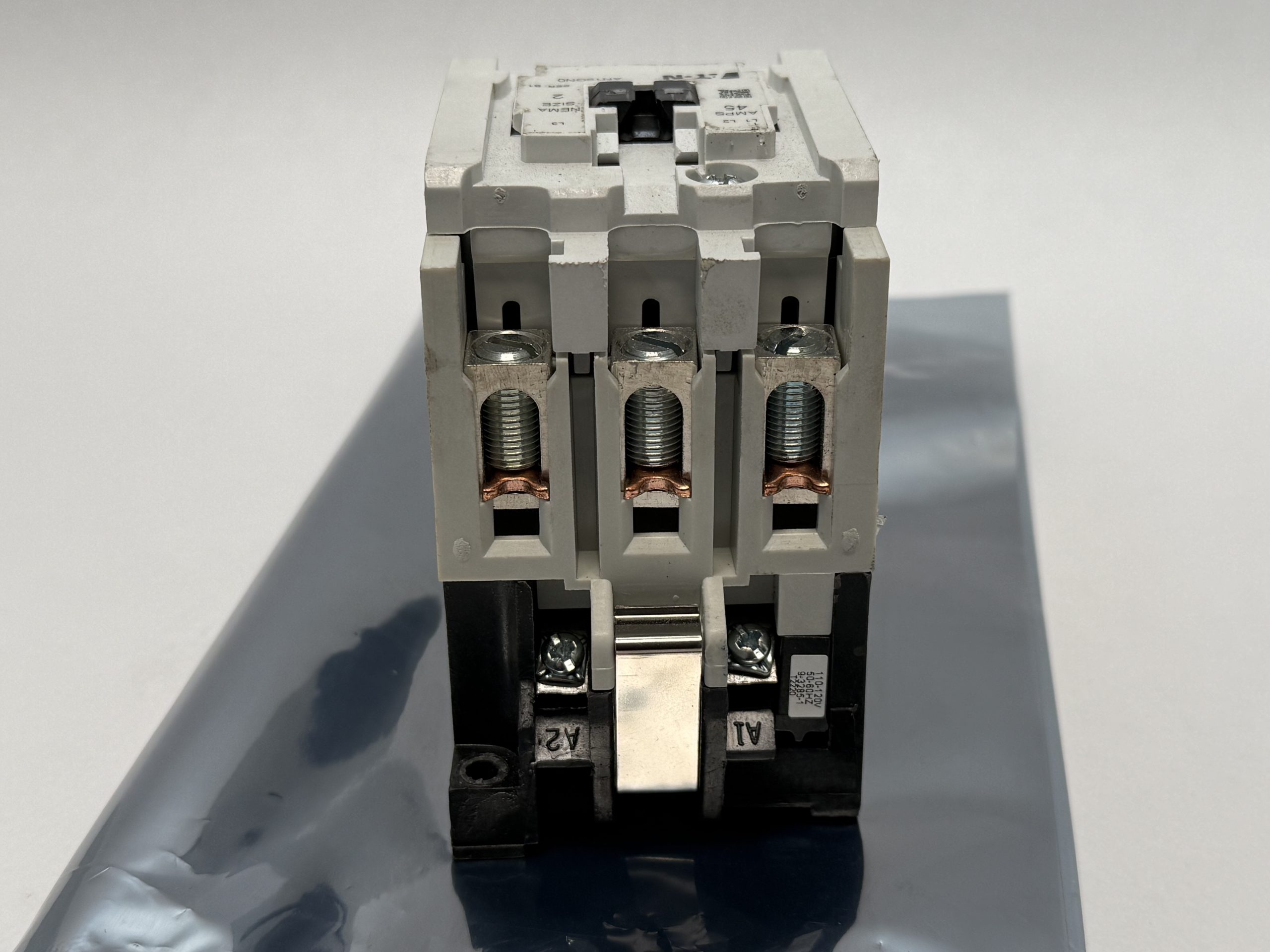

Coil Voltage: 110-120 V AC, 50/60 Hz.

Series: B1.

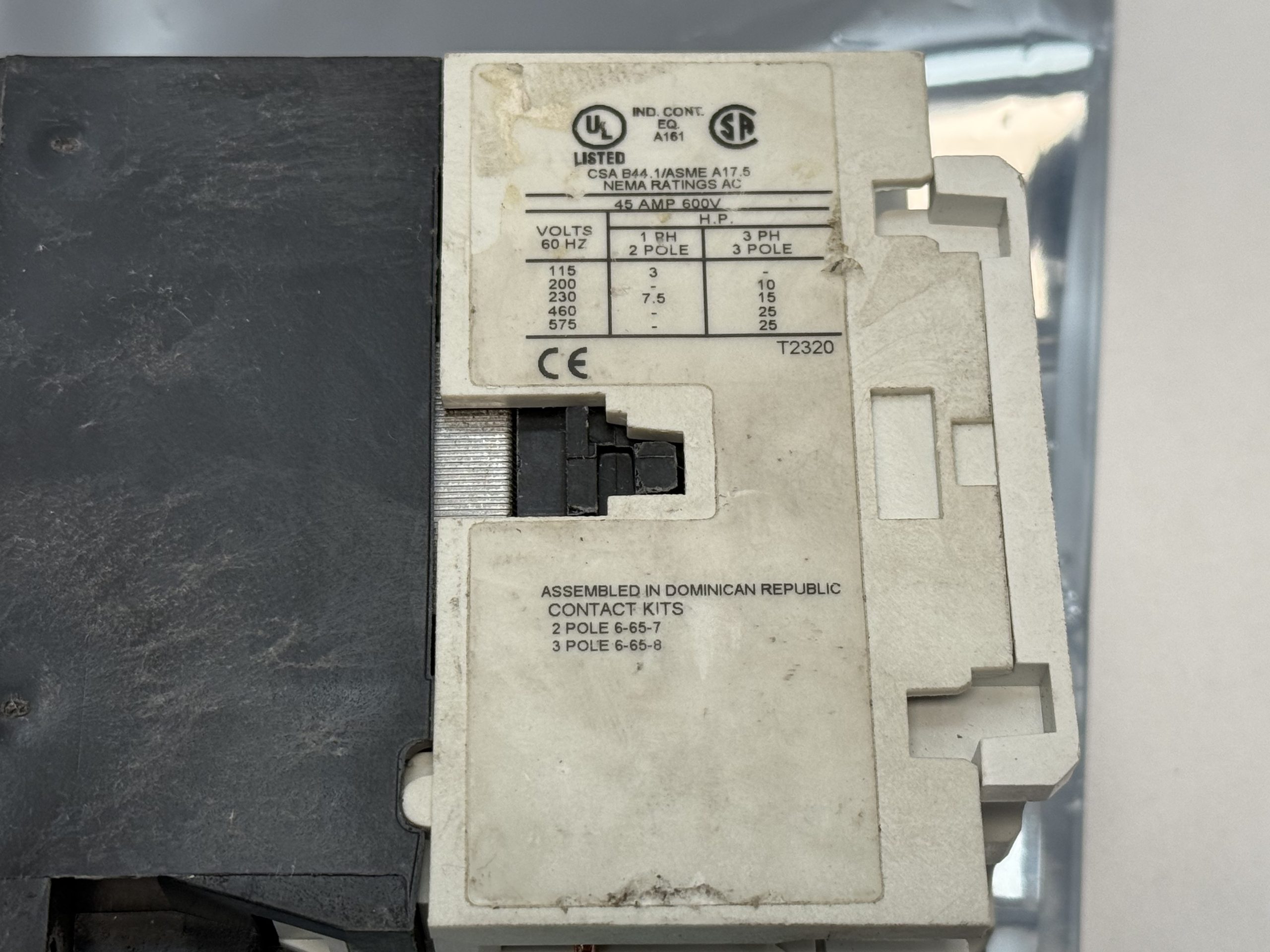

Listings: UL listed industrial control equipment, CSA B44.1/ASME A17.5, CE.

Style: Non-reversing.

Unit Quantity: 1 Pc.

Country of Origin: Dominican Republic.

Dimensions and mounting:

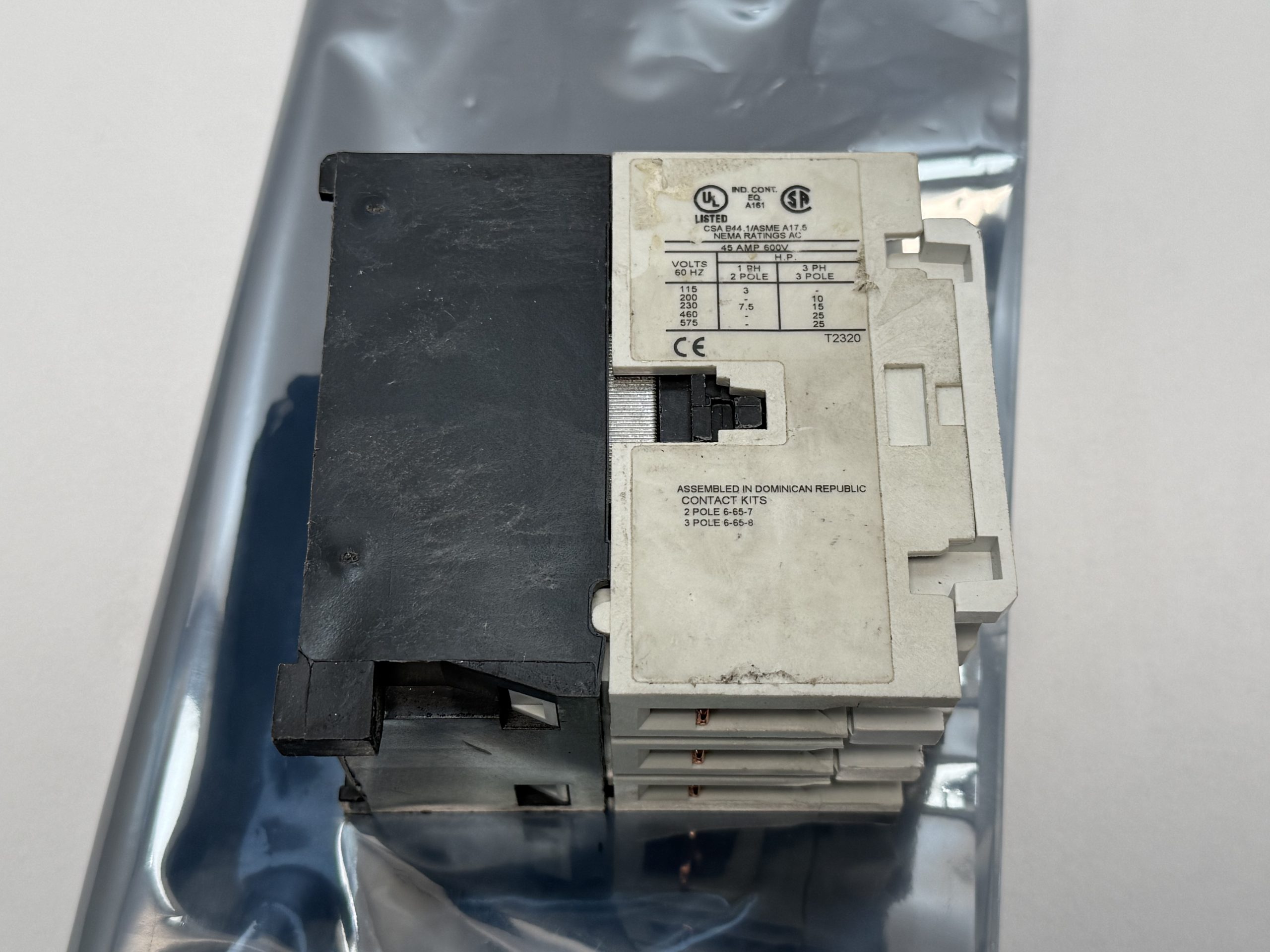

Replacement contact kits per label: 2 pole 6-65-7, 3 pole 6-65-8.

Compatibility and replacement:

Replacement contact kits per the nameplate label: 6-65-7 (2 pole) and 6-65-8 (3 pole). Coil part number: 9-3285-1.

Frequently asked questions:

What is the Eaton AN19GN0?

A NEMA Size 2 non-reversing starter contactor, 3 pole, 45 A, 600 V AC, Series B1.

What coil does it have?

A 110-120 V AC, 50/60 Hz coil, coil part 9-3285-1.

What horsepower is it rated for?

Three phase: 10 HP at 200 V, 15 HP at 230 V, 25 HP at 460 V and 575 V. Single phase: 3 HP at 115 V, 7.5 HP at 230 V.
