Availability:
3 in stock
LinMot E1100-CO-HC CANopen servo drive for linear motors: 72 VDC motor supply (24–80 VDC), 15 A phase current, 24 VDC logic supply. LinMot item 0150-1682.
List Price
$1,364.69
3 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | LinMot |
|---|---|
| MPN | E1100-CO-HC |
| Model | E1100COHC |
| Base Number | E1100 |
|---|---|
| Industry Terms | linear motor servo drive, servo controller, CANopen drive, servo amplifier |
| Application Types | Linear motor positioning, pick and place, packaging machinery, force-controlled joining |
| Input Voltage | 72 VDC (24-80 VDC) motor; 24 VDC logic |
| Current Rating | 15 A |
| Mpn Variants | E1100-CO-HC, E1100COHC, E1100 CO HC, 0150-1682 |
| Compatible With Replaces | E1100-CO-HC (LinMot 0150-1682) |
| Additional Attributes | LinMot item no.: 0150-1682; CANopen profile: CiA DS301; Position resolution: 0.1 µm (32-bit) |
| Type | Servo Drive |
| Communication Standard | CANopen |

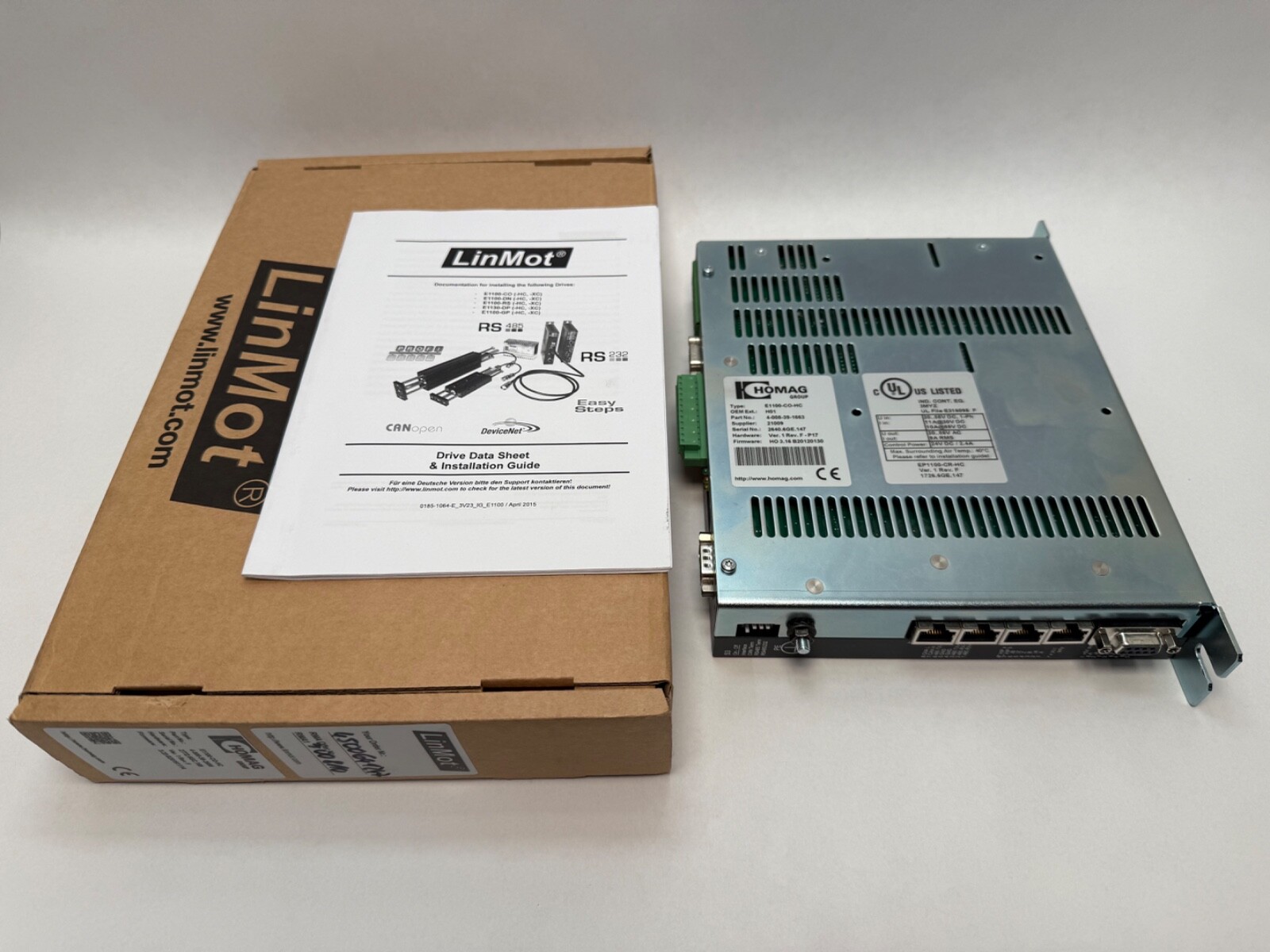

LinMot E1100-CO-HC is a Series E1100 servo drive with an integrated CANopen interface, built for LinMot linear motors and other 1-, 2- and 3-phase motors including brushless DC and voice coil motors. LinMot item number: 0150-1682.
E1100 — LinMot Series E1100 modular servo drive with 32-bit position resolution and an integrated power stage.
CO — integrated CANopen fieldbus interface, CiA DS301 communication profile.
HC — high-current power stage, 15 A phase current. The standard E1100-CO is 8 A and the E1100-CO-XC is 25 A.

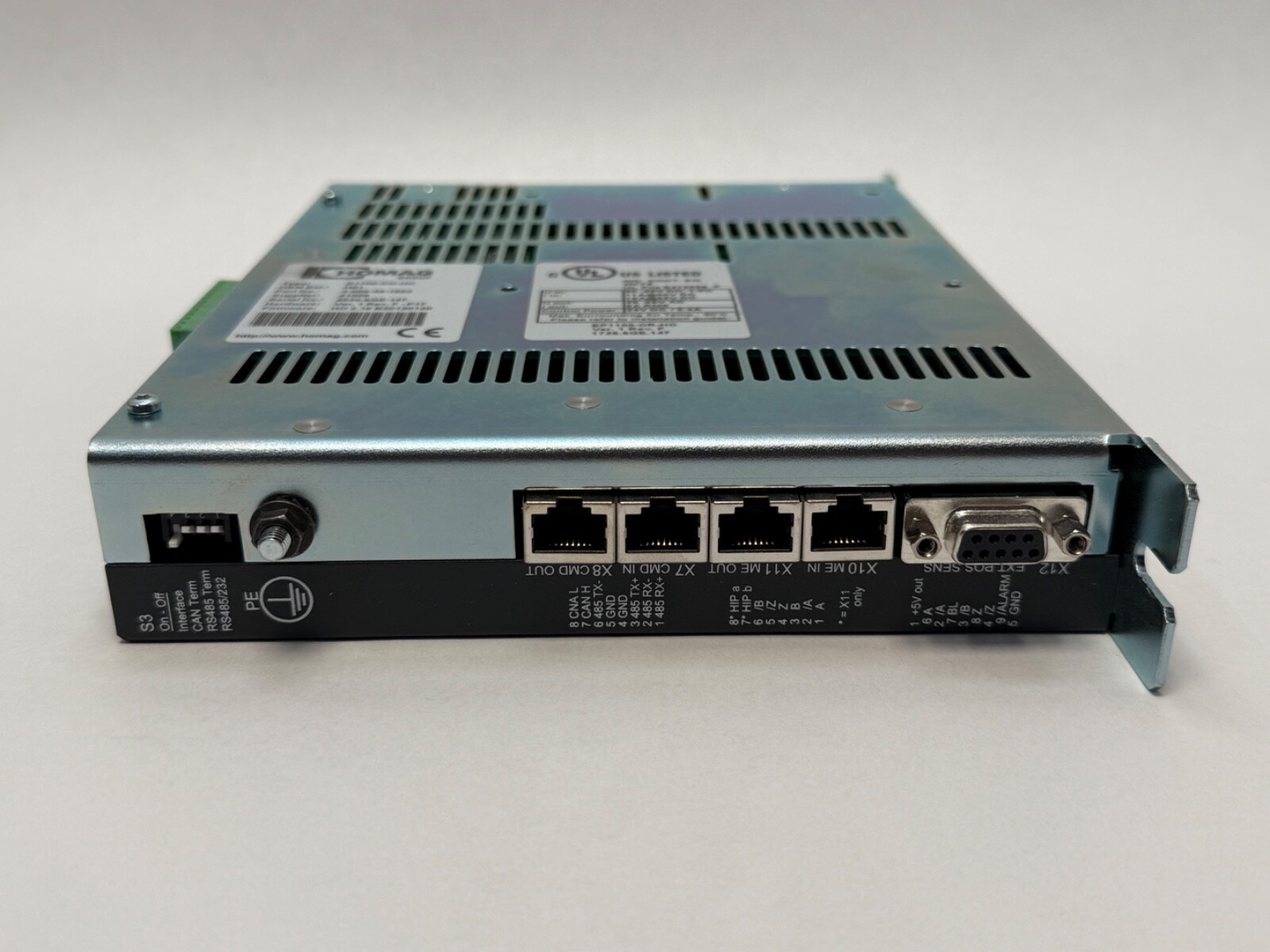

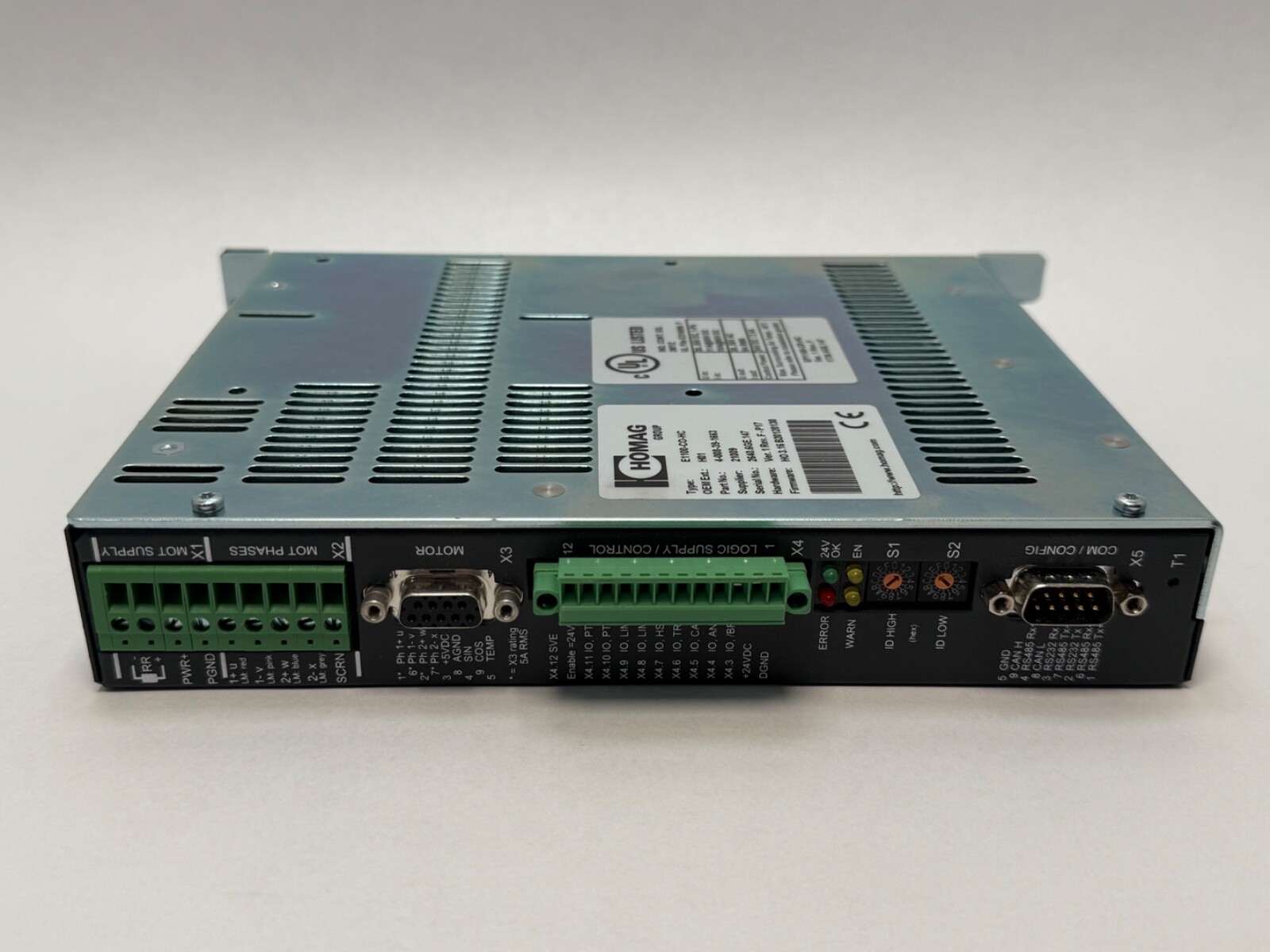

Motor Supply Voltage: 72 VDC nominal (24–80 VDC). Logic Supply Voltage: 24 VDC (22–26 VDC). Phase Current: 15 A. Communication: CANopen (CiA DS301), RS232 configuration port, RS485/CAN in and out. Position Resolution: 0.1 µm (32-bit). The logic and motor supplies are separate, so the drive keeps its position data when the motor supply is cut during an E-stop.
CANopen services: NMT error control (node guarding or heartbeat), PDO, SDO upload and download, NMT and boot-up message. Resources: 3 T_PDO, 3 R_PDO, 1 T_SDO, 1 R_SDO. Motion functions include interpolated moves, stored time curves (up to 99 curves, 16,000 points), command table, master encoder synchronization, position streaming and force control.
Same-series drives with the same 72 V / 15 A power stage and a different interface: E1100-RS-HC (RS232/485), E1100-DN-HC (DeviceNet), E1130-DP-HC (Profibus DP), E1100-GP-HC (general purpose). MPN Variants: E1100-CO-HC, E1100COHC, E1100 CO HC, 0150-1682.
