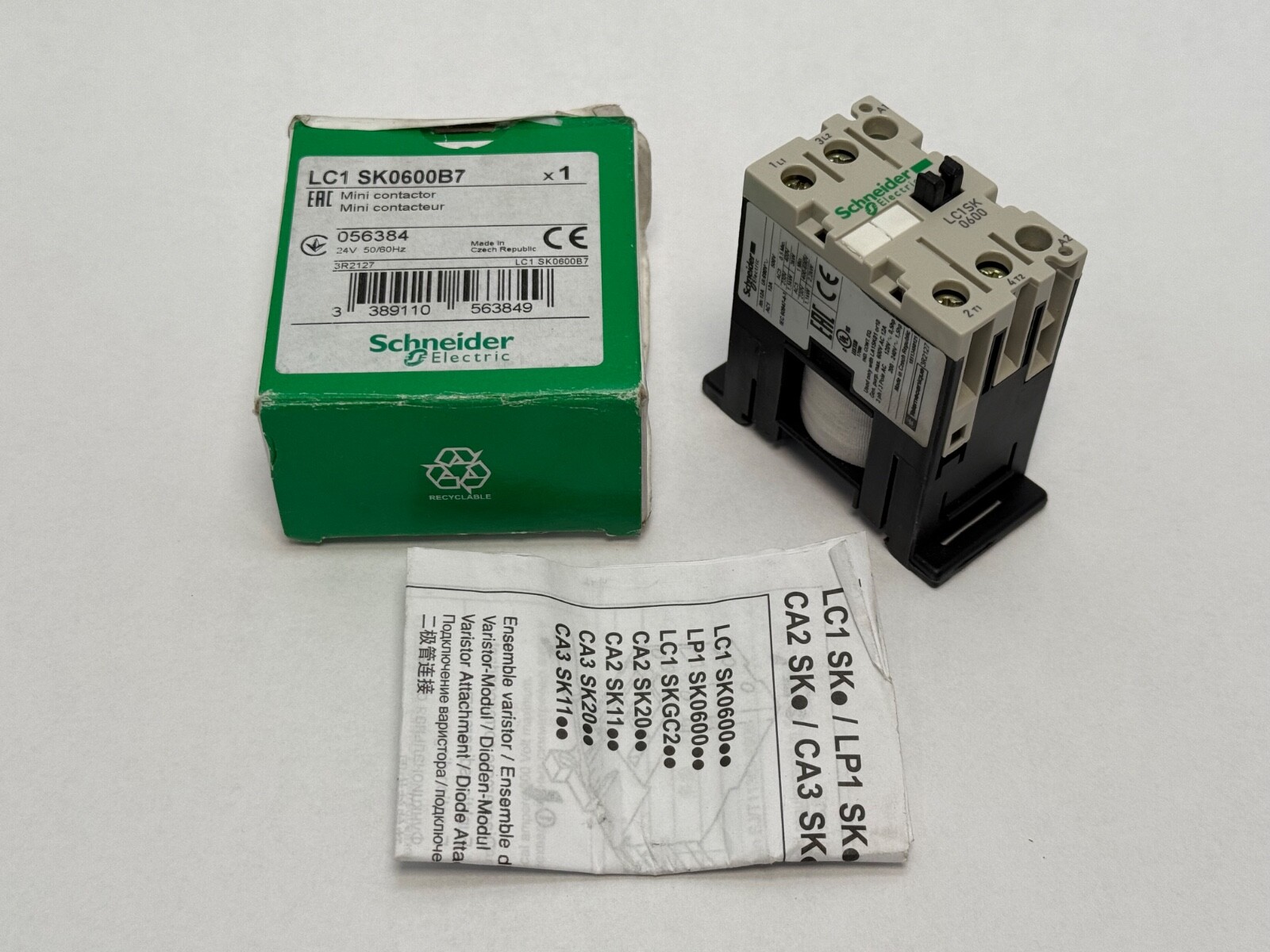

SchneiderLC1SK0600B7TeSys SK Mini Contactor – 2P (2 NO), 6 A AC-3 at 690 V, 24 V AC Coil, 27 mm DIN Rail

Product Description

What this part is

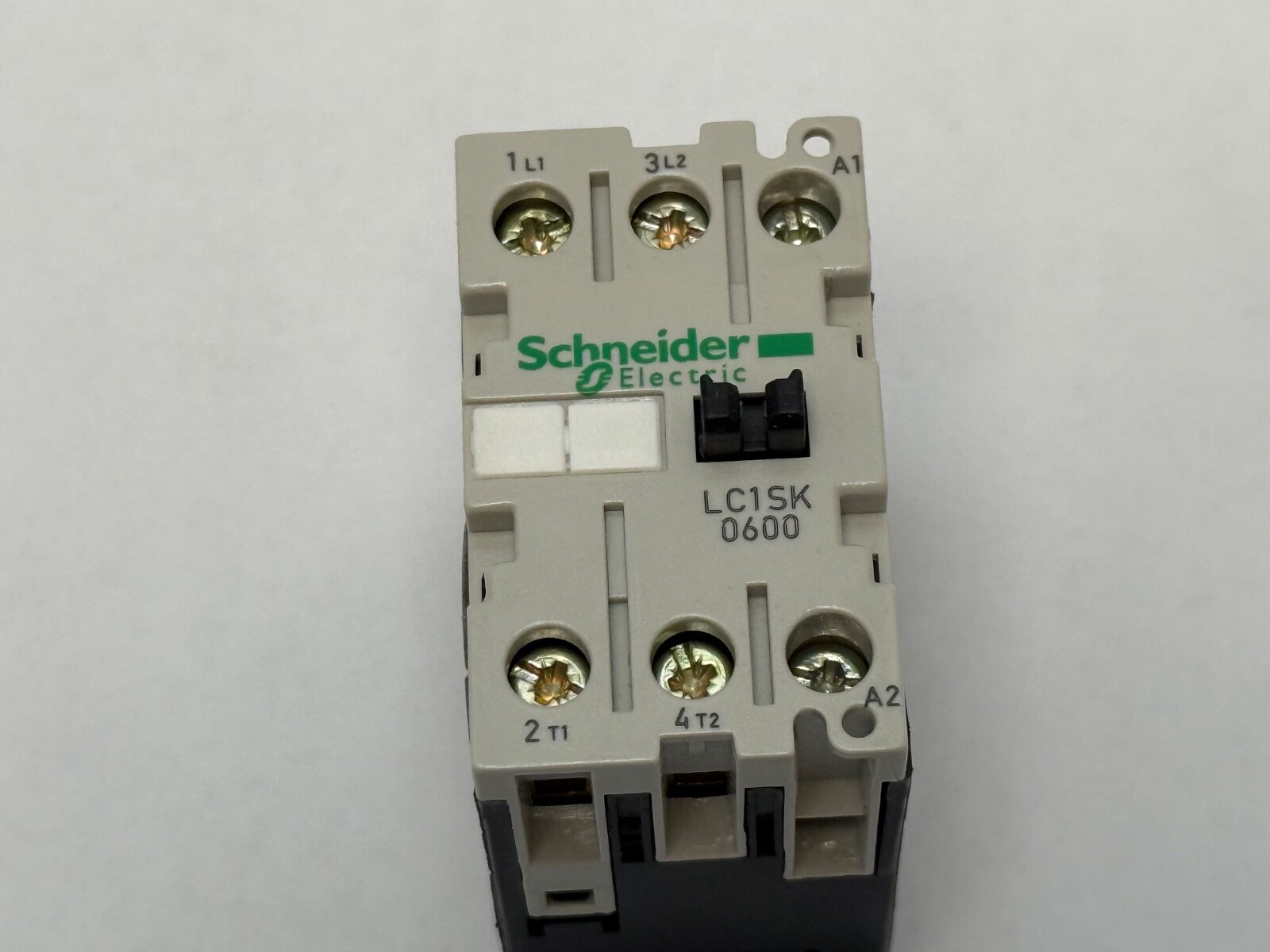

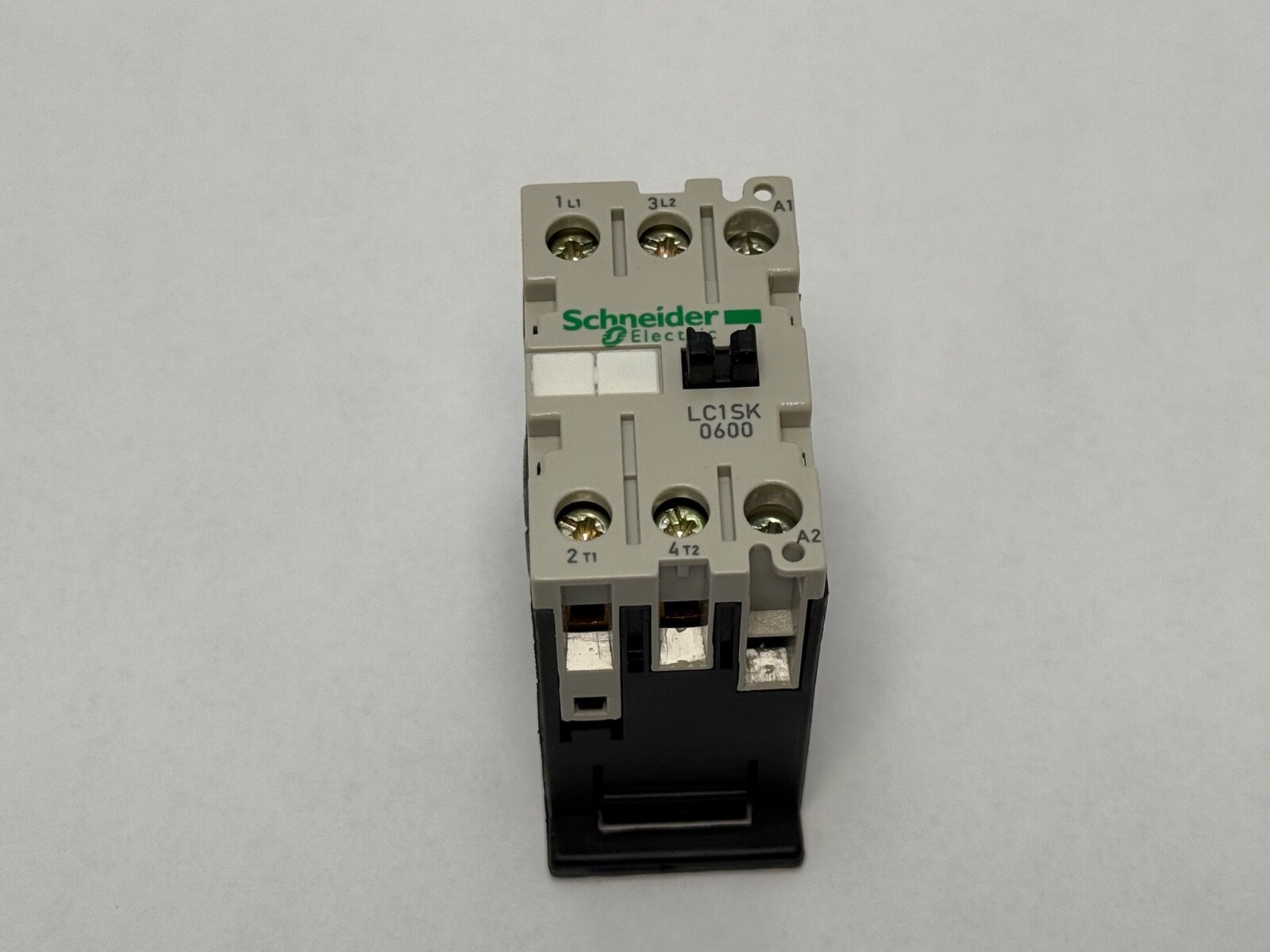

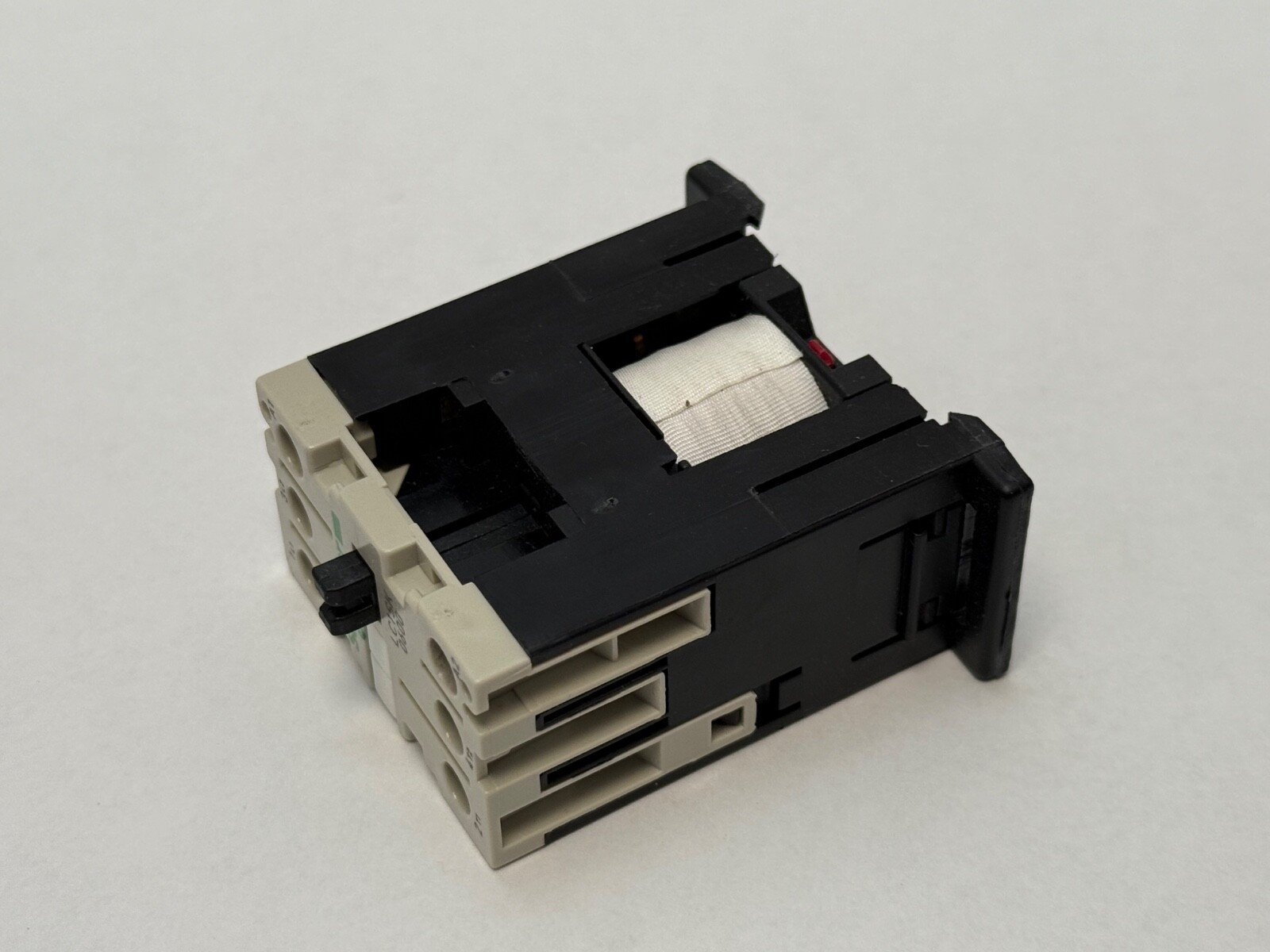

Schneider Electric LC1SK0600B7, a TeSys SK mini contactor. Series: TeSys SK. Number Of Poles: 2P, two normally open power poles. Rated Operational Current, AC-3: 6 A up to 690 V. Rated Operational Current, AC-1: 12 A up to 690 V. Coil Voltage: 24 V AC, 50/60 Hz. Terminal Type: Screw clamp. Mounting: 35 mm DIN rail, clip-on. Width: 27 mm. Height: 56 mm. Depth: 55.5 mm. Item Weight: 0.132 kg (0.29 lb). Operating Rate: Up to 1,200 cycles per hour. Ambient Temperature Range: −20 °C to +50 °C. Country of Origin: Czech Republic.

Switching ratings

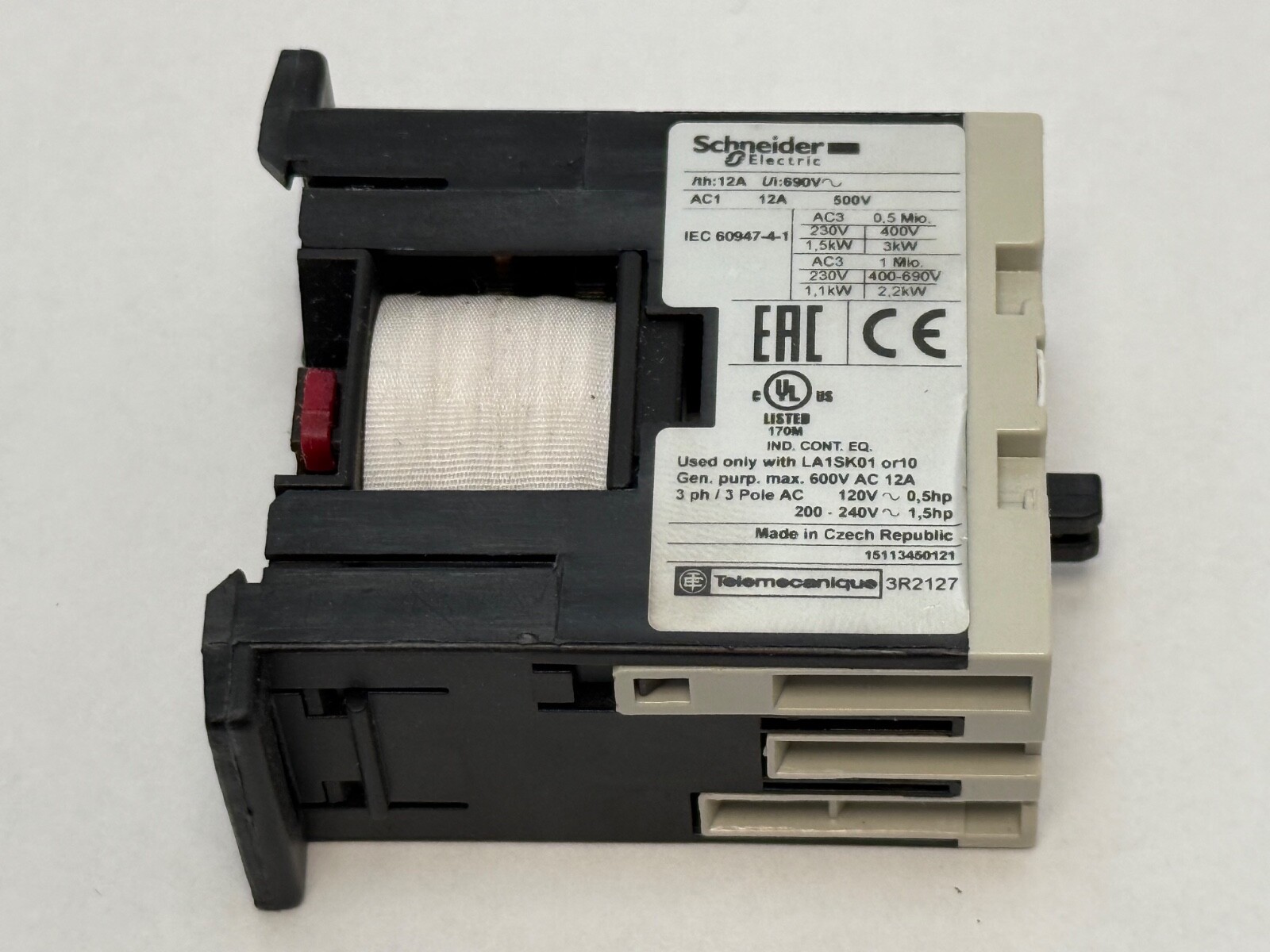

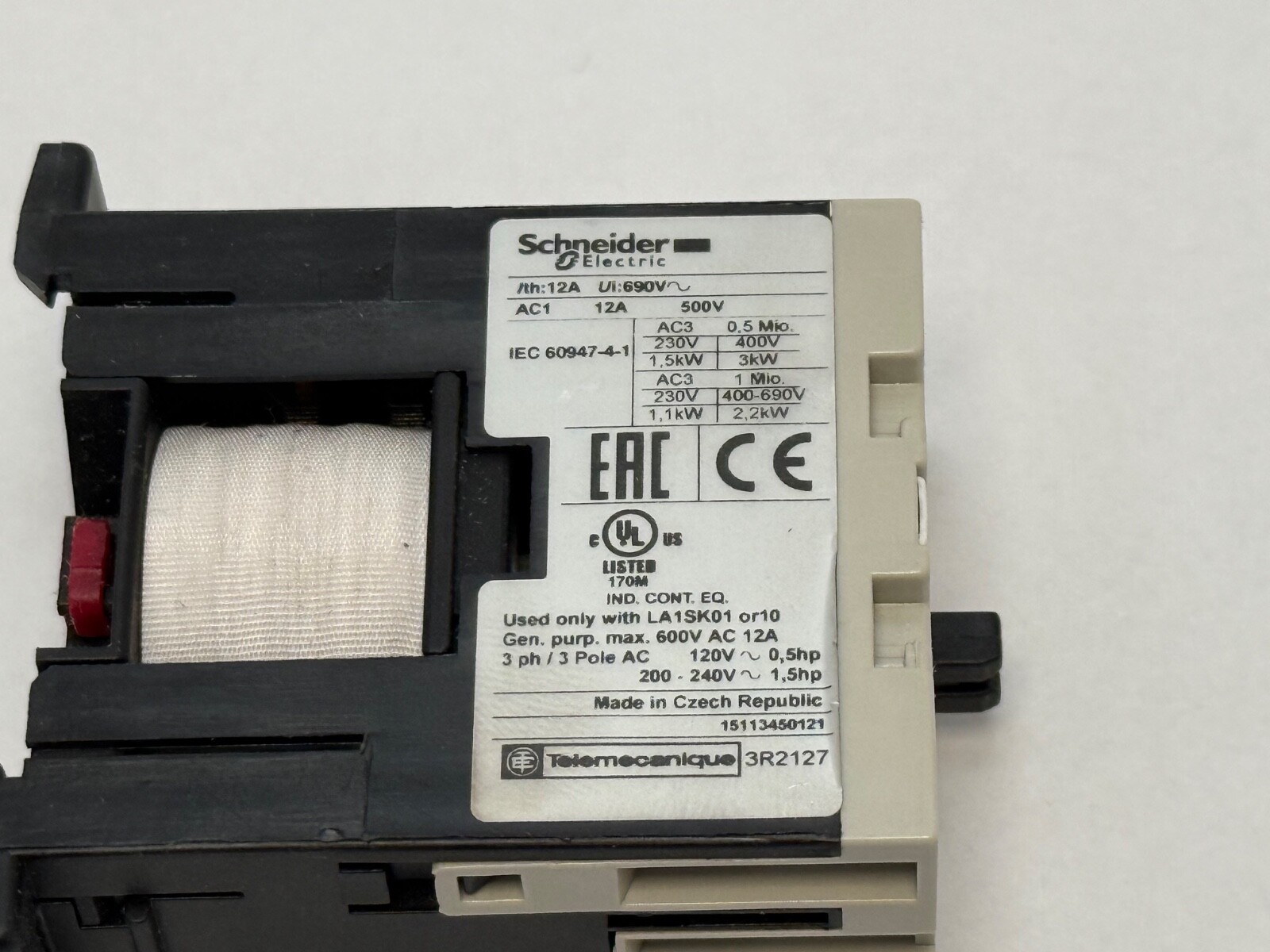

Rated Operational Current, AC-1: 12 A at up to 690 V — the resistive and non-inductive figure, for heaters, resistive banks and lamp loads. Rated Operational Current, AC-3: 6 A at up to 690 V — the squirrel-cage motor figure, which allows for the inrush and the breaking of a running motor. Rated Power, AC-3: 1.1 kW at 220–230 V, 2.2 kW at 380–415 V, and 2.2 kW at 660–690 V. AC-3 is always the lower of the two numbers because a motor draws several times its running current on start and the contacts have to make against that surge repeatedly.

Pole configuration

Number Of Poles: 2P, two normally open power poles, switched together by the coil. Two poles carry single-phase motor control and two-wire resistive switching directly. An LA1SK add-on contact block clips onto the front of the contactor and adds the pole count for three-phase motor control on the same 27 mm body.

Coil and control

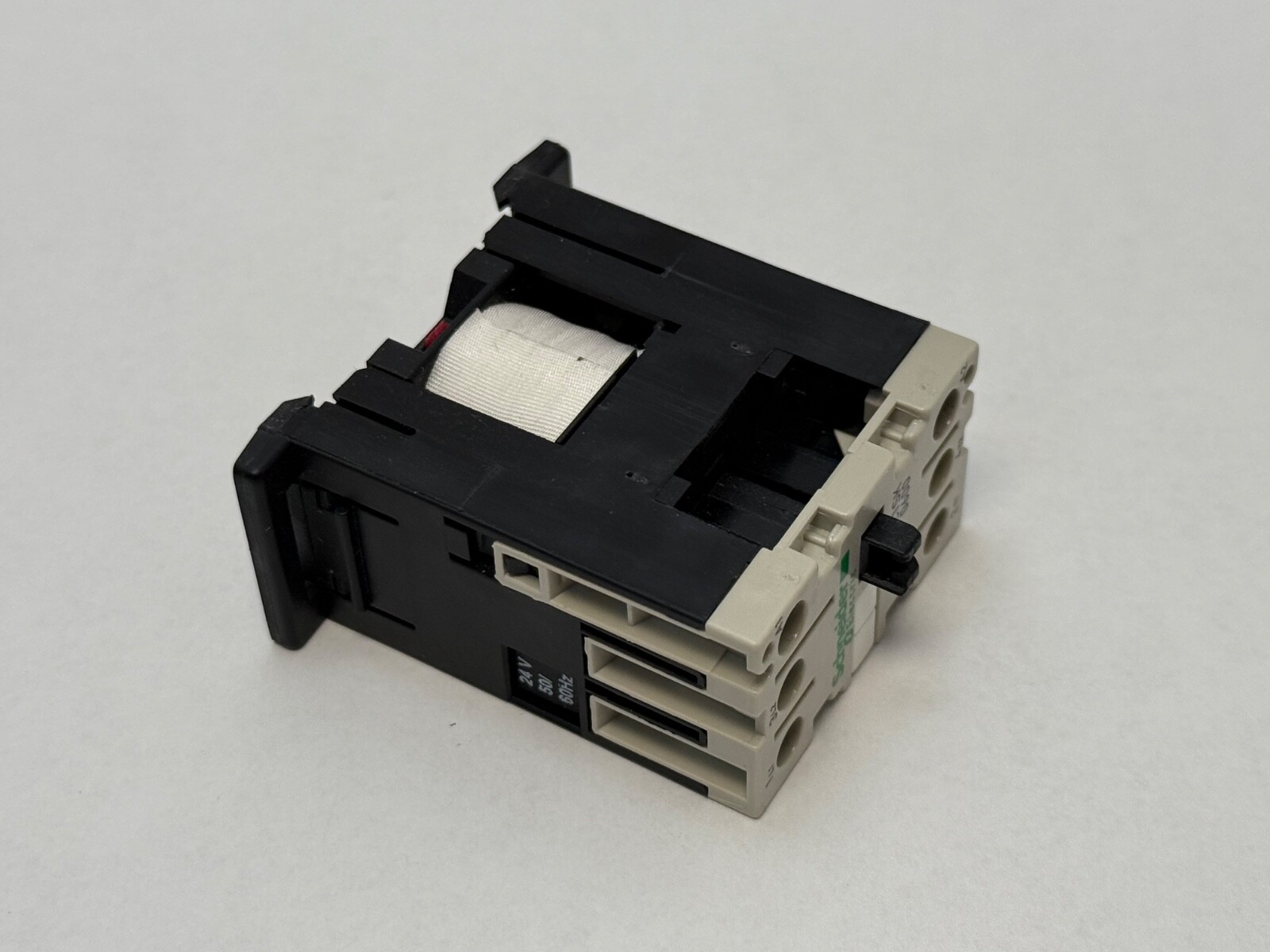

Coil Voltage: 24 V AC, 50/60 Hz. Terminal Type: Screw clamp on the control circuit as well as the power circuit. A 24 V AC coil is standard control-transformer voltage, so the contactor drops straight onto an existing control circuit fed from a panel transformer, and it keeps the coil at a safe extra-low voltage while the power poles carry up to 690 V.

Size and mounting

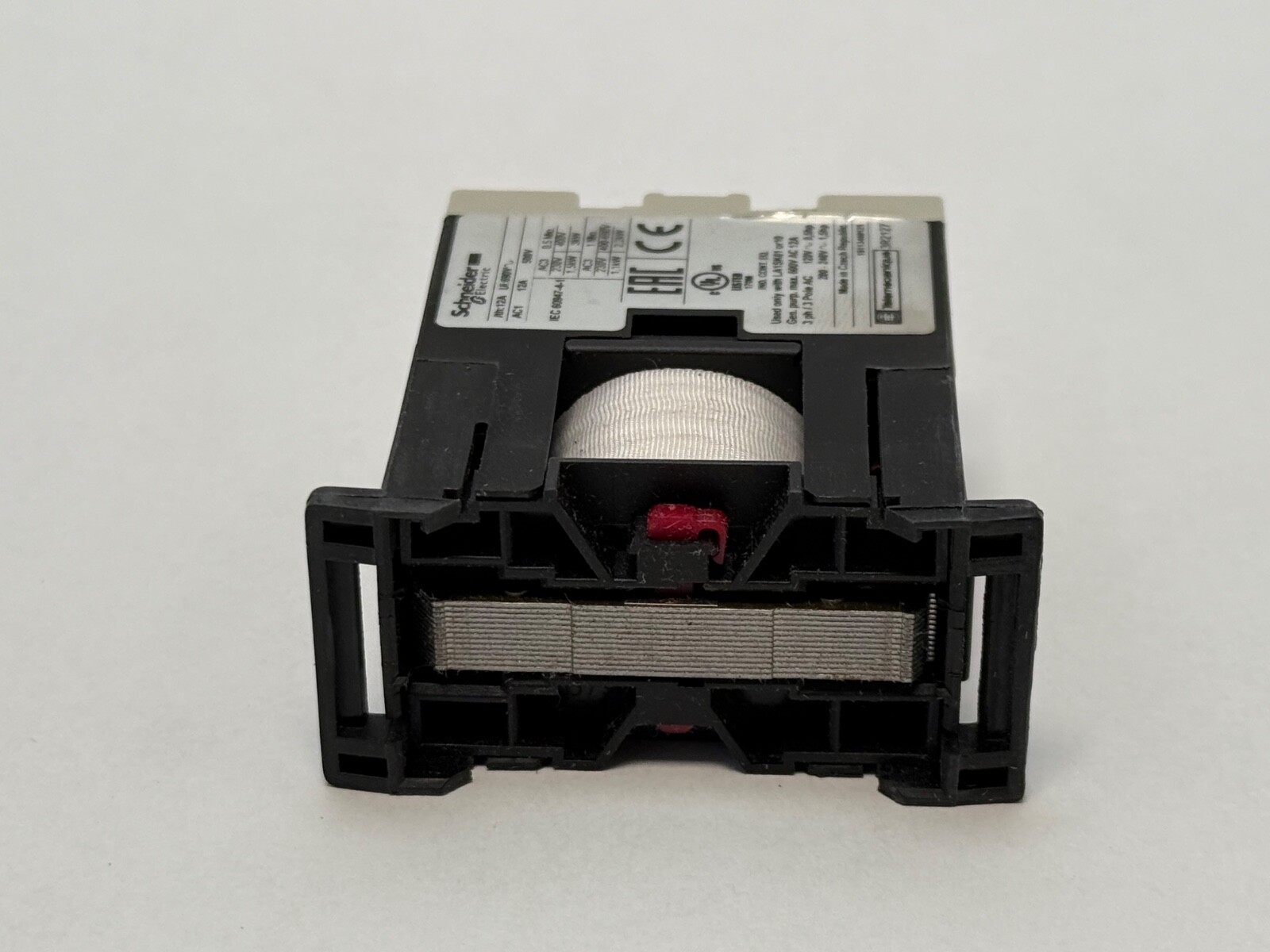

Width: 27 mm. Height: 56 mm. Depth: 55.5 mm. Mounting: clips onto 35 mm DIN rail. Operating Rate: up to 1,200 cycles per hour. Ambient Temperature Range: −20 °C to +50 °C. A 27 mm frame is roughly half the width of a conventional TeSys D contactor of comparable current, which is what puts multiple starters into a shallow machine-mounted enclosure. Certifications: IEC, UL, CSA, CCC and EAC.

Quantity and configuration

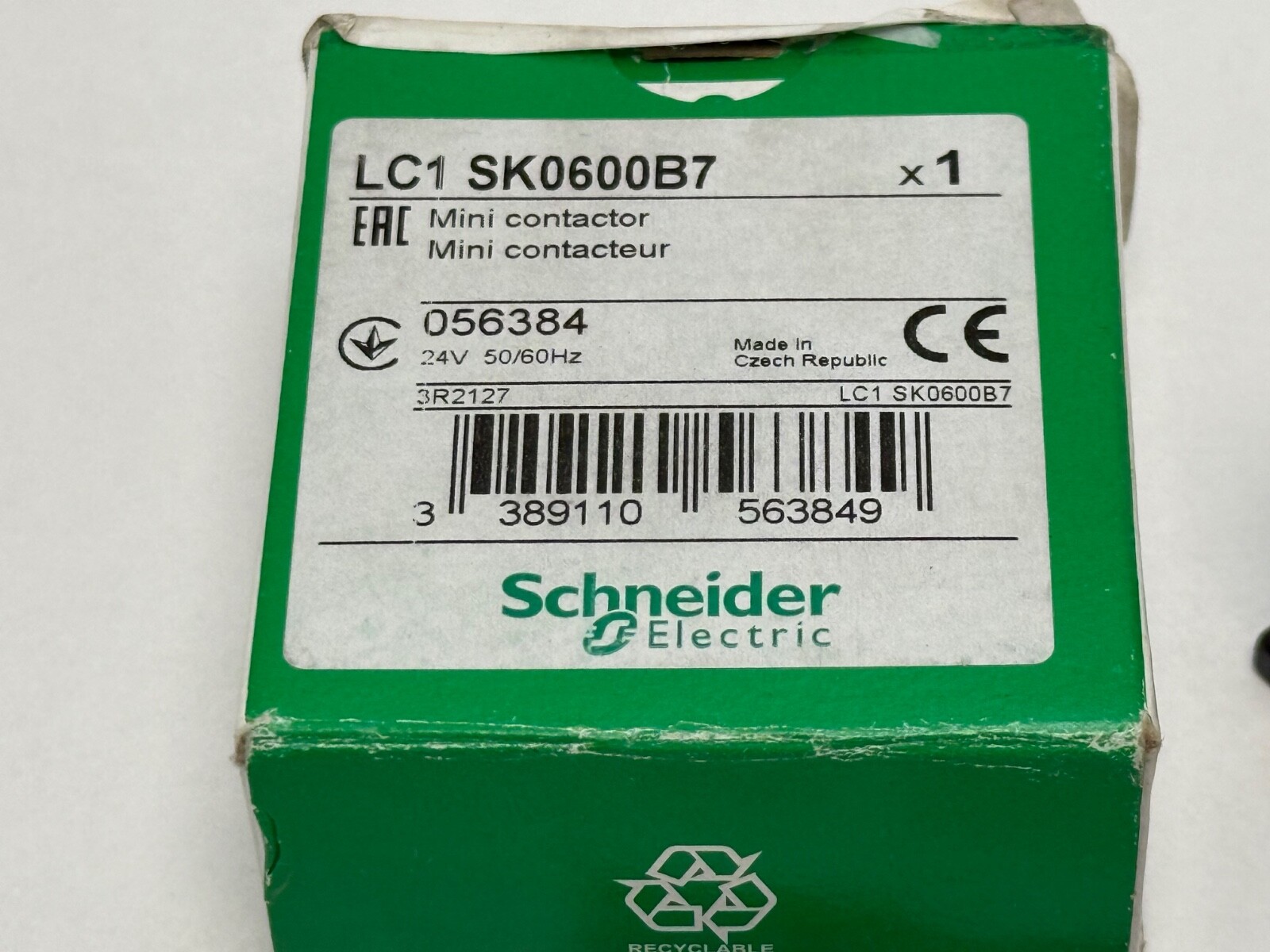

Unit Quantity: 1 Pc. Supplied as the contactor body with its two normally open power poles, 24 V AC coil and screw clamp terminals. Searchable variants of this designation: LC1SK0600B7, LC1-SK0600B7, LC1 SK0600 B7, LC1SK0600, and the family name TeSys SK.
