Availability:
1 in stock
Eaton DILM17-11(RDC24)-PI contactor, 3 pole, 18 A AC-3, 7.5 kW at 400 V, 24-27 V DC coil, 1 N/O + 1 N/C auxiliary, push-in terminals, catalog 199283.
List Price
$62.99

1 in stock
On the Shelf & Ready to Ship
Ships same day by 6pm ET

No Risk, No Hassle
| MFR / Brand | Eaton |
|---|---|
| MPN | DILM17-11(RDC24)-PI |
| GTIN | 4015081973675 |
| Model | DILM17-11 |
| Power Rating | 7.5 kW |
|---|---|
| Coil Voltage | 24 V DC |
| Current Rating | 18 A |
| Number Of Poles | 3 |
| Voltage | 690 V AC max |
| Mpn Variants | DILM17-11(RDC24)-PI, DILM17-11, DILM-17-11, 199283, XTCEPI018C11TD |
| Additional Attributes | AC-1 45 A at 400 V; FS2; 45 x 85 x 115 mm; -25 to 60 C |
| Series | Moeller DILM |
| Type | Contactor |
| Item Weight | 0.546 kg (1.20 lb) |

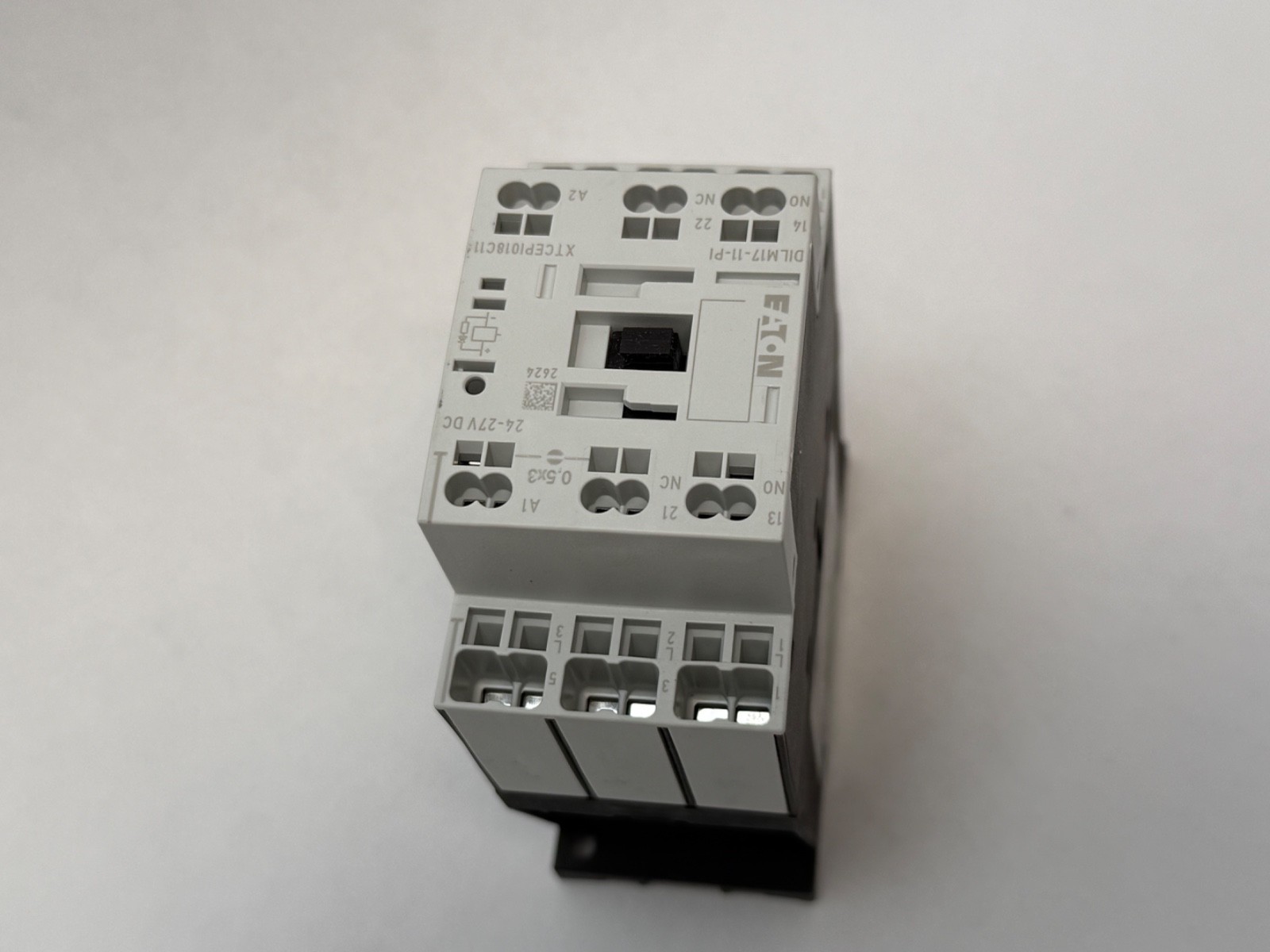

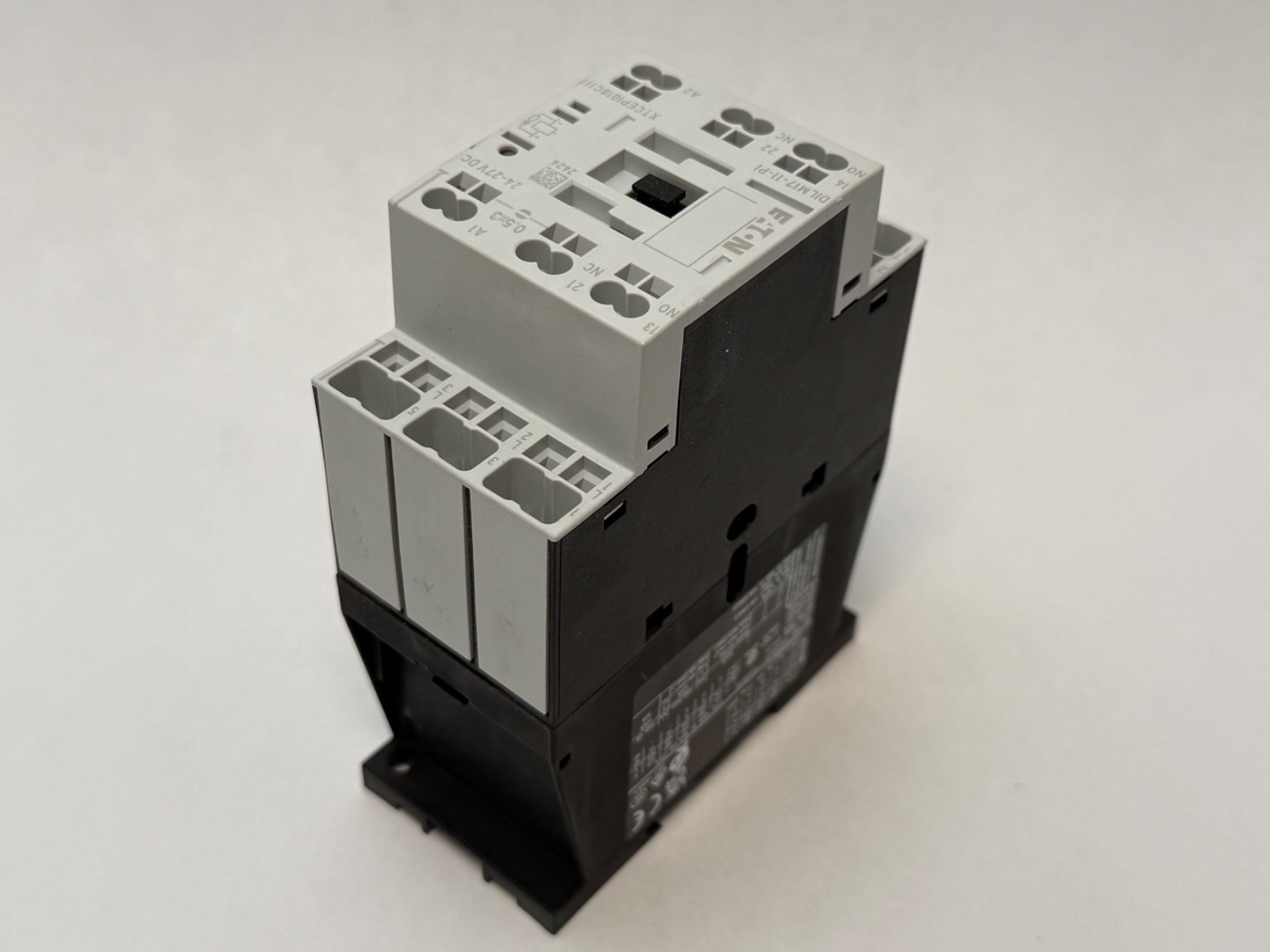

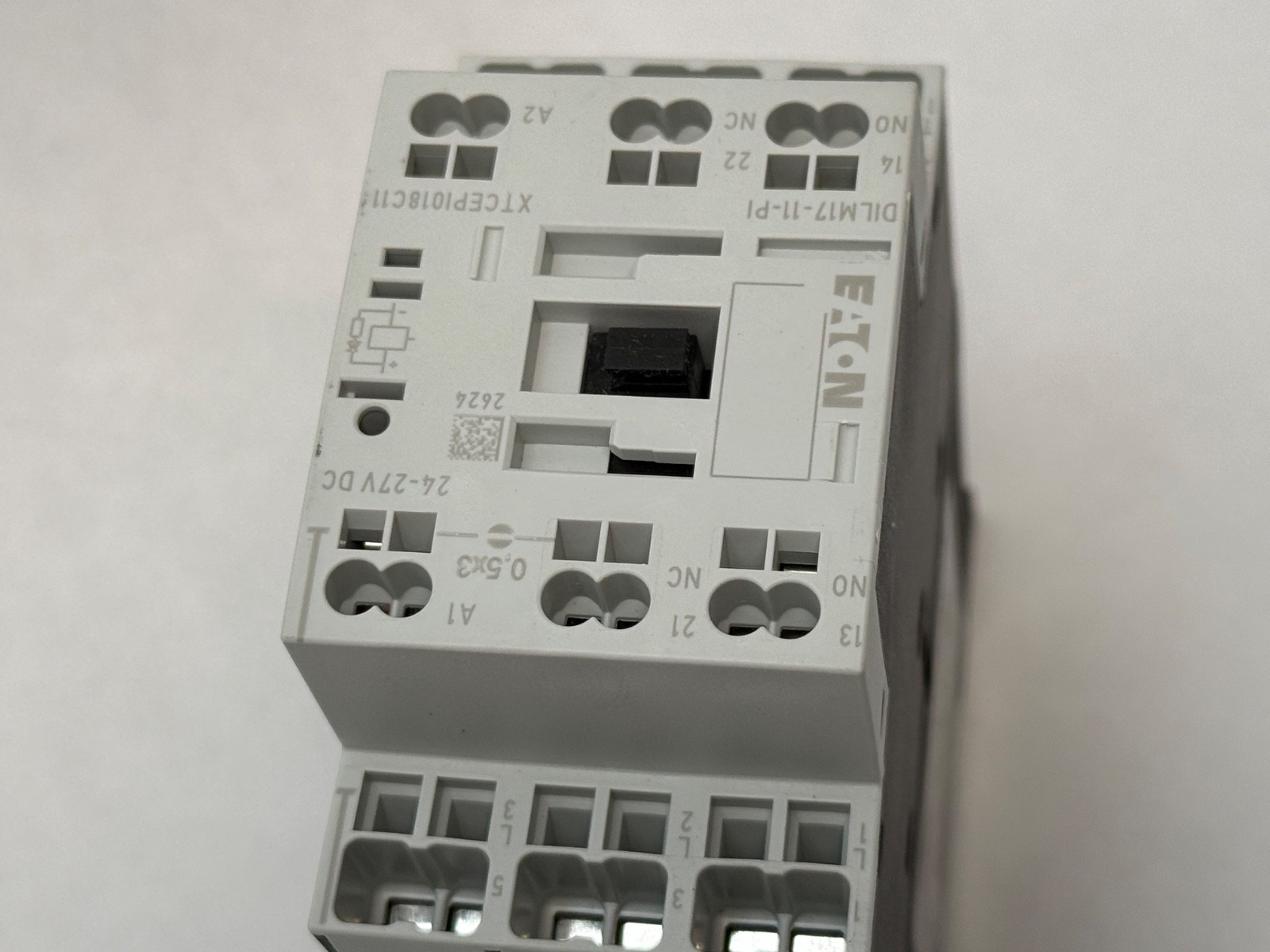

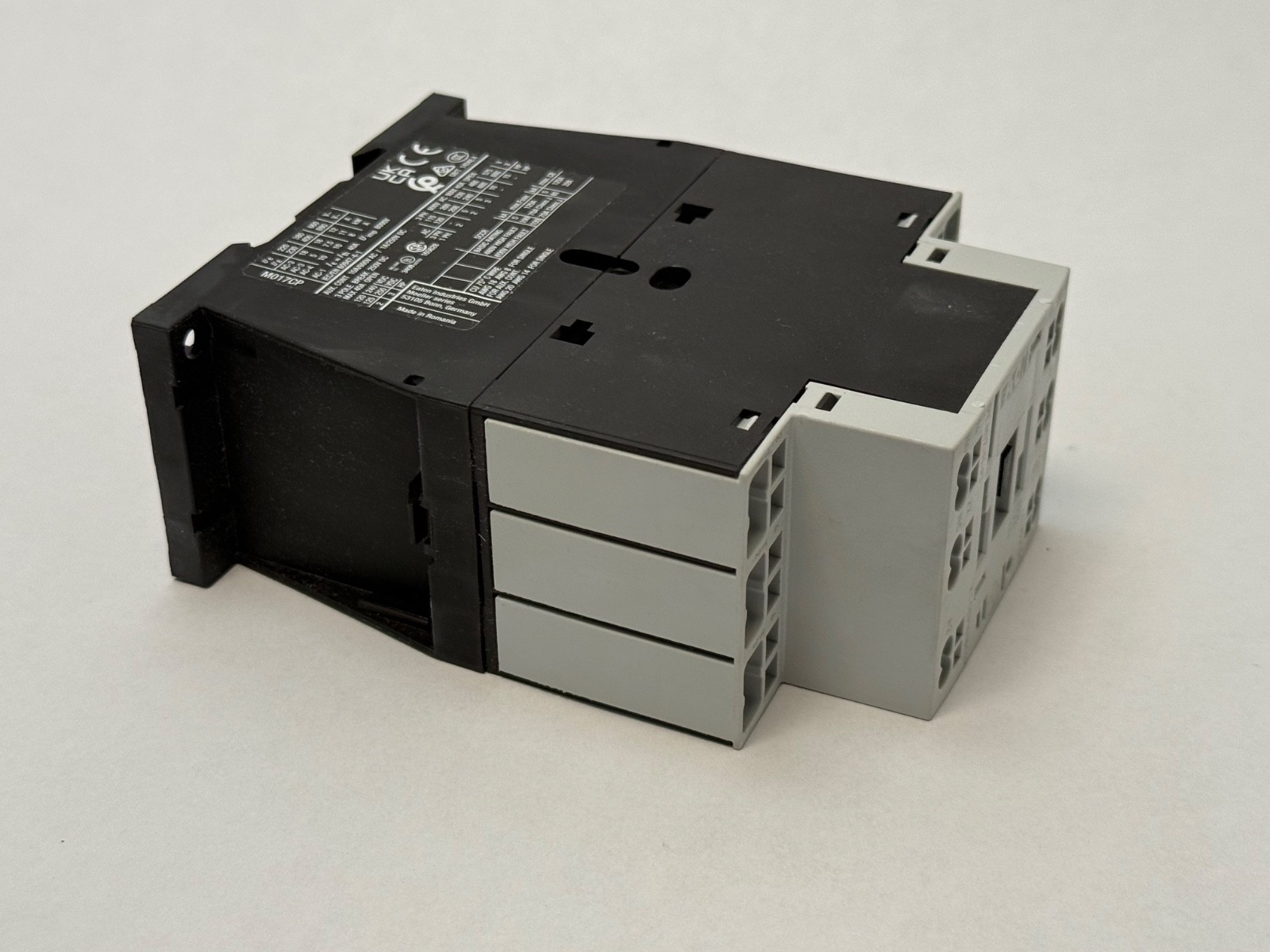

Eaton Moeller DILM17-11(RDC24)-PI three-pole motor contactor, 1 Pc. Frame size FS2, 18 A at AC-3, 7.5 kW at 400 V, 24-27 V DC coil, one normally open and one normally closed auxiliary contact, push-in terminals. Eaton catalog number 199283.
DILM17 — DILM contactor, 7.5 kW AC-3 size.
11 — one N/O and one N/C auxiliary contact.
RDC24 — DC coil, 24-27 V DC.
PI — push-in terminals.

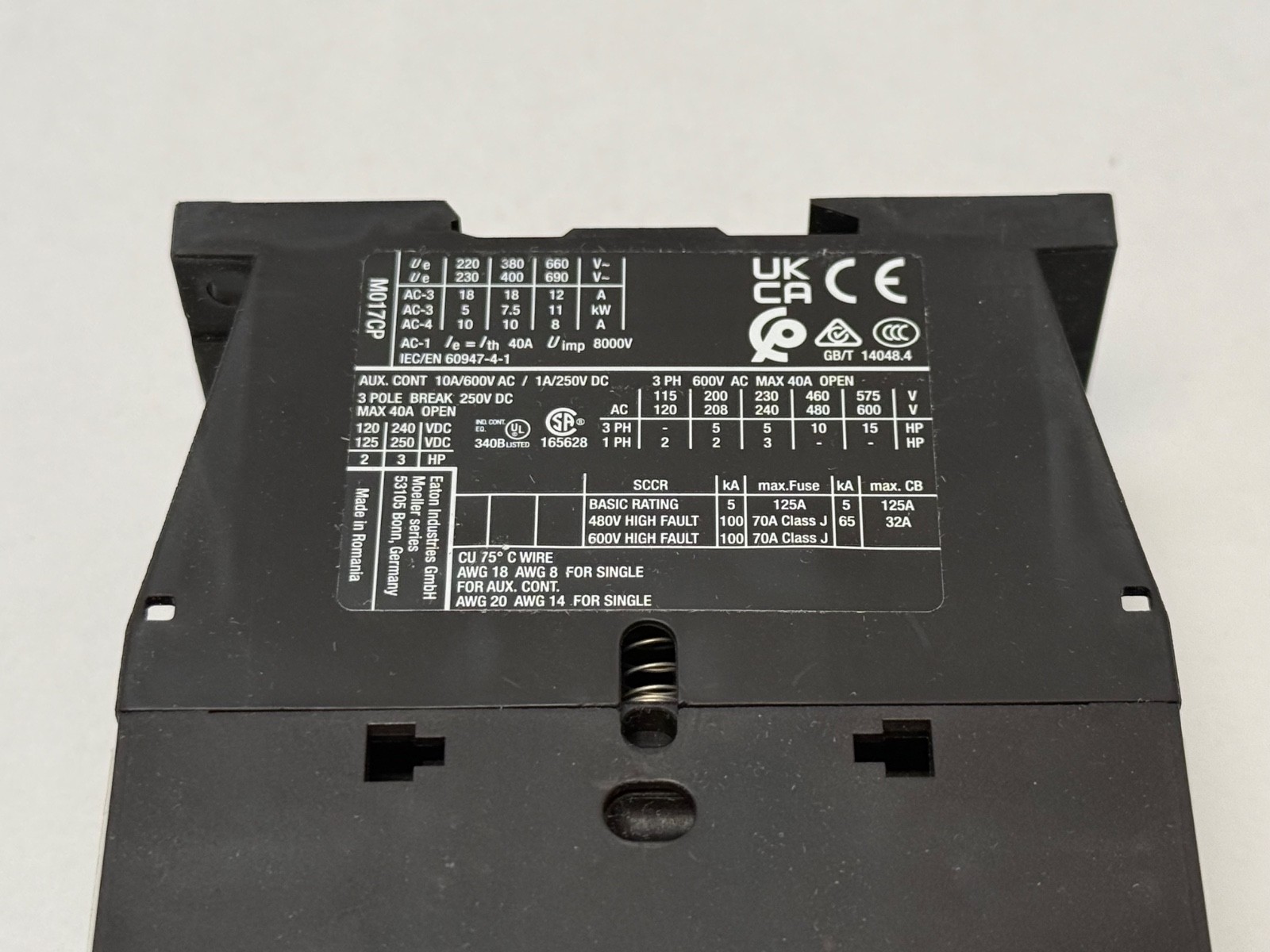

Type: Contactor. Number of Poles: 3. Rated Operational Current AC-3 at 400 V: 18 A. Rated Operational Current AC-1 at 400 V: 45 A. Rated Operational Power AC-3 at 400 V: 7.5 kW. Motor Rating at 480 V 3-phase: 10 HP. Coil Voltage: 24-27 V DC. Auxiliary Contacts: 1 N/O, 1 N/C. Connection: Push-in terminals. Pick-Up Power: 12 W. Sealing Power: 0.9 W. Rated Operating Voltage Max: 690 V AC. Rated Insulation Voltage: 690 V. Rated Impulse Withstand Voltage: 8000 V AC. Mechanical Lifespan: 10,000,000 operations. Frame Size: FS2. Ambient Operating Temperature: -25 °C to 60 °C. Certifications: IEC/EN 60947, UL Listed, CSA certified, CE. GTIN: 4015081973675. Unit Quantity: 1 Pc.
Width: 45 mm. Height: 85 mm. Depth: 115 mm. Weight: 0.546 kg (1.20 lb).
Eaton catalog 199283. North American catalog code XTCEPI018C11TD. DILM push-in auxiliary contact modules such as 199309 and 199311 fit. MPN Variants: DILM17-11(RDC24)-PI, DILM17-11, DILM-17-11.
Coil Voltage: 24-27 V DC.
7.5 kW at 400 V AC-3, 10 HP at 480 V 3-phase.
Connection: Push-in terminals.
