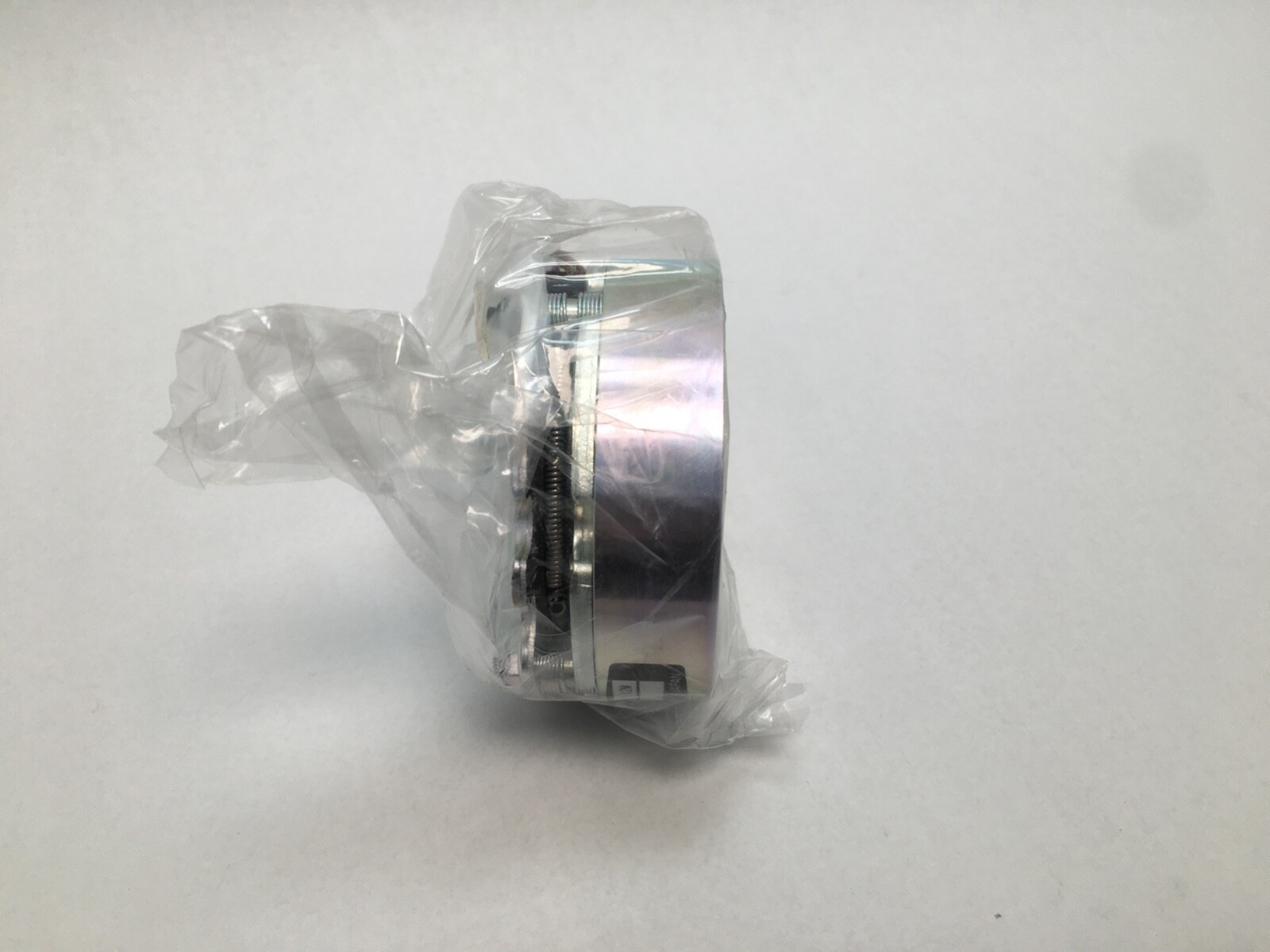

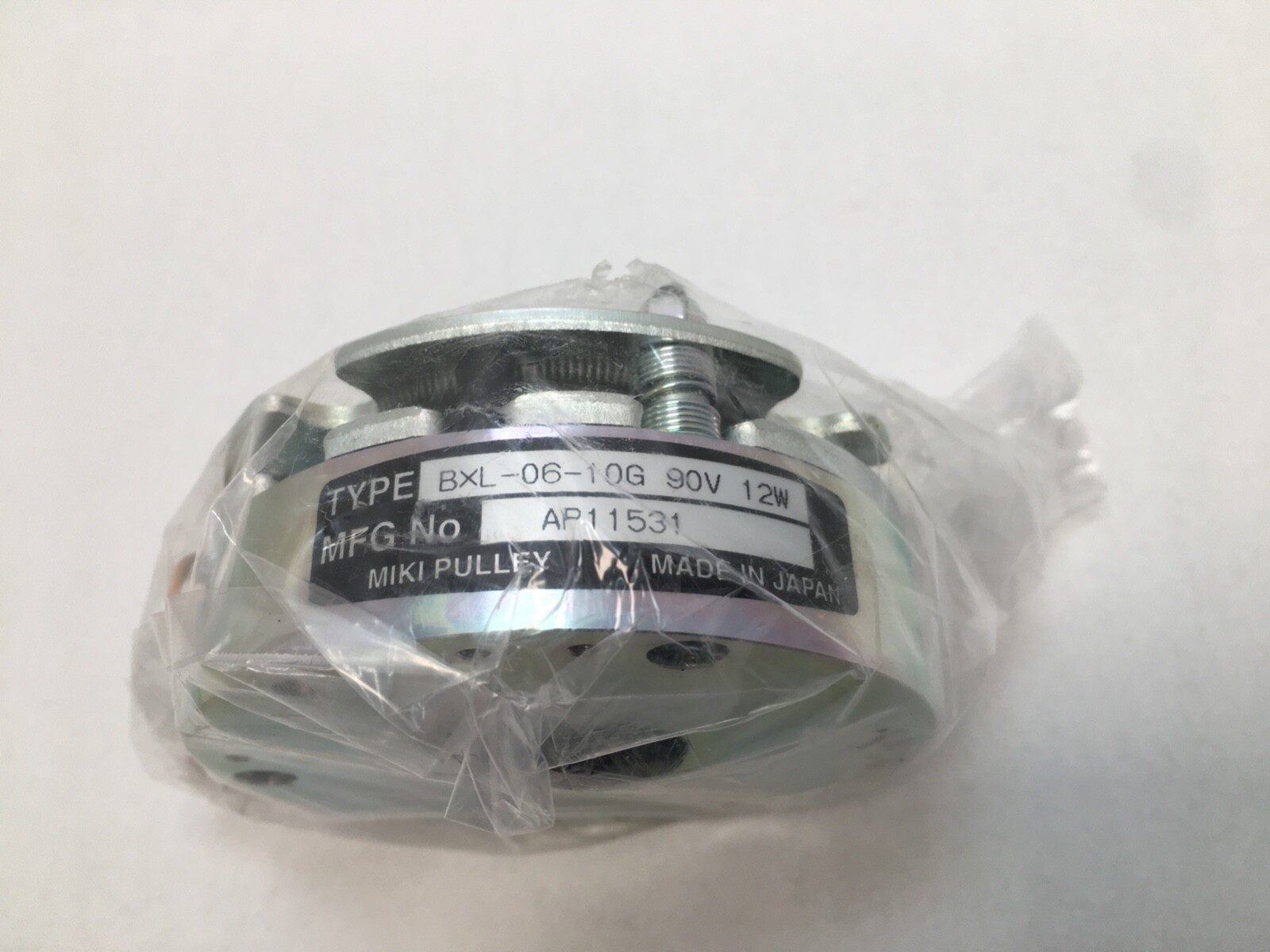

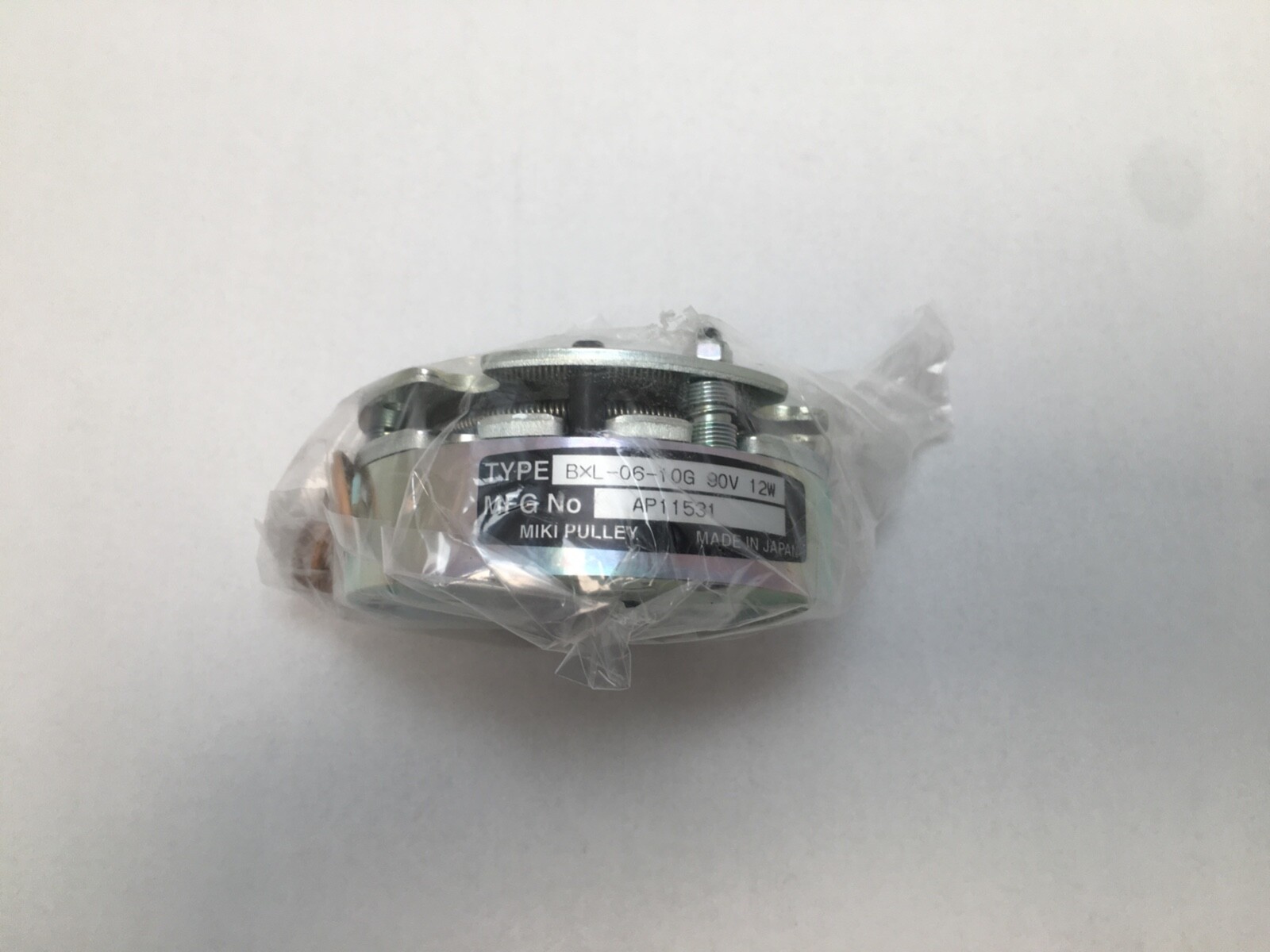

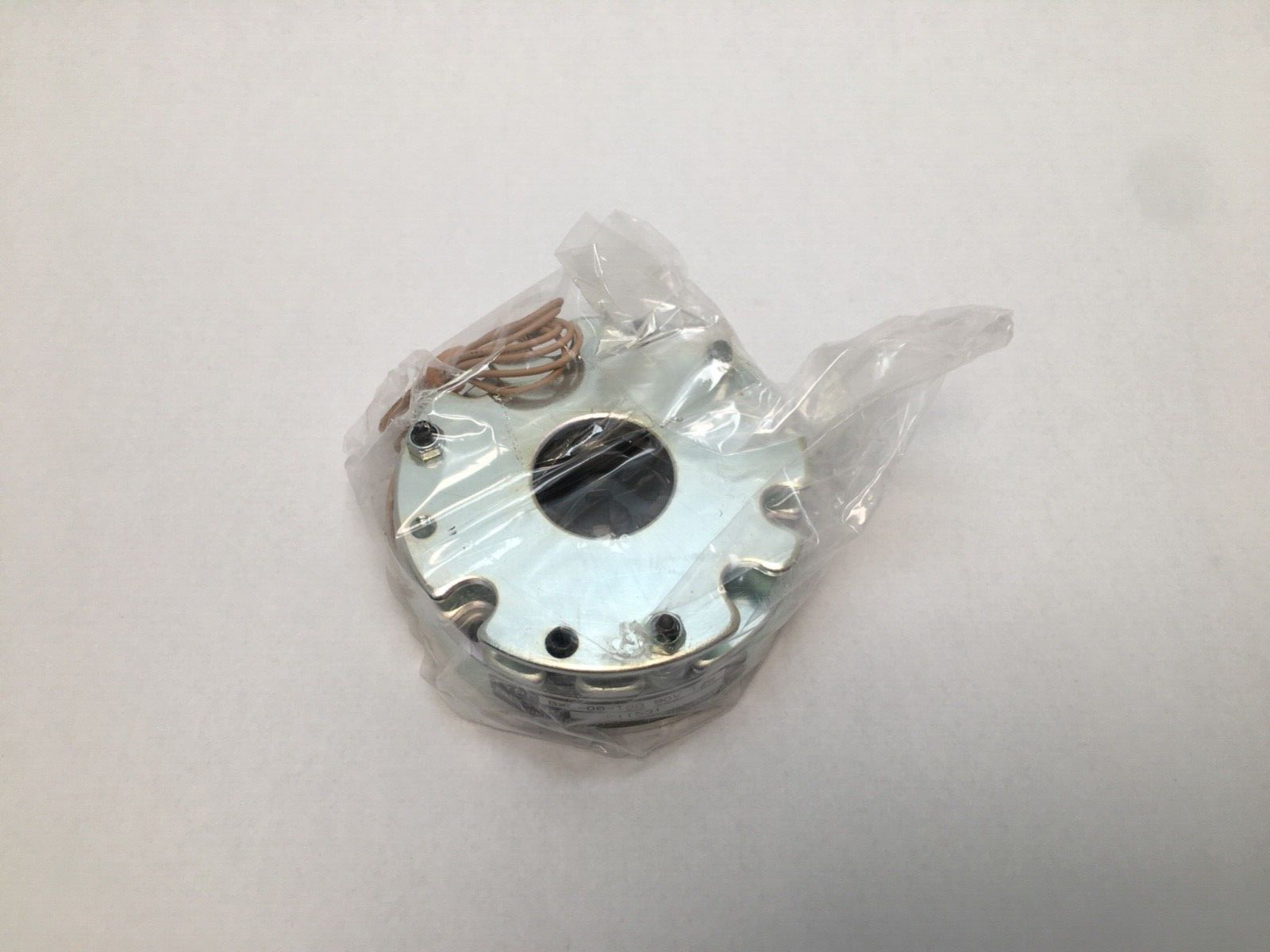

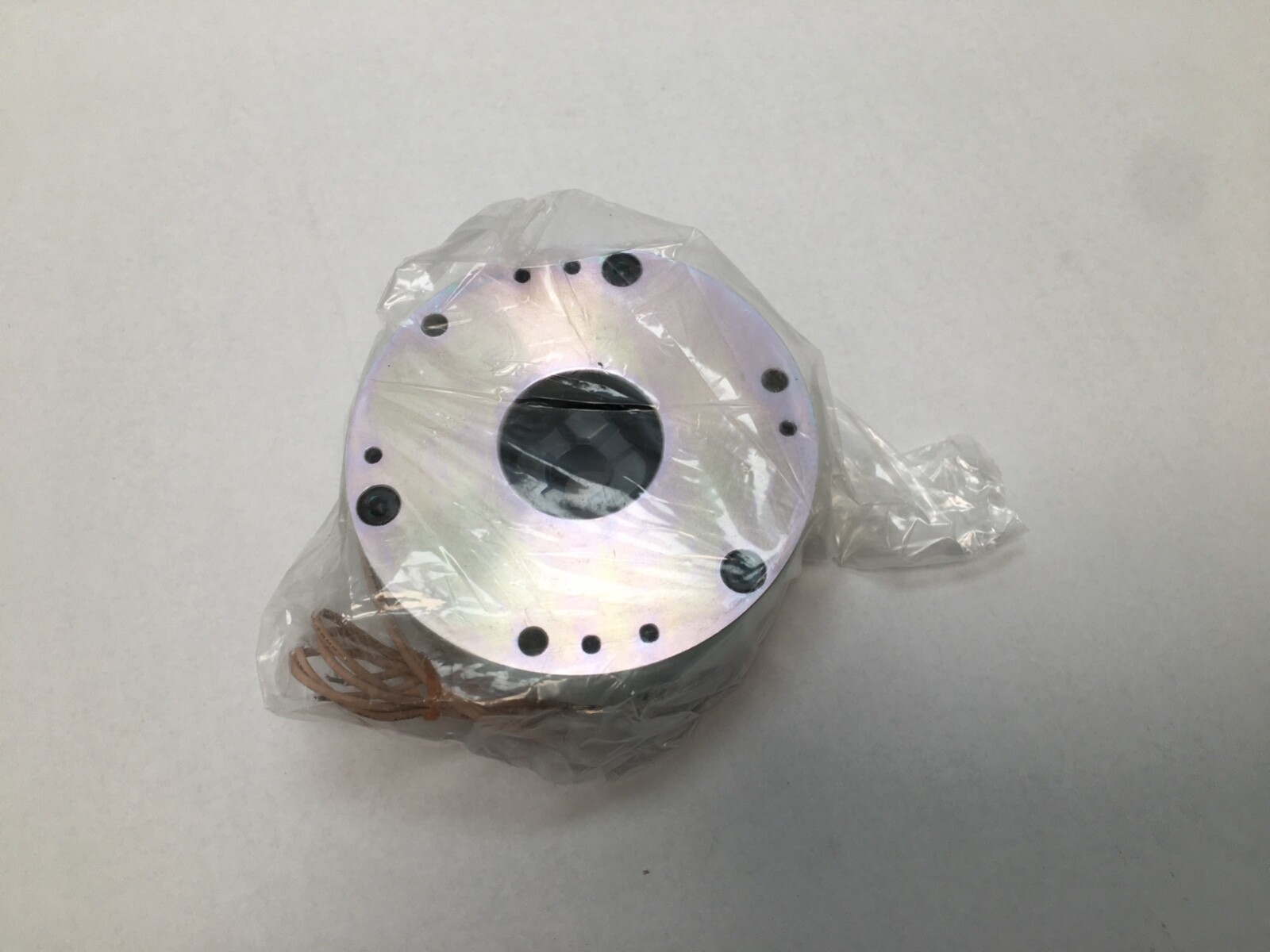

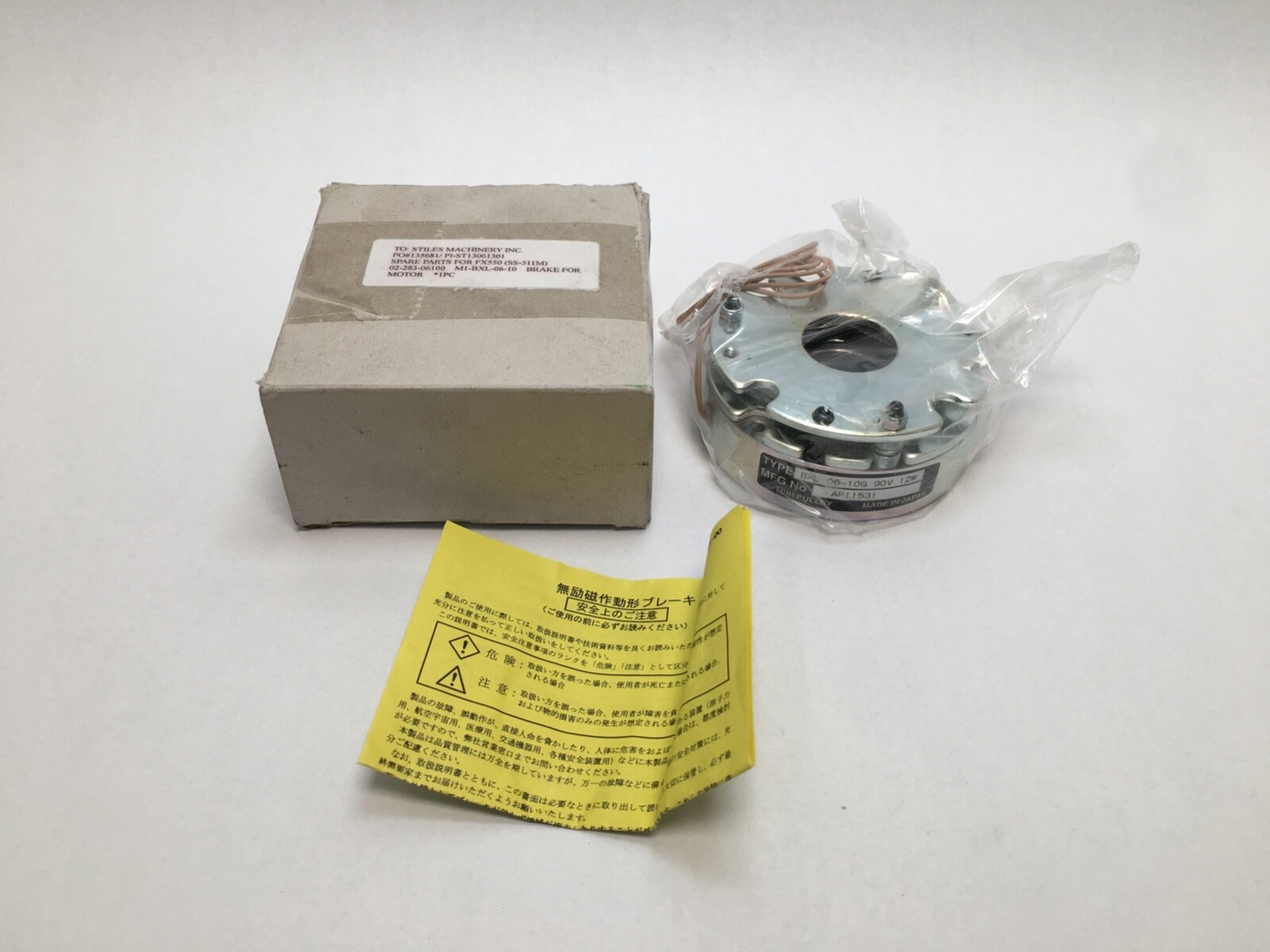

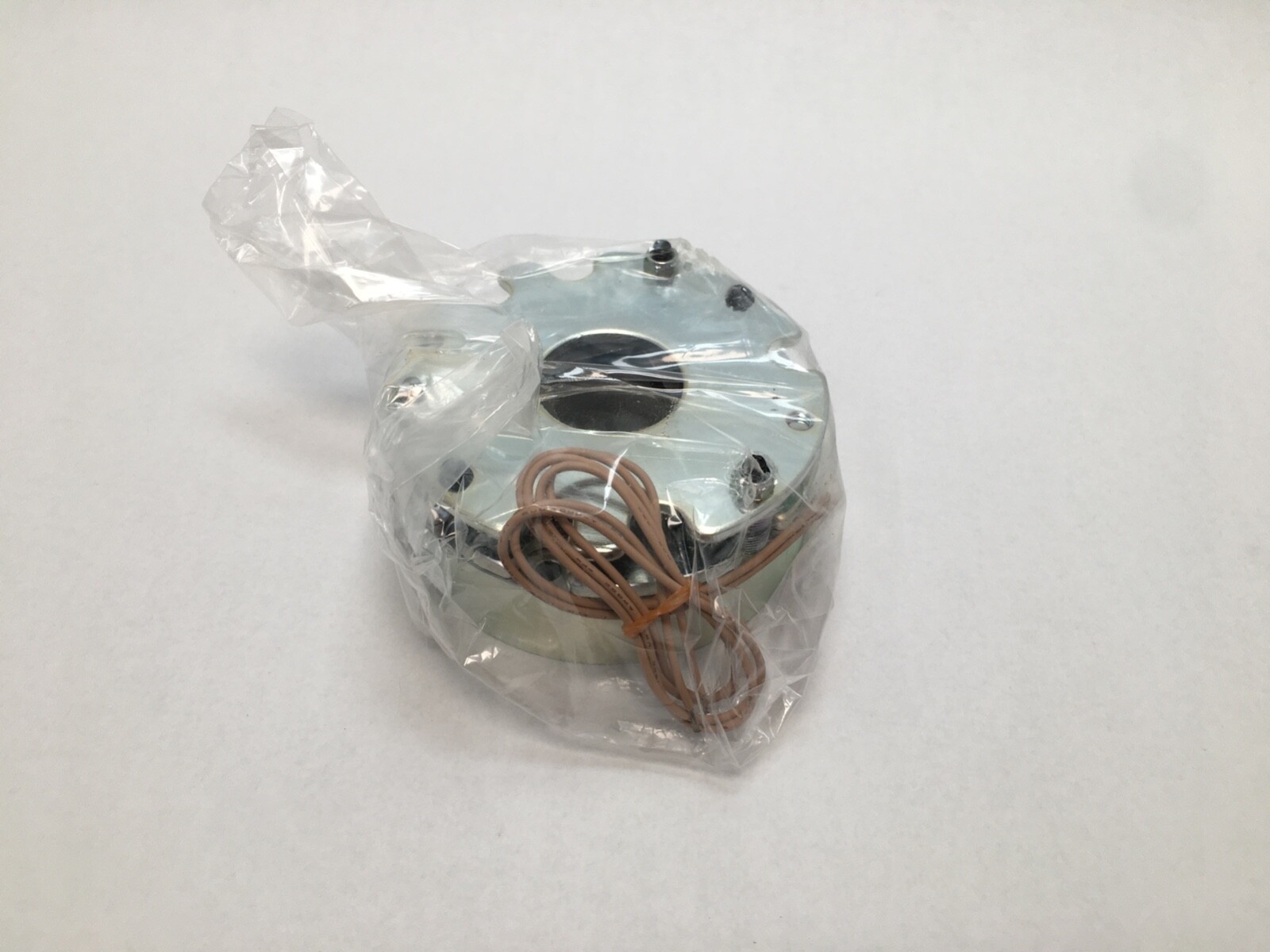

Miki PulleyBXL-06-10GSpring-Actuated Electromagnetic Brake — 90 V DC 12 W Coil, 2 N·m Static Torque, 5,000 rpm Max, Power-Off Holding

Condition: New

Availability:

1 in stock

Miki Pulley BXL-06-10G spring-actuated electromagnetic brake, 90 V DC 12 W coil, 2 N·m static torque, 5,000 rpm max. Power-off holding brake, 0.9 kg.

Same day shipment

List Price

$228.99

1 in stock

Prefer eBay? Buy this item on our store (opens in a new tab)

Small green outline icon of a shipping box with a clock, indicating delivery time
Availability

1 in stock

On the Shelf & Ready to Ship

Green shield badge reading "Same-Day Shipping" with box and delivery truck icons
Free US Shipping

Ships same day by 6pm ET

Green shield icon with box and arrow graphic labeled "Free Returns"
Free Returns

No Risk, No Hassle

Specifications

Key Specifications

MFR / BrandMiki Pulley
MPNBXL-06-10G
ModelBXL0610G

Technical Specifications

Industry Termselectromagnetic brake, spring applied brake, power-off brake, holding brake, fail-safe brake
Common MisspellingsBLX-06-10G, BXL-6-10G, BXL0610
Application Typesservo motor holding, lifts, conveyors, emergency stopping
Mpn VariantsBXL-06-10G, BXL0610G, BXL 06 10G, BXL-06-10, AP11531, AP 11531
Additional AttributesCoil Voltage: 90 V DC; Coil Power: 12 W; Coil Current: 0.13 A; Static Friction Torque: 2 N·m; Max Speed: 5,000 rpm; Insulation Class: F
Item Weight0.9 kg (1.98 lb)
Seller Part Number: AB4B4#OTXIZD

Product Description

What this part is:

The Miki Pulley BXL-06-10G is a spring-actuated, non-excitation electromagnetic brake from the BXL standard-size series. Springs clamp the friction disc when the coil is de-energised, so the brake holds or stops the load on power loss and releases when 90 V DC is applied. Unit Quantity: 1 Pc.

Decoding the designation:

BXL — Miki Pulley spring-actuated non-excitation brake, standard size.

06 — size 06.

10 — 2 N·m static friction torque rating for size 06.

Specifications:

Coil Voltage: 90 V DC. Coil Power: 12 W. Coil Current: 0.13 A. Coil Resistance: 677 Ω at 20 °C. Static Friction Torque: 2 N·m. Maximum Rotation Speed: 5,000 rpm. Armature Pull-in Time: 0.035 s. Armature Release Time: 0.020 s. Allowable Braking Power: 58.3 W. Total Braking Energy: 2.0 x 10^7 J. Insulation Class: F. Lead Wire: AWG 22.

Dimensions and mounting:

Item Weight: 0.9 kg (1.98 lb). Rotating Part Moment of Inertia: 3.75 x 10^-5 kg·m². Applications: motors, servo axes, lifts and conveyors for holding and emergency braking.

Compatibility and replacement:

Also written BXL0610G, BXL-06-10 and AP11531.

Frequently asked questions:

What coil voltage does the BXL-06-10G use?

The coil is rated 90 V DC at 12 W and 0.13 A, with 677 Ω resistance at 20 °C.

What is the static friction torque?

Static friction torque is 2 N·m, with a maximum rotation speed of 5,000 rpm.

How does the brake operate?

It is a spring-actuated, non-excitation brake. Springs clamp the friction disc when the coil is de-energised and the brake releases when 90 V DC is applied. Armature release time is 0.020 s.
