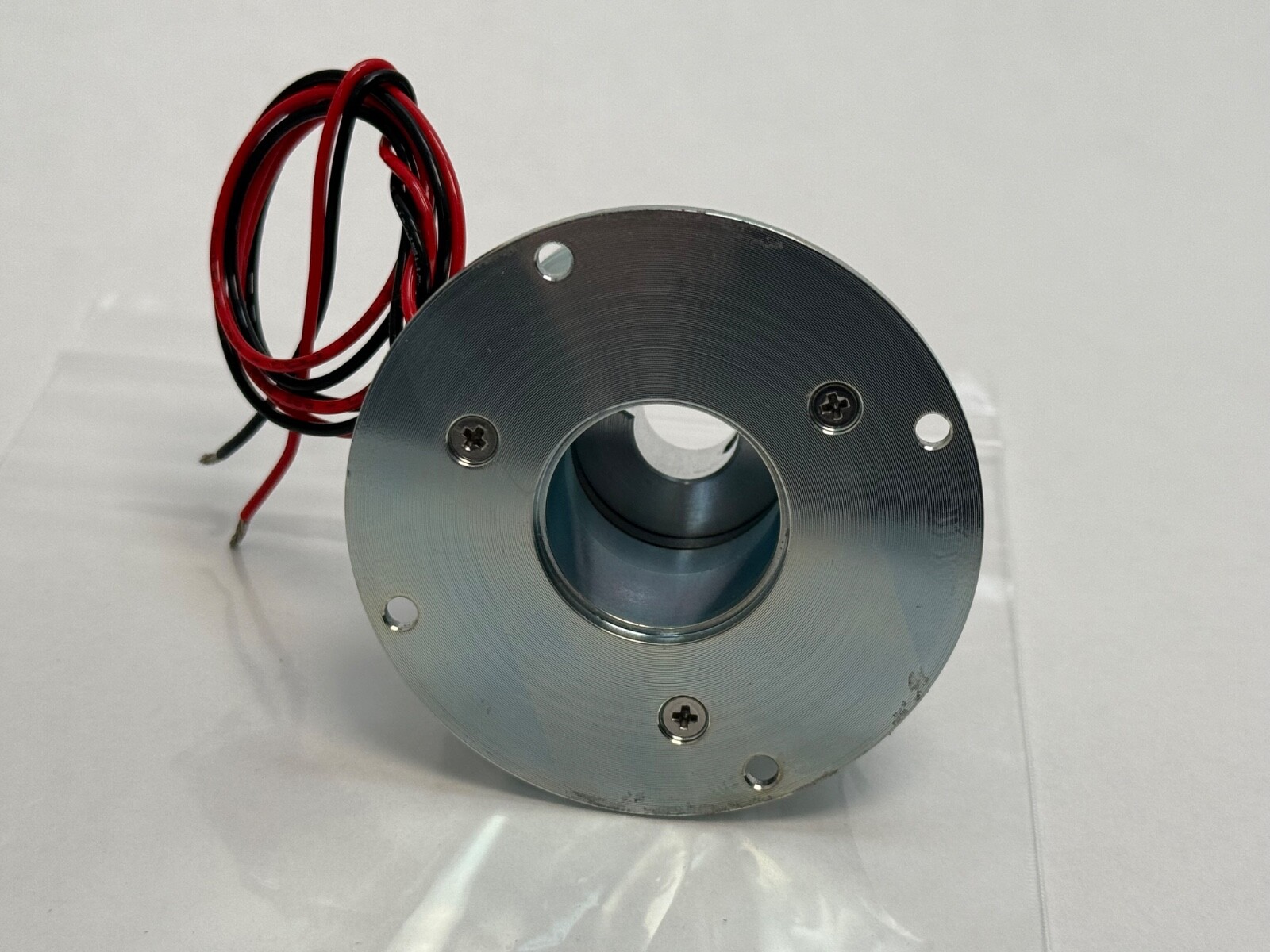

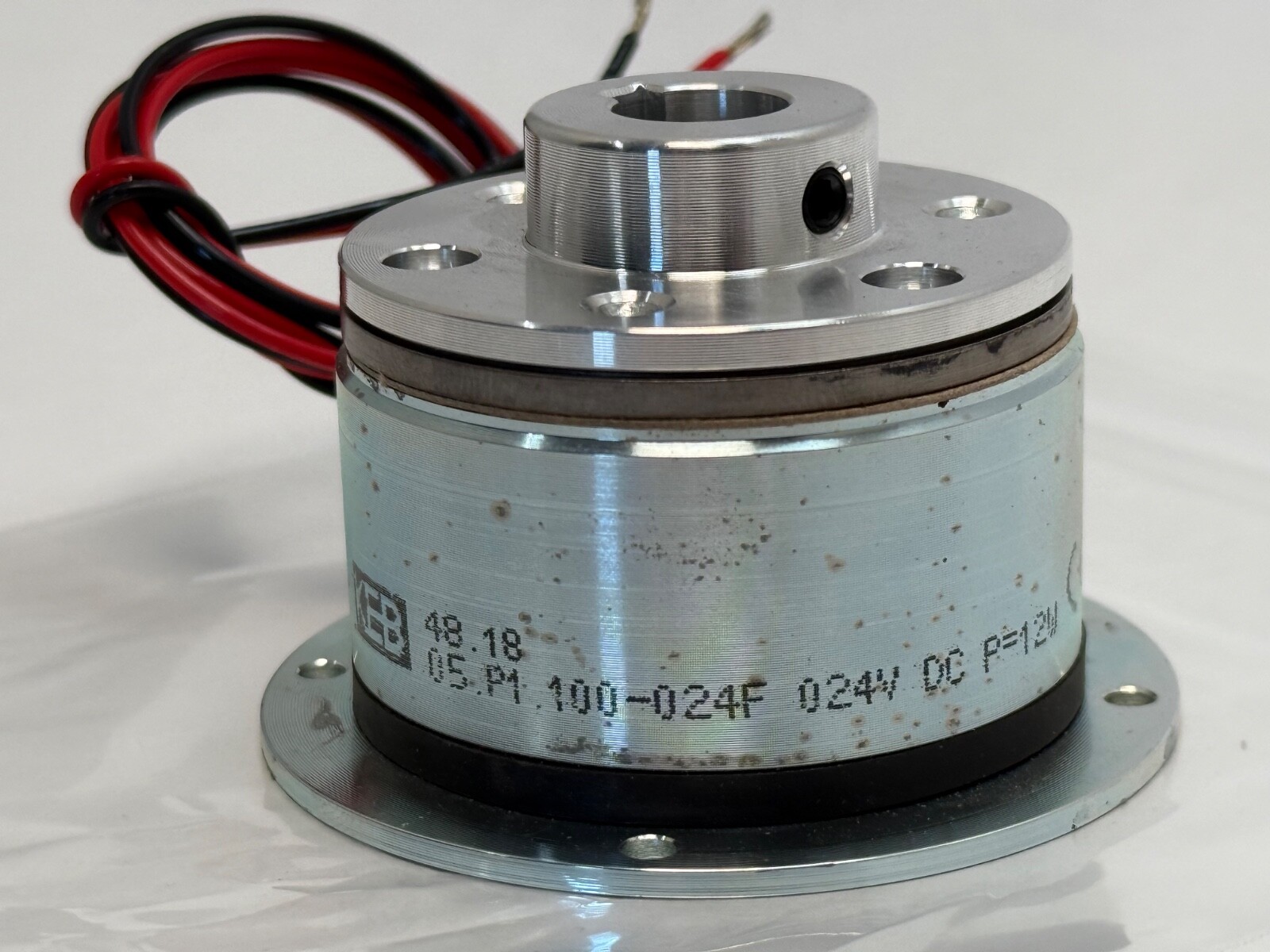

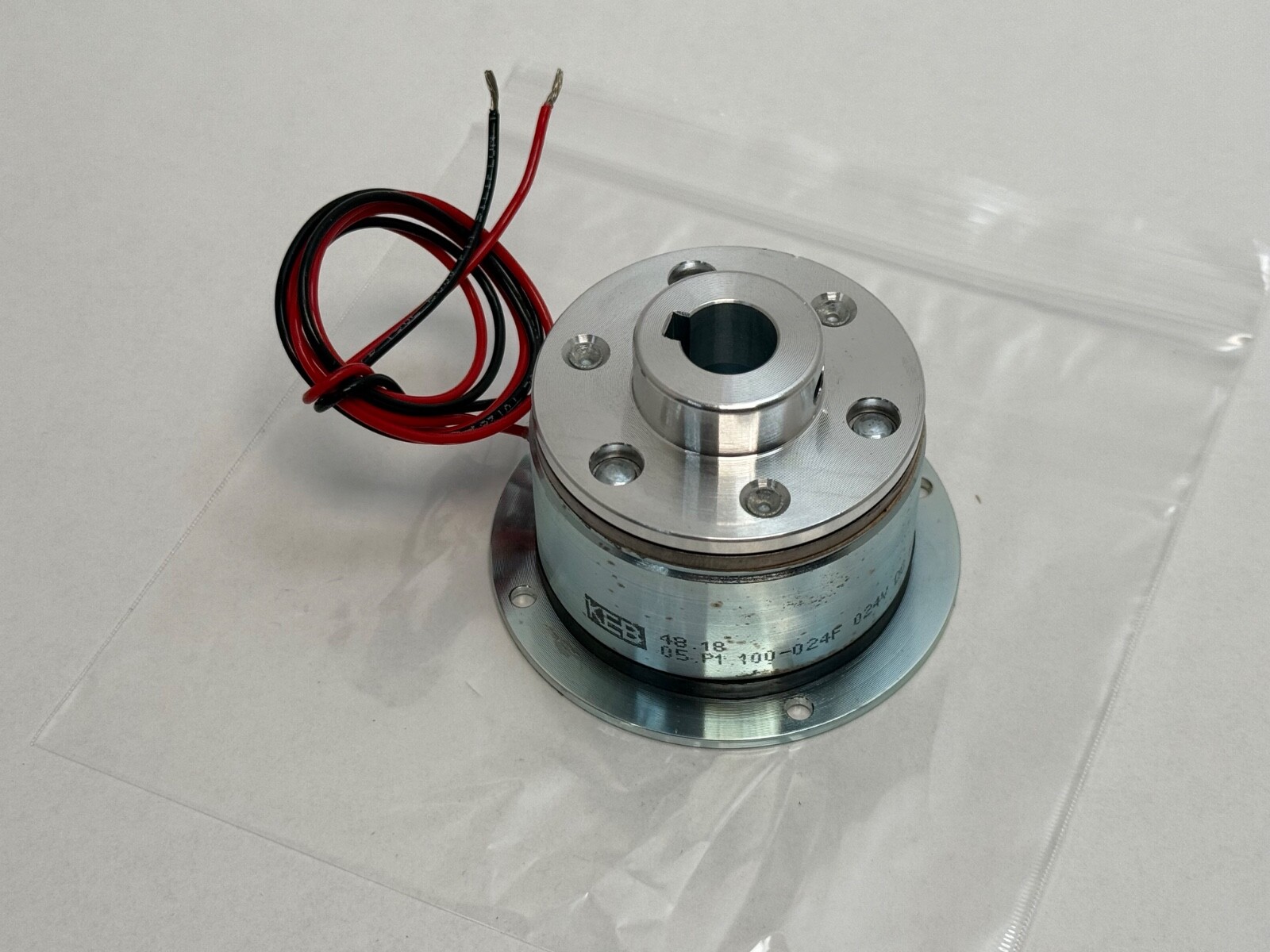

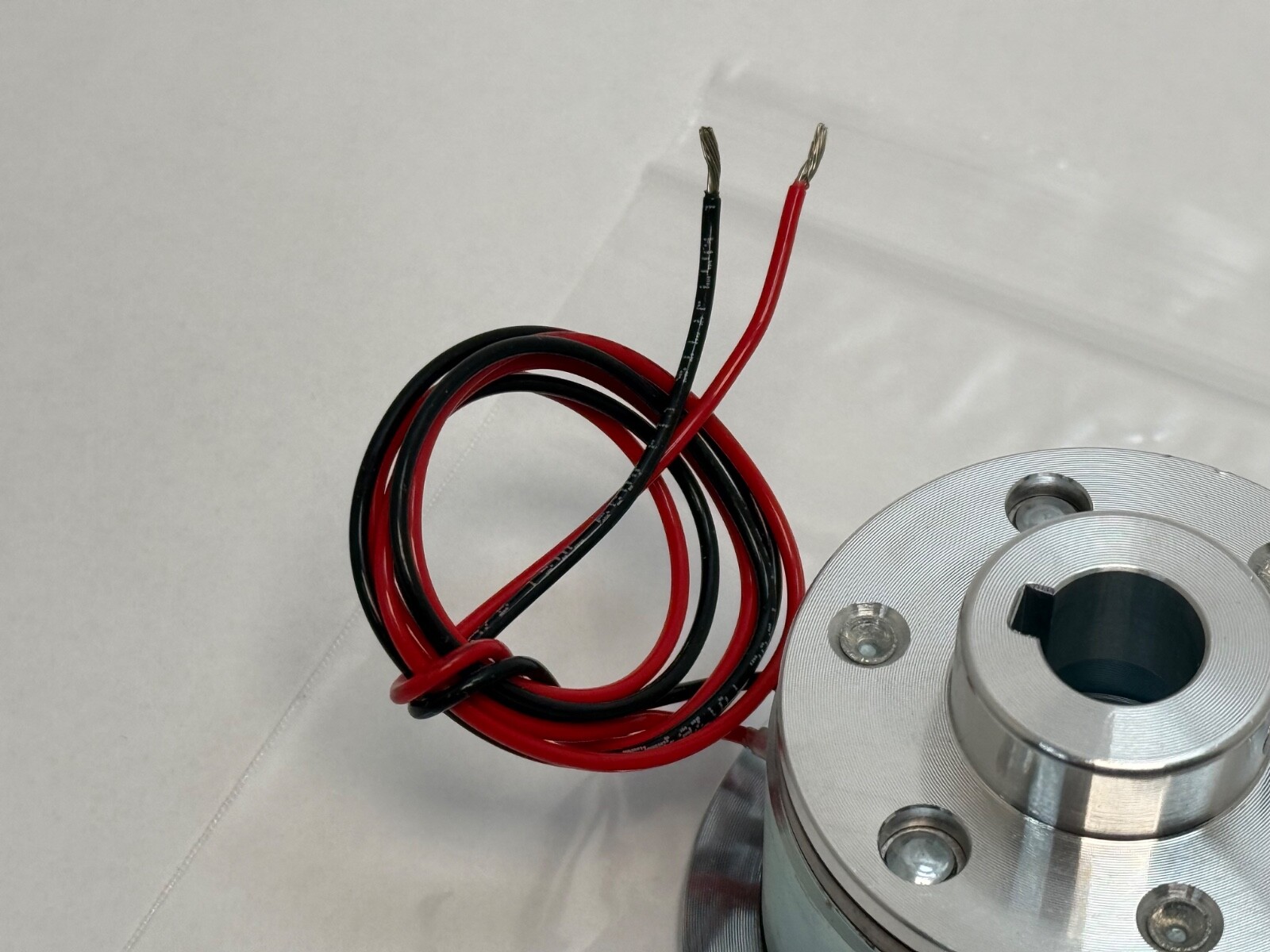

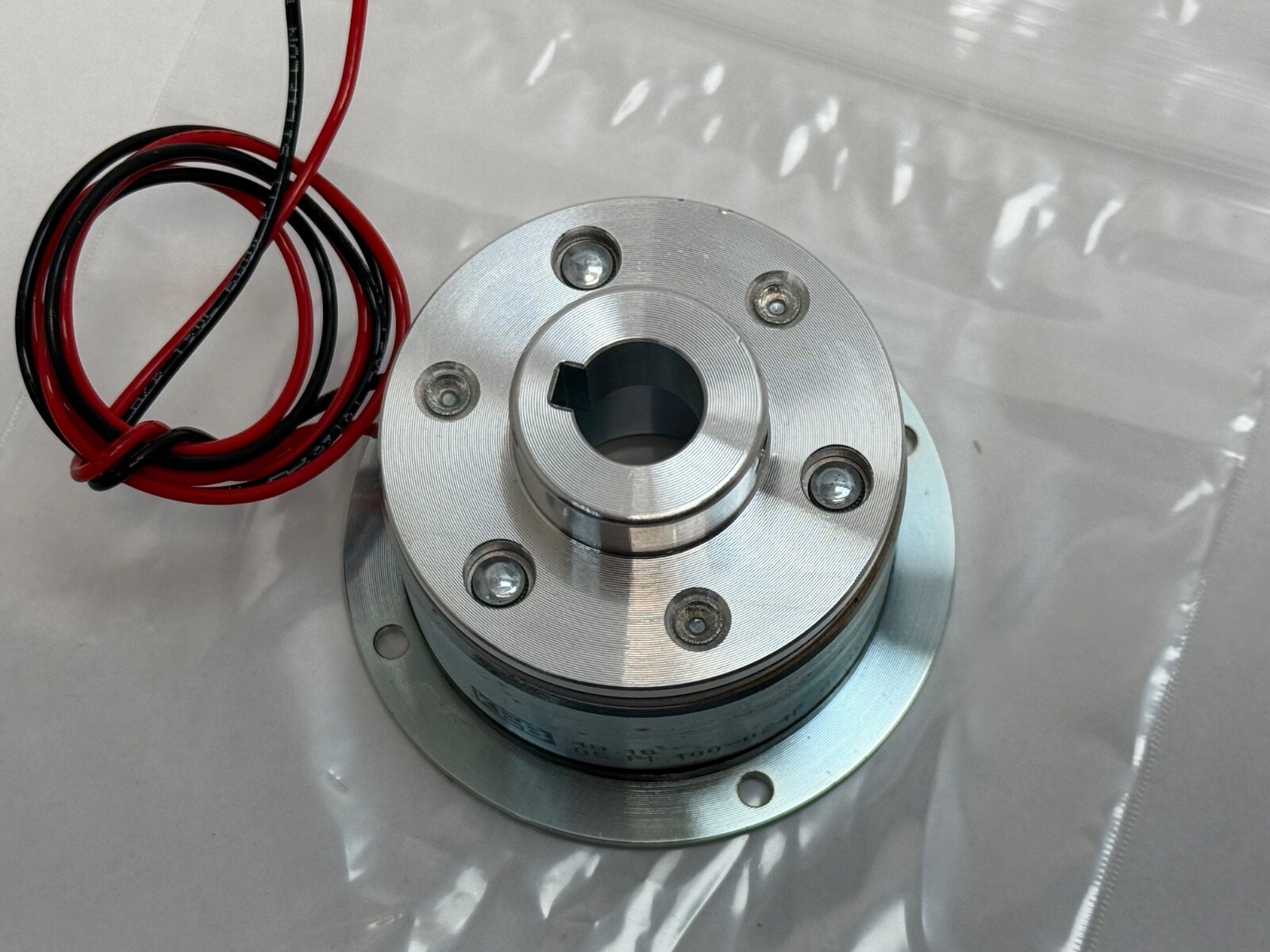

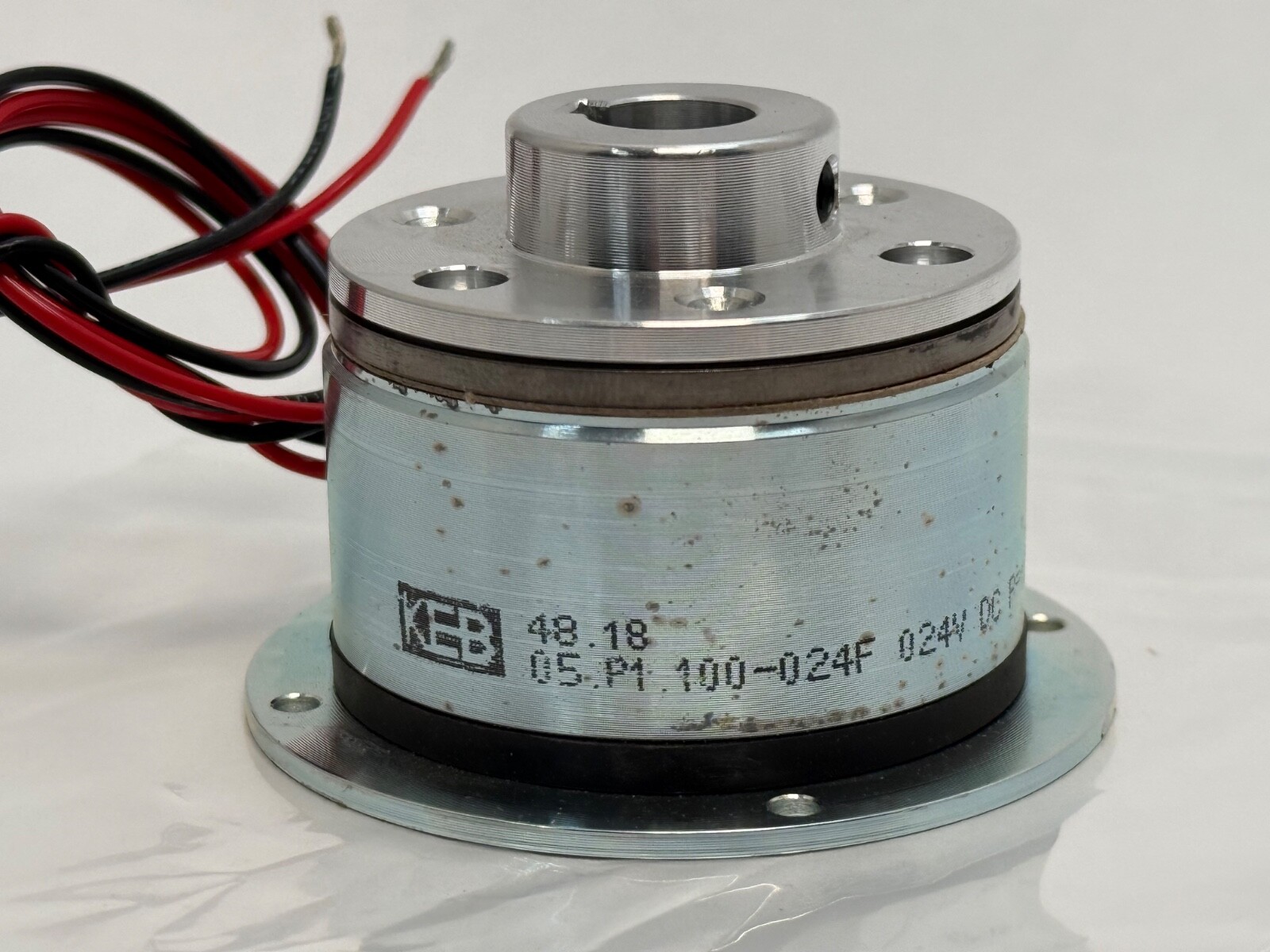

KEB05.P1.100-024FPermanent Magnet Brake — COMBIPERM P1, Size 05, 24 V DC, Power-Off Holding

Condition: New – Open box

Availability:

1 in stock

KEB 05.P1.100-024F COMBIPERM P1 permanent magnet brake, size 05, 24 V DC, power-off holding, backlash-free friction engagement. New old stock, open box.

Same day shipment

List Price

$348.99

1 in stock

Prefer eBay? Buy this item on our store (opens in a new tab)

Small green outline icon of a shipping box with a clock, indicating delivery time
Availability

1 in stock

On the Shelf & Ready to Ship

Green shield badge reading "Same-Day Shipping" with box and delivery truck icons
Free US Shipping

Ships same day by 6pm ET

Green shield icon with box and arrow graphic labeled "Free Returns"
Free Returns

No Risk, No Hassle

Specifications

Key Specifications

MFR / BrandKEB
MPN05.P1.100-024F
Model05P1100024F

Technical Specifications

Base Number05.P1.100
Industry Termsservo motor brake, holding brake, permanent magnet safety brake, fail-safe brake, electromagnetic brake, COMBIPERM
Common MisspellingsKEB Combiperm, KEB Kombiperm, 05P1-100-024F, KEB clutch brake 05.P1
Mpn Variants05.P1.100-024F, 05P1100024F, 05.P1.100-024, 05 P1 100 024F, 05.P1.100
Additional AttributesBrake Type: Permanent magnet brake; Series: COMBIPERM P1; Size: 05; Coil Voltage: 24 V DC; Engagement: Frictional, torsionally backlash-free; Operation: holds power-off, releases with DC
SeriesCOMBIPERM P1
Application TypesServo motors; holding brakes; safety brakes
Seller Part Number: AR4B5#5VWCIG

Product Description

What this part is:

KEB 05.P1.100-024F COMBIPERM type P1 permanent magnet brake, size 05, 24 V DC. A frictionally engaged, torsionally backlash-free brake used on servo motors as a holding and safety brake. Unit Quantity: 1 Pc. Condition: New old stock, open box.

Decoding the designation:

05 — brake size 05.

P1 — COMBIPERM type P1 permanent magnet brake.

100 — KEB design code.

024 — 24 V DC coil voltage.

Specifications:

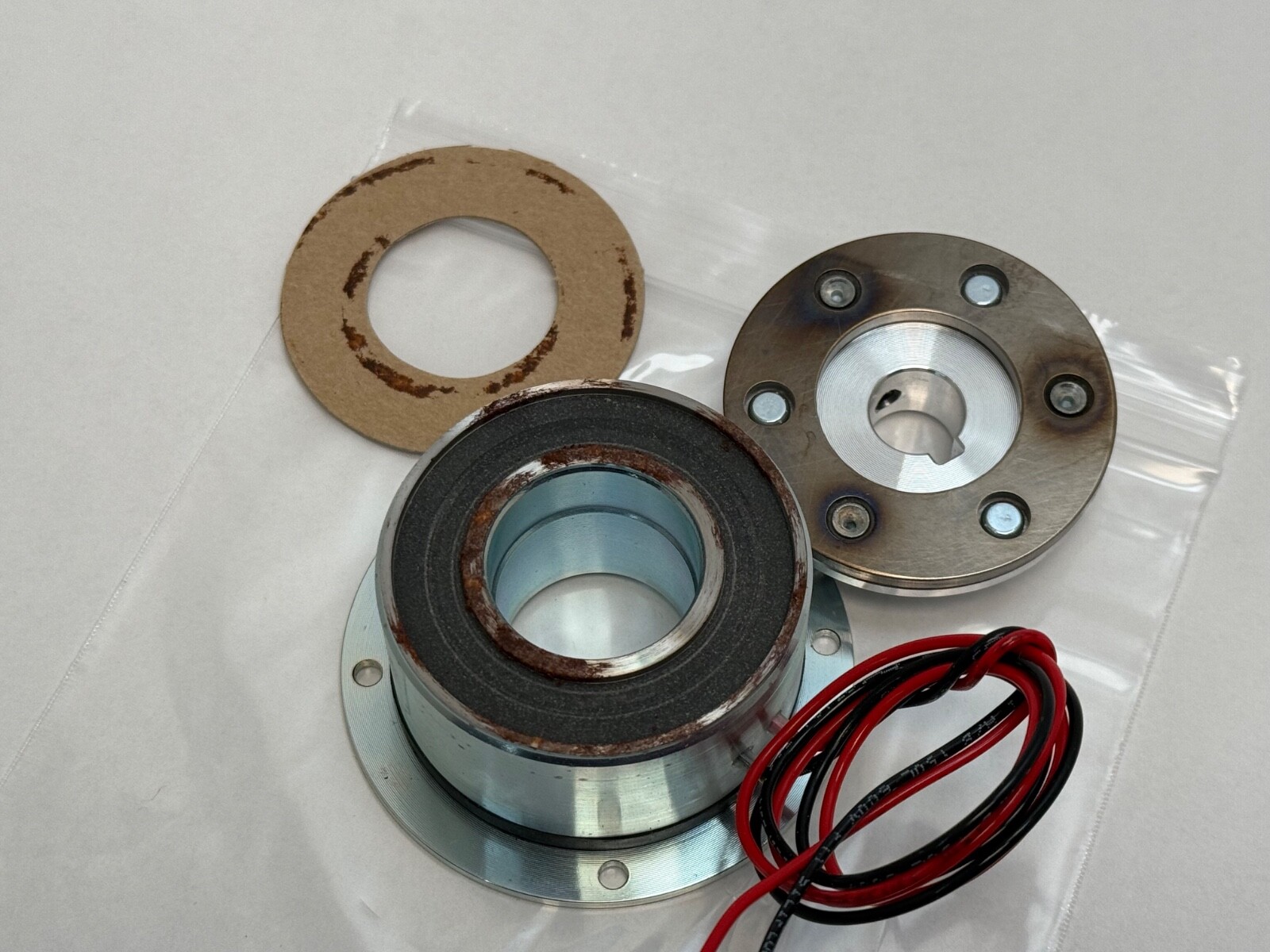

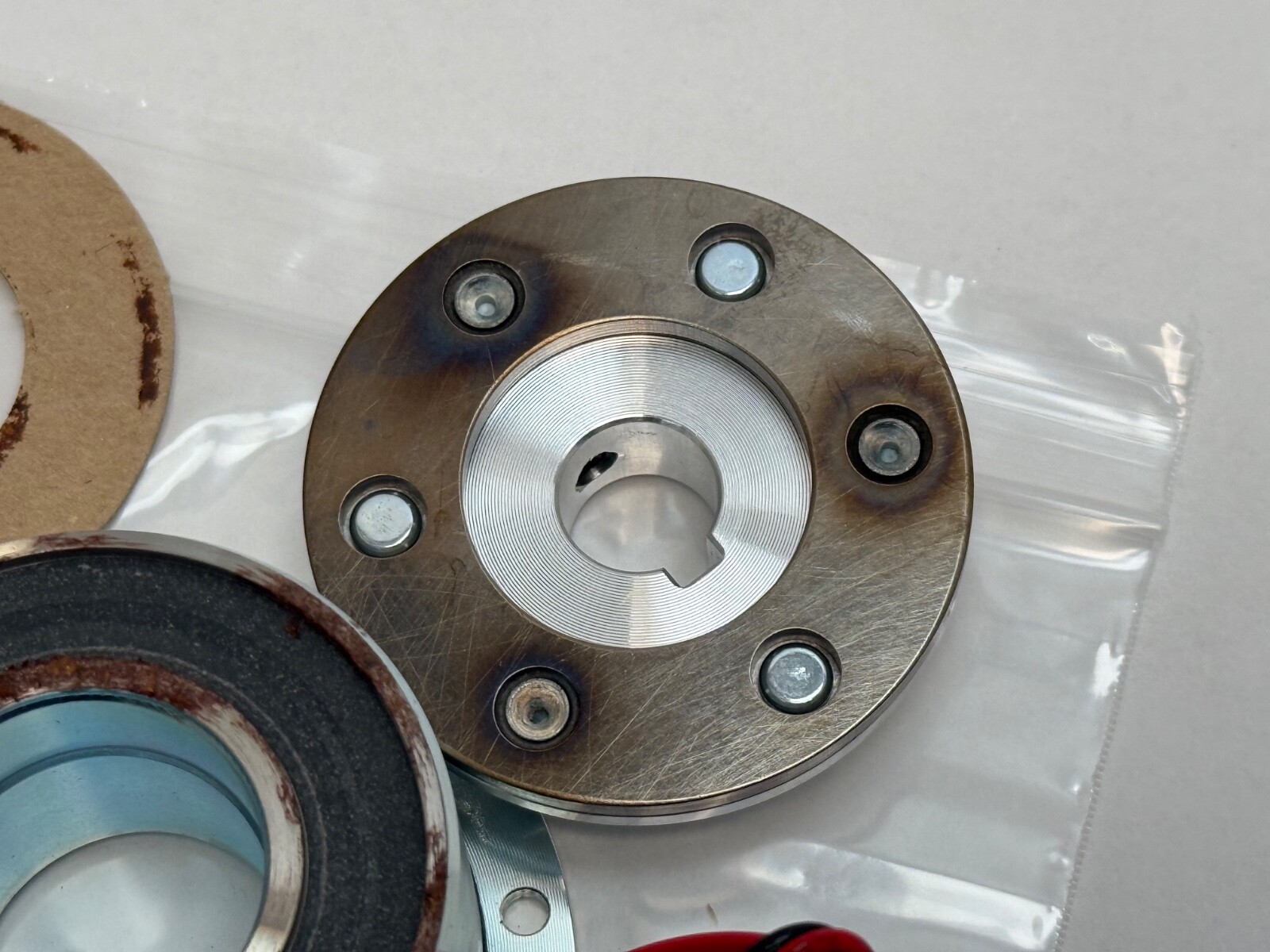

Brake Type: Permanent magnet brake, COMBIPERM P1. Size: 05. Coil Voltage: 24 V DC. Engagement: Frictional, torsionally backlash-free. Operating Principle: With power off, a permanent magnetic field pulls the armature plate onto the magnet surface and the brake holds; with correct-polarity DC voltage applied, the field is cancelled and the brake releases. Holding with the power off makes the brake fail-safe: the shaft is held on loss of supply.

Frequently asked questions:

What type of brake is the KEB 05.P1.100-024F?

A COMBIPERM type P1 permanent magnet brake, size 05, with frictional, torsionally backlash-free engagement.

What coil voltage does it use?

24 V DC, per the 024 in the designation.

What happens when power is removed?

A permanent magnetic field pulls the armature plate onto the magnet surface and the brake holds, so the shaft is held on loss of supply.
