Grayhill61C22-01-04-02Optical Rotary Encoder — 16 PPR Quadrature, 16 Detents, Push Switch, 5 V, 1/4 in Shaft

Product Description

What this part is:

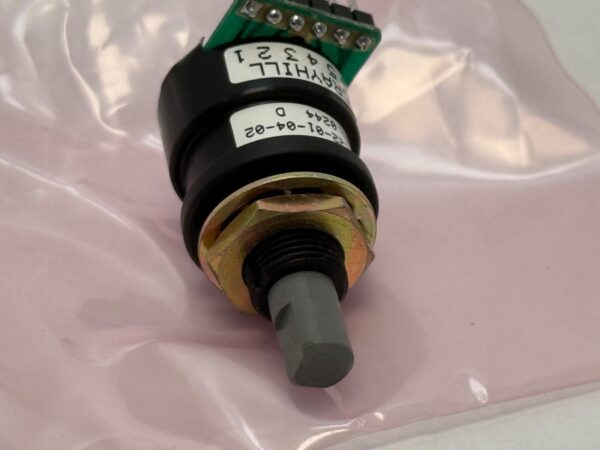

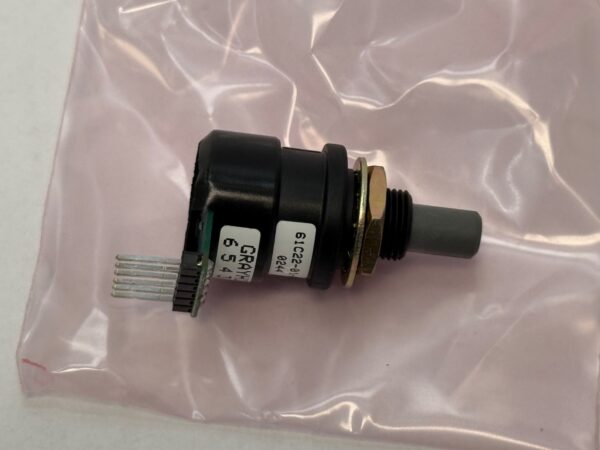

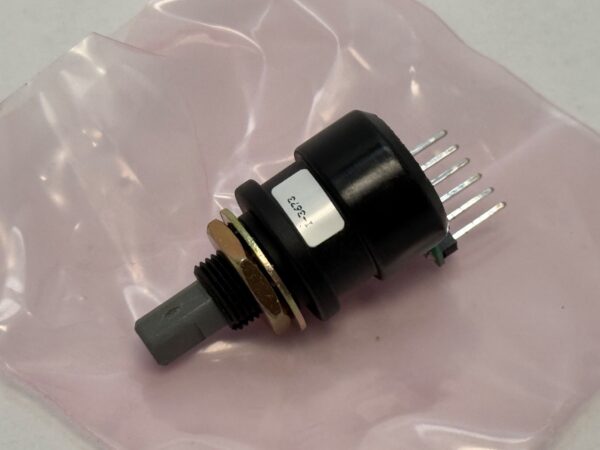

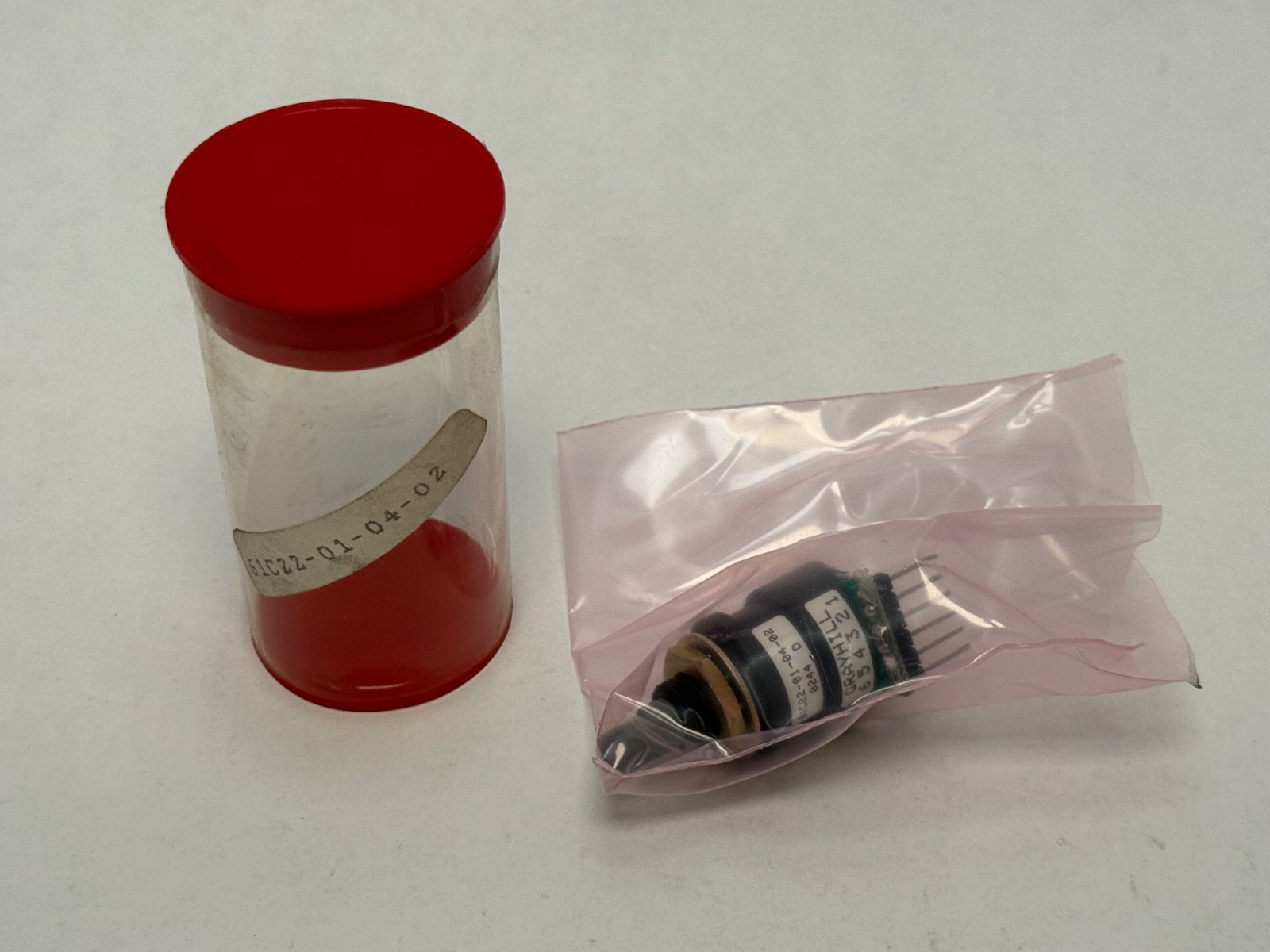

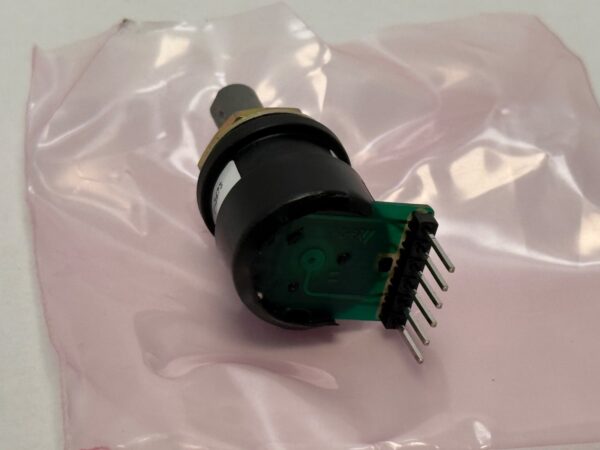

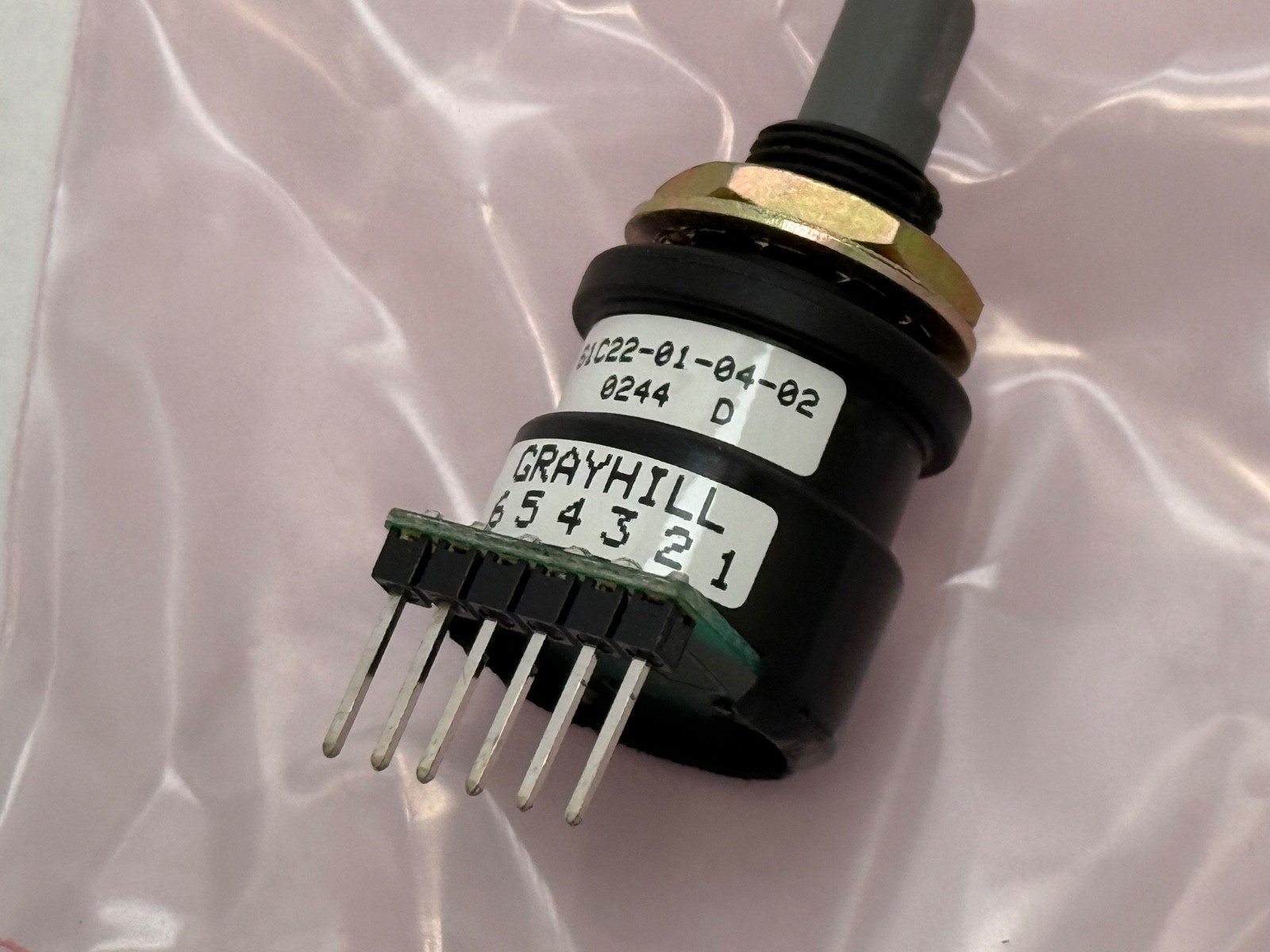

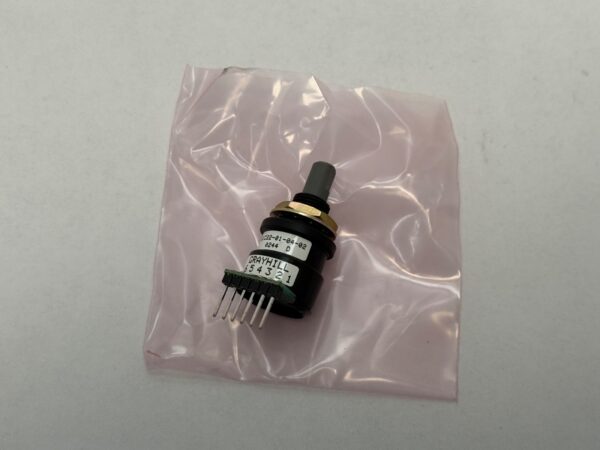

Grayhill 61C22-01-04-02 optical rotary encoder, Series 61C. Incremental two-channel quadrature encoder with 16 detents and an integral push switch, bushing mount with solder pin terminations. Unit Quantity: 1 Pc.

Specifications:

Series: 61C. Encoder Technology: Optical. Encoder Type: Incremental. Output: Quadrature, 2 channels. Resolution: 16 PPR. Detents: 16. Angle Of Throw: 22.5°. Push Switch: Yes. Supply Voltage: 4.75 to 5.25 VDC. Logic Compatibility: CMOS, TTL, HCMOS. Operating Temperature: -40 °C to +85 °C. Rotational Life: 1,000,000 cycles. Country of Origin: United States.

Dimensions and mounting:

Shaft Type: D flatted. Shaft Diameter: 6.35 mm (0.250 in). Shaft Length: 9.53 mm (0.375 in). Mounting: Bushing mount, through hole. Termination: Solder pin.

Compatibility and replacement:

MPN Variants: 61C22-01-04-02, 61C22010402, 61C22 01 04 02.

Frequently asked questions:

What is the resolution of the Grayhill 61C22-01-04-02?

16 PPR quadrature output with 16 detents.

What shaft does the 61C22-01-04-02 have?

A D flatted shaft, 6.35 mm (0.250 in) diameter and 9.53 mm (0.375 in) long.

What supply voltage does the 61C22-01-04-02 use?

4.75 to 5.25 VDC, compatible with CMOS, TTL and HCMOS logic.
