Central Surplus Bearing Finder
A faster way to search our bearing inventory Today we’re launching the Central Surplus Bearing
Availability:
1 in stock

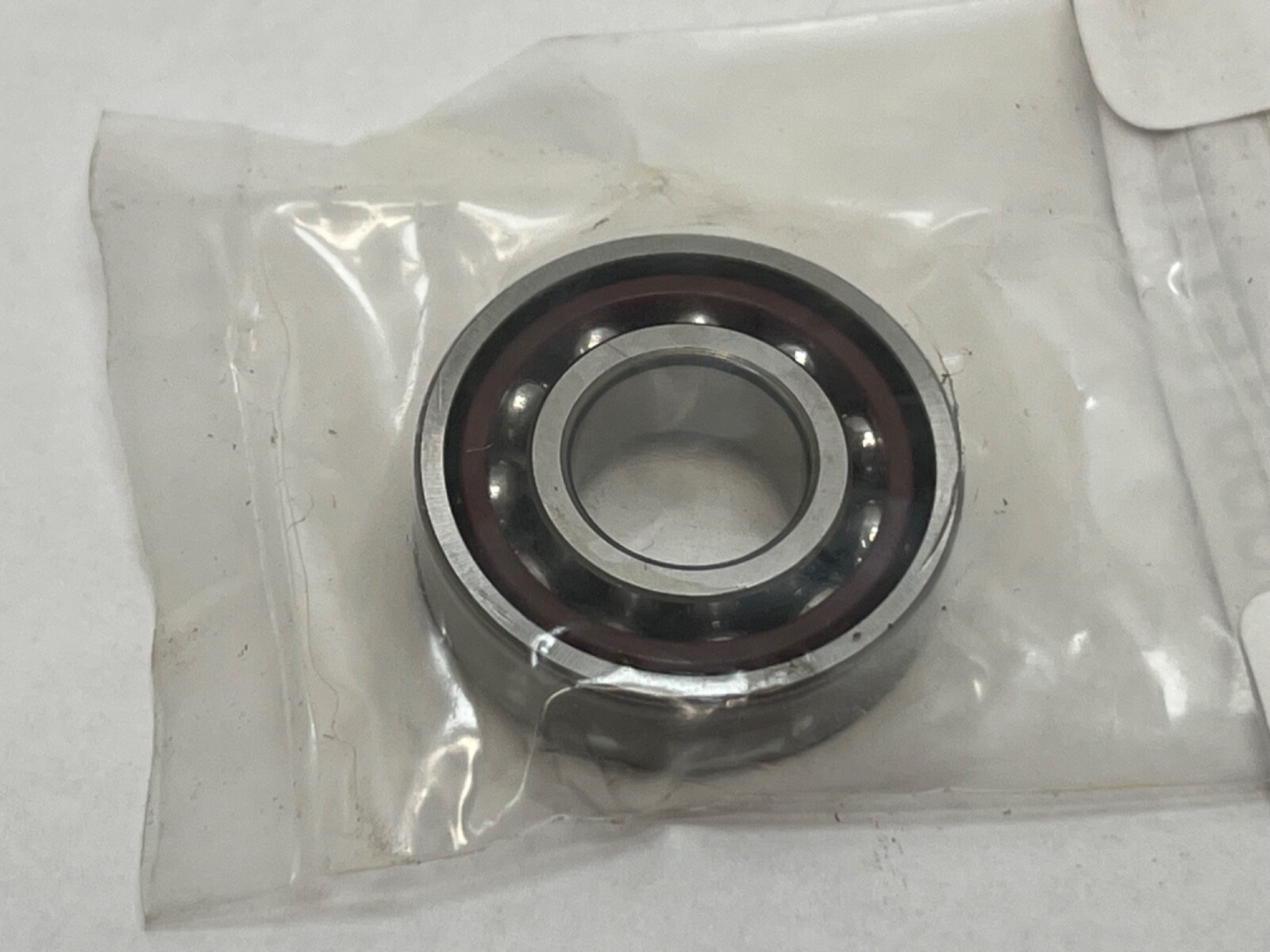

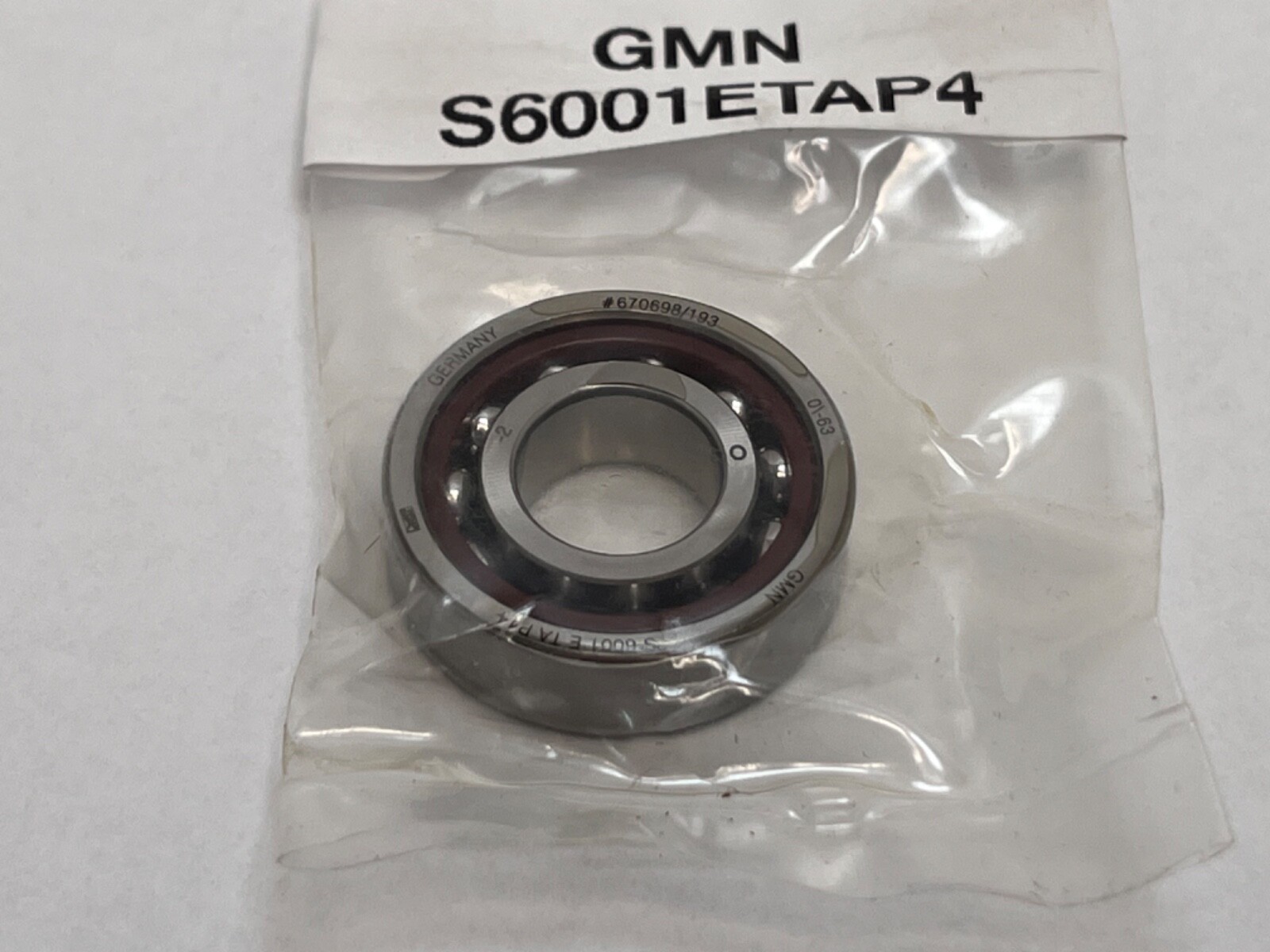

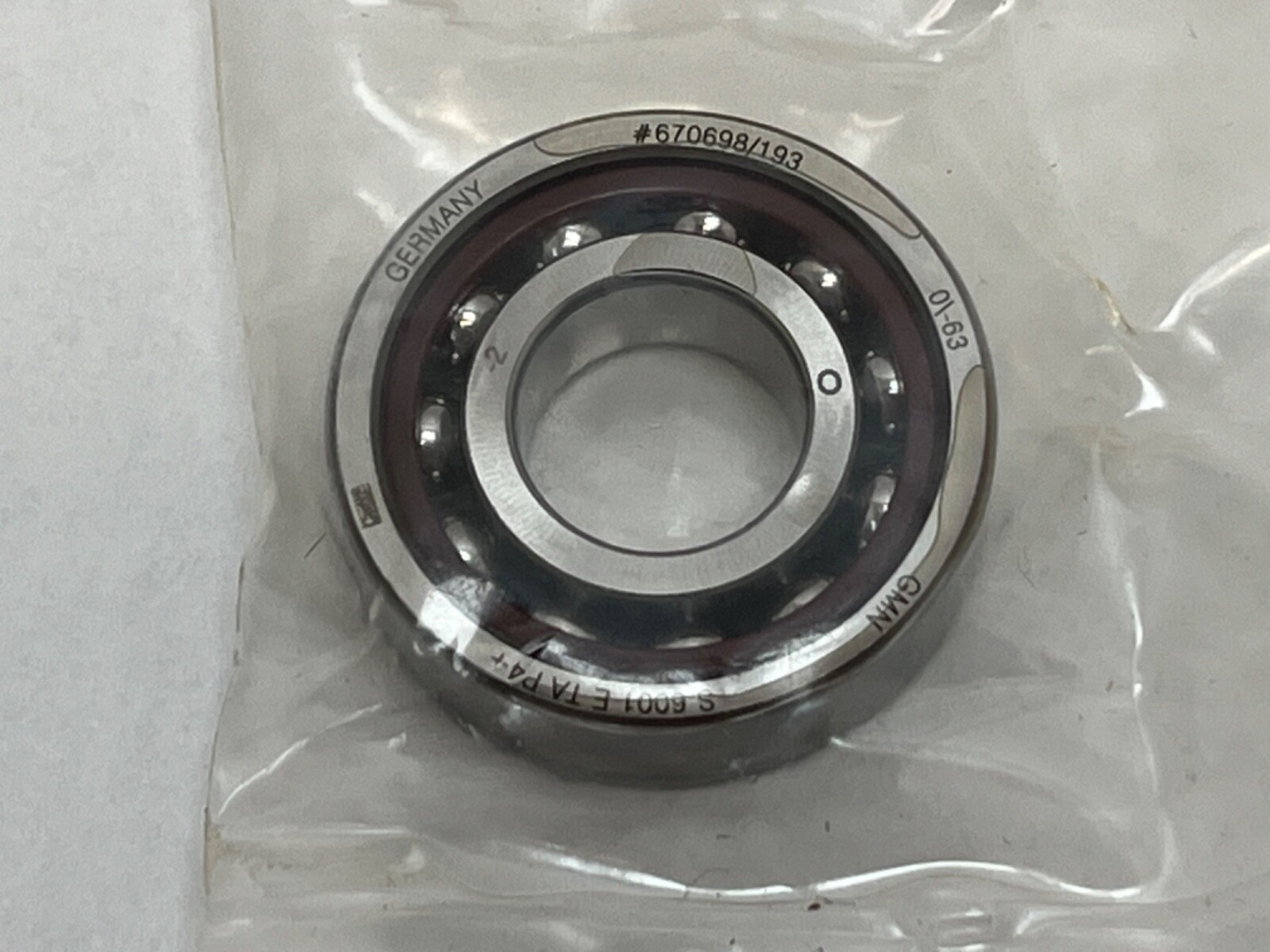

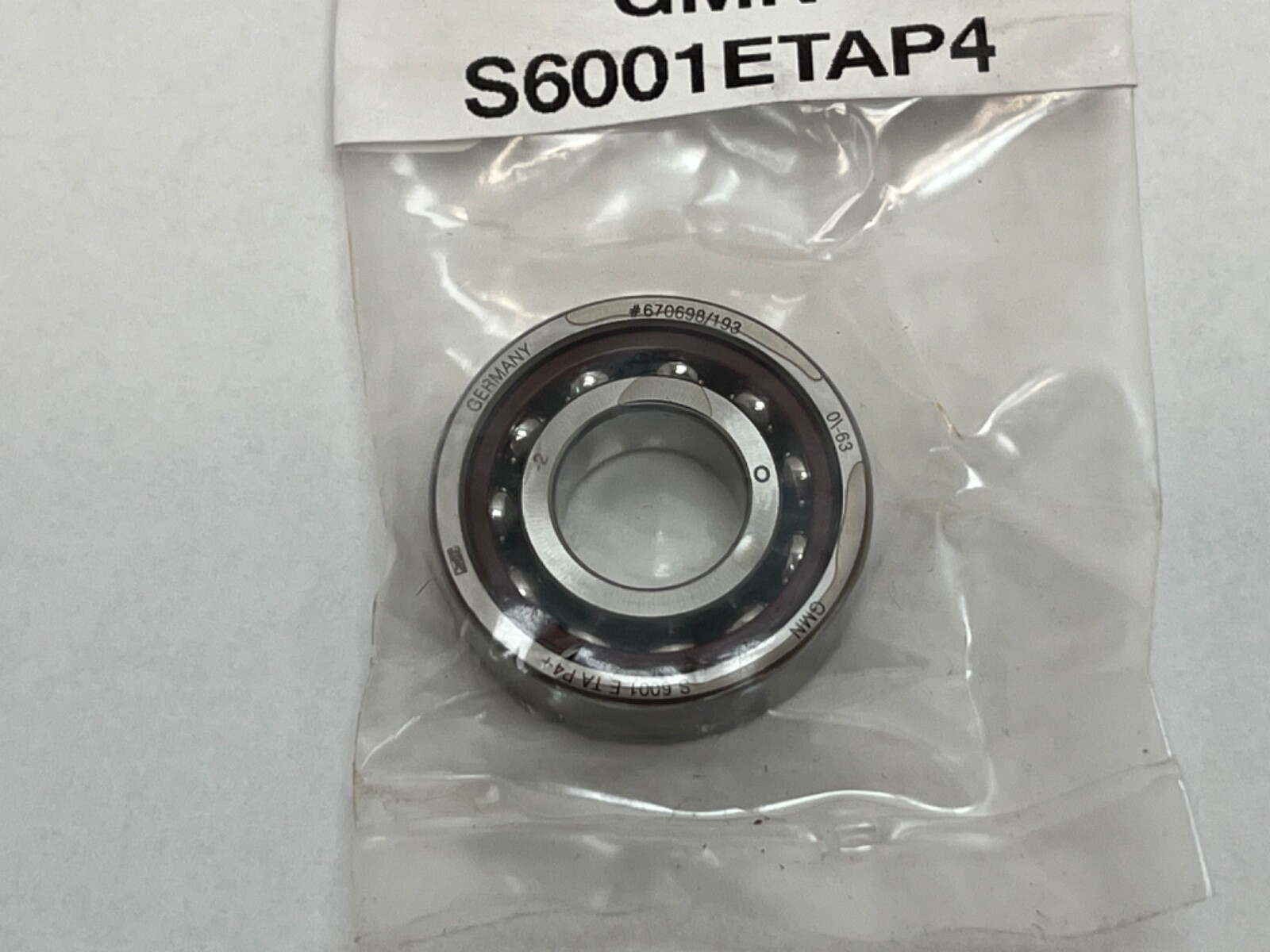

GMN S6001ETAP4 angular contact spindle bearing, 12 x 28 x 8 mm, 25° contact angle, P4 precision, outer-ring guided phenolic cage. 5,650 N dynamic rating.
List Price
$25.49
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | GMN |
|---|---|
| MPN | S6001ETAP4 |
| Model | S 6001 E TA A7 DUL / 3MM9101WI CR DUL / 7001E T P4 / ABEC7 |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 12 mm |
| OD | 28 mm |
| Width | 8 mm |
| Material | 100Cr6 (SAE 52100) steel |
|---|---|
| Series | GMN S 60 |
| Lubricant | Grease or oil |
| Closure Type | Open |
| Dynamic Load Rating | 5,650 N |
| Static Load Rating | 2,900 N |
| Precision Rating | ABEC 7 / P4 |
| Rolling Elements | Ball |
| Item Weight | 0.020 kg (0.04 lb) |
| Cage Material | Phenolic |
| Limiting Speed | 54,000 rpm grease; 73,000 rpm oil |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Contact Angle | 25° |
| Mpn Variants | S6001ETAP4, S 6001 E TA P4, S-6001-E-TA-ABEC7, S6001ETA, 7001E |
| Precision Class | ABEC 7 / P4 |
| Additional Attributes | Number of balls: 11; Ball diameter: 4.762 mm; Pitch circle diameter: 20 mm; Abutment da min: 14.6 mm; Abutment Da max: 26.2 mm; Oil nozzle position dT: 18.5 mm; GMN matched-set preload values: L 50 N, M 140 N, S 280 N; TA cage operating temperature: 120 °C |
| Cage Type | Machined, outer-ring guided |
| Bearing Material | 100Cr6 (SAE 52100) steel |
| Cross Reference 1 | SKF 7001 ACD/P4A |
|---|---|
| Cross Reference 2 | FAG B7001-E-T-P4S |
| Cross Reference 3 | NSK 7001A5TYP4 |
| Cross Reference 4 | Fafnir 3MM9101WI |
GMN S6001ETAP4 is a single-row angular contact spindle bearing from GMN’s S series on the 7001 envelope. Bore Diameter: 12 mm. Outside Diameter: 28 mm. Overall Width: 8 mm. Contact Angle: 25°. Precision Class: ABEC 7 / P4.
S — GMN standard spindle bearing series, non-separable.
6001 — 60 dimension series, 12 mm bore: the 7001 size, 12 x 28 x 8 mm.
E — 25° nominal contact angle.
TA — laminated phenolic resin cage guided on the outer ring.
P4 — GMN tolerance class P4, corresponding to P4S per DIN 628-6.
Dynamic Load Rating: 5,650 N. Static Load Rating: 2,900 N. Limiting Speed: 54,000 rpm grease; 73,000 rpm oil. The 25° angle carries more axial load than the 15° S6001C of the same size. Cage Material: Phenolic, rated by GMN to 120 °C.
Item Weight: 0.020 kg. Number of balls: 11. Ball diameter: 4.762 mm. Pitch circle diameter: 20 mm. Abutment diameter inner ring da min: 14.6 mm. Abutment diameter outer ring Da max: 26.2 mm. Oil nozzle position dT: 18.5 mm. Chamfer rs: 0.3 mm. GMN preload values for this size in matched sets: L 50 N, M 140 N, S 280 N.
Unit Quantity: 1 Pc. Single bearing with no matching or preload suffix. Closure Type: Open.
Same 12 x 28 x 8 mm envelope, 25° angle and P4-class tolerance: SKF 7001 ACD/P4A, FAG B7001-E-T-P4S, NSK 7001A5TYP4, Fafnir 3MM9101WI. Cage materials vary by maker.
