Availability:
1 in stock
Super precision angular contact ball bearing, 45x85x19 mm, 15 degree contact angle, phenolic cage, ABEC 7 single universal, 51,500 N dynamic rating.
List Price
$110.02
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | NSK |
|---|---|
| MPN | 7209CTSULP4 |
| Model | 7209 C T SUL P4 B 7209 X2 TA UL EP7 2MM209WI CR SUL 209 ABEC7 |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 45 mm |
| OD | 85 mm |
| Width | 19 mm |
| Material | Bearing Steel |
|---|---|
| Series | 7200 Super Precision |
| Preload | Light (L) |
| Base Number | 7209C |
| Industry Terms | Super precision spindle bearing; universally ground bearing; precision angular contact bearing; machine tool spindle bearing; ABEC 7 bearing |
| Common Misspellings | 7209CTSUIP4; 7209 CTSULP4; 7209CTSULP-4; 7209CSULP4; NSK 7209CTSLP4 |
| Application Types | Machine tool spindles; grinding spindles; high-speed motor spindles; precision gearboxes; rotary tables |
| Overall Width | 19 mm |
| Mpn Variants | 7209CTSULP4; 7209C T SUL P4; 7209-C-T-SUL-P4; 7209CT SUL P4; 7209CTSULP4B |
| Precision Class | ABEC 7 / P4 |
| Additional Attributes | da min 52 mm; Da max 78 mm; Db max 80 mm; ra max 1 mm; rb max 0.6 mm; r min 1.1 mm; r1 min 0.6 mm; effective load centre a 18.2 mm; permissible axial load Pa 19.6 kN; recommended grease quantity 2.5 g per bearing |
| Closure Type | Open |
| Cage Type | Outer-ring guided |
| Dynamic Load Rating | 51,500 N |
| Static Load Rating | 28,800 N |
| Rolling Elements | Ball |
| Item Weight | 0.406 kg (0.895 lb) per bearing |
| Cage Material | Phenolic |
| Number Of Rows | Single Row |
| Bore Type | Straight |
| Snap Ring Included | Without Snap Ring |
| Limiting Speed | 17,700 rpm grease; 27,000 rpm oil |
| Lubricant | Grease or oil-air |
| Harmonization Code | 8482.10.50 |
| Contact Angle | 15° |
| Mounting Arrangement | Single universally ground (SU) |
| Bearing Material | Bearing Steel |
| Cross Reference 1 | SKF 7209 CD/P4A |
|---|---|
| Cross Reference 2 | FAG B7209-C-T-P4S |
| Cross Reference 3 | Timken (Fafnir) 2MM209WI |
| Cross Reference 4 | RHP 7209CTSUL |
| Cross Reference 5 | Koyo 7209C-5G |
| Cross Reference 6 | NTN 7209CG/GNP4 |
| Cross Reference 7 | GMN S 6209 C |
| Cross Reference 8 | NSK 7209CTYSULP4 (sibling execution, ball-guided cage) |
| Cross Reference 9 | NSK 7209A5TSULP4 (25° contact angle, not a direct equivalent) |

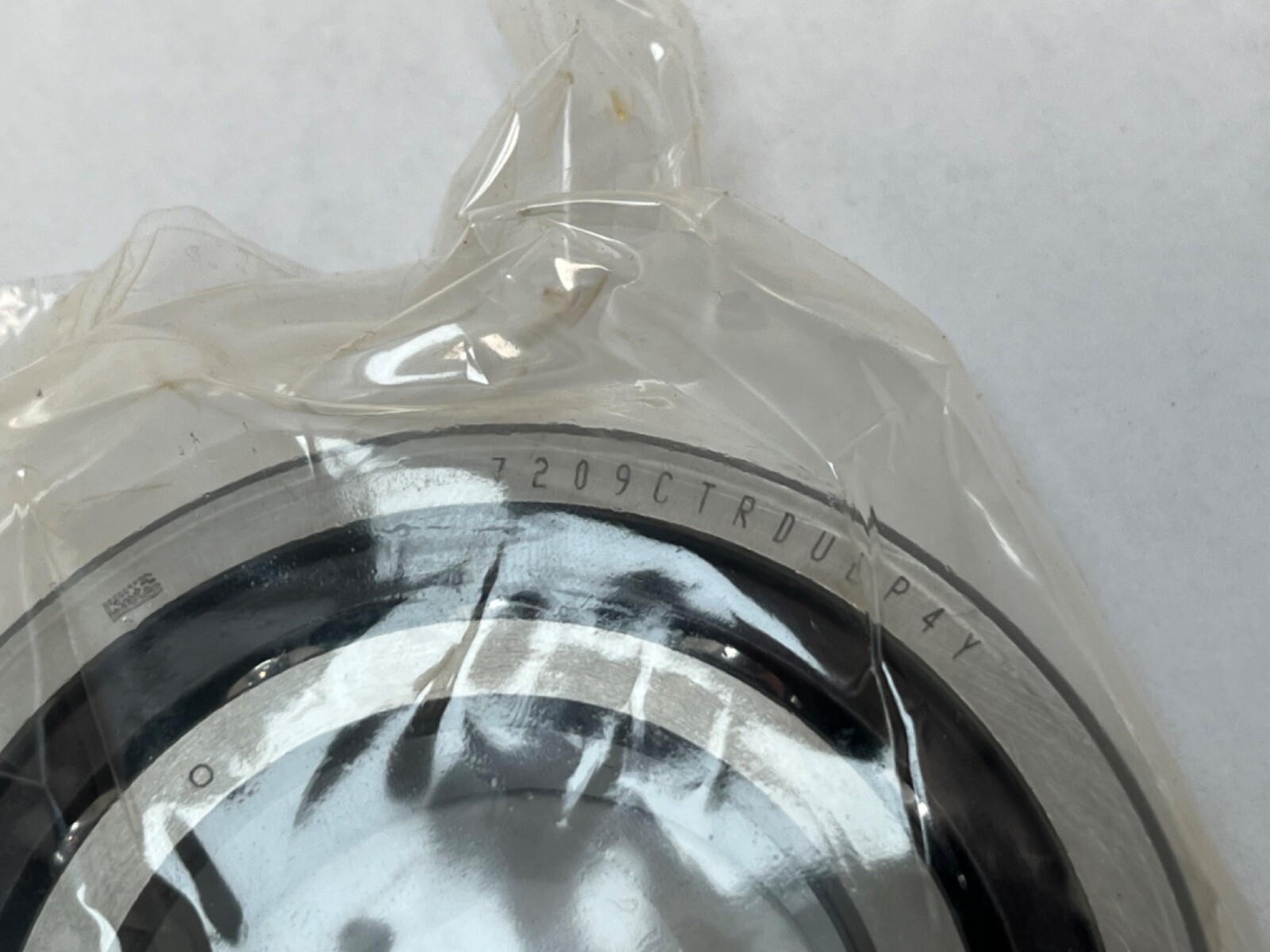

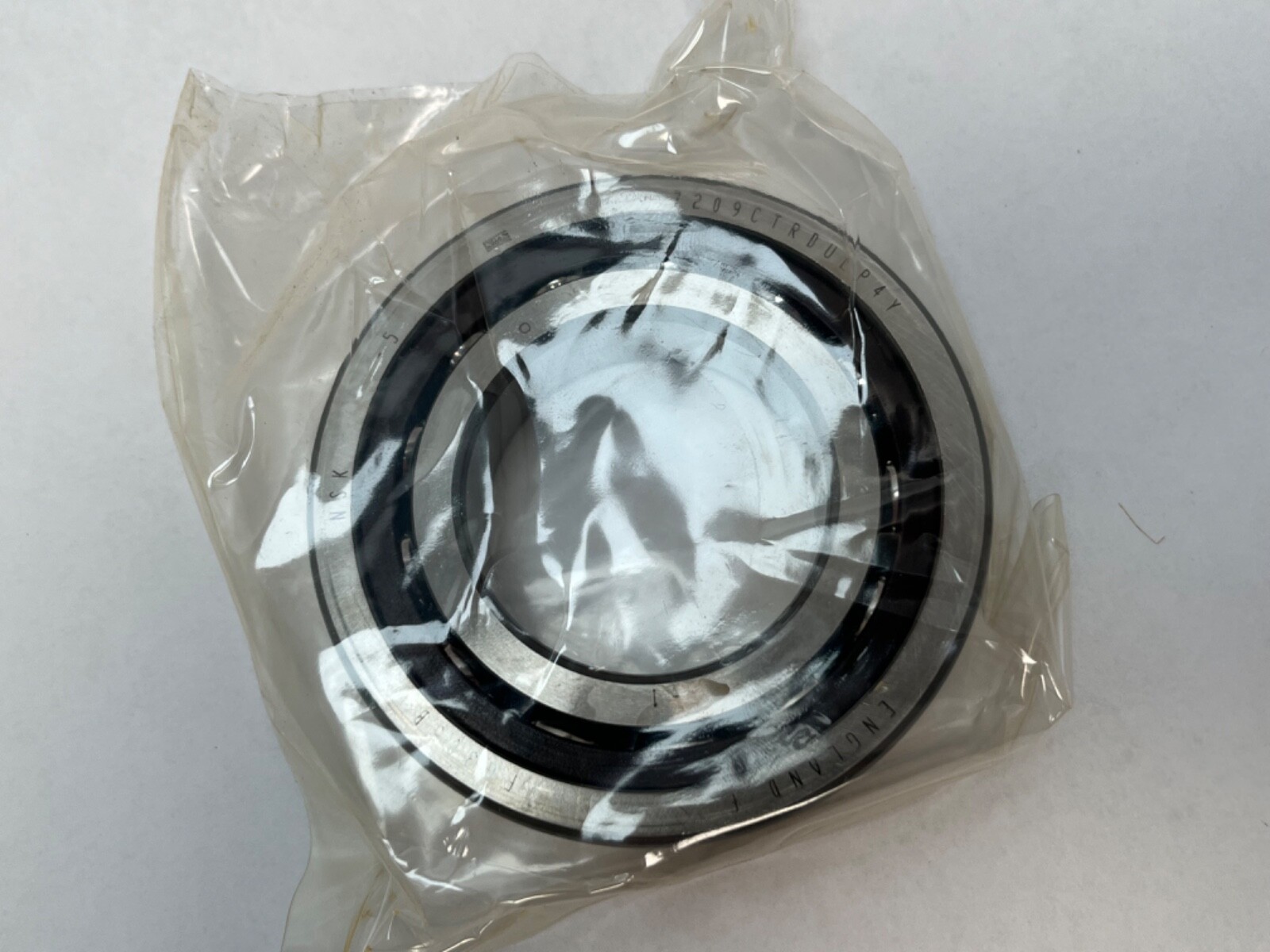

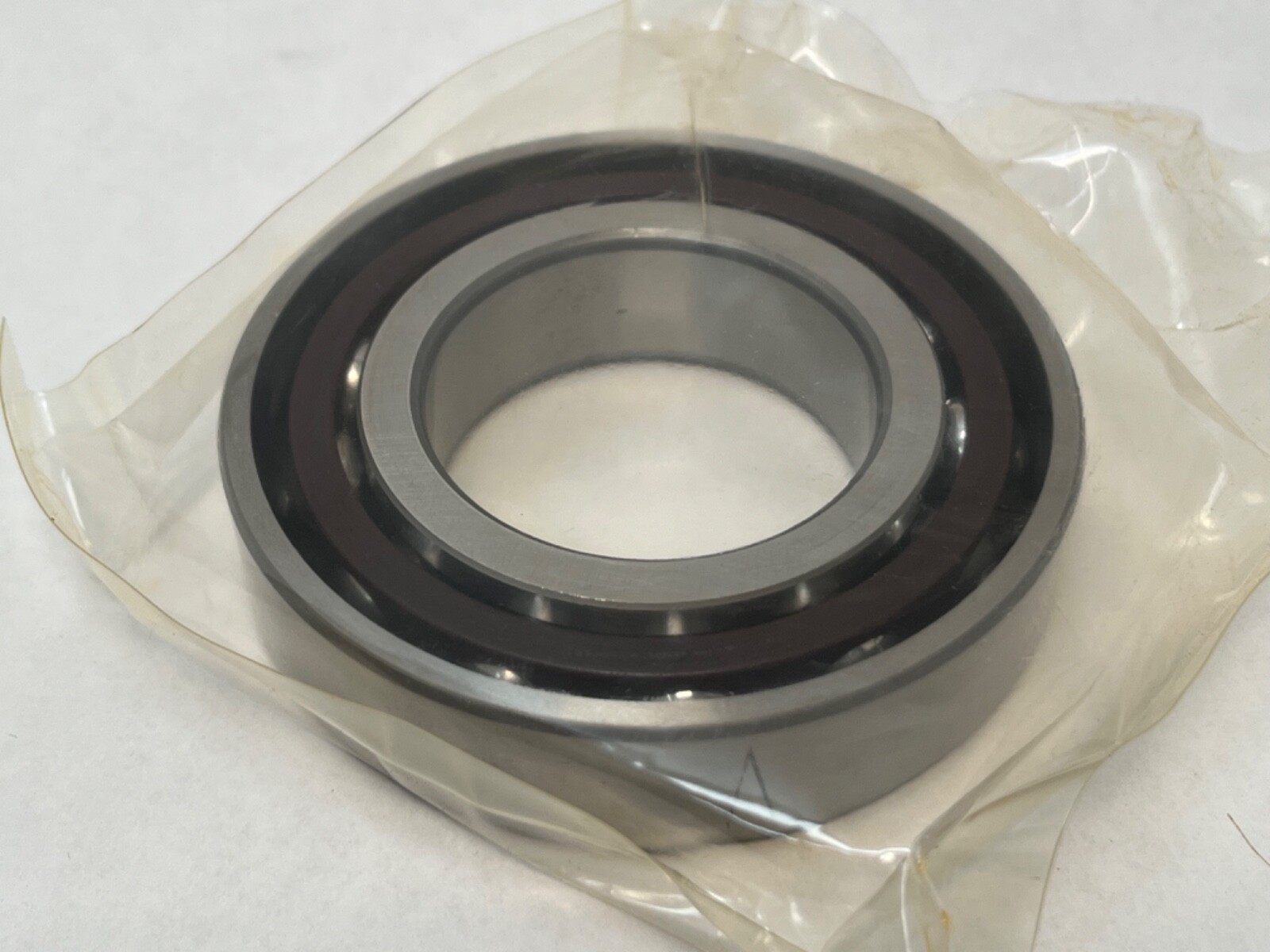

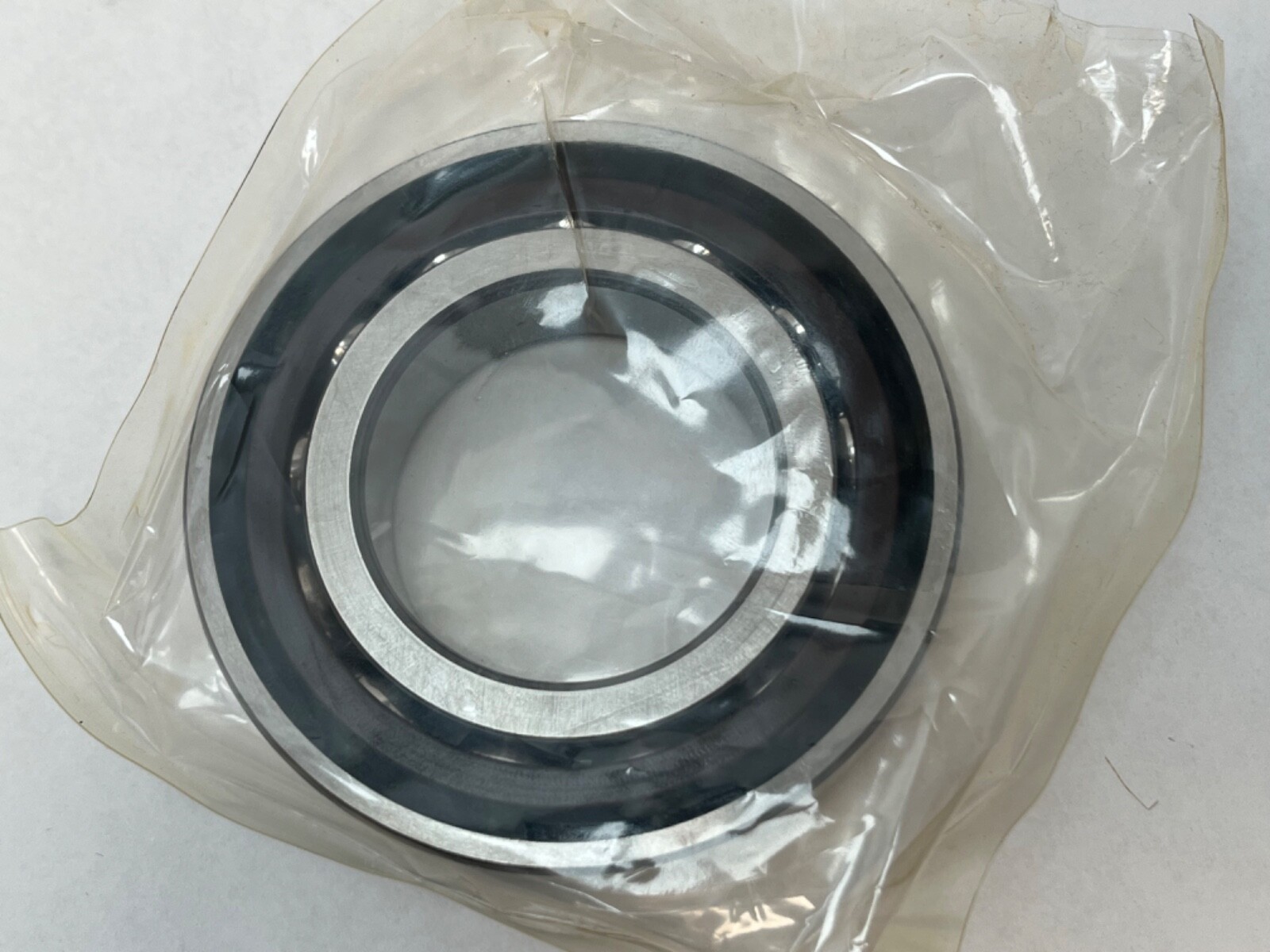

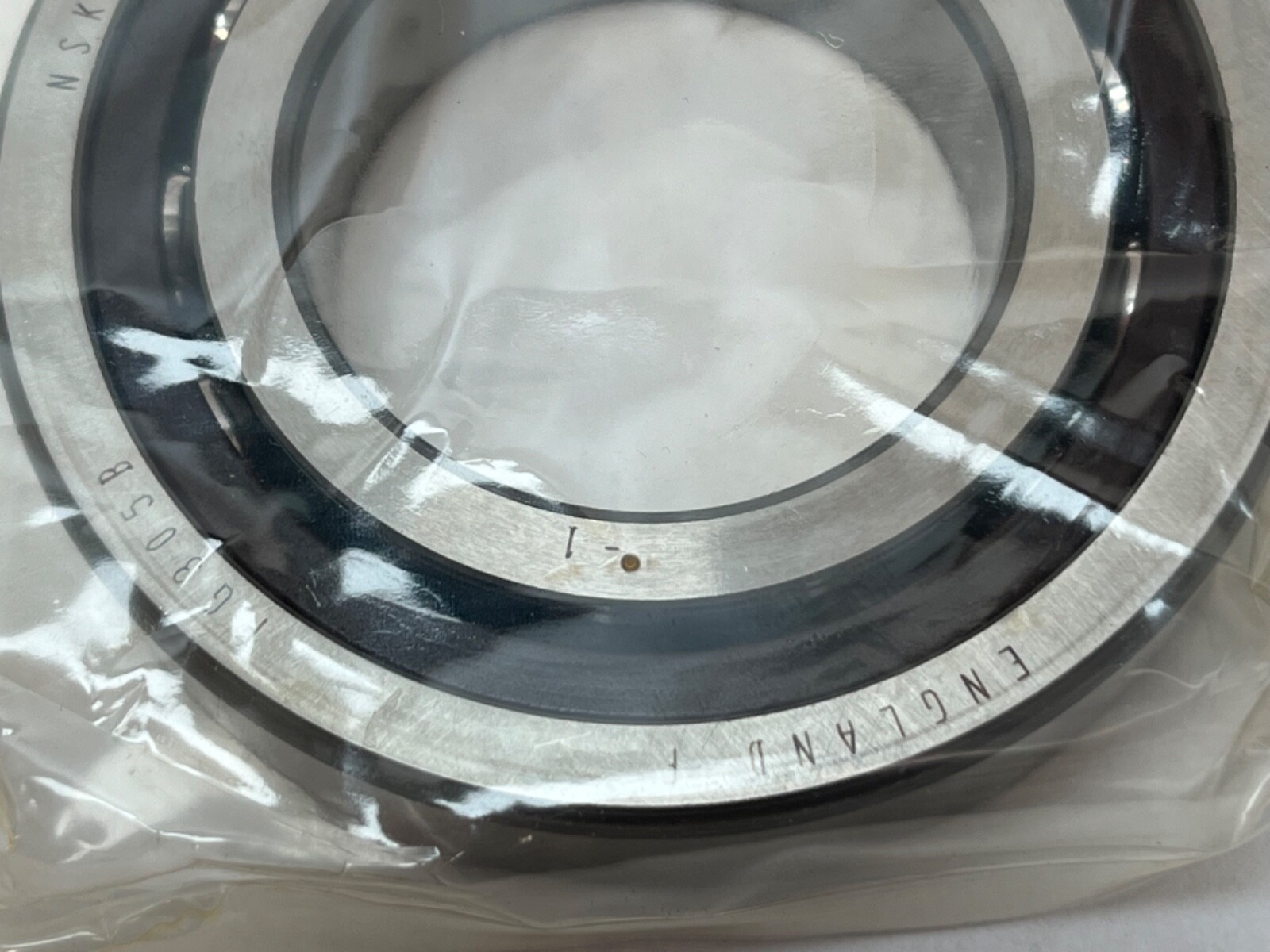

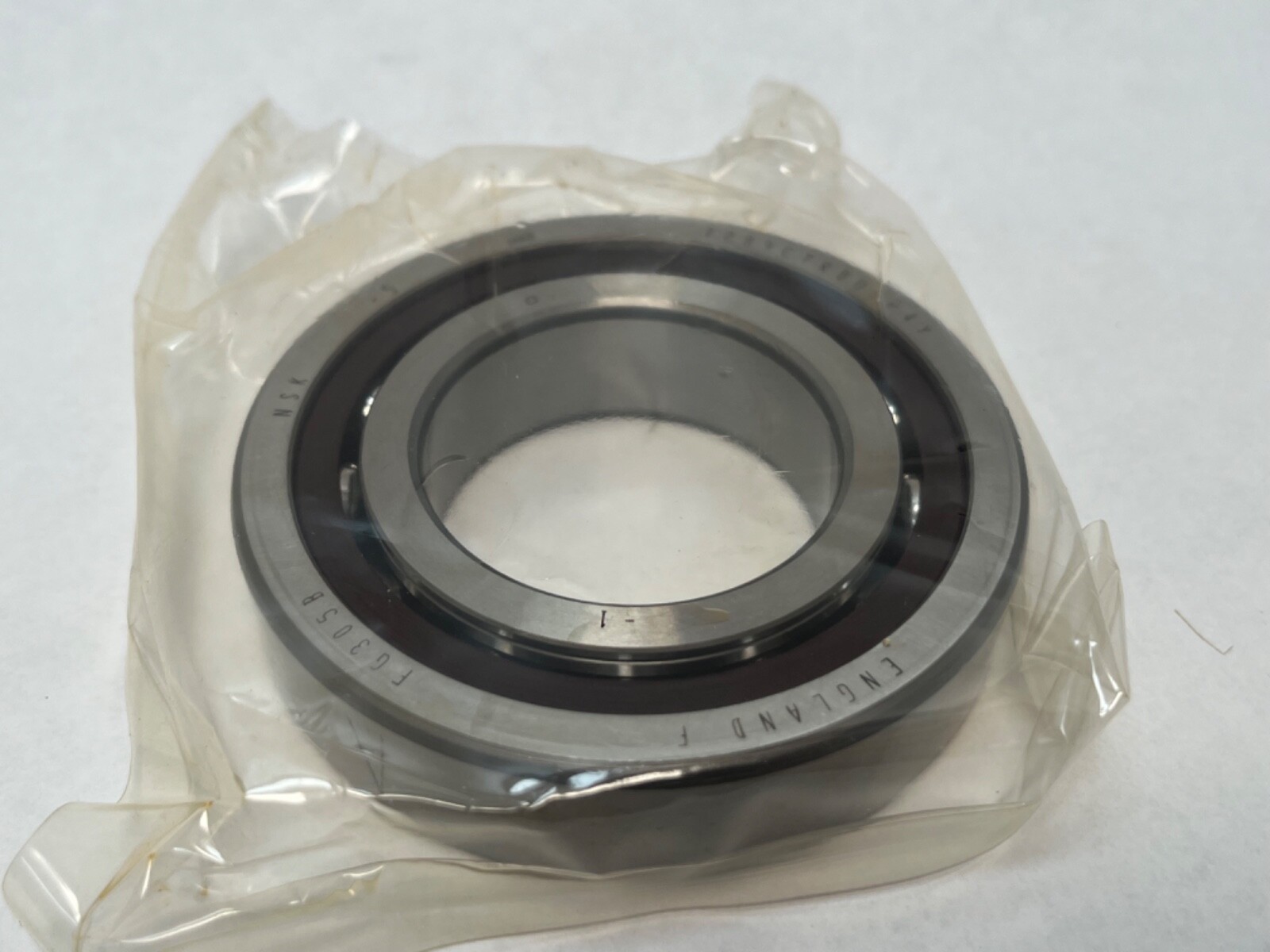

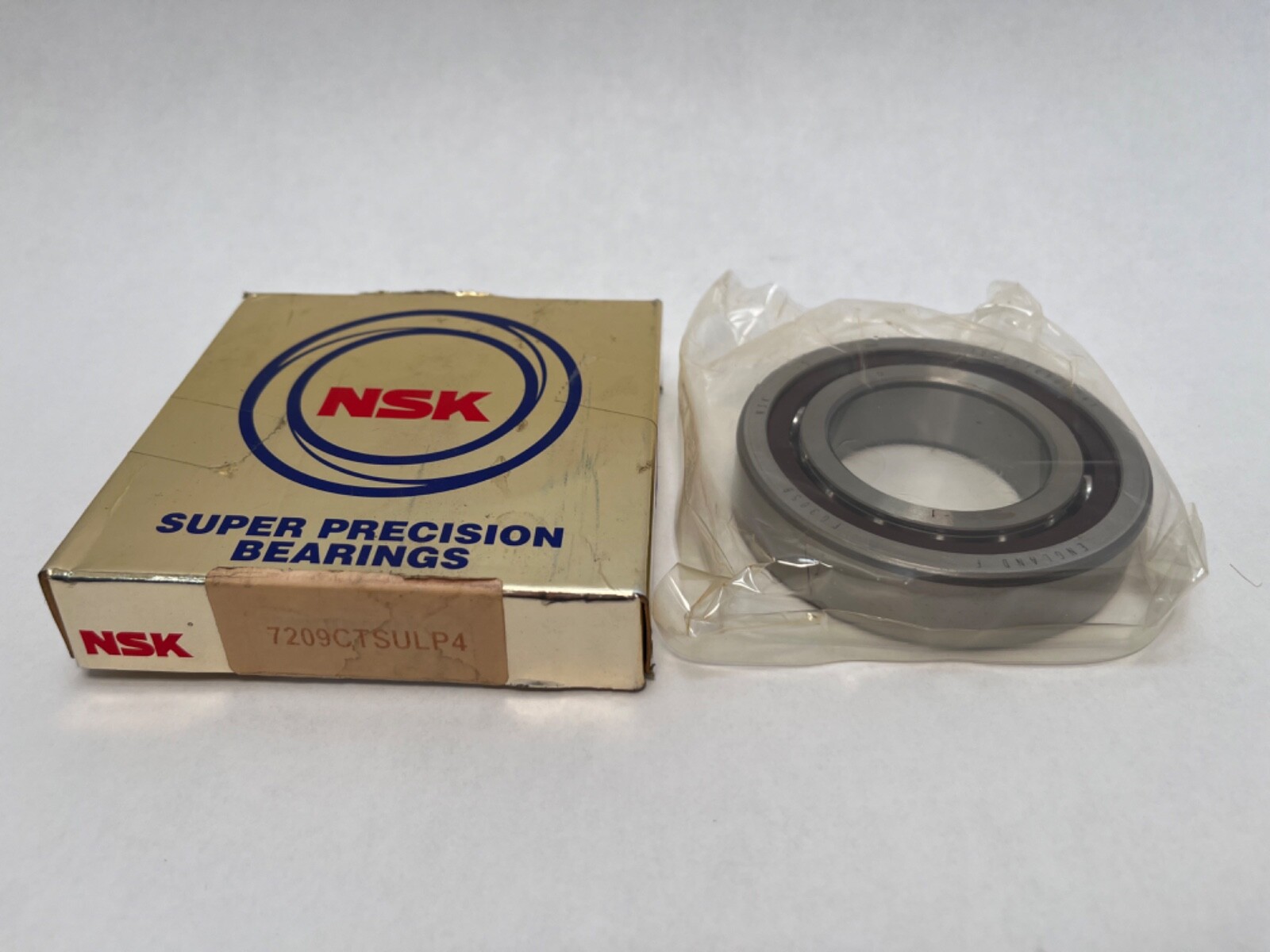

NSK 7209C T SUL P4 is a super precision single-row angular contact ball bearing, universally ground for single or multiple mounting. Bore Diameter: 45 mm (1.7717 in). Outside Diameter: 85 mm (3.3465 in). Overall Width: 19 mm (0.7480 in). Contact Angle: 15°. Rolling Elements: Ball. Bore Type: Straight. Closure Type: Open. Number Of Rows: Single Row. Bearing Material: Bearing Steel.
7209 — 72 series super precision angular contact ball bearing in the 09 bore size, giving a 45 mm bore.
C — 15° contact angle.
T — phenolic cage, outer-ring guided.
SU — single universally ground, so any two bearings of the same execution assemble as a matched set.
L — light preload.
P4 — ISO class 4 super precision tolerance, ABEC 7.
Dynamic Load Rating: 51,500 N per bearing. Static Load Rating: 28,800 N per bearing. Dynamic Load Rating (lbf): 11,578 lbf per bearing. Static Load Rating (lbf): 6,474 lbf per bearing. Limiting Speed: 17,700 rpm grease; 27,000 rpm oil. Item Weight: 0.406 kg (0.895 lb) per bearing. Precision Class: ABEC 7 / P4. Cage Material: Phenolic. Cage Type: Outer-ring guided. Preload: Light (L). Lubricant: Grease or oil-air. Permissible axial load Pa: 19.6 kN per bearing. Recommended grease quantity: 2.5 g per bearing.
Shaft abutment diameter da min: 52 mm. Housing abutment diameter Da max: 78 mm. Housing abutment diameter Db max: 80 mm. Shaft fillet radius ra max: 1 mm. Housing fillet radius rb max: 0.6 mm. Chamfer r min: 1.1 mm. Chamfer r1 min: 0.6 mm. Effective load centre a: 18.2 mm.
Unit Quantity: 1 Pc. Mounting Arrangement: Single universally ground (SU). Series: 7200 Super Precision. Base Number: 7209C. Load ratings and mass stated above are per bearing.
Same-envelope 15° super precision executions: SKF 7209 CD/P4A · FAG B7209-C-T-P4S · Timken 2MM209WI · RHP 7209CTSUL · Koyo 7209C-5G · NTN 7209CG/GNP4 · GMN S 6209 C.
NSK sibling execution 7209CTYSULP4 carries a ball-guided cage in place of the phenolic outer-ring guided cage. NSK 7209A5TSULP4 shares the envelope at a 25° contact angle and is not a direct equivalent.
