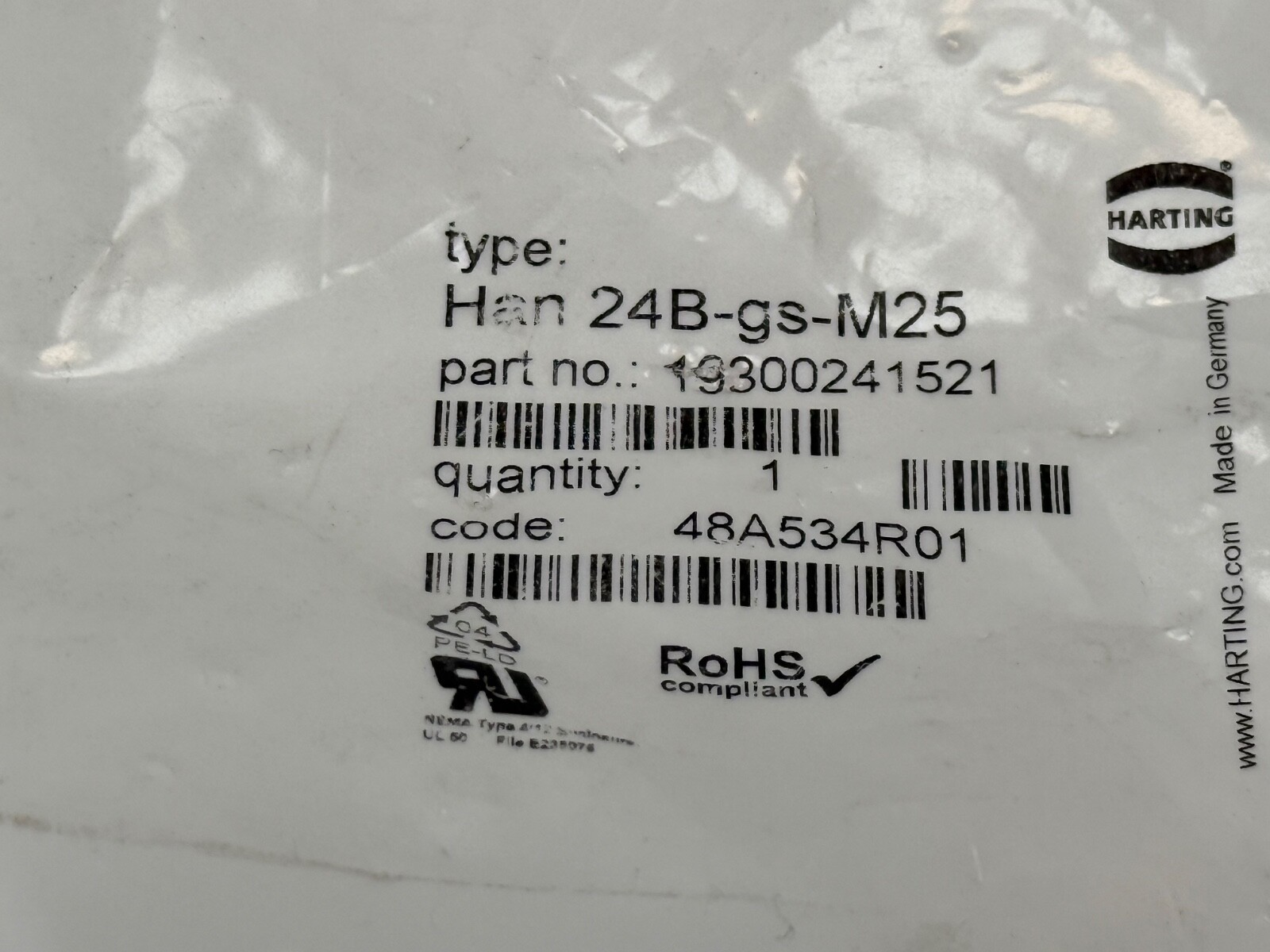

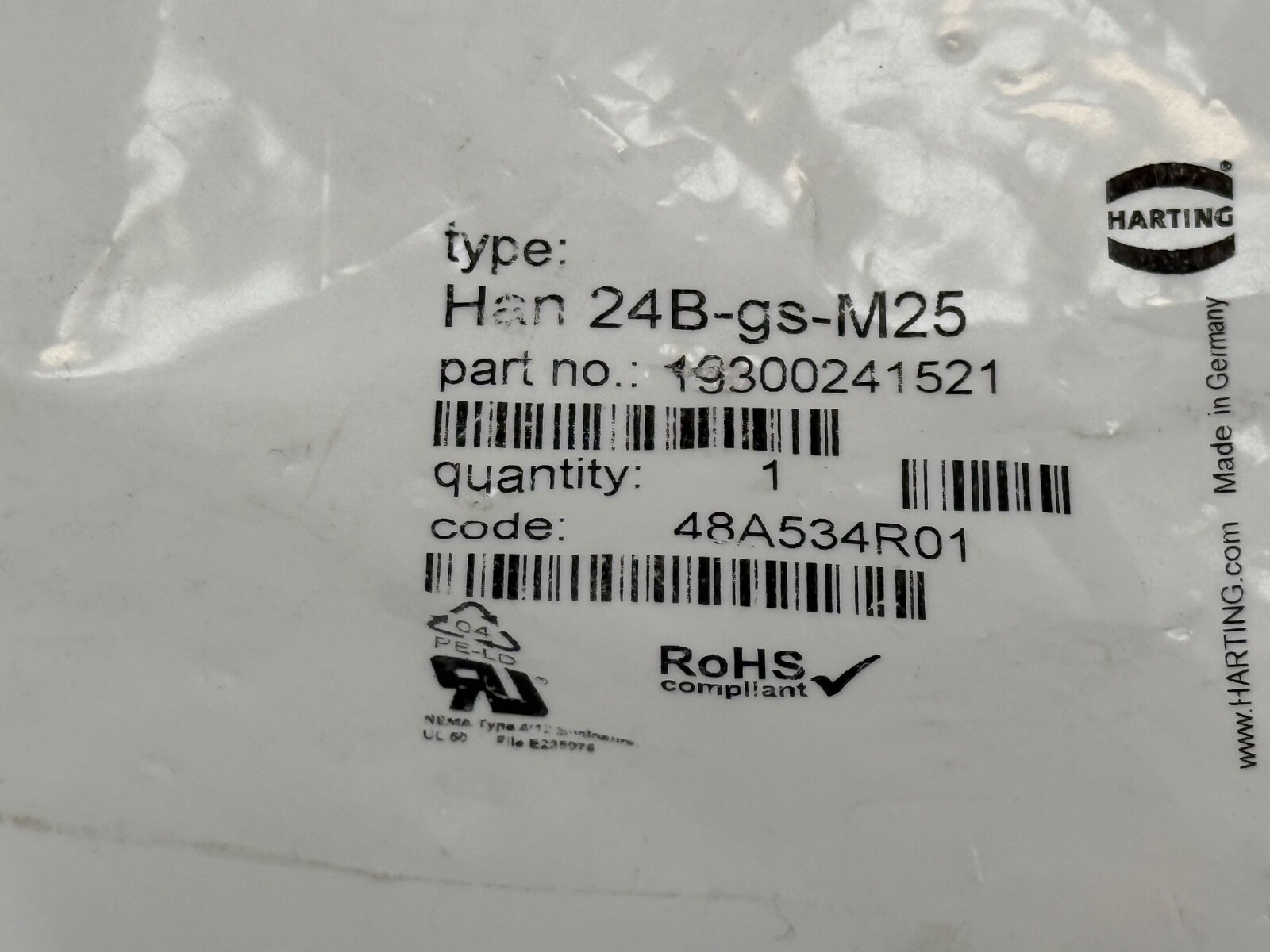

HARTING Han 24B-gs-M25 connector hood packaging label showing part number 19300241521

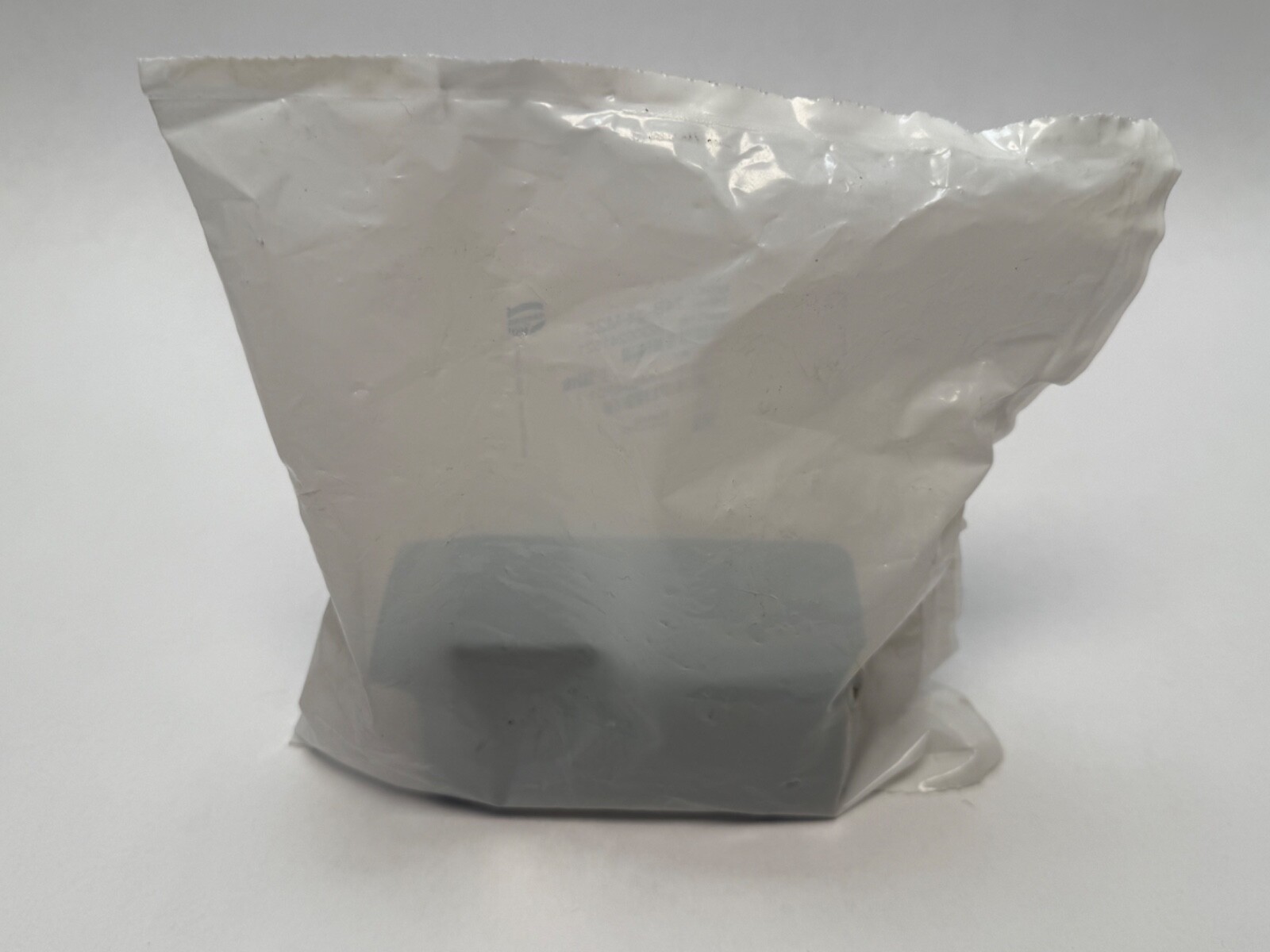

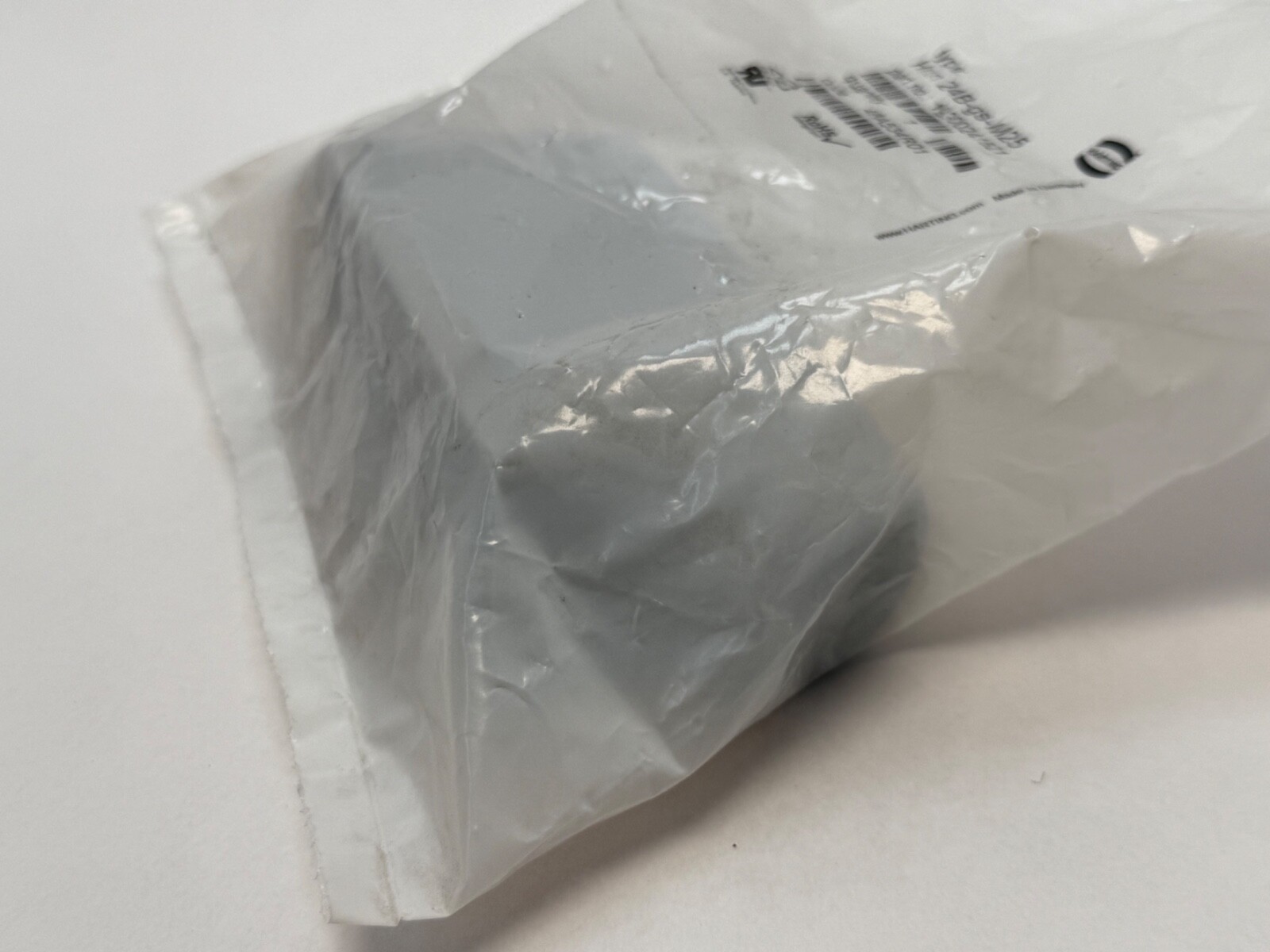

HARTING Han 24B connector hood in sealed plastic packaging with manufacturer label

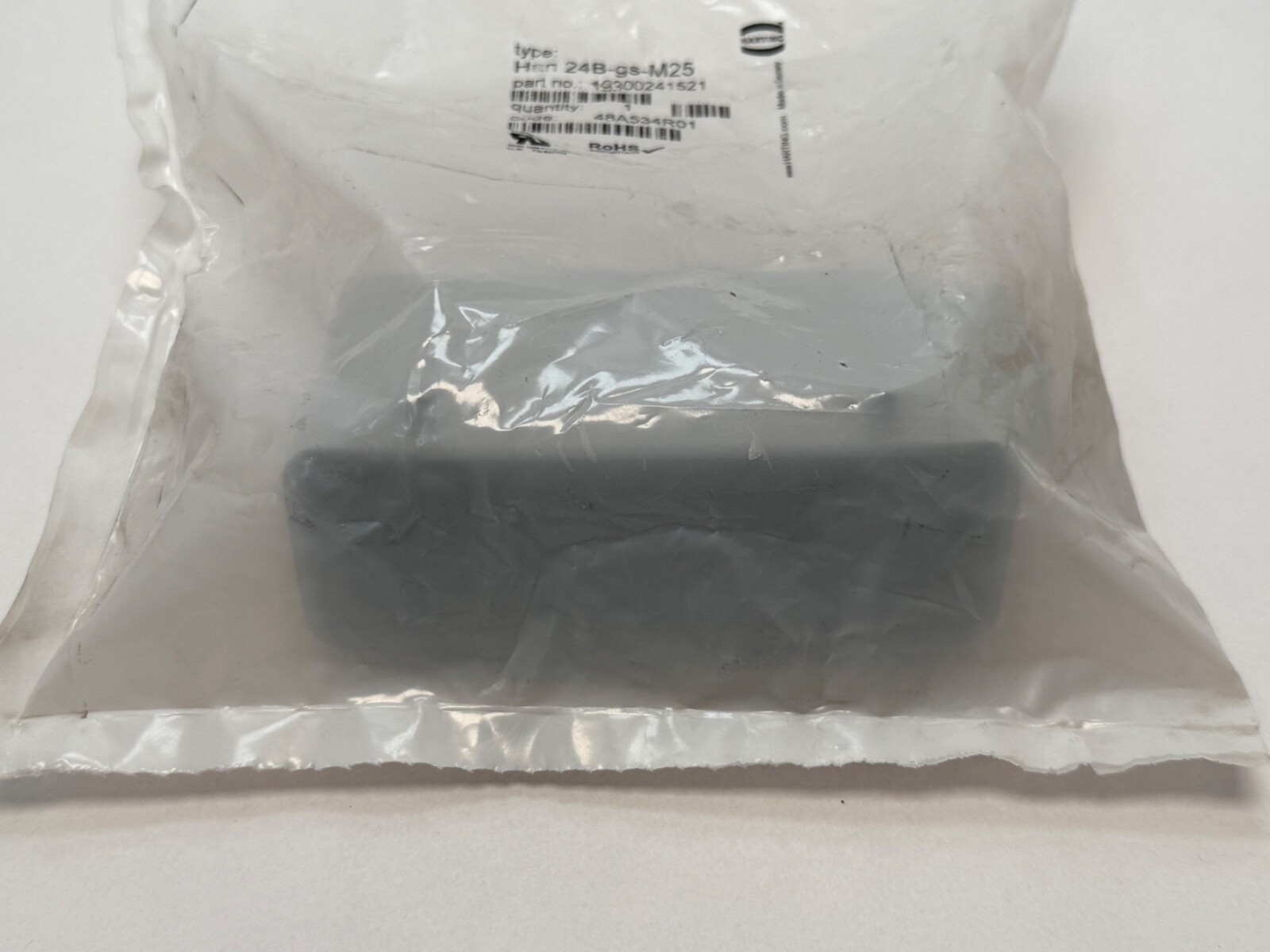

HARTING Han 24 B connector hood in its original sealed plastic packaging

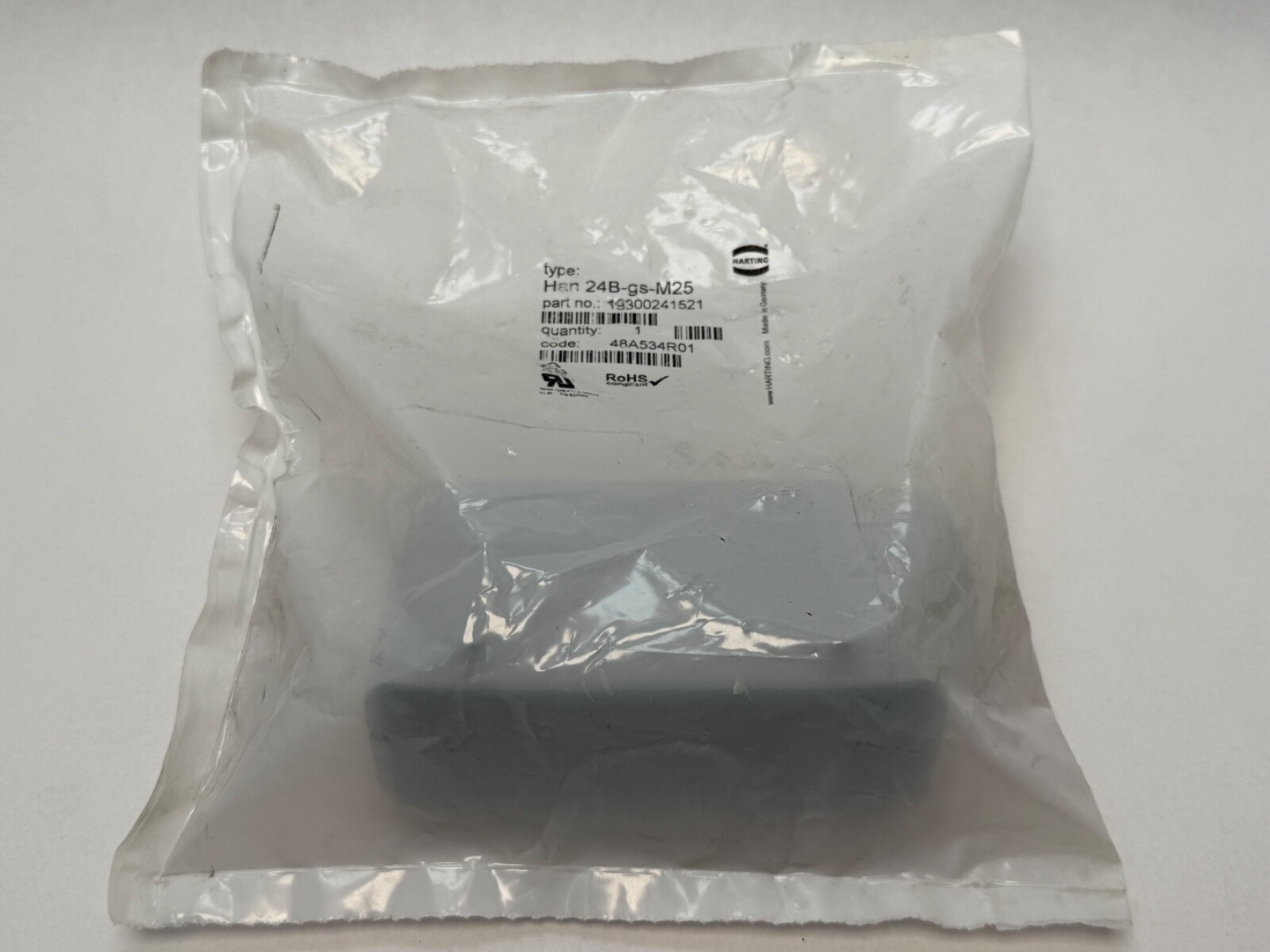

HARTING Han 24 B connector hood sealed in plastic packaging

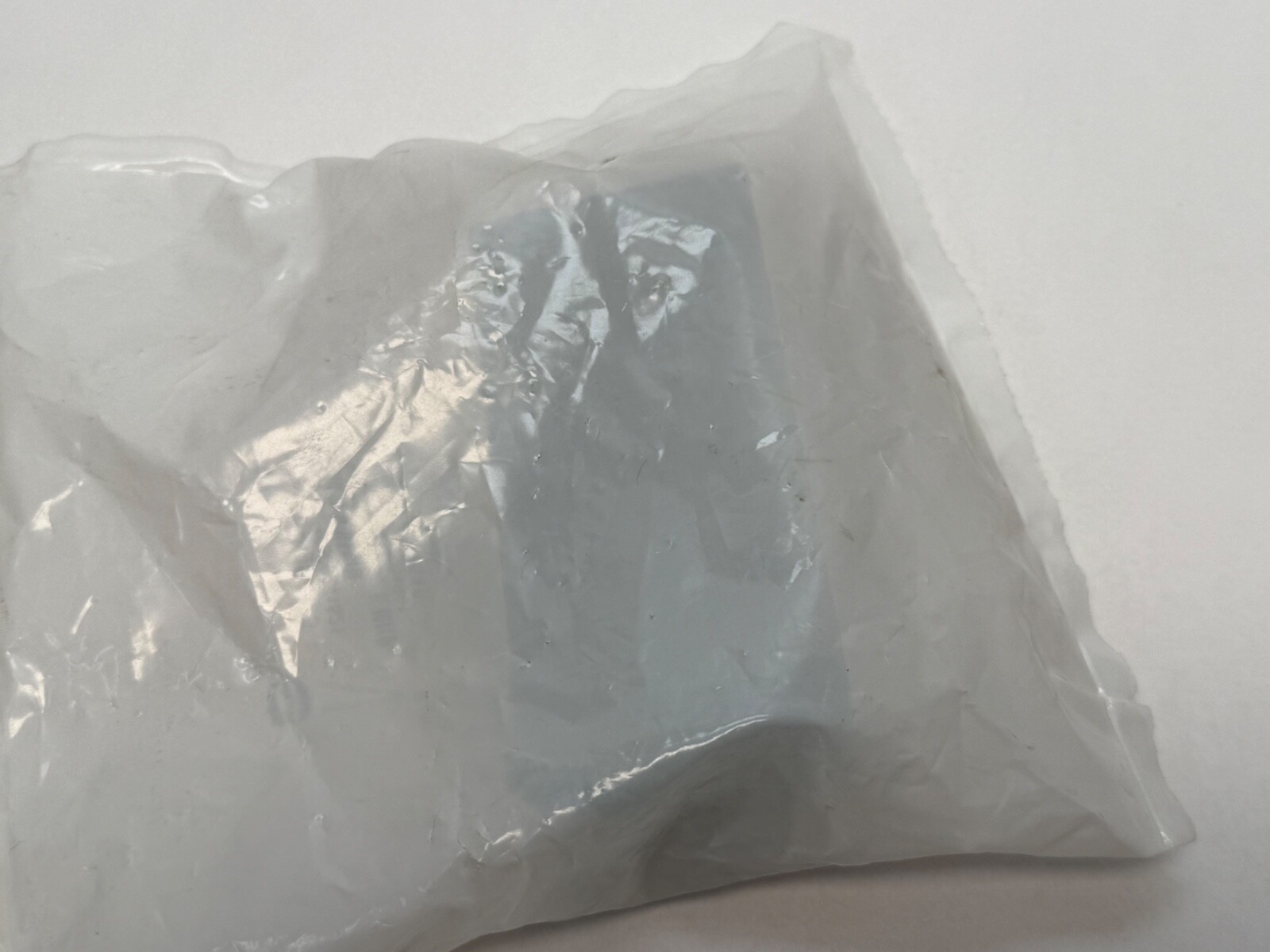

HARTING Han 24 B connector hood sealed in clear plastic packaging

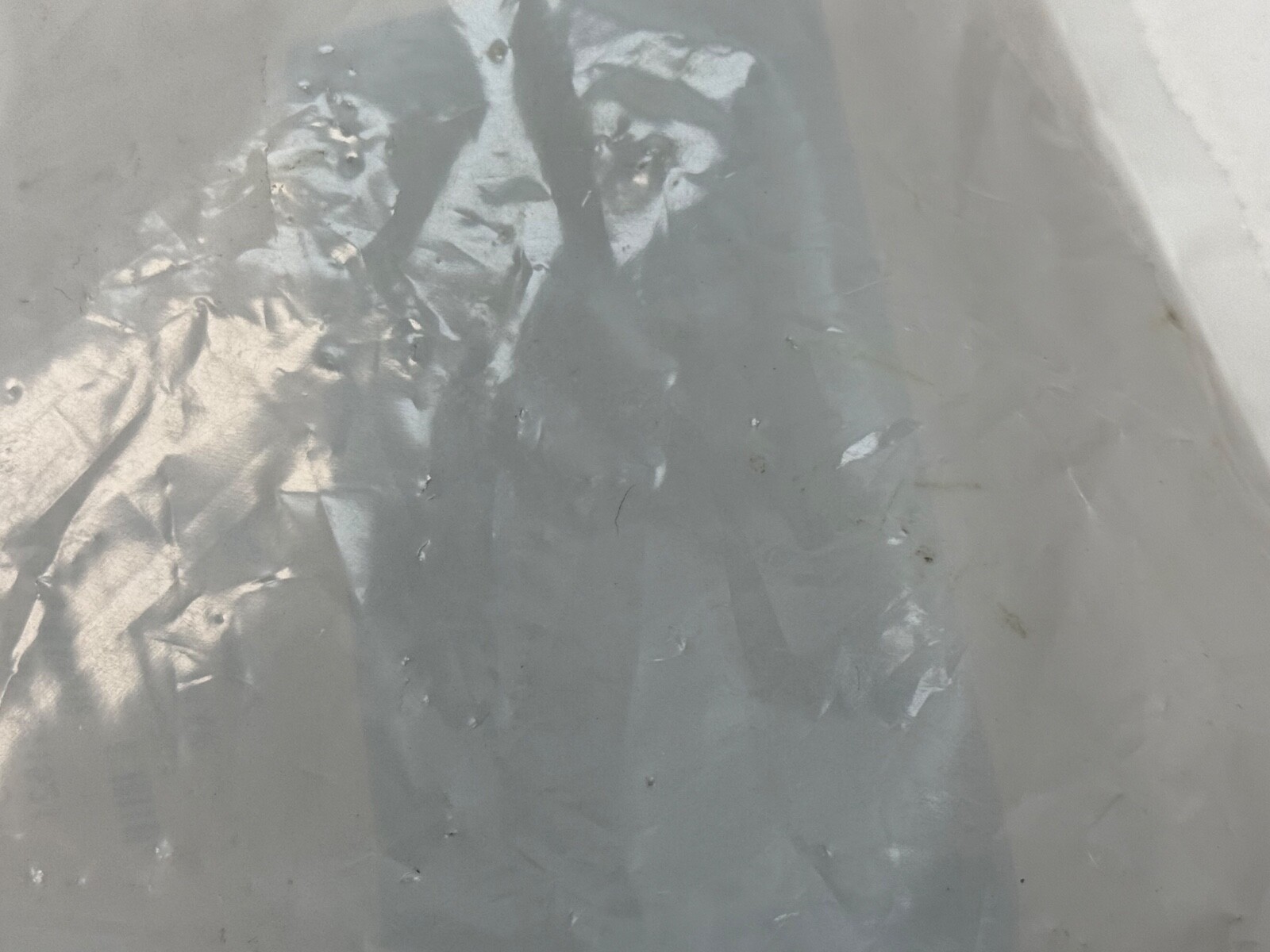

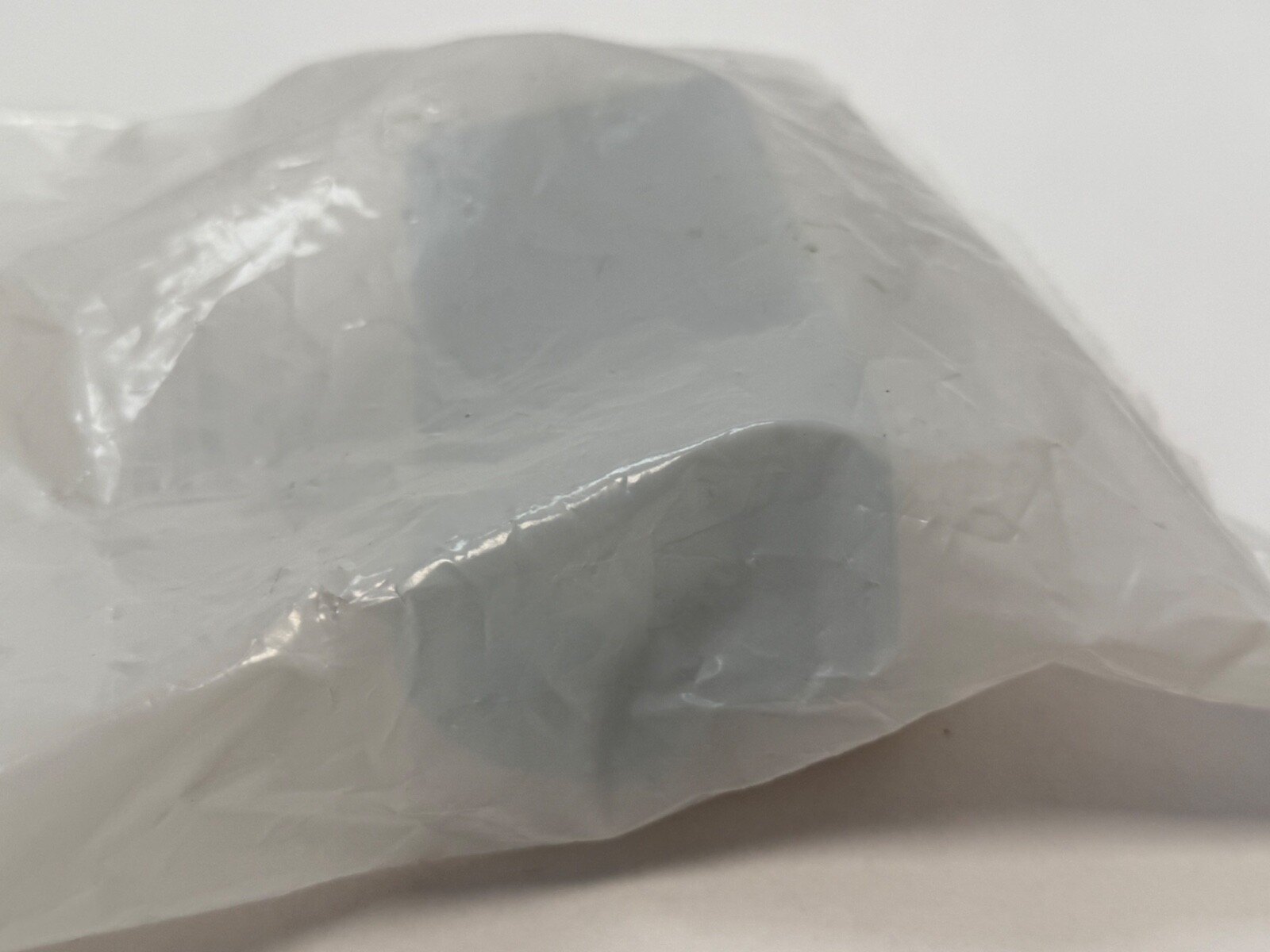

Close-up of a plastic bag covering an aluminium die-cast connector hood, showing wrinkled texture and light reflections

13k+ reviews

See our eBay reviews

HARTING19300241521Connector Hood – Han 24 B, Side Entry, 1x M25, Low Construction, Aluminium Die-Cast, IP65

Name: HARTING 19300241521 Connector Hood – Han 24 B, Side Entry, 1x M25, Low Construction, Aluminium Die-Cast, IP65
Brand: HARTING
SKU: H2#T7PDID
Price: 25.48 USD
Availability: InStock

Condition: New

Availability:

1 in stock

Categories: General MRO, Wire Connectors & Terminal Blocks

HARTING Han 24 B hood 19 30 024 1521, low construction, side entry, 1x M25 cable entry, aluminium die-cast, IP65/IP66/IP67, for double locking lever housings.

List Price

$25.48

1 in stock

Prefer eBay? Visit our store (opens in a new tab)

Need Help?
Click Here To Contact Support

Specifications

Key Specifications

MFR / Brand	HARTING
MPN	19300241521
GTIN	5713140127227
Model	19 30 024 1521

Technical Specifications

Type	Connector Hood
Item Length	9
Industry Terms	connector hood, Han hood, heavy duty connector hood, rectangular connector housing
Mpn Variants	19300241521, 19 30 024 1521, Han 24B-gs-M25, HAN24B-GS-M25, 24B-GS-M25
Additional Attributes	Mating Cycles: 500 min; UL 50 Type: 4, 4X, 12; UL 1977 ECBT2.E235076; CSA-C22.2 No. 182.3; CE; DNV GL; RoHS compliant; ETIM EC000437; eCl@ss 27440202
Material	Aluminium die-cast, powder-coated RAL 7037
Series	Han B
Ip Rating	IP65, IP66, IP67
Item Weight	0.17 kg (0.37 lb)
Harmonization Code	85389099

Seller Part Number: H2#T7PDID

Product Description

What this part is

The HARTING 19 30 024 1521 is a Han® B series hood, size 24 B, in low construction with a side cable entry. It is the upper shell of a Han 24 B rectangular industrial connector: the insert mounts inside, the cable enters through the M25 side entry, and four pegs engage the double locking lever of the mating housing.

Decoding the designation

Han 24 B — HARTING Han B hood/housing series, size 24 B.

gs — side entry hood with locking pegs, for a housing with double locking lever.

M25 — one M25 threaded cable entry.

Specifications

Series: Han B. Type: Hood, low construction. Size: 24 B. Version: Side entry. Number Of Cable Entries: 1. Cable Entry: M25. Locking Type: Double locking lever (pegs on hood). Material: Aluminium die-cast. Surface: Powder-coated. Colour: RAL 7037 (dust grey). Limiting Temperature: -40 to +125 °C. Mating Cycles: 500 minimum. Degree Of Protection: IP65, IP66, IP67 (IEC 60529). UL 50 Type Rating: 4, 4X, 12. Net Weight: 170 g. GTIN: 5713140127227.

Dimensions and mounting

Size 24 B hood, mates with Han 24 B housings carrying a double locking lever. Cable Entry: 1x M25, side entry.

Compatibility and replacement

Direct replacement for HARTING 19 30 024 1521 (Han 24B-gs-M25). Approvals: UL 1977 ECBT2.E235076, CSA-C22.2 No. 182.3, CE, DNV GL. CAD model and data sheet: available from HARTING (harting.com).
