Leitz90815Diamaster DP Jointing Cutter — 100 mm Diameter, 48 mm Cutting Width, 30 mm DKN Bore, Z3/3/3

Condition: New

Availability:

4 in stock

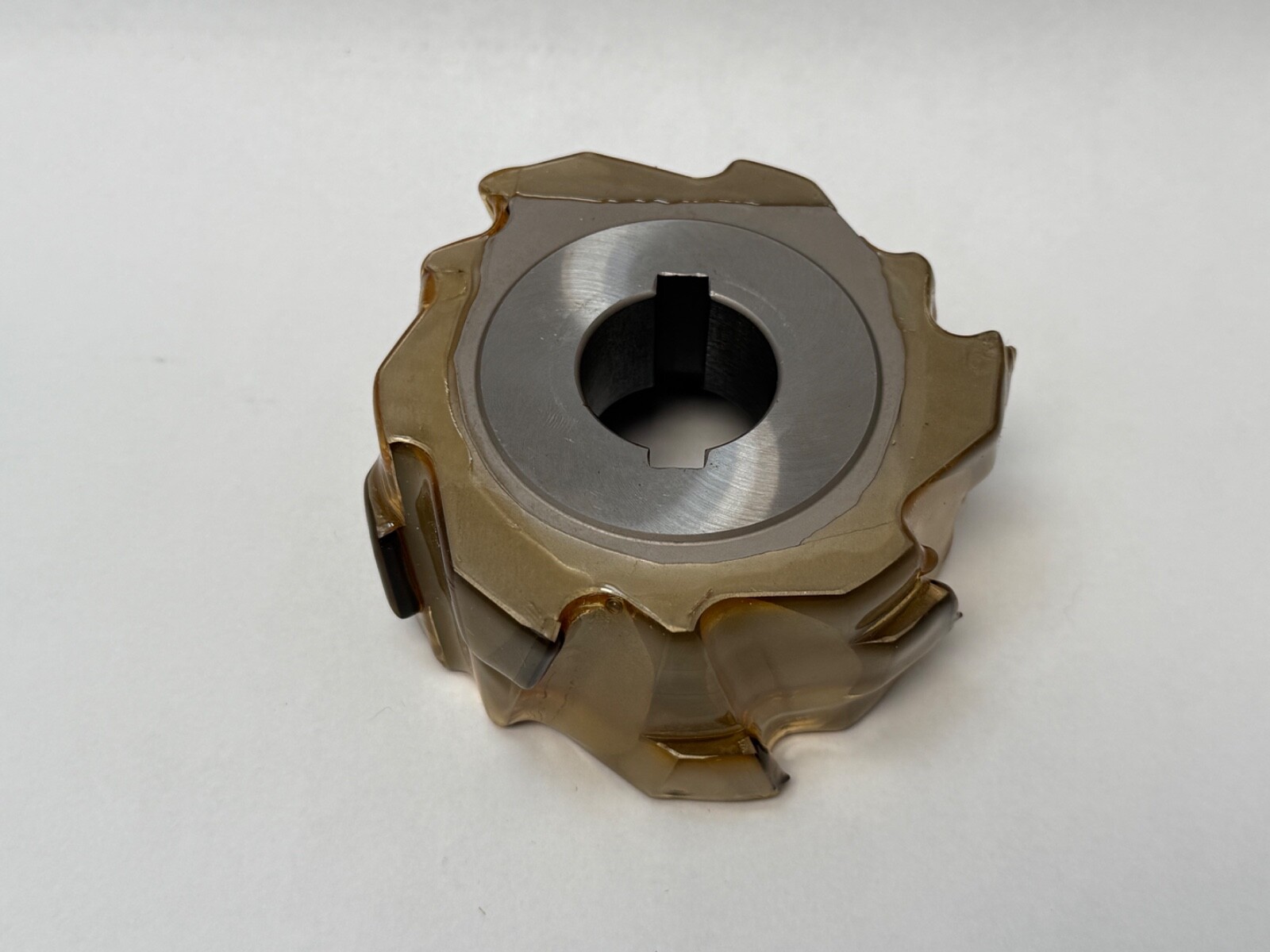

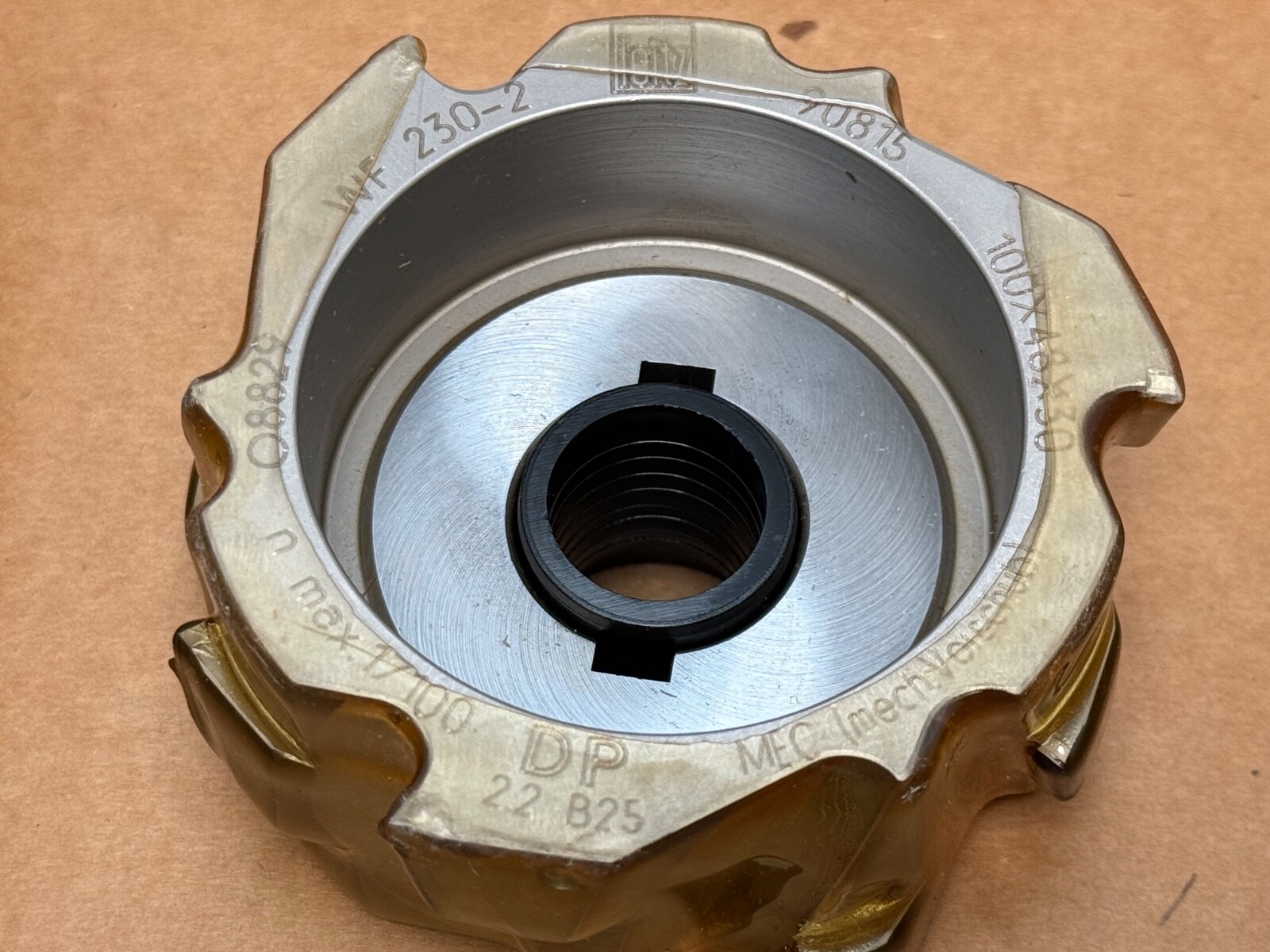

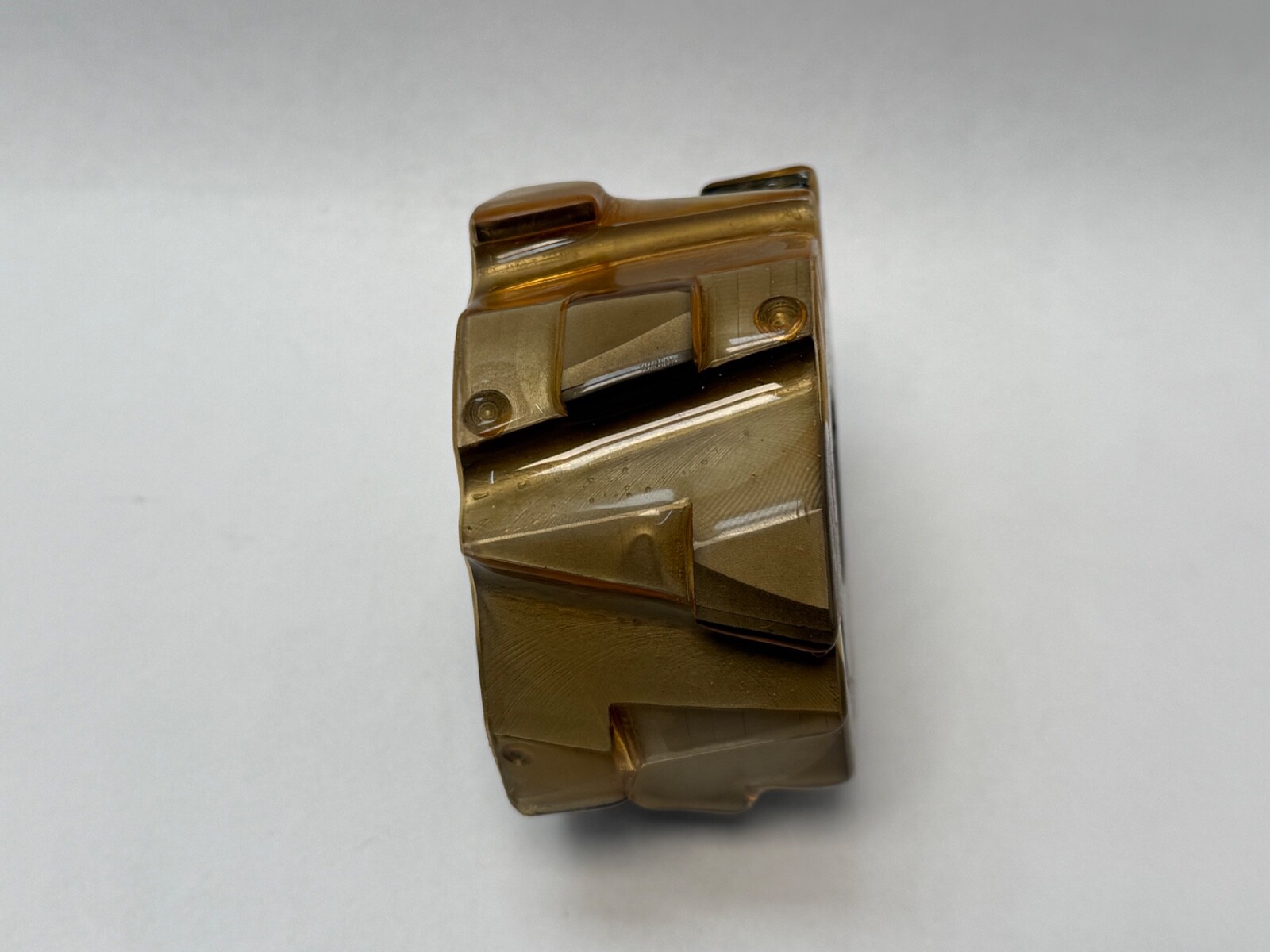

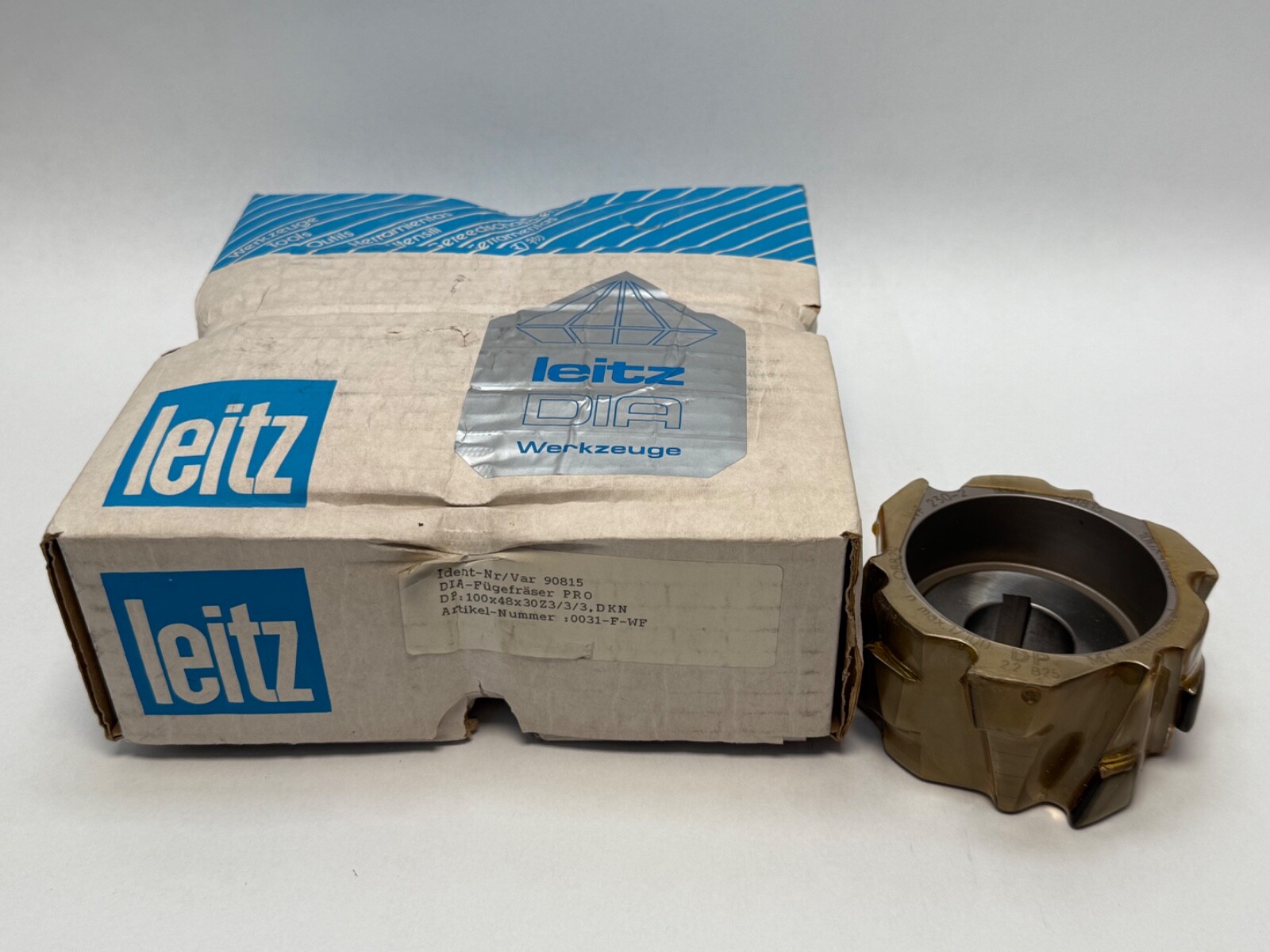

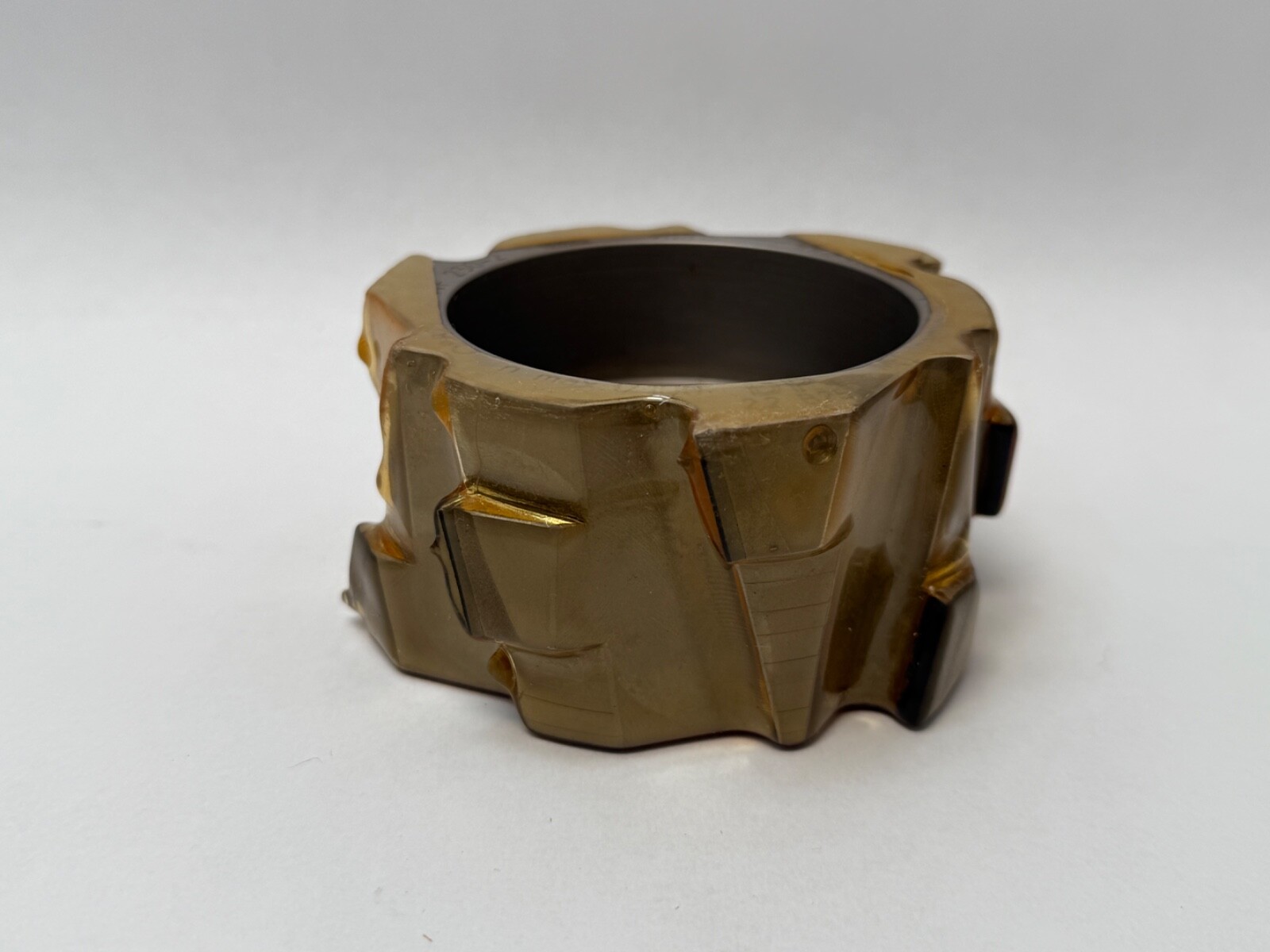

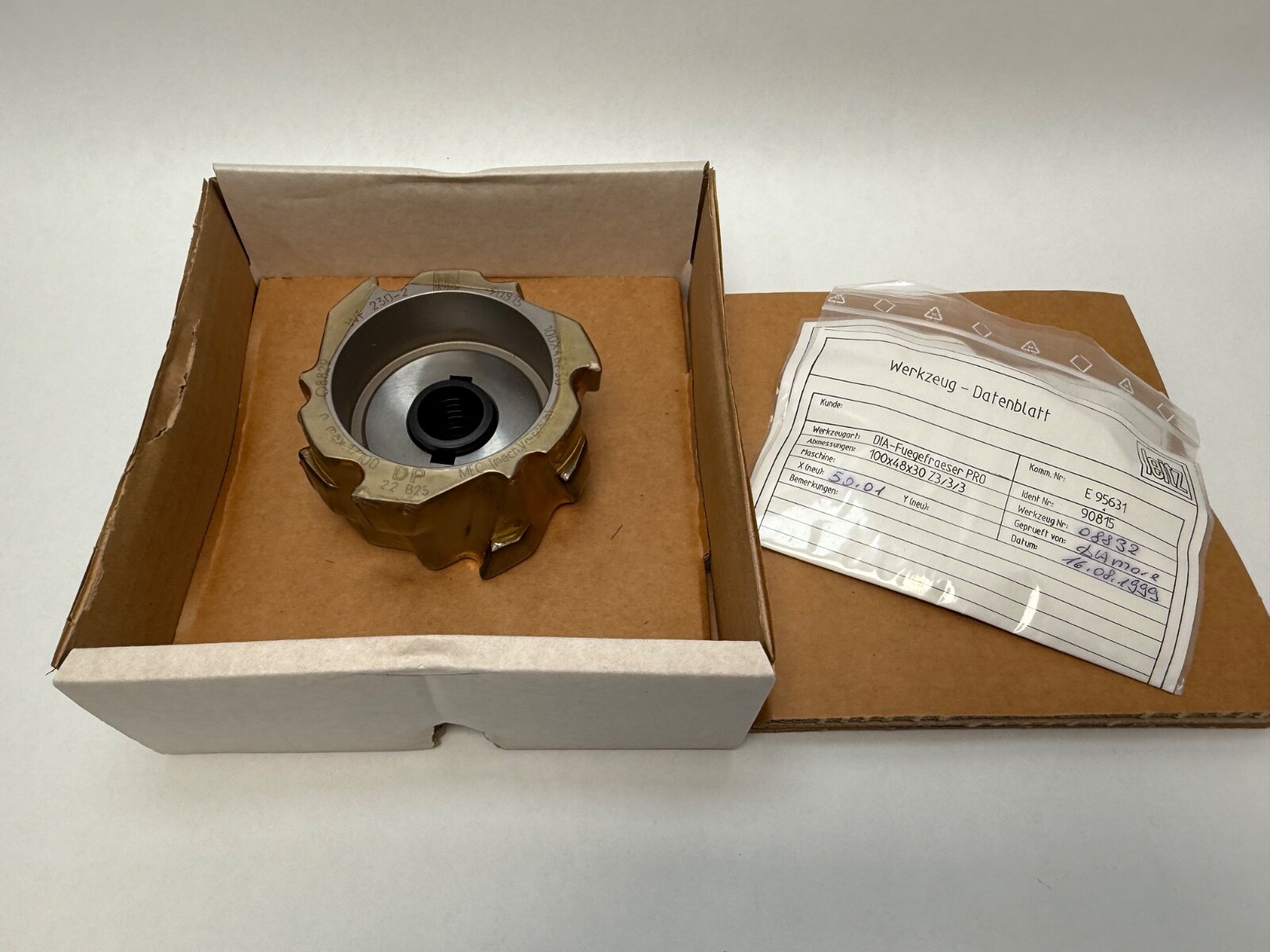

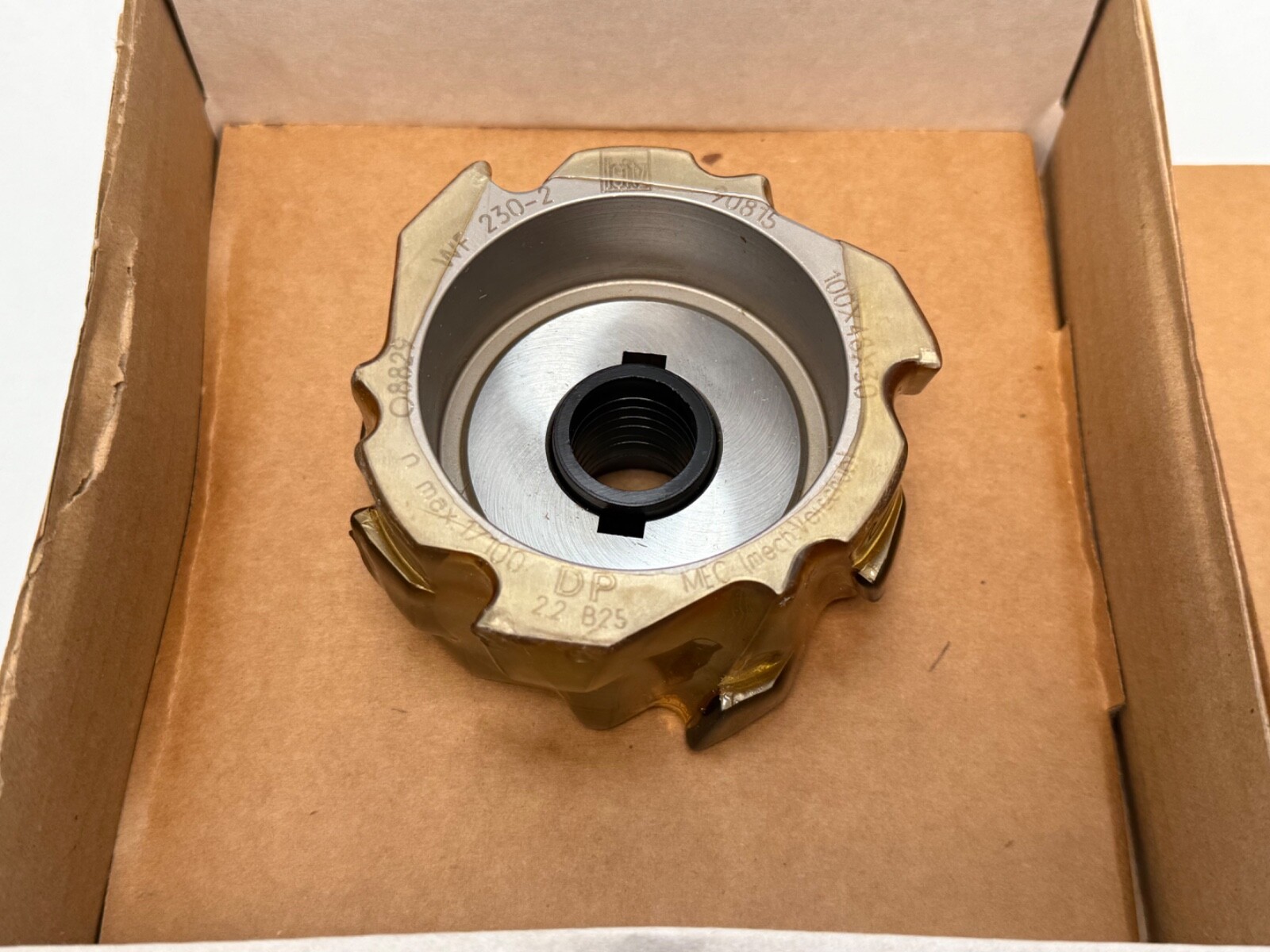

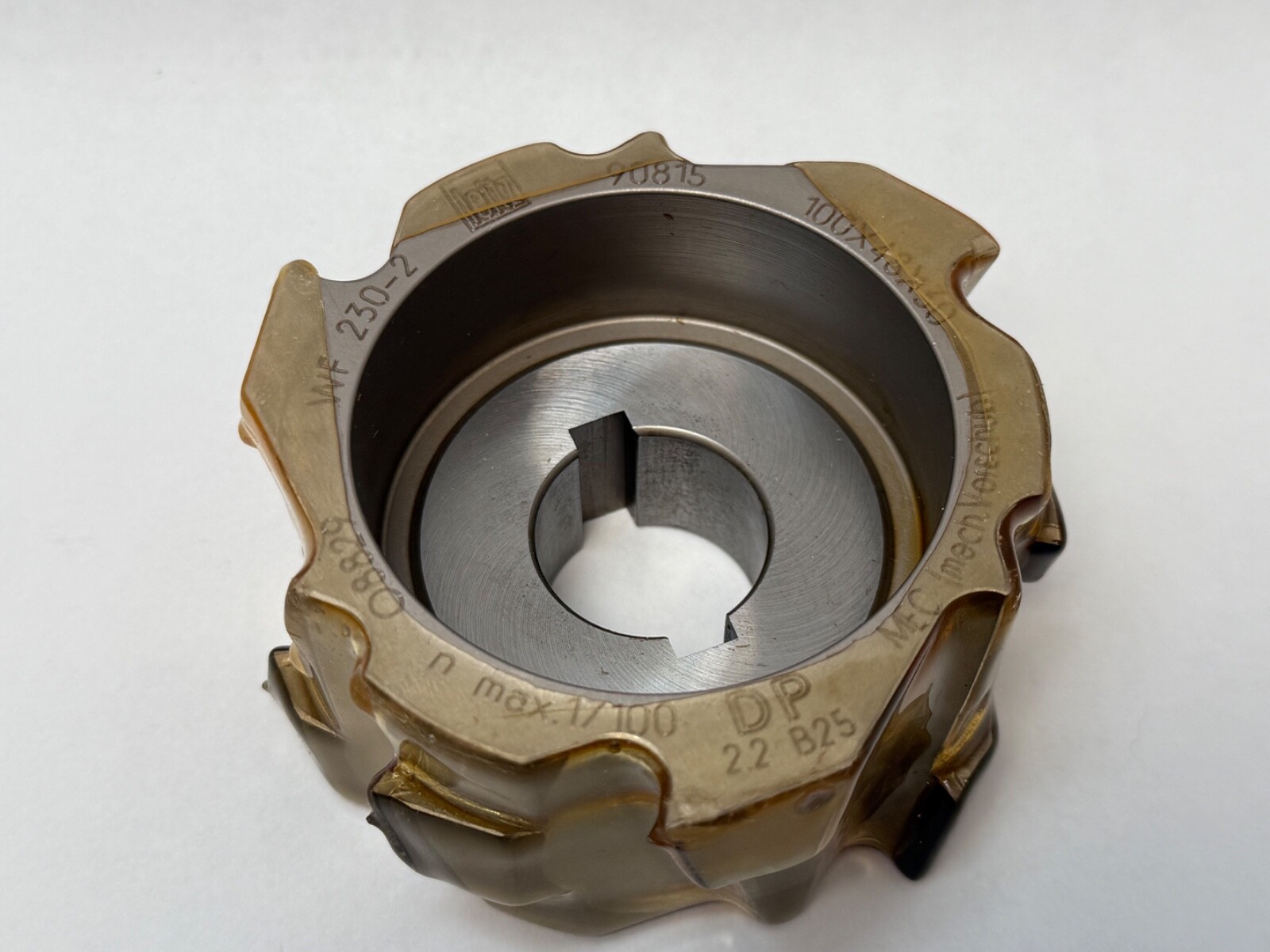

Leitz 90815 Diamaster DP jointing cutter, 100 mm diameter, 48 mm cutting width, 30 mm DKN bore, Z3/3/3, for panel edge jointing.

Same day shipment

List Price

$190.99

4 in stock

Prefer eBay? Buy this item on our store (opens in a new tab)

Small green outline icon of a shipping box with a clock, indicating delivery time
Availability

4 in stock

On the Shelf & Ready to Ship

Green shield badge reading "Same-Day Shipping" with box and delivery truck icons
Free US Shipping

Ships same day by 6pm ET

Green shield icon with box and arrow graphic labeled "Free Returns"
Free Returns

No Risk, No Hassle

Specifications

Key Specifications

MFR / BrandLeitz
MPN90815
Model100x48x30 Z3/3/3 DKN

Technical Specifications

MaterialPolycrystalline Diamond (DP)
Mill Cutter TypeJointing Cutter
Cutting Head Diameter100 mm
Industry Termsjointing cutter, jointing cutterhead, PCD cutter, diamond jointing tool, edgebander premilling cutter
Common MisspellingsLietz 90815, Leits, Liez
Application TypesEdge jointing of chipboard, MDF and coated panels
Mpn Variants90815, Leitz 90815, 100x48x30 Z3/3/3 DKN
Additional AttributesCutting diameter: 100 mm; Cutting width: 48 mm; Bore: 30 mm DKN; Teeth: Z3/3/3
Seller Part Number: B-FE2#KOU1FA

Product Description

What this part is:

Leitz 90815 is a jointing cutter from the Leitz Diamaster DP (polycrystalline diamond) tool line, for edge jointing of panel materials. Cutting Diameter: 100 mm. Cutting Width: 48 mm. Bore: 30 mm with DKN keyway. Teeth: Z3/3/3.

Decoding the designation:

100x48x30 — cutting diameter 100 mm, cutting width 48 mm, bore 30 mm.

DKN — double keyway (Doppelkeilnut) drive in the bore.

DP — polycrystalline diamond cutting material of the Leitz Diamaster line.

Specifications:

Tool Type: Jointing cutter. Series: Diamaster. Cutting Material: DP (polycrystalline diamond).

Cutting Diameter: 100 mm. Cutting Width: 48 mm. Bore Diameter: 30 mm. Bore Type: DKN. Teeth: Z3/3/3.

Dimensions and mounting:

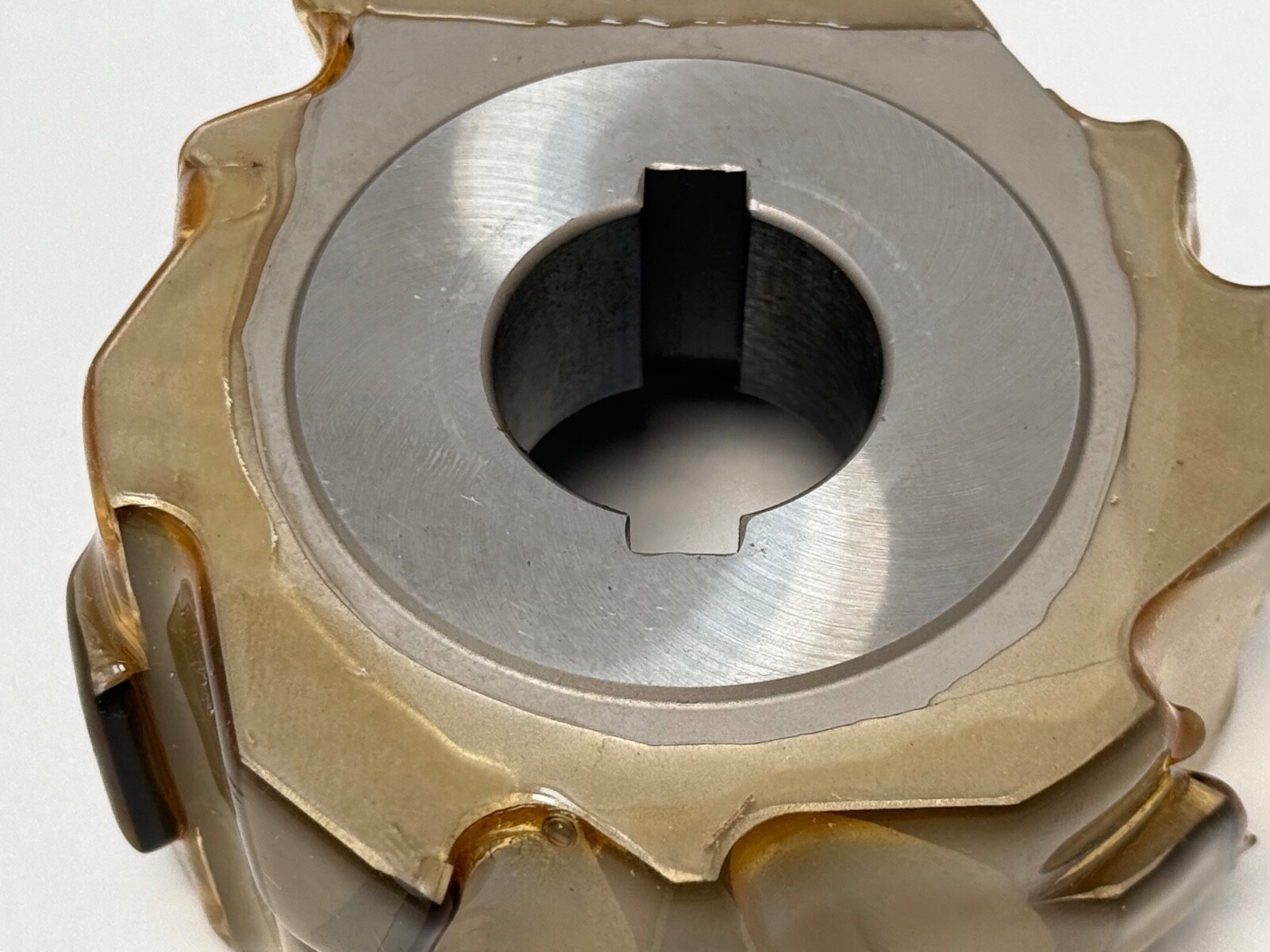

Bore: 30 mm with DKN double keyway drive. Cutting diameter: 100 mm. Cutting width: 48 mm.

Frequently asked questions:

What are the dimensions of the Leitz 90815?

Cutting diameter 100 mm, cutting width 48 mm, bore 30 mm.

What does DKN mean on the Leitz 90815?

DKN is the double keyway (Doppelkeilnut) drive in the 30 mm bore.

What is the Leitz 90815 cutting material?

DP, polycrystalline diamond, from the Leitz Diamaster line.
