Availability:
5 in stock
Double-acting compact pneumatic cylinder to ISO 21287, 50 mm bore, 60 mm stroke, 0.6–10 bar. Elastic end cushioning, G1/8 ports, M10 female rod end.
List Price
$76.45
5 in stock
5 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
Also Available From:
| MFR / Brand | Festo |
|---|---|
| MPN | ADN-50-60-I-P-A-S6 |
| Model | ADN-50-60-I-P-A-S6 |
| Condition | New – Open box |
|---|---|
| Type | Pneumatic |
| Base Number | ADN-50-60-I-P-A |
| Industry Terms | compact cylinder, ISO 21287 cylinder, short-stroke pneumatic cylinder, double-acting air cylinder |
| Condition Note | New Old Stock |
| Connector Style | G1/8 threaded pneumatic port |
| Maximum Pressure | 10 bar (145 psi) |
| Shaft Type | Female thread M10 piston rod |
| Bore Shaft Size | 50 mm (1.97 in) piston diameter |

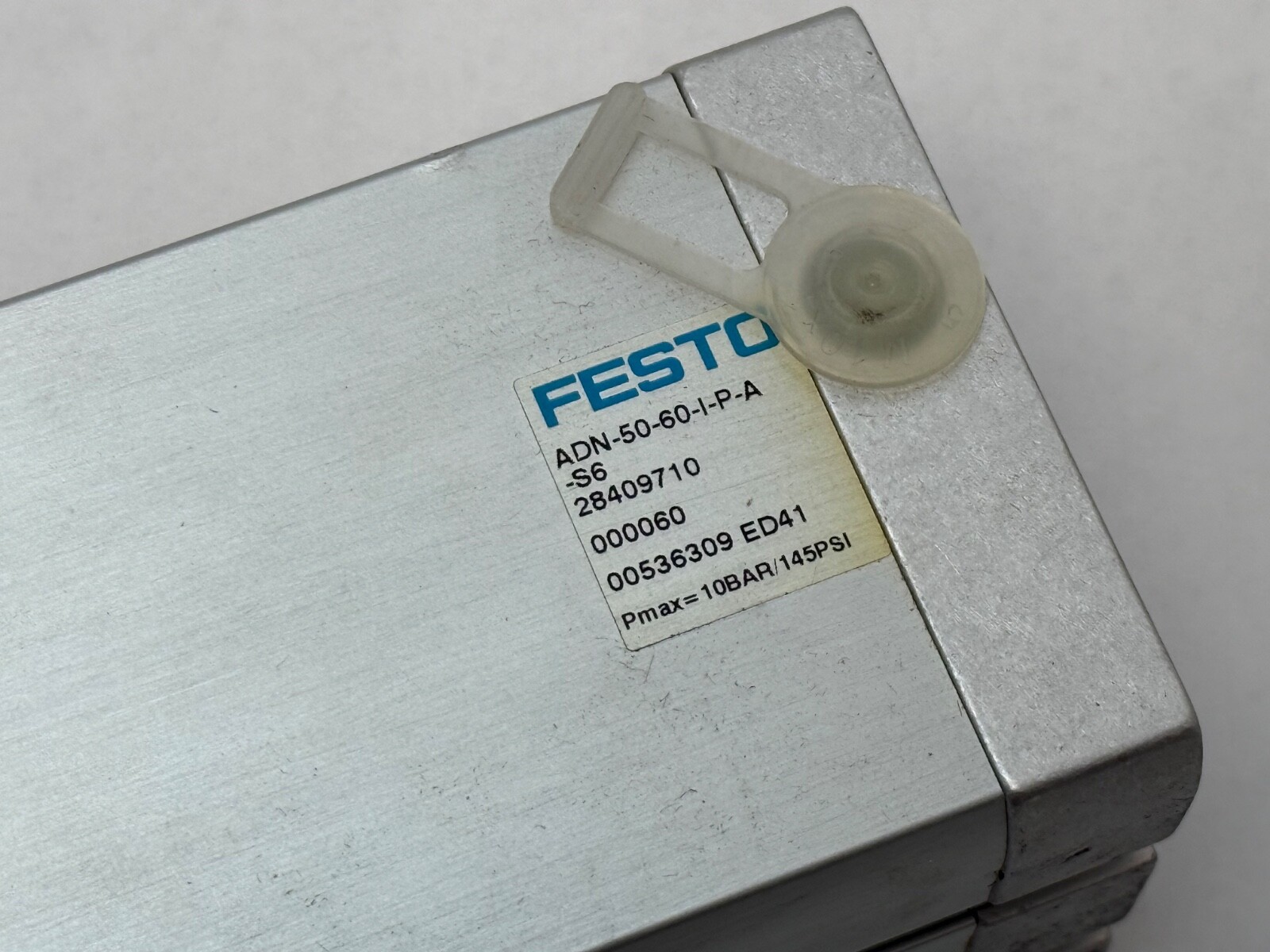

| Mpn Variants | ADN5060IPAS6; ADN 50 60 I P A S6; ADN-50-60-I-P-A; 28409710; 00536309-ED41; S6 variant code |
| Manufacturer Status | Festo core product range |
| Min Temp | -20 °C (-4 °F) |
| Series | ADN |
| Max Temp | 80 °C (176 °F) |
| Item Weight | 797 g (1.76 lb) |
| Part Number | ADN-50-60-I-P-A-S6 |
| Bore | 50 mm (1.97 in) piston diameter |
| Mounting Type | Through-hole, female thread, or ADN accessory bracket |
| Cross Reference 1 | Festo 536328 (ADN-50-60-I-P-A base execution part number) |
|---|---|
| Cross Reference 2 | ADN-50-60-A-P-A / Festo 536318 (related size, male thread rod end) |

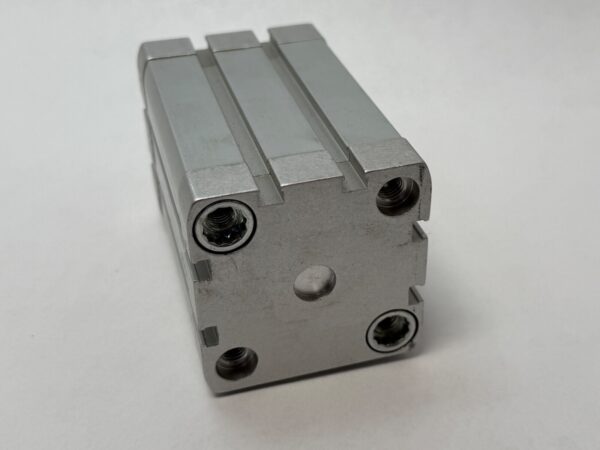

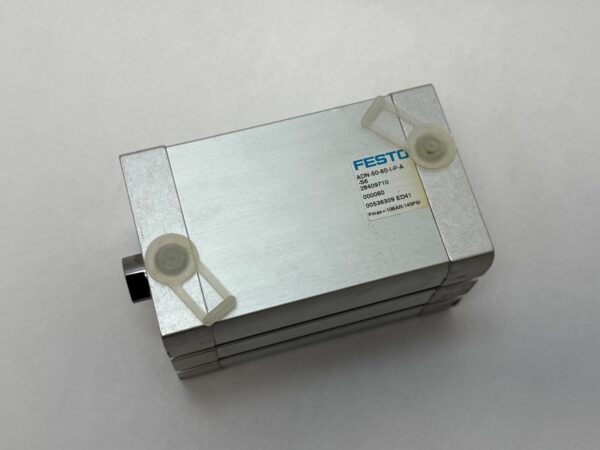

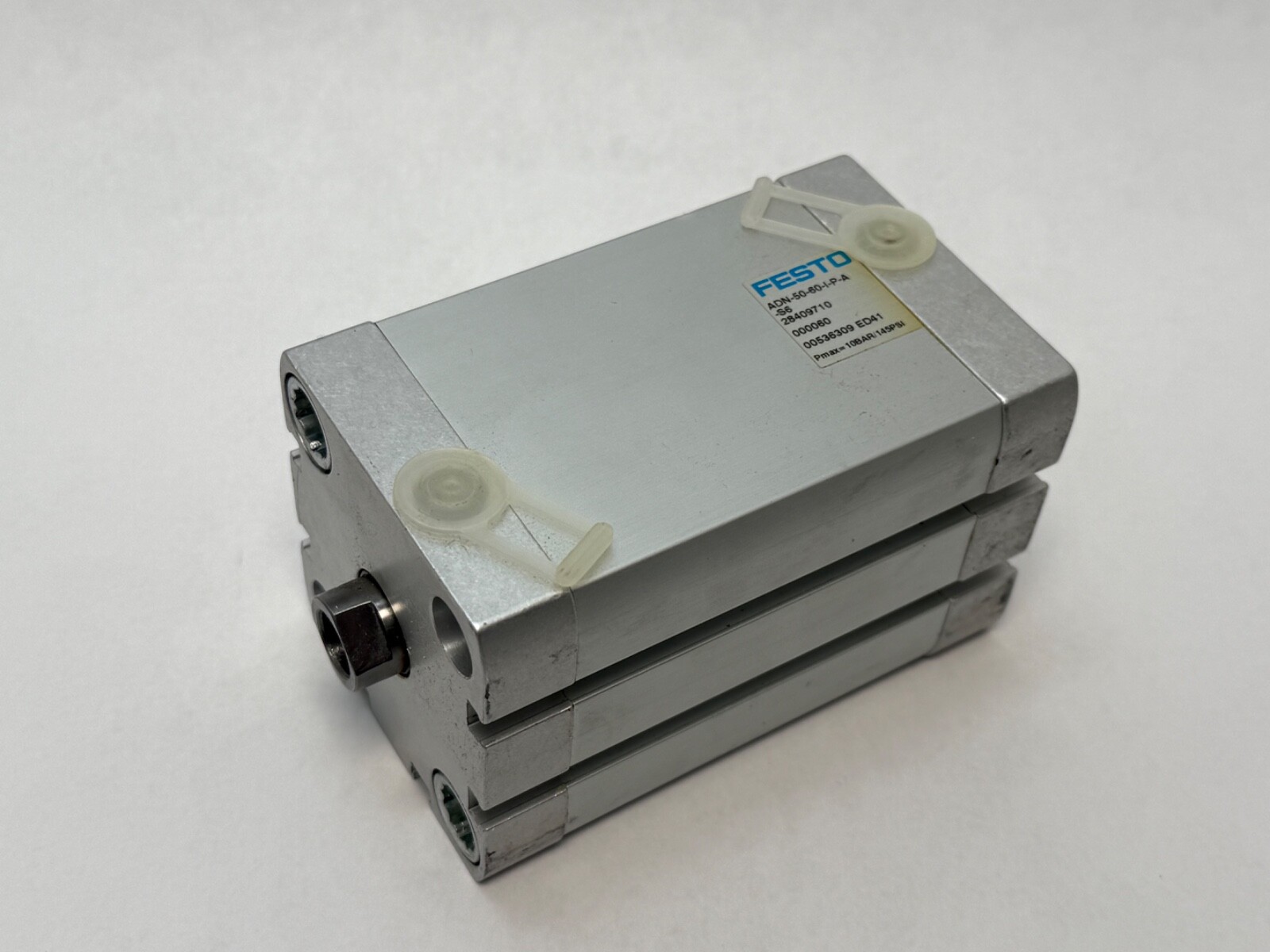

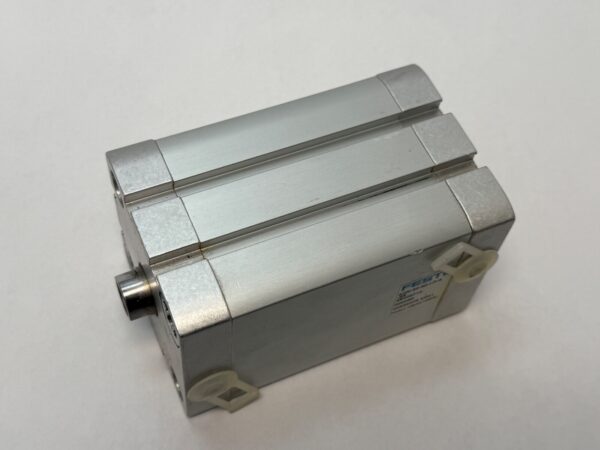

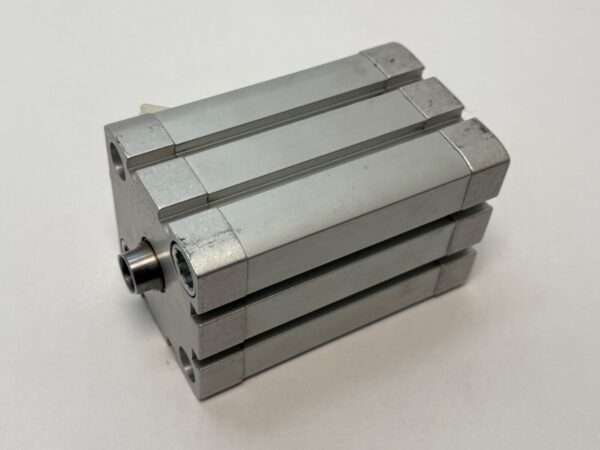

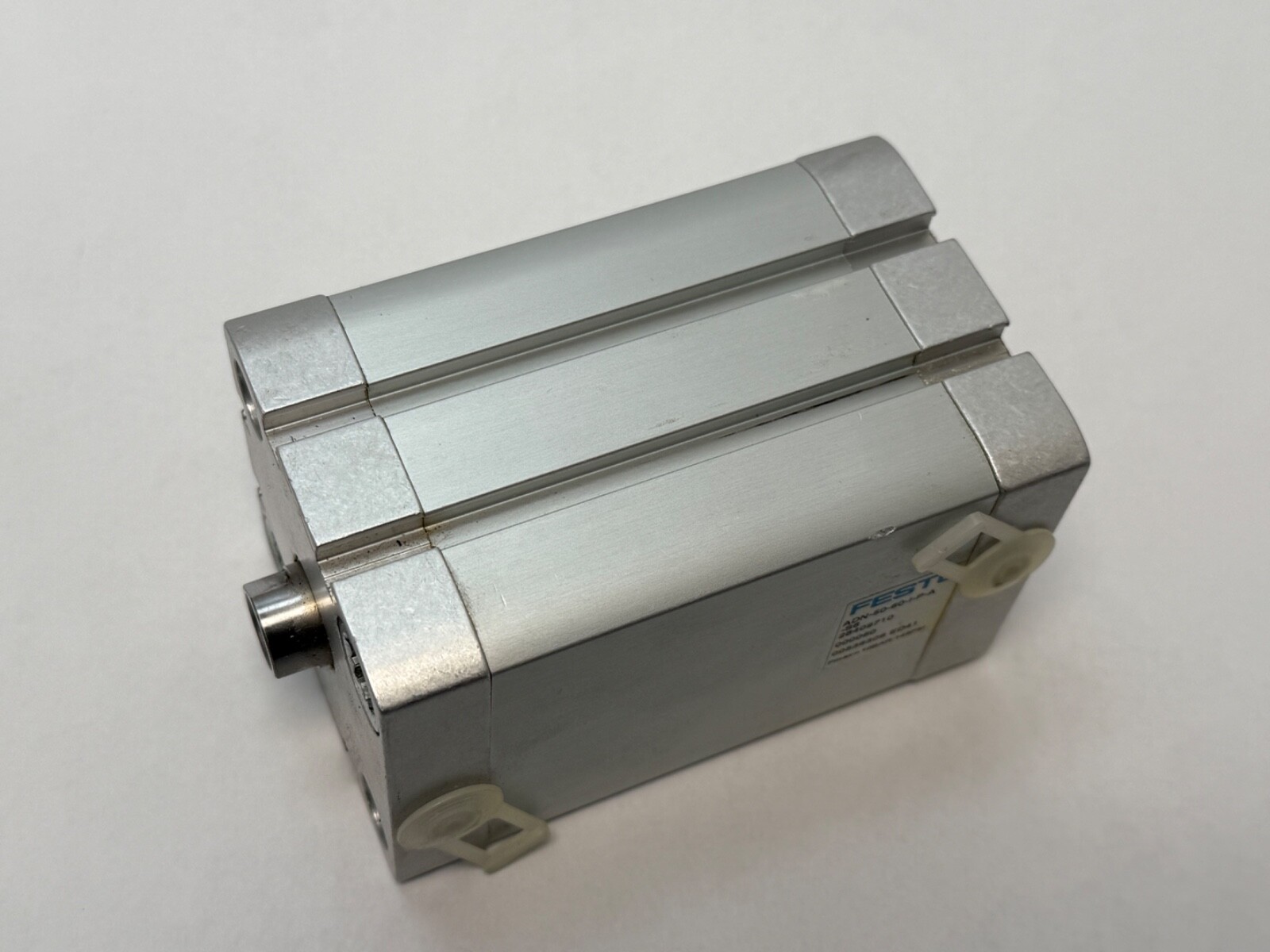

Festo ADN-50-60-I-P-A-S6 compact pneumatic cylinder. Series: ADN. Piston diameter: 50 mm. Stroke: 60 mm. Mode of operation: double-acting, piston rod at one end. Conforms to ISO 21287, the compact-cylinder dimensional standard, so the mounting envelope interchanges with other ISO 21287 cylinders of the same bore and stroke.

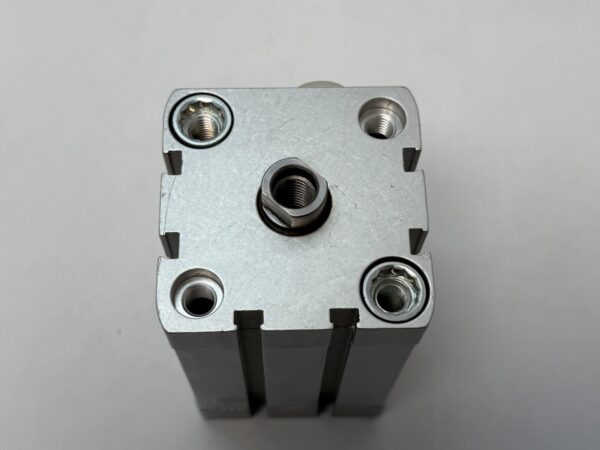

ADN: compact cylinder. 50: piston diameter in millimetres. 60: stroke in millimetres. I: female thread piston-rod end, M10. P: elastic cushioning rings at both end positions. A: position detection via proximity switch. Base execution part number: Festo 536328.
Operating pressure: 0.6 bar to 10 bar (8.7 to 145 psi). Theoretical force at 6 bar, advance stroke: 1178 N (265 lbf). Theoretical force at 6 bar, return stroke: 1057 N (238 lbf). Pneumatic connection: G1/8 both ports. The 121 N difference between strokes is the piston-rod area, and sizing to the return figure gives the same duty in both directions.
Elastic cushioning rings at both ends absorb 1 J of impact energy without an adjustable cushioning screw, which keeps the cylinder short and removes a setup adjustment. The magnetic piston gives proximity-switch position sensing at both ends. Corrosion resistance class: CRC 2. Ambient temperature range: -20 °C to 80 °C.
Cylinder barrel: smooth-anodised wrought aluminium alloy. End cover: anodised wrought aluminium alloy. Piston rod: high-alloy steel. Seals: TPE-U (PUR). Collar screws: steel. Product weight: 797 g (1.76 lb). Moving mass: 218 g. RoHS compliant. LABS (PWIS) conformity: VDMA24364-B1/B2-L.
Mounting position is unrestricted. Three mounting routes are provided in the profile: through-holes, female threads, and Festo ADN accessory brackets. Operating medium is compressed air to ISO 8573-1:2010 [7:4:4]; lubricated operation is permitted and becomes permanent once started.
One cylinder. Country of origin: Germany.
ADN-50-60-A-P-A (Festo 536318) is the same envelope with a male thread rod end — a related size, not a substitution. Searchable forms of this designation: ADN5060IPAS6, ADN 50 60 I P A S6, 28409710, 00536309-ED41.
