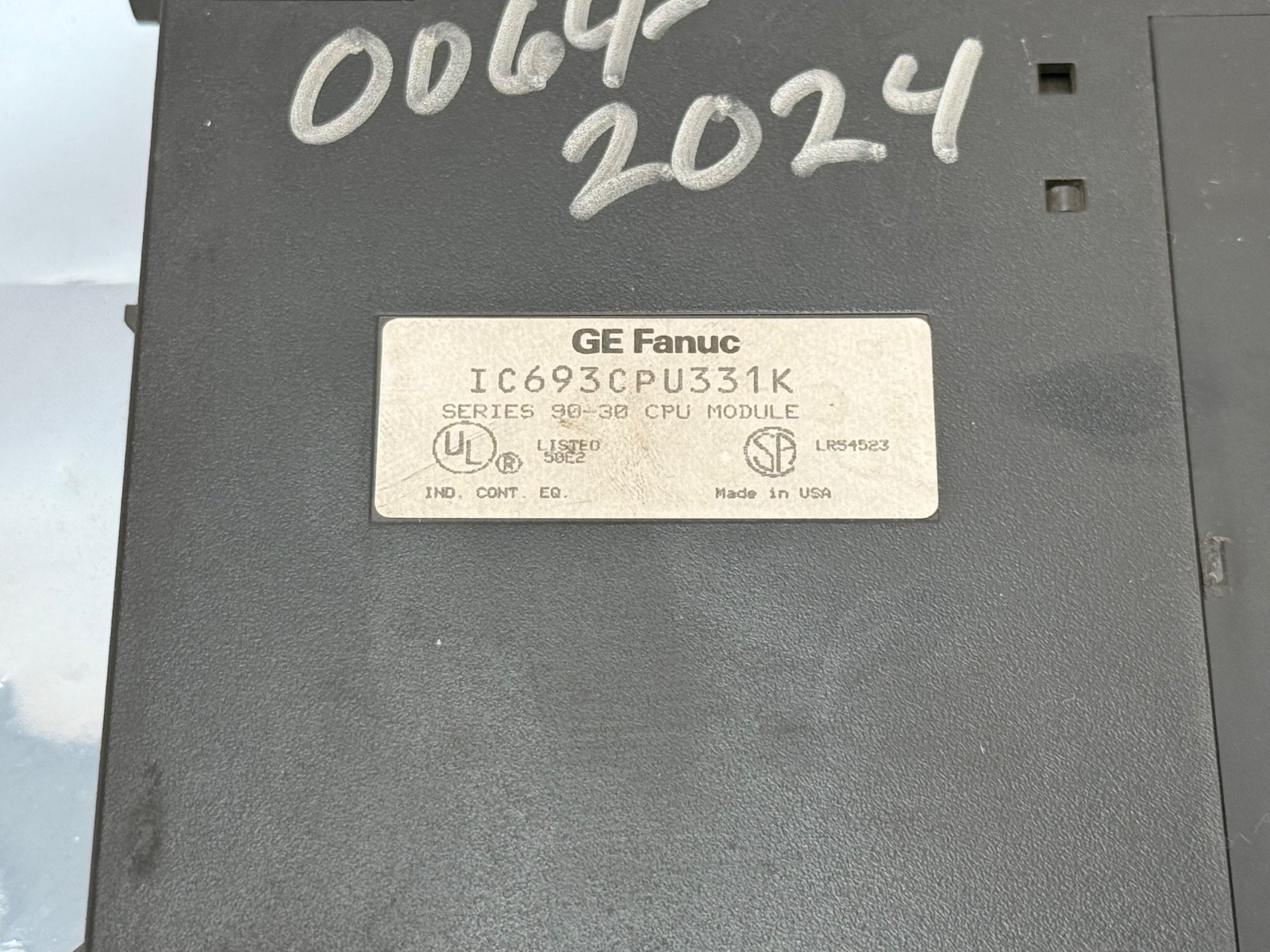

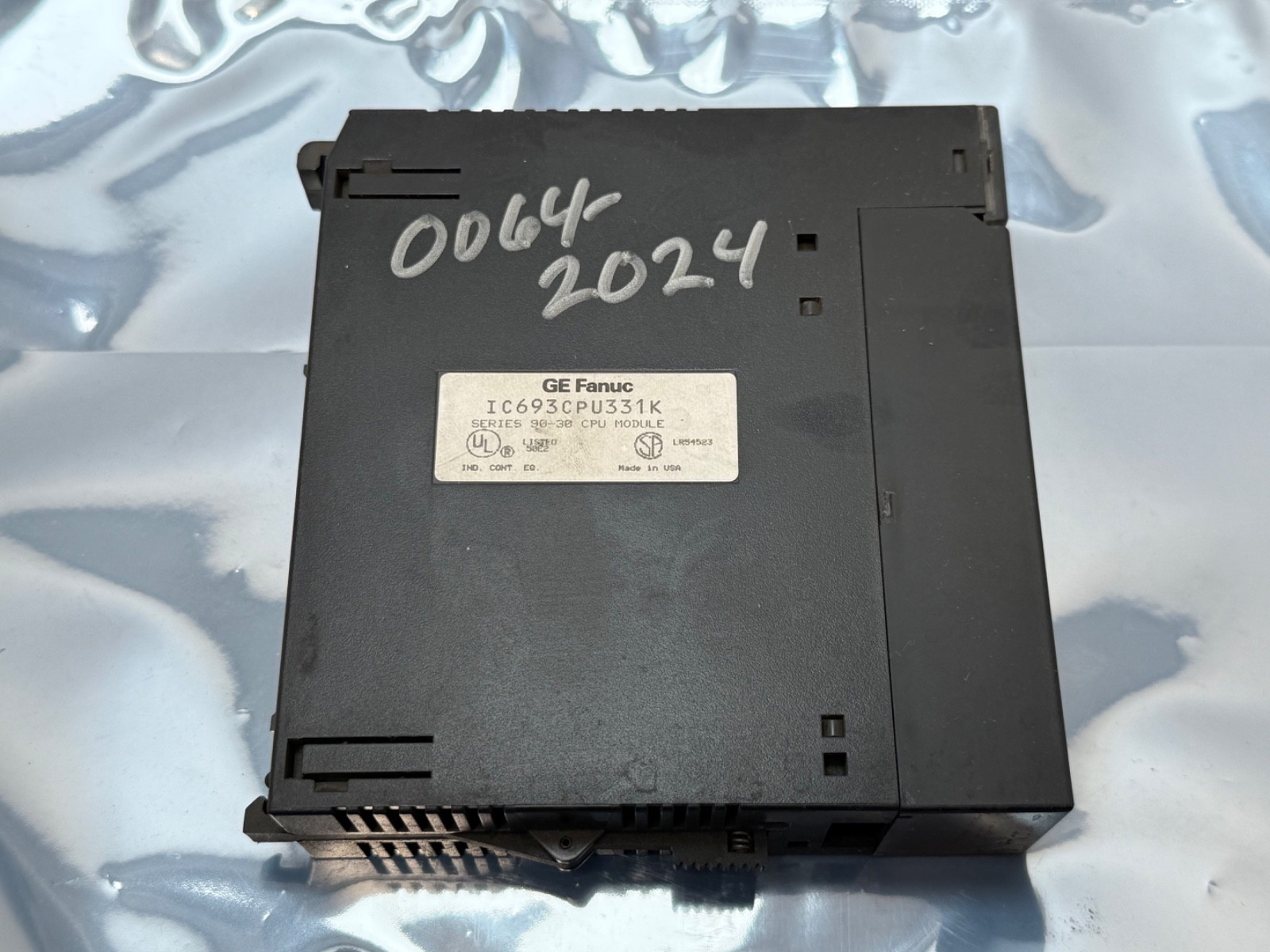

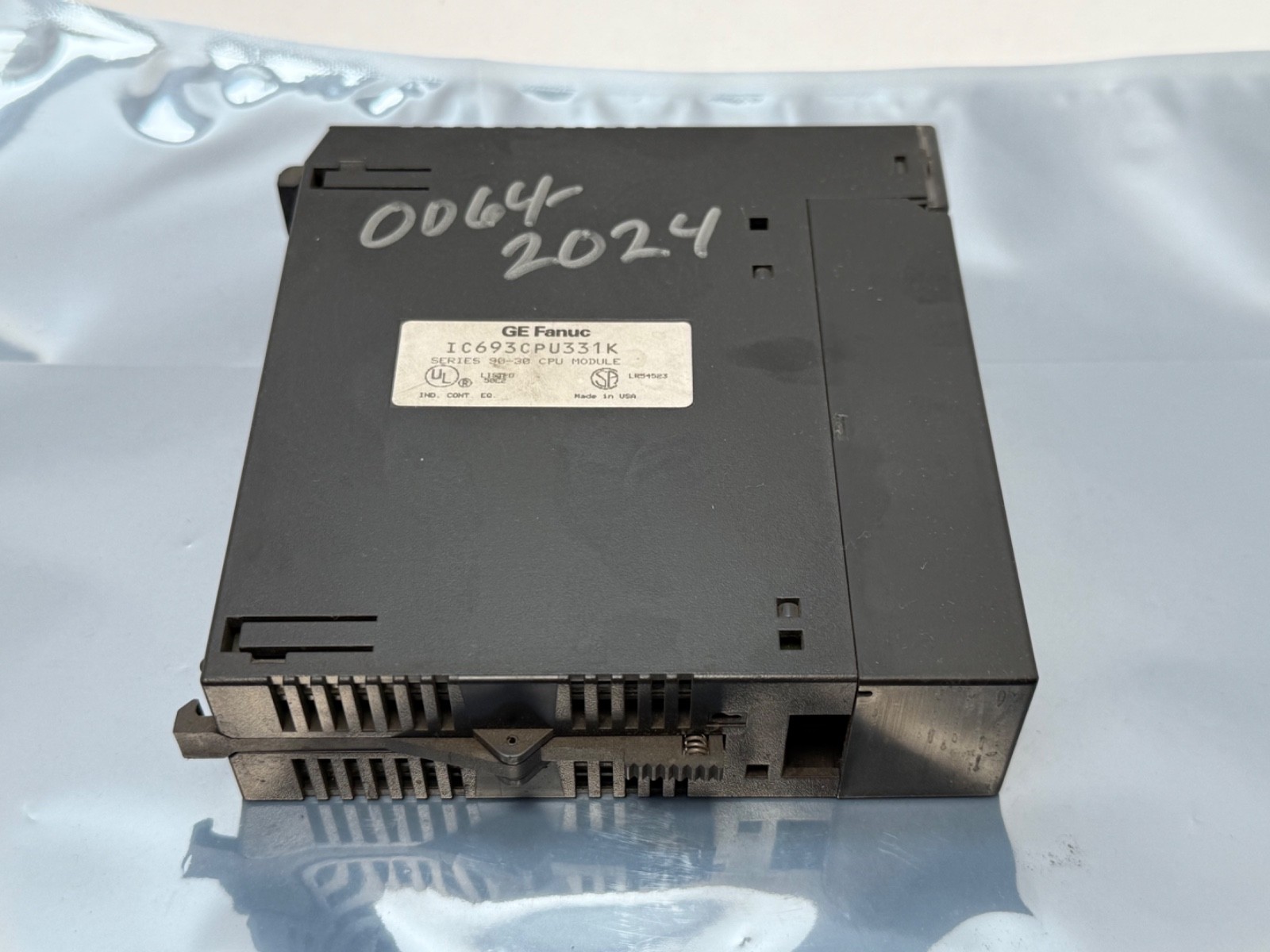

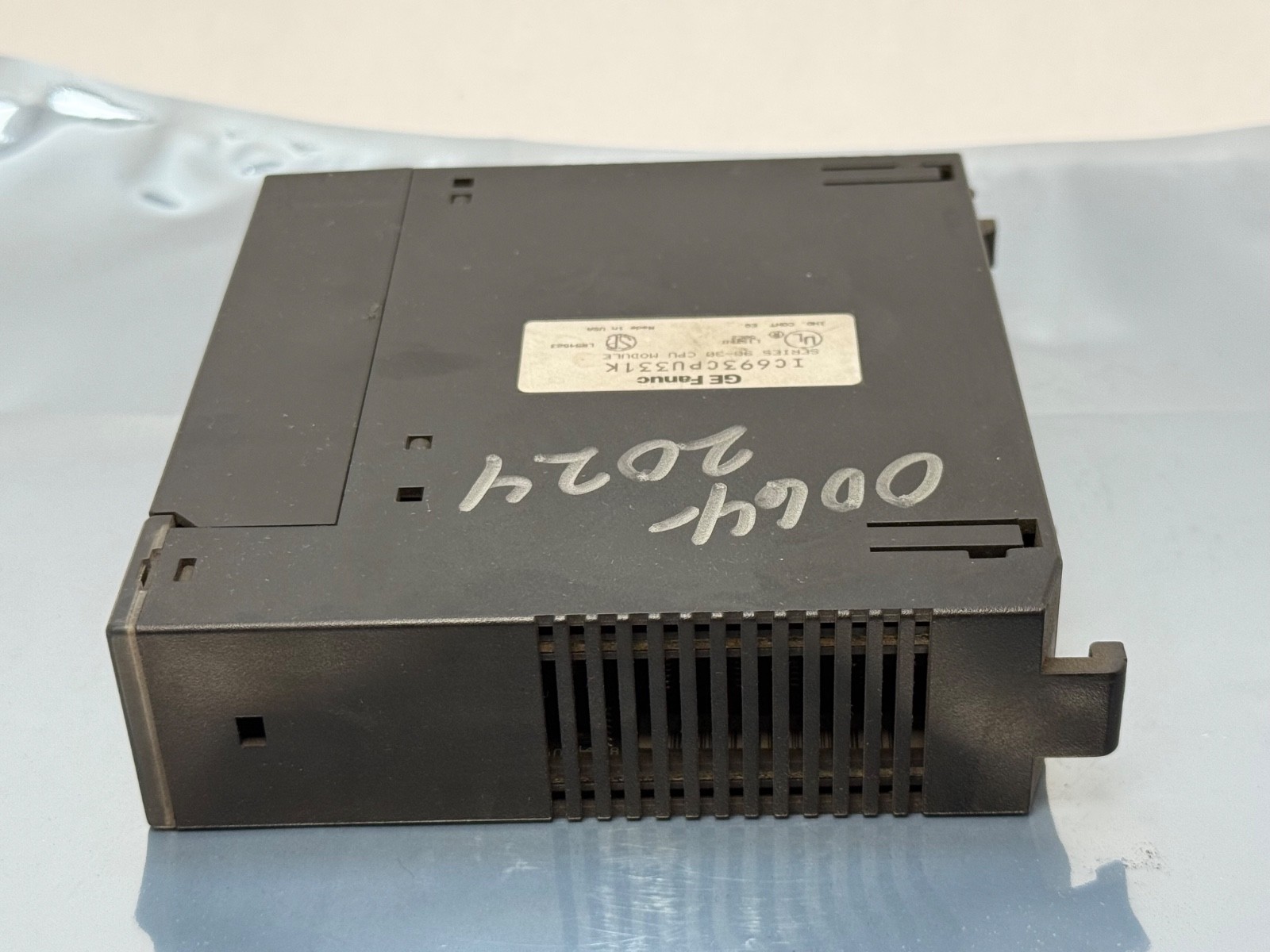

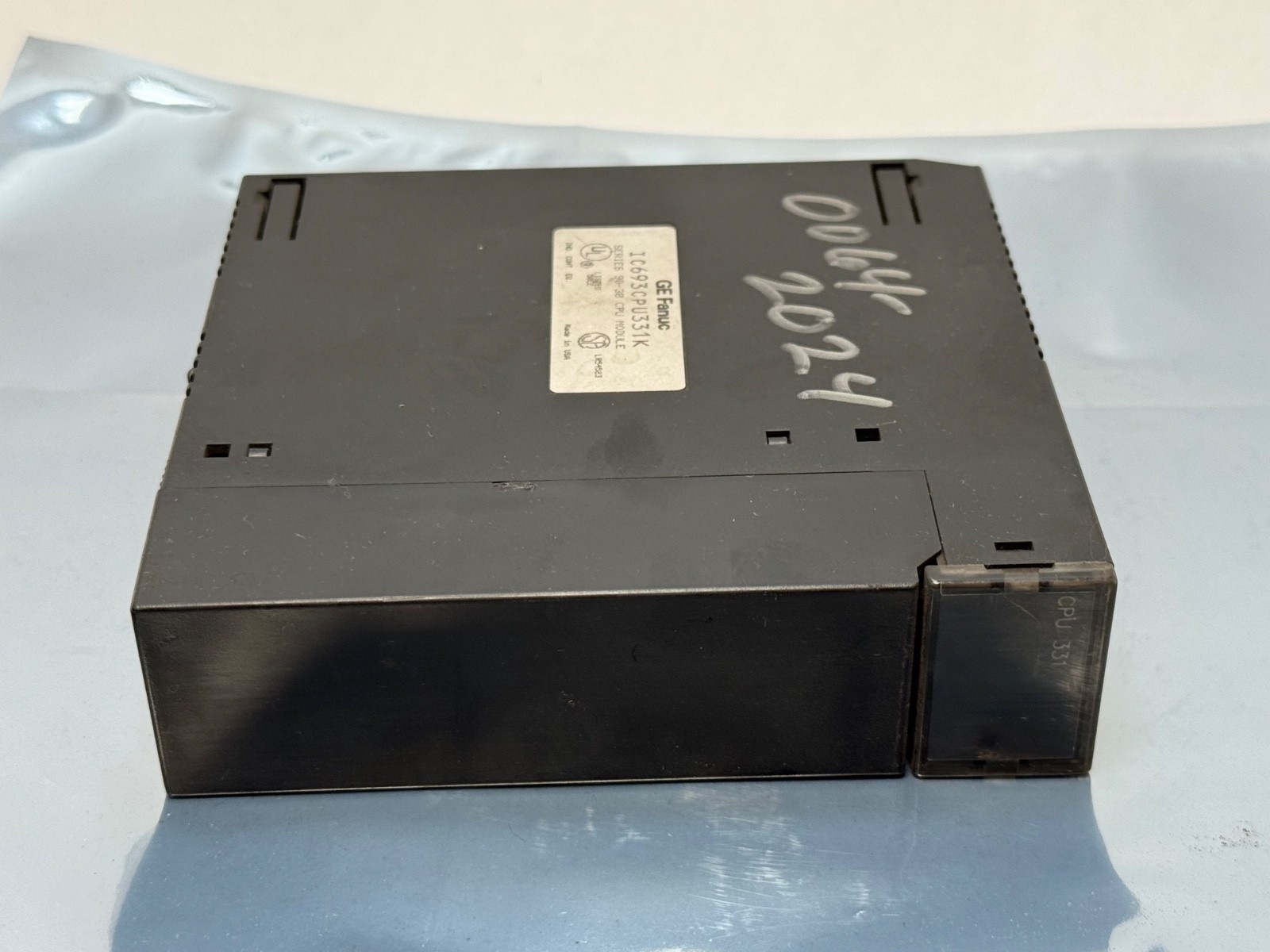

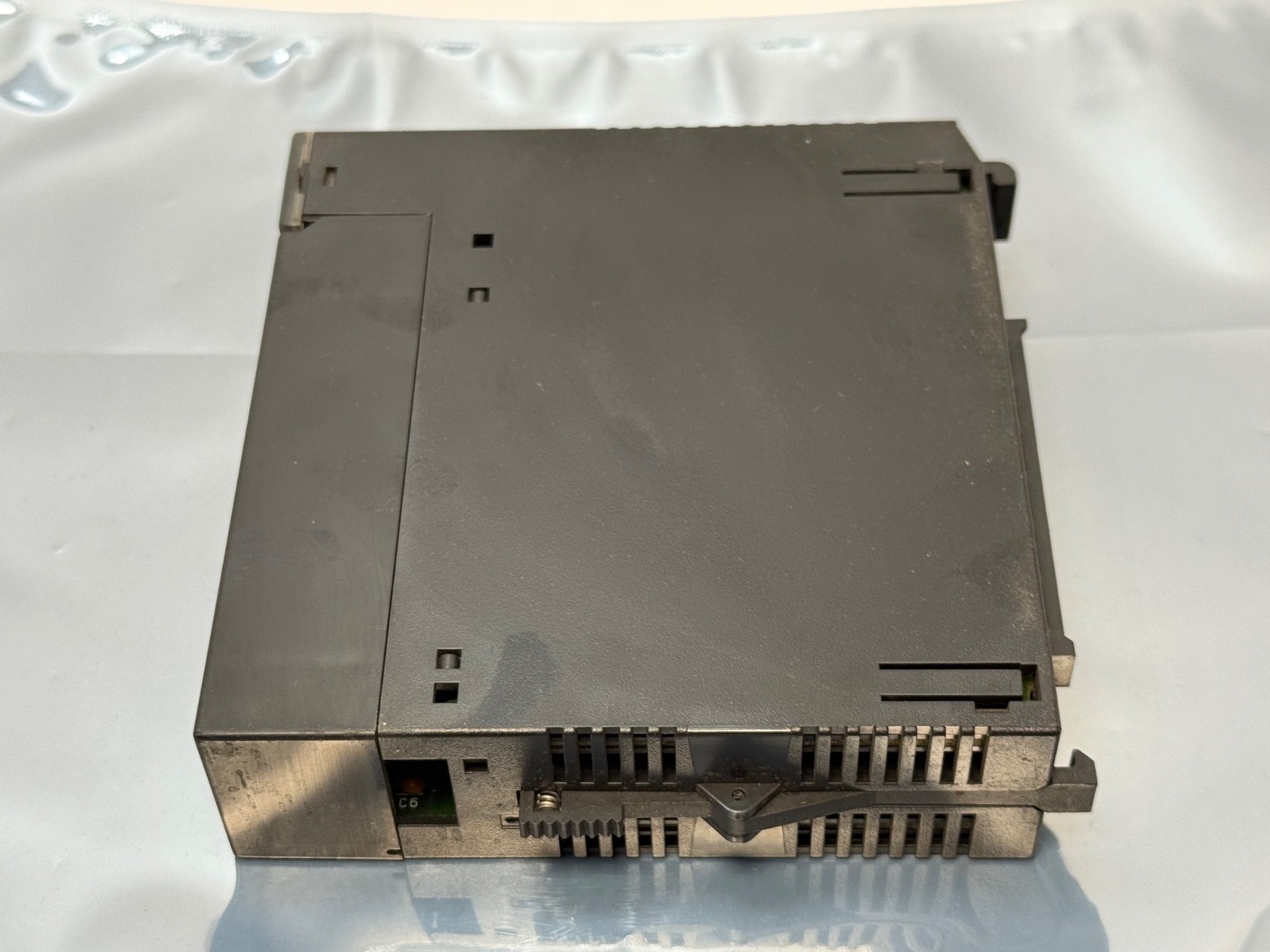

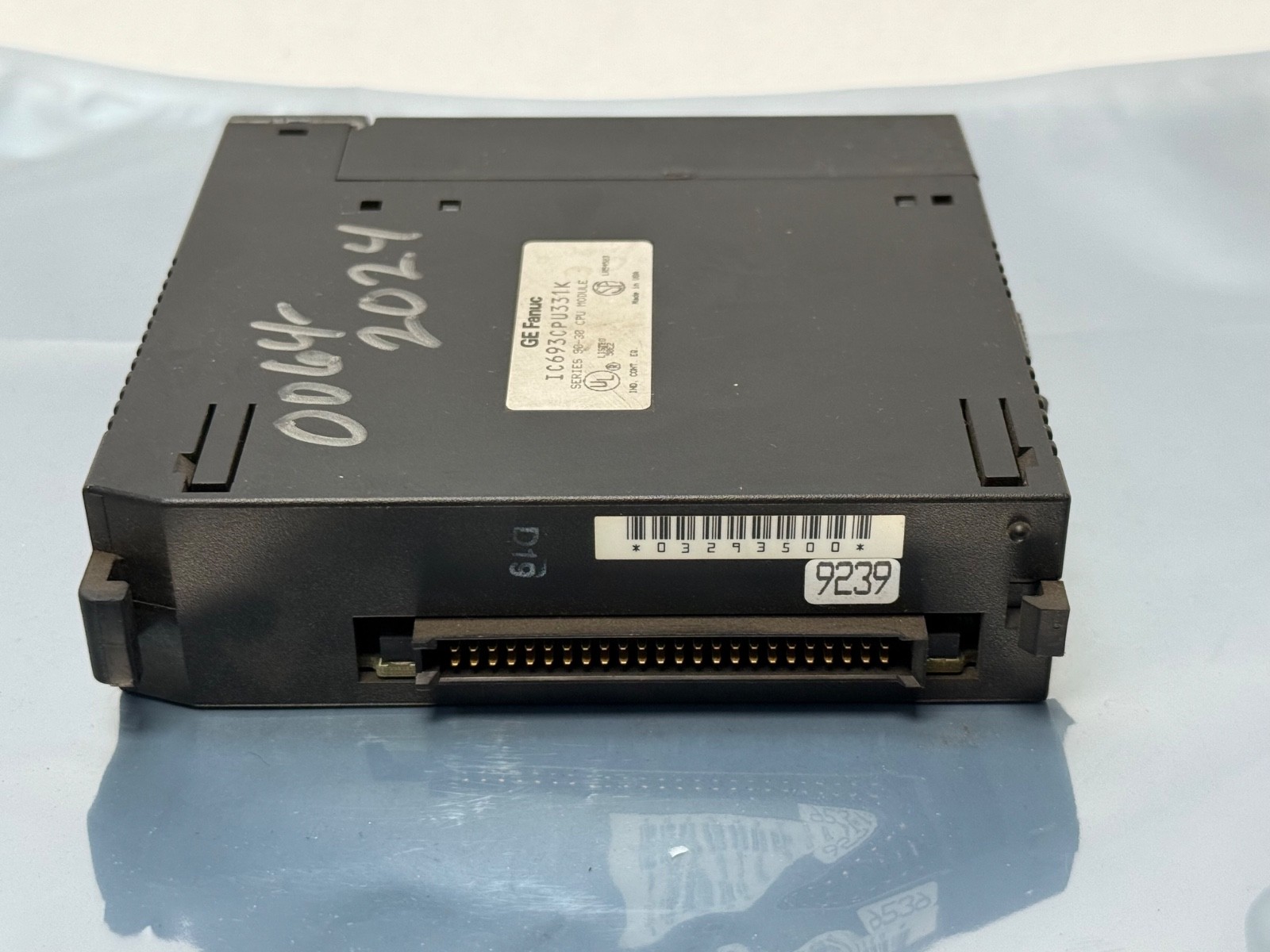

GE-FanucIC693CPU331KSeries 90-30 Single-Slot CPU Module, 80188 10 MHz, 16K Program Memory, 512 Discrete In / 512 Discrete Out

Product Description

What this part is:

GE Fanuc IC693CPU331K is a Series 90-30 single-slot CPU module, the processor that runs the ladder program in a GE Fanuc Series 90-30 programmable controller. It installs in the CPU slot of a 5-slot or 10-slot baseplate, scans the I/O modules across the backplane, executes user logic and holds the register and reference tables. Unit Quantity: 1 Pc. CPU module only.

Decoding the designation:

IC693 — GE Fanuc Series 90-30 product line.

CPU — central processing unit module, as distinct from MDL discrete I/O, ALG analog, CMM communications and APU motion.

331 — the CPU model: 80188 processor, 16K user program memory, single-slot form factor.

K — hardware revision letter.

Specifications:

CPU Type: Single-slot CPU module. Processor: 80188, 16-bit, 10 MHz. User Program Memory: 16K bytes maximum, fixed. Typical Scan Rate: 0.4 ms per 1K of Boolean logic. Discrete Inputs %I: 512. Discrete Outputs %Q: 512. Register Memory %R: 2048 words. Analog Inputs %AI: 128 words. Analog Outputs %AQ: 64 words. Discrete Global Memory %G: 1280 bits. Internal Coils %M: 1024 bits. Temporary Coils %T: 256 bits. System Status %S, %SA, %SB, %SC: 32 bits each, 128 bits total. Math: integer operations, no floating-point hardware. Baseplates Per System: 5 maximum, one CPU baseplate plus up to four expansion and/or remote. Backplane Load: 350 mA from the +5 VDC supply. Operating Temperature: 0 to 60 °C ambient. Manufacturer Status: Discontinued / legacy support.

Dimensions and mounting:

Mounting Type: Leftmost CPU slot of the baseplate, adjacent to the power supply. Serial Port: SNP protocol over RS-485, for Logicmaster 90-30, VersaPro or Proficy Machine Edition; a Hand Held Programmer also communicates with it. Memory Backup: lithium cell, GE Fanuc part IC693ACC301.

Compatibility and replacement:

Compatible with GE Fanuc Series 90-30 5-slot and 10-slot baseplates (IC693CHS39x/CHS40x) and Series 90-30 IC693 discrete, analog, communications and motion modules. MPN Variants: IC693CPU331K, IC693CPU331, IC693-CPU-331-K, IC693 CPU 331 K, IC693CPU331-K.

Frequently asked questions:

What does the IC693CPU331K do?

It is the CPU module of a GE Fanuc Series 90-30 PLC: it runs the user program and scans the I/O.

How much program memory and I/O does it have?

16K bytes of user program memory, 512 discrete inputs and 512 discrete outputs.

Which processor and programming port does it have?

An 80188 16-bit processor at 10 MHz; the programming port is SNP protocol over RS-485.
