Deep Groove Ball Bearings: The Industry Default and When to Reach for Something Else
If you pulled a bearing off general industrial equipment at random, there’s a good chance
Availability:
2 in stock

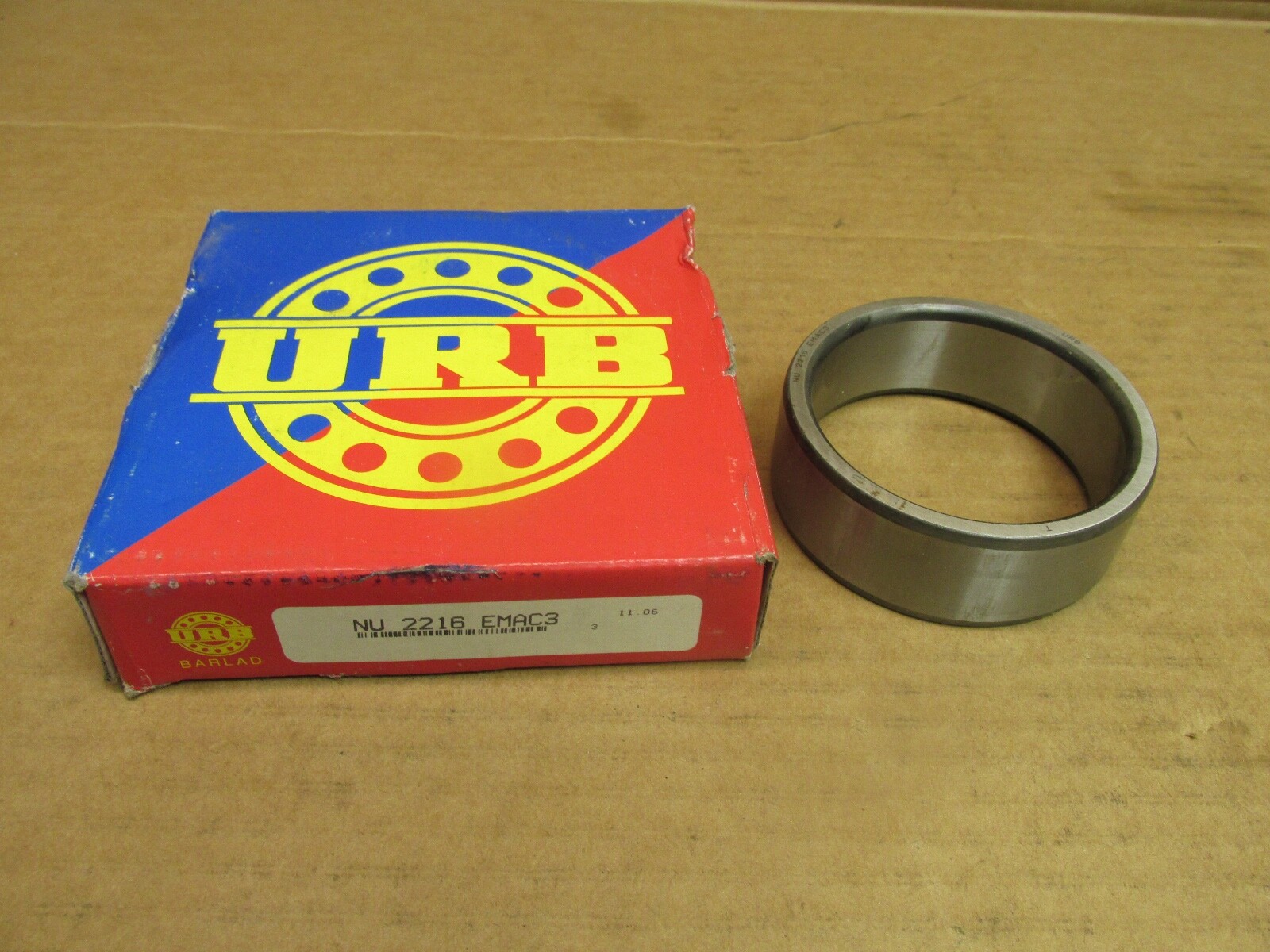

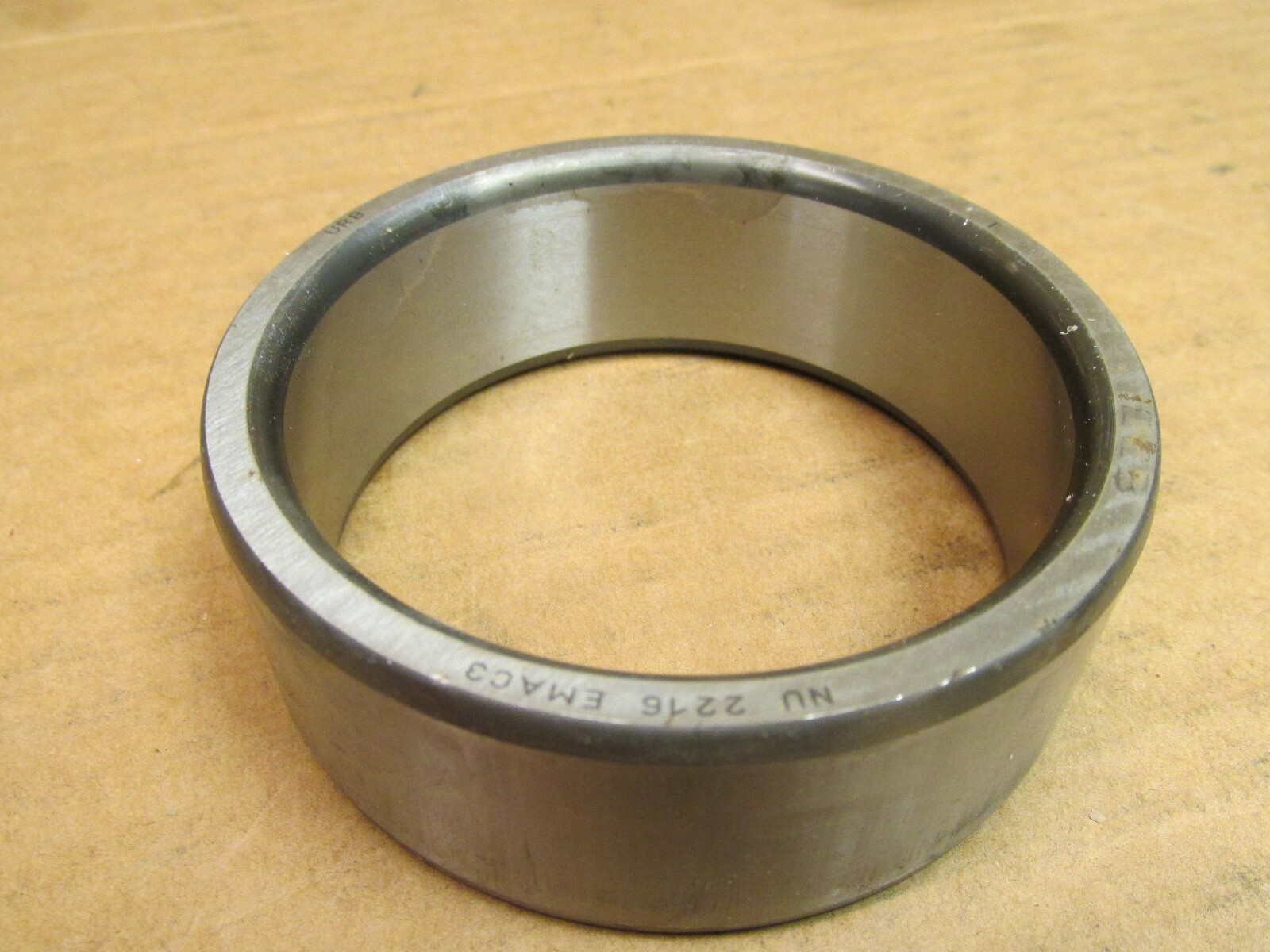

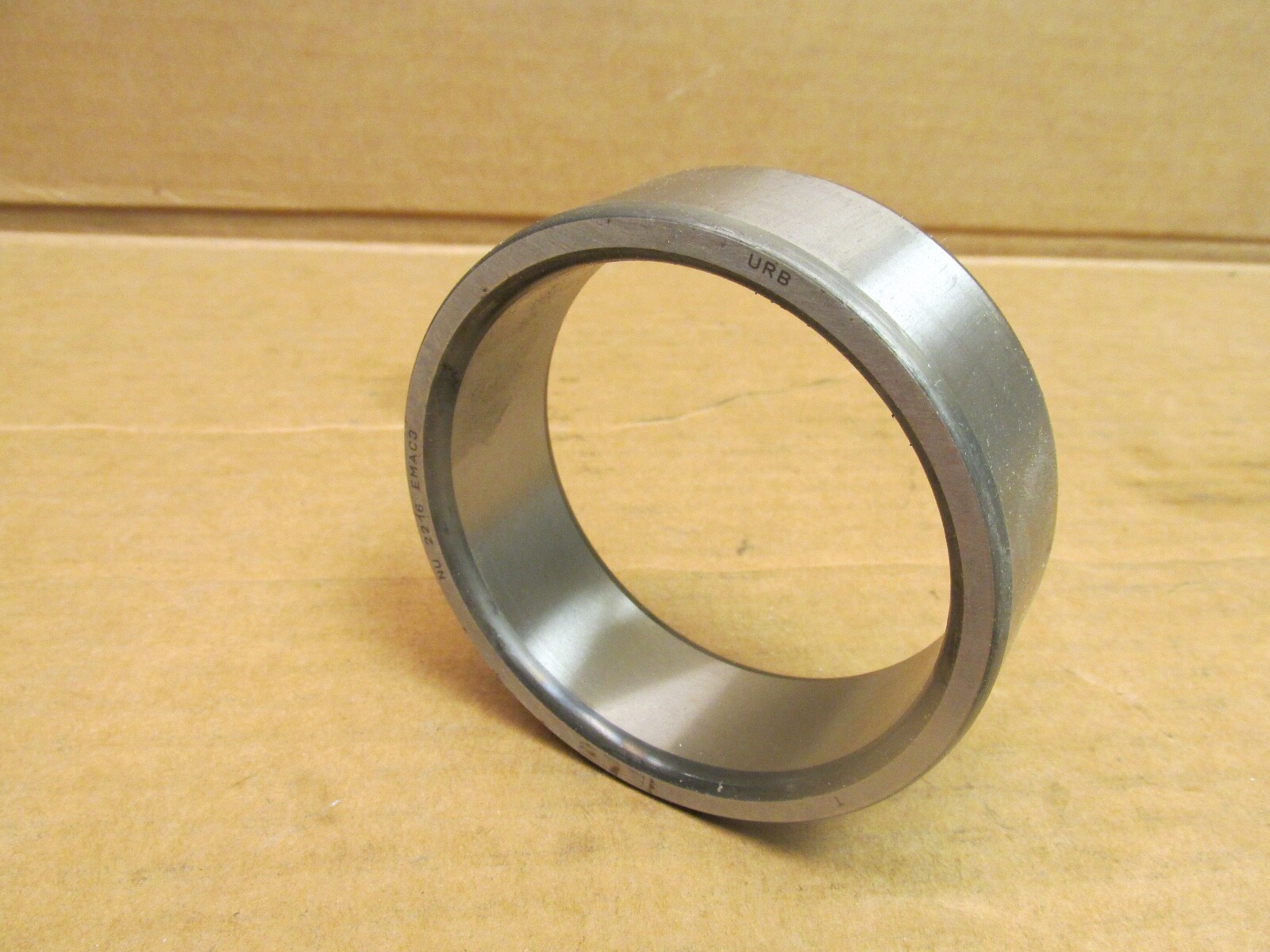

Single row cylindrical roller bearing, 80 mm bore, 140 mm OD, 33 mm width, straight bore, open, C3 internal clearance, bearing steel construction.
List Price
$106.37
2 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | URB |
|---|---|
| MPN | NU2216EMAC3 |
| Model | NU 2216 EMAC3 |
| Bearing Type | Cylindrical Roller Bearing, Open |
| ID | 80 mm |
| OD | 140 mm |
| Width | 33 mm |
| Source | URB, 123Bearing |
|---|---|
| Material | Bearing Steel |
| Series | NU22 |
| Rolling Elements | Cylindrical Roller |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Internal Clearance | C3 |
| Harmonization Code | 8482.50.00 |
| Bearing Material | Bearing Steel |
| Part Number | NU2216EMAC3 |
URB NU2216EMAC3 is a single row cylindrical roller bearing of the NU22 series. Bearing Type: Cylindrical Roller Bearing. Brand: URB. Model: NU 2216 EMAC3. MPN: NU2216EMAC3. Condition: New – Open box, new old stock.
NU — cylindrical roller bearing with both integral guide flanges on the outer ring and a flangeless inner ring.
22 — dimension series 22, a wider section than the NU2 series at the same bore and outside diameter.
16 — bore code, 16 x 5 = 80 mm bore.
C3 — radial internal clearance greater than normal.
Bore Diameter: 80 mm. Outside Diameter: 140 mm. Width: 33 mm. Number Of Rows: 1. Rolling Elements: Cylindrical Roller. Bore Type: Straight. Seal Type: Open. Internal Clearance: C3. Series: NU22. Bearing Material: Bearing Steel. Harmonization Code: 8482.50.00.
Bore Diameter: 80 mm. Outside Diameter: 140 mm. Width: 33 mm. Locating behavior: non-locating position; the roller complement moves axially along the flangeless inner ring raceway to take up shaft thermal expansion.
MPN: NU2216EMAC3. Part Number: NU2216EMAC3. Model: NU 2216 EMAC3. Also searched as NU 2216 E C3.
A single row cylindrical roller bearing, NU22 series, 80 mm bore, 140 mm outside diameter and 33 mm width, with C3 internal clearance.
NU is a cylindrical roller design with both guide flanges on the outer ring and a flangeless inner ring, so the bearing is non-locating.
C3 is a radial internal clearance group larger than standard.
