Availability:
1 in stock
Inner ring for heavy-duty needle roller bearings, 1-1/4 in bore, 1-1/2 in OD, 1 in wide, straight bore, steel. Four pieces, inch series IR-202416.
List Price
$38.24

1 in stock
On the Shelf & Ready to Ship
Ships same day by 6pm ET

No Risk, No Hassle
| MFR / Brand | Torrington |
|---|---|
| MPN | IR-202416 |
| Model | IR202416 / MS-51962-15 |
| ID | 1.250 in |
| OD | 1.500 in |
| Width | 1.000 in |
| Material | Bearing Steel |
|---|---|
| Series | IR |
| Bore Type | Straight |
| Base Number | IR-202416 |
| Industry Terms | needle bearing inner ring; heavy duty needle roller inner ring; inch inner race; needle roller race |
| Common Misspellings | Torrinton IR-202416; Torington IR202416; IR-20-24-16; IR 20 24 16 |
| Application Types | Shaft journals paired with heavy-duty needle roller bearings |
| Mpn Variants | IR-202416; IR202416; IR 202416; MS-51962-15 |
| Compatible With Replaces | HJ-243316 |
| Bearing Type | Needle roller bearing inner ring |
| Item Weight | 0.146 lb per piece |
| Bearing Material | High carbon chrome steel |

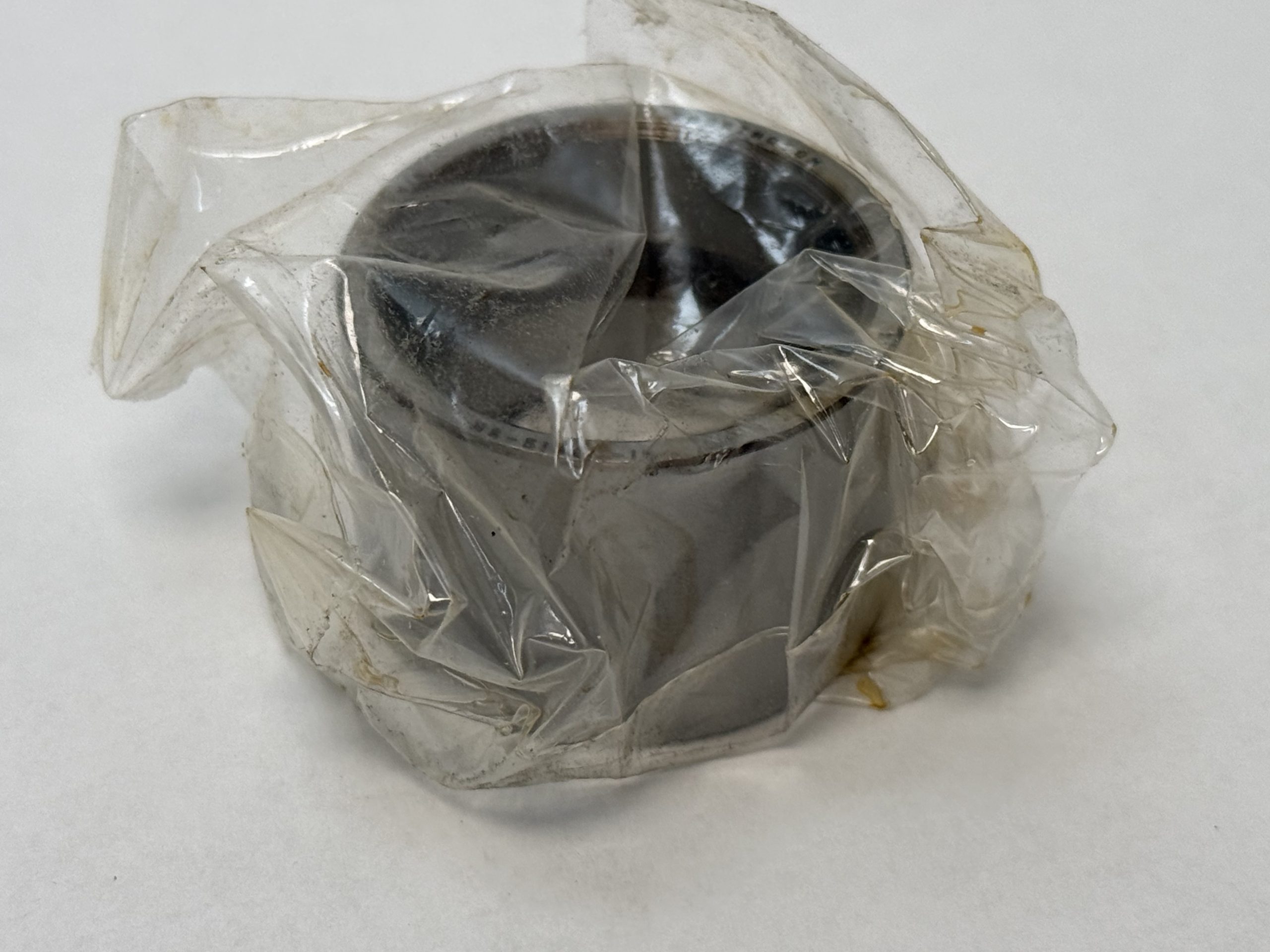

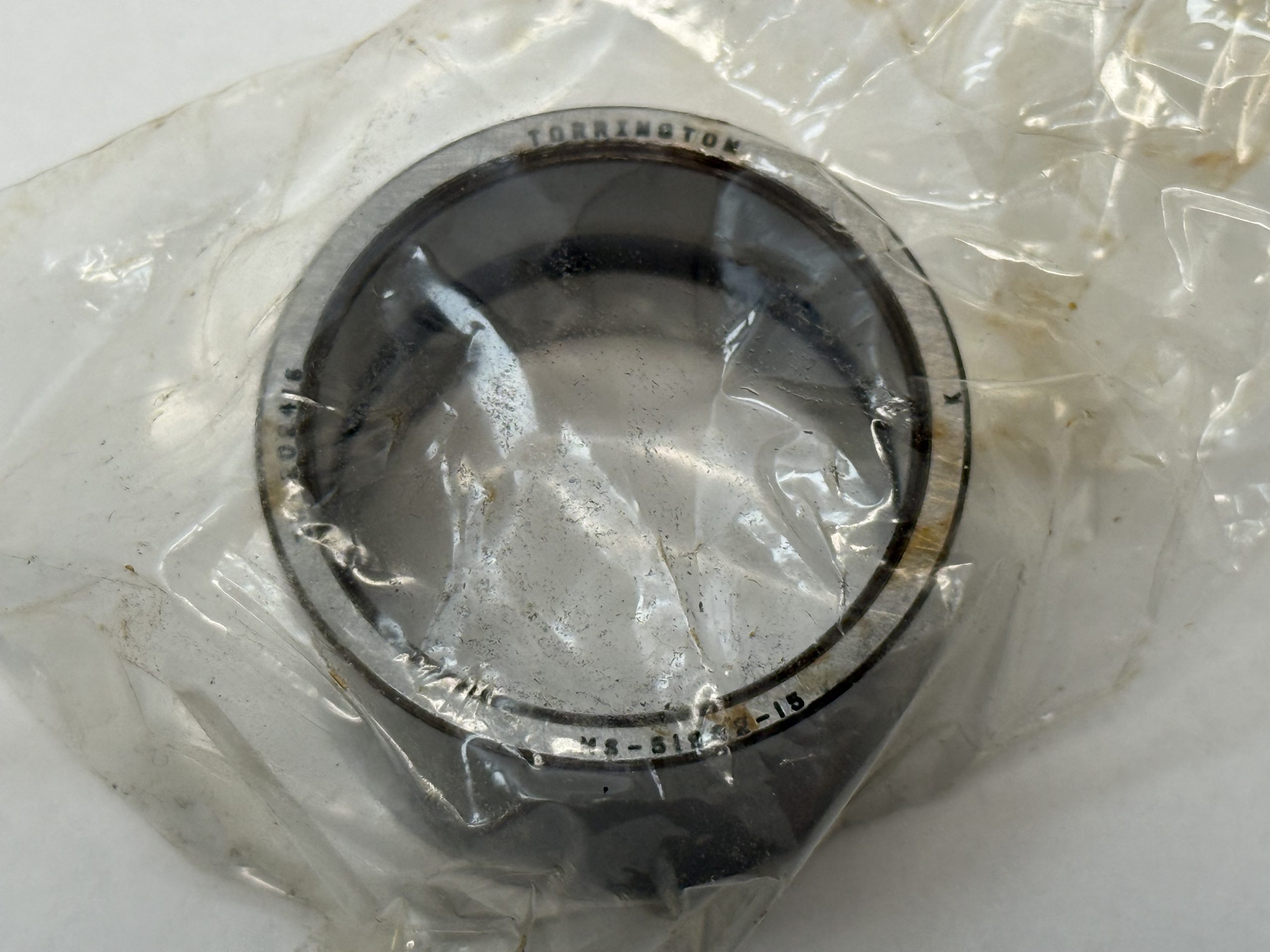

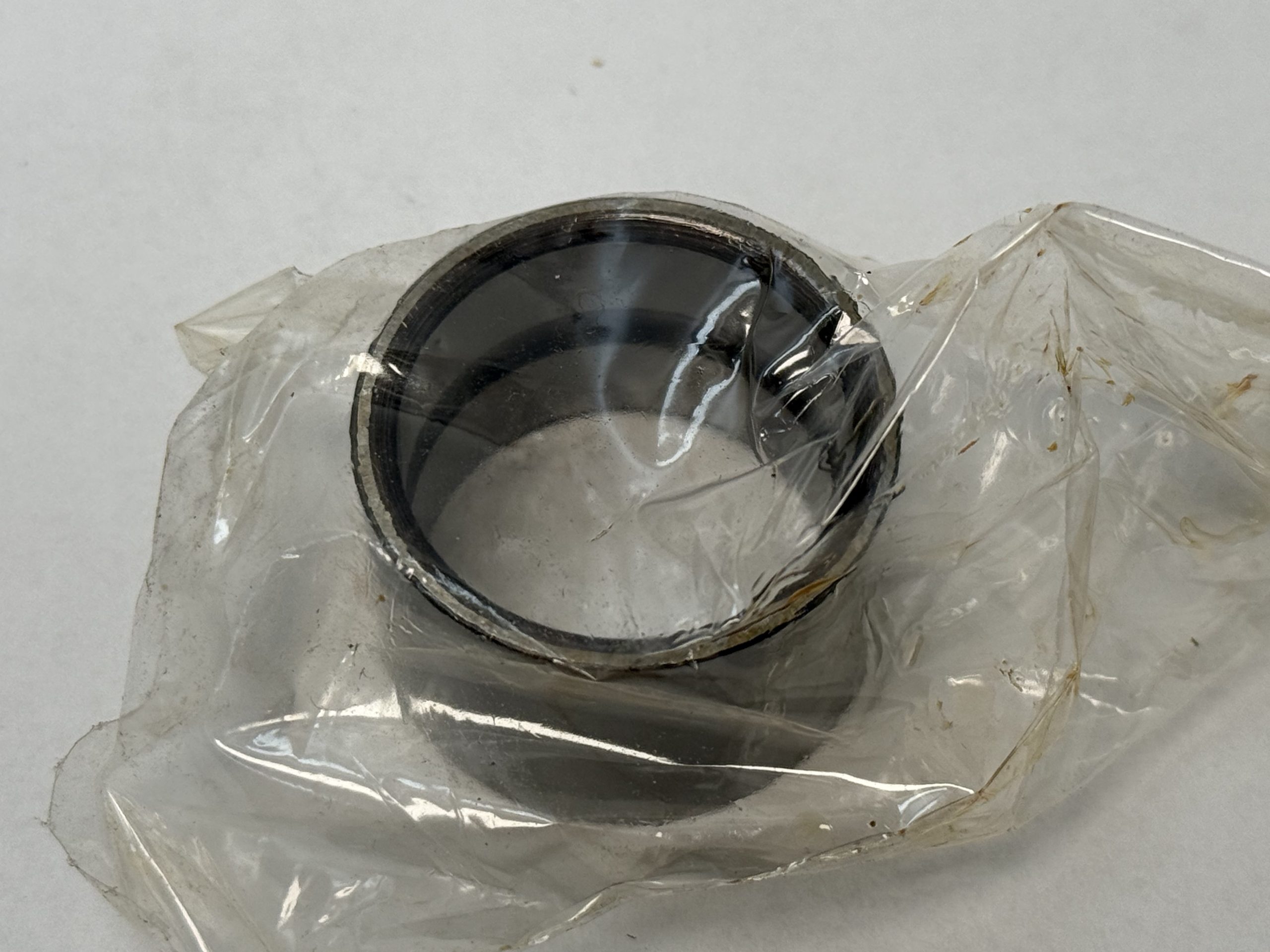

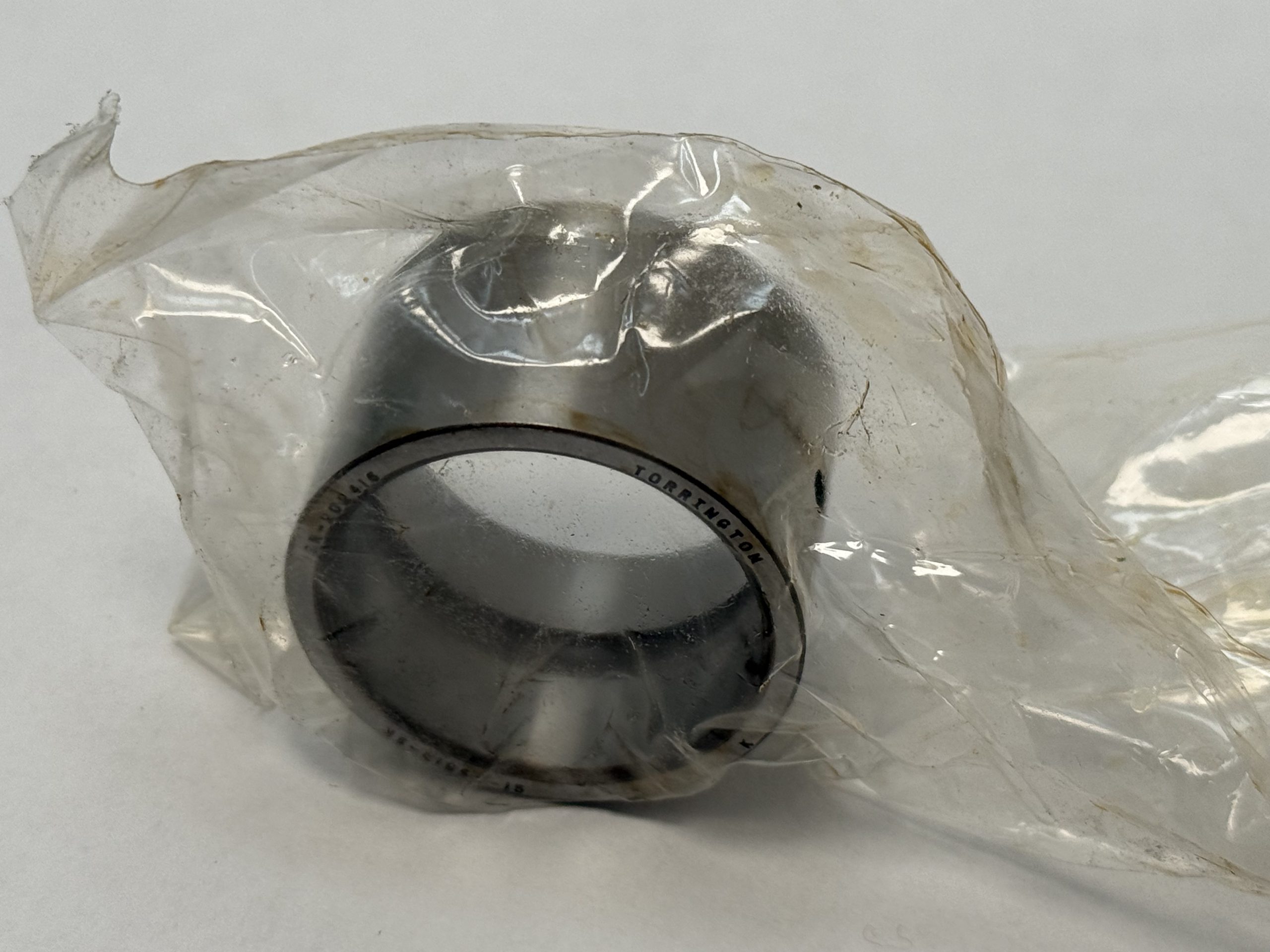

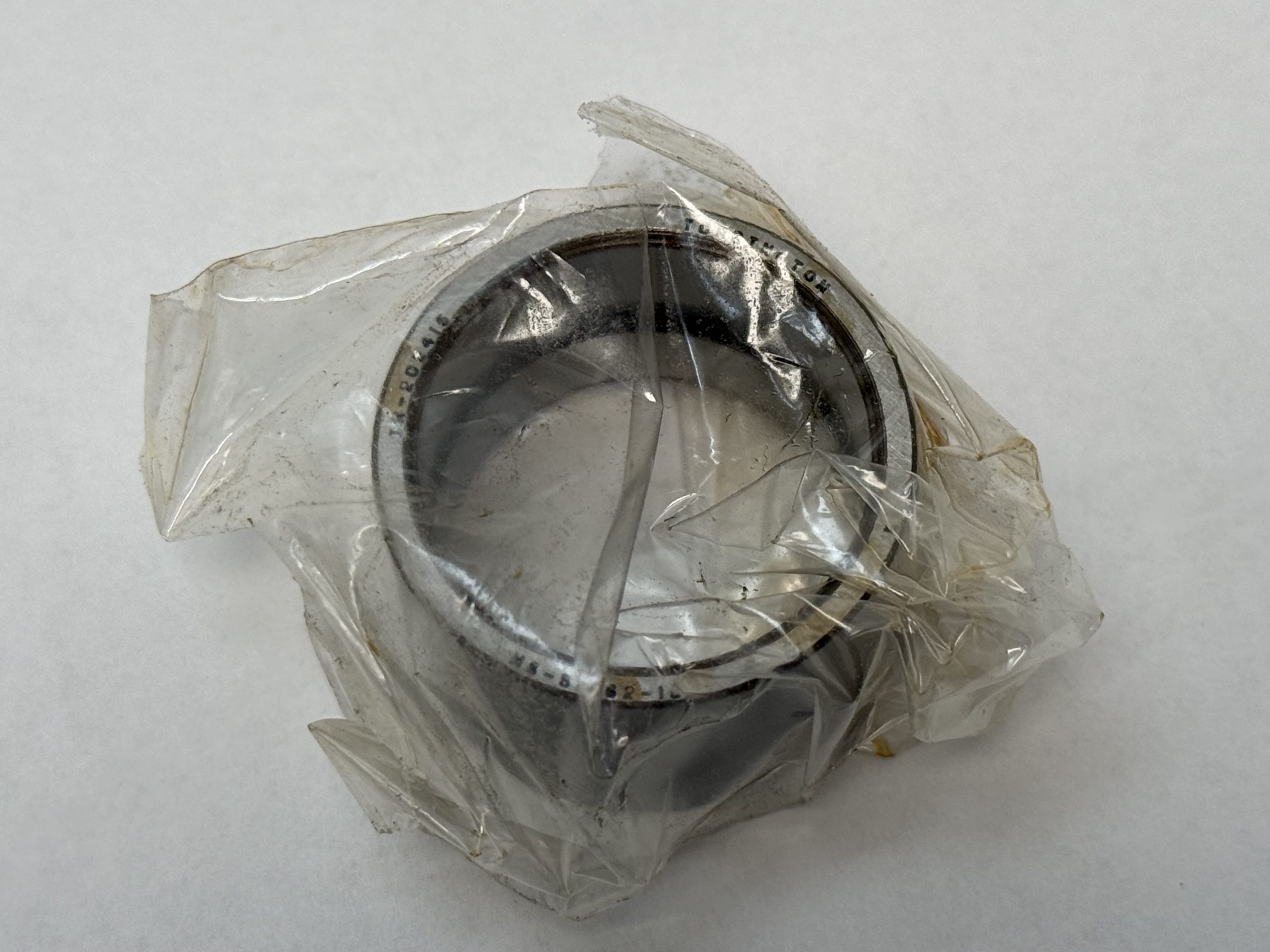

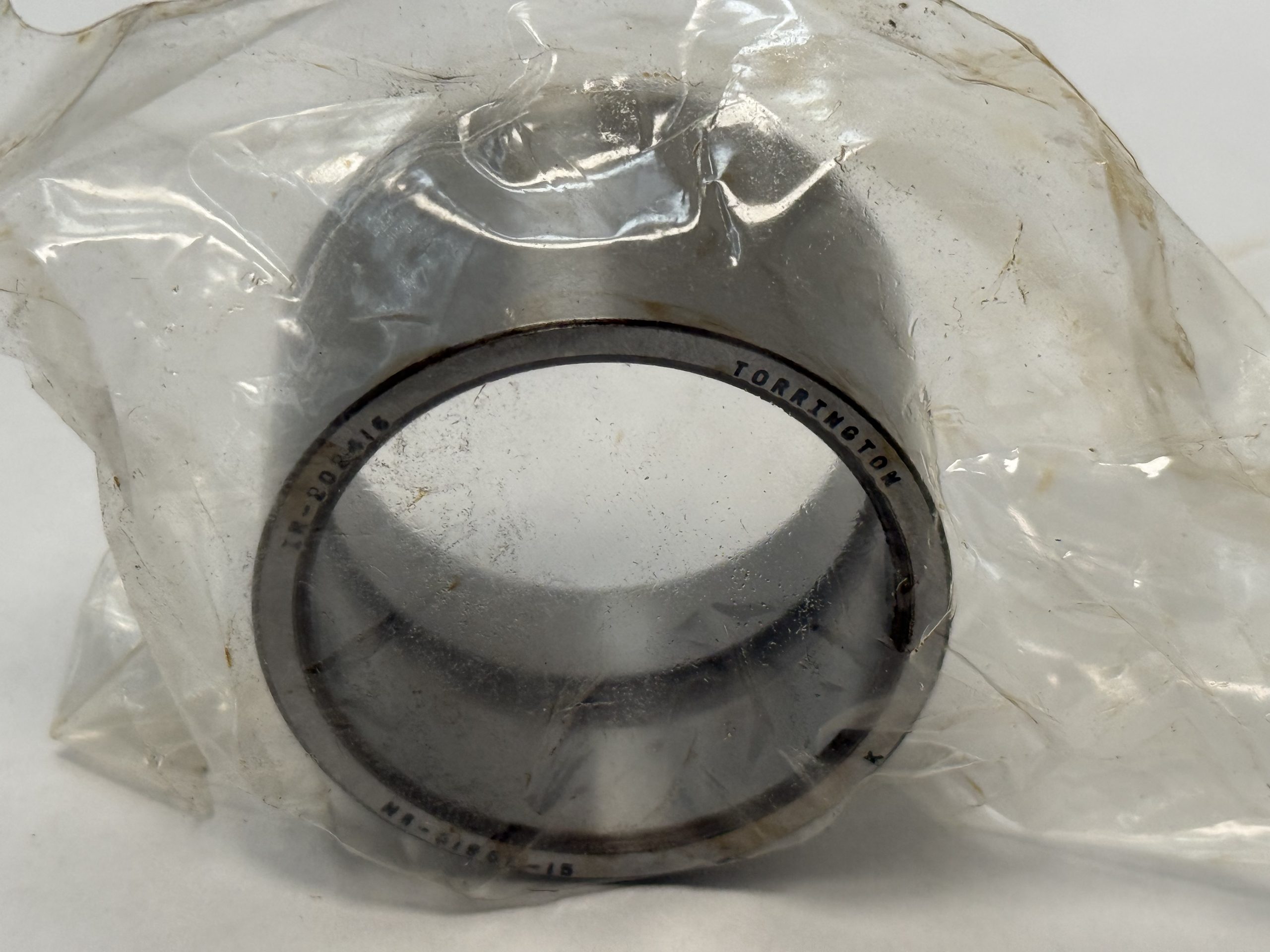

Torrington IR-202416 inner ring for a heavy-duty needle roller bearing, inch series, 1-1/4 in bore, 1-1/2 in outside diameter, 1 in wide, straight bore. Set of four pieces. Unit Quantity: 4 Pcs. Government designation MS-51962-15.
IR — inner ring for a heavy-duty needle roller bearing, inch series.
20 — bore in sixteenths of an inch, 20/16 = 1.2500 in.
24 — outside diameter in sixteenths of an inch, 24/16 = 1.5000 in.
16 — width in sixteenths of an inch, 16/16 = 1.0000 in.

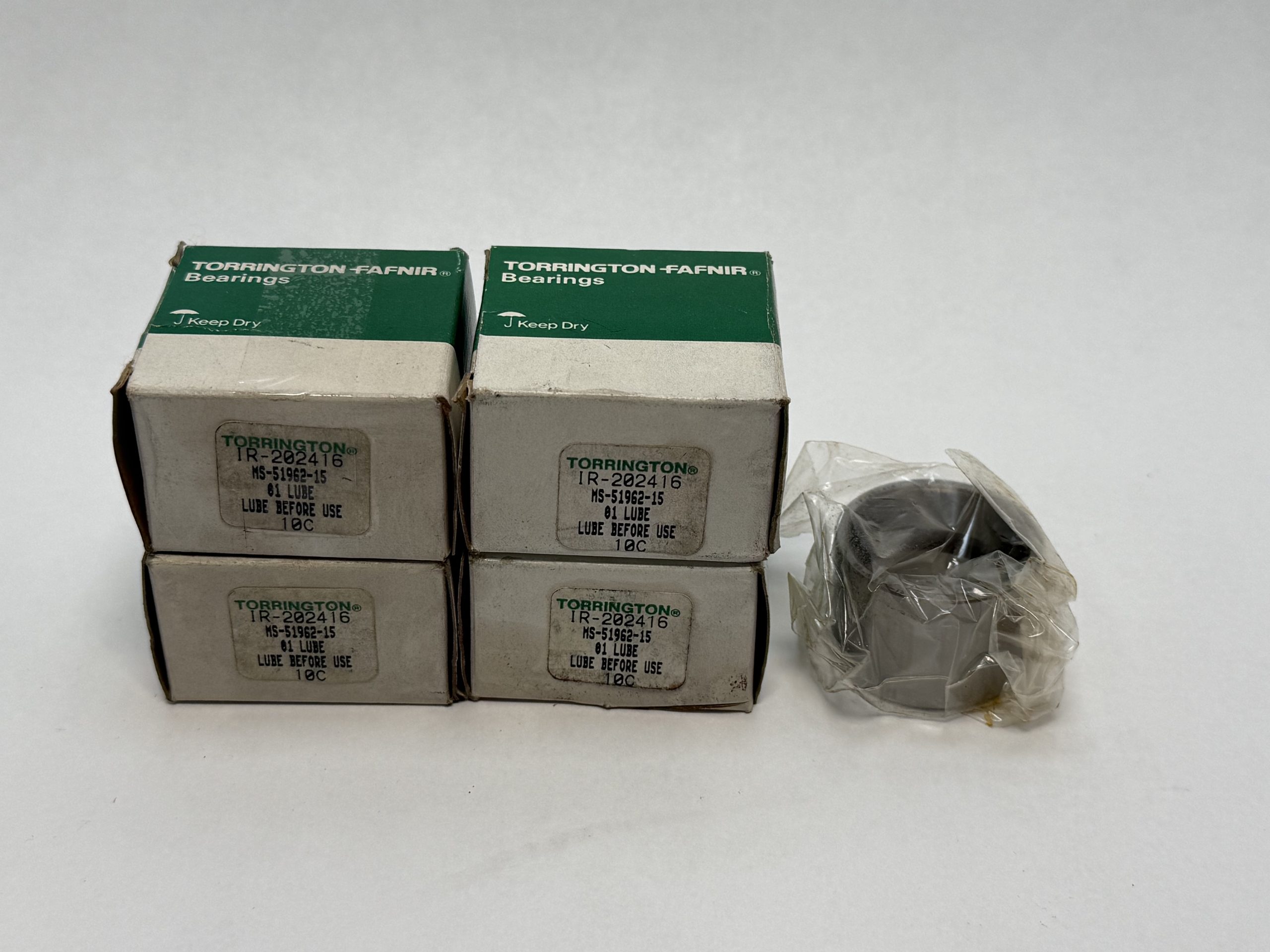

MS-51962-15 — government standard part number printed on the cartons alongside the commercial designation.
Bore Diameter: 1.2500 in (31.750 mm). Outside Diameter: 1.5000 in (38.100 mm). Width: 1.0000 in (25.400 mm). Bore Type: Straight. Bearing Material: High carbon chrome steel. Item Weight: 0.146 lb per piece. Series: IR. Unit Quantity: 4 Pcs.
The 1.5000 in outside diameter is the raceway for the needle rollers and matches the 1-1/2 in bore of the mating needle roller bearing. The 1.2500 in bore sits on a 1-1/4 in shaft.
Mating heavy-duty needle roller bearing: HJ-243316. Designation written as IR-202416, IR202416 and IR 202416. Government designation: MS-51962-15.
Bore 1.2500 in, outside diameter 1.5000 in and width 1.0000 in.
The HJ-243316 heavy-duty needle roller bearing, which has a 1-1/2 in bore.
MS-51962-15 is the government standard part number printed on the cartons alongside IR-202416.
