Availability:
1 in stock

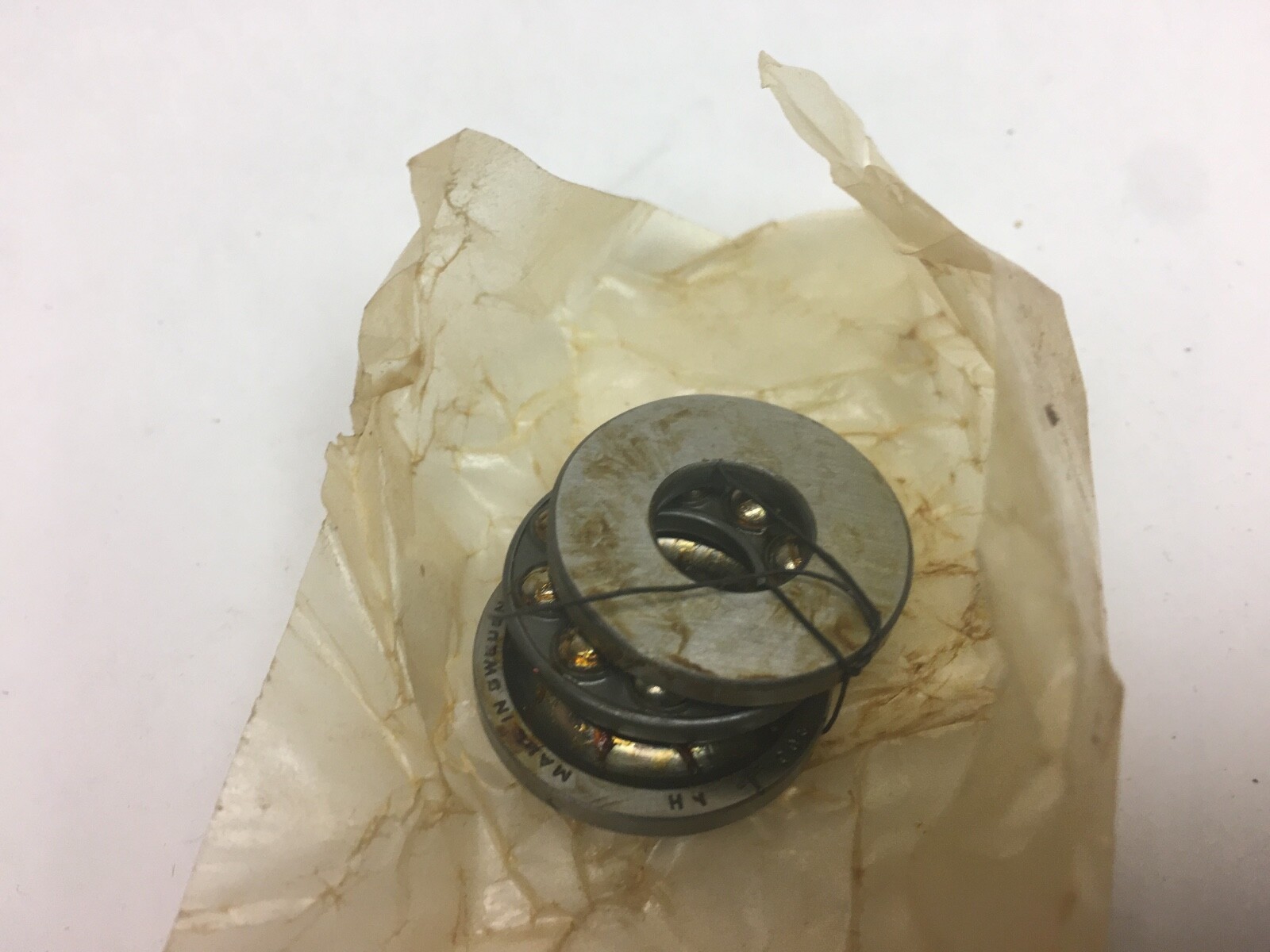

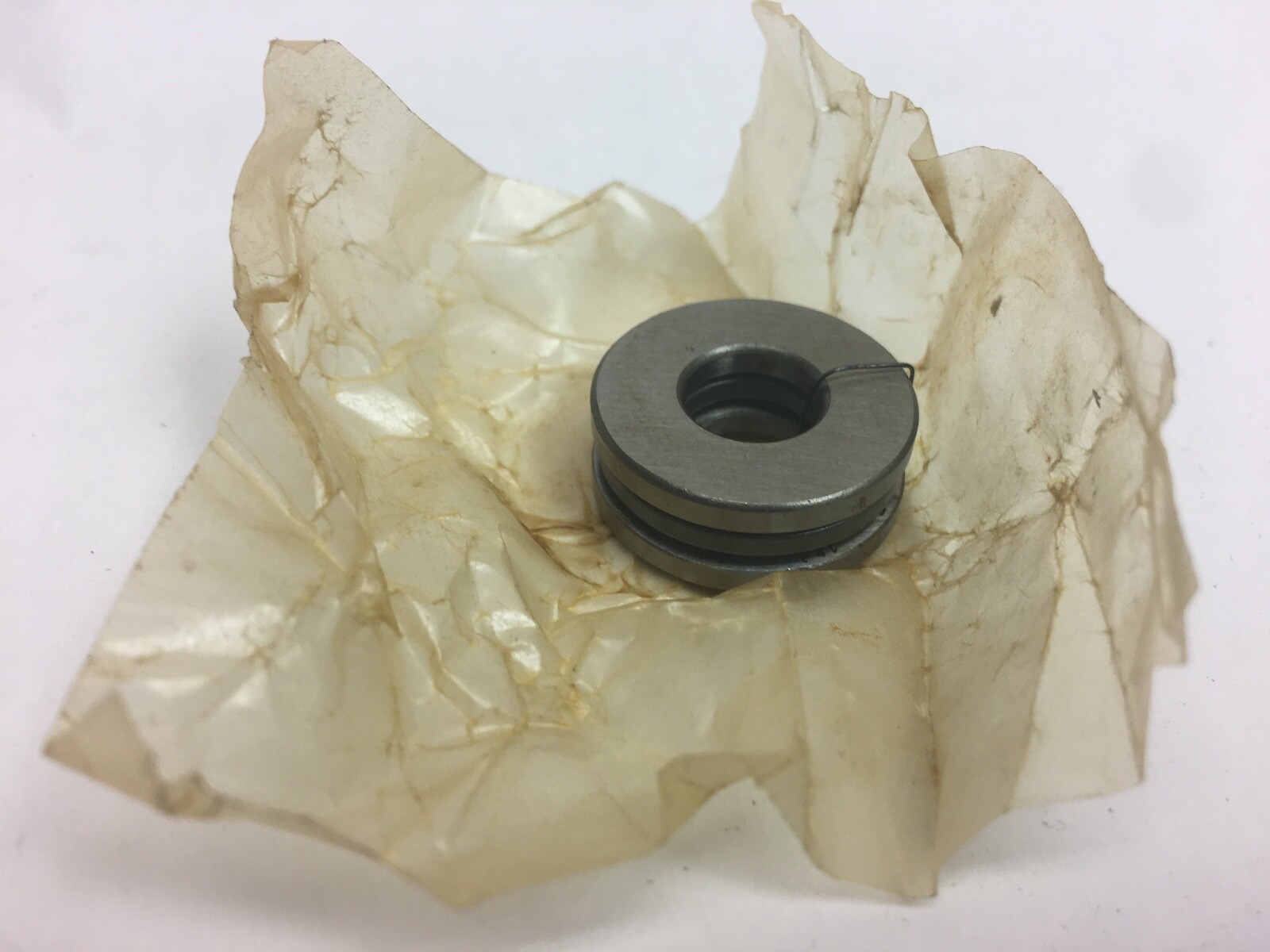

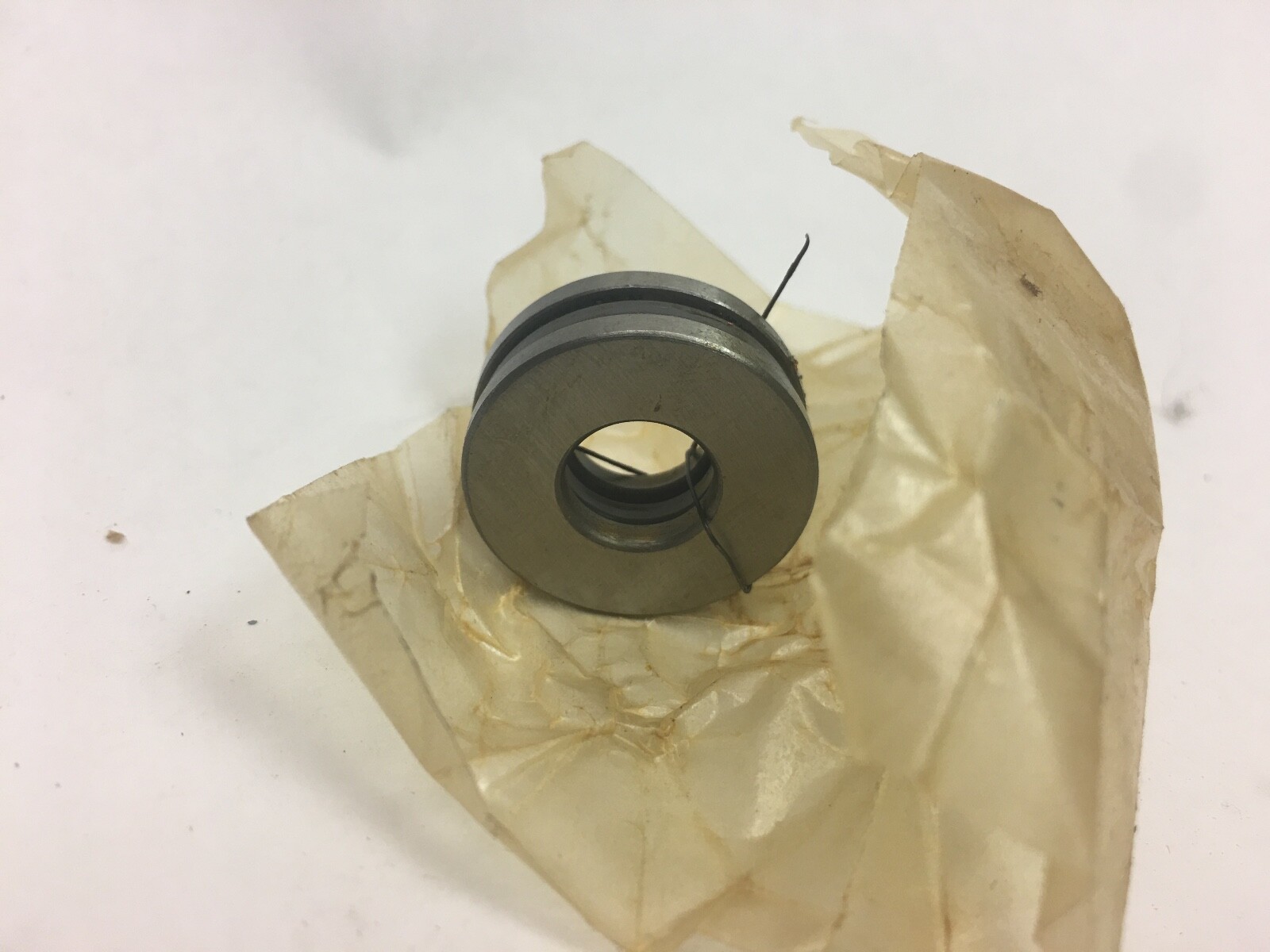

SKF 51100 single direction thrust ball bearing, 10 mm bore x 24 mm OD x 9 mm high, 8.71 kN dynamic rating. Sold as a 29-piece set of genuine SKF bearings.
List Price
$152.99
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | SKF |
|---|---|
| MPN | 51100 |
| GTIN | 7316577006493 |
| Model | SKF51100 |
| ID | 10 mm |
| OD | 24 mm |
| Width | 9 mm |
| Material | Steel |
|---|---|
| Series | 511 |
| Lubricant | grease or oil |
| Base Number | 51100 |
| Industry Terms | thrust ball bearing; axial ball bearing; grooved thrust bearing; axial deep groove ball bearing |
| Common Misspellings | 5110; 511000; 51-100 |
| Application Types | axial loads; gearboxes; vertical shafts; machine tool tables |
| Mpn Variants | 51100; SKF51100; 51100 SKF |
| Precision Class | ABEC 1 / P0 |
| Additional Attributes | Reference speed: 9,500 rpm; Axial load capability: Single-direction; Housing washer type: Flat; Tolerance class: Normal; eClass code: 23-05-10-01; UNSPSC code: 31171507 |
| Dynamic Load Rating | 8,710 N |
| Static Load Rating | 12,200 N |
| Rolling Elements | Steel balls |
| Bearing Type | Thrust Ball Bearing |
| Item Weight | 0.02 kg (0.04 lb) |
| Cage Material | Sheet metal |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Limiting Speed | 13,000 rpm |
| Duty Type | Standard |
| Bearing Material | Bearing steel |
| Cross Reference 1 | FAG 51100 |
|---|---|
| Cross Reference 2 | NSK 51100 |
| Cross Reference 3 | NTN 51100 |
| Cross Reference 5 | Timken 51100 |
| Cross Reference 6 | INA 51100 |
SKF 51100 single direction thrust ball bearing. Bearing type: Thrust Ball Bearing. The bearing carries axial load in one direction and carries no radial load. Shaft washer, housing washer and ball-and-cage assembly are separable. The shaft washer has a ground bore for an interference fit.
511 — SKF single direction thrust ball bearing series, flat housing washer.
00 — bore code, 10 mm bore.
Bore Diameter: 10 mm. Outside Diameter: 24 mm. Overall Width: 9 mm (bearing height). Dynamic load rating: 8,710 N. Static load rating: 12,200 N. Limiting Speed: 13,000 rpm. Reference speed: 9,500 rpm. Cage Material: Sheet metal. Bearing Material: Bearing steel. Precision Class: Normal (ABEC 1 / P0). Number Of Rows: 1. Bore Type: Straight. Housing washer: Flat. Item weight: 0.02 kg (0.04 lb) per bearing. Lubricant: grease or oil.

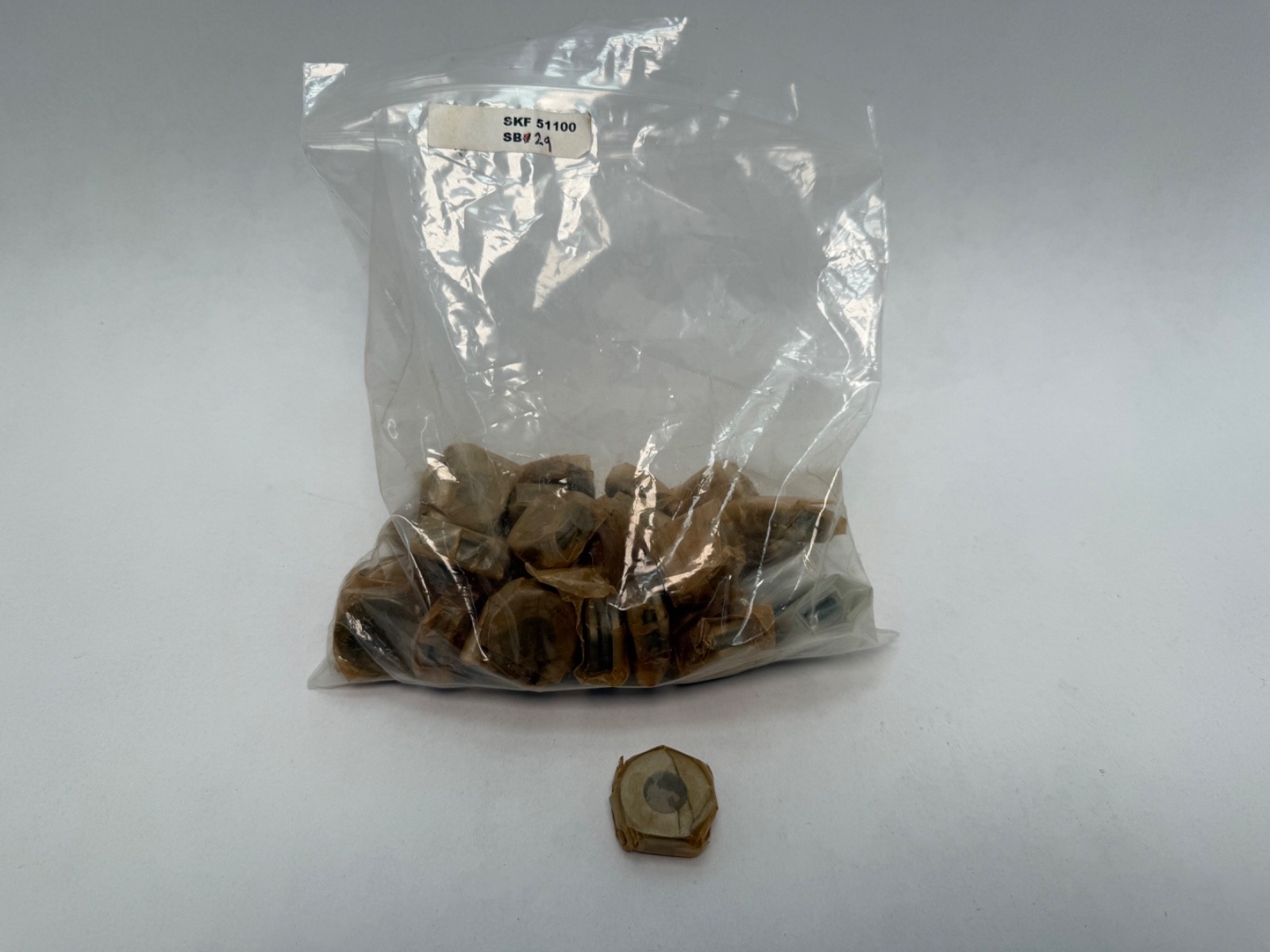

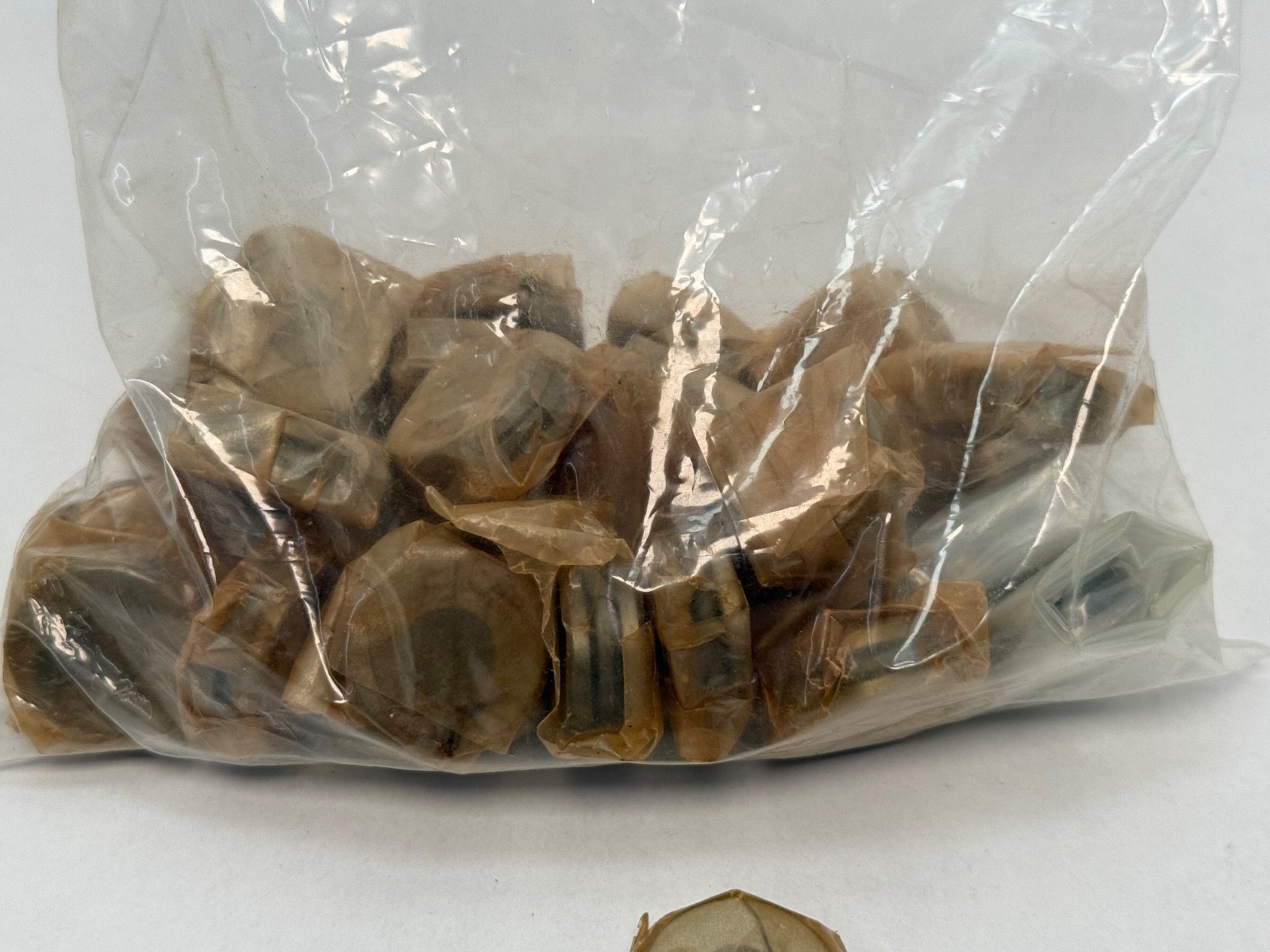

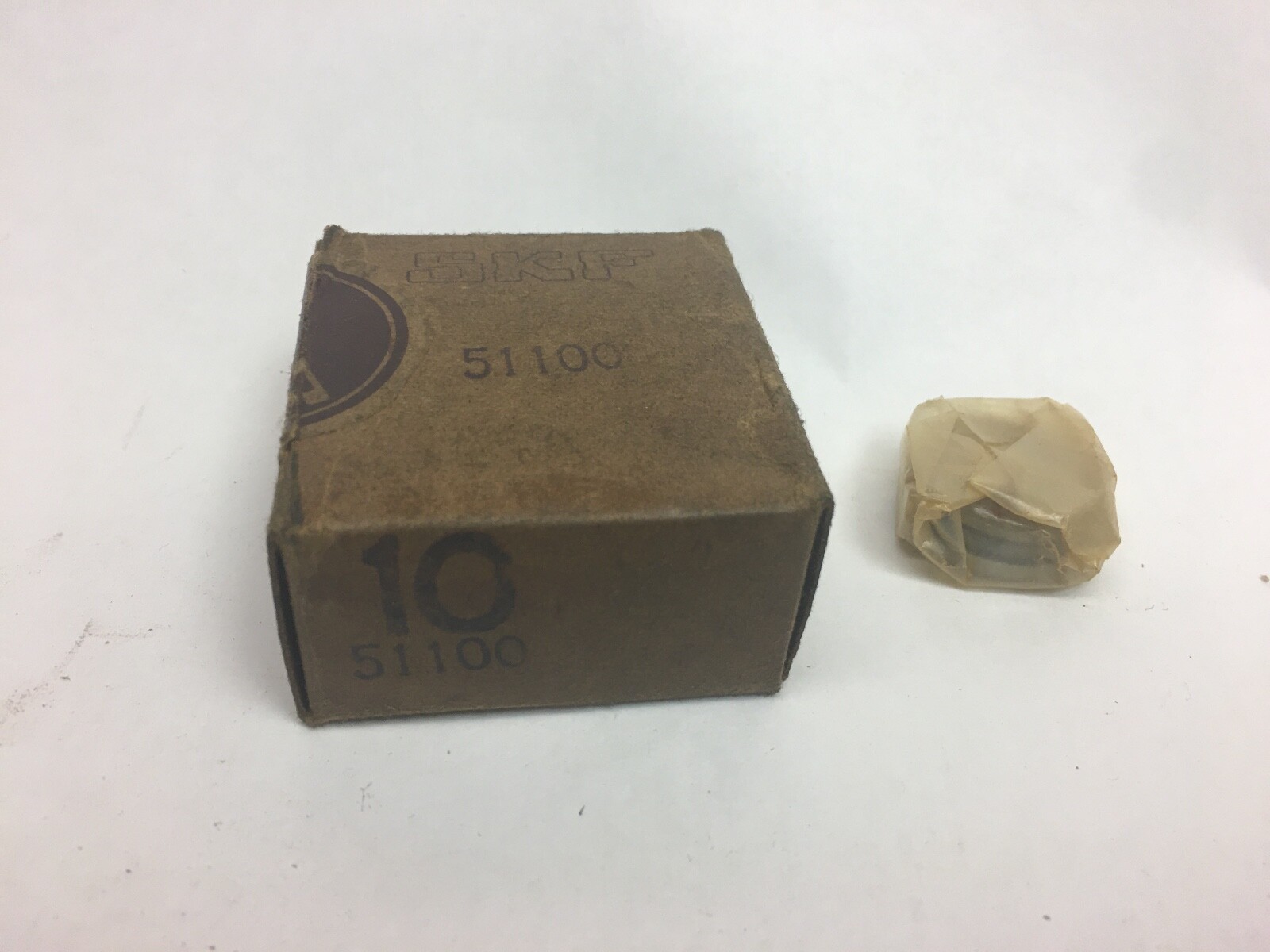

Unit Quantity: 29 Pcs. Genuine SKF bearings, originally packed in boxes of 10.
ISO 104 dimension series 11, 10 x 24 x 9 mm. Cross-references, single direction thrust ball bearings: FAG 51100, INA 51100, NSK 51100, NTN 51100, Koyo 51100, Timken 51100. GTIN: 7316577006493.
