Availability:
1 in stock
Grooved race ball thrust bearing, inch series, 3-1/4 in bore, 4-3/4 in OD, 1-1/4 in high, carrying axial load in one direction. INA W3-1/4, also W 3-1/4.
List Price
$61.17
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | INA |
|---|---|
| MPN | W3-1/4 |
| Model | W 3 1 4 |
| ID | 3.2500 in (82.550 mm) |
| OD | 4.7500 in (120.650 mm) |
| Bearing Type | Grooved Race Ball Thrust Bearing |
|---|---|
| Industry Terms | ball thrust bearing, grooved race thrust bearing, thrust washer bearing, axial ball bearing |
| Common Misspellings | W3 1/4, W-3-1/4, W314 |
| Overall Width | 1.2500 in (31.750 mm) |
| Mpn Variants | W3-1/4, W 3-1/4, W31/4, W 3 1/4, W3.25 |
| Series | W |
| Rolling Elements | Ball |
| Design Units | Inch |

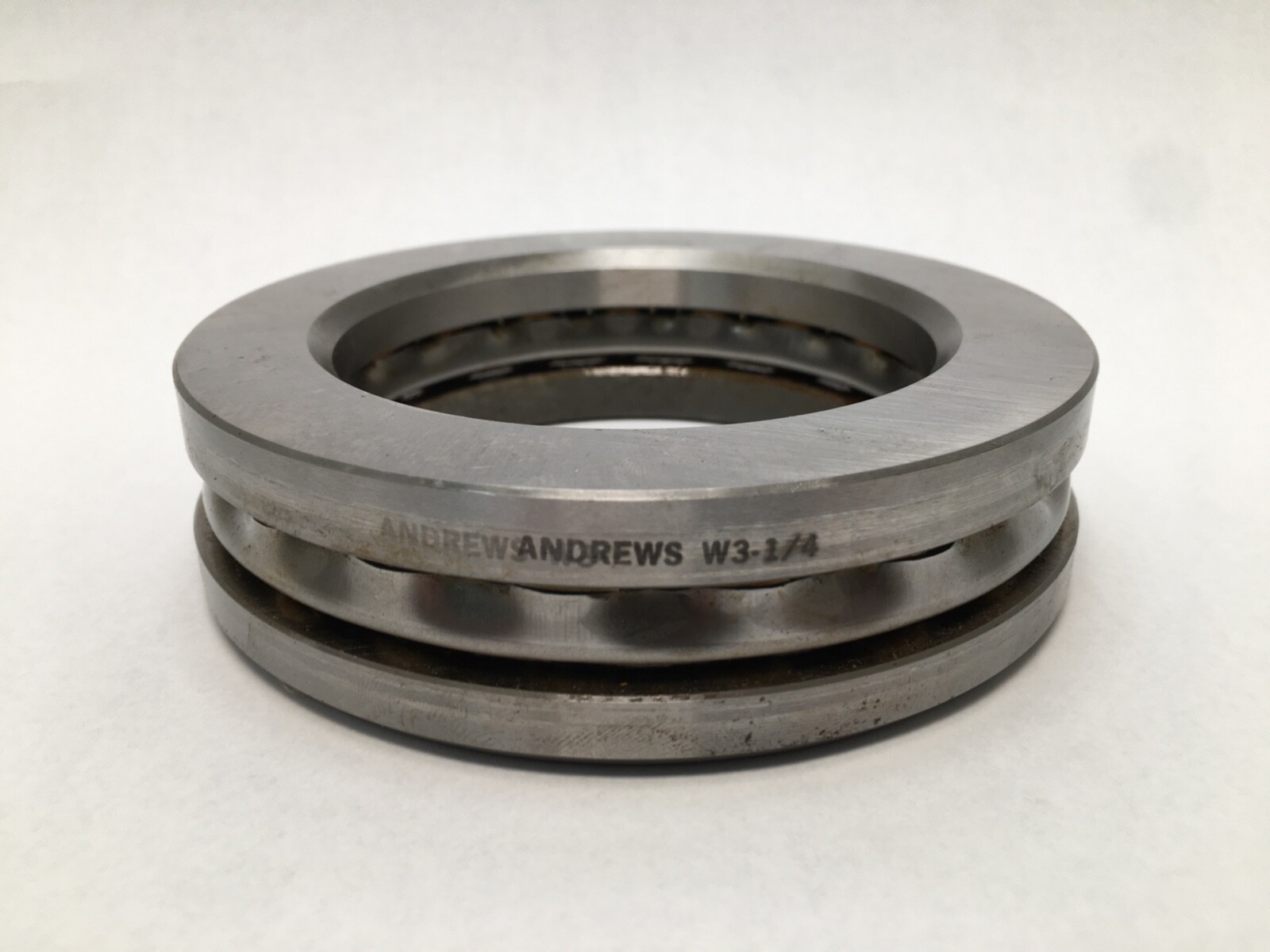

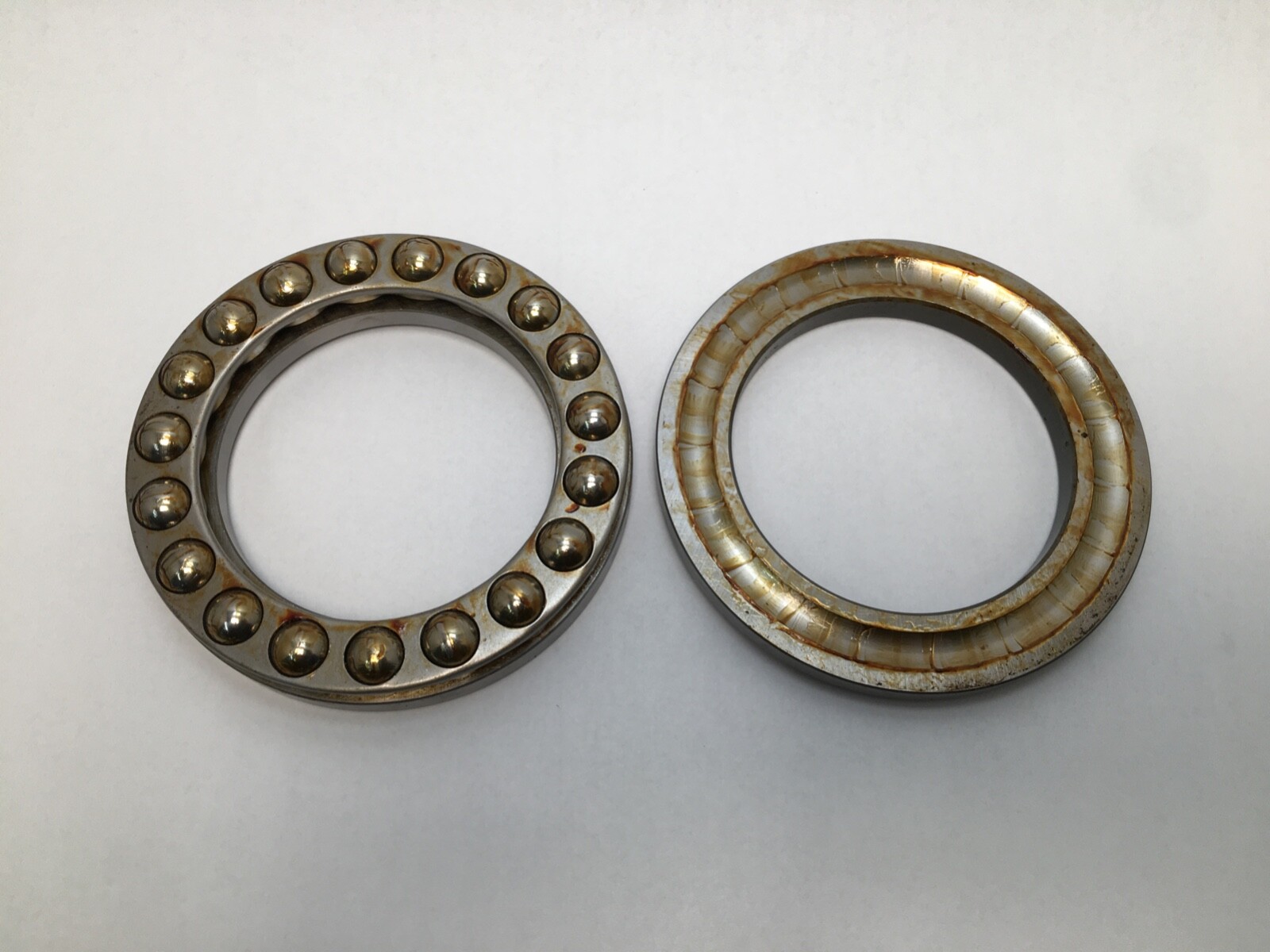

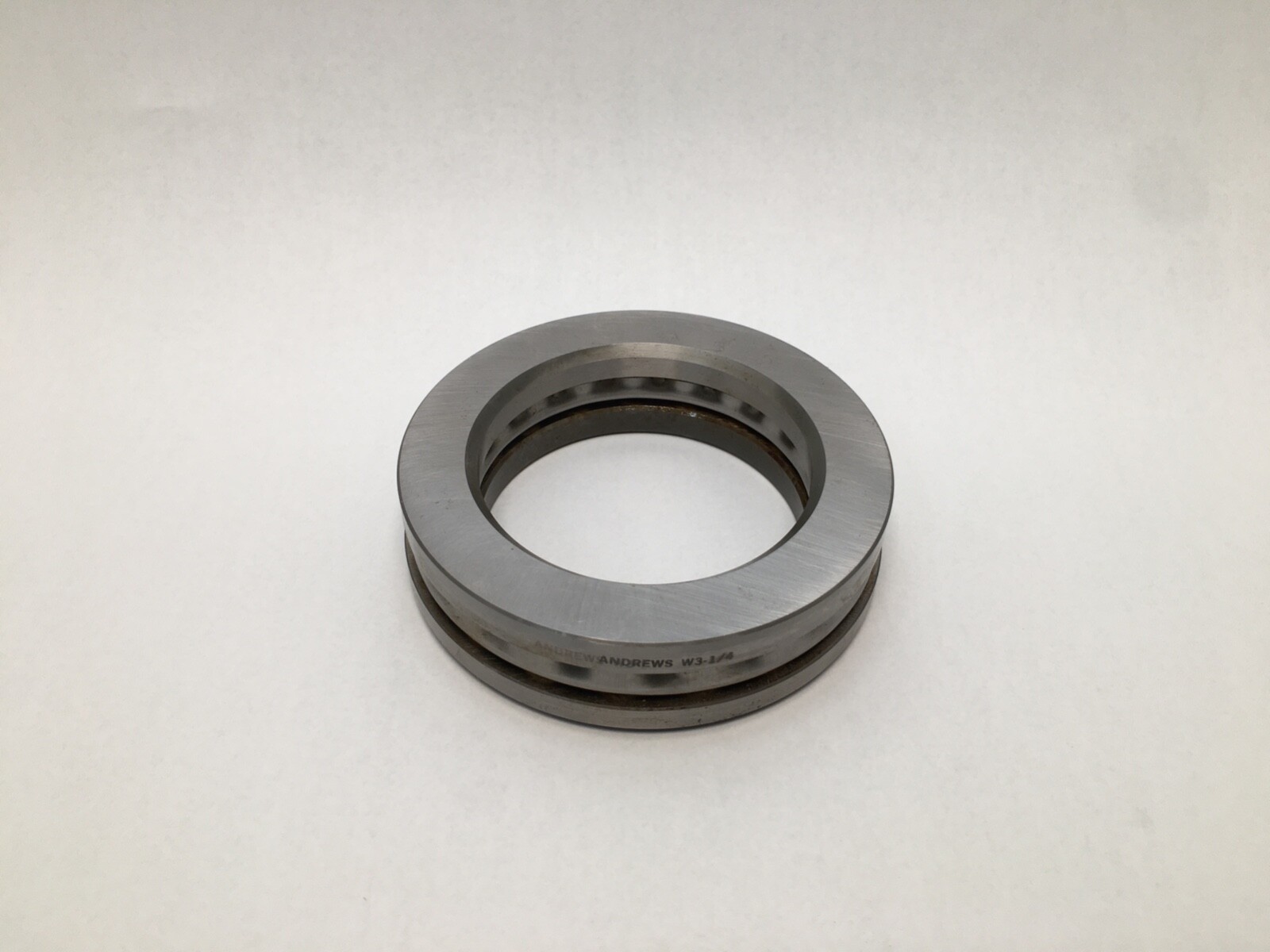

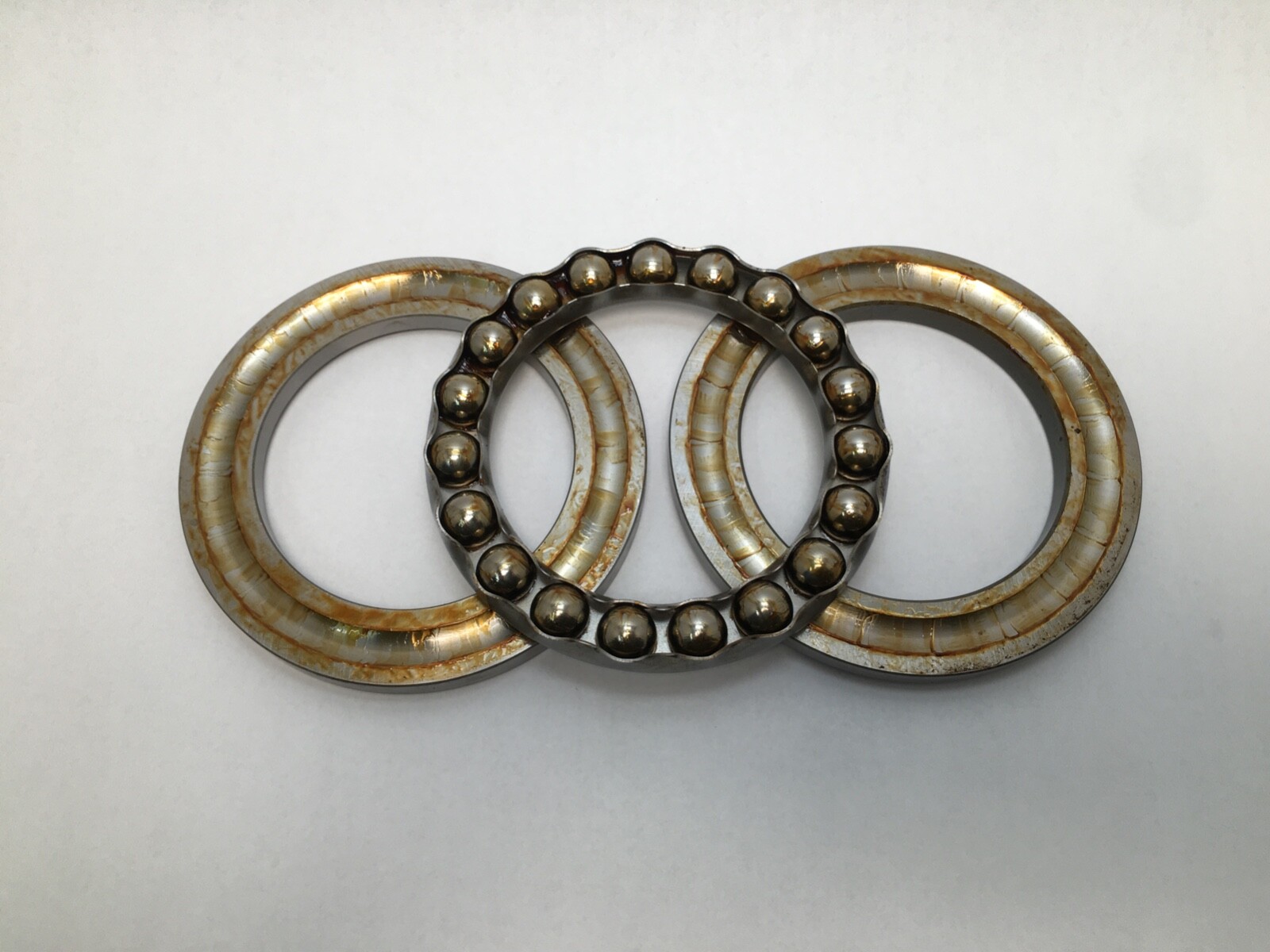

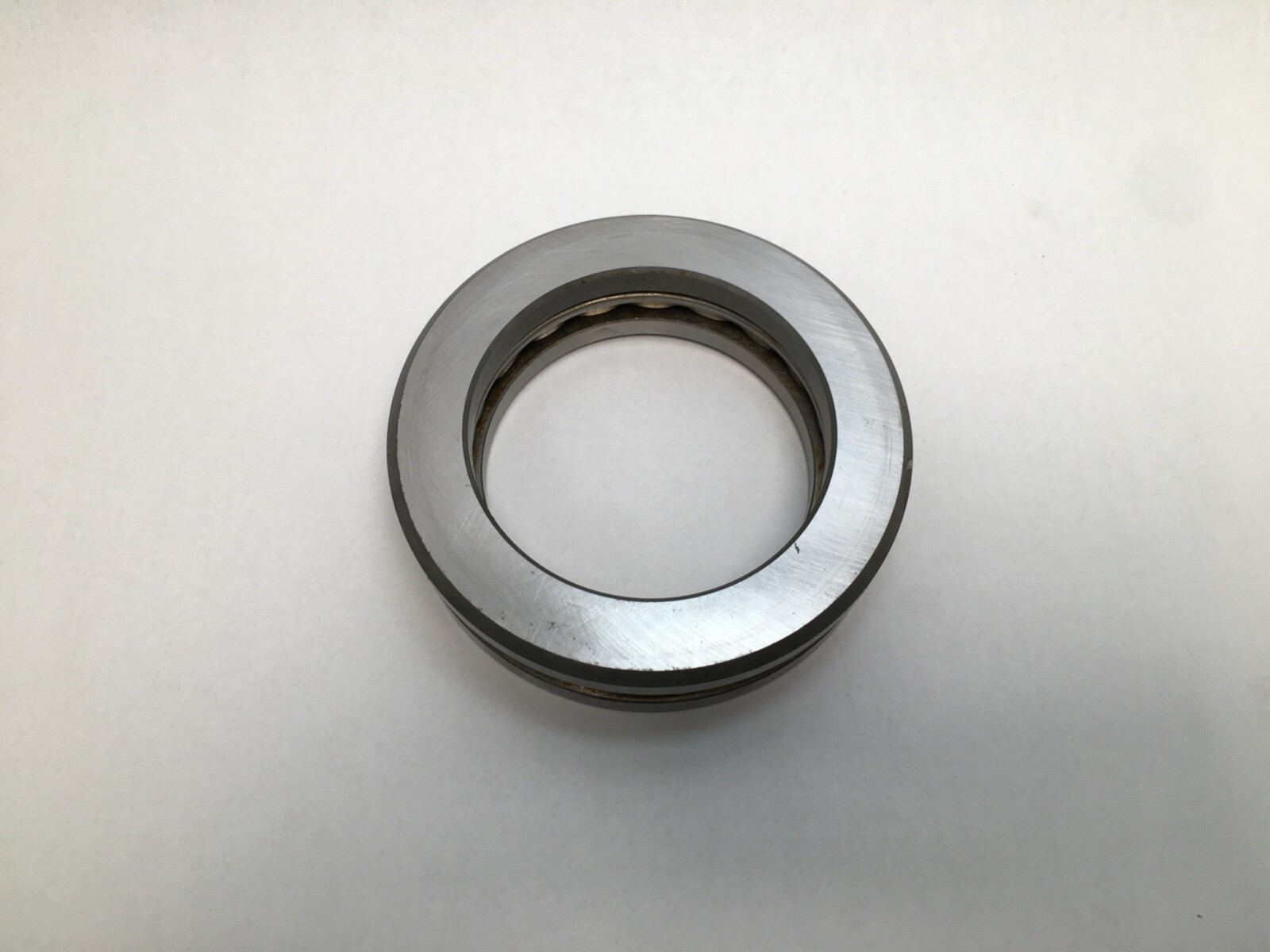

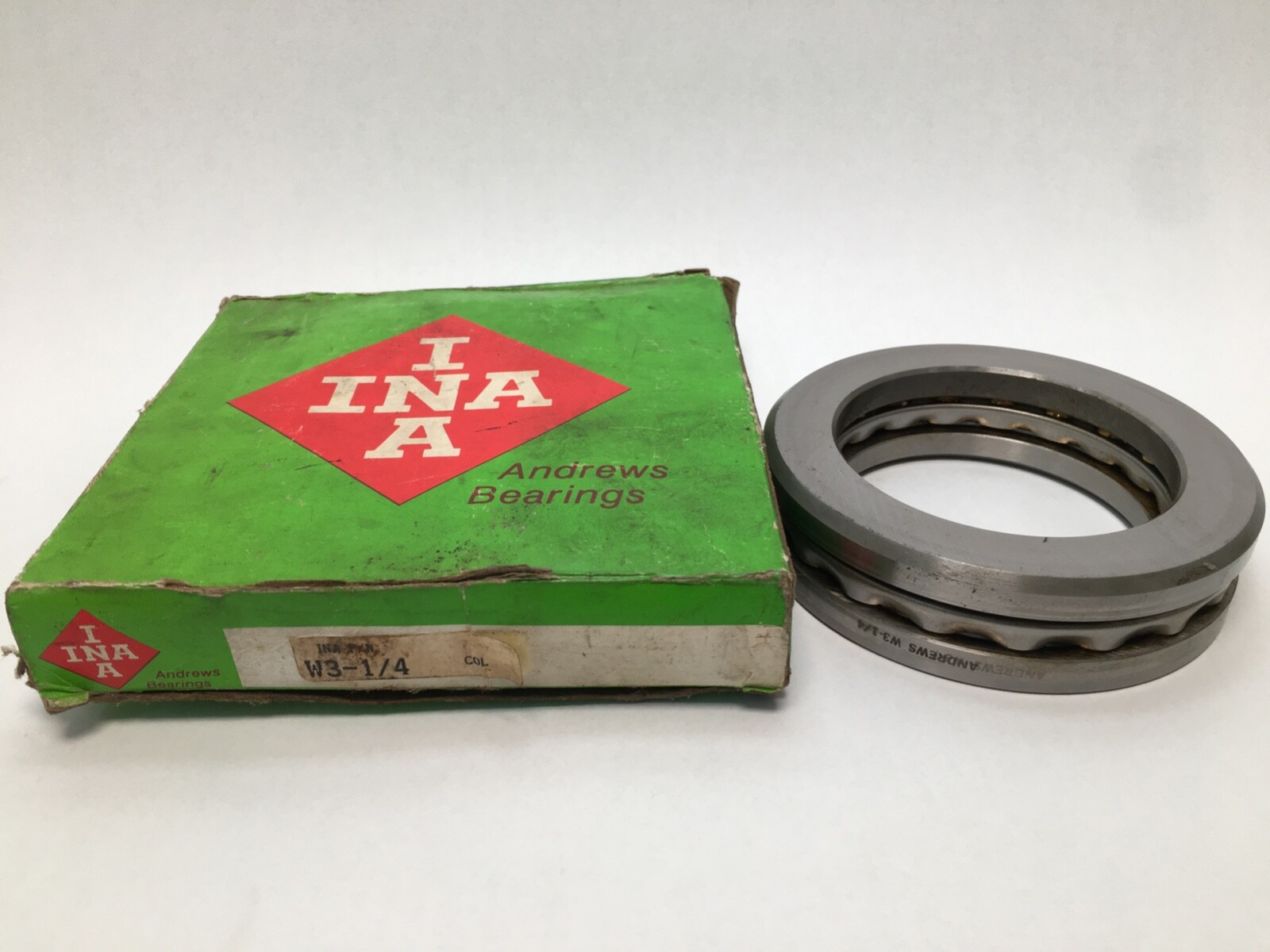

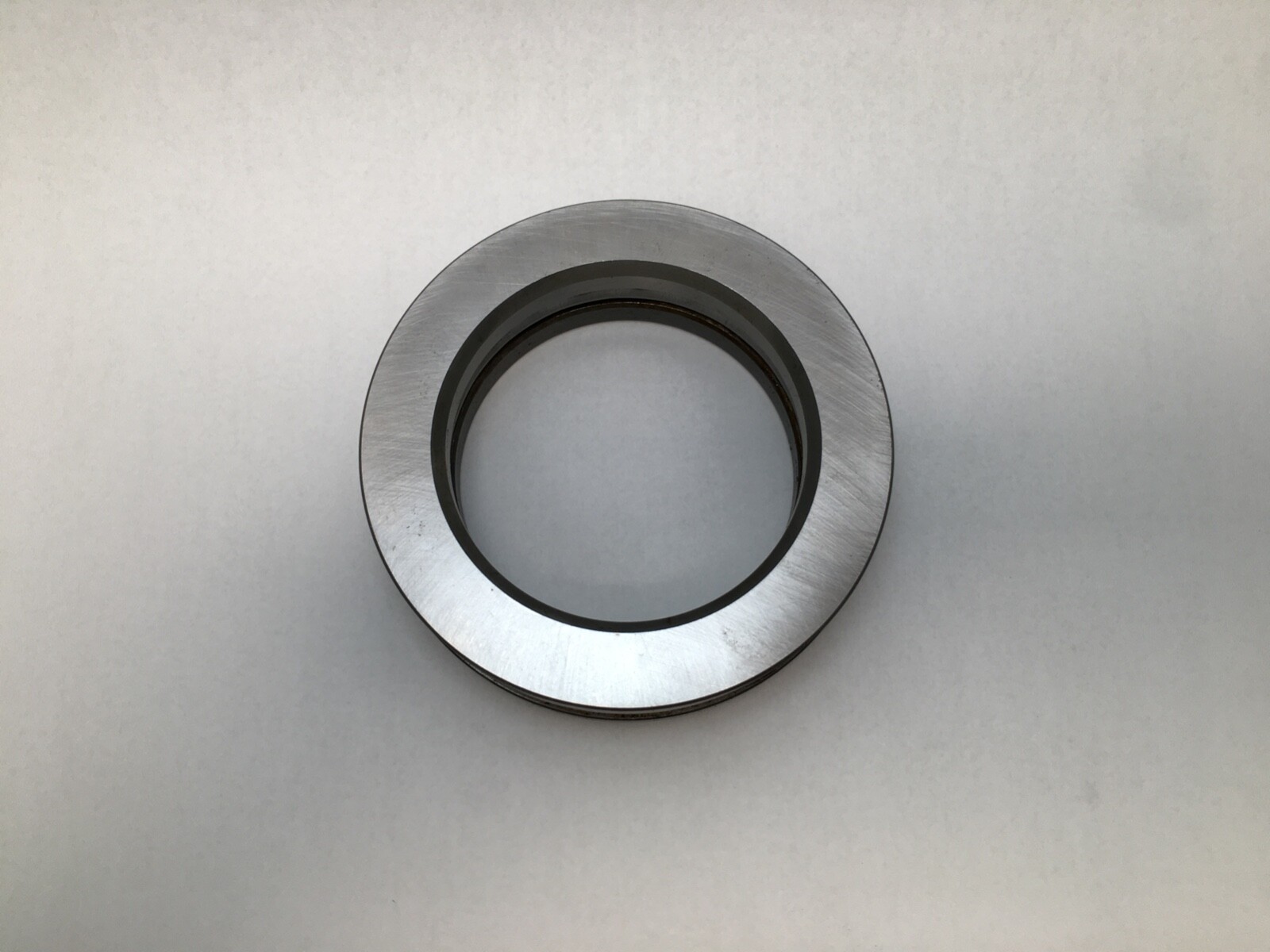

The INA W3-1/4 is an inch-series ball thrust bearing with grooved raceways: a shaft washer, a housing washer and a caged ball complement running in grooved races. It carries axial load in one direction and is separable for assembly.
W — INA inch-series grooved race ball thrust bearing.
3-1/4 — bore, 3-1/4 in.
Bearing Type: Grooved race ball thrust bearing. Bore Diameter: 3.2500 in (82.550 mm). Outside Diameter: 4.7500 in (120.650 mm). Overall Width (height): 1.2500 in (31.750 mm). Rolling Elements: Ball. Load Direction: Axial, one direction. Design Units: Inch. Unit Quantity: 1 Pc.
Envelope: 3-1/4 in bore x 4-3/4 in OD x 1-1/4 in high. Separable washers and ball assembly.
INA part number W3-1/4, also written W 3-1/4, W31/4 or W 3 1/4.
3-1/4 in bore, 4-3/4 in outside diameter, 1-1/4 in high.
Axial load in one direction.
A ball thrust bearing with grooved raceways.
