Availability:
1 in stock
Double direction thrust ball bearing, 65 mm bore, 115 mm OD, 48 mm height. BL 52216, five components: shaft washer, two housing washers, two ball cages.
List Price
$43.69
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | BL |
|---|---|
| MPN | 52216 |
| Model | 52216-BL |
| ID | 65 mm |
| OD | 115 mm |
| Bearing Type | Double Direction Thrust Ball Bearing |
|---|---|
| Total Width | 48 mm |
| Mpn Variants | 52216, 16016, BL52216 |
| Series | 522 |
| Rolling Elements | Ball |
| Number Of Rows | 2 |
| Harmonization Code | 8482.10 |
| Industry Terms | double direction thrust ball bearing, 5-piece thrust bearing, axial ball bearing, 522 series thrust bearing |
| Common Misspellings | BL 52 216, BL52216, B L 52216, BL 5216 |
| Application Types | machine tool spindles; vertical shafts; gearboxes; pumps |
| Cross Reference 1 | SKF 52216 |
|---|---|
| Cross Reference 2 | FAG 52216 |
| Cross Reference 3 | NSK 52216 |
| Cross Reference 4 | NTN 52216 |
BL 52216 is a double direction thrust ball bearing in the ISO 522 series. The assembly is five components: one shaft washer, two housing washers and two ball and cage assemblies. Unit Quantity: 1 Pc (one complete five-component bearing).
52216 — ISO double direction thrust ball bearing, 522 series, size 16, 65 x 115 x 48 mm.
Bearing Type: Double direction thrust ball bearing. Bore Diameter: 65 mm. Outside Diameter: 115 mm. Total Width: 48 mm. Rolling Elements: Ball. Number Of Rows: 2. Series: 522. Closure Type: Open. Snap Ring: No.
Bore Diameter: 65 mm. Outside Diameter: 115 mm. Total Width: 48 mm. The centre shaft washer locates on the shaft; the two housing washers seat in the housing, carrying axial load in both directions.

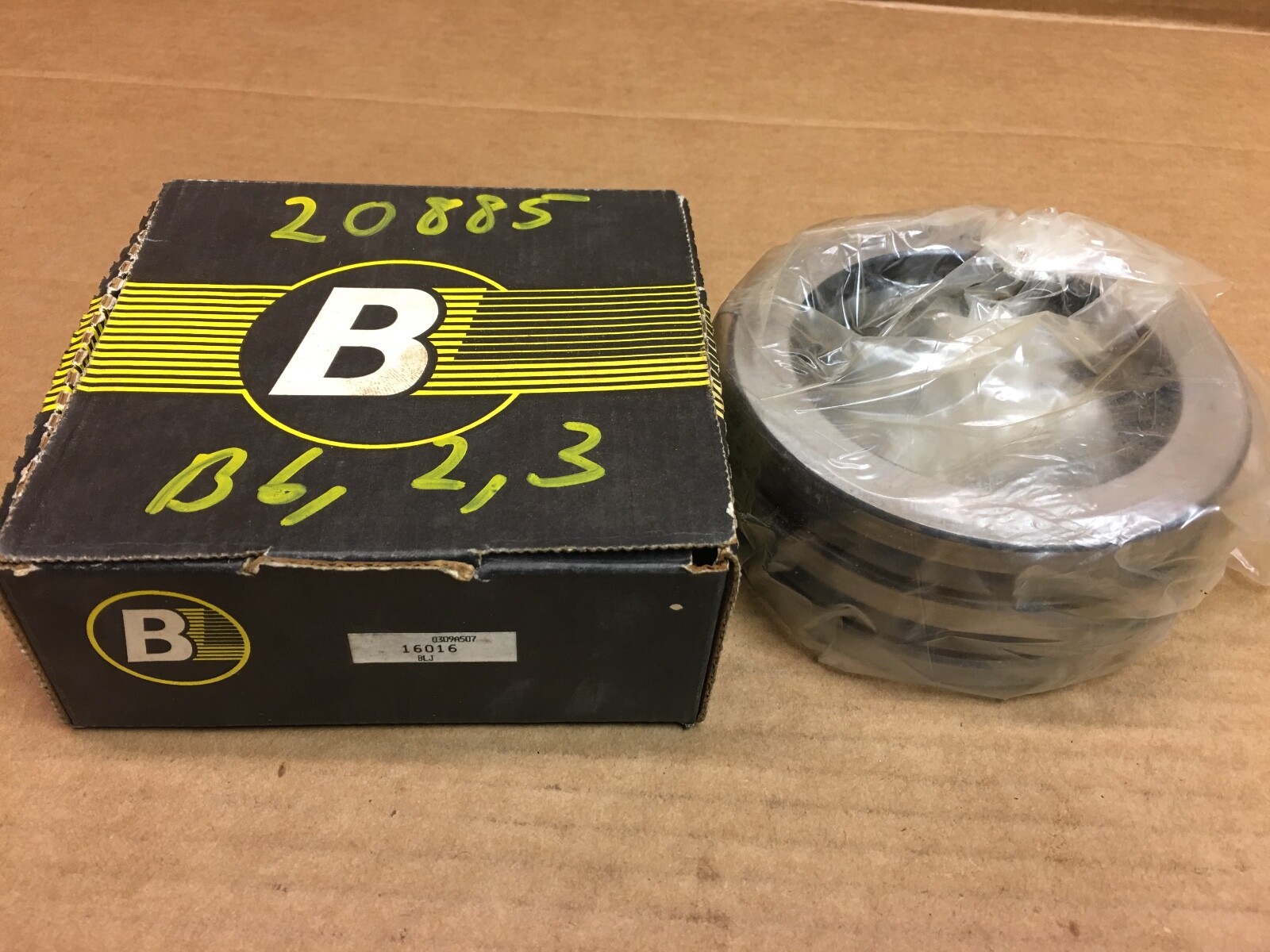

Cross-references on the same ISO 65 x 115 x 48 mm envelope: SKF 52216, FAG 52216, NSK 52216, NTN 52216. Also written as 16016 and BL52216.

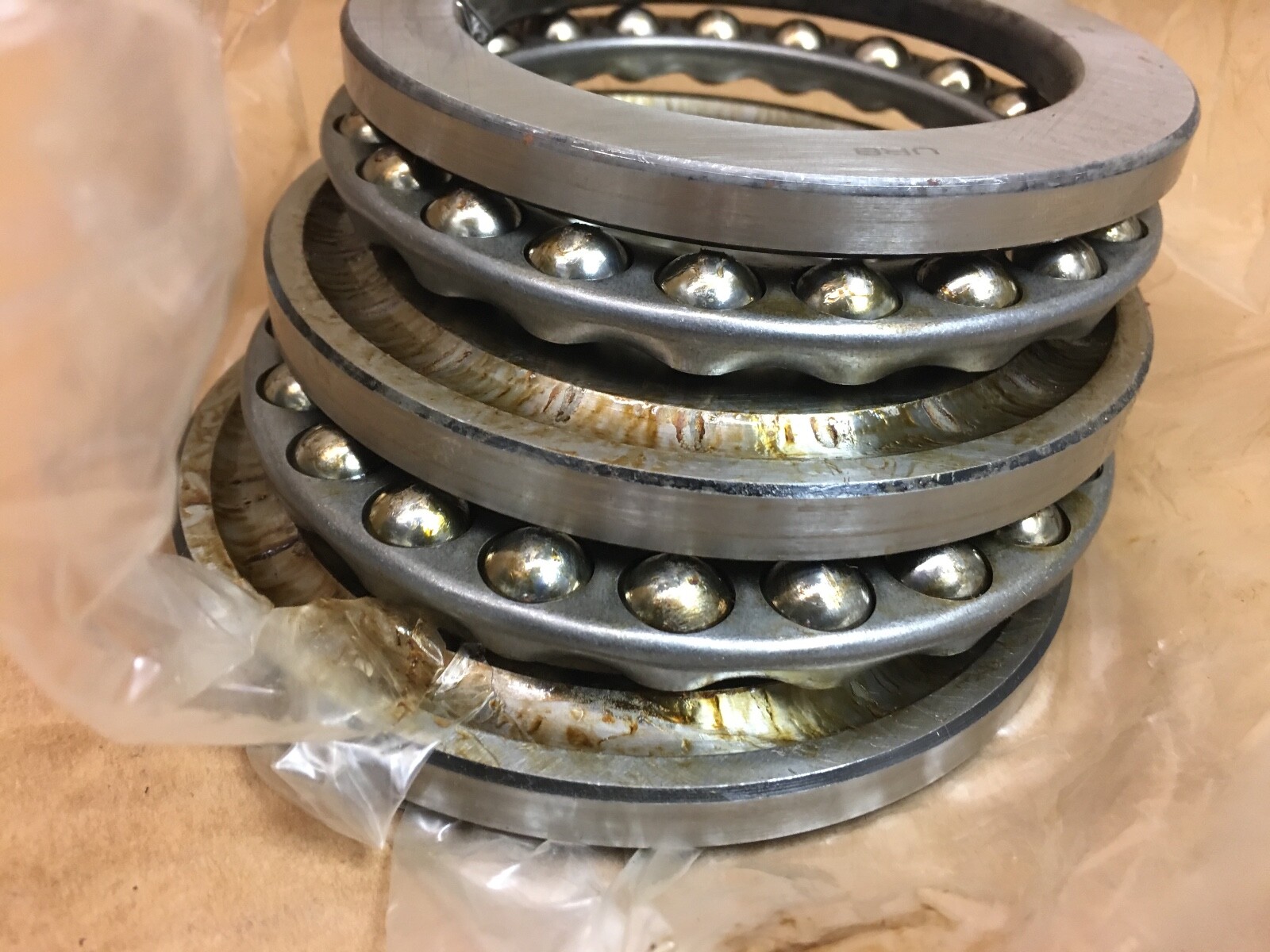

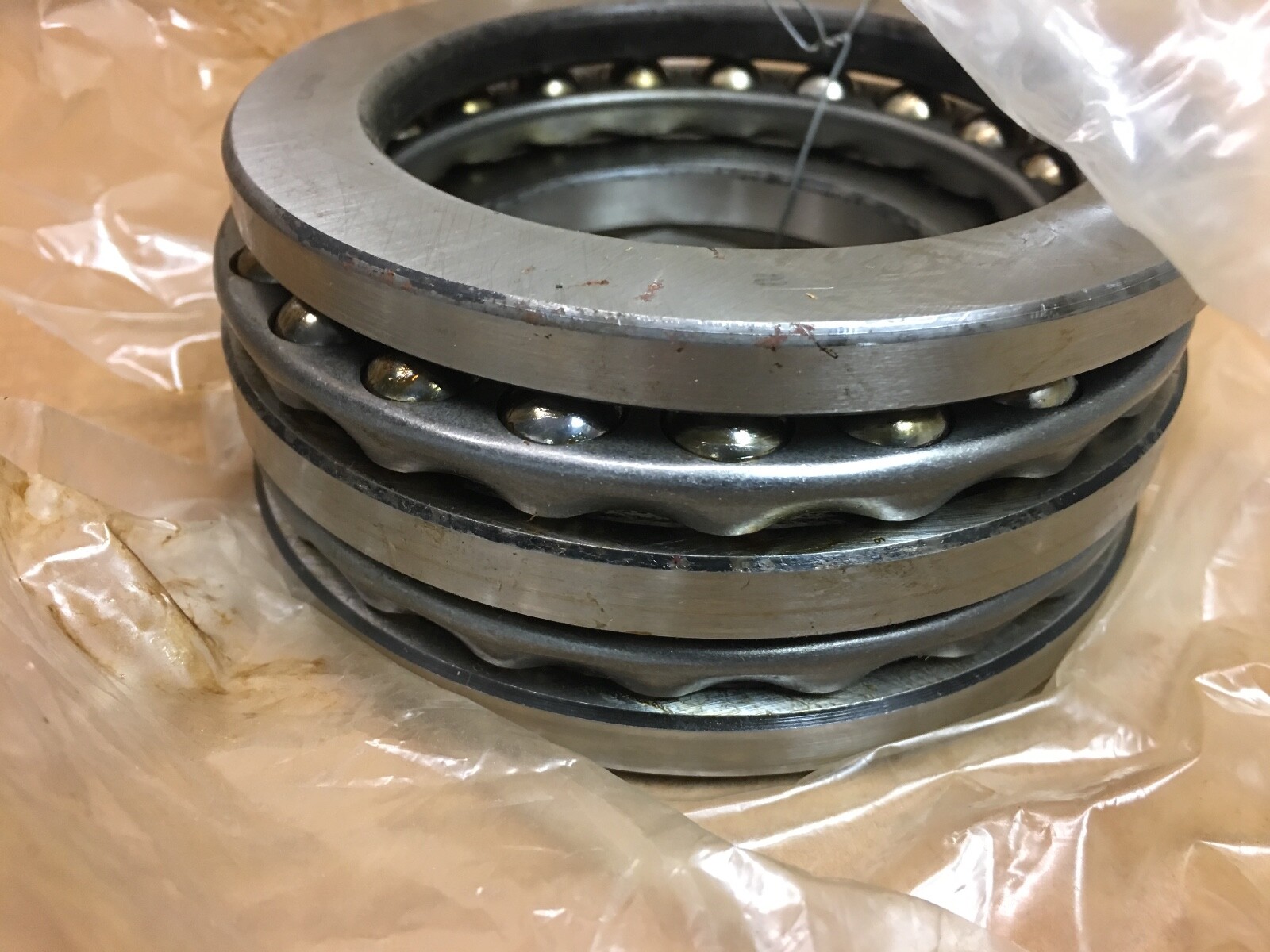

The bearing is supplied as its five components: one shaft washer, two housing washers and two ball and cage assemblies, forming one complete bearing.
Yes. A double direction thrust bearing carries axial load in both directions.
SKF 52216, FAG 52216, NSK 52216 and NTN 52216, all 65 x 115 x 48 mm.
