Availability:
2 in stock

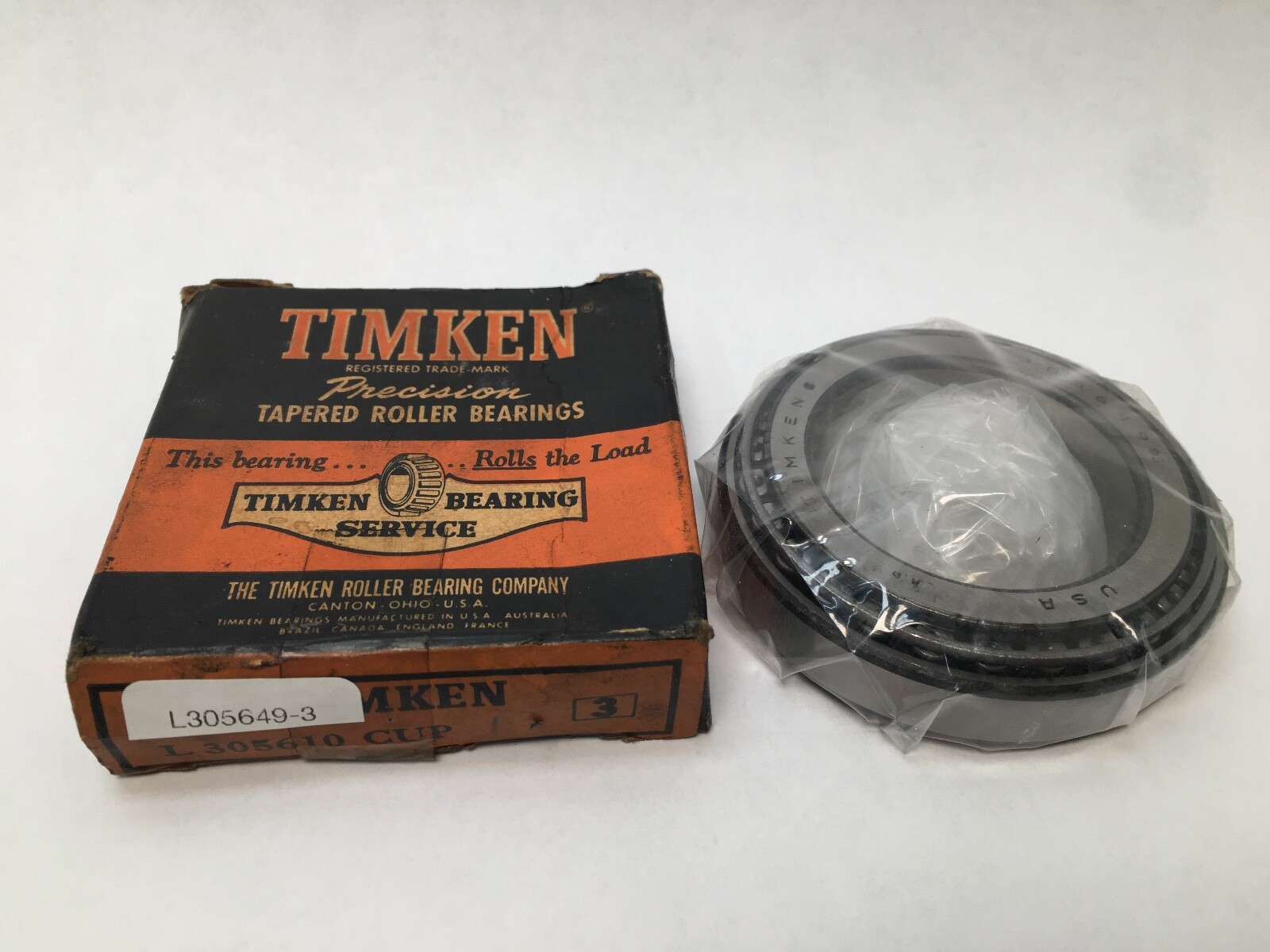

Complete single-row tapered roller bearing set: matched cone and cup, 2 inch bore x 3-3/16 inch OD, Timken Class 3 precision. One set.
List Price
$114.41
2 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Timken |
|---|---|
| Model | L-305649 *3 / L-305610 *3 |
| Bearing Type | Tapered Roller Bearing |
| ID | 2.0000 in |
| OD | 3.1870 in |
| Series | L305600 |
|---|---|
| Base Number | L305649/L305610 |
| Industry Terms | Taper bearing set, cone and cup set, tapered roller bearing assembly, precision taper bearing, Class 3 taper bearing |
| Common Misspellings | Timkin, Timpken, L30564-9, L305649/L30561, L305649-3/L305610 3 |
| Application Types | Gearboxes, spindles, wheel and hub positions, pump and pinion shafts, heavy equipment |
| Bore Shaft Size | 2 inch |
| Mpn Variants | L305649-3/L305610-3, L305649/L305610, L305649-L305610, L305649/10, L305649 3 L305610 3 |
| Number Of Rows | 1 |
| Harmonization Code | 8482.20.00 |
| Cup Part Number | L305610 |
| Cup Width | 0.5625 in |
| Cup Backface To Clear Radius | 0.05 in |
| Part Number | L305649-3/L305610-3 |
| Cone Part Number | L305649 |
| Cone Width | 0.7185 in |
| Cone Backface To Clear Radius | 0.03 in |

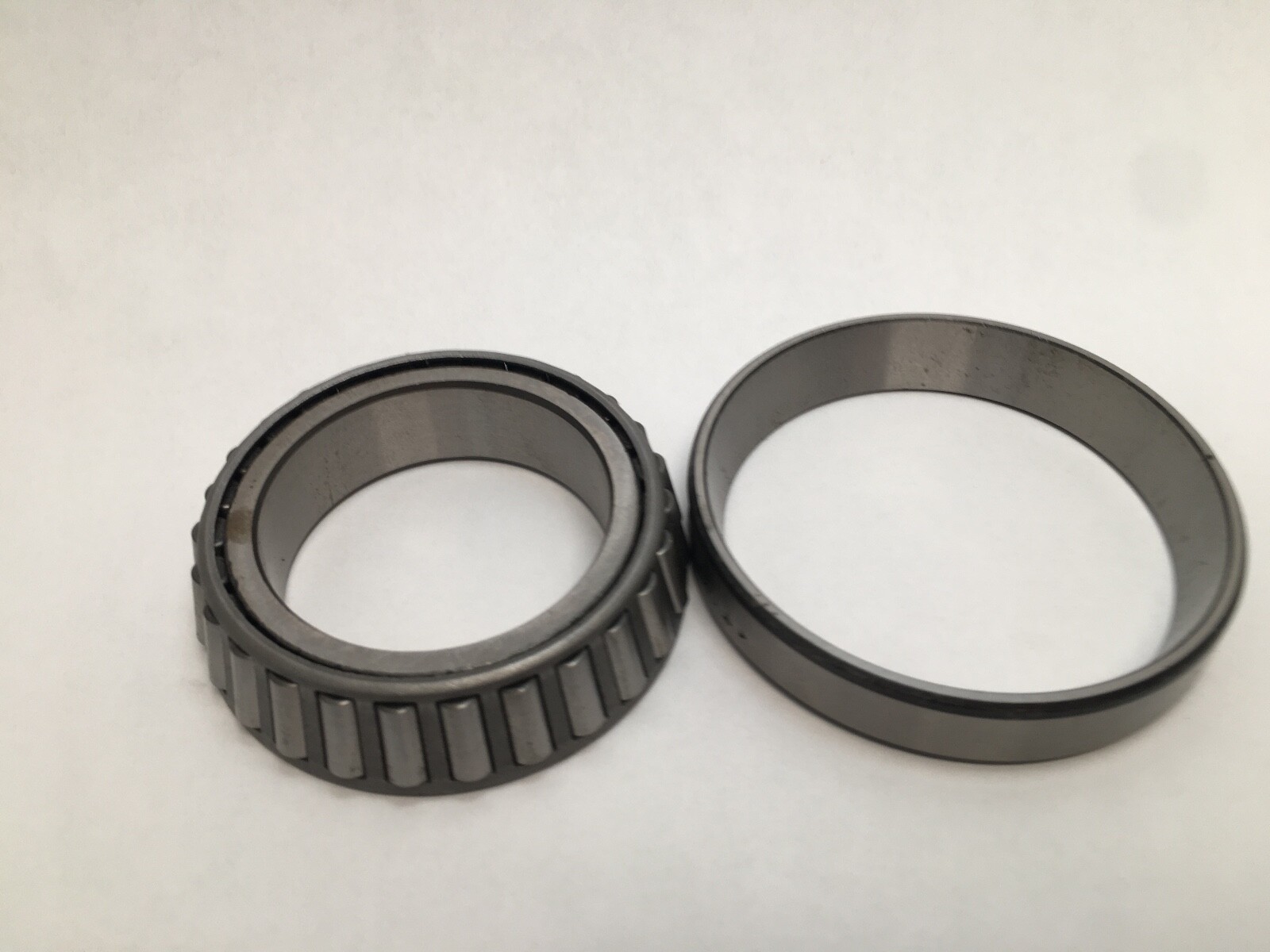

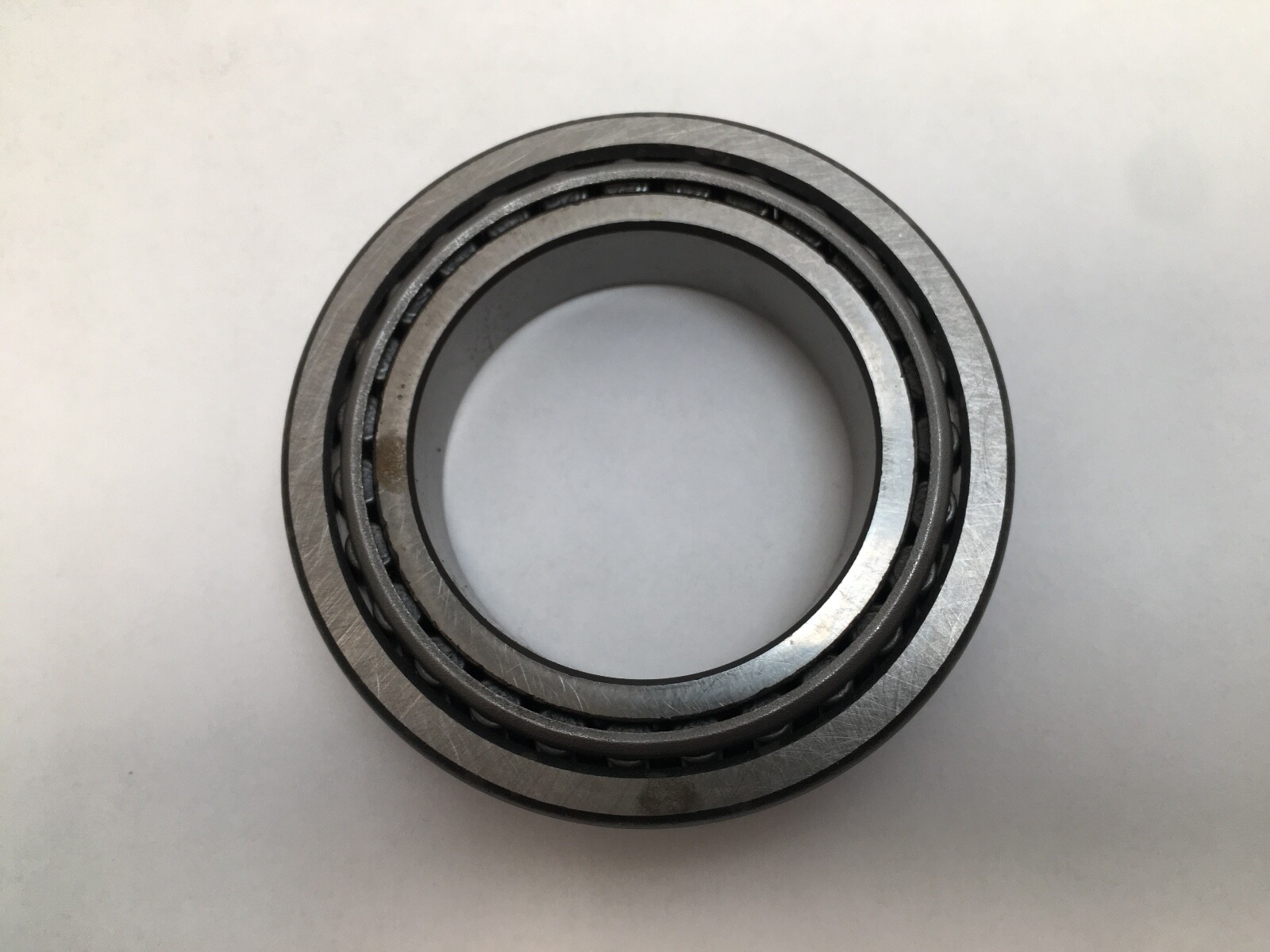

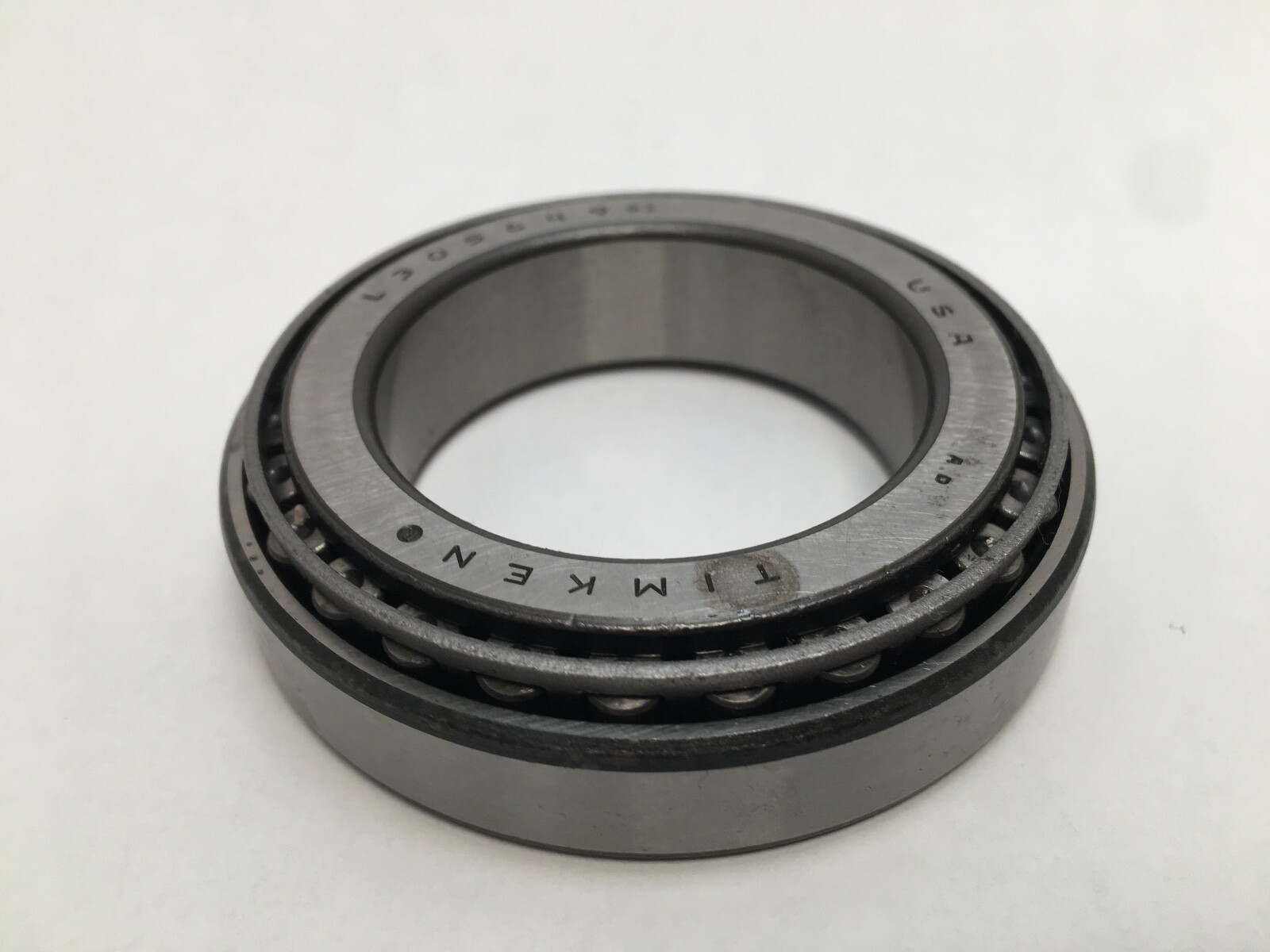

A complete single-row tapered roller bearing set from Timken: the L305649-3 cone (inner ring with rollers and cage) together with its matching L305610-3 cup (outer race). Bore is 2 inches, cup outside diameter 3-3/16 inches. The -3 suffix on both halves is Timken Class 3 precision, a tighter tolerance grade than standard. Sets in this size are used in gearboxes, spindles, wheel and hub positions, pump and pinion shafts — anywhere a bearing must take a heavy radial load together with thrust in one direction.

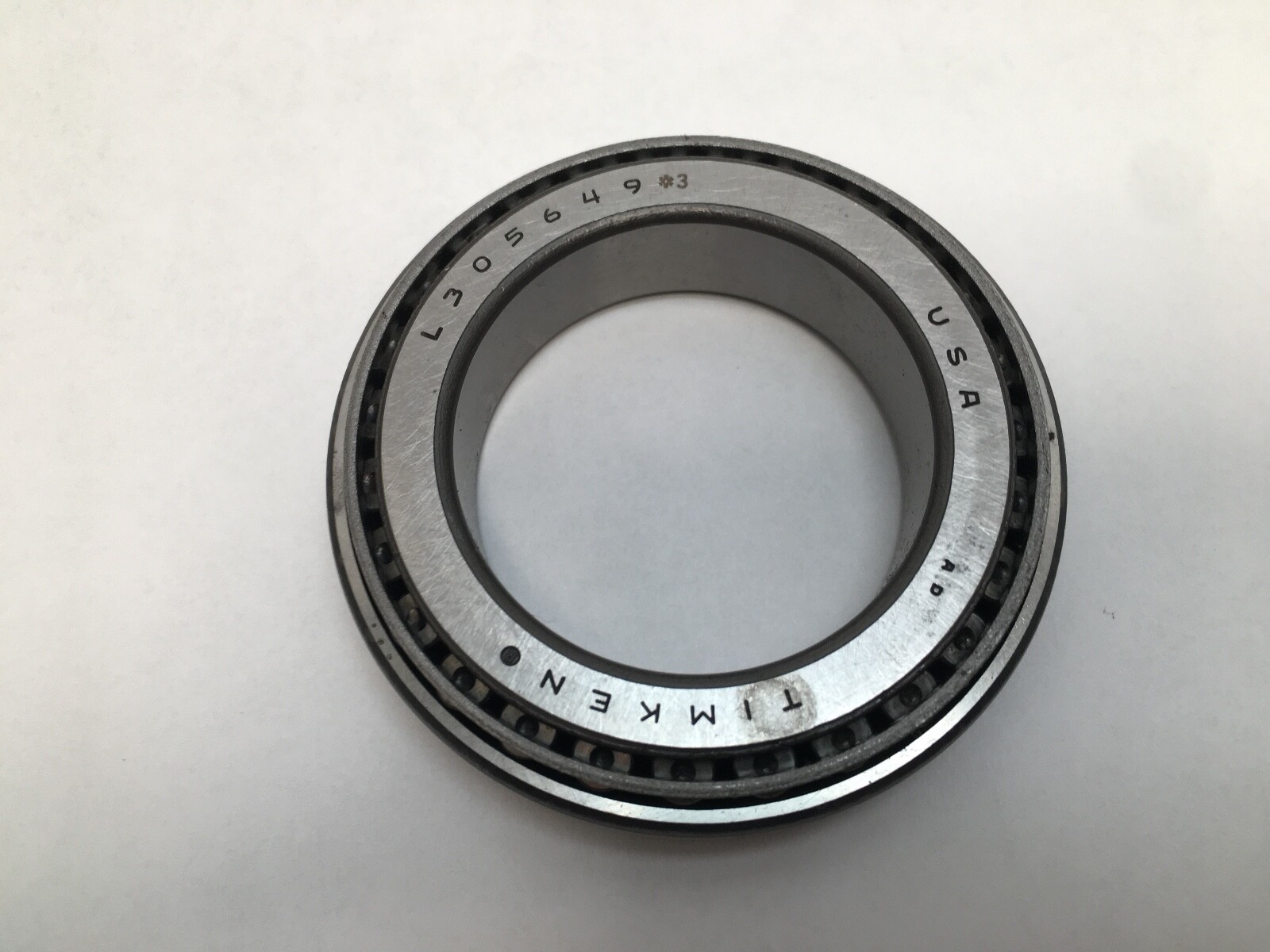

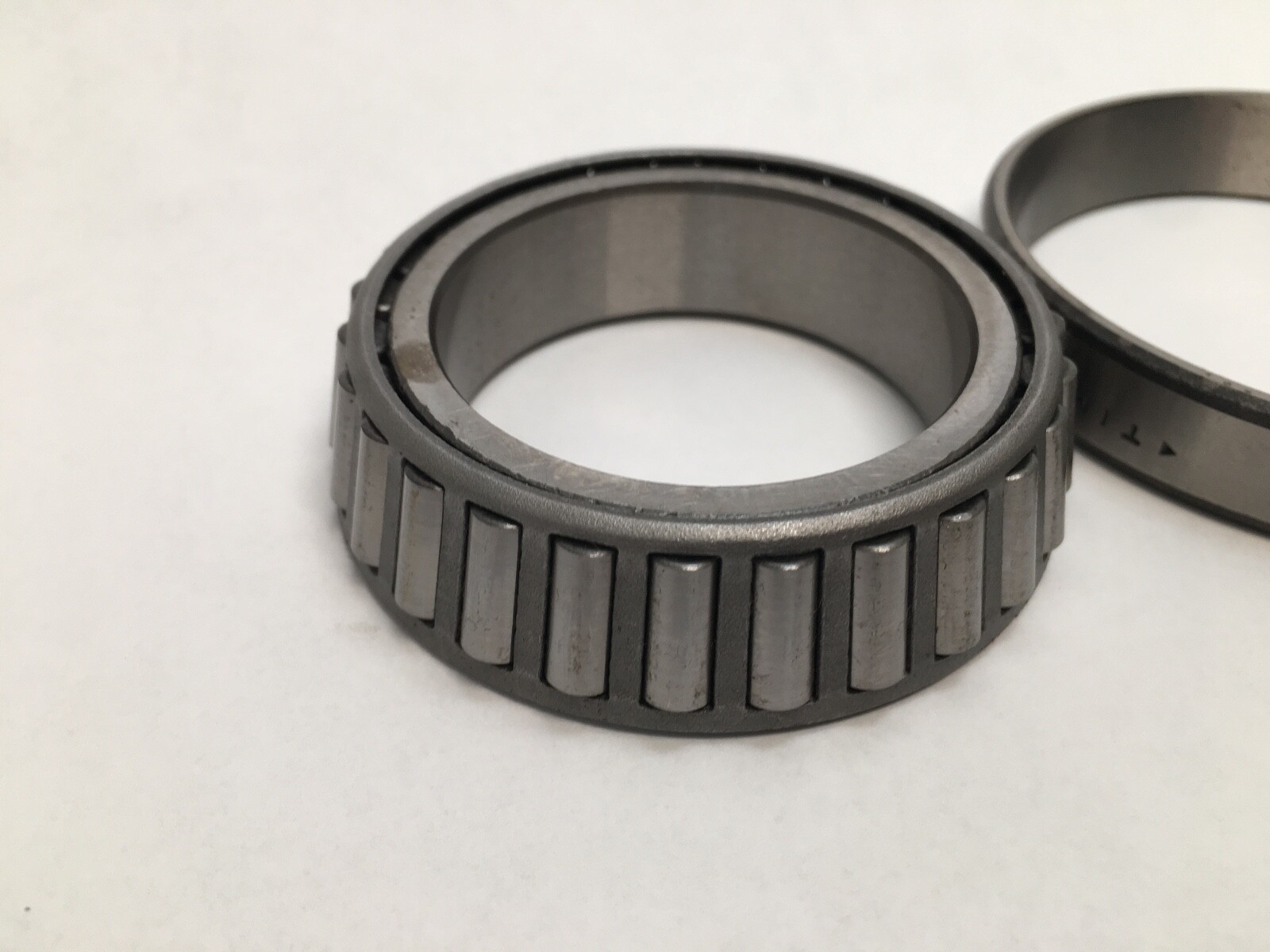

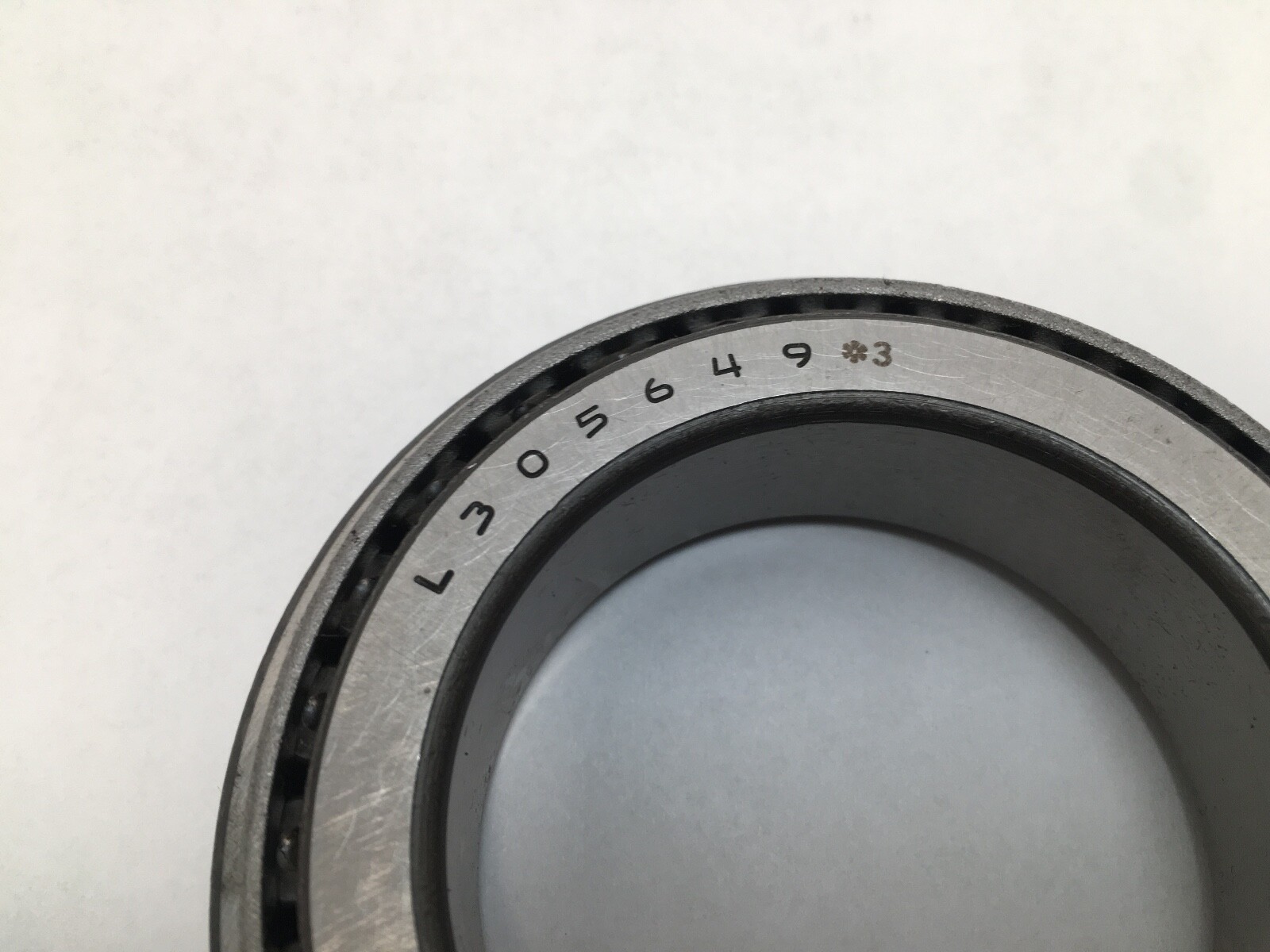

L305649 — the cone (inner ring, rollers and cage).

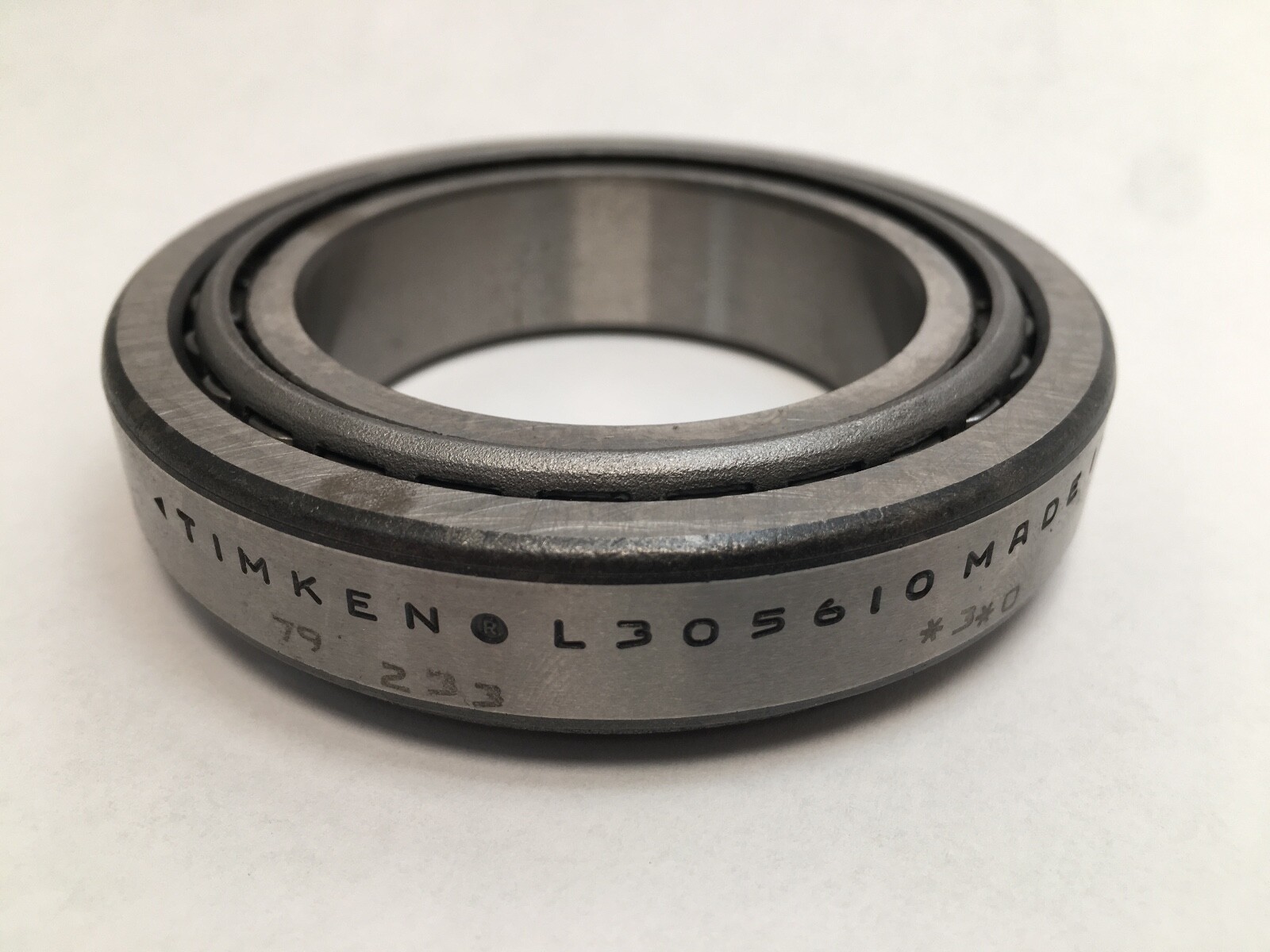

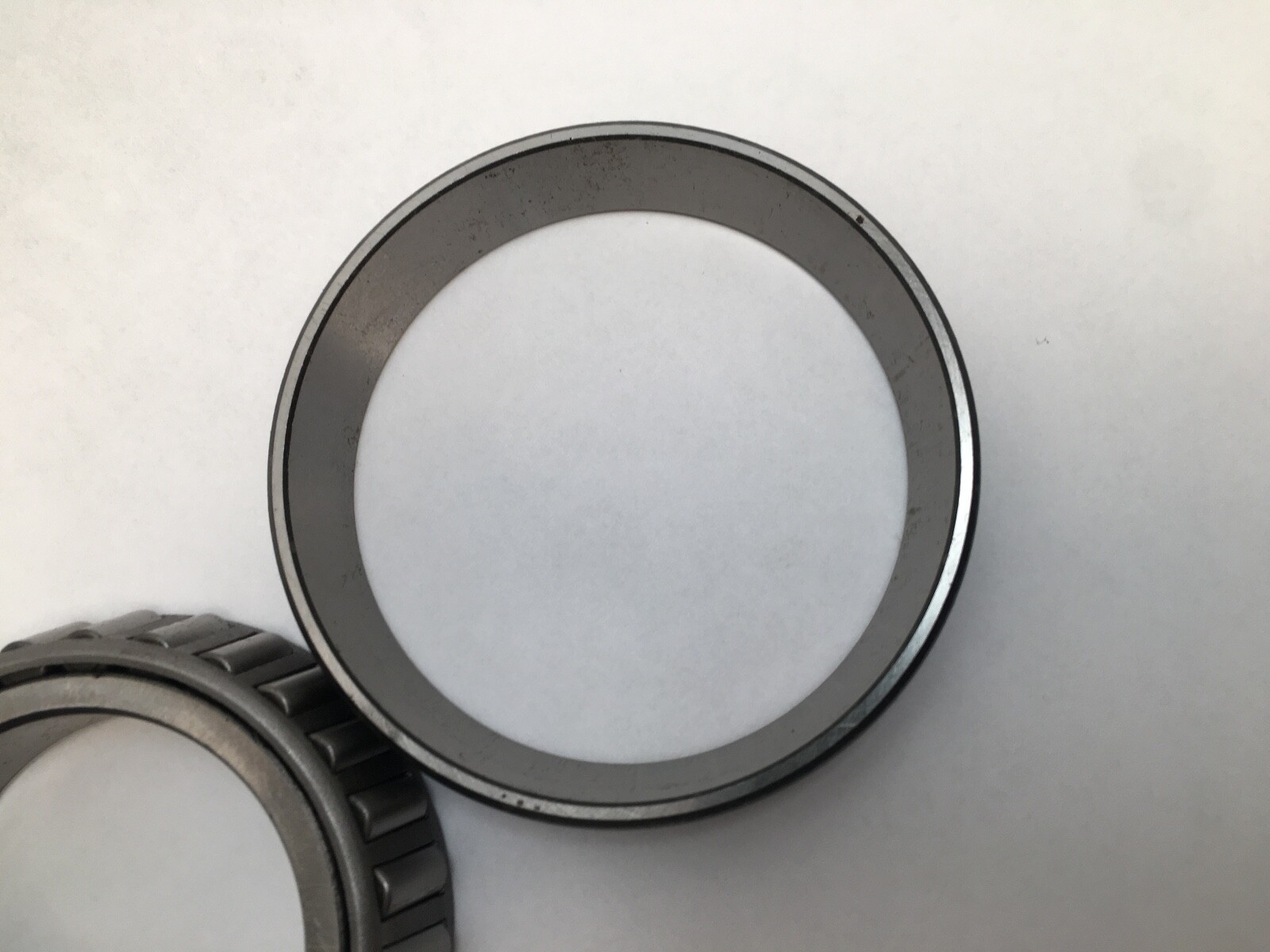

L305610 — the cup (outer race) designed to run with that cone.
-3 — Timken Class 3 precision on each part; also written *3 or #3.
Cone and cup are designed as a pair; the pairing sets the contact angle, the load ratings and the internal setting. Class 3 precision tightens bore, OD and running accuracy beyond standard class, for shaft positions that need accurate location or smooth running at speed, and keeps the standard mounting dimensions. A single-row tapered roller bearing takes thrust in one direction, so shafts normally use two opposed bearings, which also allows the assembly to be set to a specified end play or preload.
Bore (cone): 2 inch.
Outside diameter (cup): 3-3/16 inch.
Cone width: 0.7185 in.
Cup width: 0.5625 in.
Cone backface “to clear” radius: 0.03 in.
Cup backface “to clear” radius: 0.05 in.
Component: matched cone and cup set.
Precision: Timken Class 3.
Rows: single.
Bearing type: tapered roller.
Bearing material: High Alloy Steel.
Design units: inch.
One complete set: one L305649-3 cone and one L305610-3 cup, matched.
The set is referenced as L305649/L305610, L305649-L305610 and L305649/10, with the -3 suffix denoting Class 3. The standard-class L305649/L305610 without the -3 is a looser tolerance grade. Timken part numbers carrying a -90xxx suffix are complete factory assemblies.
