Availability:
1 in stock

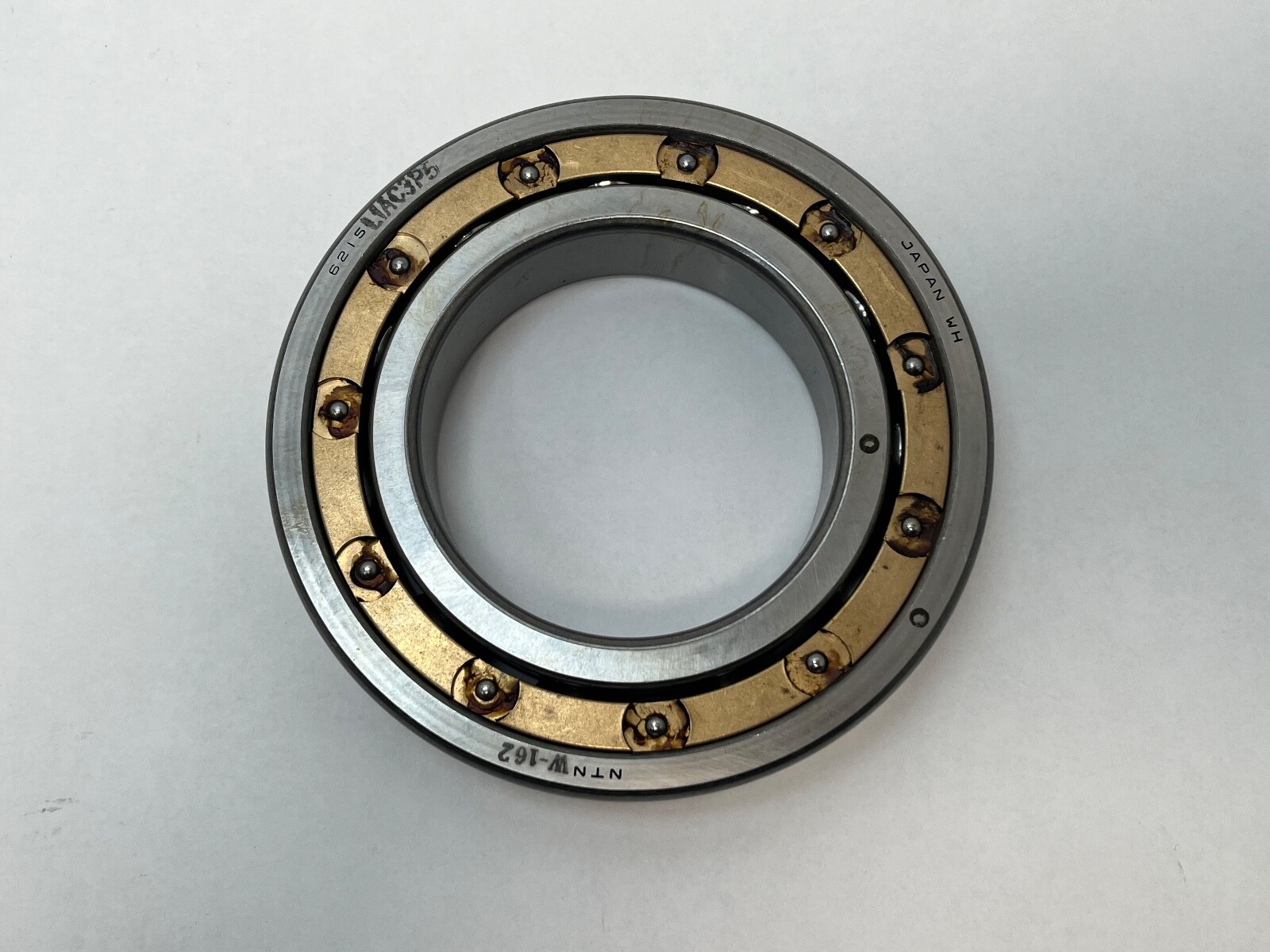

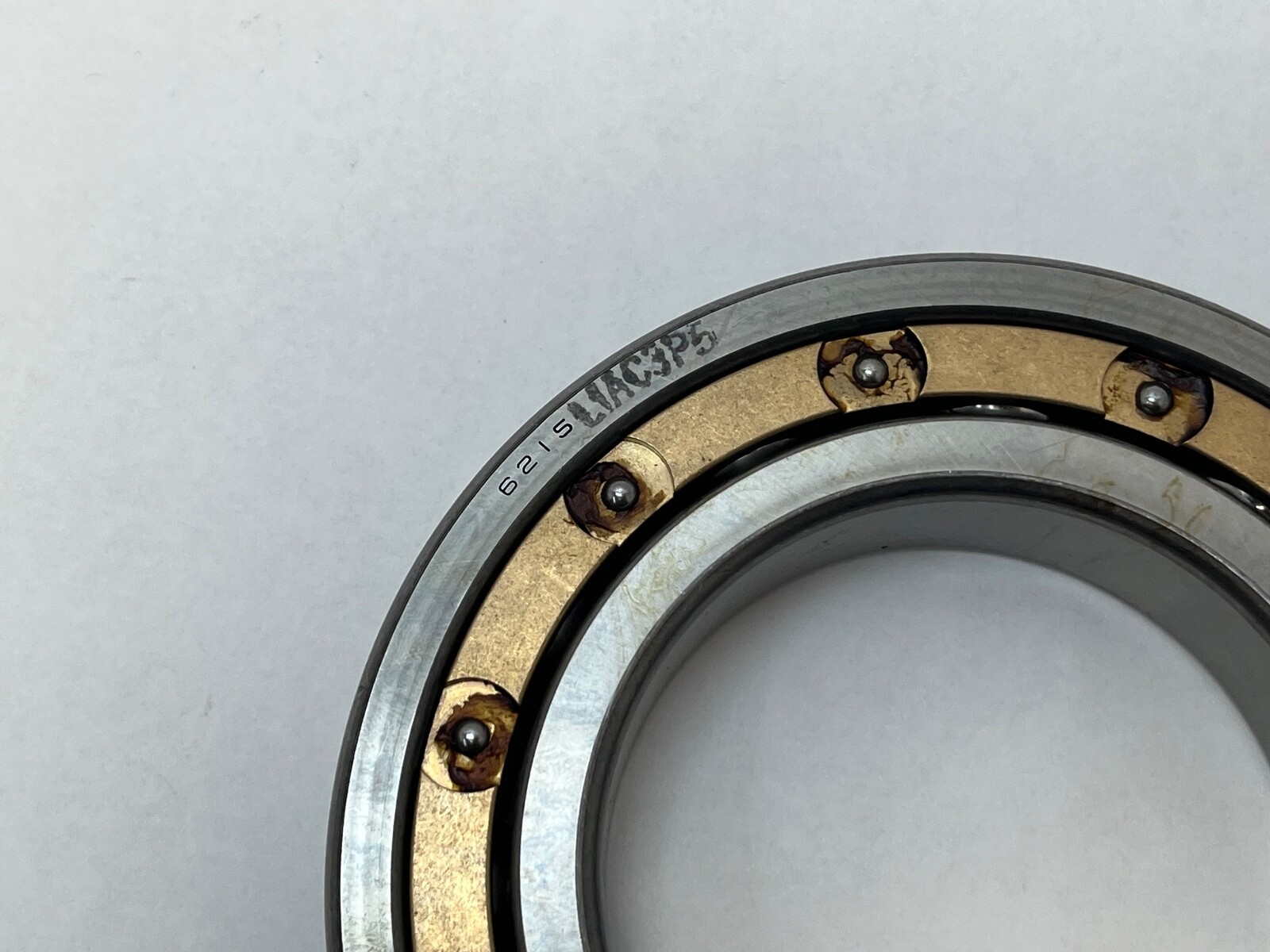

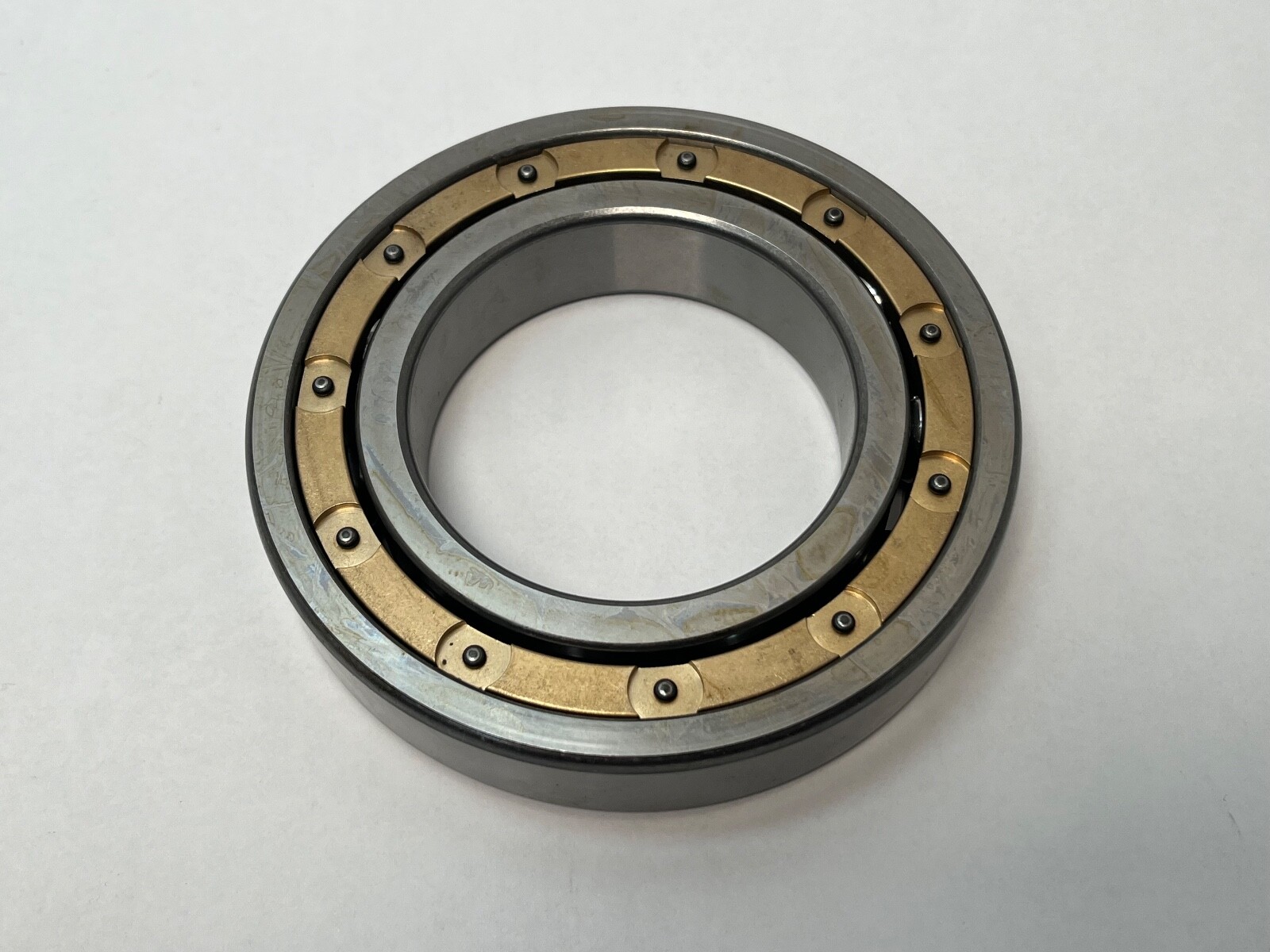

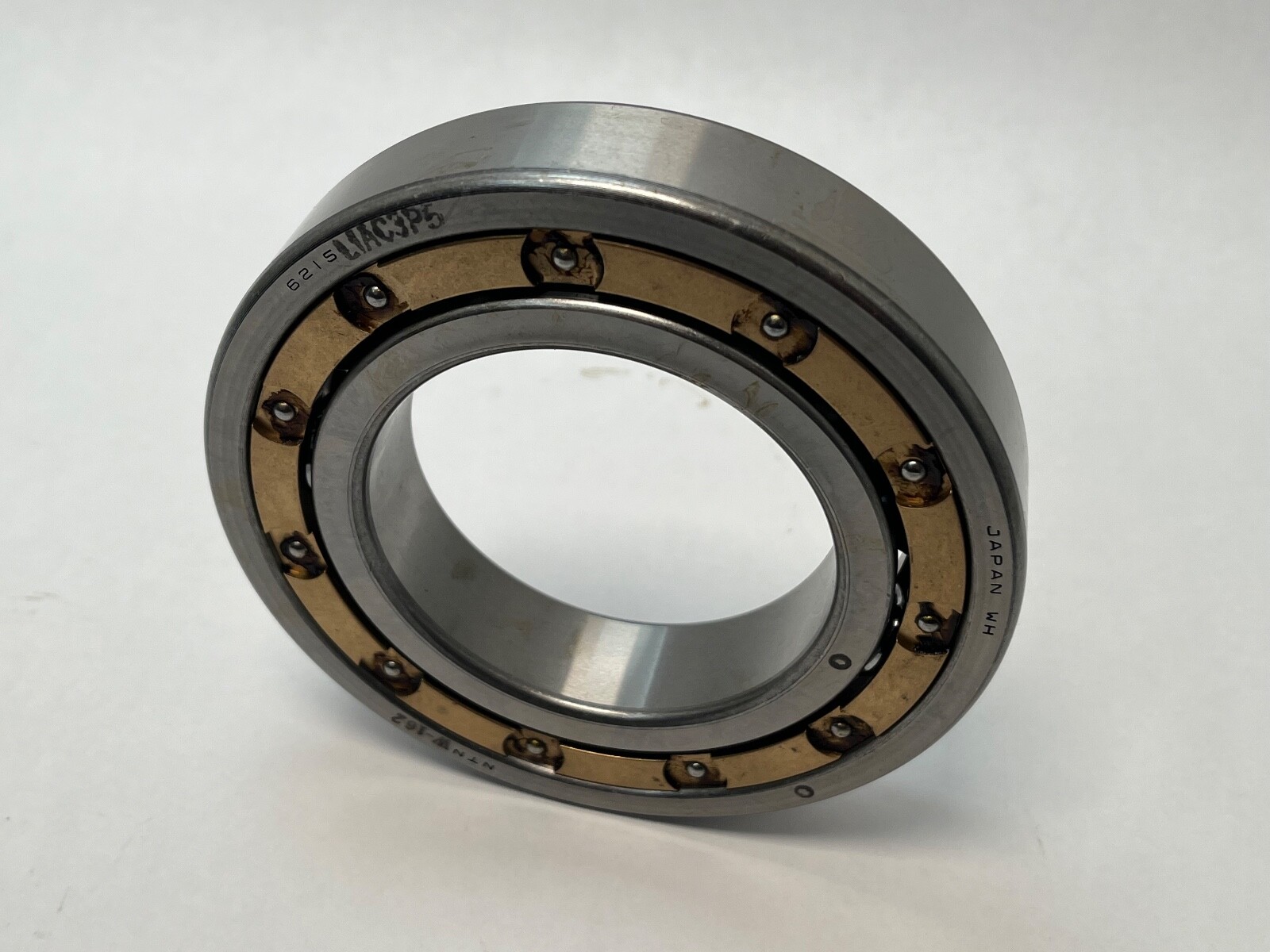

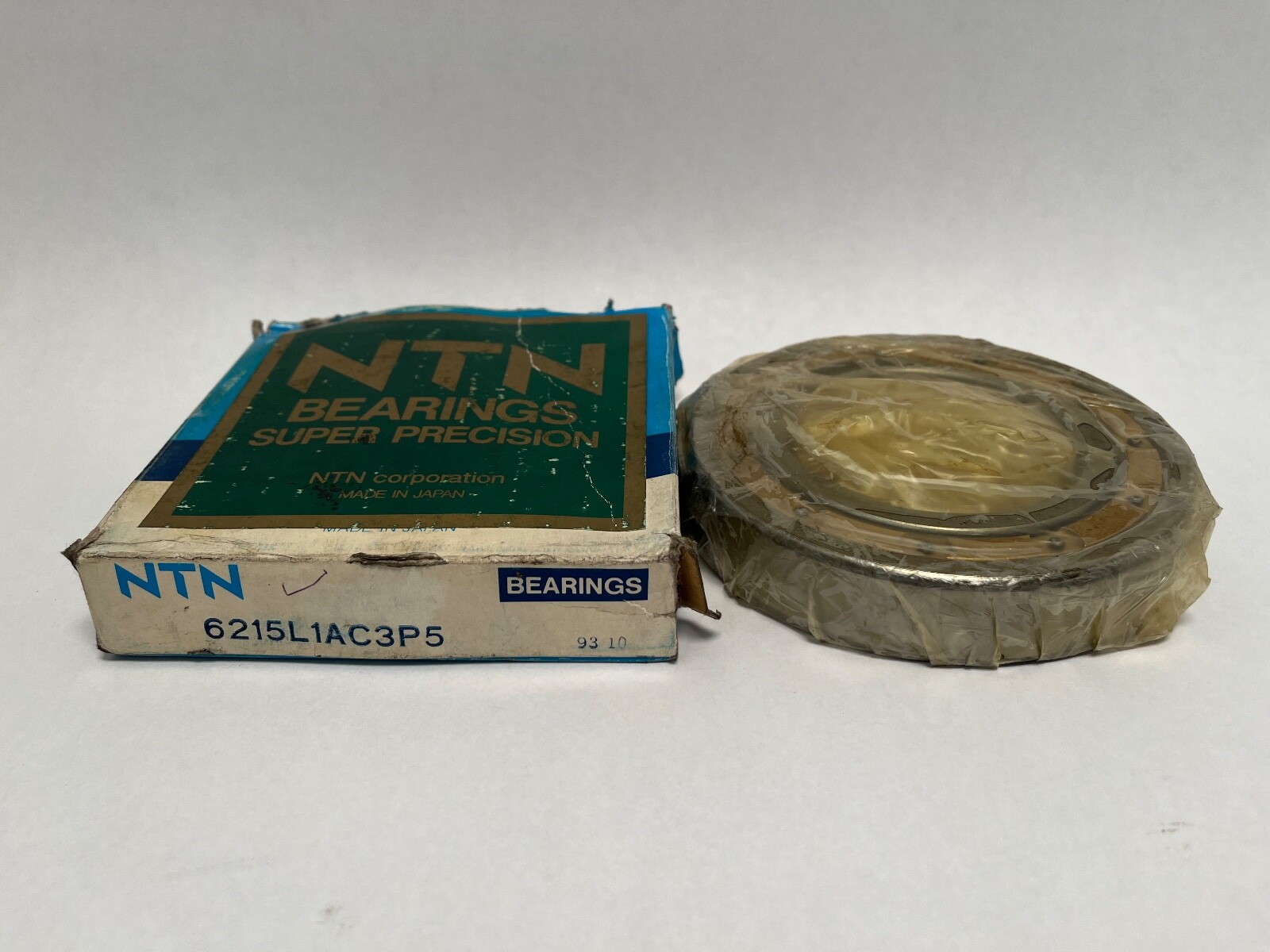

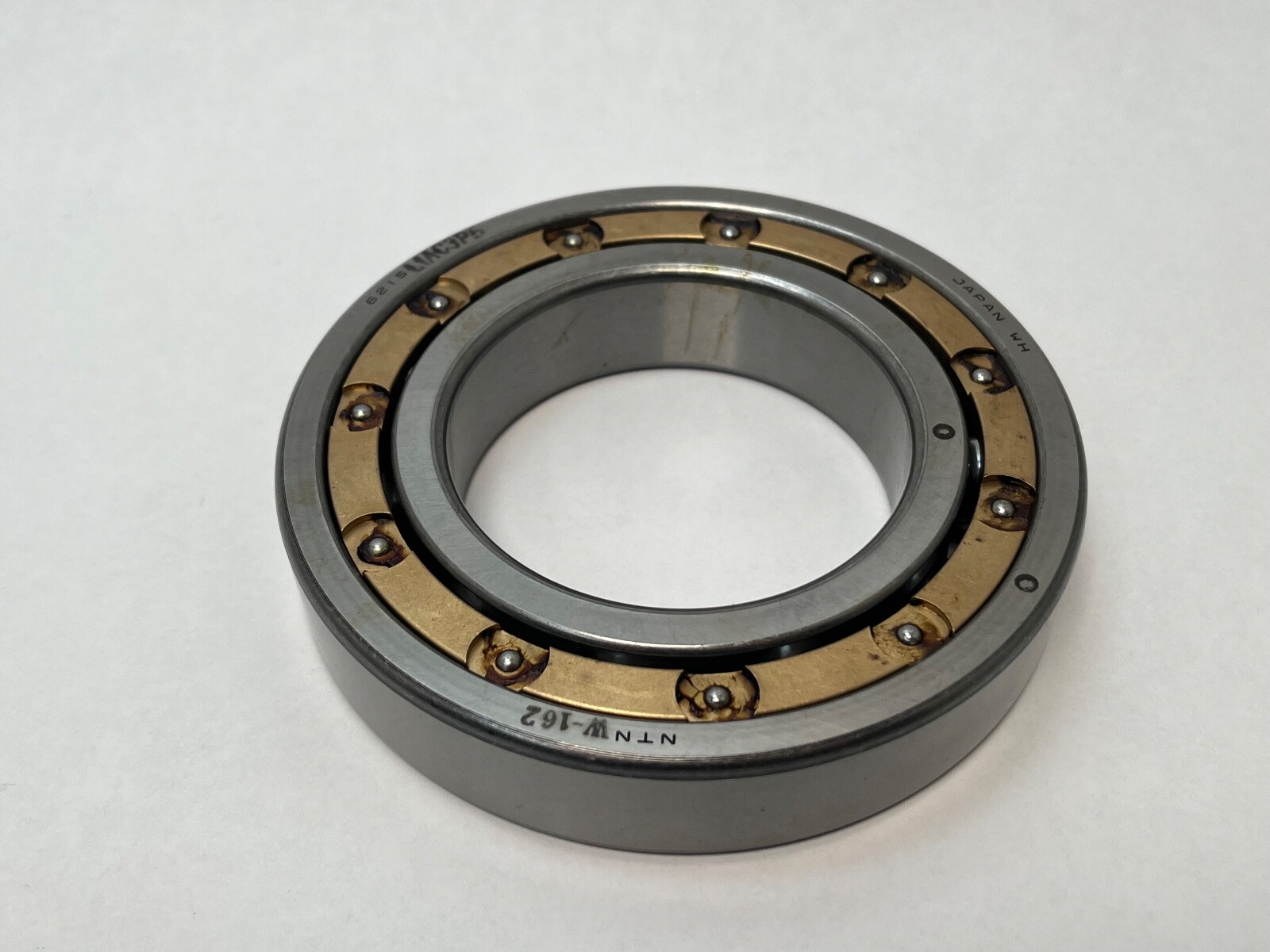

Deep groove ball bearing, 75 x 130 x 25 mm, open, machined brass cage, C3 clearance, ABEC 5 / P5 precision. NTN 6215 with internal design change.
List Price
$52.98
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | NTN |
|---|---|
| MPN | 6215L1AC3P5 |
| Model | 6215 L1 A C3 P5 ABEC5 |
| Bearing Type | Ball Bearing, Open |
| ID | 75 mm |
| OD | 130 mm |
| Width | 25 mm |
| Series | 6200 |
|---|---|
| Material | High Carbon Chrome Steel |
| Mpn Variants | 6215L1AC3P5, 6215-L1A-C3-P5, 6215 L1 A C3 P5, 6215L1C3P5 |
| Precision Class | ABEC 5 / P5 |
| Cage Type | Machined |
| Rolling Elements | Ball |
| Cage Material | Machined brass |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Internal Clearance | C3 |
| Harmonization Code | 8482.10.50 |
| Industry Terms | deep groove ball bearing; radial ball bearing; brass cage ball bearing; ABEC 5 precision bearing; 75mm bore bearing; 6215 C3 bearing |
| Common Misspellings | 6215 L1AC3P5; 6215LIAC3P5; 6215L1A C3P5; NTM 6215L1AC3P5; 6215L1AC3 P5 |
| Application Types | Electric motors; Pumps; Gearboxes; Machine tool spindles; General industrial machinery |
| Cross Reference 1 | FAG 6215-M-P53 |
|---|---|
| Cross Reference 3 | Timken 6215-C3 (related, standard precision) |
NTN 6215L1AC3P5 single-row deep groove ball bearing, open, with a machined brass cage and precision-grade tolerances. Unit Quantity: 1 Pc.
6215 — single-row deep groove ball bearing, 62 light series, 75 mm bore.
L1 — machined brass cage.
A — NTN internal design change.
C3 — radial internal clearance greater than normal.
P5 — ISO tolerance class 5, equivalent to ABEC 5.
Bearing Type: Deep Groove Ball Bearing. Rolling Elements: Ball. Number Of Rows: 1. Bore Type: Straight. Seal Type: Open. Snap Ring Included: No. Cage Material: Machined brass. Cage Type: Machined. Internal Clearance: C3. Precision Class: ABEC 5 / P5. Material: High Carbon Chrome Steel. Series: 6200.
Bore Diameter: 75 mm. Outside Diameter: 130 mm. Overall Width: 25 mm.
FAG 6215-M-P53 matches the envelope, brass cage, P5 tolerance and C3 clearance. Standard-precision 6215 C3 bearings from SKF, NSK, Koyo and Timken share the 75 x 130 x 25 mm envelope. MPN Variants: 6215L1AC3P5, 6215-L1A-C3-P5, 6215 L1 A C3 P5, 6215L1C3P5.
75 mm bore, 130 mm outside diameter, 25 mm wide.
A machined brass cage, coded L1.
P5, equivalent to ABEC 5, with C3 radial internal clearance.
