Timken42350Tapered Roller Bearing Cone – 3.5000 in Bore, 1.1406 in Width, K Factor 1.19

Product Description

What this part is:

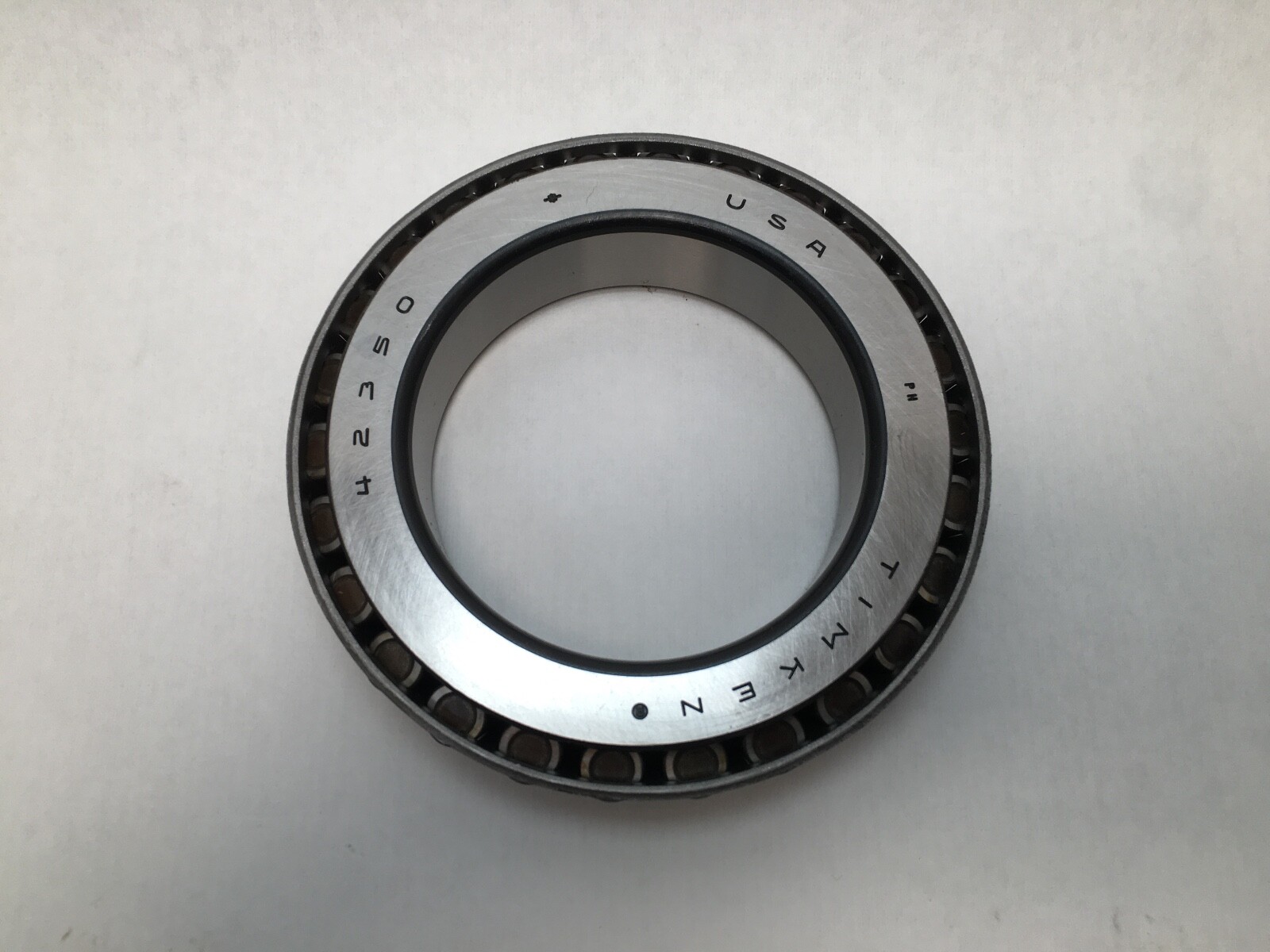

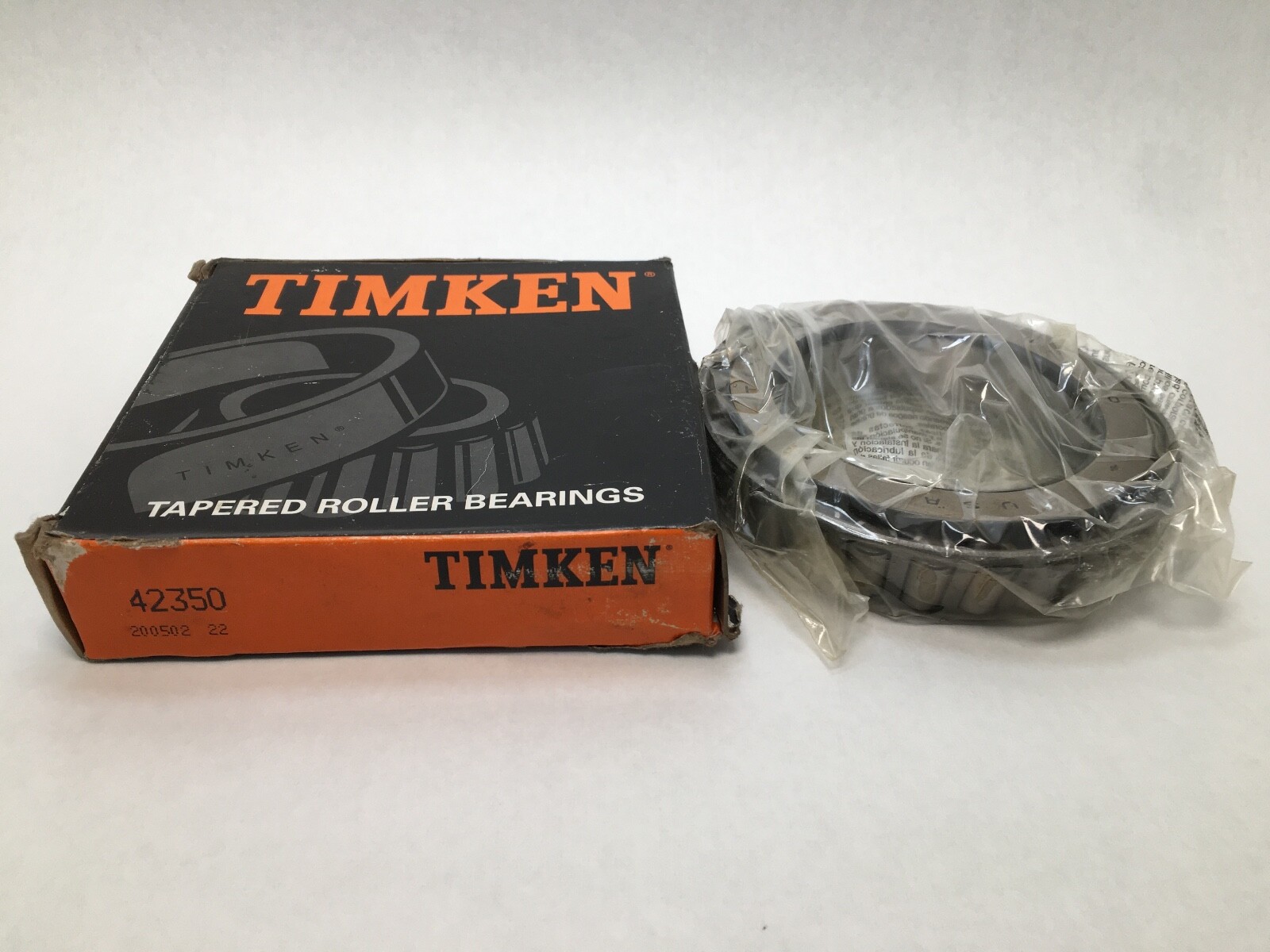

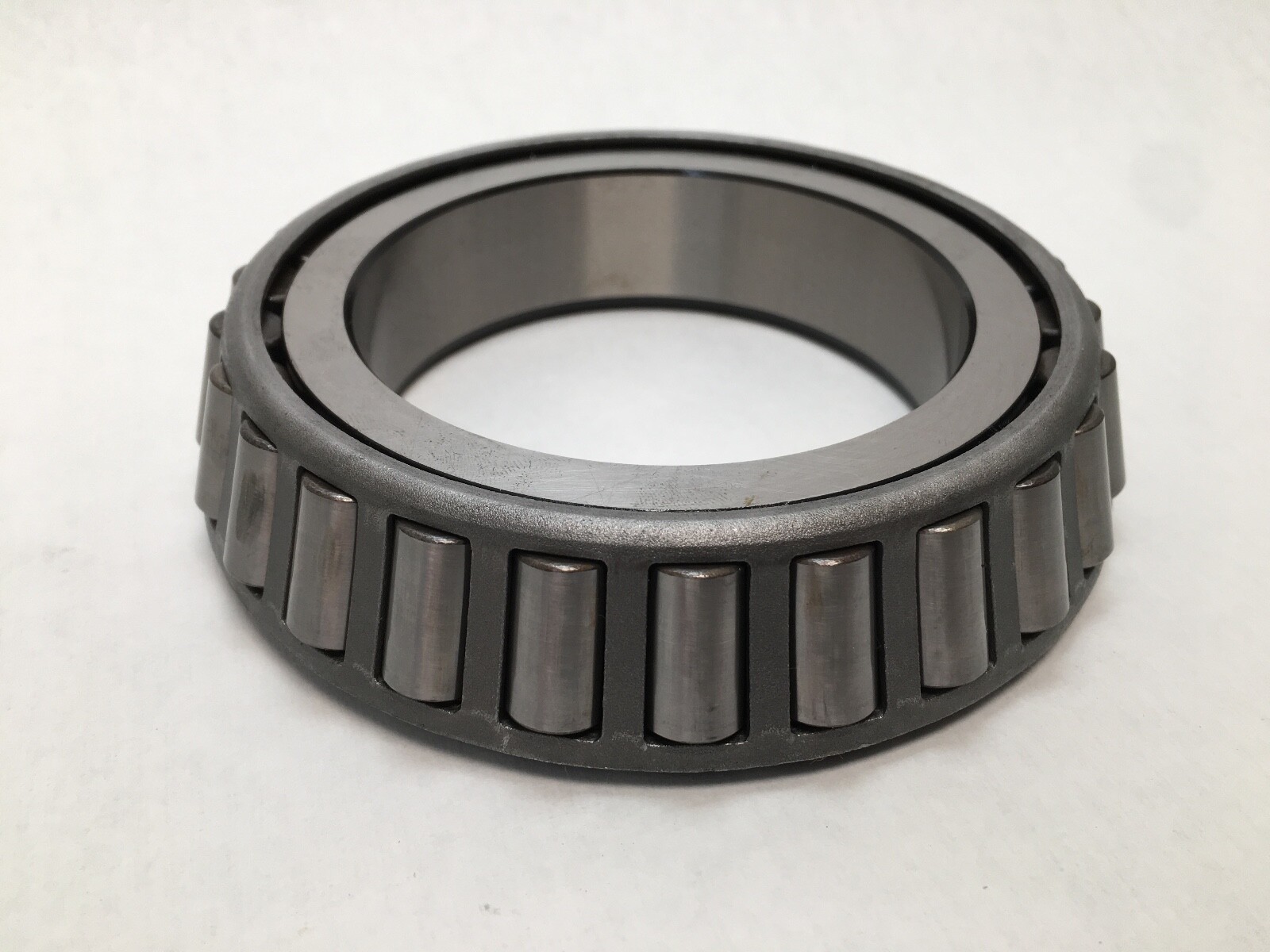

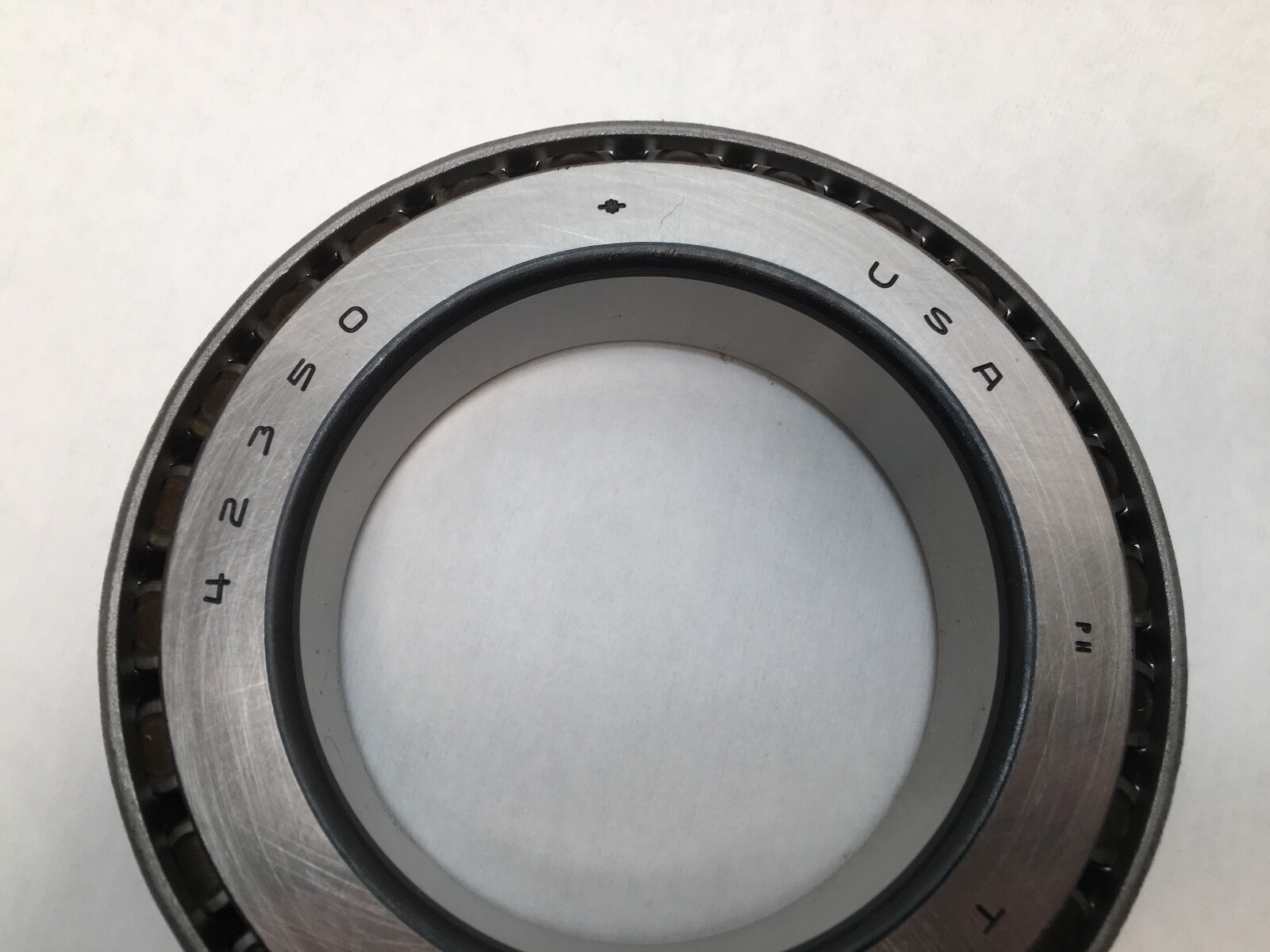

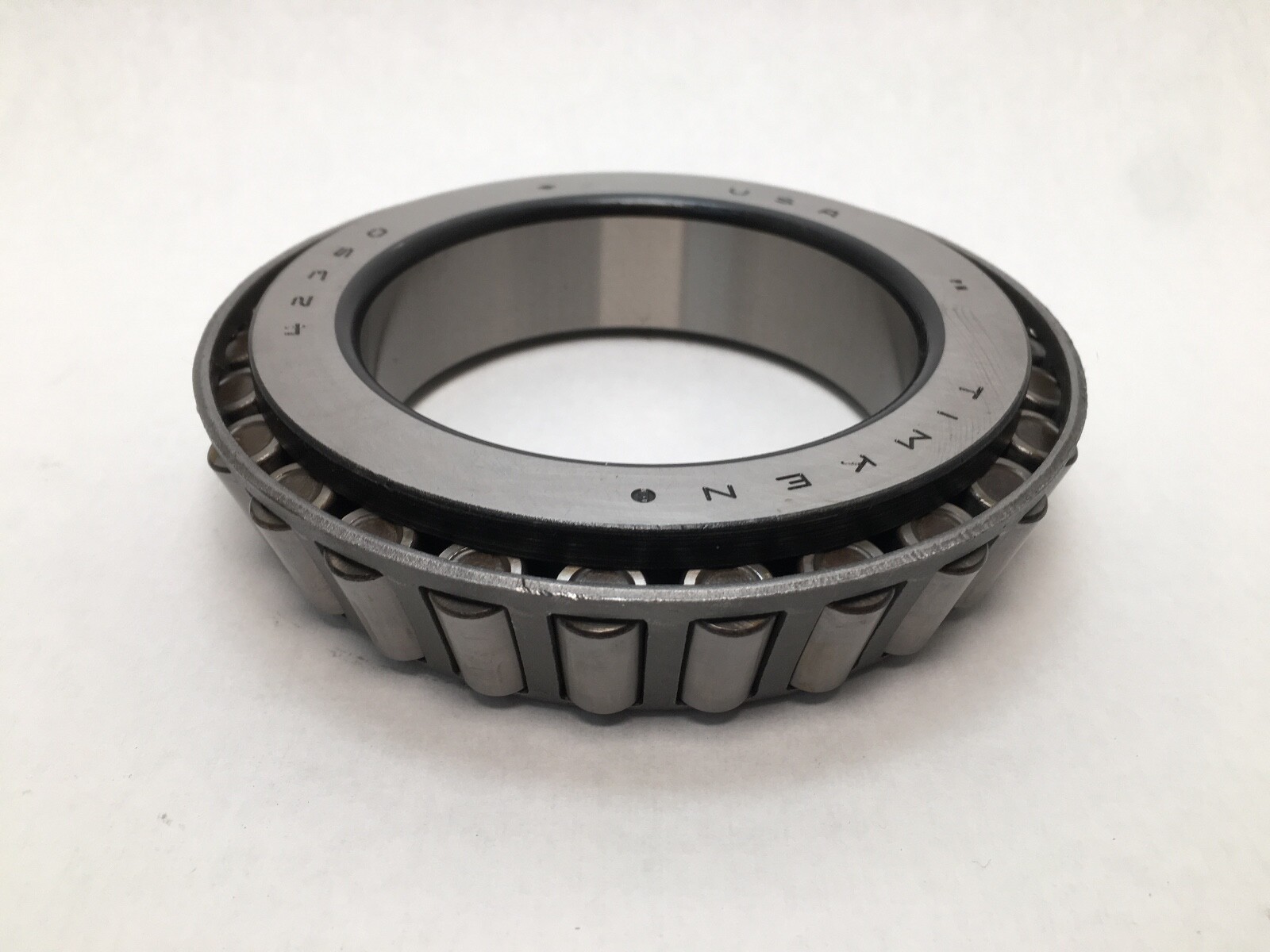

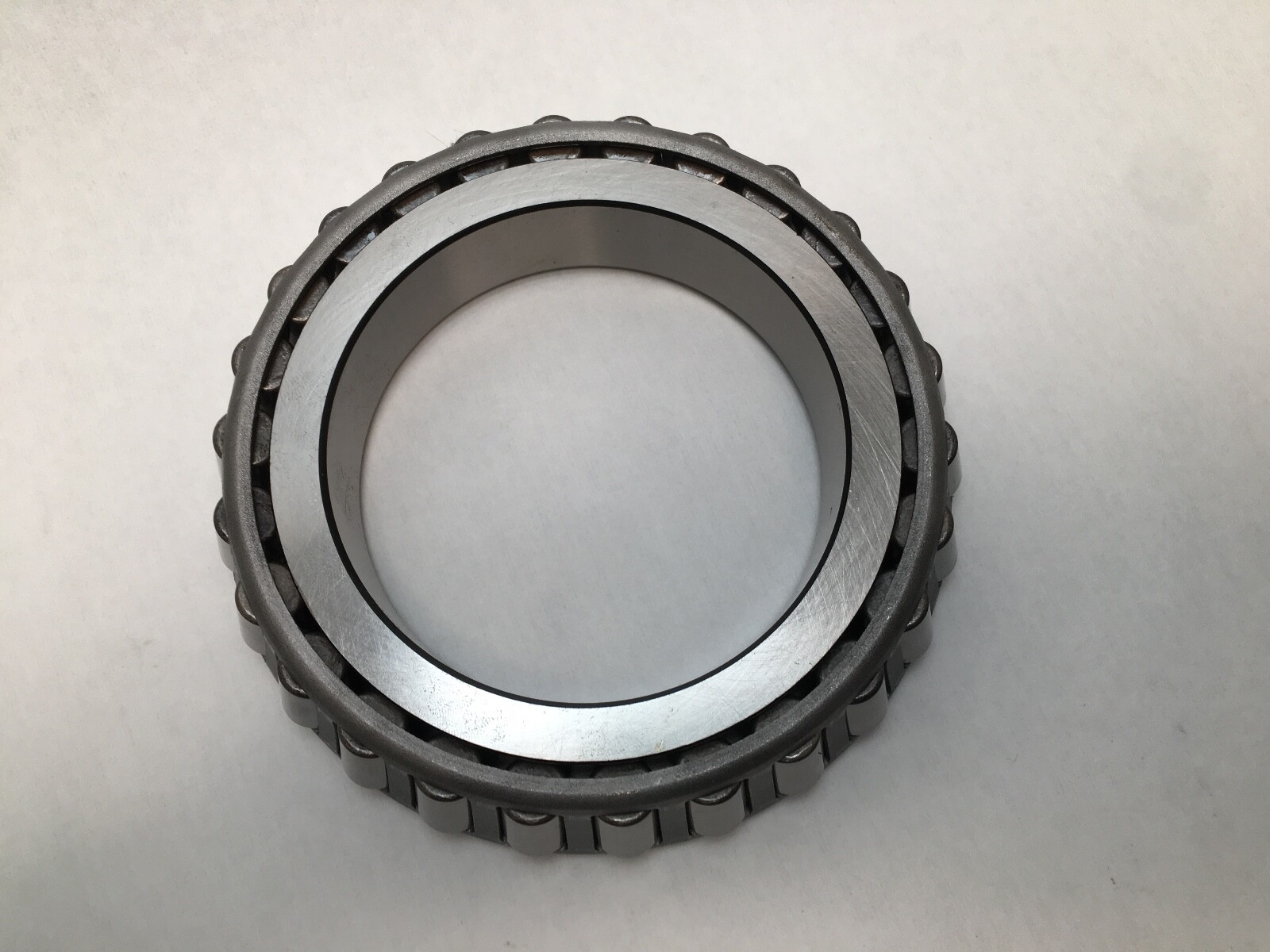

Timken 42350 tapered roller bearing cone. This is the inner ring with its tapered roller set and cage, the rotating half of a Timken TS single-row inch tapered roller bearing. Bore Diameter: 3.5000 in (3-1/2 in, 88.9 mm). Overall Width: 1.1406 in (28.971 mm) inner ring width. Item Weight: 4.31 kg (9.49 lb). Dynamic Load Rating: 193,000 N (43,400 lbf) at C1. Static Load Rating: 241,000 N (54,300 lbf). GTIN: 053893283807. Rolling Elements: Tapered Roller. Number Of Rows: 1. Bore Type: Straight. Cage Type: Pressed. Bearing Material: case-carburized alloy steel. Design Units: Imperial. Series: 42000. Base Number: 42350.

Decoding the designation:

42350 — a cone number in Timken’s inch 42000 tapered roller series, fixing the 3.5000 in bore and the 1.1406 in inner ring width.

No precision suffix is present on this part. Precision Class: Not specified.

What these specs mean in practice:

K Factor: 1.19. A K factor near 1.2 is a steep taper: the raceway angle puts a large share of the capacity into thrust, so the bearing suits a position carrying heavy combined radial and axial load.

Dynamic Load Rating: 193,000 N (C1, at 1 million revolutions, ISO method). Dynamic Radial Load Rating at 90 million revolutions (C90): 50,100 N. Dynamic Axial Rating at 90 million revolutions (Ca90): 42,200 N — 84 per cent of the radial figure. Static Load Rating: 241,000 N.

G1 Factor: 129.7. G2 Factor: 37.2. Geometry Factor (Cg): 0.139, the geometry constant for the lubrication life adjustment factor a3l.

Mounting data:

Maximum Shaft Fillet Radius: 0.120 in (3 mm) — the largest fillet the shaft shoulder may carry and still be cleared by the cone corner. Shaft Backing Shoulder Diameter, frontface (da): 3.86 in (98 mm). Shaft Backing Shoulder Diameter, backface (db): 4.09 in (104 mm). Effective Centre Location: 0.12 in (3 mm), measured outside the cone backface. Cage Location relative to backface (Aa): 0.10 in. Cage Location relative to frontface (Ab): 0.14 in.

Quantity and configuration:

Unit Quantity: 1 Pc. Cone only — inner ring, rollers and cage. The matching cups are the Timken 42584 and 42585.

Interchange guidance:

Cross-references: Koyo 42350, NTN 4T-42350, NSK 42350, Bower / BCA 42350, Fersa 42350. Match the cup number as well before ordering.
