Availability:
1 in stock

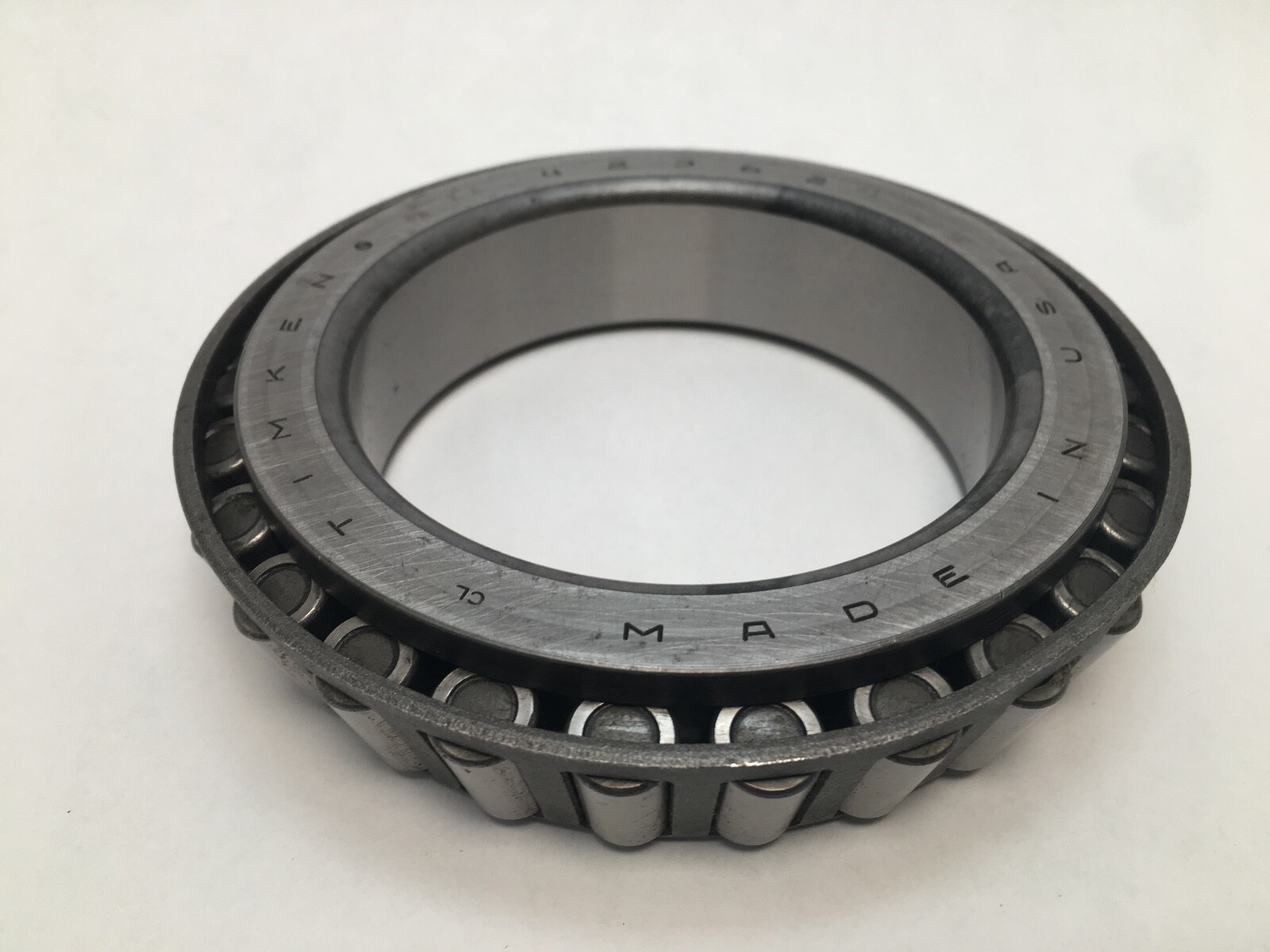

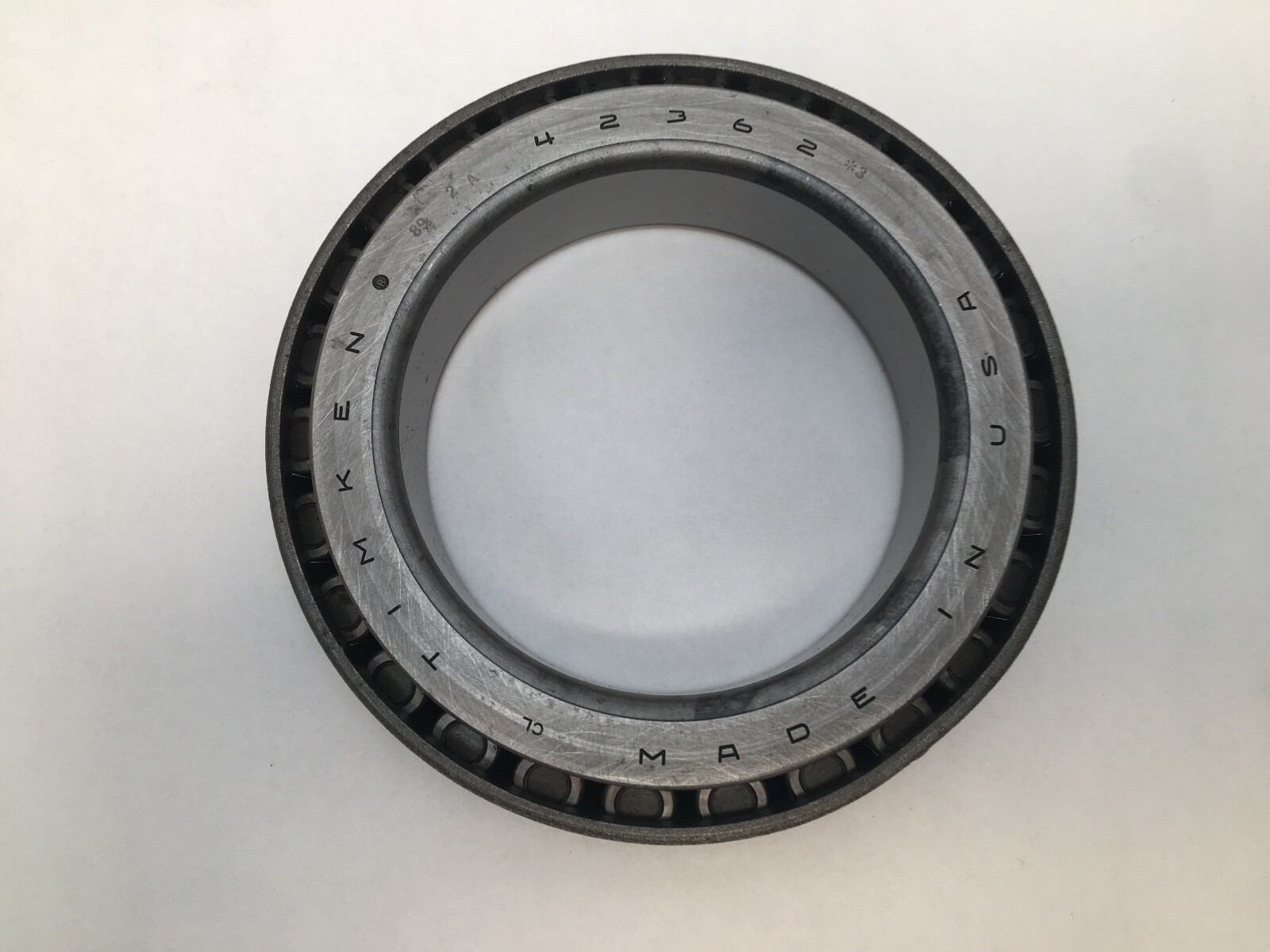

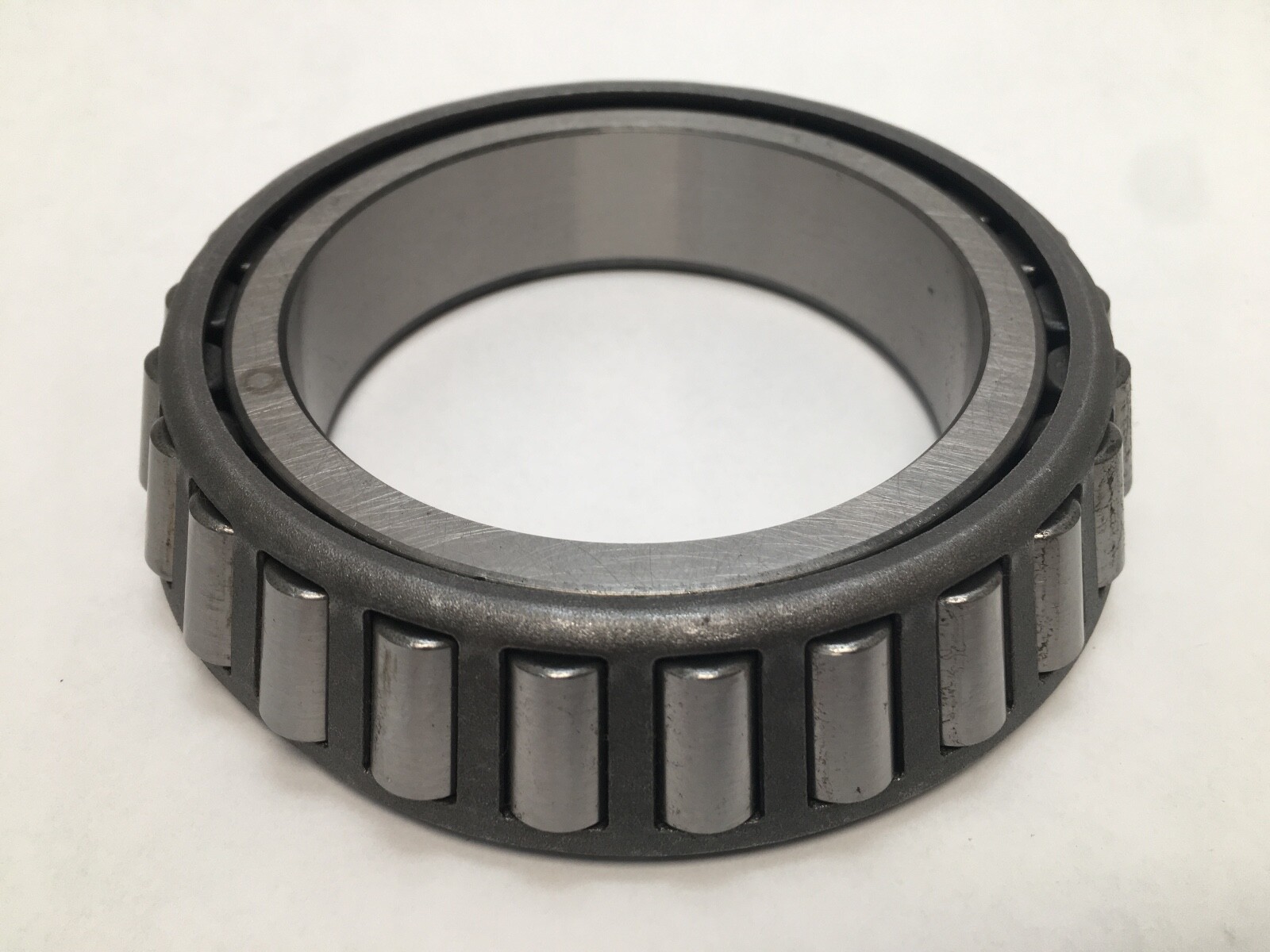

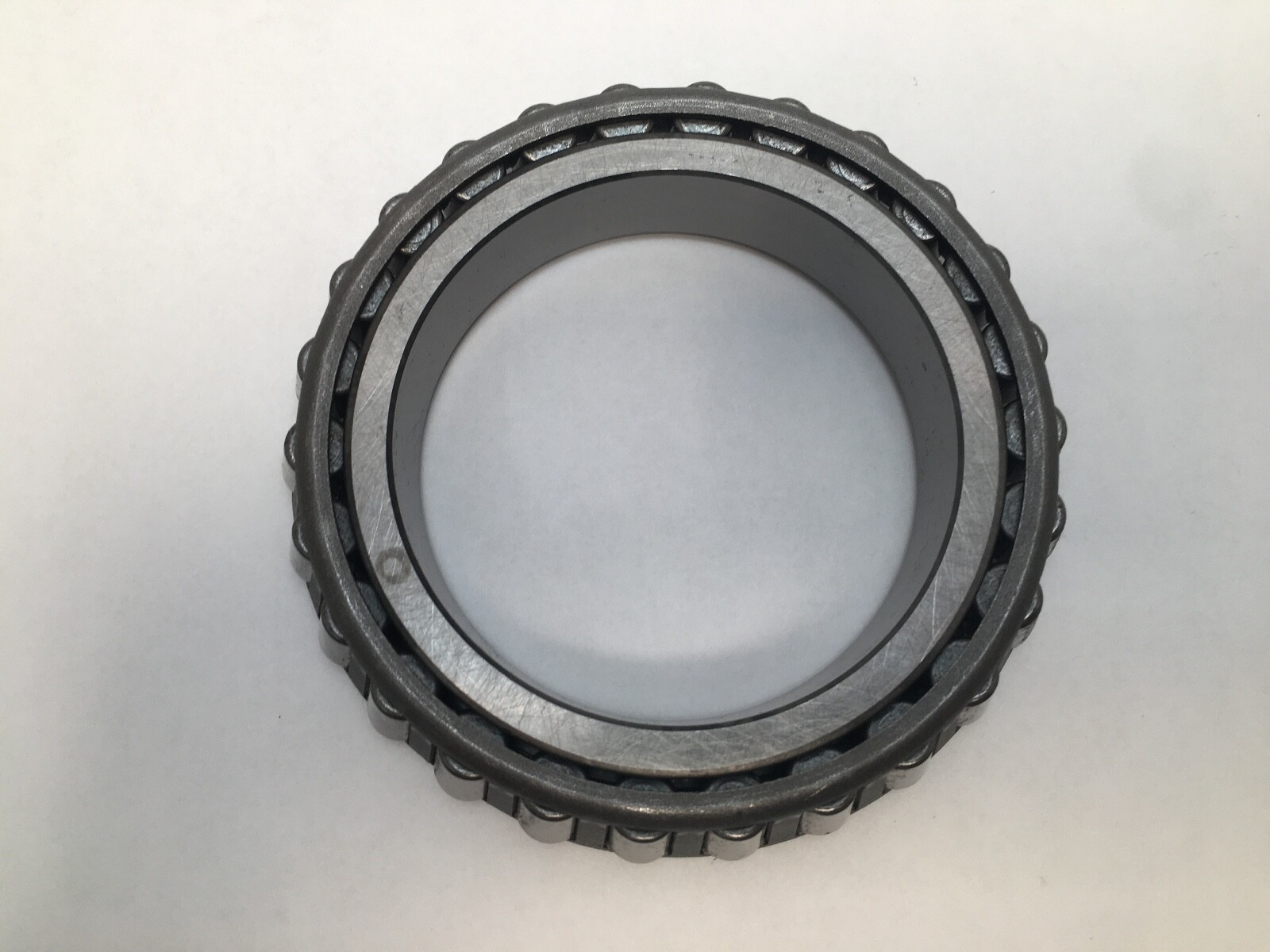

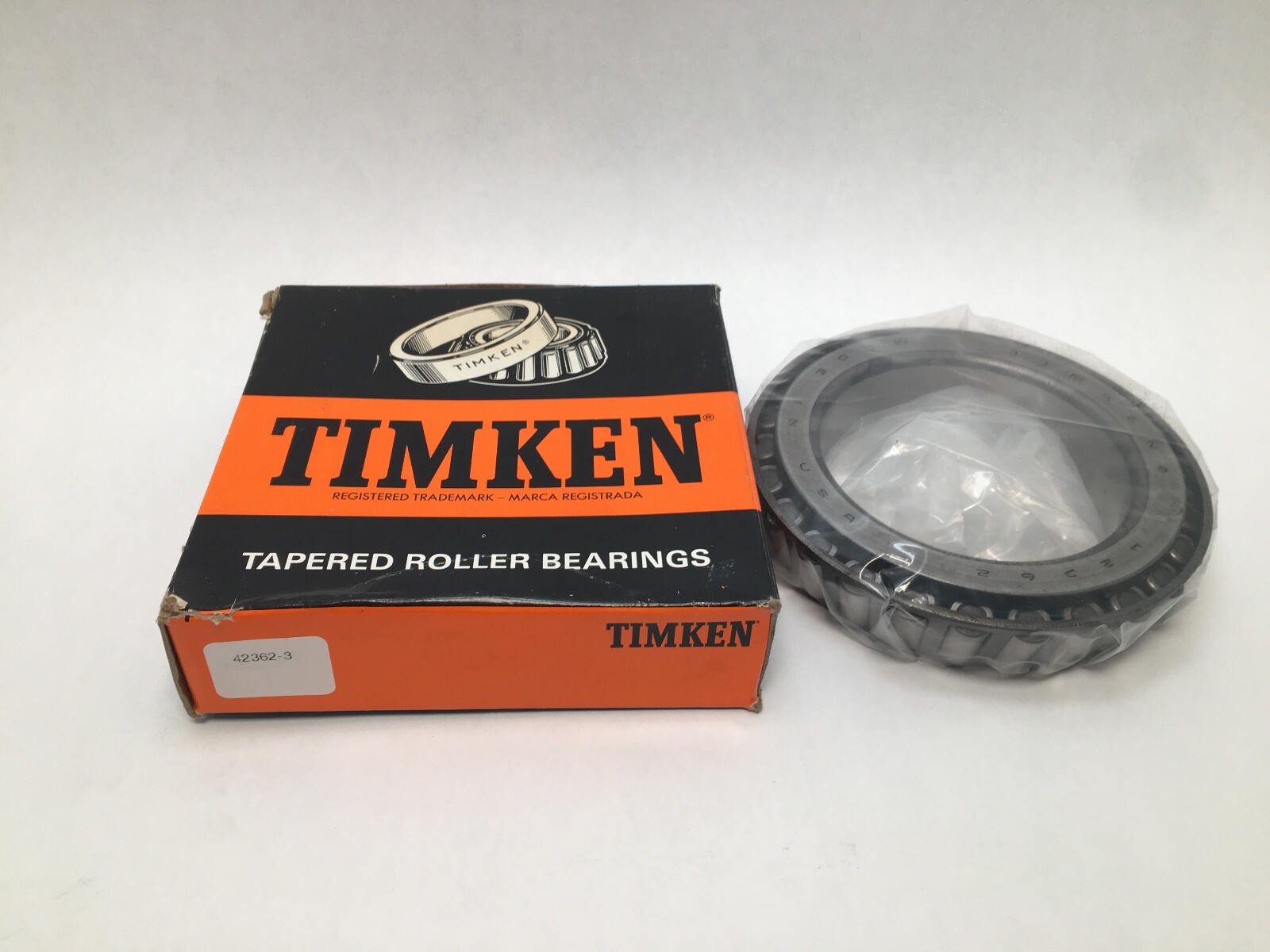

Inch tapered roller bearing cone, 3.6250 in bore, 1.1406 in width, Class 3 precision, 163,000 N dynamic rating. Mates with a 42584 or 42585 cup.
List Price
$107.54
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Timken |
|---|---|
| MPN | 42362-3 |
| Model | 42362 #3 |
| Bearing Type | Tapered Roller Bearing Cone |
| ID | 3.6250 in (92.075 mm) |
| Series | 423 |
|---|---|
| Base Number | 42362 |
| Overall Width | 1.1406 in (28.971 mm) |
| Mpn Variants | 42362-3; 42362 *3; 42362 #3; 423623; 42362 |
| Compatible With Replaces | Mating cups: Timken 42584, Timken 42585 |
| Precision Class | Class 3 |
| Additional Attributes | K Factor 1.19; C90 42,200 N; Ca90 35,600 N; Effective Load Centre 3 mm; Max shaft fillet radius 3.600 mm; da 101 mm; db 107 mm; Aa 2.5 mm; Ab 3.6 mm; G1 129.7; G2 37.2; Cg 0.139 |
| Dynamic Load Rating | 163,000 N |
| Static Load Rating | 241,000 N |
| Rolling Elements | Tapered Roller |
| Item Weight | 4.093 kg (9.02 lb) |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Harmonization Code | 8482.20.00 |
| Part Number | 42362-3 |
| Cone Part Number | 42362 |
| Cone Width | 1.1406 in |
| Cone Backface To Clear Radius | 0.14 in |
| Cross Reference 1 | Koyo 42362 |
|---|---|
| Cross Reference 2 | NTN 4T-42362 |
| Cross Reference 3 | NSK 42362 |
| Cross Reference 4 | SKF 42362 |
| Cross Reference 5 | BCA / Bower 42362 |
Timken 42362-3 inch tapered roller bearing cone. Bearing Type: Tapered roller bearing cone — the inner ring carrying the tapered rollers and cage as one assembly. Series: 423. Base Number: 42362. Bore Diameter: 3.6250 in (92.075 mm). Overall Width: 1.1406 in (28.971 mm). Bore Type: Straight. Rolling Elements: Tapered Roller. Number Of Rows: 1. Item Weight: 4.093 kg (9.02 lb).

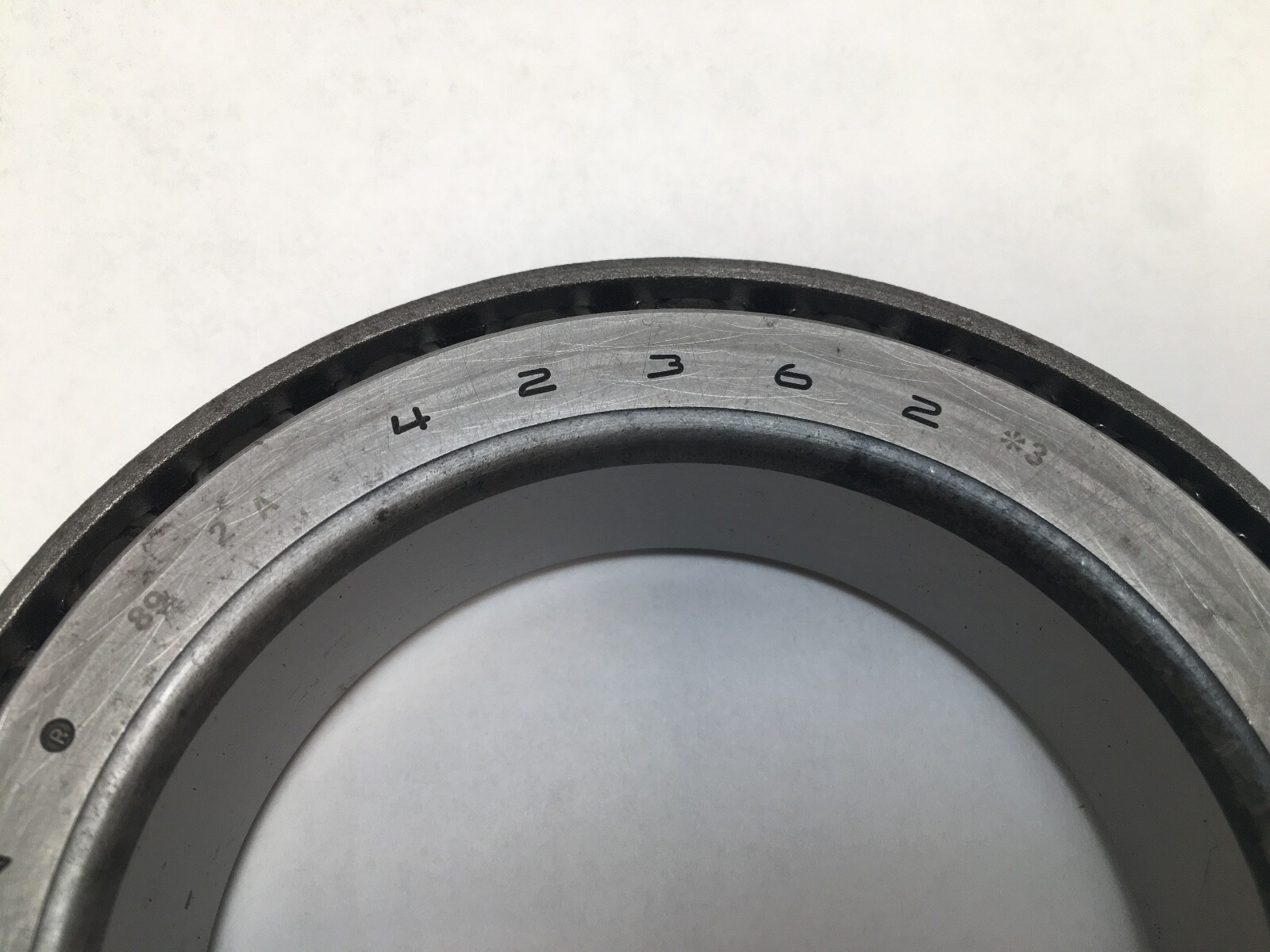

42362 — Timken base cone number in the 423 inch series, 3.6250 in bore.
*3 — Timken Precision Class 3. Tighter running and mounting tolerance than standard class, giving lower running vibration and closer shaft location. The same class is written 42362-3, 42362 *3 and 42362 #3.
Dynamic Load Rating: 163,000 N (C1, one million revolutions). Static Load Rating: 241,000 N. Dynamic radial rating at 90 million revolutions (C90): 42,200 N. Dynamic axial rating at 90 million revolutions (Ca90): 35,600 N. K Factor: 1.19. A K just under 1.2 marks a medium roller angle: radial capacity leads, with a thrust share of about four fifths of the radial figure at the 90-million-revolution rating.
Effective Load Centre: 3 mm. Maximum fillet radius on the mating shaft: 3.600 mm (0.140 in). Shaft Backing Shoulder Diameter, frontface (da): 101 mm (3.98 in). Shaft Backing Shoulder Diameter, backface (db): 107 mm (4.21 in). Cage location relative to backface (Aa): 2.5 mm. Cage location relative to frontface (Ab): 3.6 mm. G1 Factor: 129.7. G2 Factor: 37.2. Geometry Factor (Cg): 0.139.
Unit Quantity: 1 Pc. Cone only. Matching cups are the Timken 42584 and 42585.
42362 is an industry-standard inch tapered roller bearing cone number. Koyo, NTN, NSK, SKF and BCA/Bower all build a 42362 to the same boundary dimensions, and all interchange with this cone. Precision Class 3 is a Timken tolerance grade; a standard-class 42362 from any maker fits the same envelope but holds a wider tolerance band.
