Availability:
2 in stock

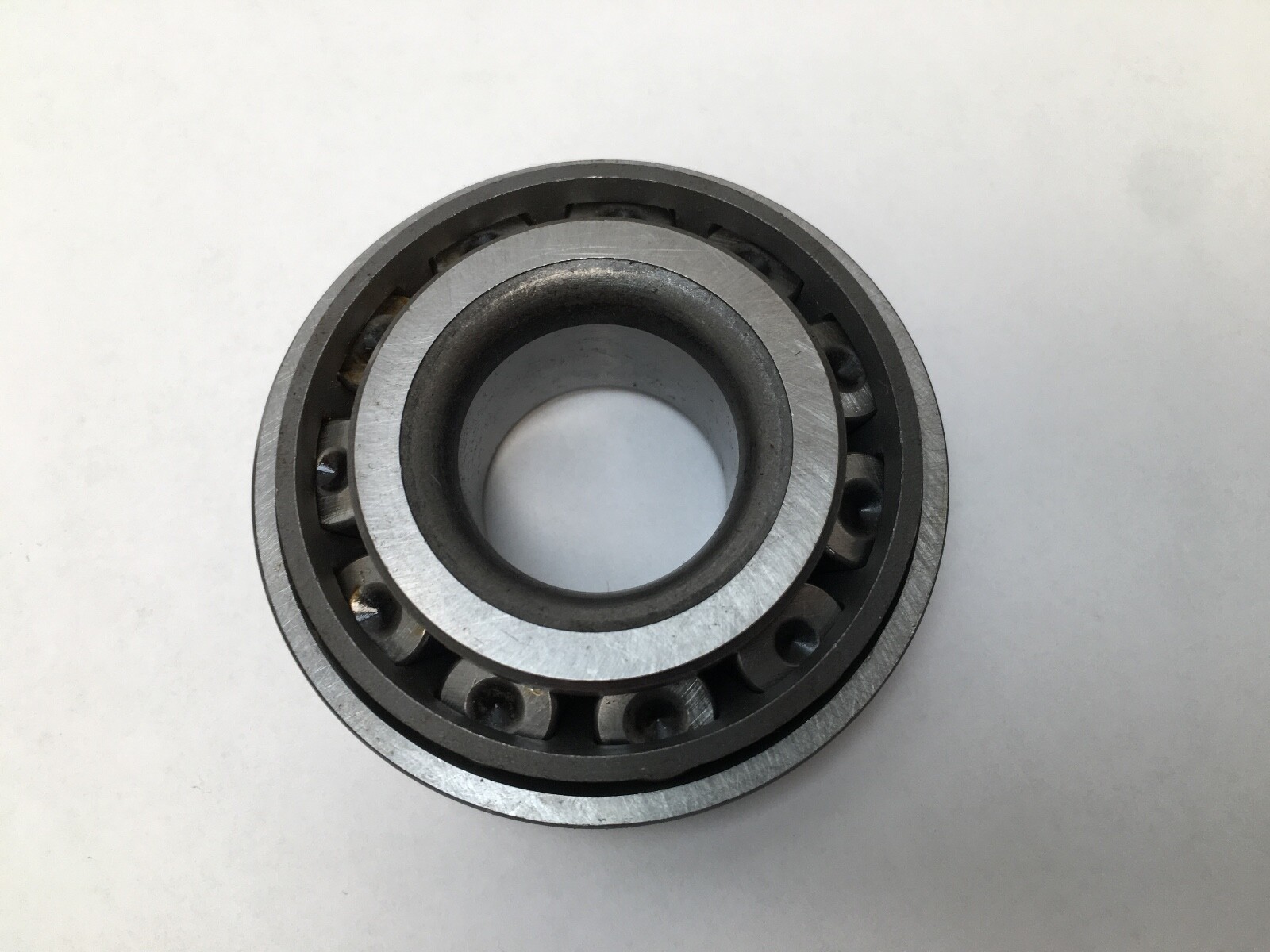

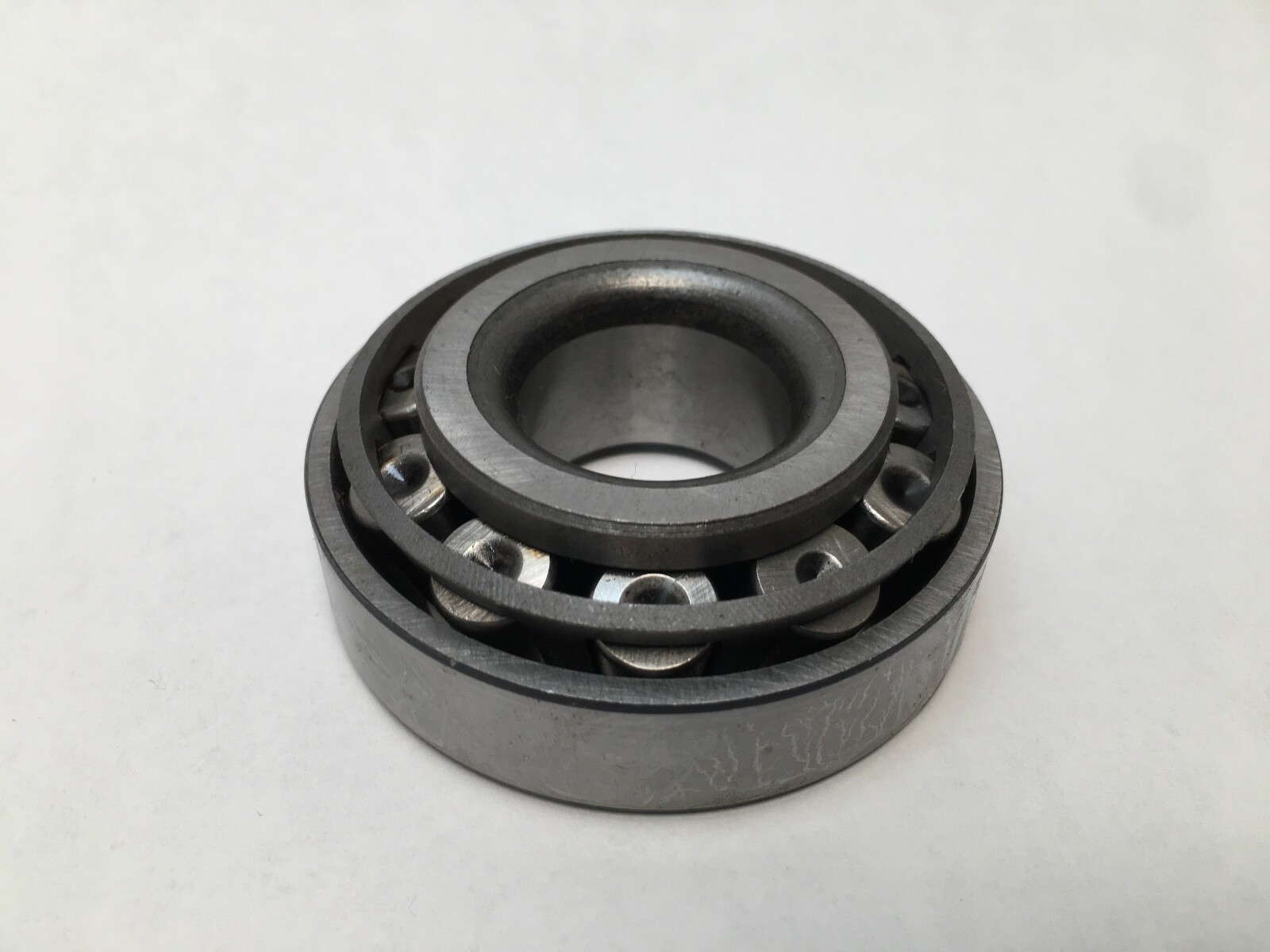

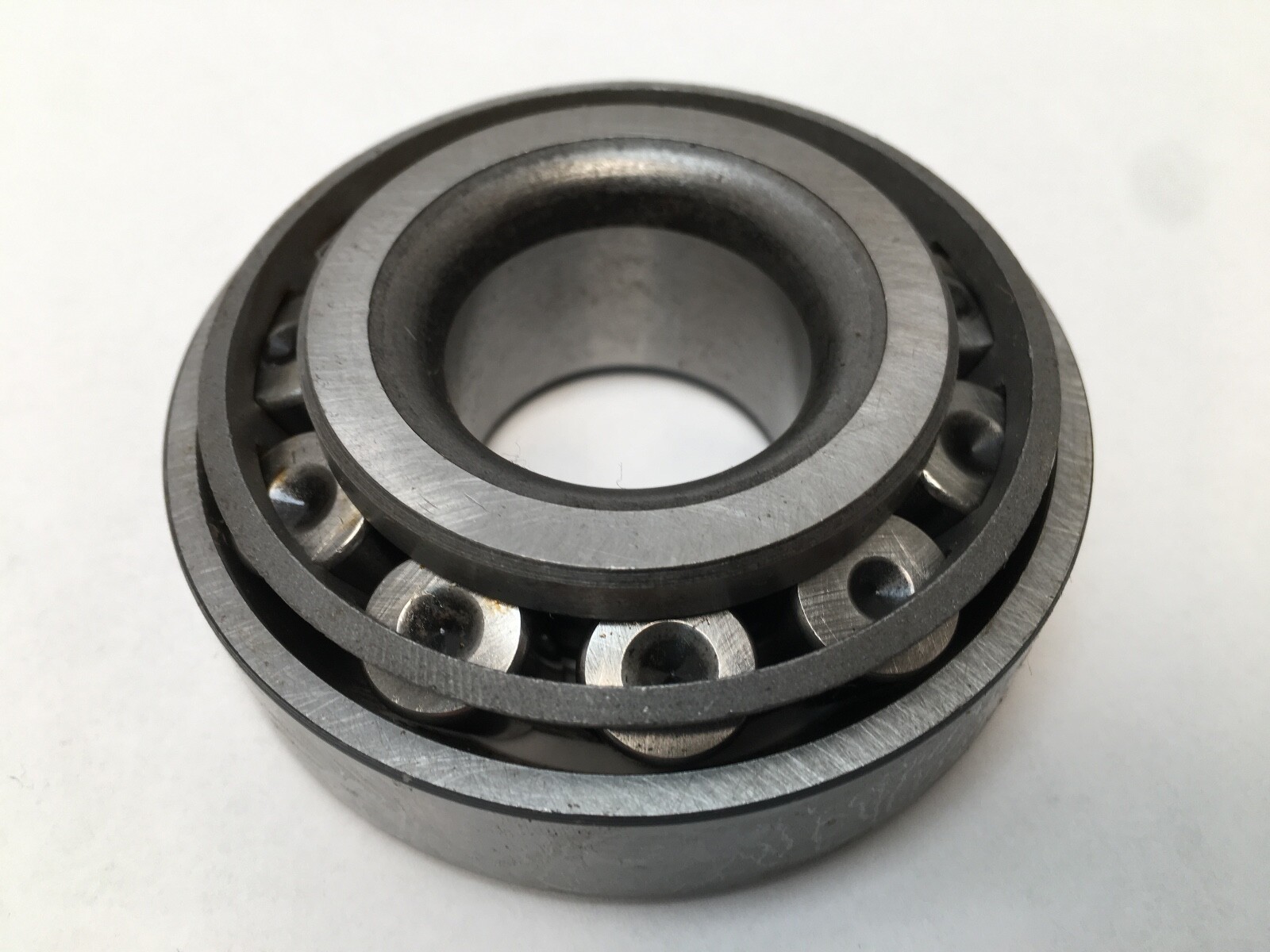

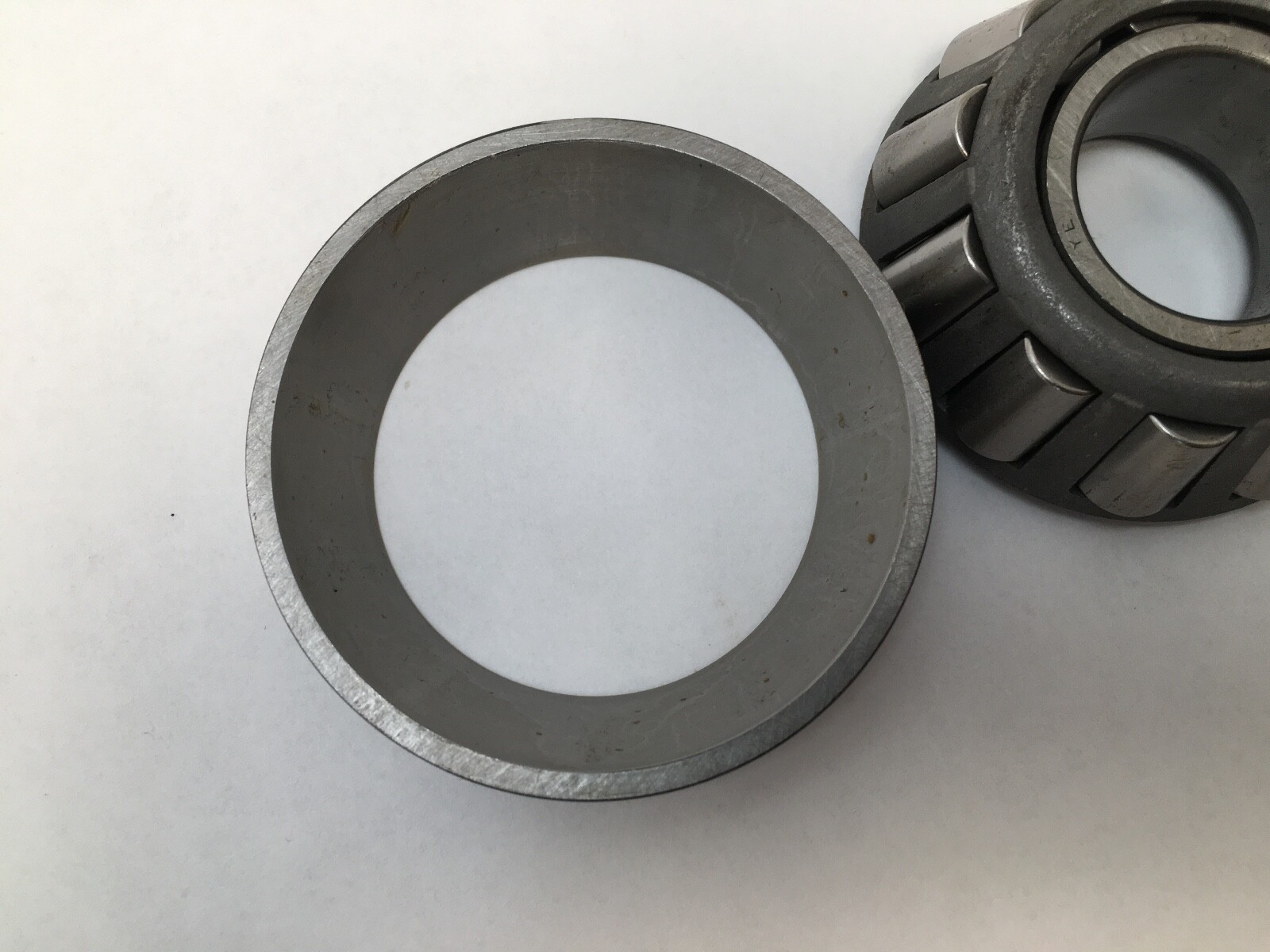

SKF 41125/41286 tapered roller bearing cone and cup set, 1-1/8 in bore, 2.8593 in OD, 0.9688 in width. Single row TS inch series, K-41125 cone, K-41286 cup.
List Price
$42.30
2 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | SKF |
|---|---|
| Model | K41125/K41286 |
| Bearing Type | Tapered Roller Bearing |
| ID | 1.1250 in (28.575 mm) |
| OD | 2.8593 in (72.626 mm) |
| Total Width | 0.9688 in (24.608 mm) |
|---|---|
| Mpn Variants | 41125/41286, K-41125, K-41286, K41125, K41286, 41125, 41286 |
| Compatible With Replaces | Cone 41125, cup 41286 |
| Series | 41000 |
| Rolling Elements | Tapered Roller |
| Number Of Rows | 1 |
| Design Units | Imperial |
| Cup Width | 0.6875 in (17.463 mm) |
| Cone Width | 0.9550 in (24.257 mm) |
| Cross Reference 1 | Timken 41125/41286 |
|---|
SKF 41125/41286 single row tapered roller bearing, inch series, supplied as a matched cone and cup. Cone: 41125 (marked K-41125). Cup: 41286 (marked K-41286). Bore Diameter: 1-1/8 in (28.575 mm). Outside Diameter: 2.8593 in (72.626 mm). Total Width: 0.9688 in (24.608 mm).

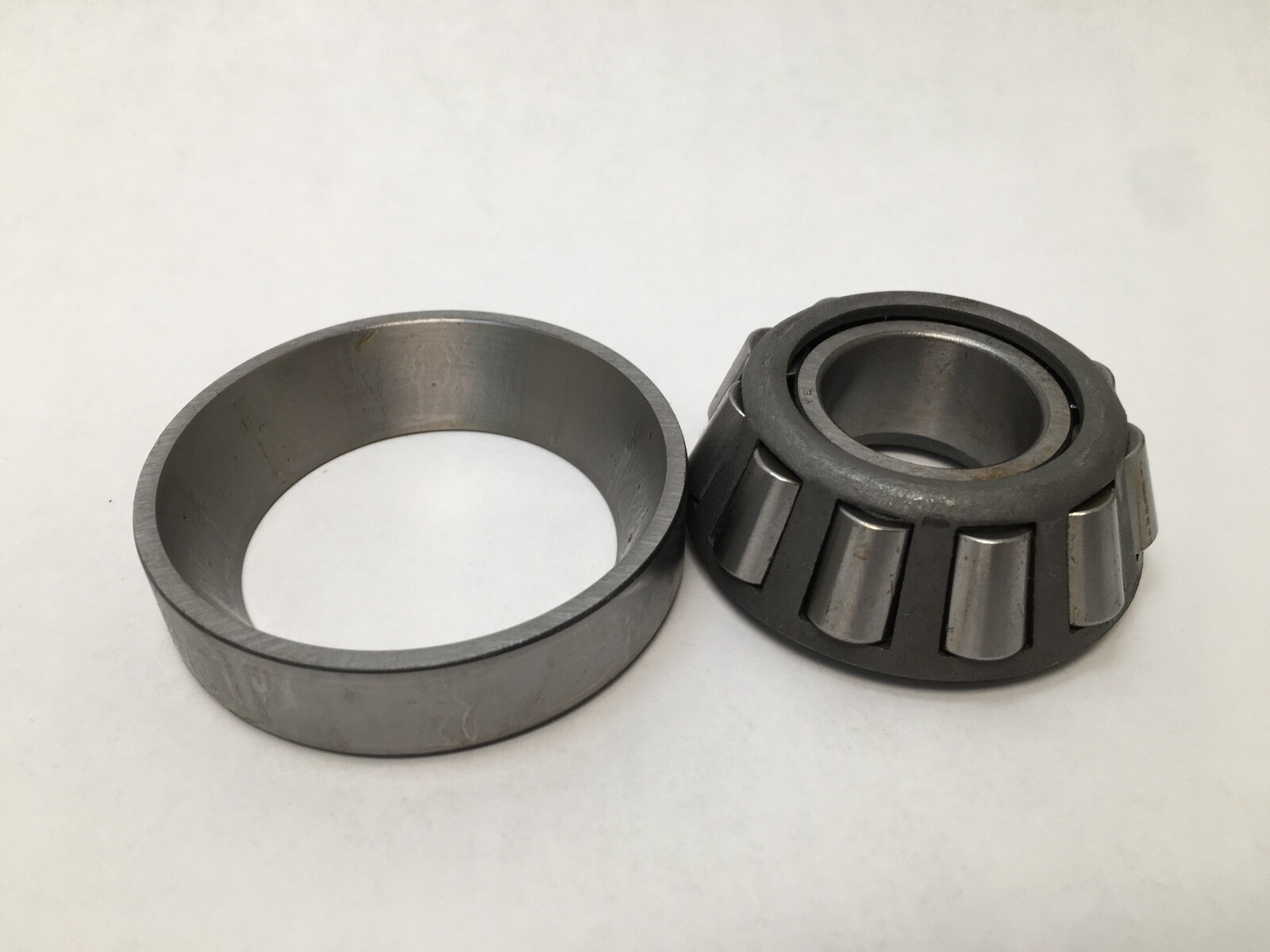

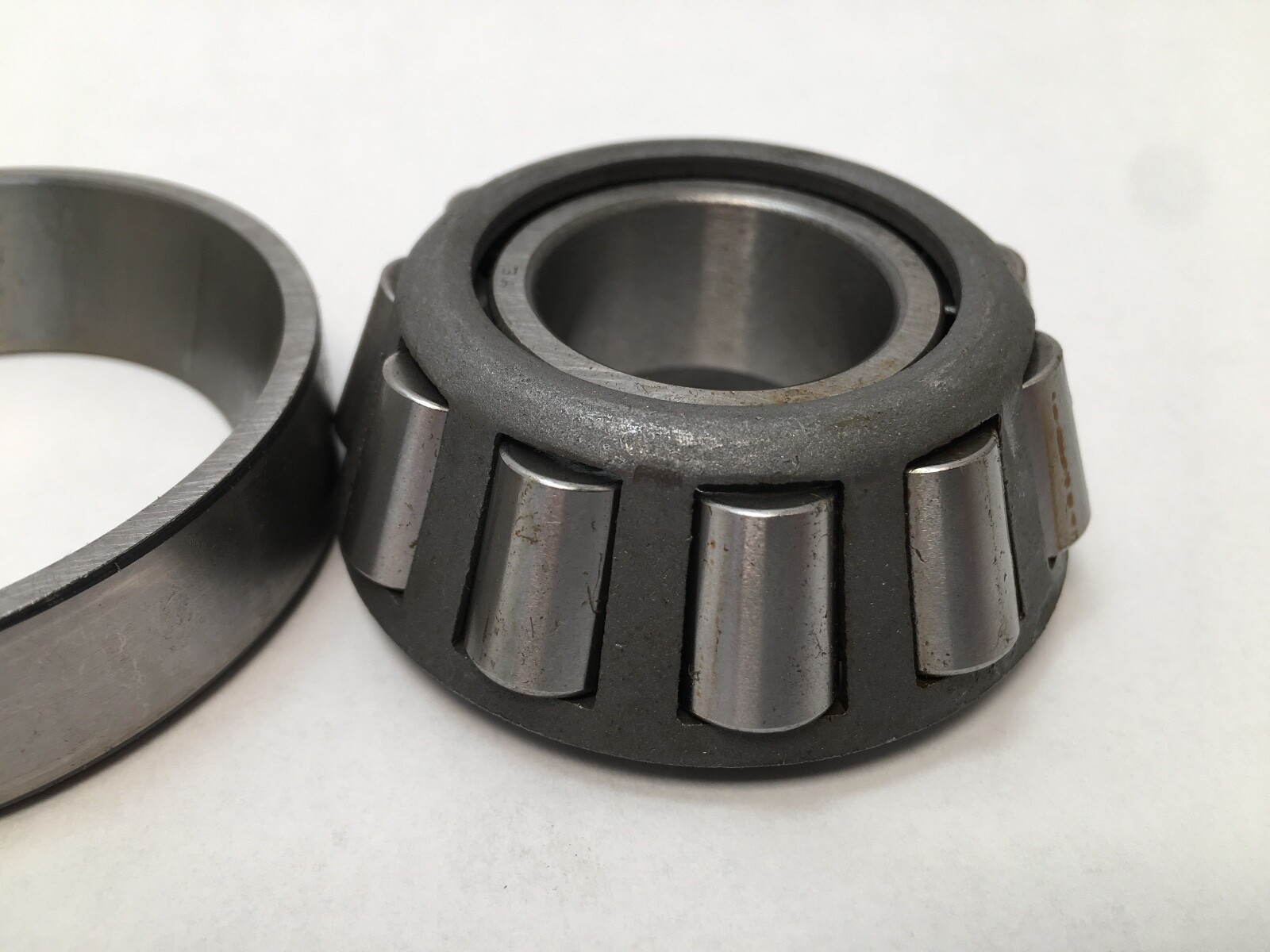

41125 — cone (inner ring with rollers and cage), 1-1/8 in bore, 41000 series.

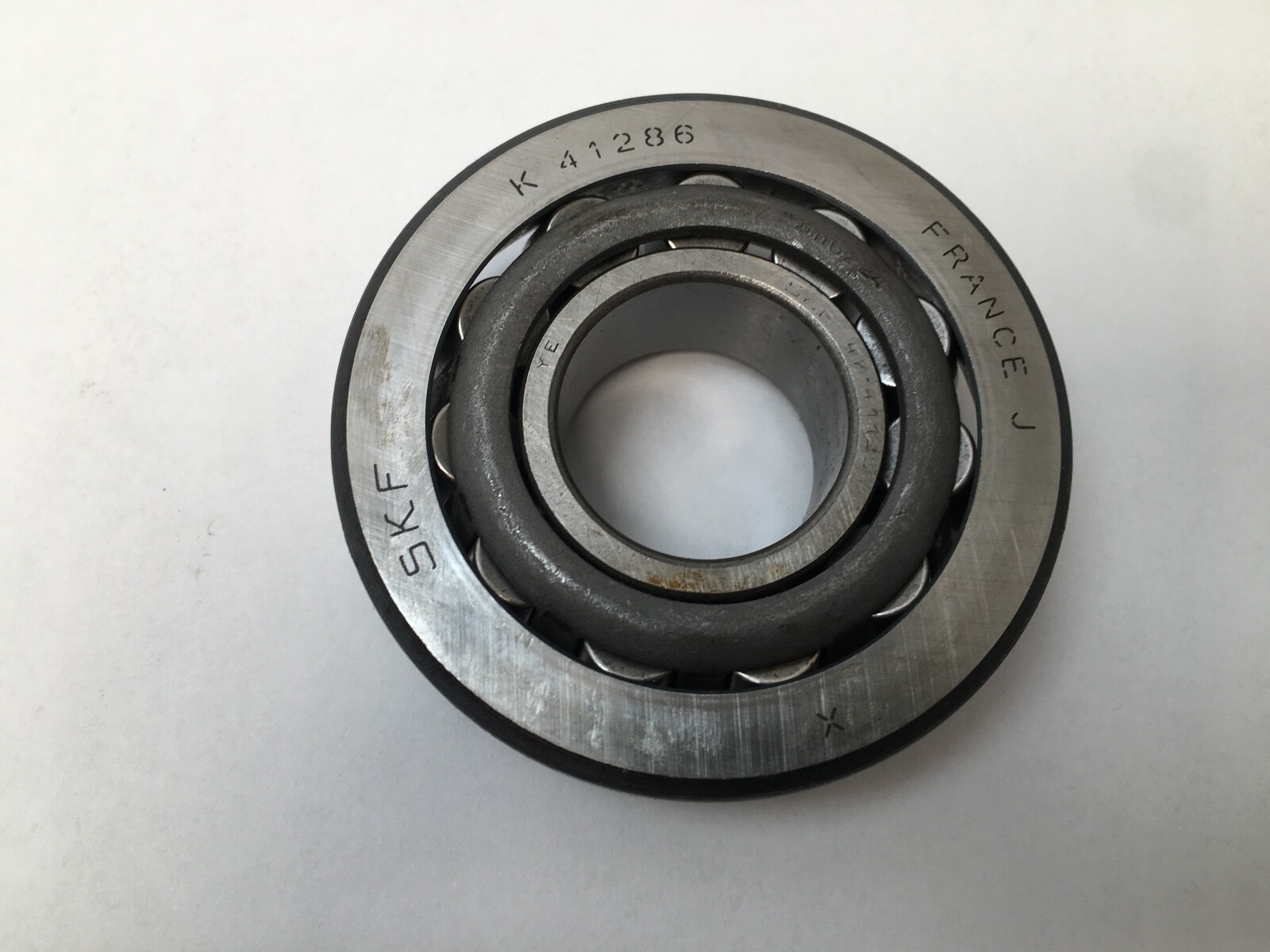

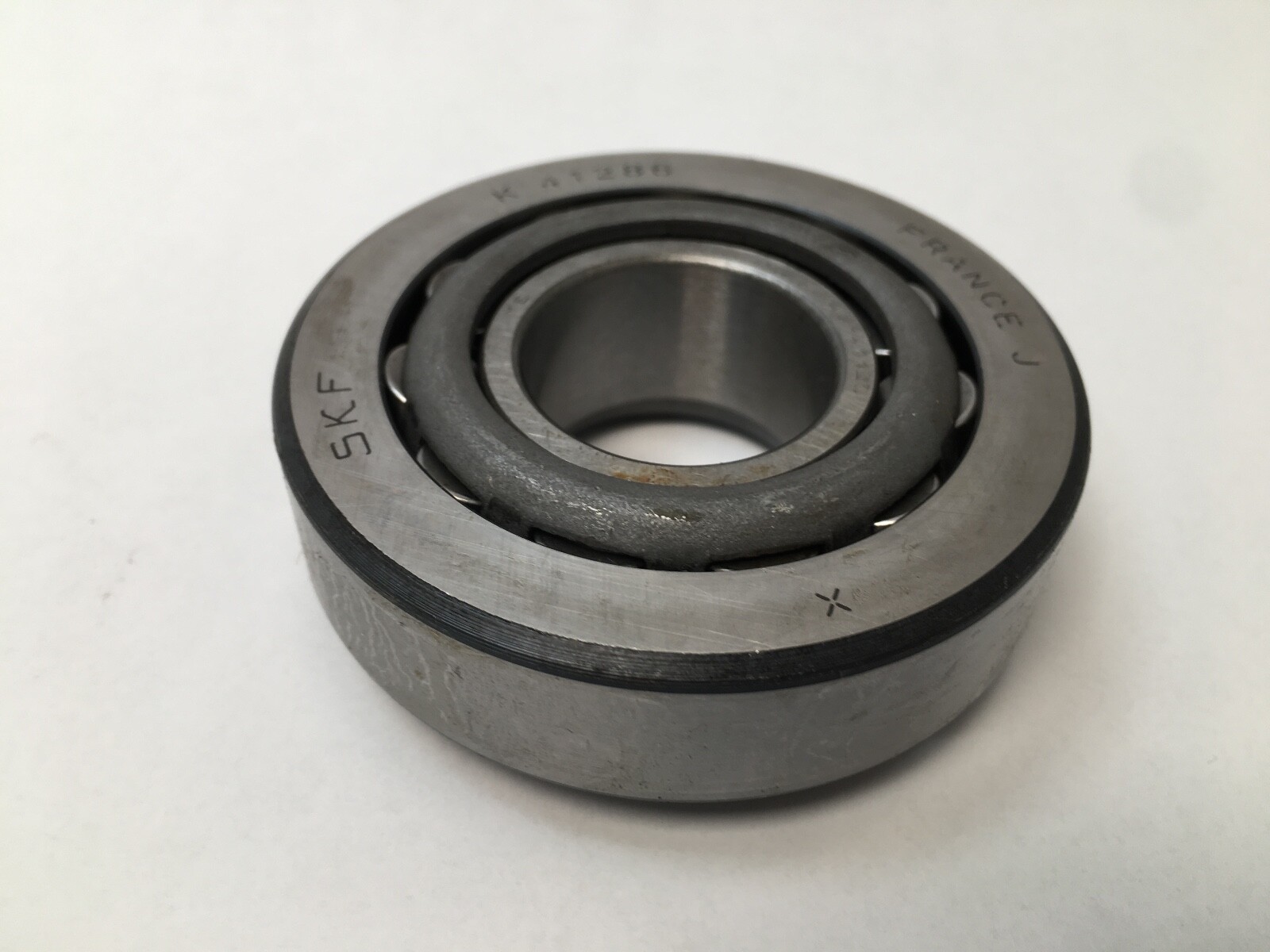

41286 — matching cup (outer ring), 2.8593 in OD.

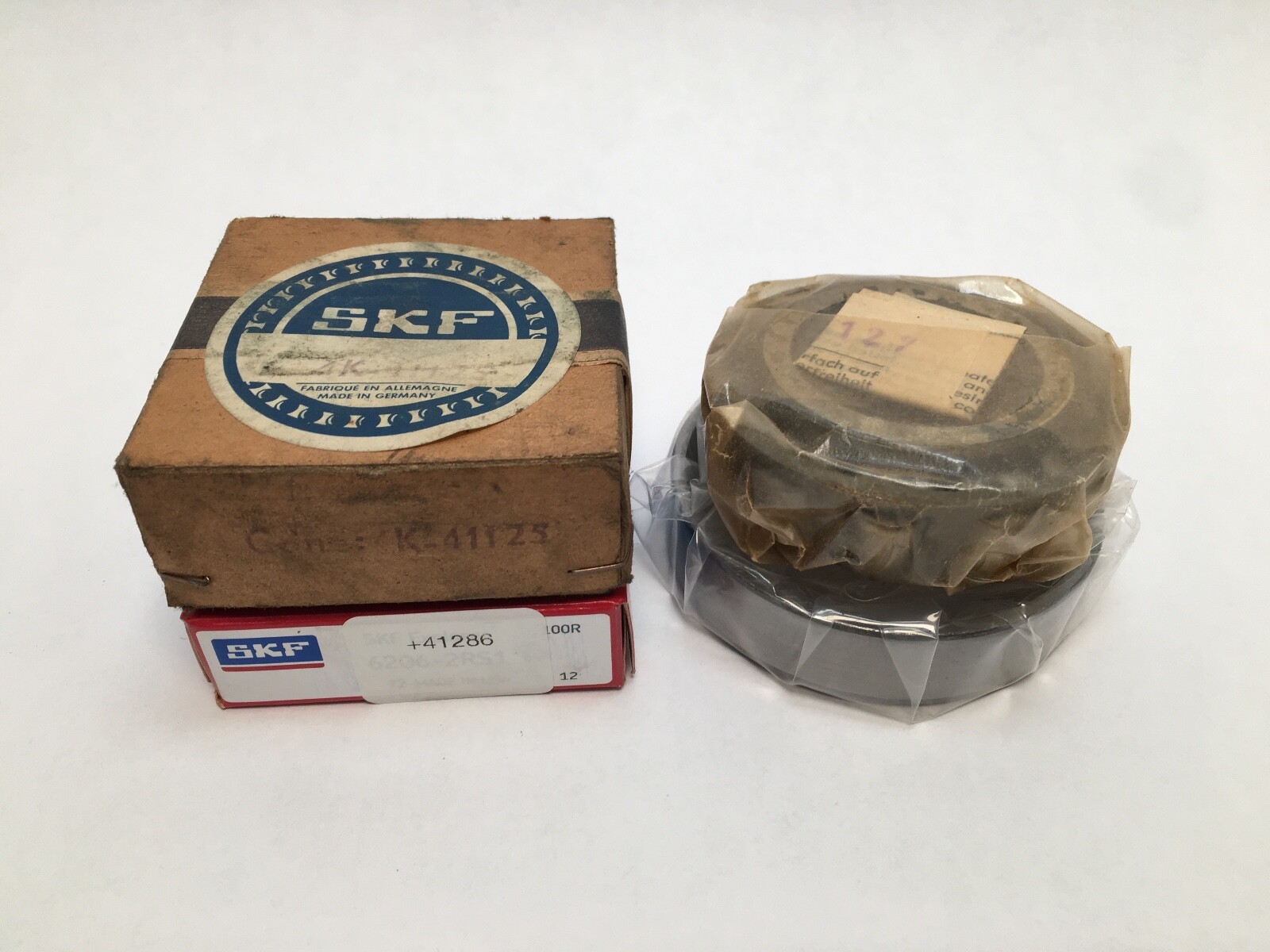

K- — prefix marked on the cone and cup cartons.
Rolling Elements: Tapered Roller. Number Of Rows: 1. Series: 41000. Bore Diameter: 1.1250 in (28.575 mm). Outside Diameter: 2.8593 in (72.626 mm). Total Width: 0.9688 in (24.608 mm). Cone Width: 0.9550 in (24.257 mm). Cup Width: 0.6875 in (17.463 mm). Unit Quantity: 1 set (1 cone, 1 cup).
Shaft Backing Shoulder Diameter da: 1.44 in (36.5 mm). Shaft Backing Shoulder Diameter db: 1.89 in (48 mm). Housing Backing Shoulder Diameter Da: 2.72 in (68.10 mm). Housing Backing Shoulder Diameter Db: 2.40 in (60.96 mm). Cone Backface Fillet Radius To Clear: 0.19 in (4.8 mm). Cup Backface Fillet Radius To Clear: 0.06 in (1.52 mm).
Standard ABMA inch envelope shared with Timken 41125/41286. Cone and cup are separable and also sold individually as 41125 and 41286.
What size is the 41125/41286 bearing?
1-1/8 in bore, 2.8593 in outside diameter, 0.9688 in total width.
What cup fits the 41125 cone?
The 41286 cup.
Is this a complete bearing?
Yes. The set is one 41125 cone and one 41286 cup.
