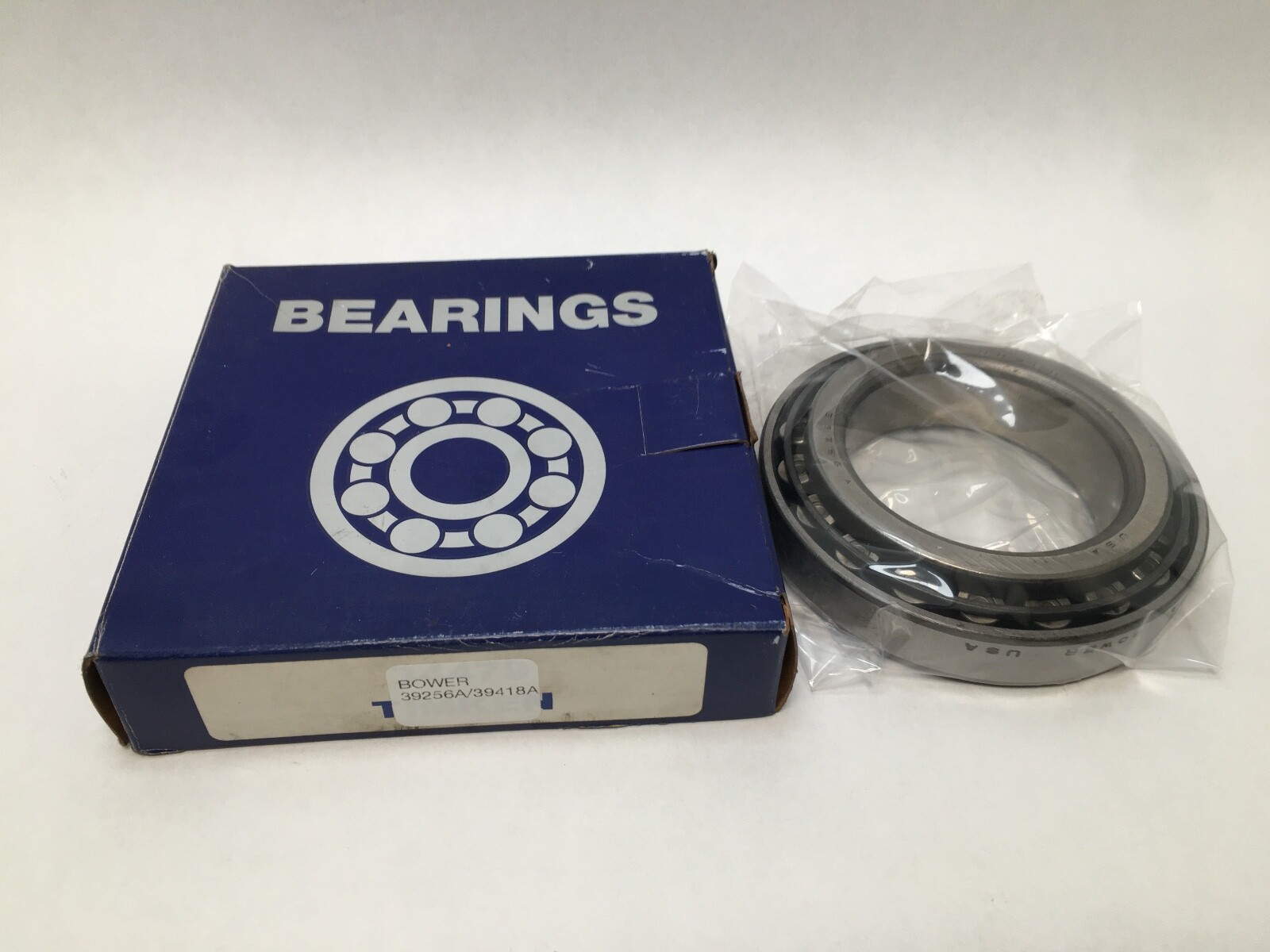

Bower39256A/39418ATapered Roller Bearing Cone and Cup Set — 2-9/16 in Bore, 4-3/16 in OD, Single Row

Product Description

What this part is:

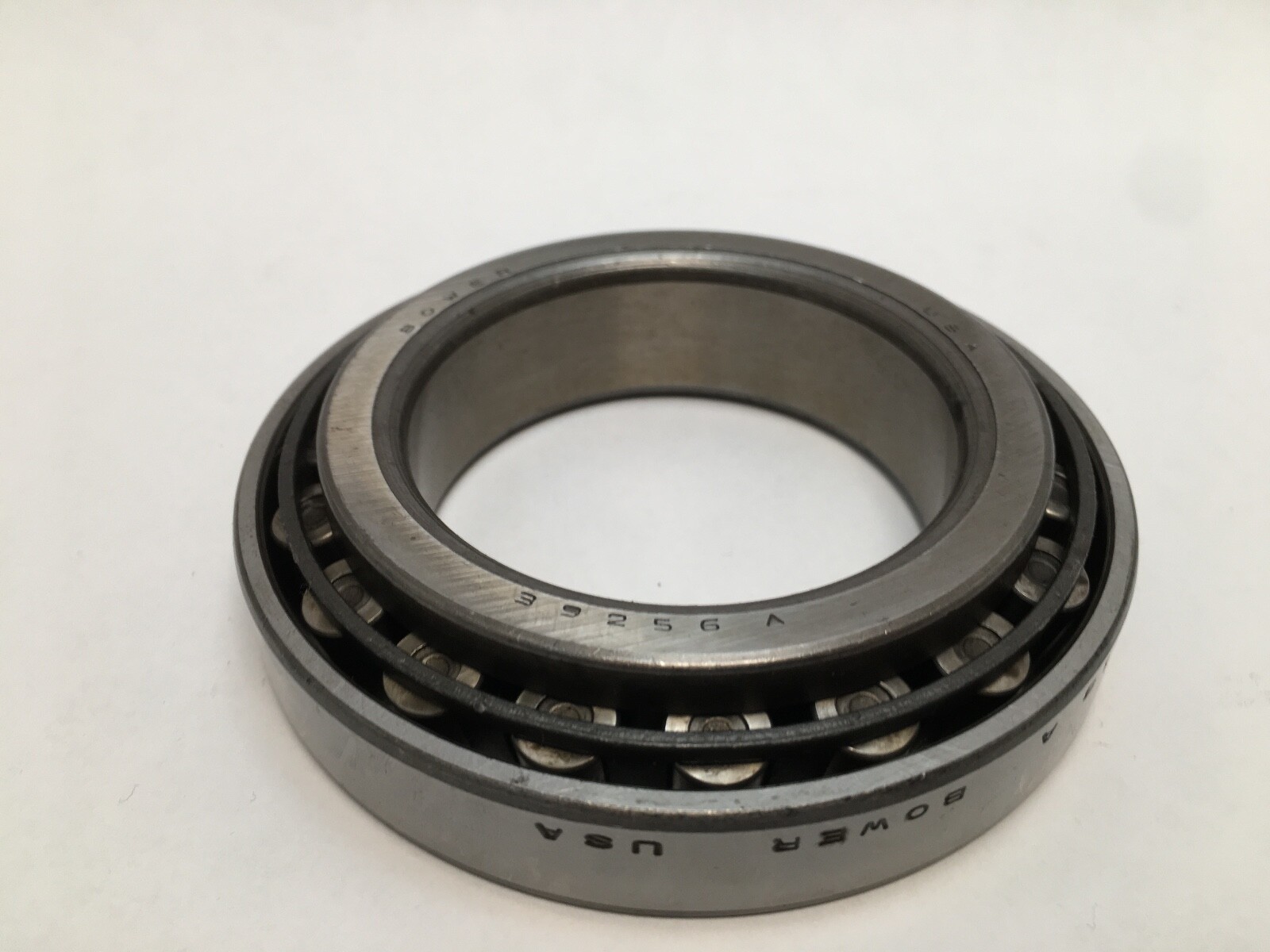

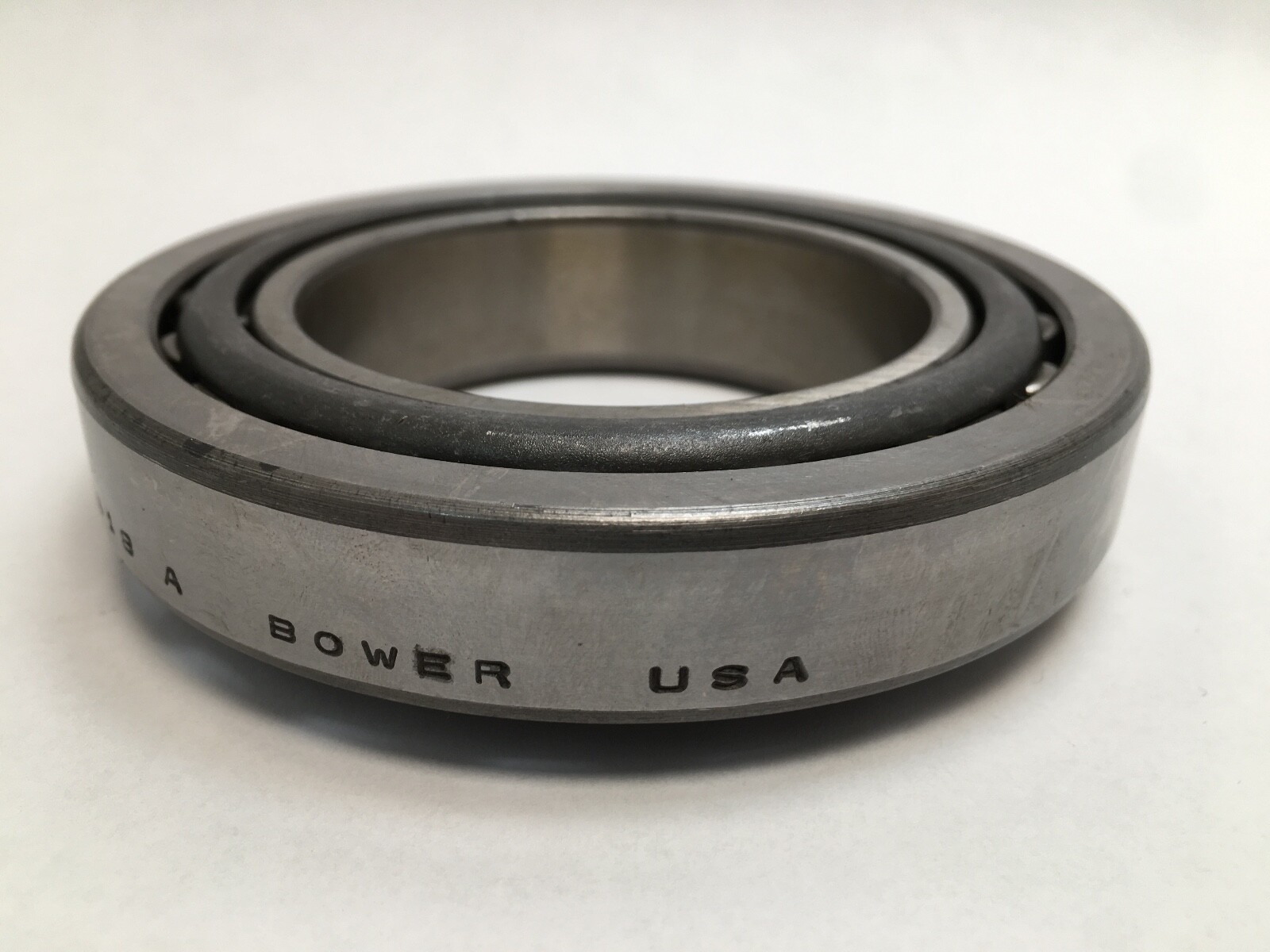

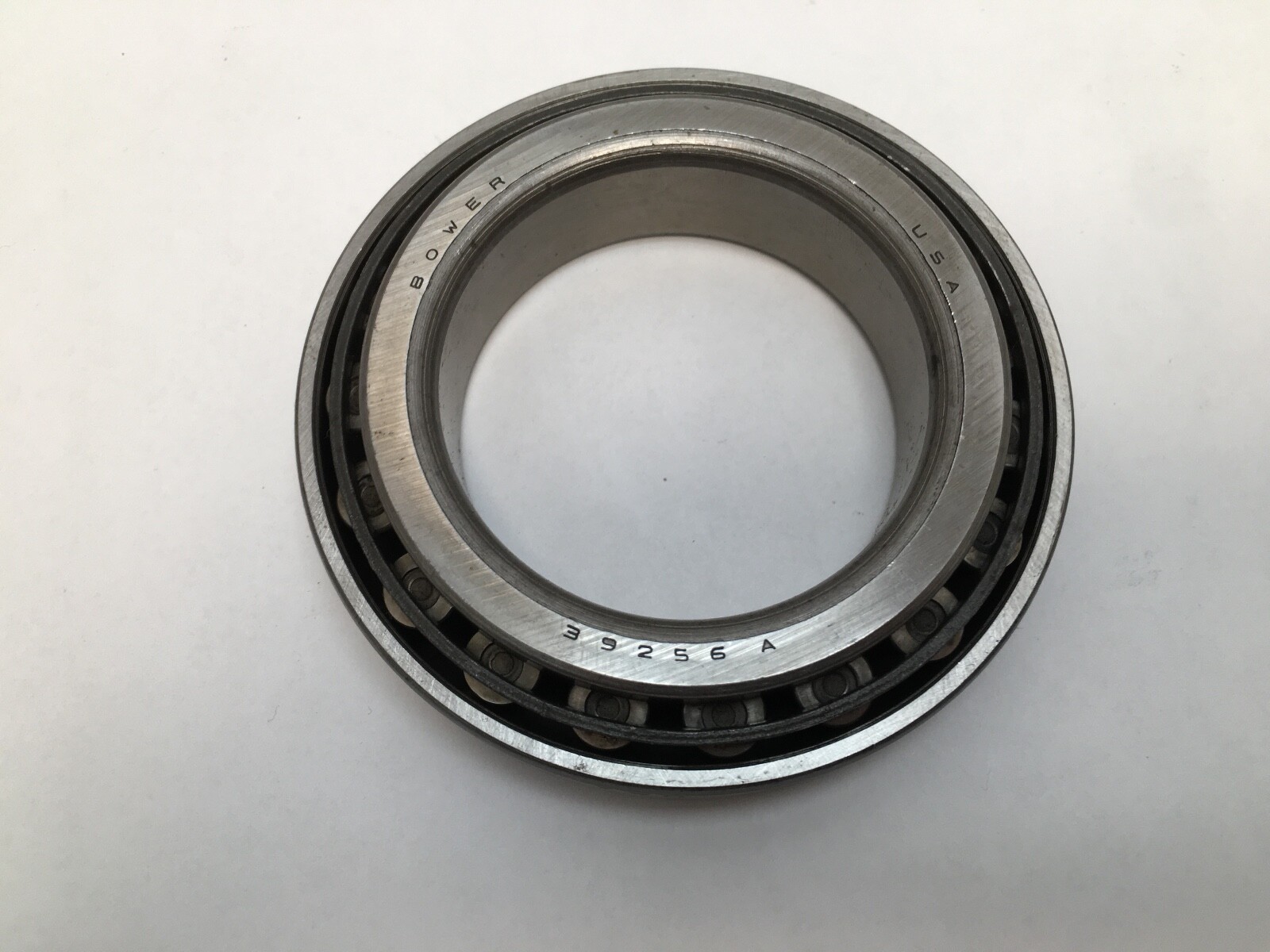

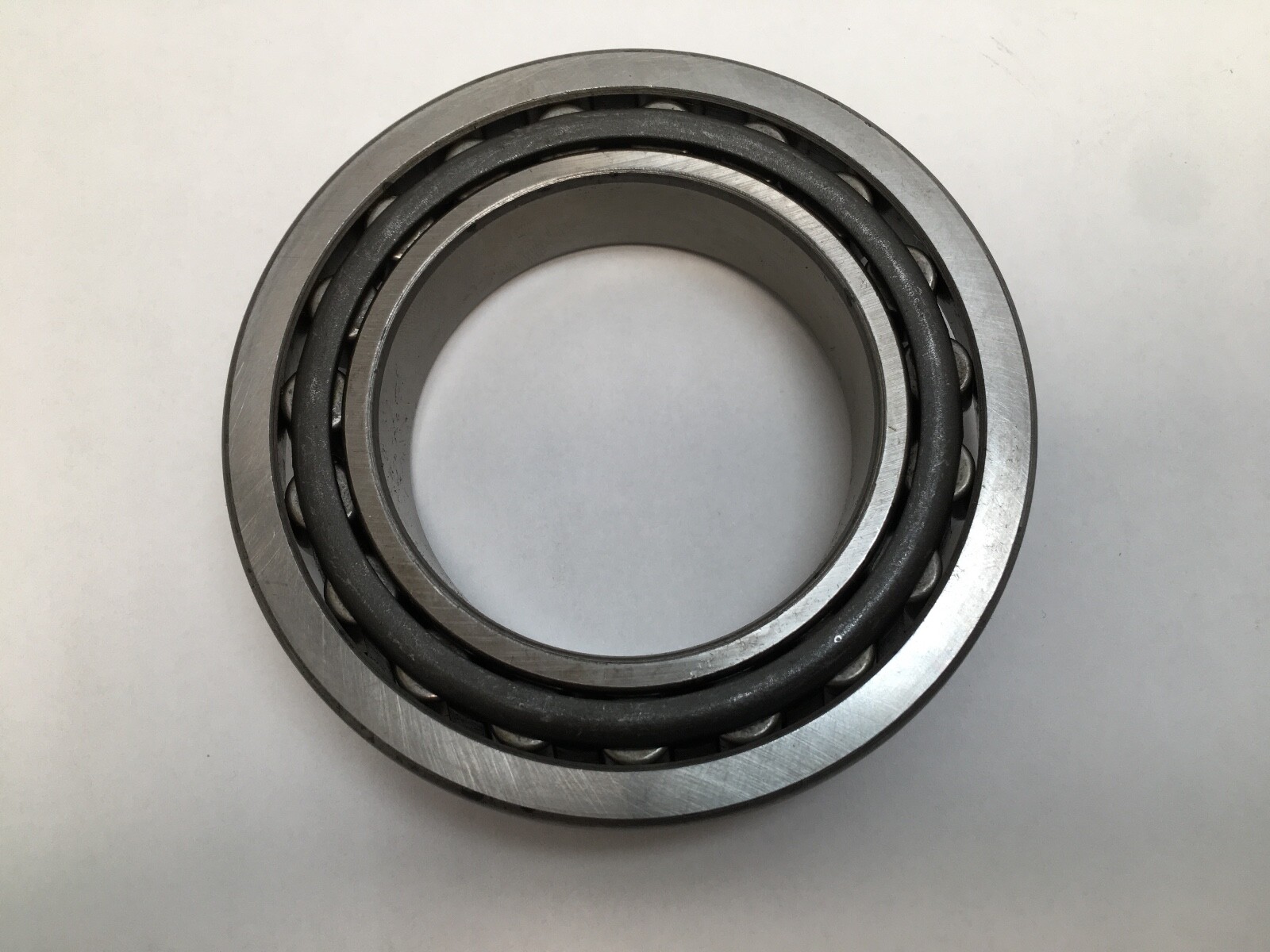

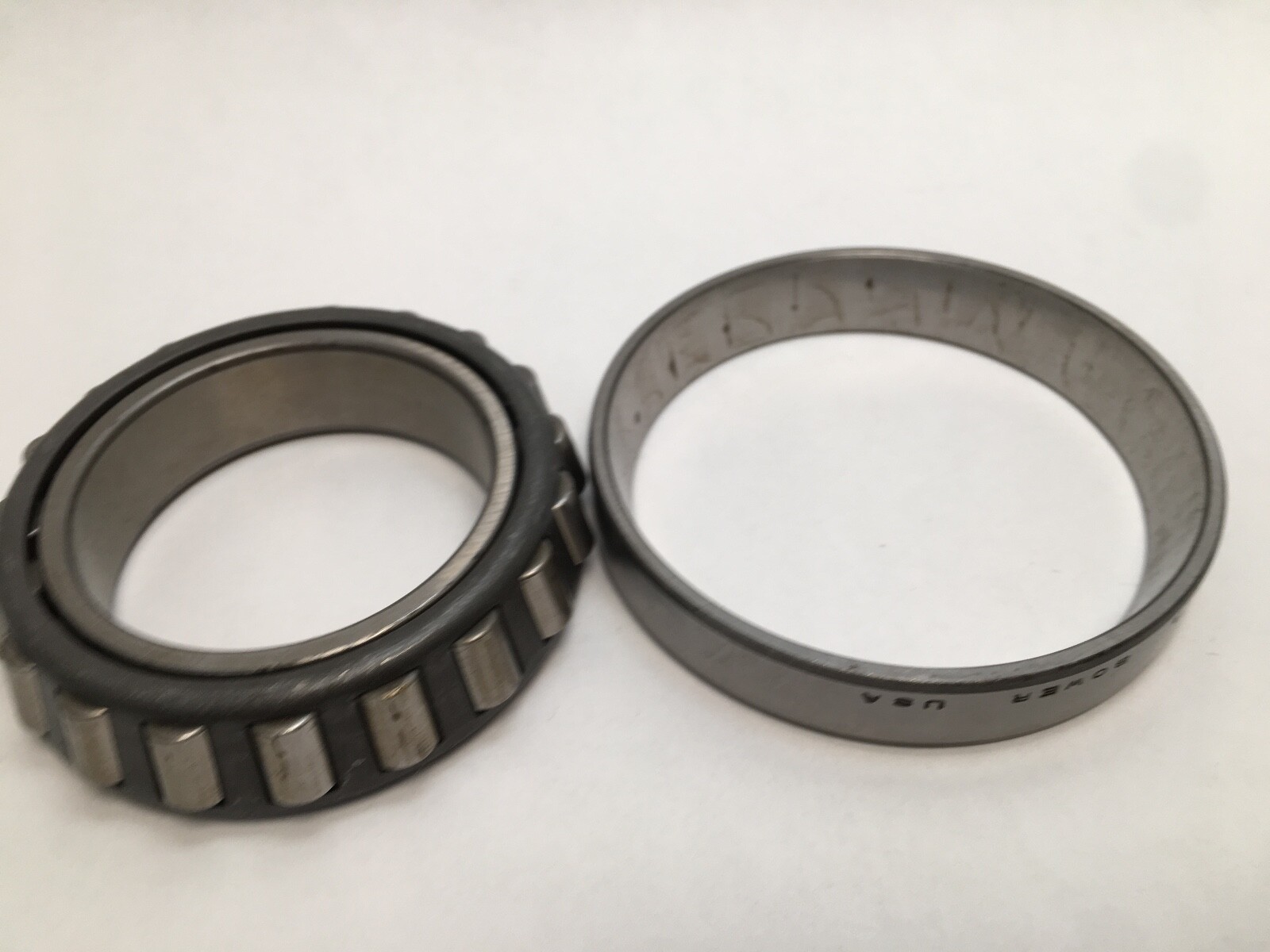

Bower 39256A/39418A is a single-row inch tapered roller bearing set: a 39256A cone (inner ring, rollers and cage) and a 39418A cup (outer ring). The set carries combined radial and one-direction thrust load. Unit Quantity: 2 Pcs, one 39256A cone and one 39418A cup.

Decoding the designation:

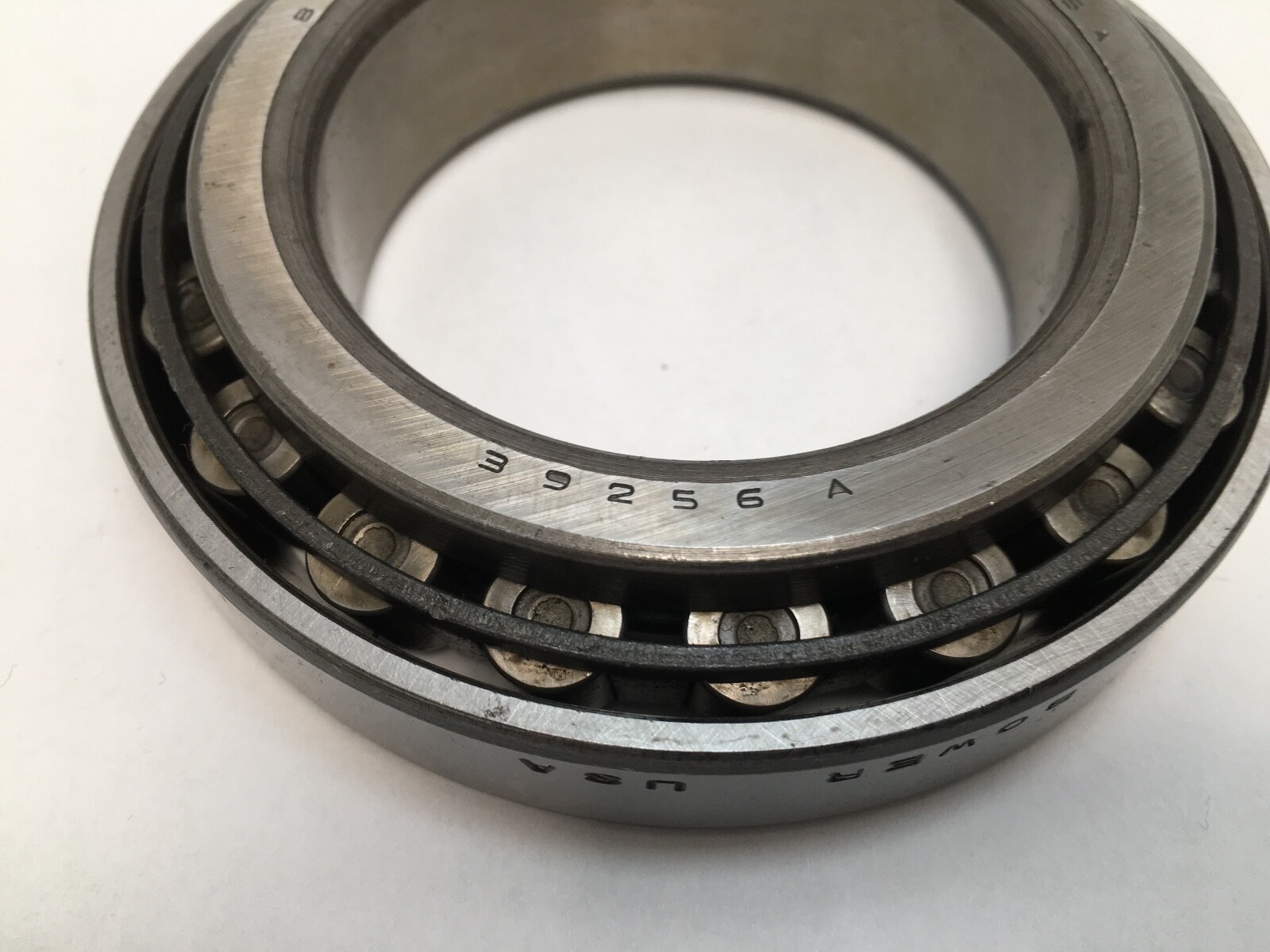

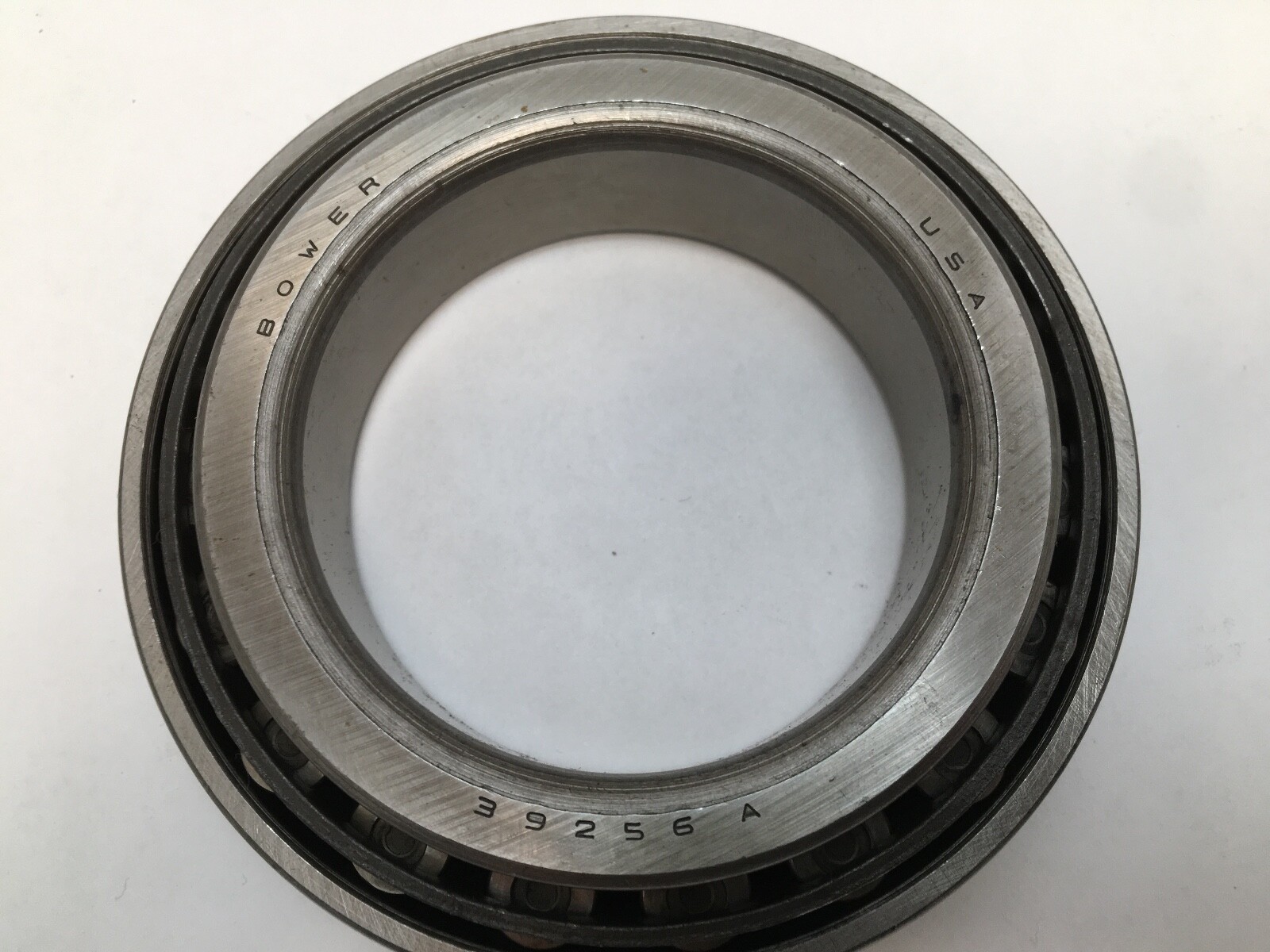

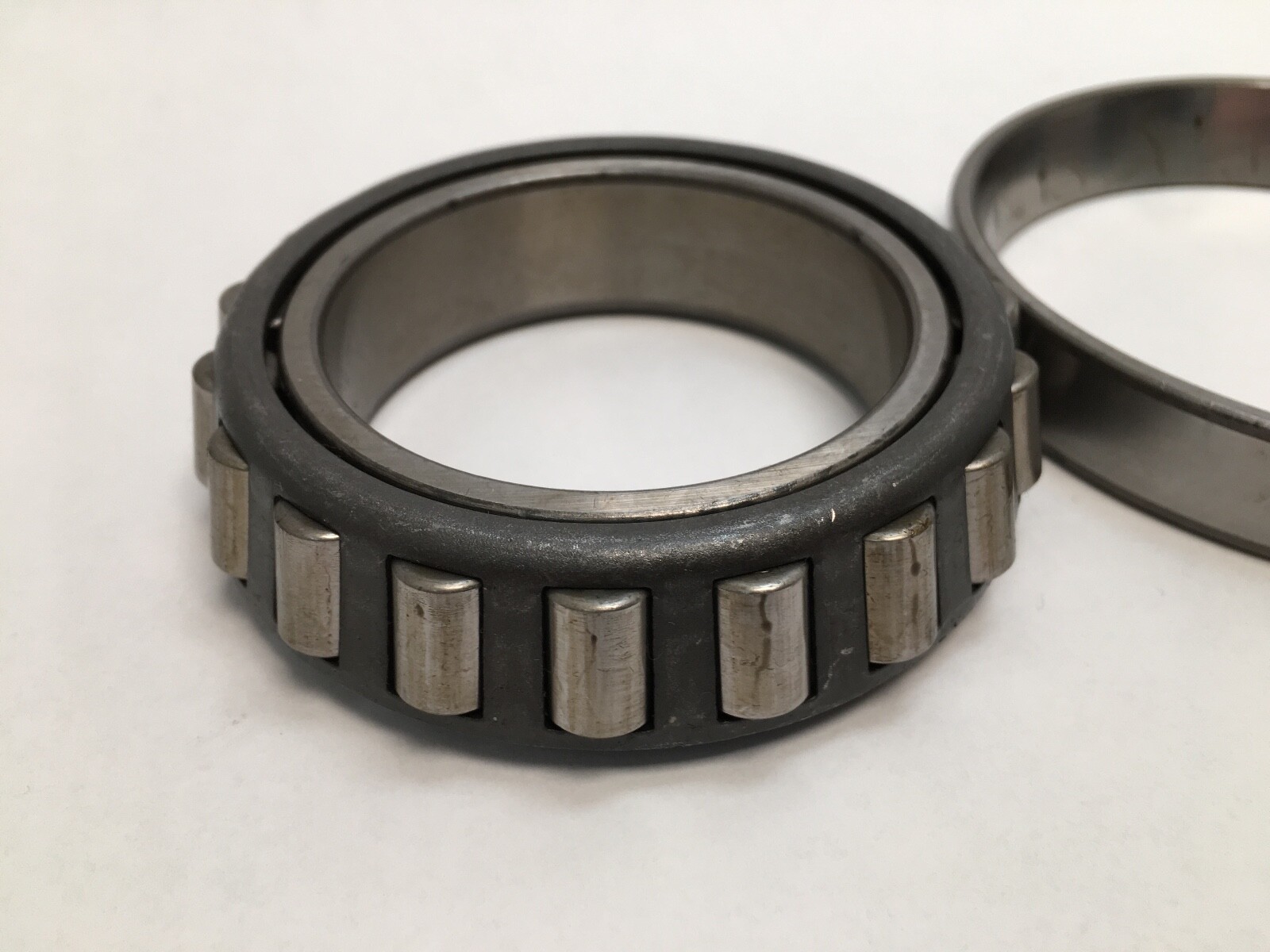

39256A — cone number, 2-9/16 in bore, 39000 family.

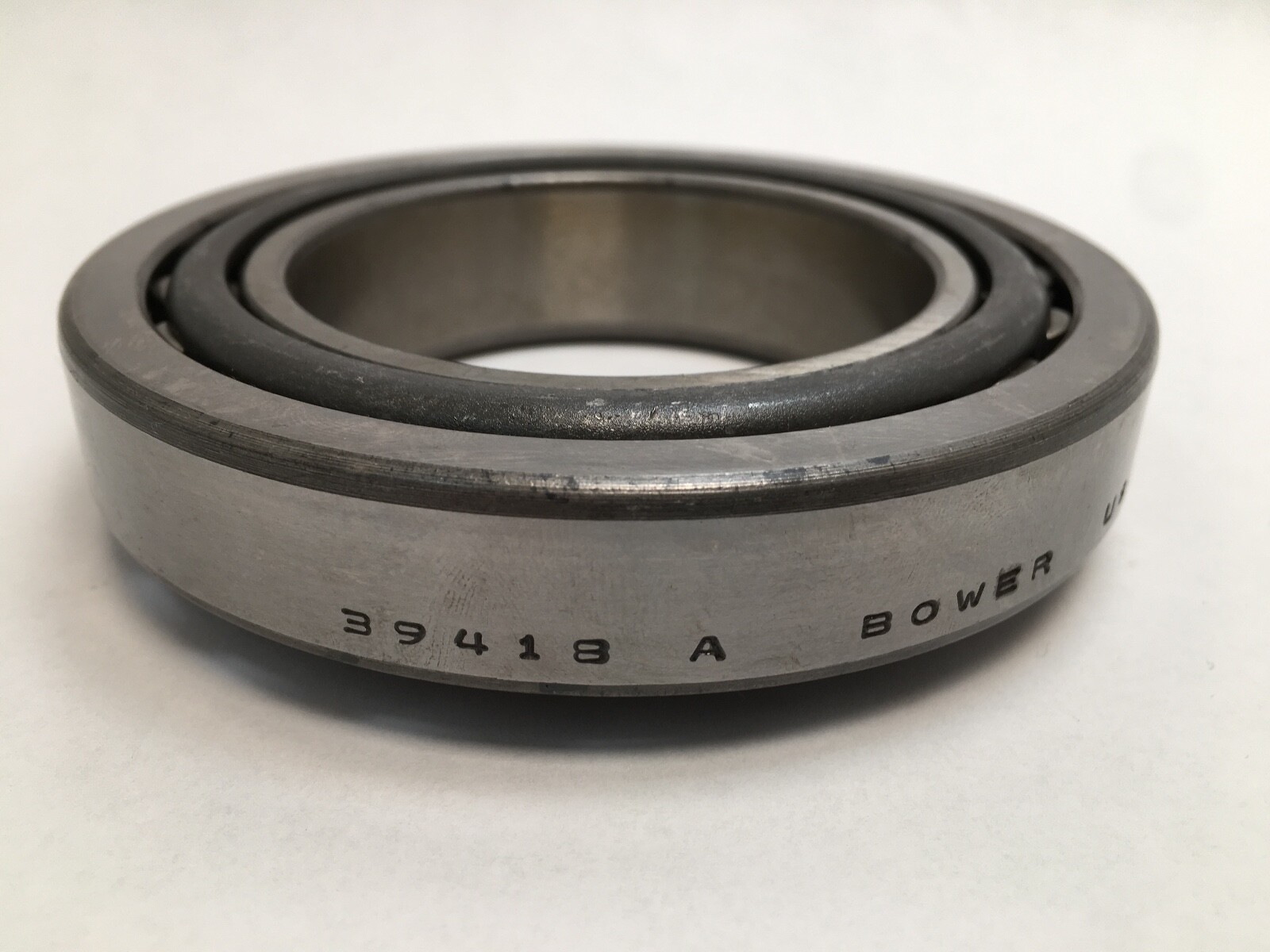

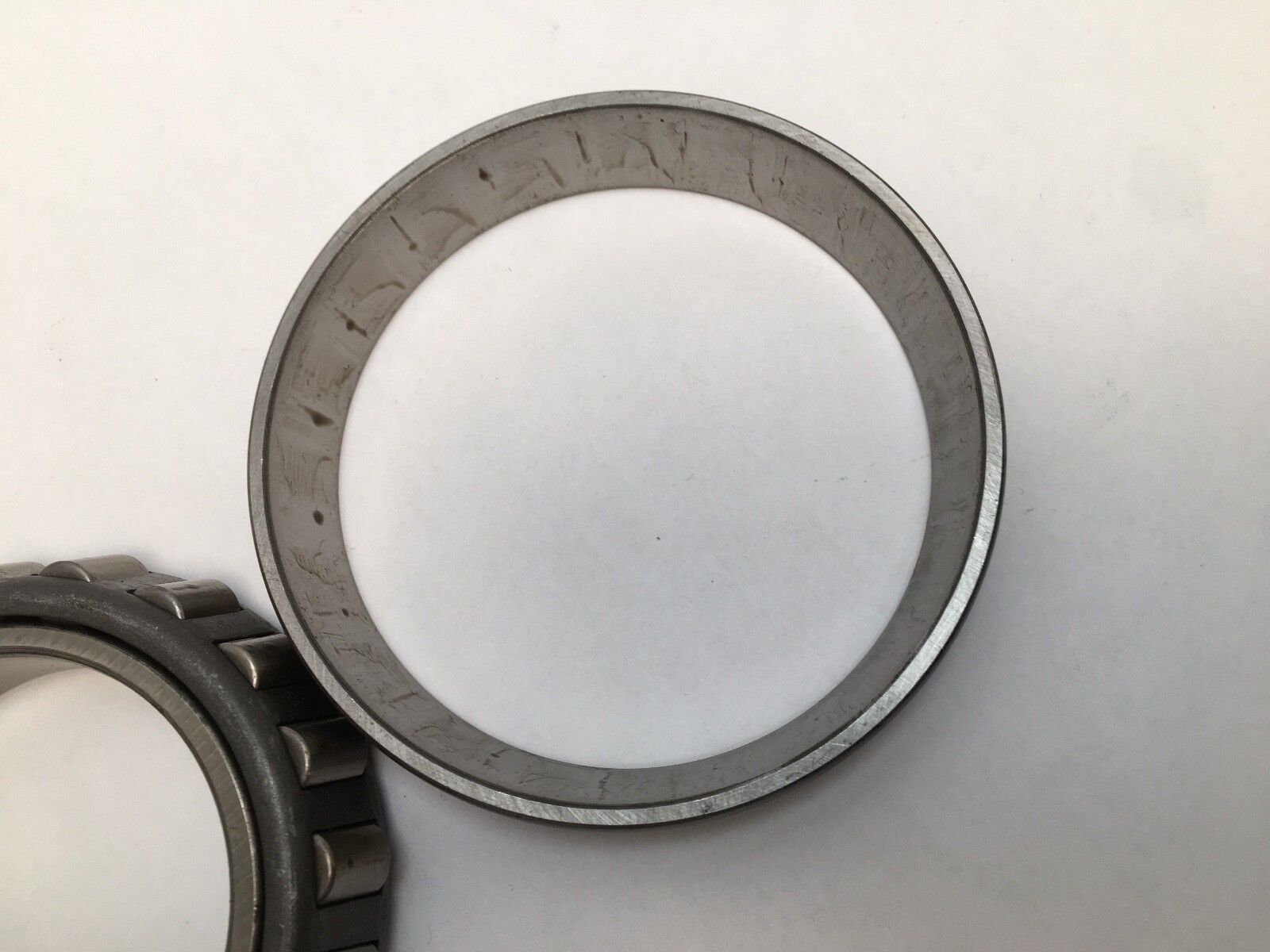

39418A — cup number, 4-3/16 in OD.

39256A/39418A — cone/cup pair forming one complete single-row bearing.

Specifications:

Bore Diameter: 2.5625 in (2-9/16 in, 65.088 mm). Outside Diameter: 4.1875 in (4-3/16 in, 106.363 mm). Rolling Elements: Tapered Roller. Number Of Rows: 1. Closure Type: Open. Bore Type: Straight. Unit Quantity: 2 Pcs.

Dimensions and mounting:

Bore Diameter: 2.5625 in (65.088 mm). Outside Diameter: 4.1875 in (106.363 mm). Cone number 39256A; cup number 39418A.

Compatibility and replacement:

Part numbers carried on the parts: 39256A, 39418A, also written 39256-A and 39418-A.

Frequently asked questions:

What does the Bower 39256A/39418A set contain?

One 39256A cone and one 39418A cup, 2 Pcs.

What are the bore and outside diameter?

Bore Diameter: 2.5625 in (65.088 mm). Outside Diameter: 4.1875 in (106.363 mm).

How many rows of rollers does it have?

One row of tapered rollers.
