Inch tapered roller bearing cone, 4.75 in bore, 1.875 in width, 378,000 N dynamic and 593,000 N static rating. Mates with a 792 or 793 cup.
List Price
$150.37
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Timken |
|---|---|
| MPN | 795 |
| GTIN | 053893091648 |
| Model | 795 |
| Bearing Type | Tapered Roller Bearing Cone |
| ID | 4.7500 in (120.650 mm) |
| Series | 795 |
|---|---|
| Base Number | 795 |
| Overall Width | 1.875 in (47.625 mm) |
| Mpn Variants | 795; 795-90xxx cone element |
| Compatible With Replaces | Mating cups: Timken 792, Timken 793 |
| Precision Class | Not specified |
| Additional Attributes | K Factor 1.27; C90 98,000 N; Ca90 77,000 N; Effective Load Centre -1.8 mm; Max shaft fillet radius 3.300 mm; da 137 mm; db 142 mm; Aa 4.6 mm; Ab 4.1 mm; G1 326.4; G2 62; Cg 0.127 |
| Dynamic Load Rating | 378,000 N |
| Static Load Rating | 593,000 N |
| Rolling Elements | Tapered Roller |
| Item Weight | 13.915 kg (30.68 lb) |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Harmonization Code | 8482.2 |
| Part Number | 795 |
| Cone Part Number | 795 |
| Cone Width | 1.8750 in |
| Cone Backface To Clear Radius | 0.13 in |
| Cone Frontface Backing Diameter | 5.39 in |
| Cage Cone Frontface Clearance | 0.16 in |
| Cage Cone Backface Clearance | 0.18 in |
| Effective Center Location | -0.07 in |
| Cross Reference 1 | Koyo 795 |
|---|---|
| Cross Reference 2 | NTN 4T-795 |
| Cross Reference 3 | NSK 795 |
| Cross Reference 4 | SKF 795 |
| Cross Reference 5 | BCA / Bower 795 |

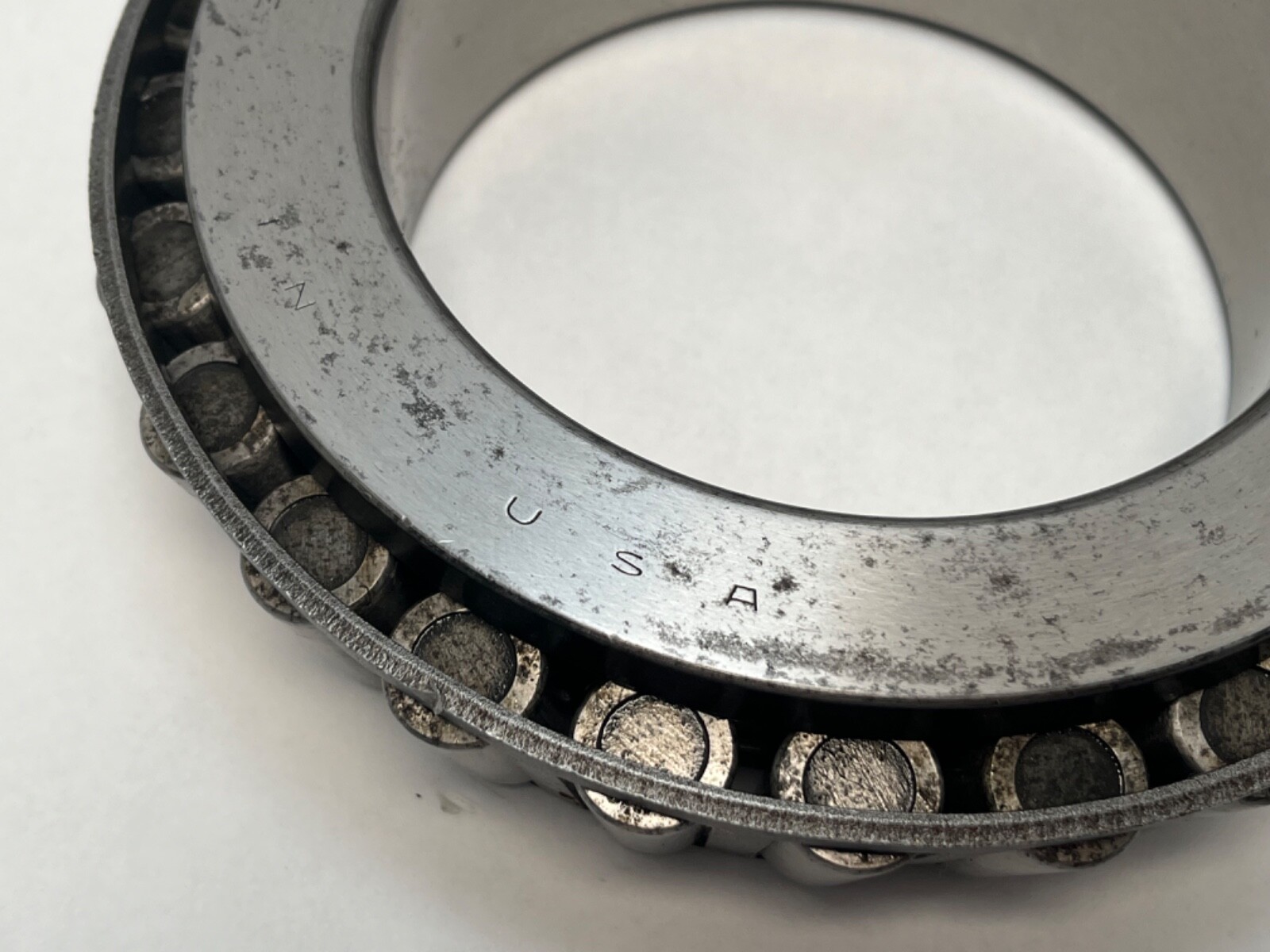

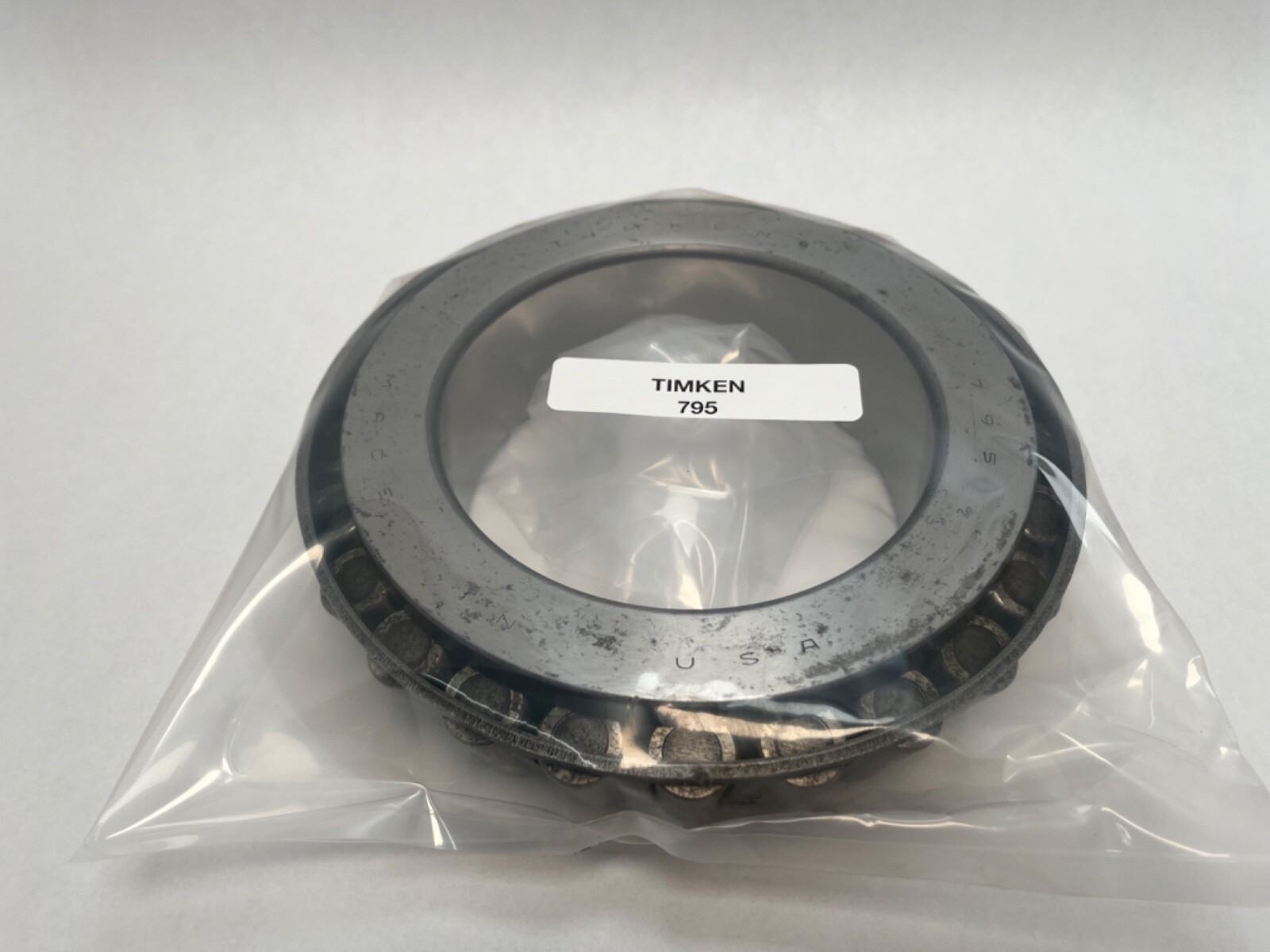

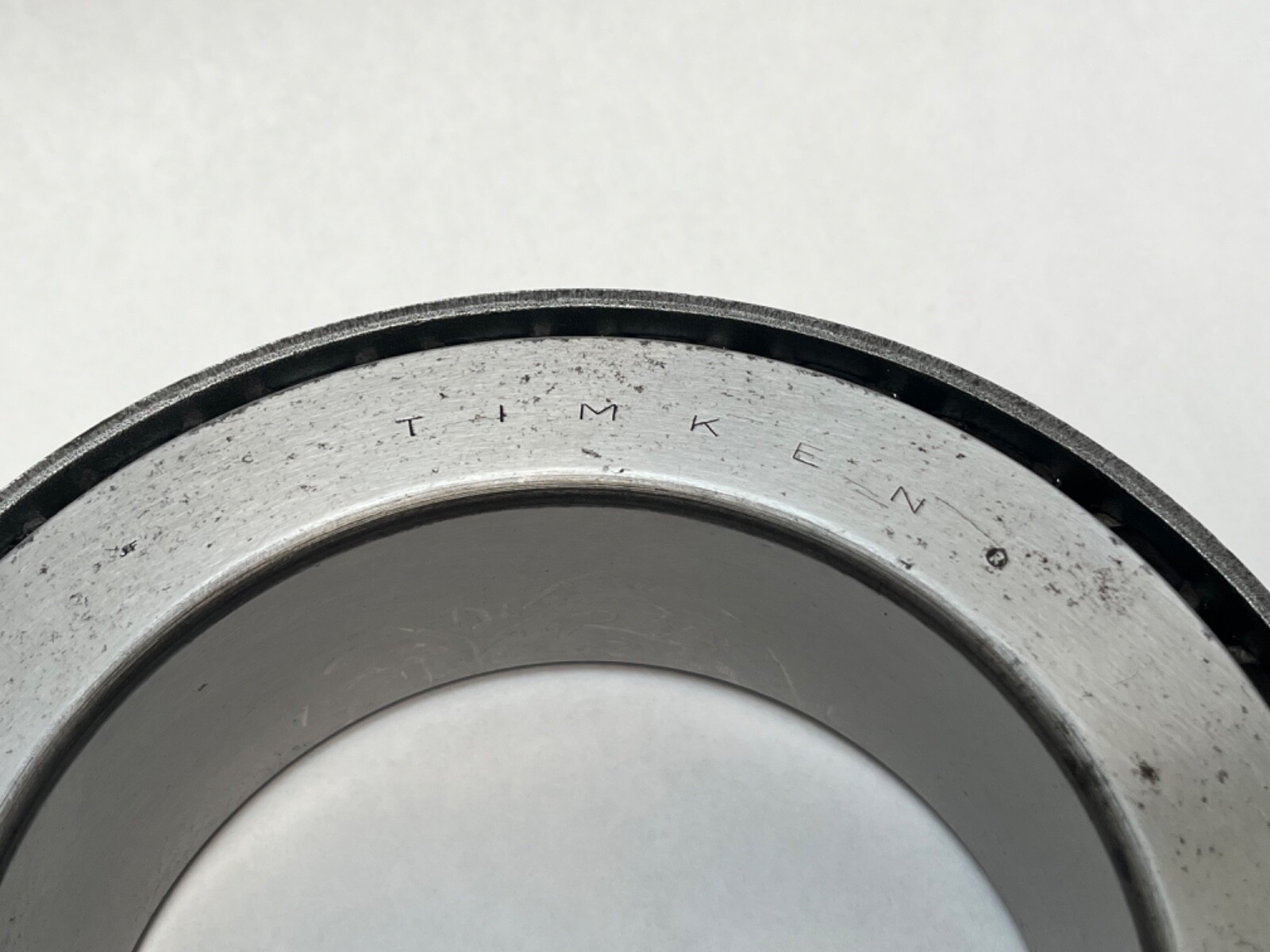

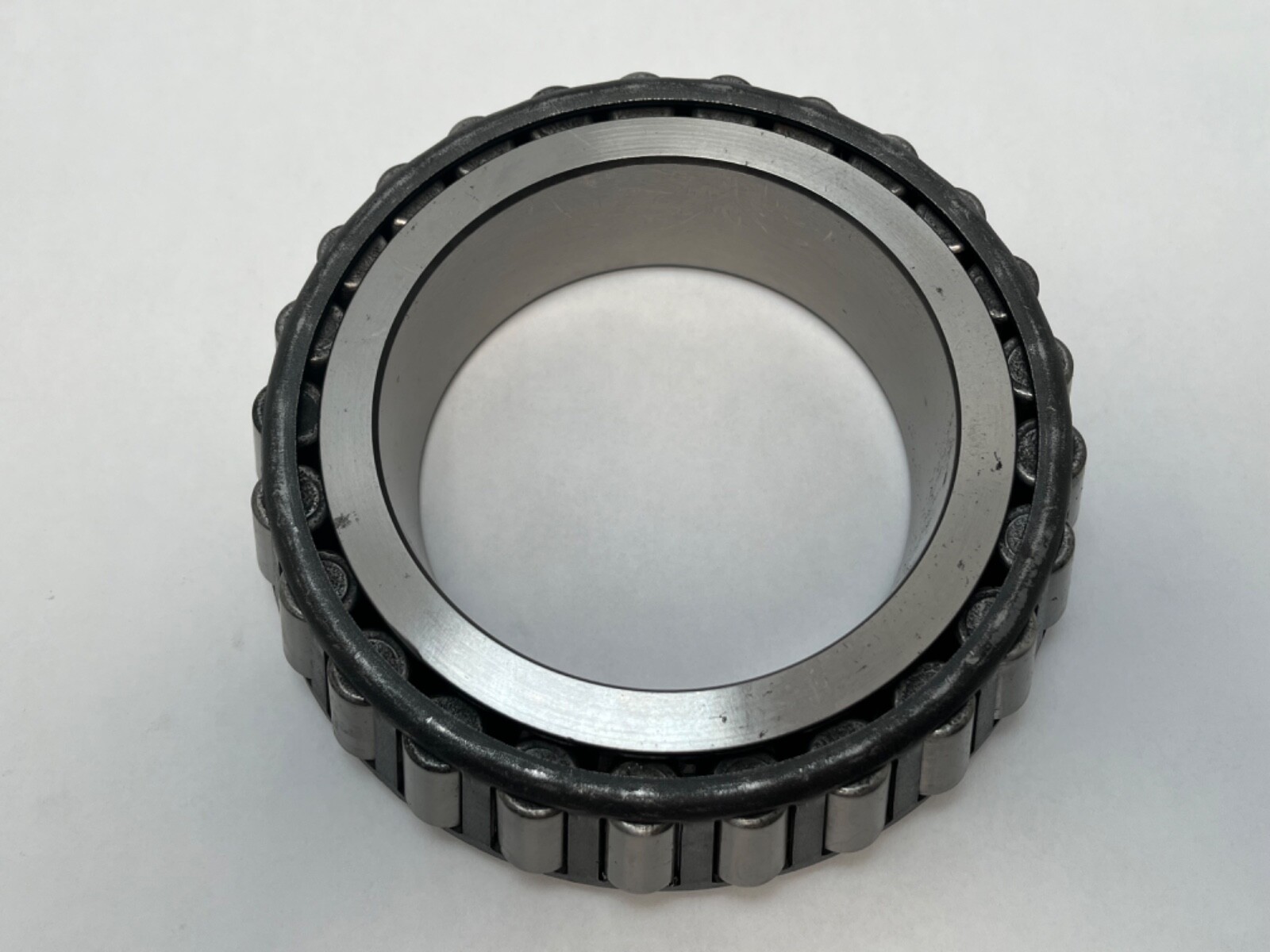

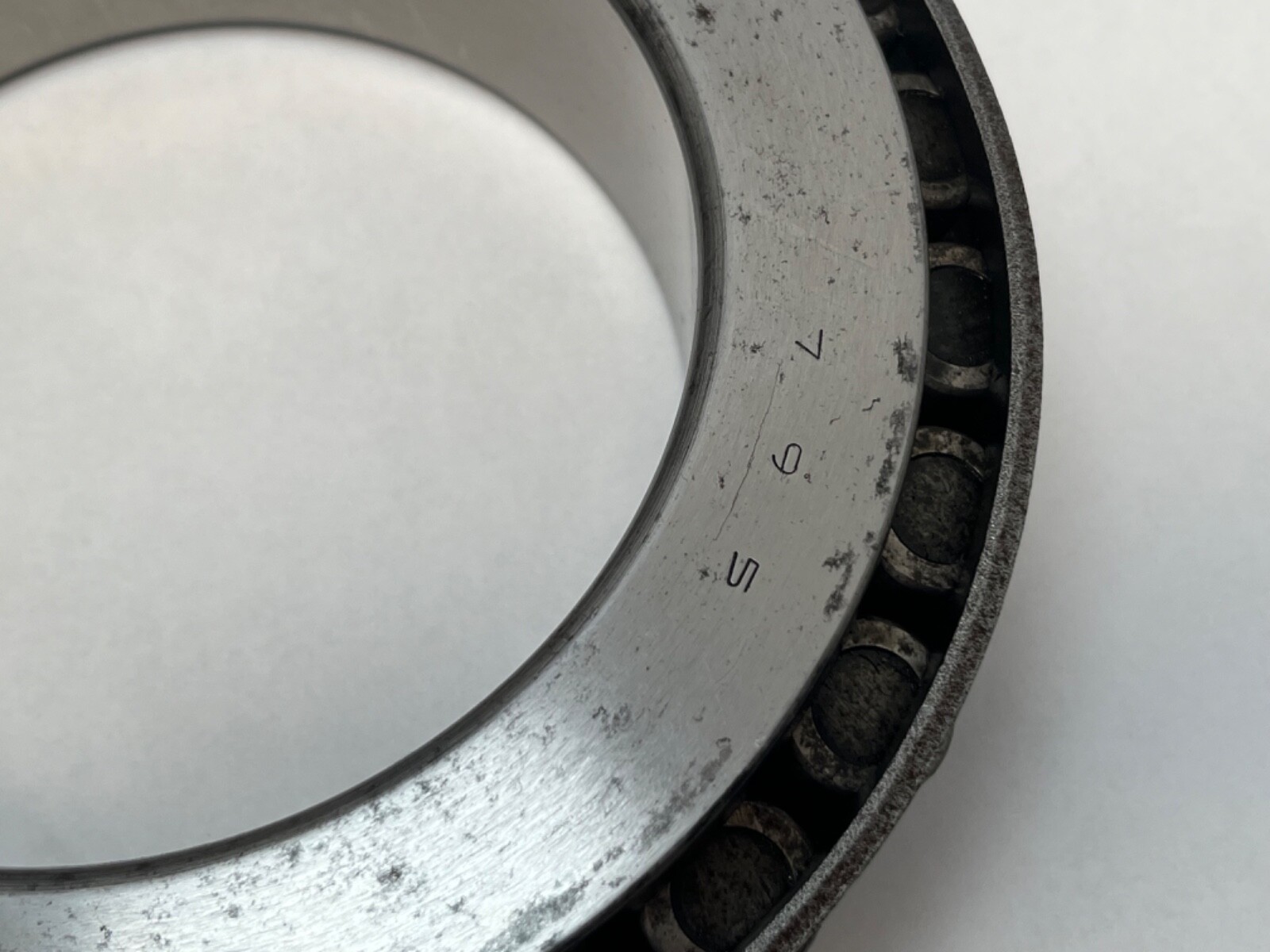

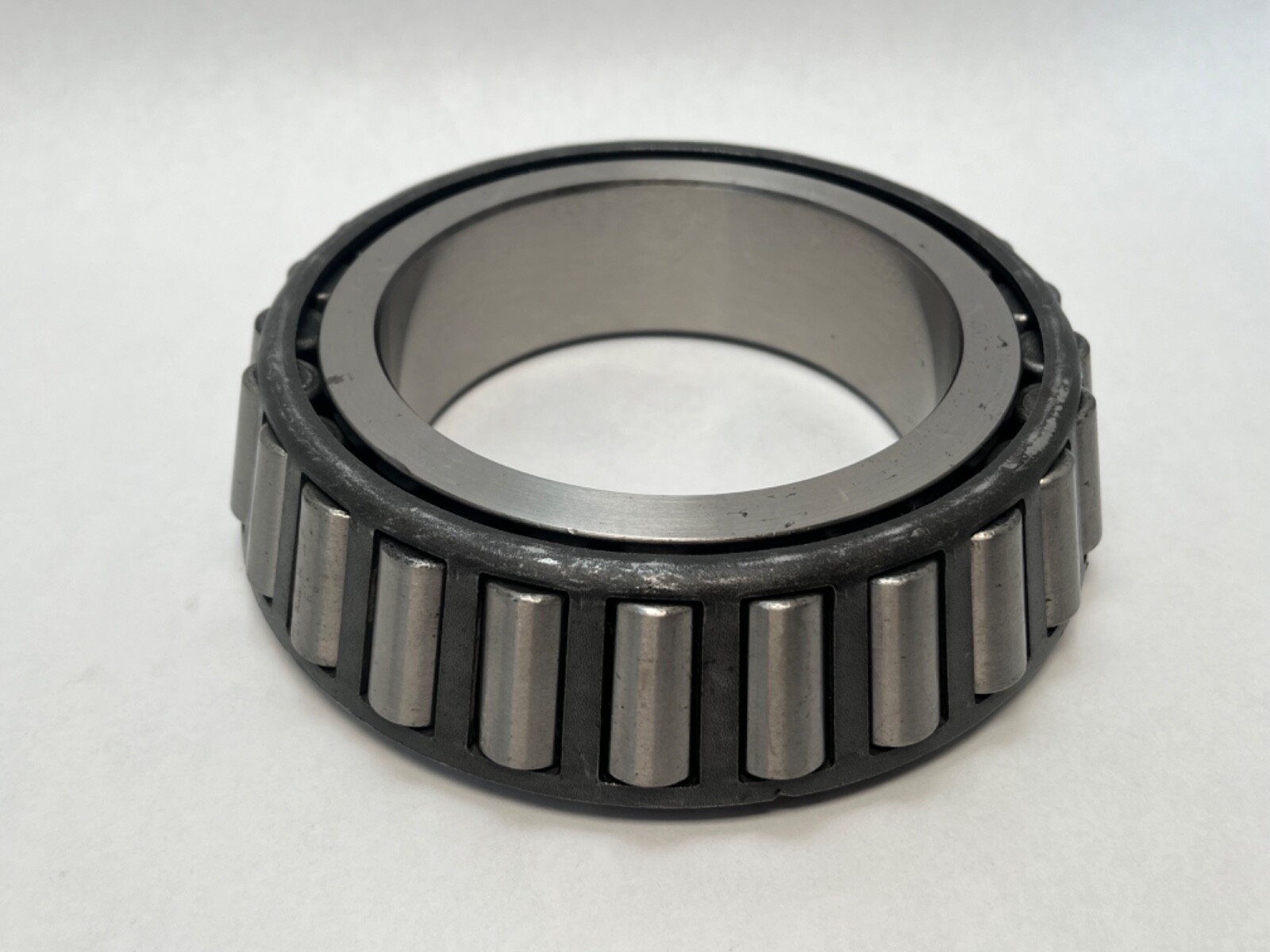

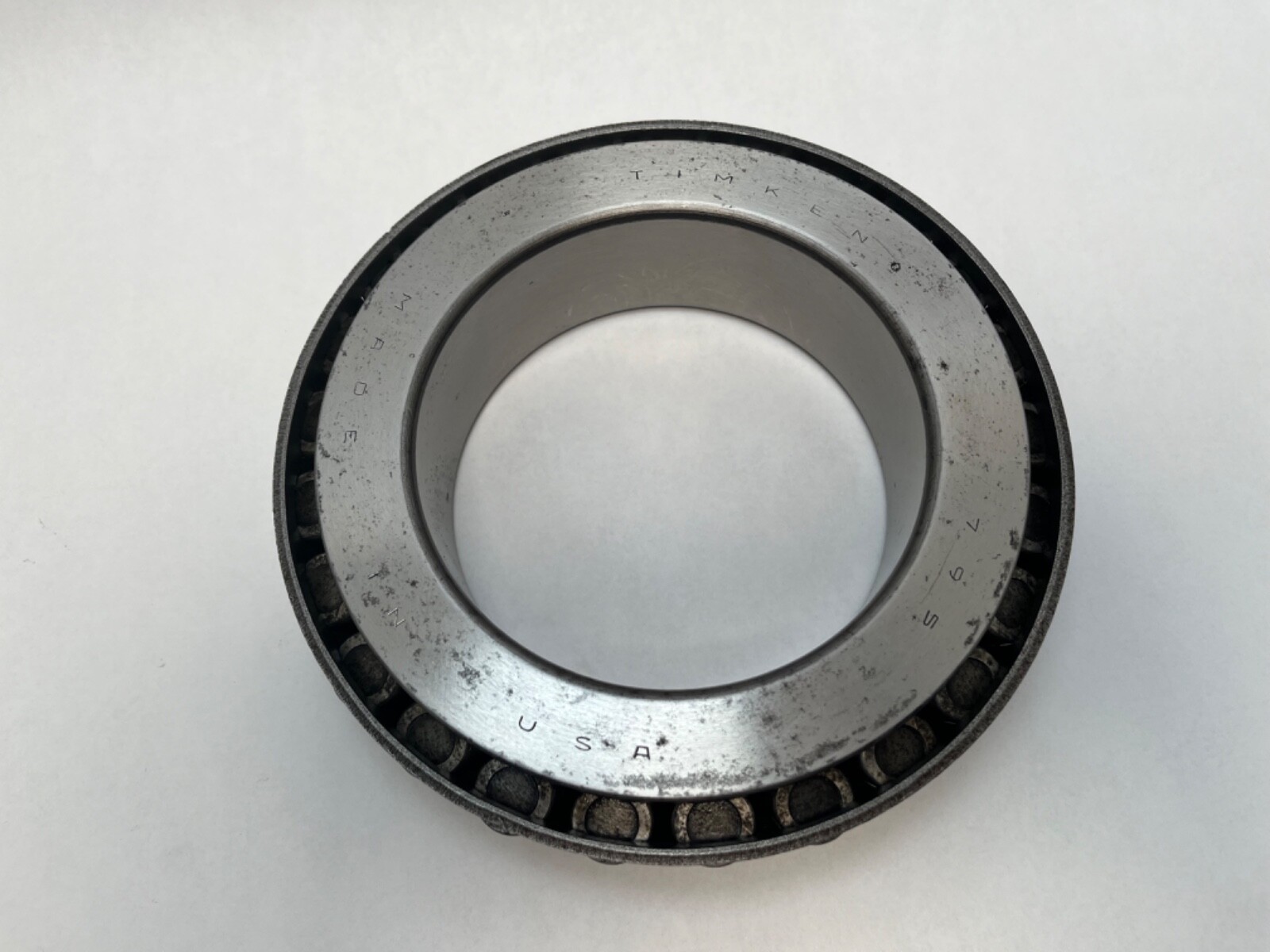

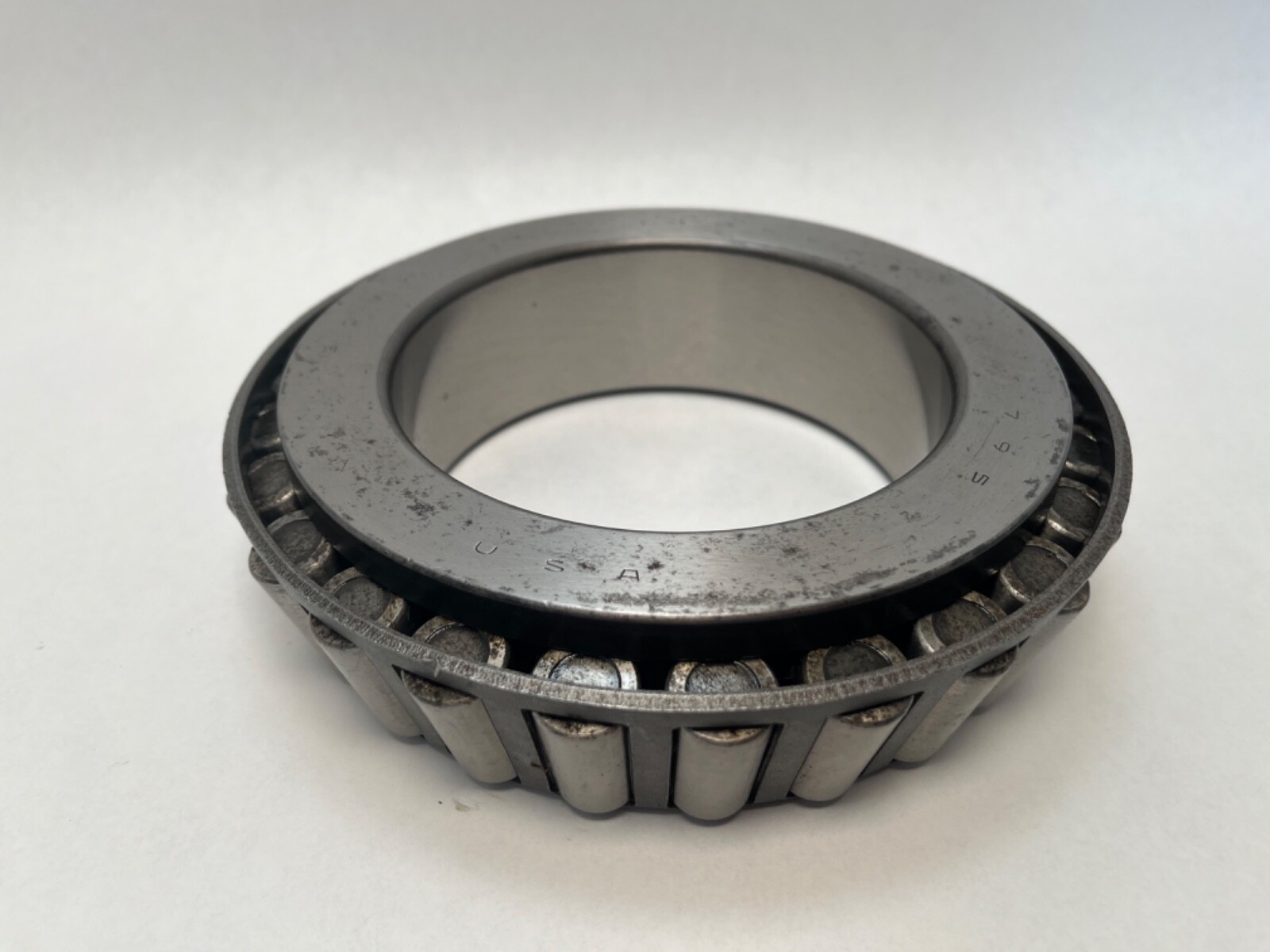

Timken 795 inch tapered roller bearing cone. Bearing Type: Tapered roller bearing cone — the inner ring carrying the tapered rollers and cage as one assembly. Series: 79x. Base Number: 795. Bore Diameter: 4.7500 in (120.650 mm). Overall Width: 1.875 in (47.625 mm). Bore Type: Straight. Rolling Elements: Tapered Roller. Number Of Rows: 1. Item Weight: 13.915 kg (30.68 lb). GTIN: 053893091648.
795 — Timken base cone number, 4.7500 in bore. No precision suffix is present, so the tolerance class is Not specified.
Dynamic Load Rating: 378,000 N (C1, one million revolutions). Static Load Rating: 593,000 N. Dynamic radial rating at 90 million revolutions (C90): 98,000 N. Dynamic axial rating at 90 million revolutions (Ca90): 77,000 N. K Factor: 1.27. At 1.27 this is a medium-angle heavy cone; the Ca90 sits at four fifths of C90, so it will take sustained thrust as well as radial load.
Effective Load Centre: -1.8 mm. Maximum fillet radius on the mating shaft: 3.300 mm (0.13 in). Shaft Backing Shoulder Diameter, frontface (da): 137 mm (5.39 in). Shaft Backing Shoulder Diameter, backface (db): 142 mm (5.59 in). Cage location relative to backface (Aa): 4.6 mm. Cage location relative to frontface (Ab): 4.1 mm. G1 Factor: 326.4. G2 Factor: 62. Geometry Factor (Cg): 0.127.
Unit Quantity: 1 Pc. Cone only. Matching cups are the Timken 792 and 793.
795 is an industry-standard inch tapered roller bearing cone number. Koyo, NTN, NSK, SKF and BCA/Bower all build a 795 to the same boundary dimensions, and all interchange with this cone.
