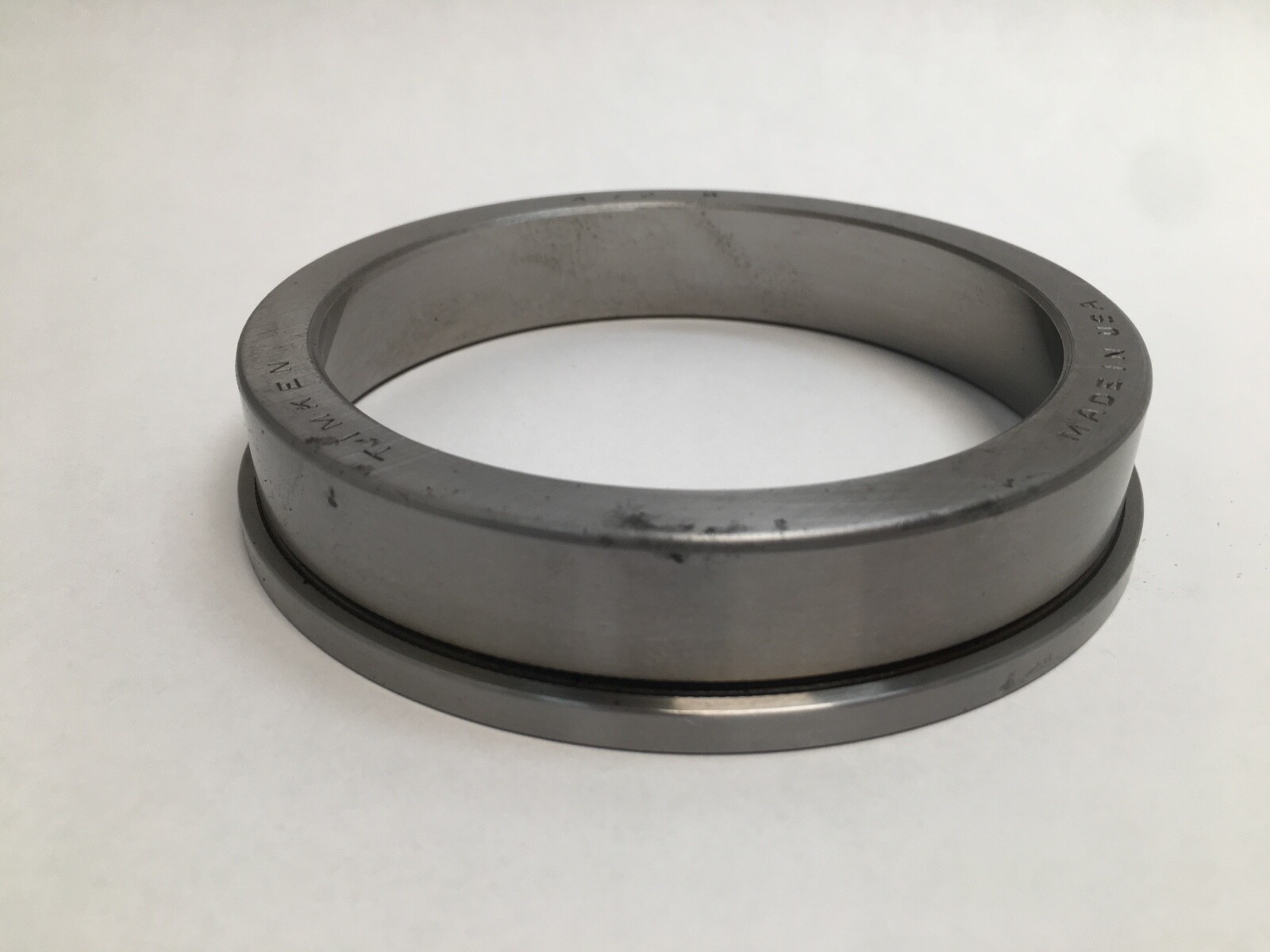

Timken 472-B flanged tapered roller bearing cup – image 1

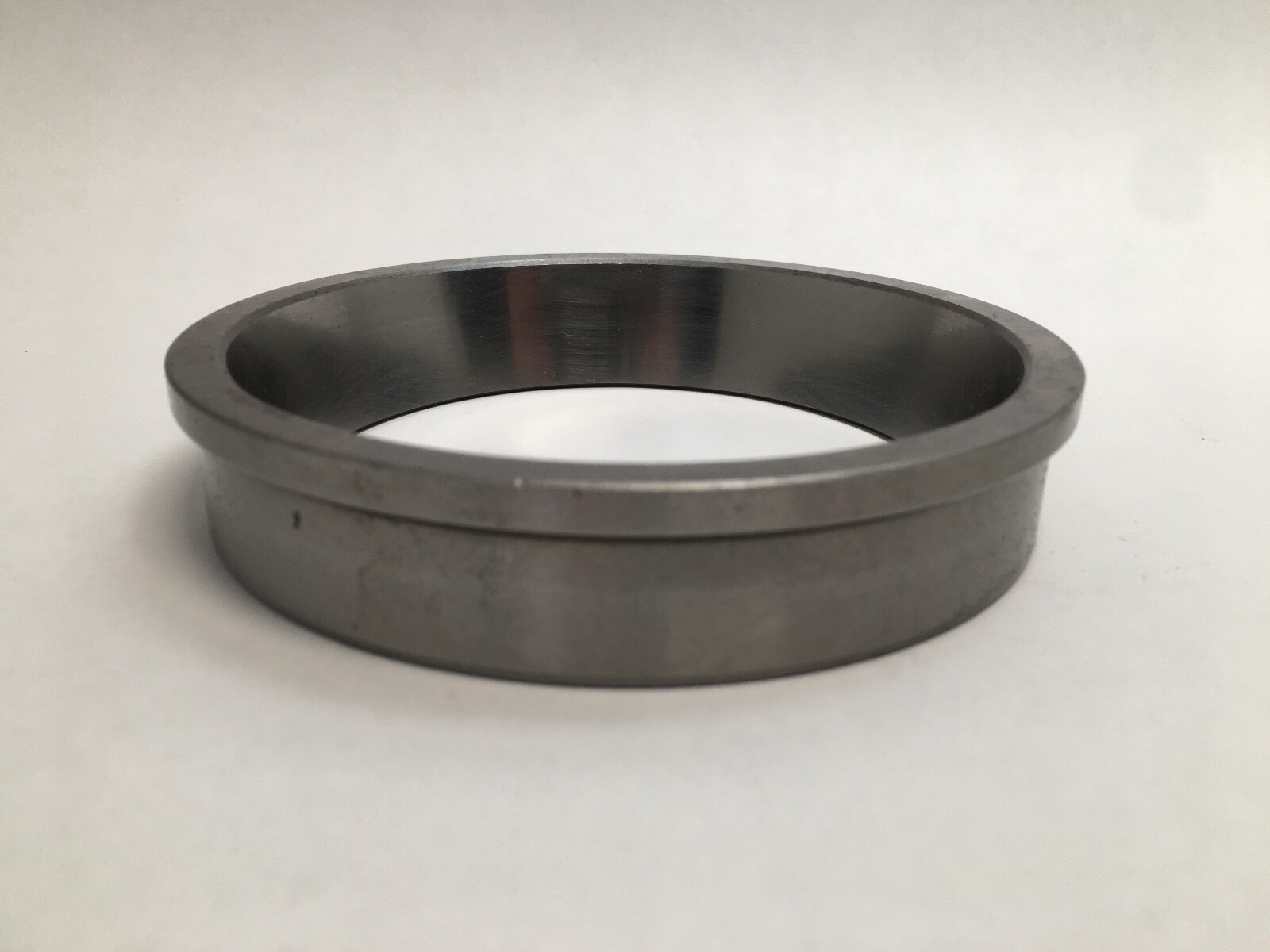

Timken 472-B flanged tapered roller bearing cup – image 2

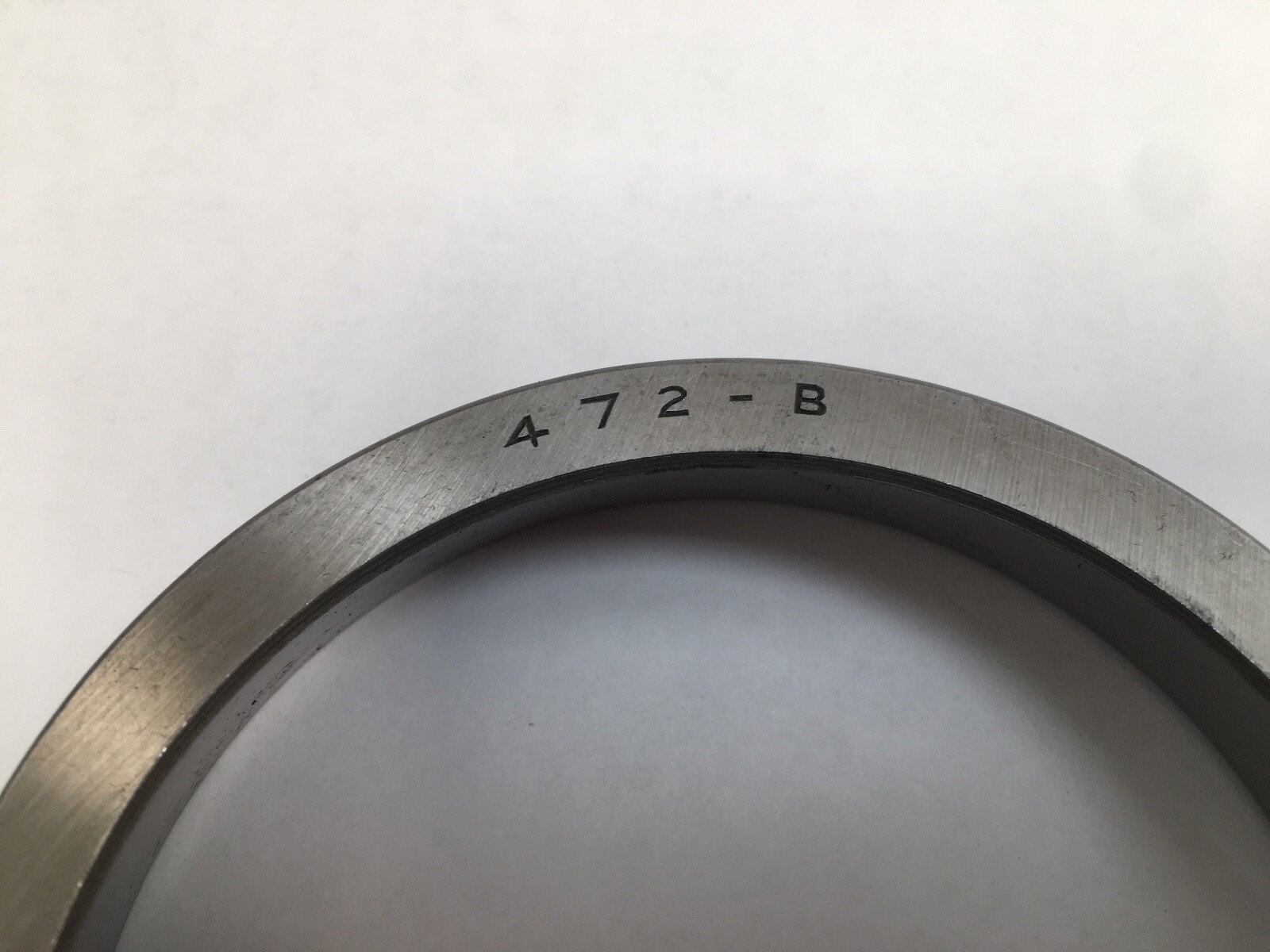

Timken 472-B flanged tapered roller bearing cup – image 3

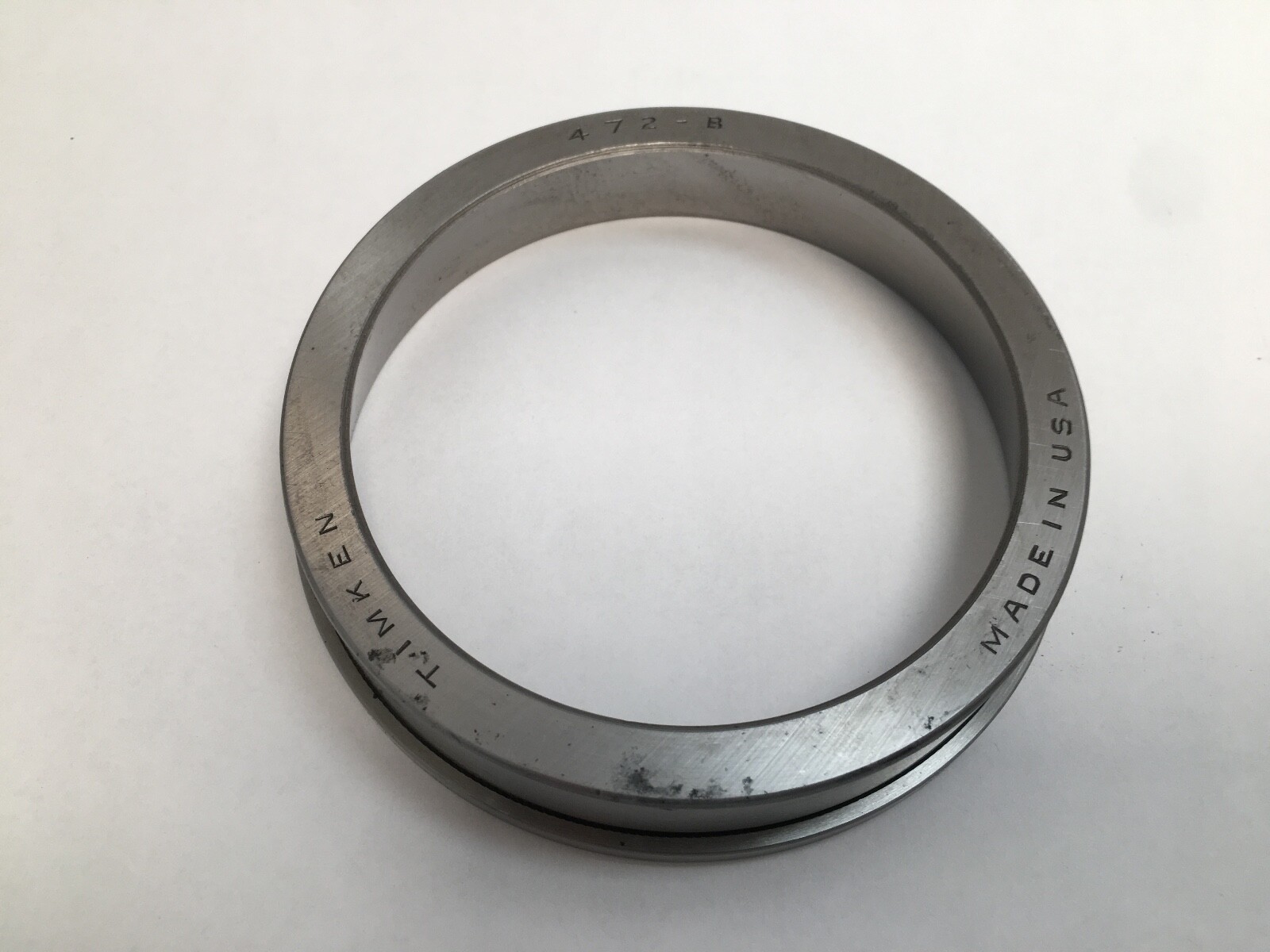

Timken 472-B flanged tapered roller bearing cup – image 4

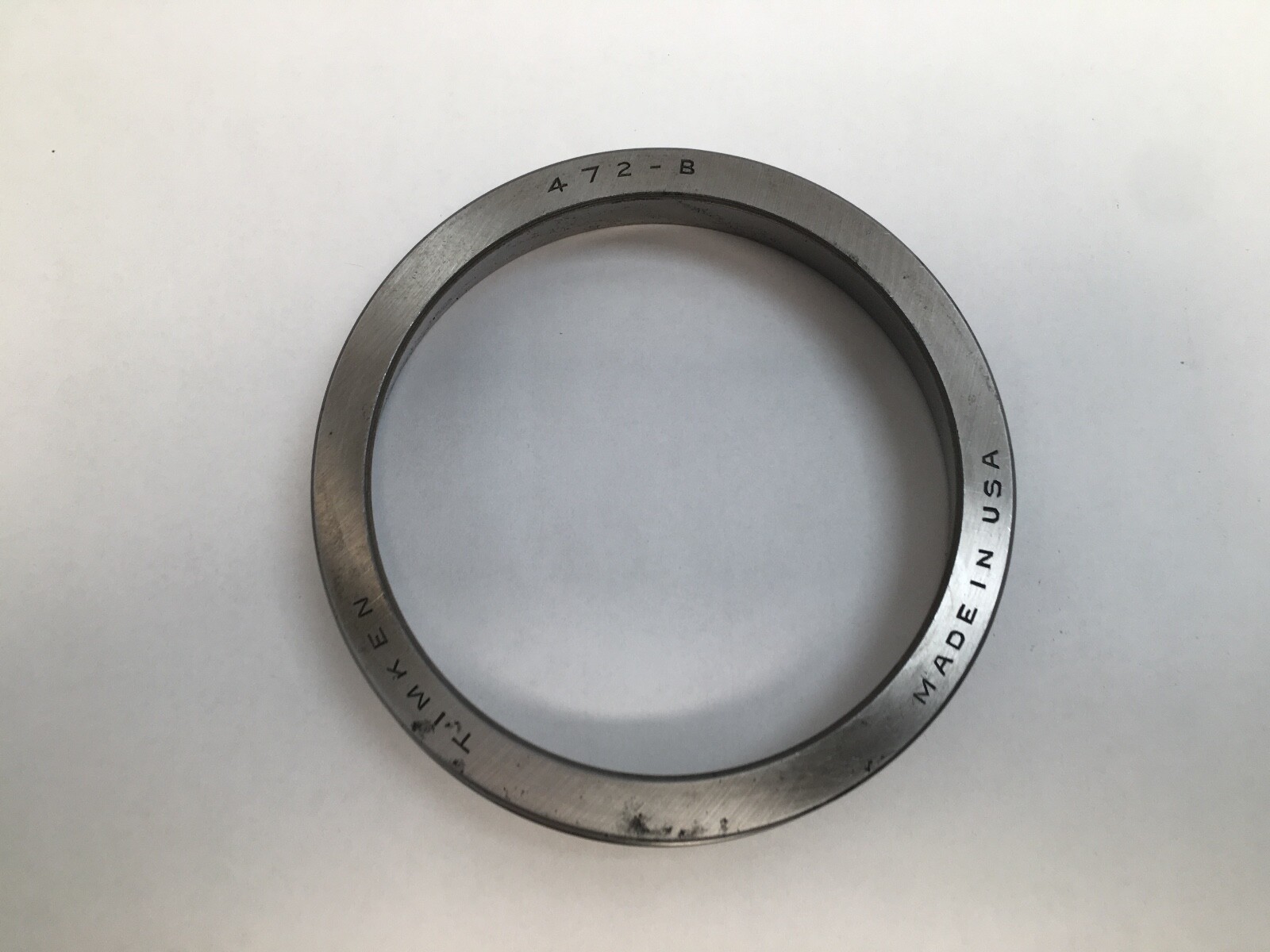

Timken 472-B flanged tapered roller bearing cup – image 5

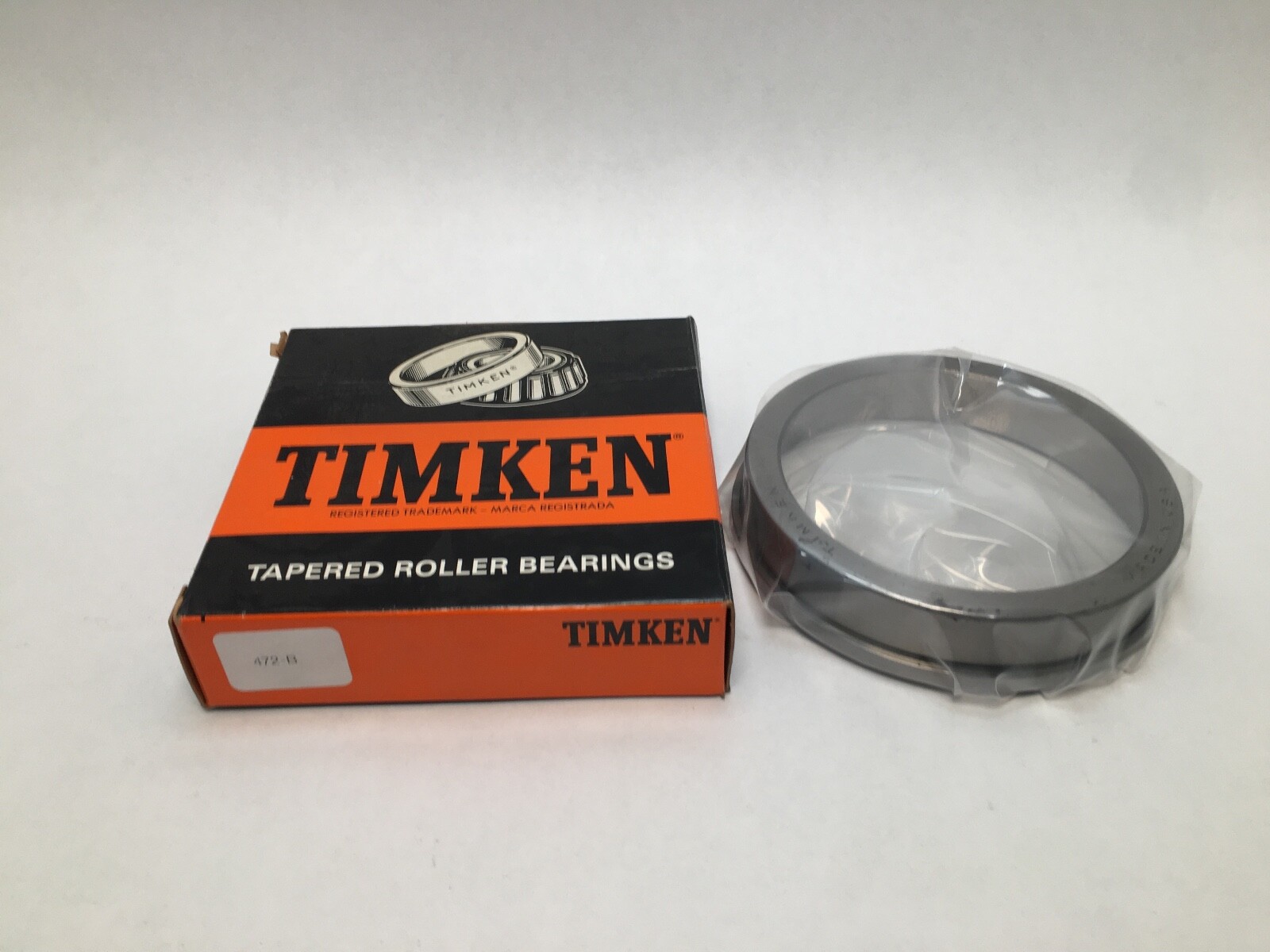

Timken 472-B flanged tapered roller bearing cup – image 6

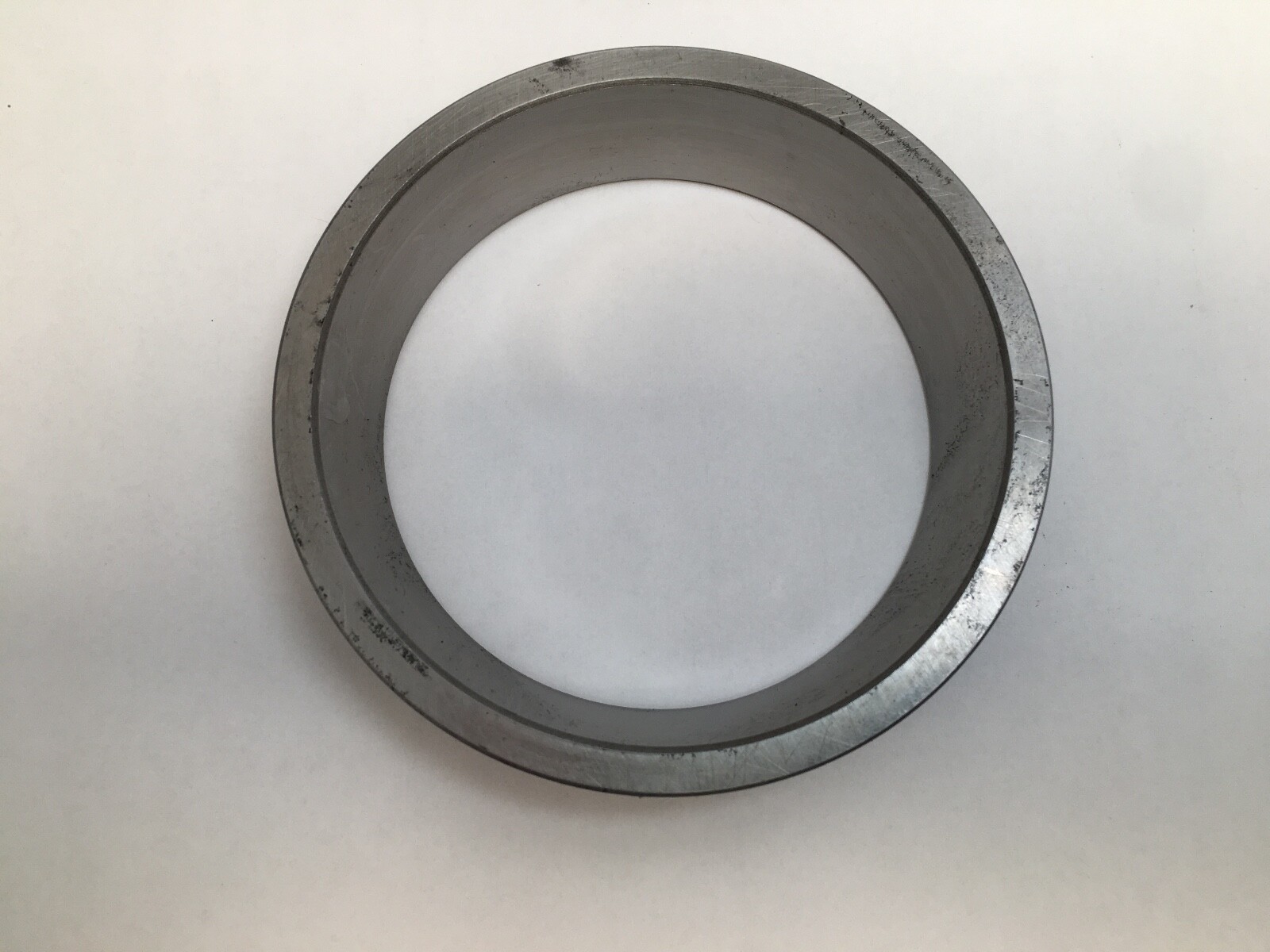

Timken 472-B flanged tapered roller bearing cup – image 7

13k+ reviews

See our eBay reviews

Timken472-BFlanged Tapered Roller Bearing Cup – 4.7244 in Outside Diameter, 0.9542 in Width, 4.9384 in Flange Outer Diameter, Case Carburized Steel

Name: Timken 472-B Flanged Tapered Roller Bearing Cup – 4.7244 in Outside Diameter, 0.9542 in Width, 4.9384 in Flange Outer Diameter, Case Carburized Steel
Brand: Timken
SKU: AF2B5#D4HNUN
Price: 67.24 USD
Availability: InStock

Condition: New – Open box

Condition Note: Made In USA, New Old Stock

Availability:

1 in stock

Categories: Bearings, Tapered Roller Bearing Cup

Flanged tapered roller bearing cup, 4.7244 in OD, 0.9542 in width, flange OD 4.9384 in, K factor 1.52, e factor 0.38. Flange sets axial position.

List Price

$67.24

1 in stock

Prefer eBay? Buy this item on our store (opens in a new tab)

Need Help?
Click Here To Contact Support

Specifications

Key Specifications

MFR / Brand	Timken
MPN	472-B
GTIN	053893038322
Model	472 B
Bearing Type	Tapered Roller Bearing Cup
OD	4.7244 in
Width	0.9542 in

Technical Specifications

Series	475
Material	Case Carburized Steel
Base Number	472
Overall Width	0.9542 in
Flange Outer Diameter	4.9384 in
Cup Flange Width	0.2180 in
Mpn Variants	472B, 472-B, 472 B
Precision Class	Not specified
Rolling Elements	Tapered Roller
Item Weight	1.40 kg (3.00 lb)
Number Of Rows	1
Harmonization Code	8482.20.00
Cup Part Number	472-B
Design Units	Imperial
Bearing Material	Case Carburized Steel
Cup Backface To Clear Radius	0.03 in
Cup Frontface Backing Diameter	4.56 in
Industry Terms	flanged tapered roller bearing cup; TSF cup; inch flanged cup; tapered bearing outer ring
Common Misspellings	Timkin 472B; Timken 472 B; Timken 427B; Timken 472-8
Application Types	Through-bored housings; gearboxes; wheel hubs; axle assemblies

Cross-References

Cross Reference 1	SKF 472 B
Cross Reference 2	Koyo 472B
Cross Reference 3	NTN 4T-472B
Cross Reference 4	Fersa 472B
Cross Reference 5	BCA/Bower 472B
Cross Reference 6	PEER 472B

Seller Part Number: AF2B5#D4HNUN

Product Description

What this part is:

Timken 472-B is an inch-series single-row flanged tapered roller bearing cup (outer ring only). Unit Quantity: 1 Pc. GTIN: 053893038322.

Decoding the designation:

472 — the cup number in Timken’s inch tapered roller range. Base Number: 472.

B — flanged outer ring. The plain 472 is the unflanged cup of the same raceway and a separate designation.

Specifications:

Bearing Type: Tapered Roller Bearing Flanged Cup. Rolling Elements: Tapered Roller. Number Of Rows: 1. Material: Case Carburized Steel. Item Weight: 1.40 kg (3.00 lb). e Factor: 0.38. K Factor: 1.52. Y Factor: 1.56. G1 Factor: 38.8. G2 Factor: 27.8. Geometry Factor (Cg): 0.108. Harmonization Code: 8482.20.00.

Dimensions and mounting:

Outside Diameter: 4.7244 in (120 mm). Overall Width: 0.9542 in (24.237 mm). Flange Outer Diameter: 4.9384 in (125.435 mm). Flange Width: 0.2180 in (5.537 mm). Maximum Housing Fillet Radius: 0.03 in (0.8 mm). Housing Backing Shoulder Diameter, Frontface (Da): 4.56 in (115.82 mm).

Compatibility and replacement:

The 472-B flanged cup number is carried by SKF 472 B, Koyo 472B, NTN 4T-472B, Fersa 472B, BCA/Bower 472B and PEER 472B. MPN Variants: 472B, 472-B, 472 B.
