Tapered roller bearing single cup, 12.2500 in OD, 2.5625 in width, series H238100 outer race, case-carburized steel, e 0.33 and Y 1.81 factors.
List Price
$374.48
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Timken |
|---|---|
| MPN | H238110 |
| GTIN | 053893537436 |
| Model | H-238110 20024 |
| Bearing Type | Tapered Roller Bearing Cup, Open |
| OD | 12.2500 in (311.15 mm) |
| Width | 2.5625 in (65.088 mm) |
| Material | Case-carburized steel |
|---|---|
| Series | H238100 |
| Base Number | H238110 |
| Industry Terms | Cup; Outer race; Bearing race; Tapered roller bearing cup; TS cup |
| Common Misspellings | H23810; H238110A; HM238110; H 238 110 |
| Total Width | 2.5625 in (65.088 mm) |
| Mpn Variants | H238110; H-238110; H 238110; H238110-20024; H-238110 20024 |
| Compatible With Replaces | Timken H238148 cone; Timken H238140 cone |
| Precision Class | Not specified |
| E Factor | 0.33 |
| Precision Rating | Not specified |
| Rolling Elements | Tapered Roller |
| Item Weight | 24.9 kg (54.8 lb) |
| Number Of Rows | 1 |
| Bore Type | Cup, no bore |
| Harmonization Code | 8482.20.00.00 |
| Cup Part Number | H238110 |
| Design Units | Imperial |
| Bearing Material | Case-carburized steel |
| Cup Width | 2.5625 in (65.088 mm) |
| Part Number | H238110 |
| Application Types | Industrial gearboxes; Large wheel ends; Heavy industrial machinery |
| Closure Type | Open |
| Cross Reference 1 | SKF H238110 |
|---|---|
| Cross Reference 2 | FAG H238110 |
| Cross Reference 3 | NSK H238110 |
| Cross Reference 4 | NTN 4T-H238110 |
| Cross Reference 5 | Koyo H238110 |
| Cross Reference 6 | Bower / BCA H238110 |
| Cross Reference 7 | Tyson H238110 |
| Cross Reference 8 | Federal-Mogul National H238110 |

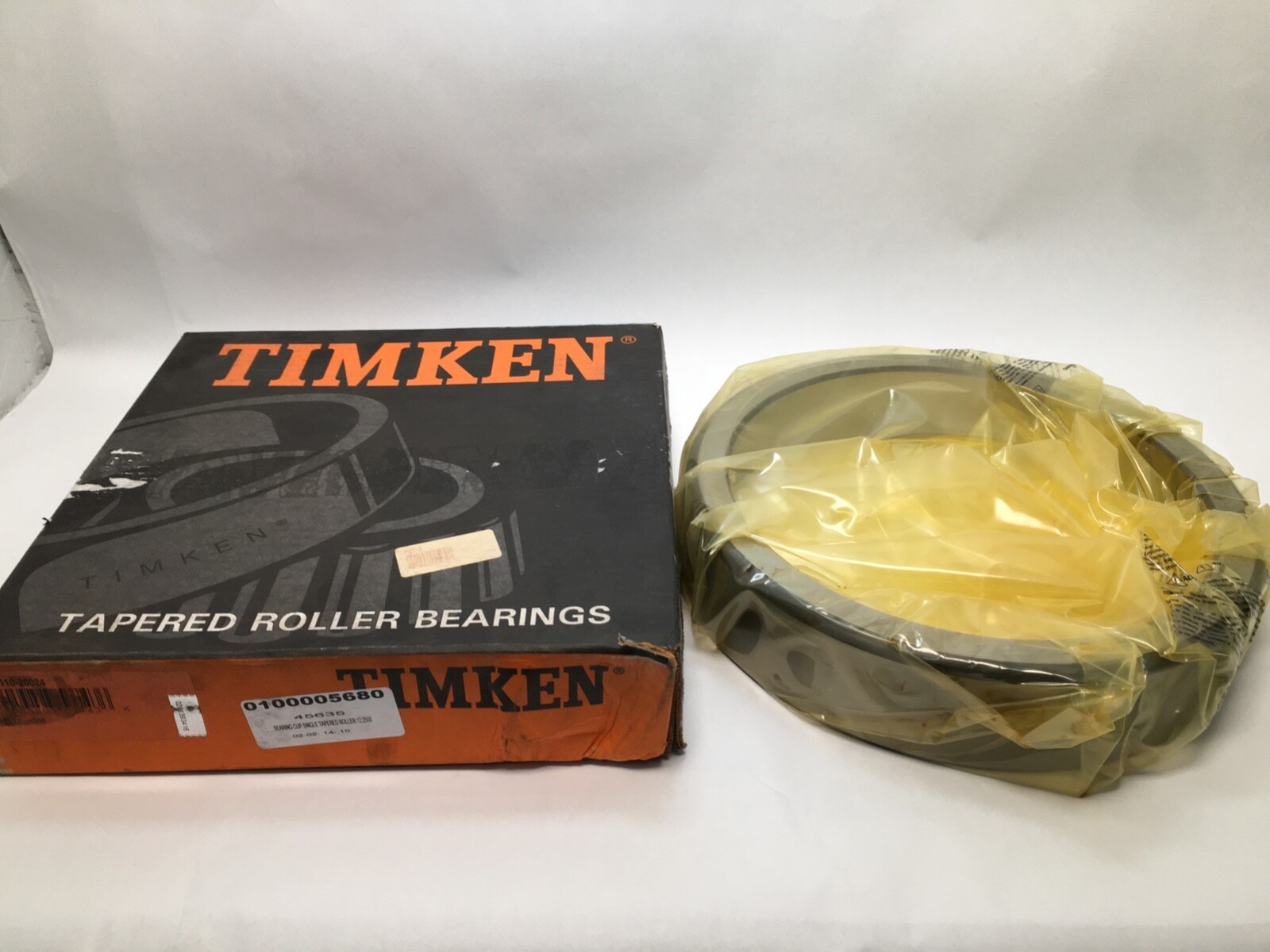

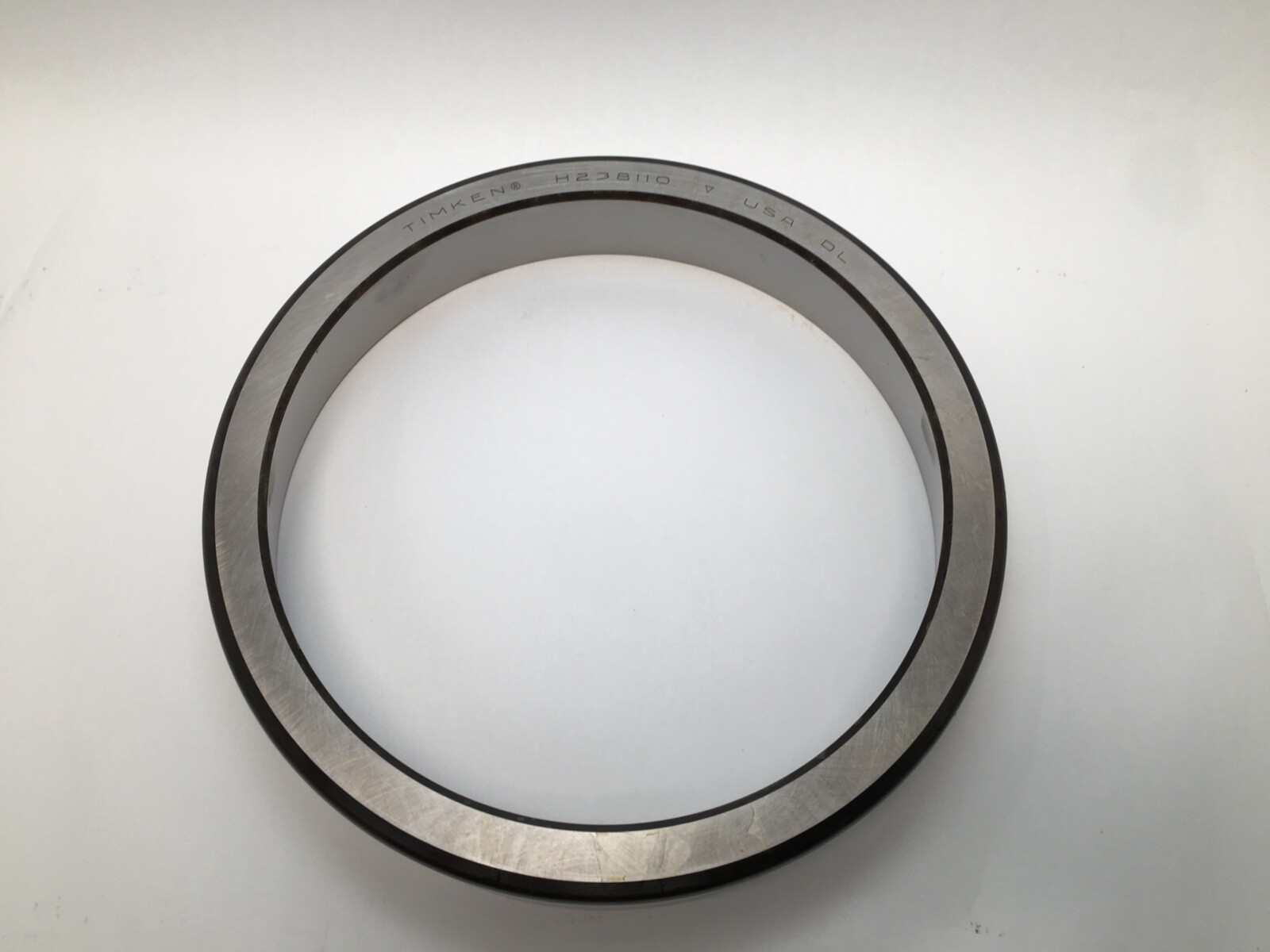

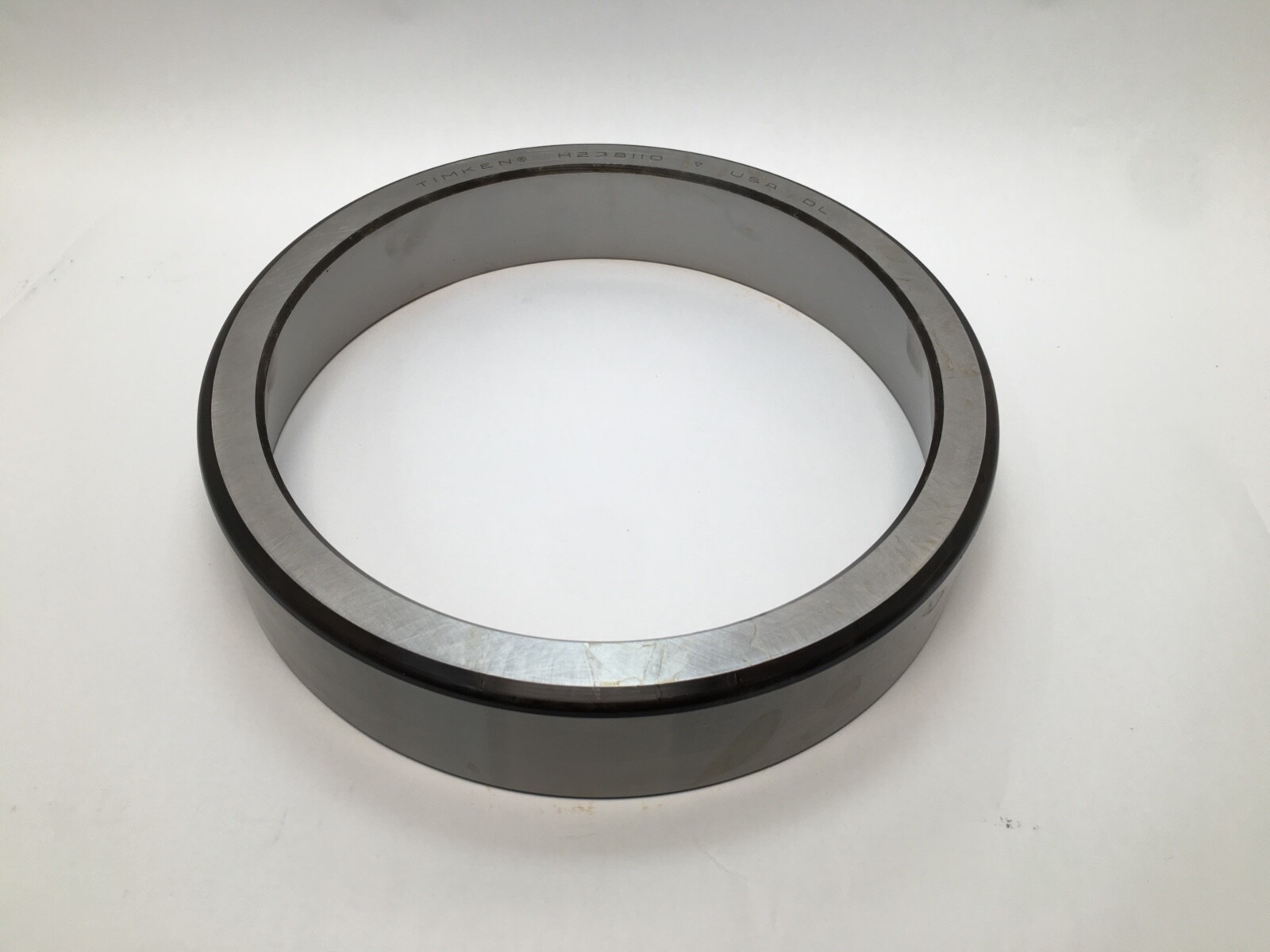

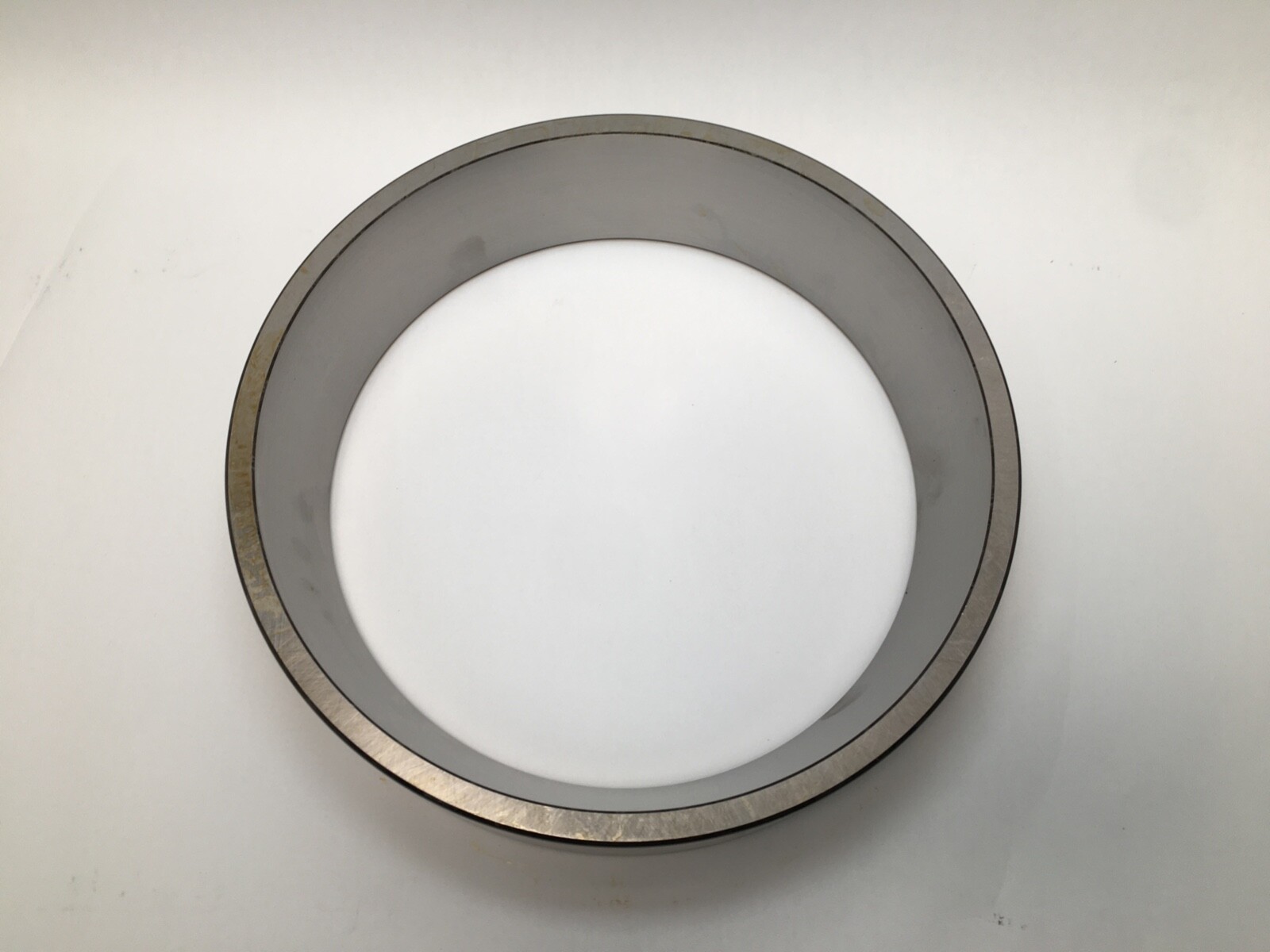

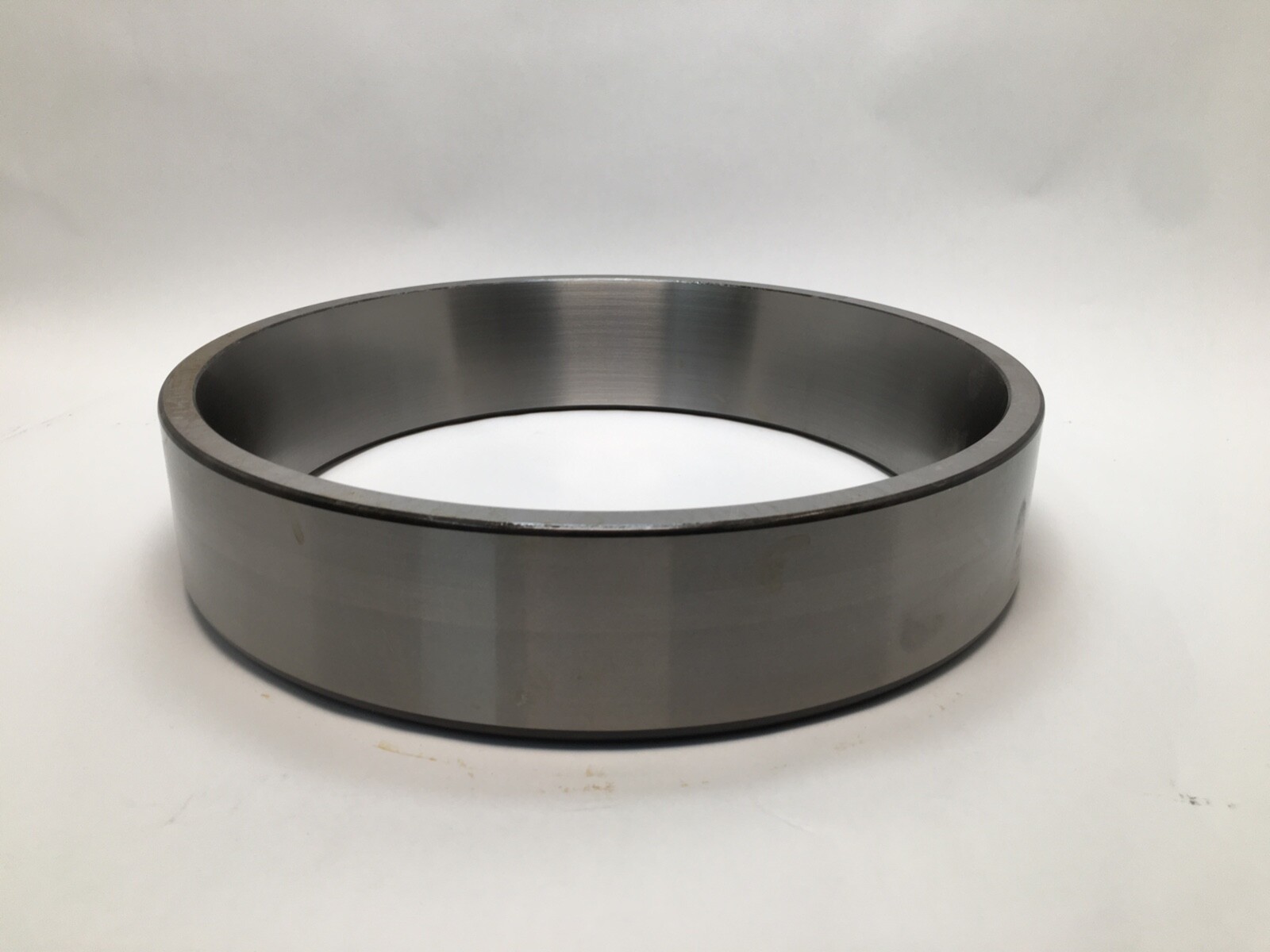

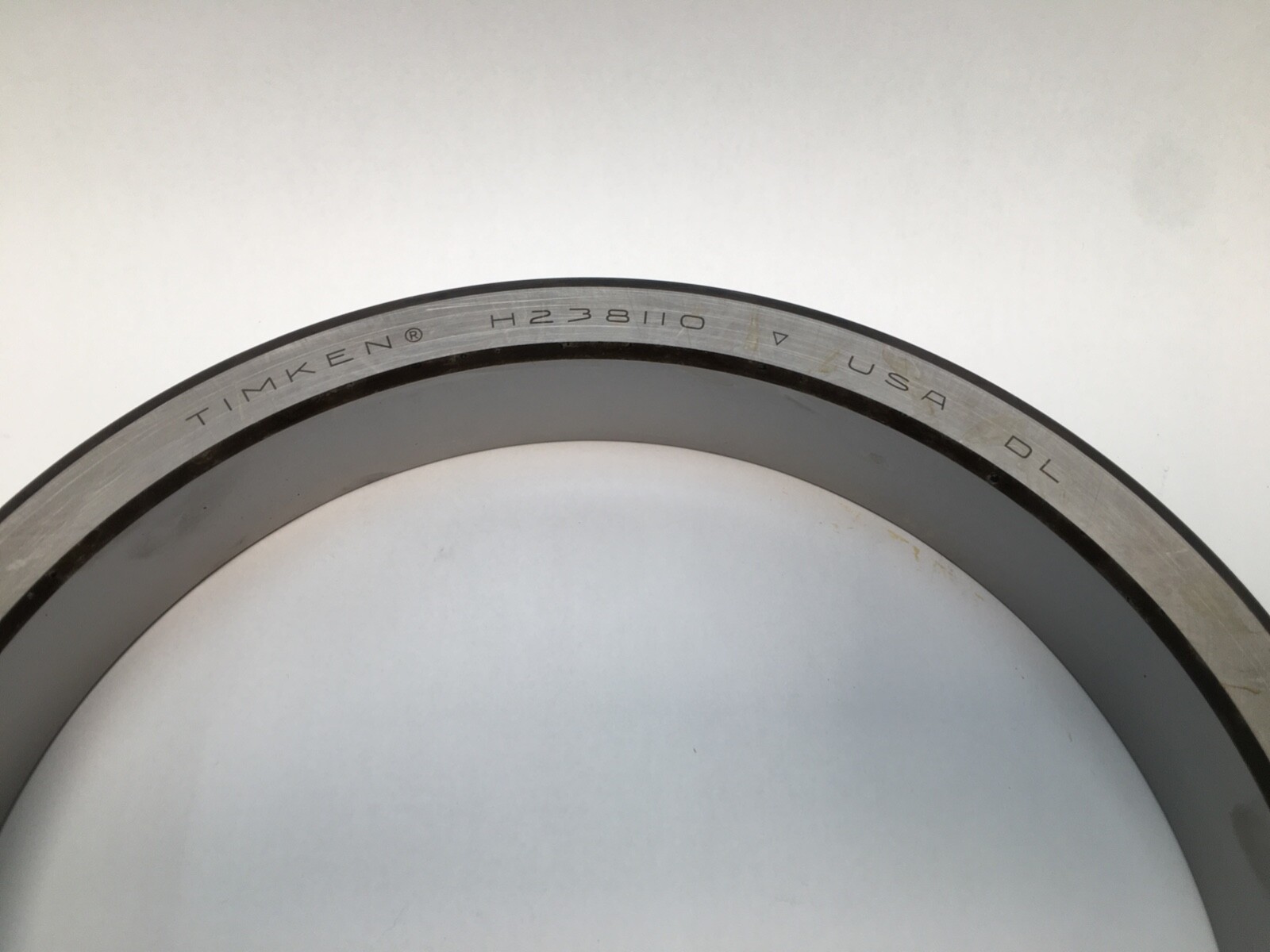

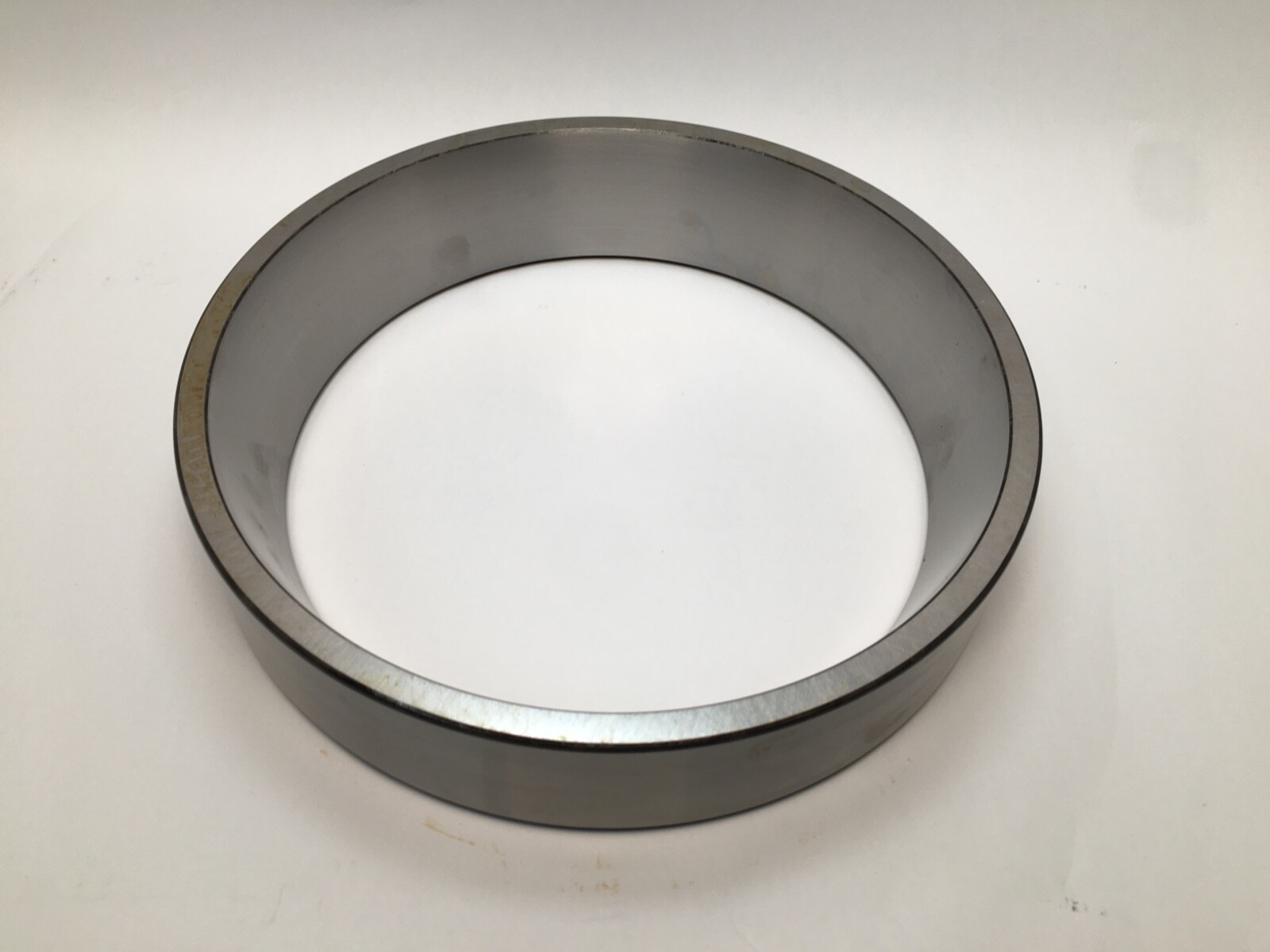

Timken H238110 inch tapered roller bearing single cup, the outer race of a TS single-row tapered roller bearing. Cup only. Unit Quantity: 1 Pc. Country of Origin: United States.
H238110 — Timken inch cup number in the H238100 series.
Outside Diameter: 12.2500 in (311.15 mm). Overall Width: 2.5625 in (65.088 mm). Series: H238100. Base Number: H238110. Item Weight: 24.9 kg (54.8 lb). Bearing Material: Case-carburized steel. Rolling Elements: Tapered Roller. Number Of Rows: 1. Closure Type: Open. e Factor: 0.33. Y Factor: 1.81. Geometry Factor (Cg): 0.122.
Max Housing Fillet Radius: 0.250 in (6.35 mm). Housing Backing Shoulder Diameter, frontface (Da): 11.37 in (288.80 mm). Housing Backing Shoulder Diameter, backface (Db): 11.02 in (279.91 mm).
Matching cones: Timken H238148 and Timken H238140. Cross-references: SKF H238110; FAG H238110; NSK H238110; NTN 4T-H238110; Koyo H238110; Bower / BCA H238110; Tyson H238110; Federal-Mogul National H238110. Also written H238110, H-238110, H 238110, H238110-20024 and H238110 20024.
Outside Diameter: 12.2500 in (311.15 mm). Overall Width: 2.5625 in (65.088 mm).
No. It is a single cup. Matching cones are the Timken H238148 and H238140.
Item Weight: 24.9 kg (54.8 lb).
