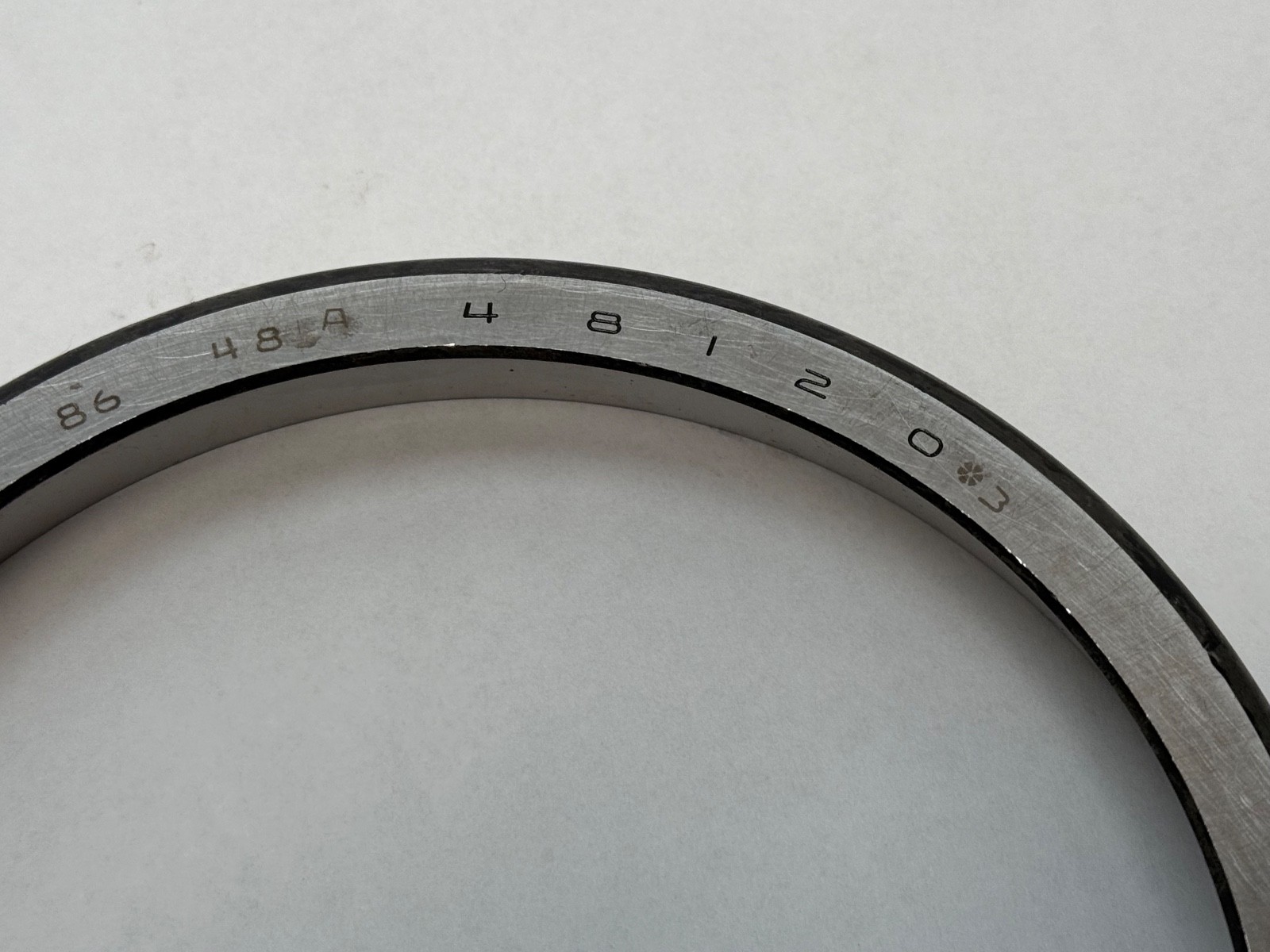

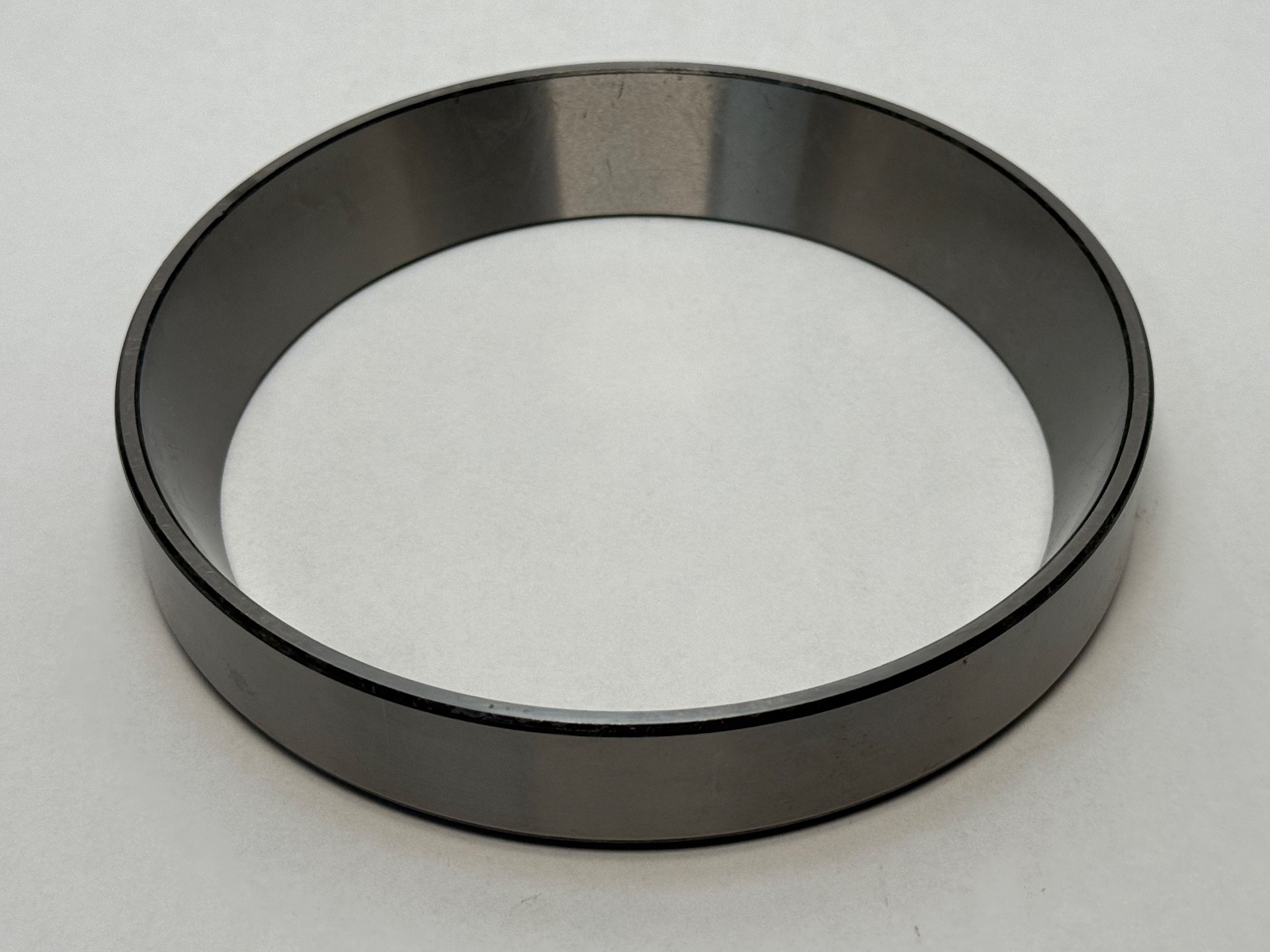

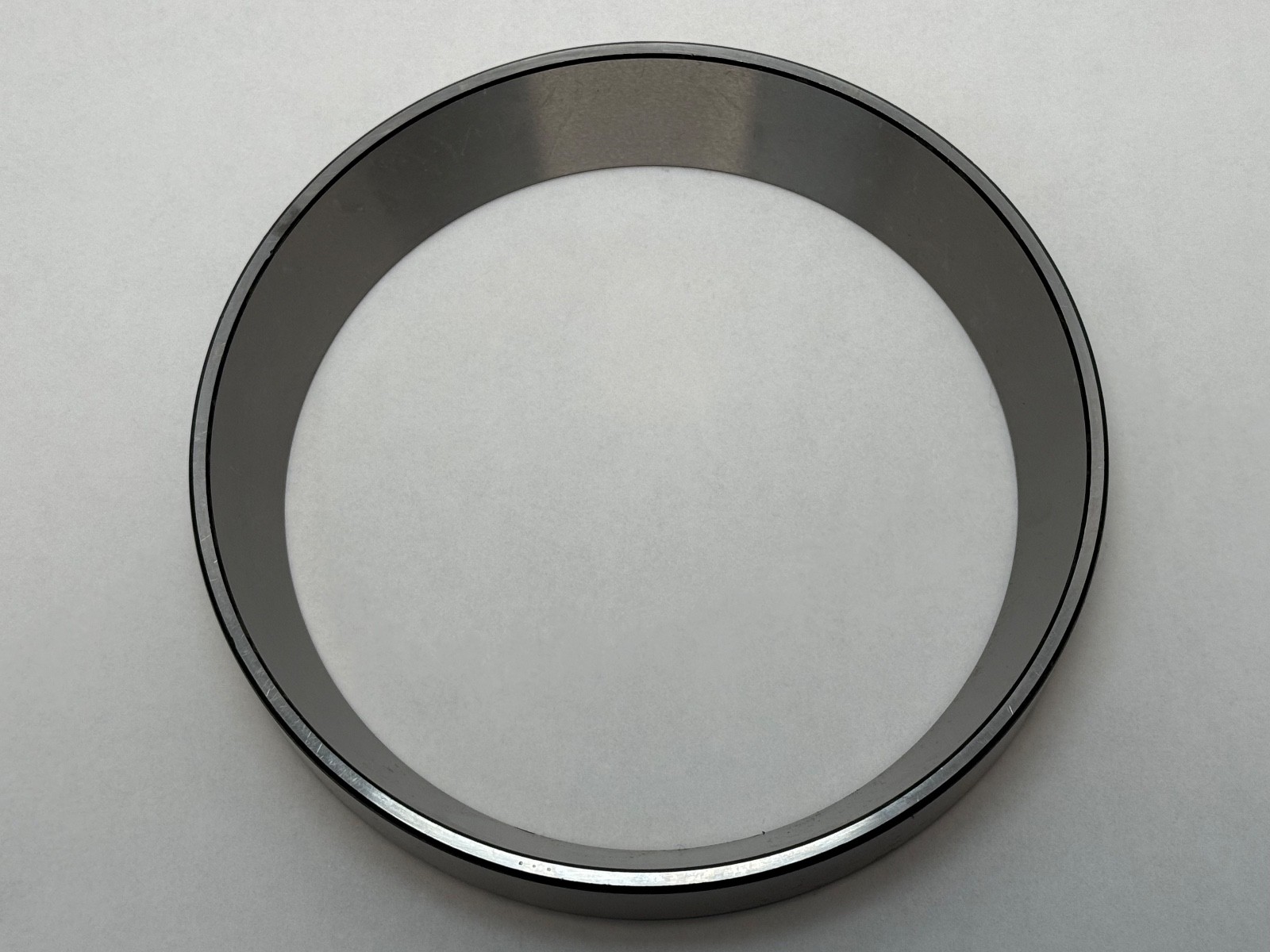

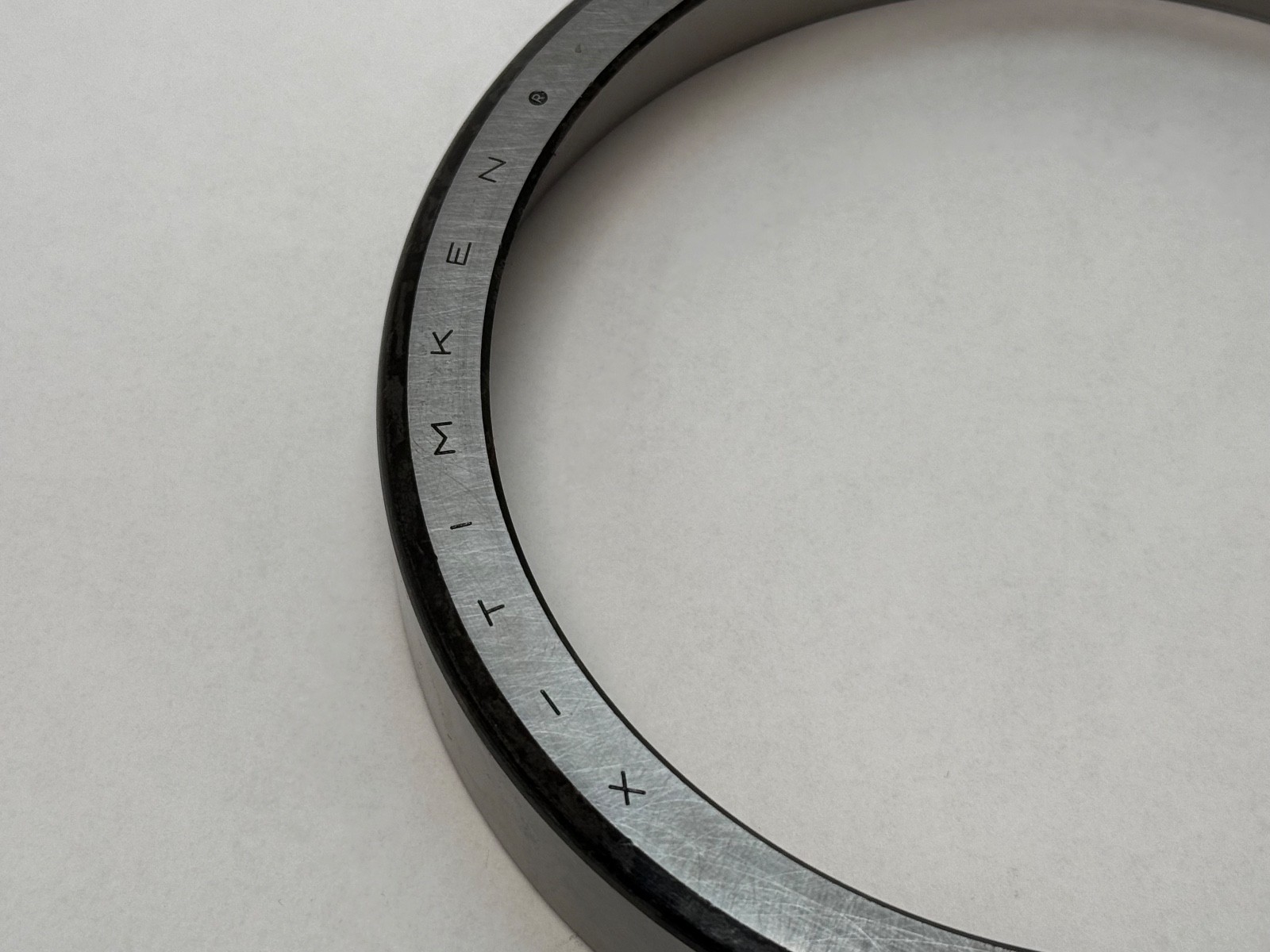

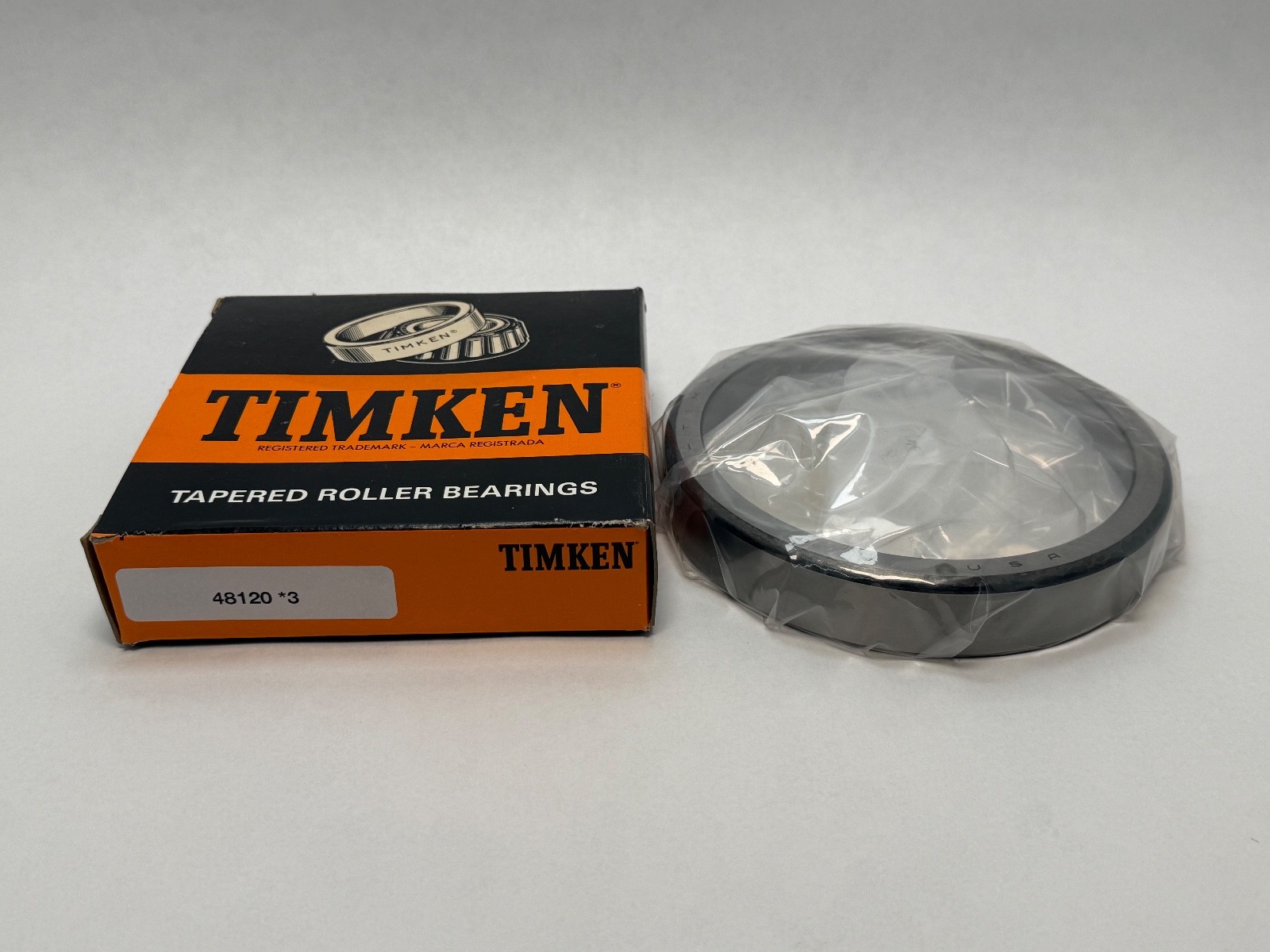

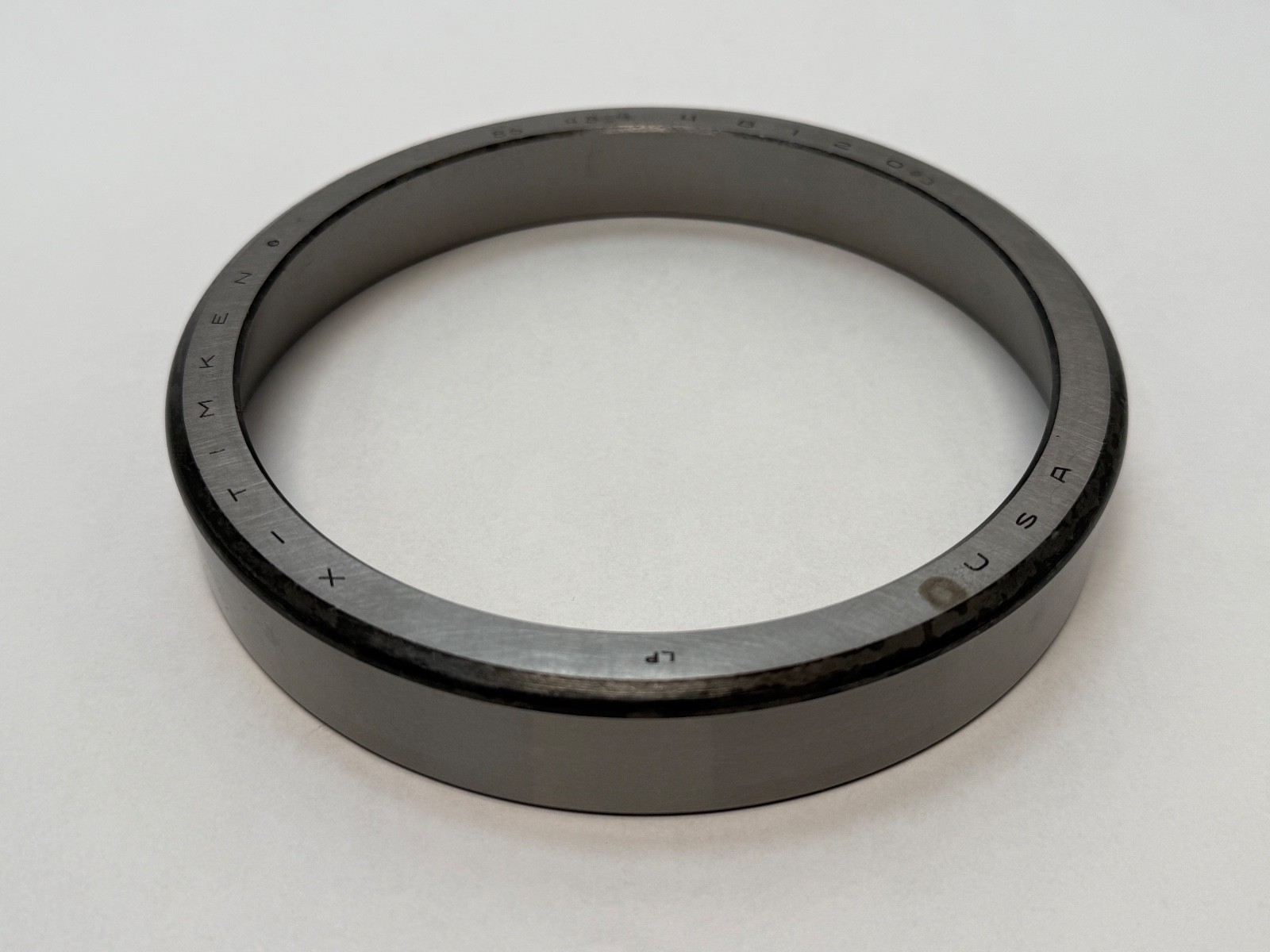

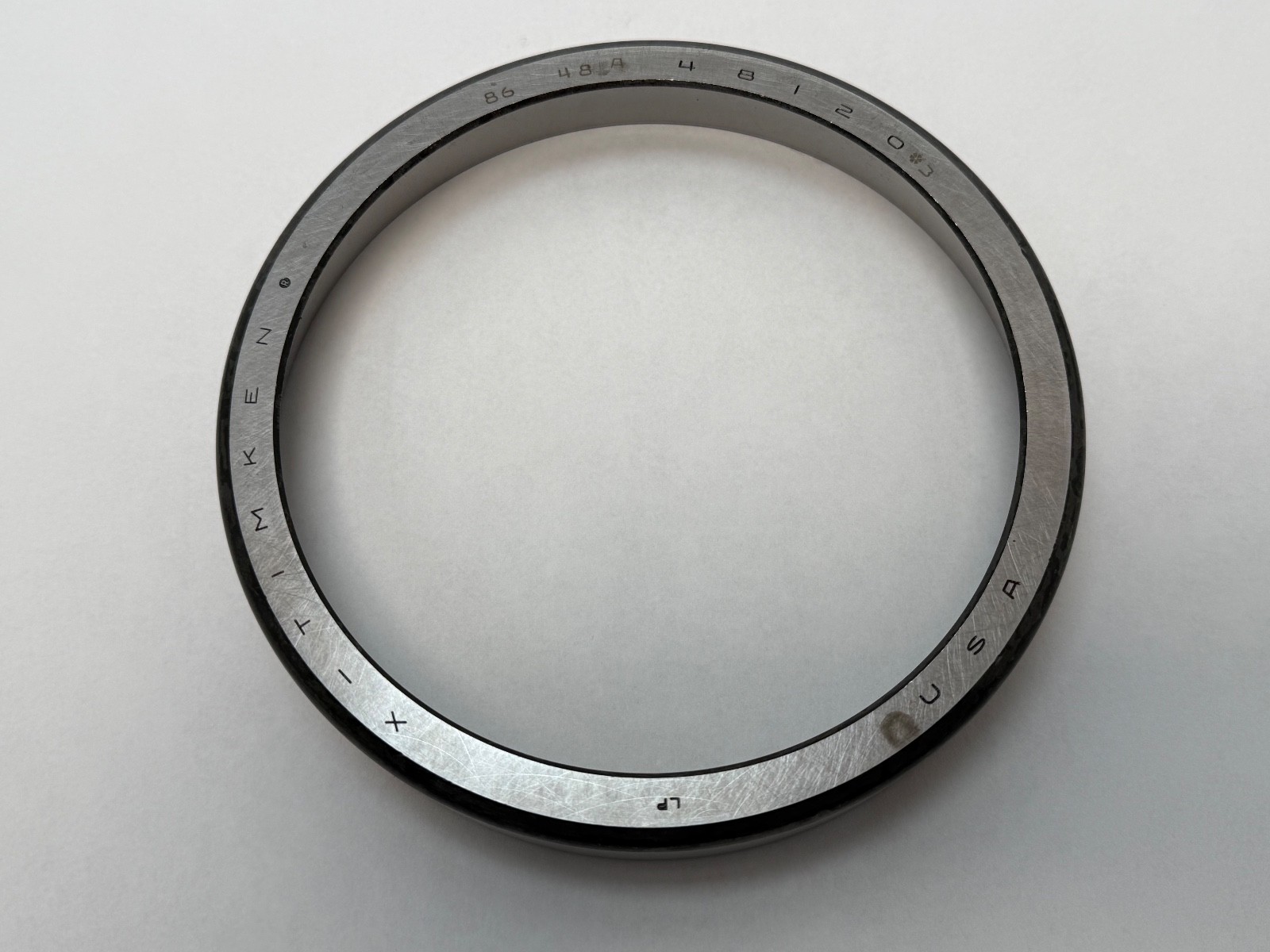

Timken48120-3Tapered Roller Bearing Cup – 6.3750 in Outside Diameter, 1.0625 in Width, Class 3 Precision

Condition: New – Open box

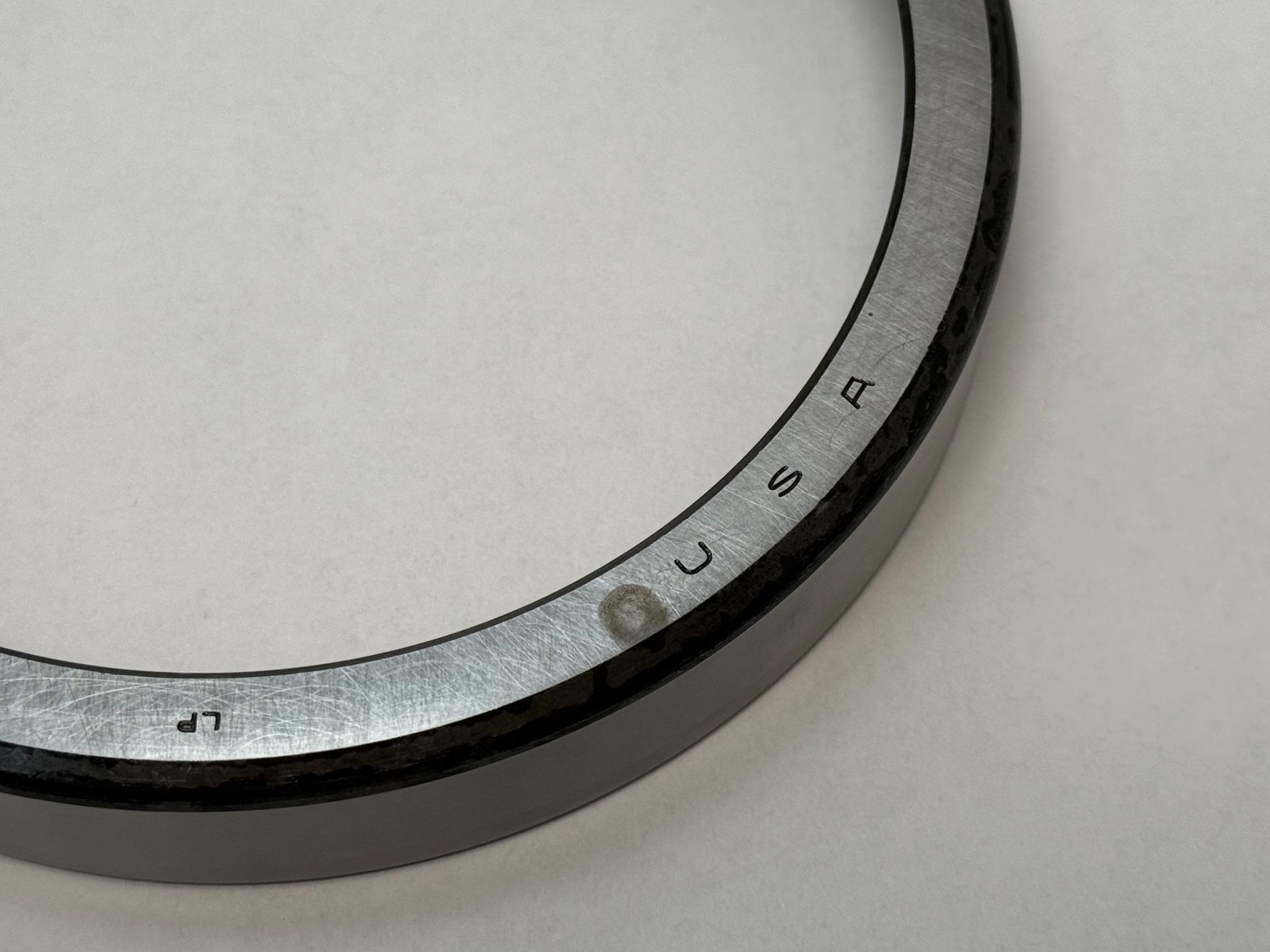

Condition Note: Made In USA, Class 3 Precision, Takeout From Factory New Sets.

Availability:

1 in stock

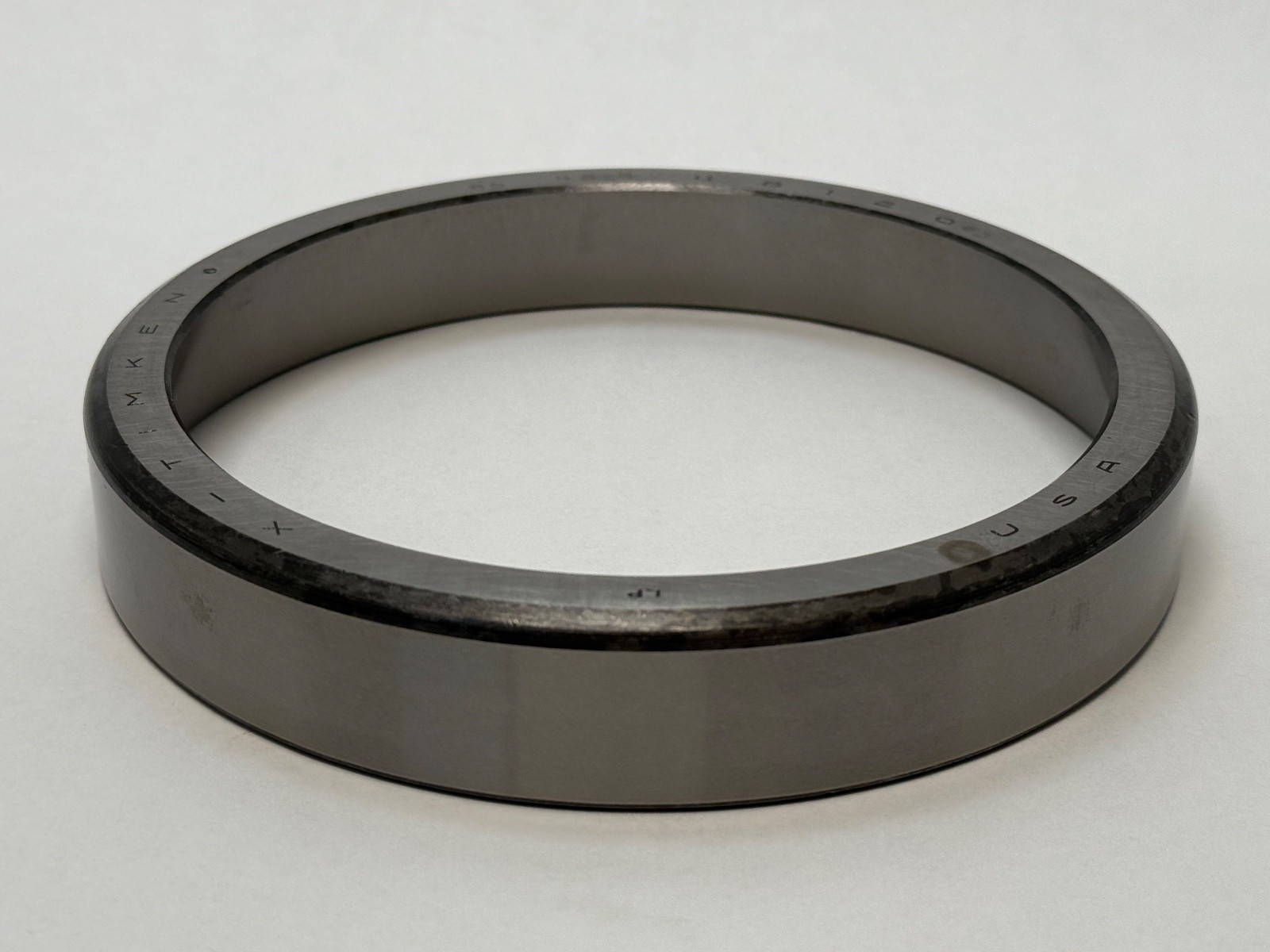

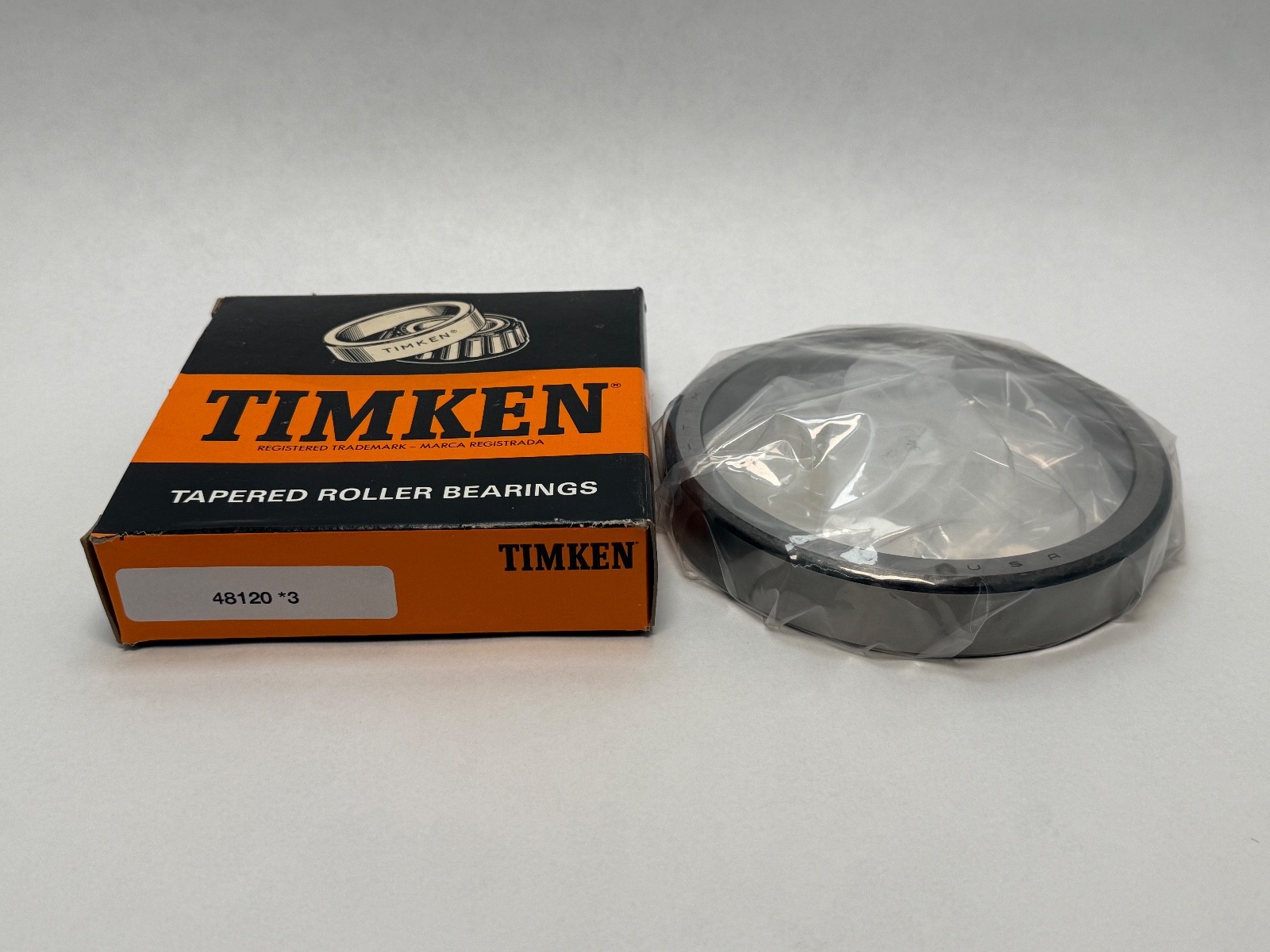

Timken 48120-3 inch tapered roller bearing cup only, Class 3 precision, 6.3750 in outside diameter, 1.0625 in width. Mating cone 48190. 1 Pc.

List Price

$85.99

1 in stock

Prefer eBay? Buy this item on our store (opens in a new tab)

Small green outline icon of a shipping box with a clock, indicating delivery time
Availability

1 in stock

On the Shelf & Ready to Ship

Green shield badge reading "Same-Day Shipping" with box and delivery truck icons
Free US Shipping

Ships same day by 6pm ET

Green shield icon with box and arrow graphic labeled "Free Returns"
Free Returns

No Risk, No Hassle

Specifications

Key Specifications

MFR / BrandTimken
MPN48120-3
Model48120 #3
Bearing TypeTapered Roller Bearing Cup
OD6.3750 in (161.925 mm)
Width1-1/16 in

Technical Specifications

Base Number48120
Overall Width1.0625 in (26.988 mm)
Mpn Variants48120-3; 48120 *3; 48120 #3; 481203; 48120
Compatible With ReplacesMating cone: Timken 48190
Precision ClassClass 3
Additional Attributese Factor 0.51; Y Factor 1.19; Cg 0.156; Max housing fillet radius 3.30 mm; Da 156.00 mm; Db 146.05 mm
Series481
Rolling ElementsTapered Roller
Number Of Rows1
Part Number48120-3

Cross-References

Cross Reference 1Koyo 48120 (standard class)
Cross Reference 2NTN 4T-48120 (standard class)
Cross Reference 3NSK 48120 (standard class)
Cross Reference 4SKF 48120 (standard class)
Cross Reference 5BCA / Bower 48120 (standard class)
Seller Part Number: L6#6FFVU6

Product Description

What this part is:

Timken 48120-3 inch tapered roller bearing cup only, the outer race of a single-row tapered roller bearing, Class 3 precision. Outside diameter 6.3750 in (161.925 mm), width 1.0625 in (26.988 mm). Taken out of factory-new sets. The matching cone is the Timken 48190. Unit Quantity: 1 Pc.

Decoding the designation:

48120 — Timken base cup number in the 481 inch series, 6.3750 in outside diameter.

-3, *3, #3 — Timken Precision Class 3, a tighter tolerance grade than standard class.

Specifications:

Bearing Type: Tapered roller bearing cup.

Series: 481.

Base Number: 48120.

Outside Diameter: 6.3750 in (161.925 mm).

Overall Width: 1.0625 in (26.988 mm).

Precision Class: Class 3.

Rolling Elements: Tapered Roller.

Number Of Rows: 1.

e Factor: 0.51.

Y Factor: 1.19.

Geometry Factor (Cg): 0.156.

Unit Quantity: 1 Pc.

Dimensions and mounting:

Maximum fillet radius on the mating housing: 3.30 mm (0.130 in).

Housing Backing Shoulder Diameter, frontface (Da): 156.00 mm (6.16 in).

Housing Backing Shoulder Diameter, backface (Db): 146.05 mm (5.75 in).

Compatibility and replacement:

Mating cone: Timken 48190. Cups numbered 48120 from Koyo, NTN (4T-48120), NSK, SKF and BCA/Bower share the boundary dimensions in standard class; Class 3 is a Timken tolerance grade.

Frequently asked questions:

Which cone mates with the Timken 48120-3 cup?

The Timken 48190 cone.

What does the -3 suffix mean?

Timken Precision Class 3. It is also written *3 and #3.

What are the cup dimensions?

Outside diameter 6.3750 in (161.925 mm), width 1.0625 in (26.988 mm).
