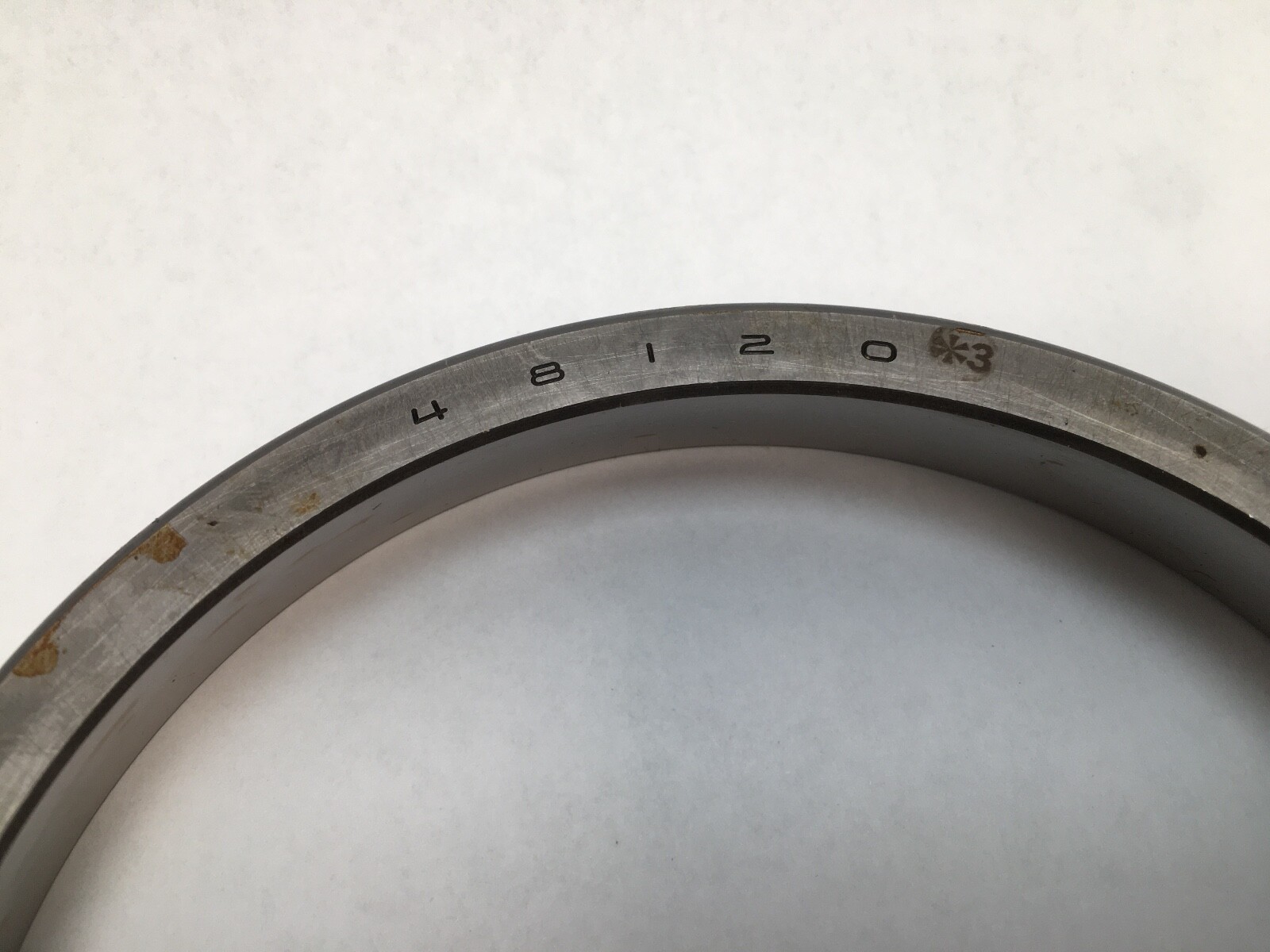

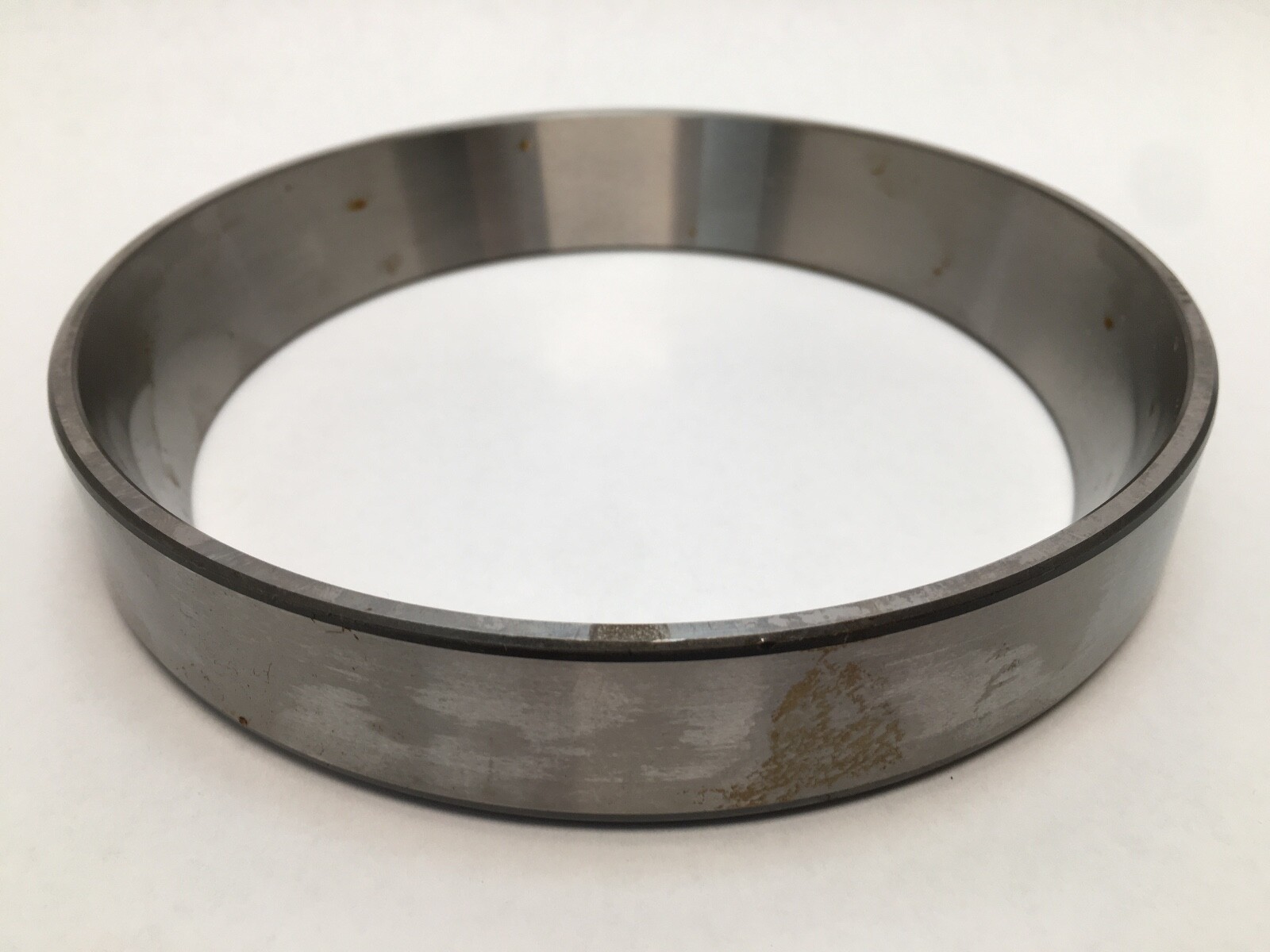

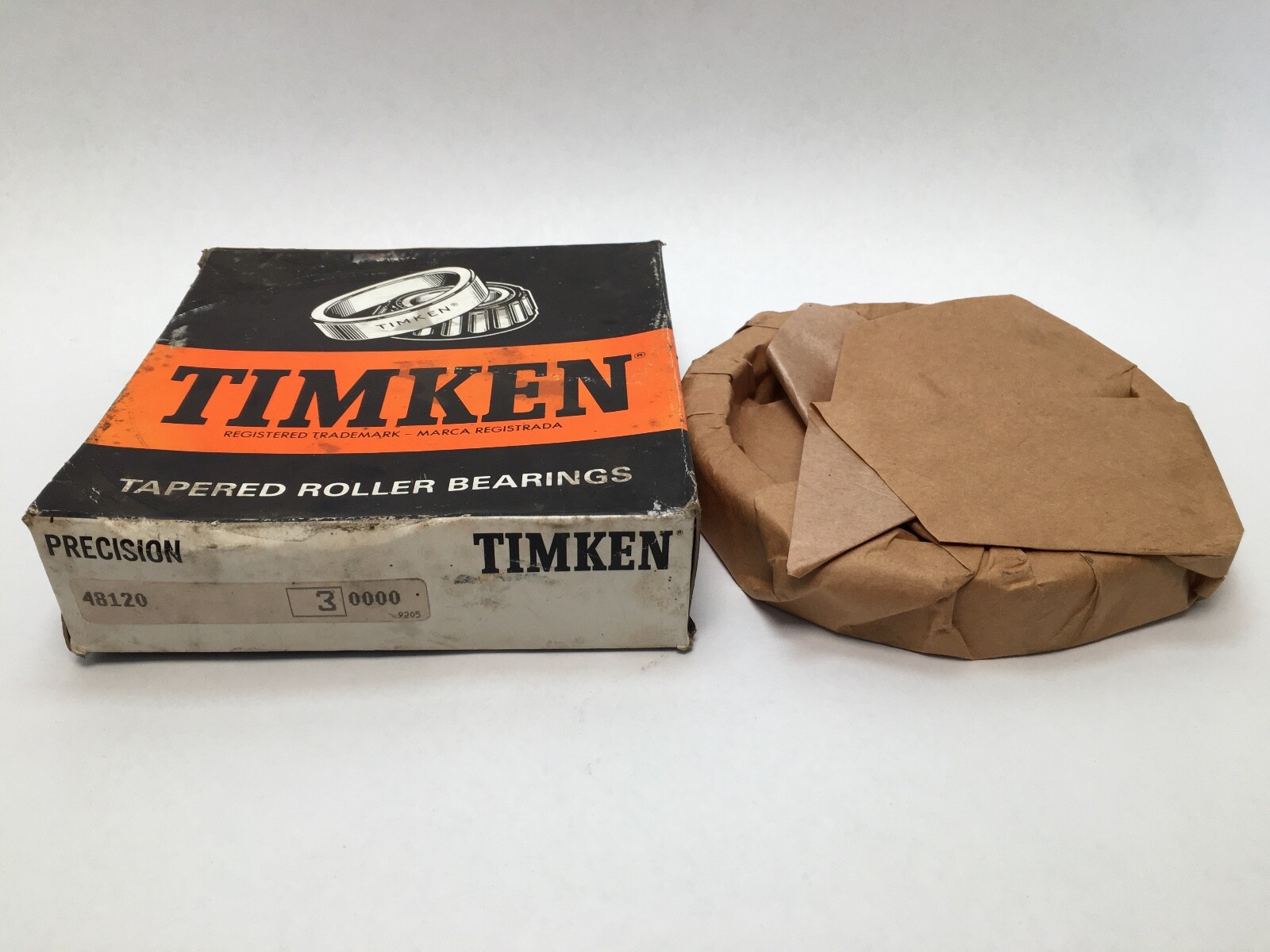

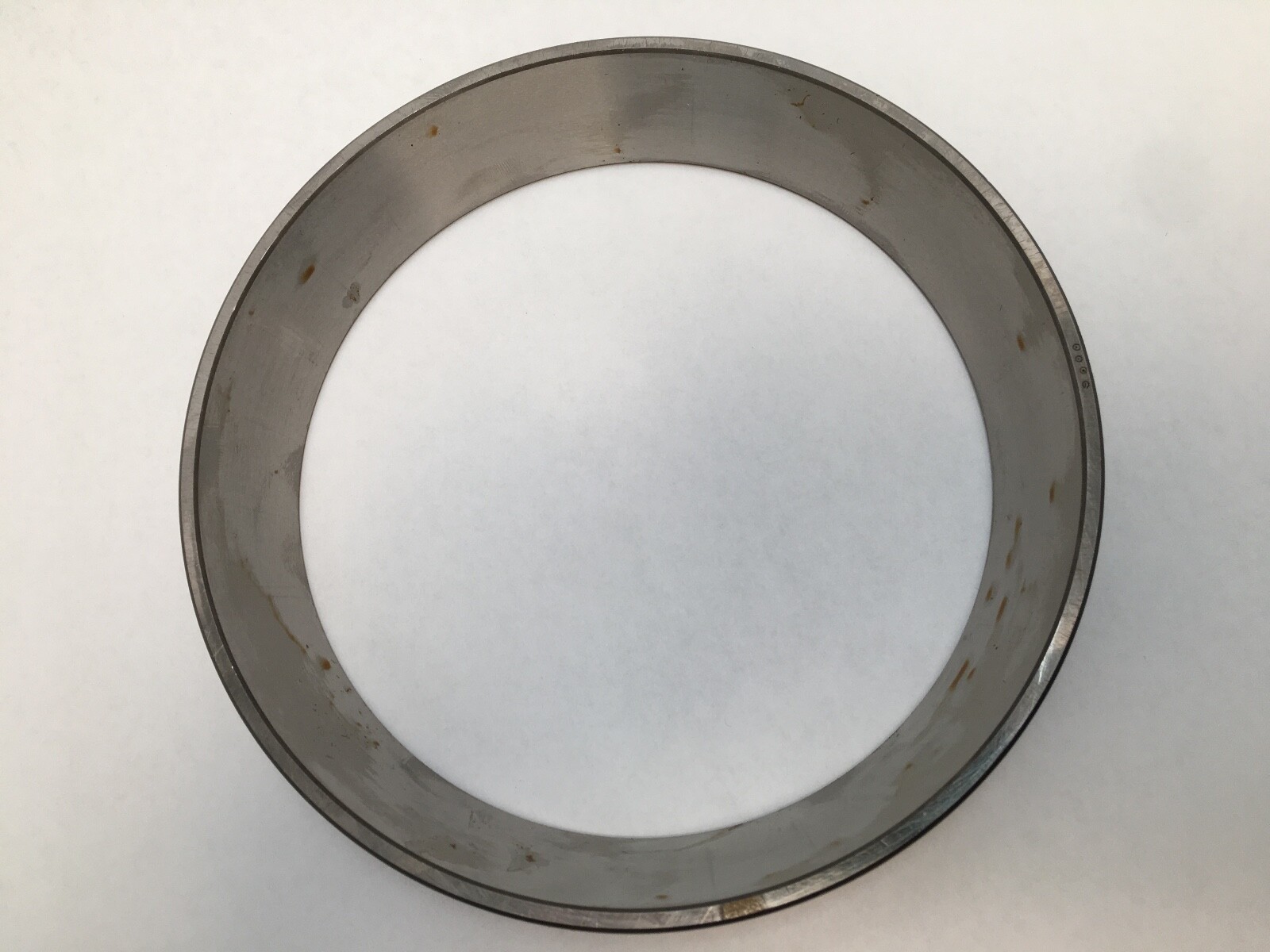

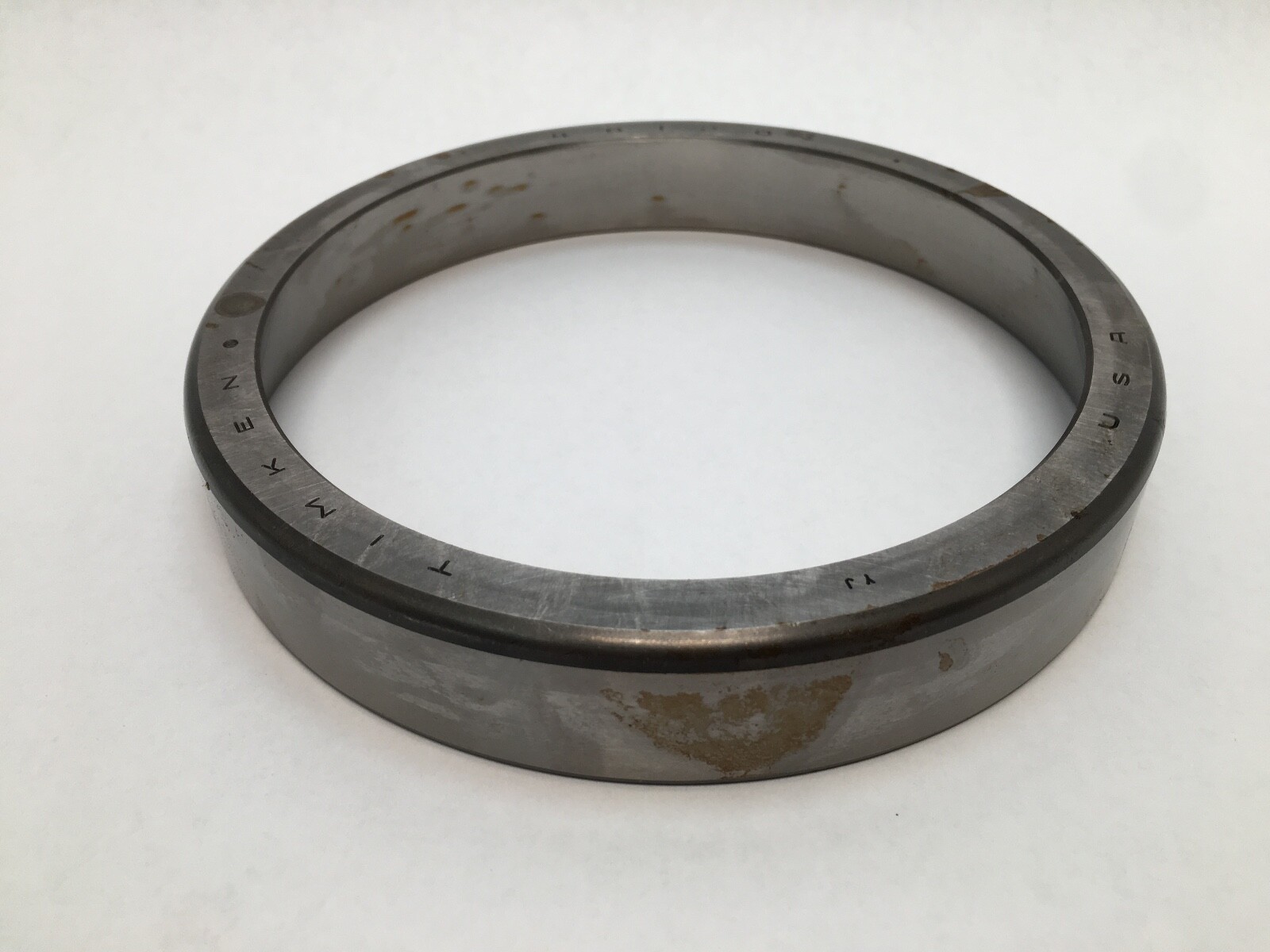

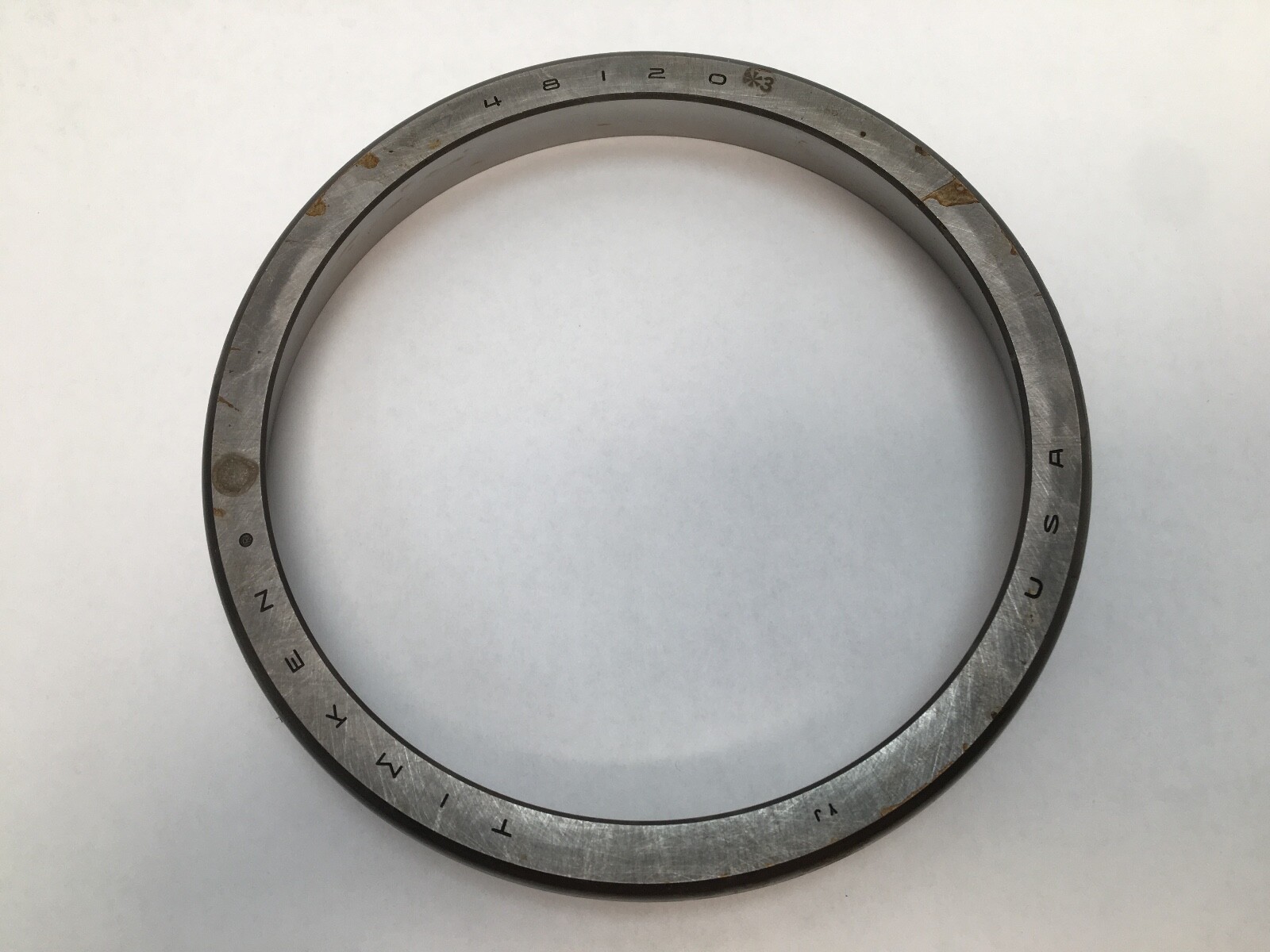

Timken48120-3Tapered Roller Bearing Cup – 6.3750 in Outside Diameter, 1.0625 in Width, Class 3 Precision.

Condition: New – Open box
Condition Note: Made In USA, Class 3 Precision, New Old Stock

Availability:

1 in stock

Timken inch tapered roller bearing cup, 6.3750 in (161.925 mm) outside diameter, 1.0625 in width, Class 3 precision. Mating cone: Timken 48190.

List Price

$101.99

1 in stock

Prefer eBay? Buy this item on our store (opens in a new tab)

Small green outline icon of a shipping box with a clock, indicating delivery time
Availability

1 in stock

On the Shelf & Ready to Ship

Green shield badge reading "Same-Day Shipping" with box and delivery truck icons
Free US Shipping

Ships same day by 6pm ET

Green shield icon with box and arrow graphic labeled "Free Returns"
Free Returns

No Risk, No Hassle

Specifications

Key Specifications

MFR / BrandTimken
MPN48120-3
Model48120 #3
Bearing TypeTapered Roller Bearing Cup
OD6.3750 in (161.925 mm)

Technical Specifications

Series481
Base Number48120
Overall Width1.0625 in (26.988 mm)
Mpn Variants48120-3; 48120 *3; 48120 #3; 481203; 48120
Compatible With ReplacesMating cone: Timken 48190
Precision ClassClass 3
Additional Attributese Factor 0.51; Y Factor 1.19; Cg 0.156; Max housing fillet radius 3.30 mm; Da 156.00 mm; Db 146.05 mm
Rolling ElementsTapered Roller
Item Weight2.30 kg (5.2 lb)
Number Of Rows1
Harmonization Code8482.20.00
Cup Part Number48120
Cup Width1.0625 in
Cup Backface To Clear Radius0.130 in
Part Number48120-3
Cup Frontface Backing Diameter6.16 in

Cross-References

Cross Reference 1Koyo 48120 (standard class)
Cross Reference 2NTN 4T-48120 (standard class)
Cross Reference 3NSK 48120 (standard class)
Cross Reference 4SKF 48120 (standard class)
Cross Reference 5BCA / Bower 48120 (standard class)
Seller Part Number: BB5#GTWDNC

Product Description

What this part is:

Timken 48120-3 inch tapered roller bearing cup, the outer race of a single-row tapered roller bearing. Bearing Type: Tapered Roller Bearing Cup. Series: 481. Base Number: 48120. Outside Diameter: 6.3750 in (161.925 mm). Overall Width: 1.0625 in (26.988 mm). Rolling Elements: Tapered Roller. Number Of Rows: 1. Item Weight: 2.30 kg (5.2 lb). Unit Quantity: 1 Pc.

Decoding the designation:

48120 — Timken base cup number in the 481 inch series, 6.3750 in outside diameter.

-3 / *3 / #3 — Timken Precision Class 3, tighter running and mounting tolerance than standard class. The same class is written 48120-3, 48120 *3 and 48120 #3.

Specifications:

Precision Class: Class 3. e Factor: 0.51. Y Factor: 1.19. Geometry Factor (Cg): 0.156. Harmonization Code: 8482.20.00.

Dimensions and mounting:

Outside Diameter: 6.3750 in (161.925 mm). Overall Width: 1.0625 in (26.988 mm). Maximum fillet radius on the mating housing: 3.30 mm (0.130 in). Housing Backing Shoulder Diameter, frontface (Da): 156.00 mm (6.16 in). Housing Backing Shoulder Diameter, backface (Db): 146.05 mm (5.75 in). Cup only. Mating cone: Timken 48190.

Compatibility and replacement:

Cross-Reference 1: Koyo 48120 (standard class). Cross-Reference 2: NTN 4T-48120 (standard class). Cross-Reference 3: NSK 48120 (standard class). Cross-Reference 4: SKF 48120 (standard class). Cross-Reference 5: BCA / Bower 48120 (standard class).

Frequently asked questions:

What size is the Timken 48120-3 cup?

Outside diameter 6.3750 in (161.925 mm), width 1.0625 in (26.988 mm).

Which cone matches this cup?

The Timken 48190.

What does the -3 mean?

Timken Precision Class 3.
