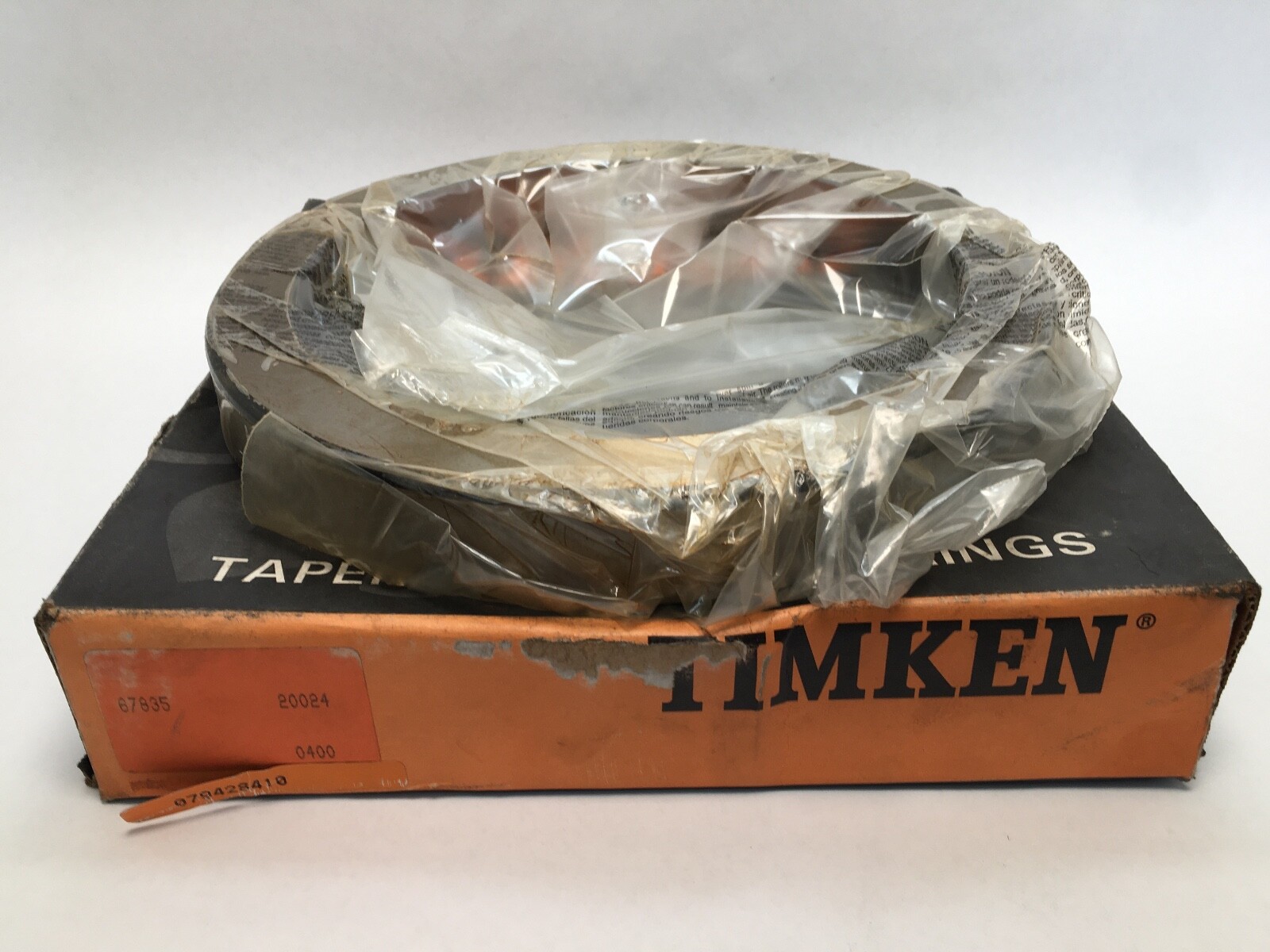

Timken67835Taper Roller Single Cup – 11.4170 in Outside Diameter, 1.4173 in Width, 67800 Series, Case-Carburized Steel.

Product Description

What this part is

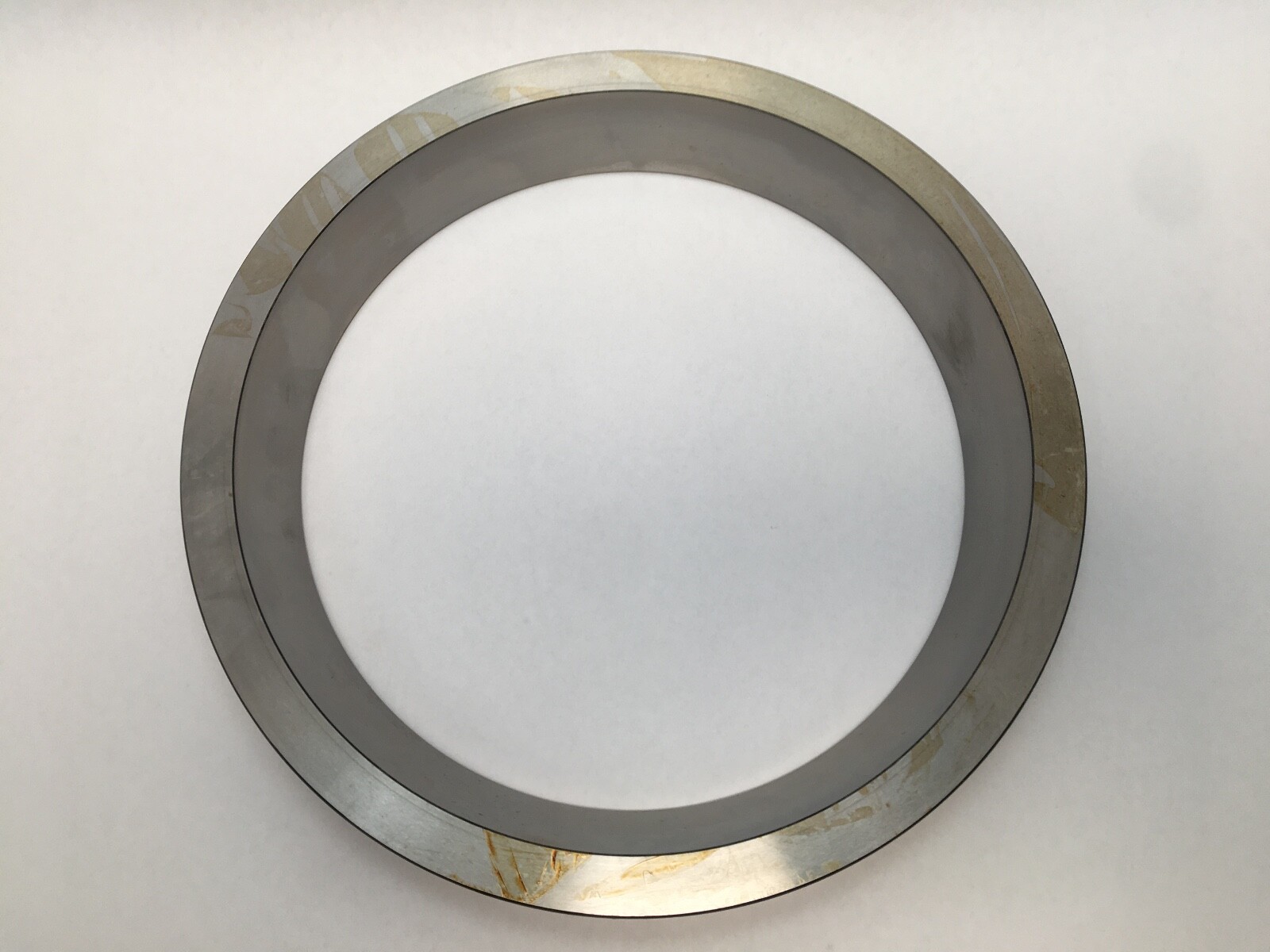

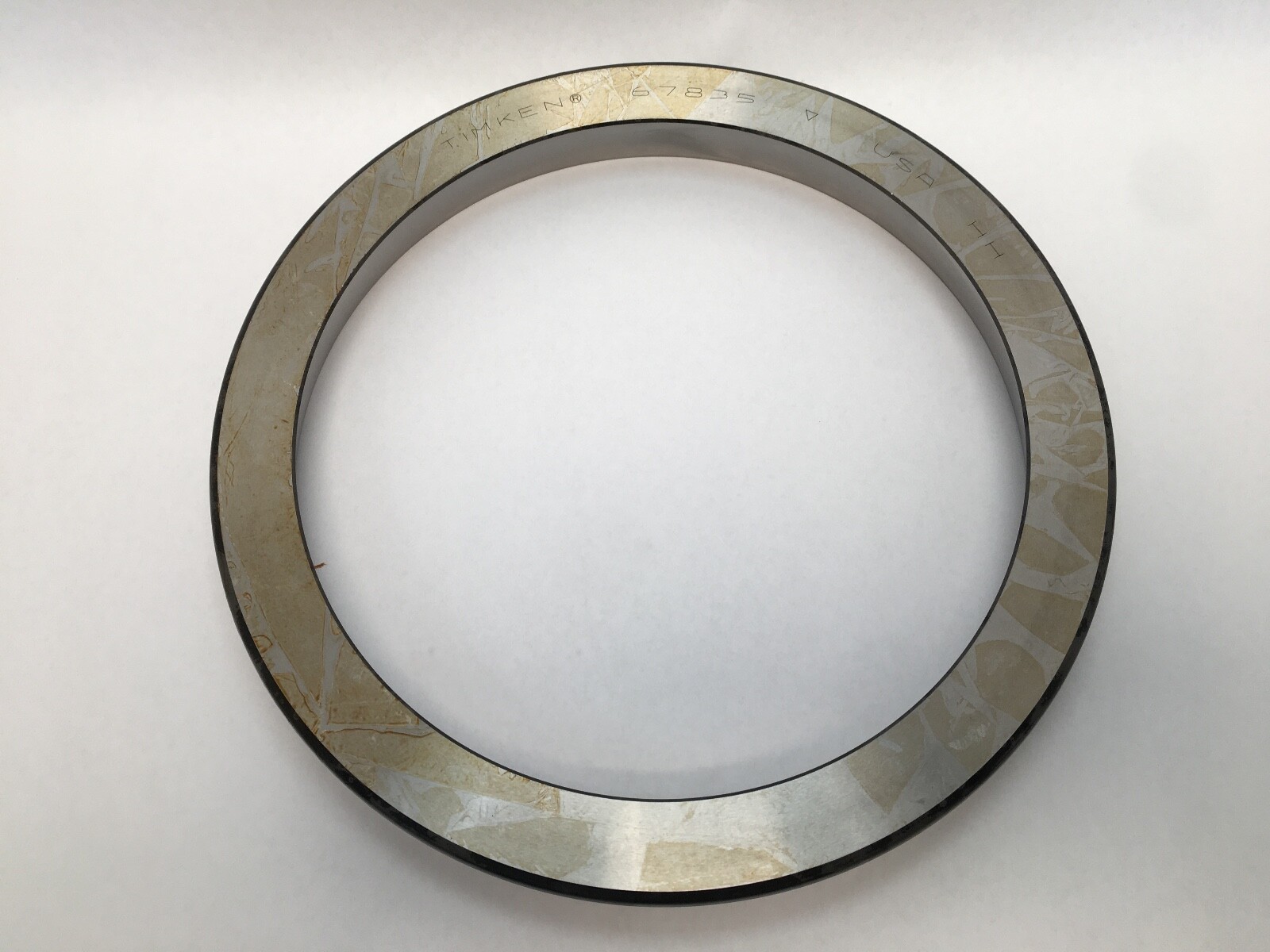

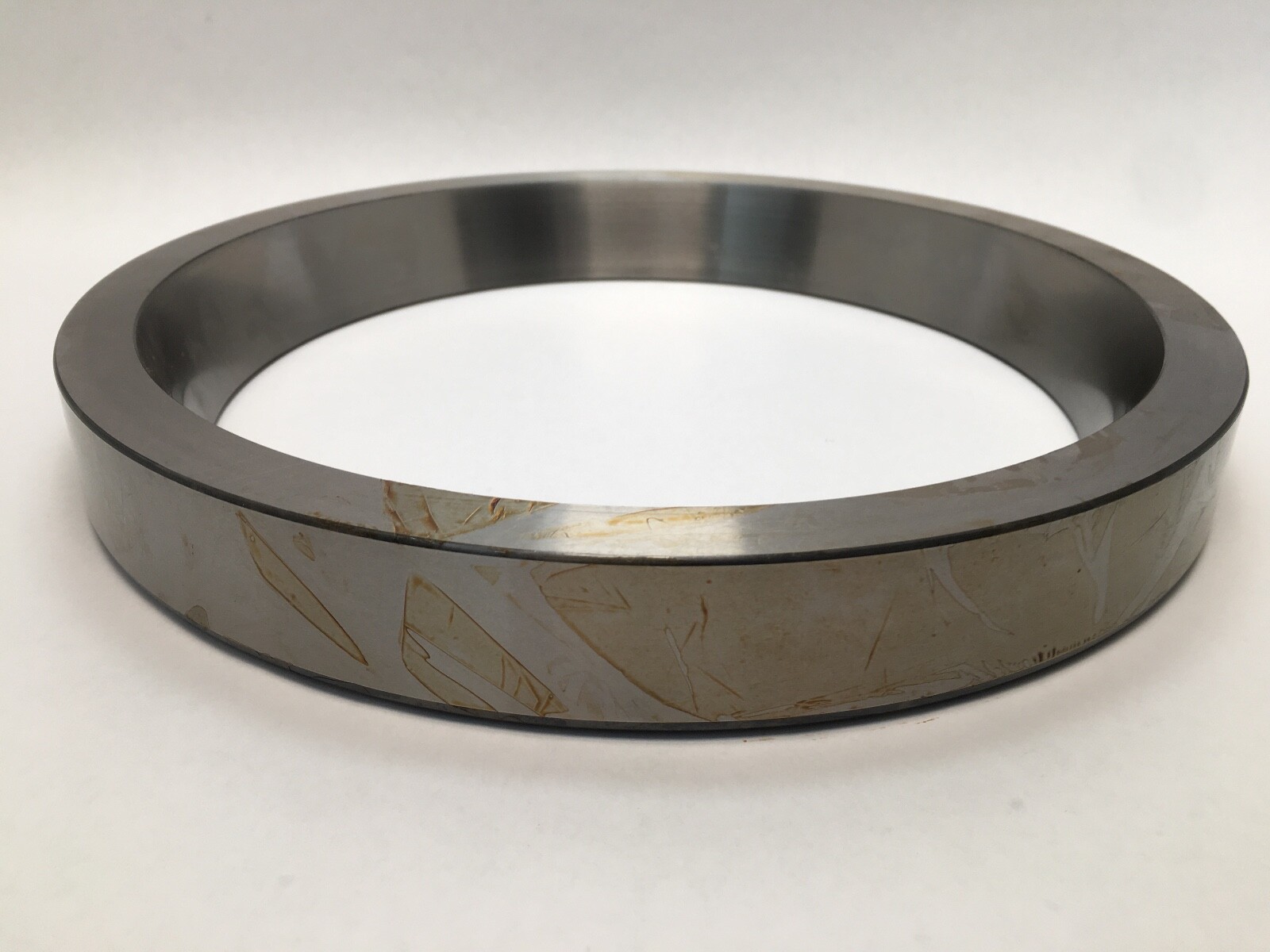

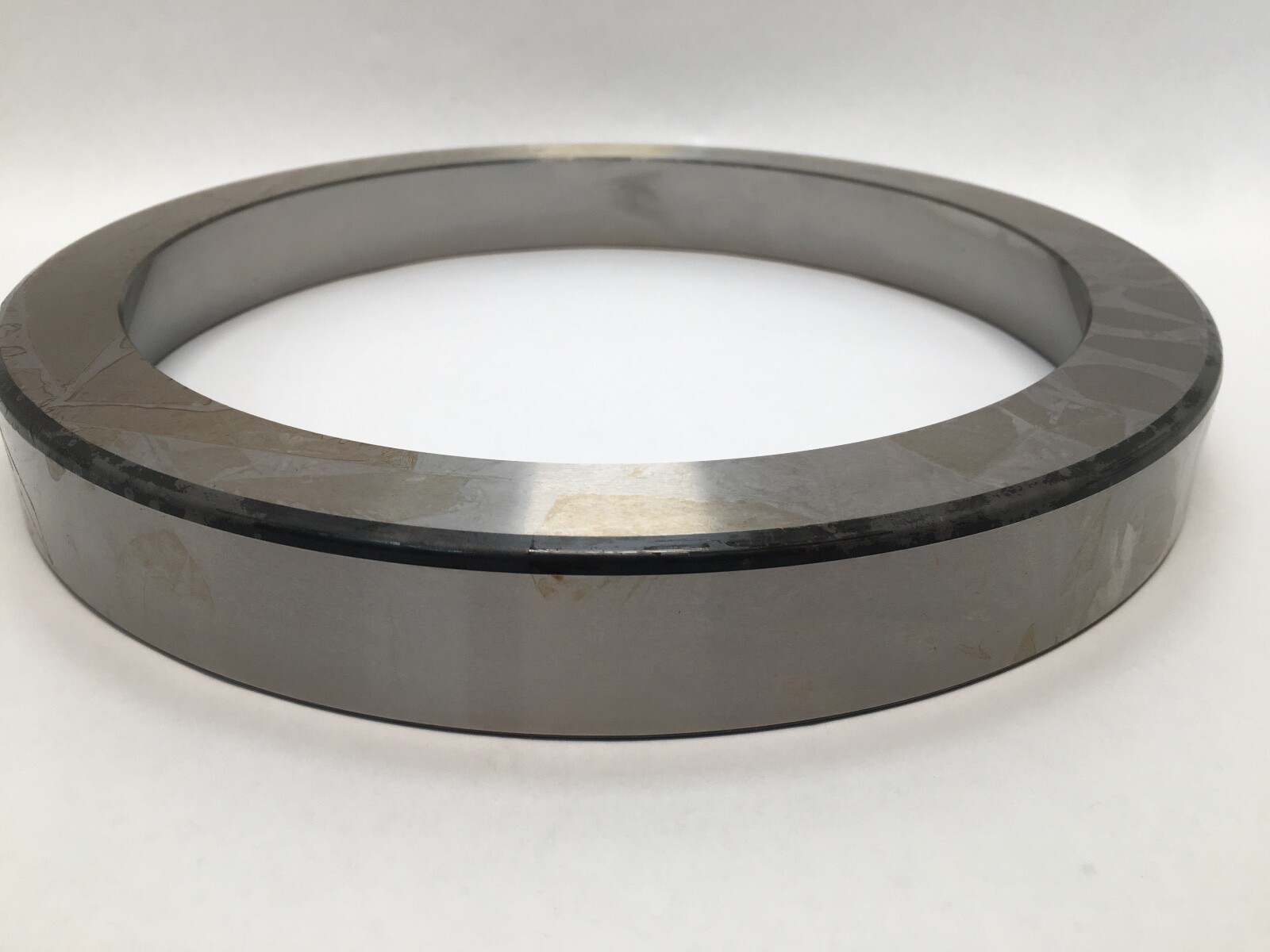

Timken 67835 inch tapered roller bearing single cup. This is the cup, the outer race of a two-piece tapered roller bearing. Outside Diameter: 11.4170 in (289.992 mm). Overall Width: 1.4173 in (35.999 mm). Series: 67800. Bearing Material: Case-carburized steel. Rolling Elements: Tapered Roller. Number Of Rows: 1. Closure Type: Open. Item Weight: 10.1 kg (22.4 lb). The matching cone is the Timken 67886.

Decoding the designation

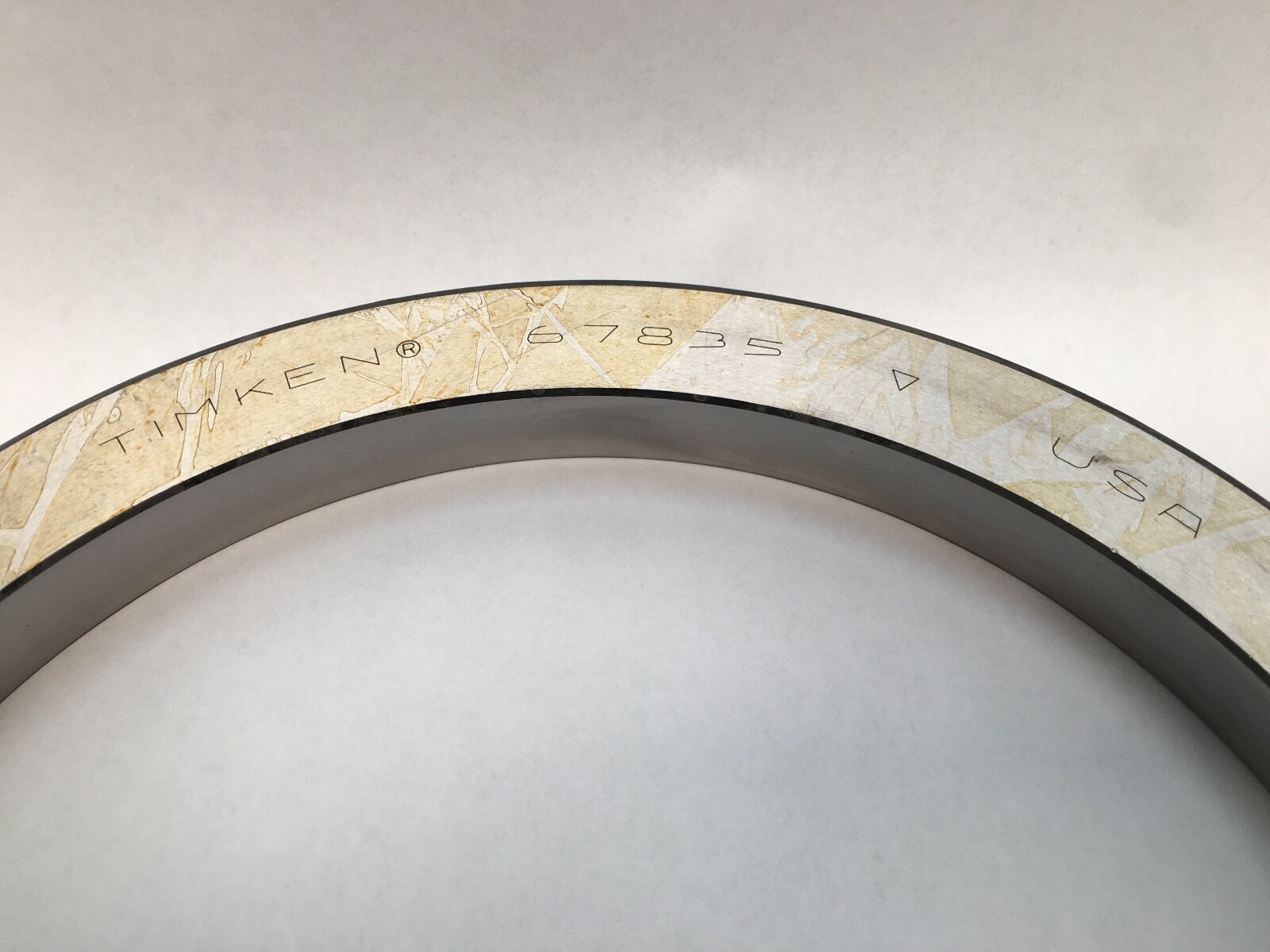

67835 — Timken inch cup number in the 67800 series. The number fixes the raceway angle and the outer envelope, and it pairs with the 67886 cone to make a complete TS single-row bearing.

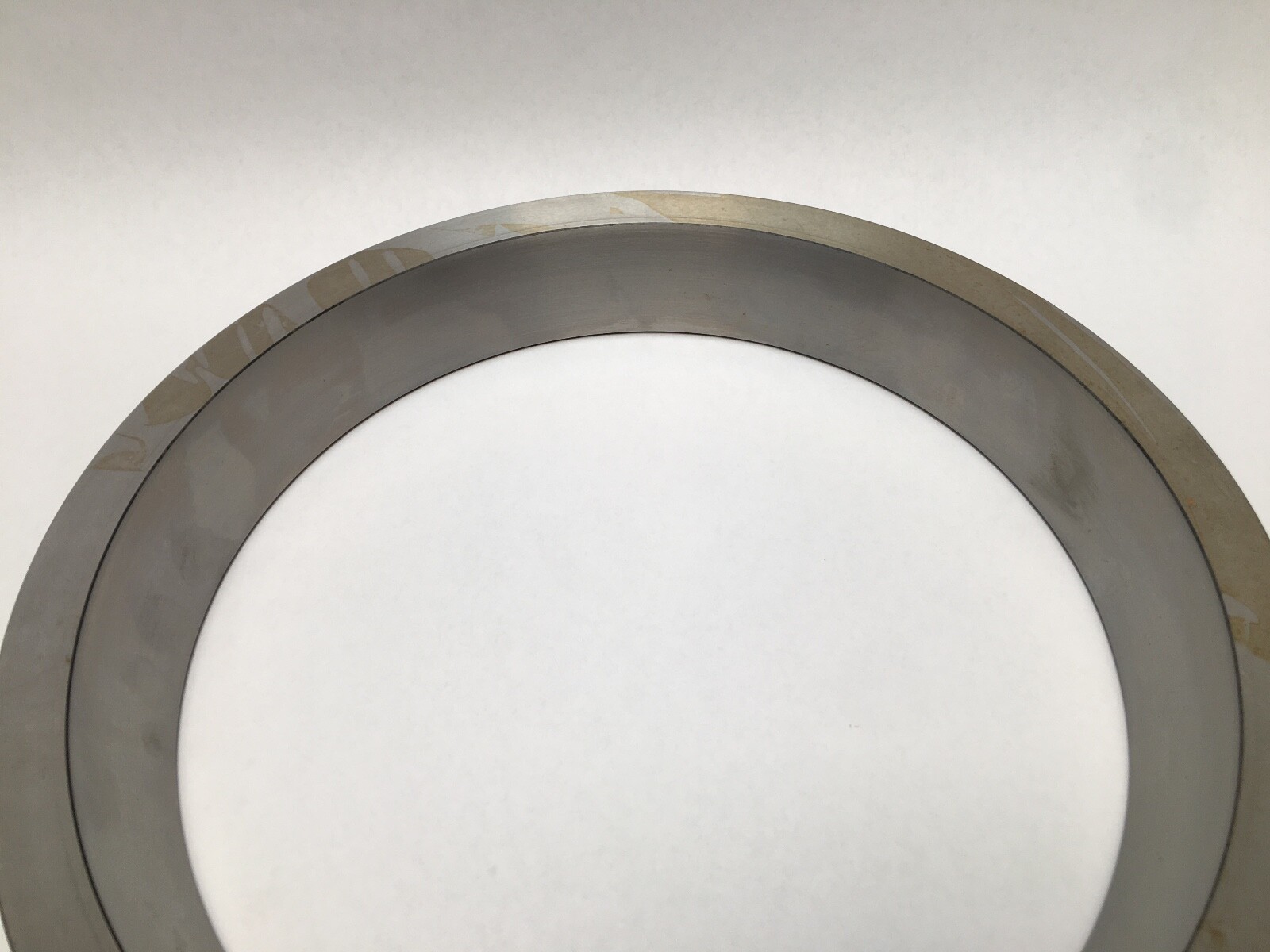

Cup — the outer race. The rollers and the cage are carried on the cone, so a cup is supplied as a single hardened ring with one tapered raceway.

What these specs mean in practice

e Factor: 0.48. Y Factor: 1.26. Timken uses this pair to convert a combined radial and thrust duty into an equivalent radial load. A K factor of this order describes a steep-angle cup that carries a substantial thrust component alongside its radial load.

Geometry Factor (Cg): 0.131. This constant feeds the lubrication life adjustment factor a3l when the bearing life is calculated for a given oil film.

Case-carburized steel gives a hard raceway over a tough core, which is what lets an inch tapered roller bearing take shock loading without through-cracking.

Mounting data

Housing Backing Shoulder Diameter, Frontface (Da): 10.25 in (259.10 mm). Housing Backing Shoulder Diameter, Backface (Db): 10.08 in (256.03 mm). Maximum Housing Fillet Radius: 0.130 in (3.30 mm) — the largest fillet the housing may carry and still be cleared by the cup corner.

The cup seats in the housing bore with the large end of the raceway against the shoulder, and the cone runs on the shaft opposite it.

Quantity and configuration

Unit Quantity: 1 Pc. One single cup.

Interchange guidance

67835 is an industry inch tapered roller bearing cup number and is built to the same envelope by SKF, FAG, NSK, NTN, Koyo, Bower/BCA, Nachi and PEER. Written variants in circulation include 67835, 67-835 and 67835 cup, and the assembled pairing is written 67886/67835.
