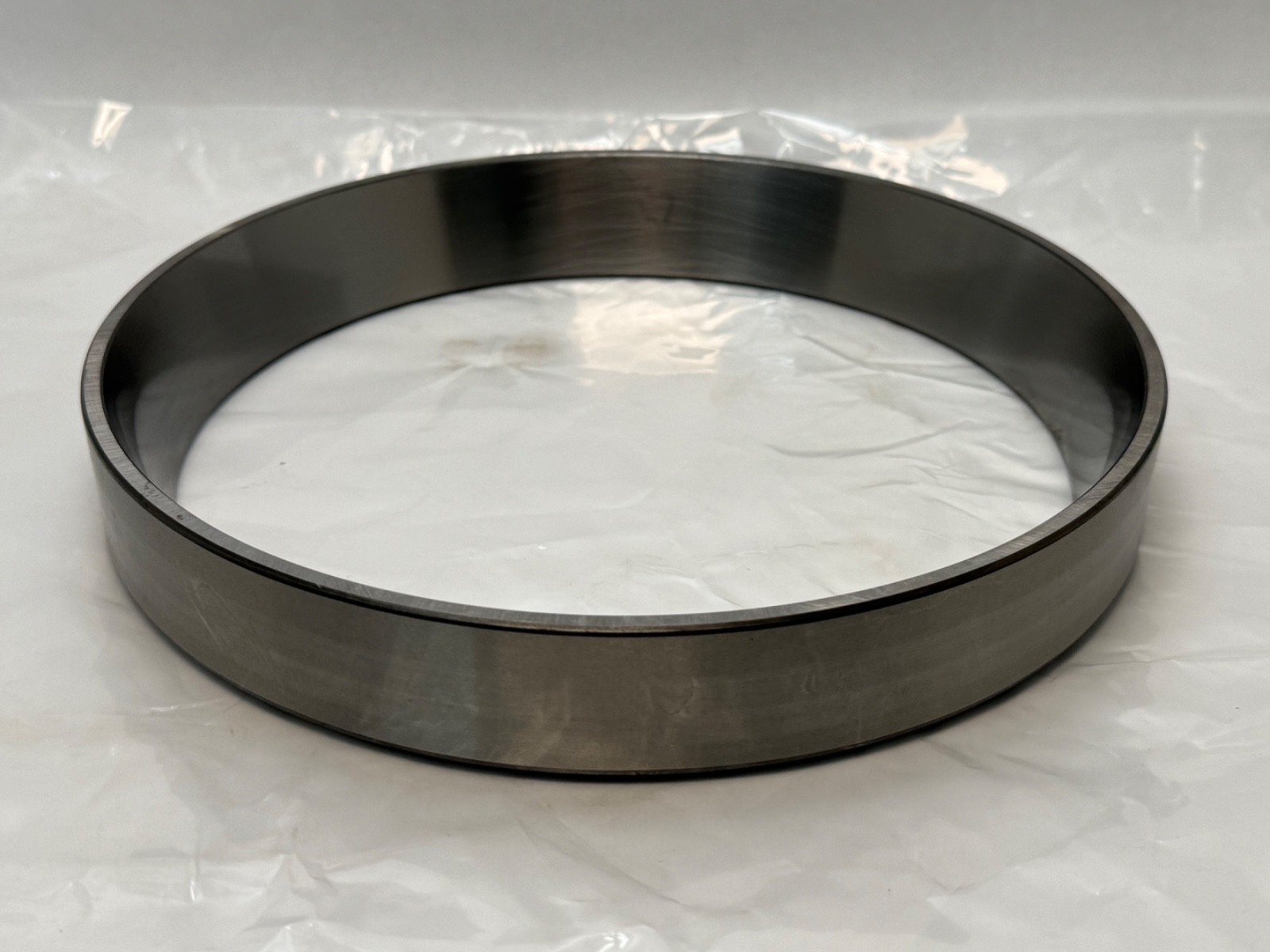

Tapered roller bearing cup, 10-1/2 in outside diameter, 1-1/2 in outer ring width, e factor 0.48, Y factor 1.26. Runs with a 67885 or 67887 cone.
List Price
$138.01
Out of stock
Out of stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
This item is currently out of stock
Here are some other options that might fit your project — cross-referenced equivalents and similar parts we have in stock and ready to ship. Need help choosing? Call 585-295-7880.
Double Tapered Roller Bearing Cup — 10.5000 in (266.700 mm) OD, 3.3125 in (84.138 mm) Width, DC Execution$278.93
Timken 56650 Taper Roller Bearing Cup 6-1/2" OD 1-1/16" W Single Row Imperial$32.29
Double Tapered Roller Bearing Cup — 4.0000 in (101.600 mm) OD, 2.2500 in (57.150 mm) Width$38.33
Tapered Roller Bearing Cup - 5.000 in Cup Outer Diameter, 1.0625 in Cup Width, Class 2, Case-Hardened Alloy Steel.$54.41| MFR / Brand | Timken |
|---|---|
| MPN | 67820 |
| Model | 67820 |
| Bearing Type | Tapered Roller Bearing Cup |
| OD | 10.5000 in (266.7 mm) |
| Width | 1-1/2 in |
| Base Number | 67820 |
|---|---|
| Industry Terms | Tapered roller cup, bearing race, outer ring, taper bearing cup, TRB cup |
| Common Misspellings | Timkin 67820, 67-820, 67820 bearing race |
| Overall Width | 1.5000 in (38.1 mm) outer ring width |
| Mpn Variants | 67820, Timken 67820, 67-820, 67820 cup, 67820 race |
| Precision Class | Not specified |
| Additional Attributes | e factor 0.48; Y factor 1.26; geometry factor Cg 0.131; max housing fillet radius 0.130 in (3.30 mm); housing backing shoulder Da 10.25 in (259.10 mm), Db 9.69 in (246.13 mm); unflanged outer ring for a straight housing bore |
| Series | 67800 imperial tapered roller |
| Rolling Elements | Tapered roller raceway, outer ring |
| Item Weight | 16.4 lb (7.5 kg) |
| Number Of Rows | 1 |
| Part Number | 67820 |
| Cross Reference 1 | Timken 67885 — matching cone, 7.5000 in bore |
|---|---|
| Cross Reference 2 | Timken 67887 — matching cone |
| Cross Reference 3 | Timken 67885 / 67820 — complete TS single-row assembly |
| Cross Reference 4 | Timken 67830 — alternative cup for the same cones |

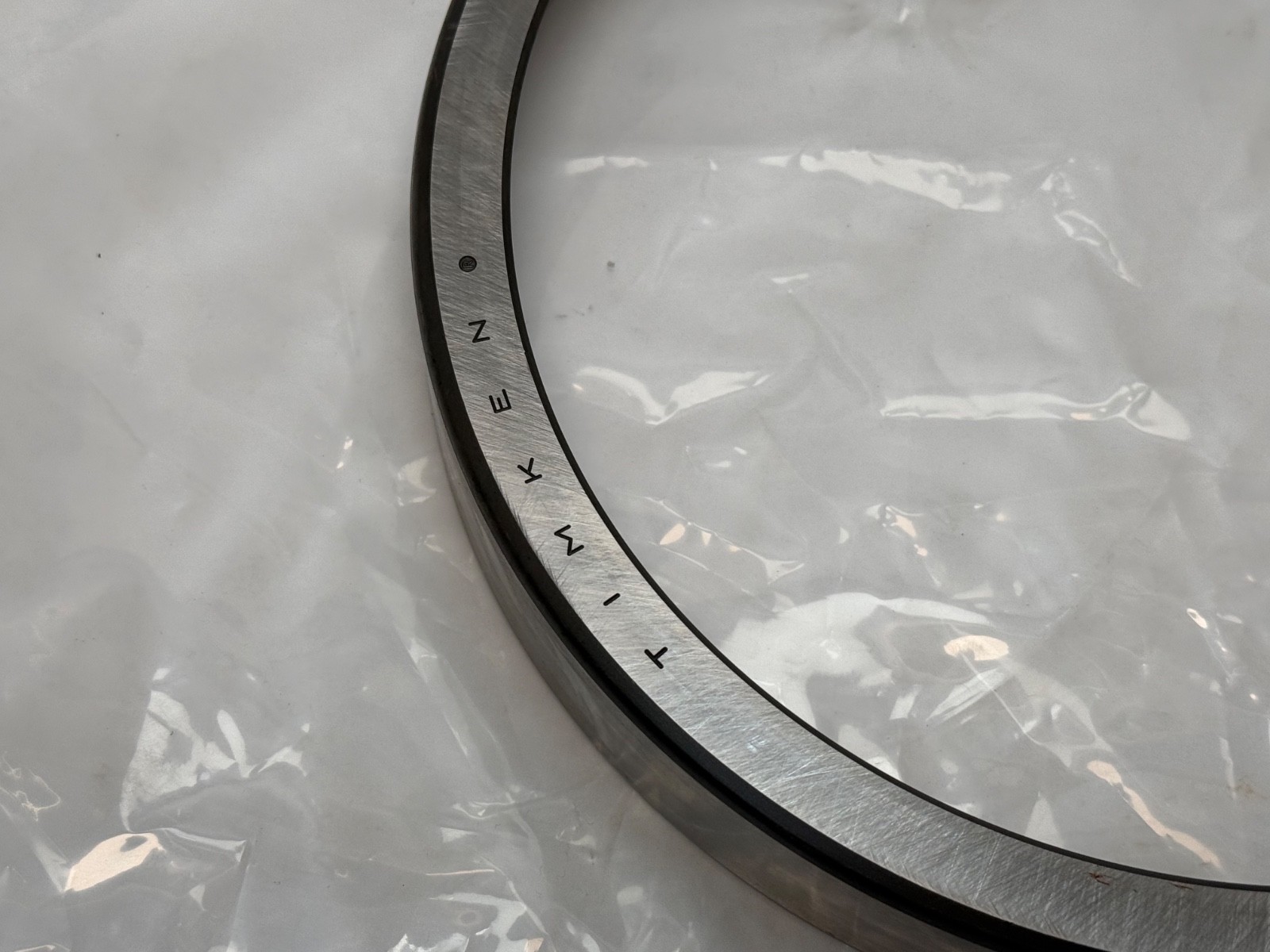

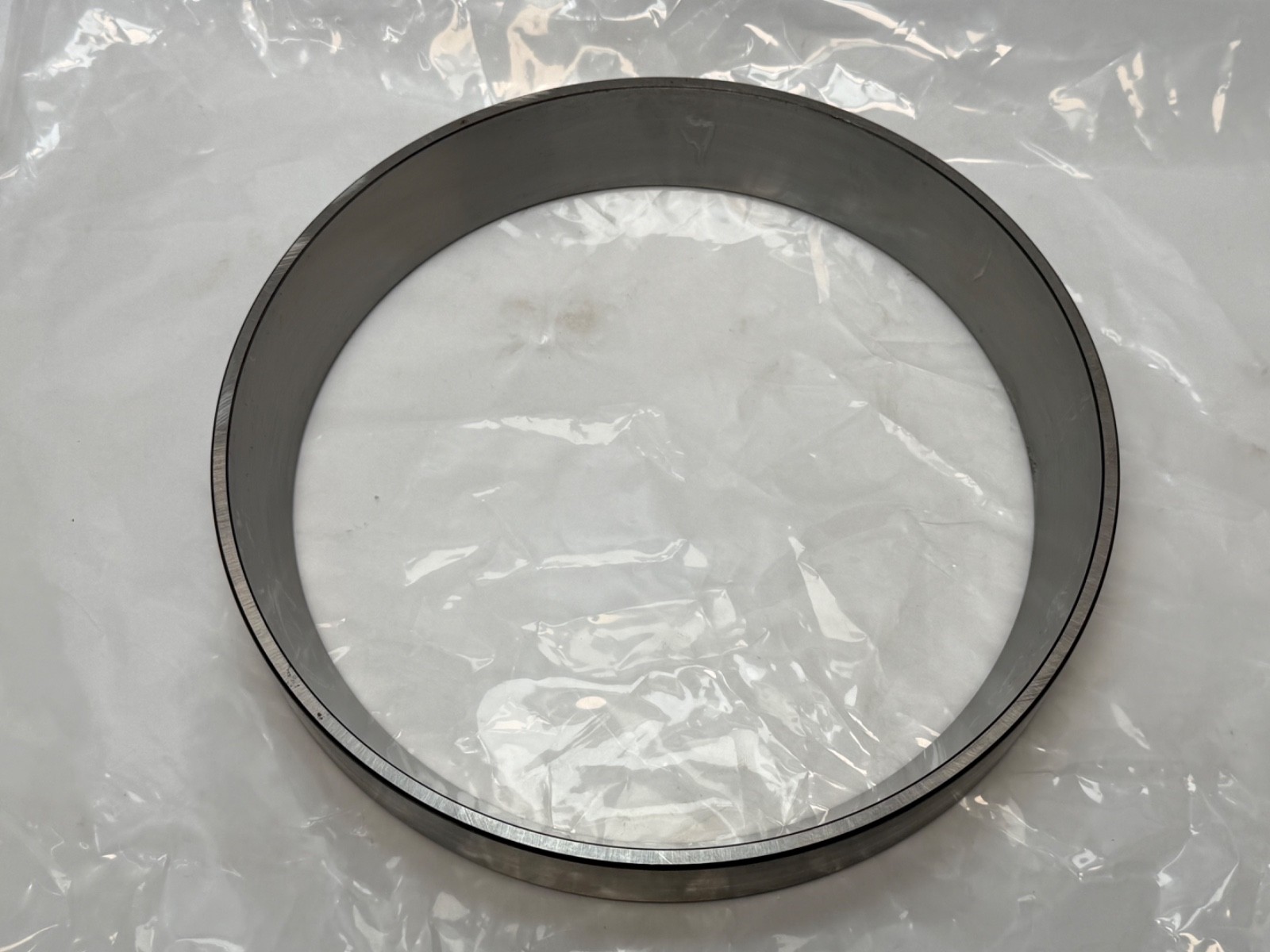

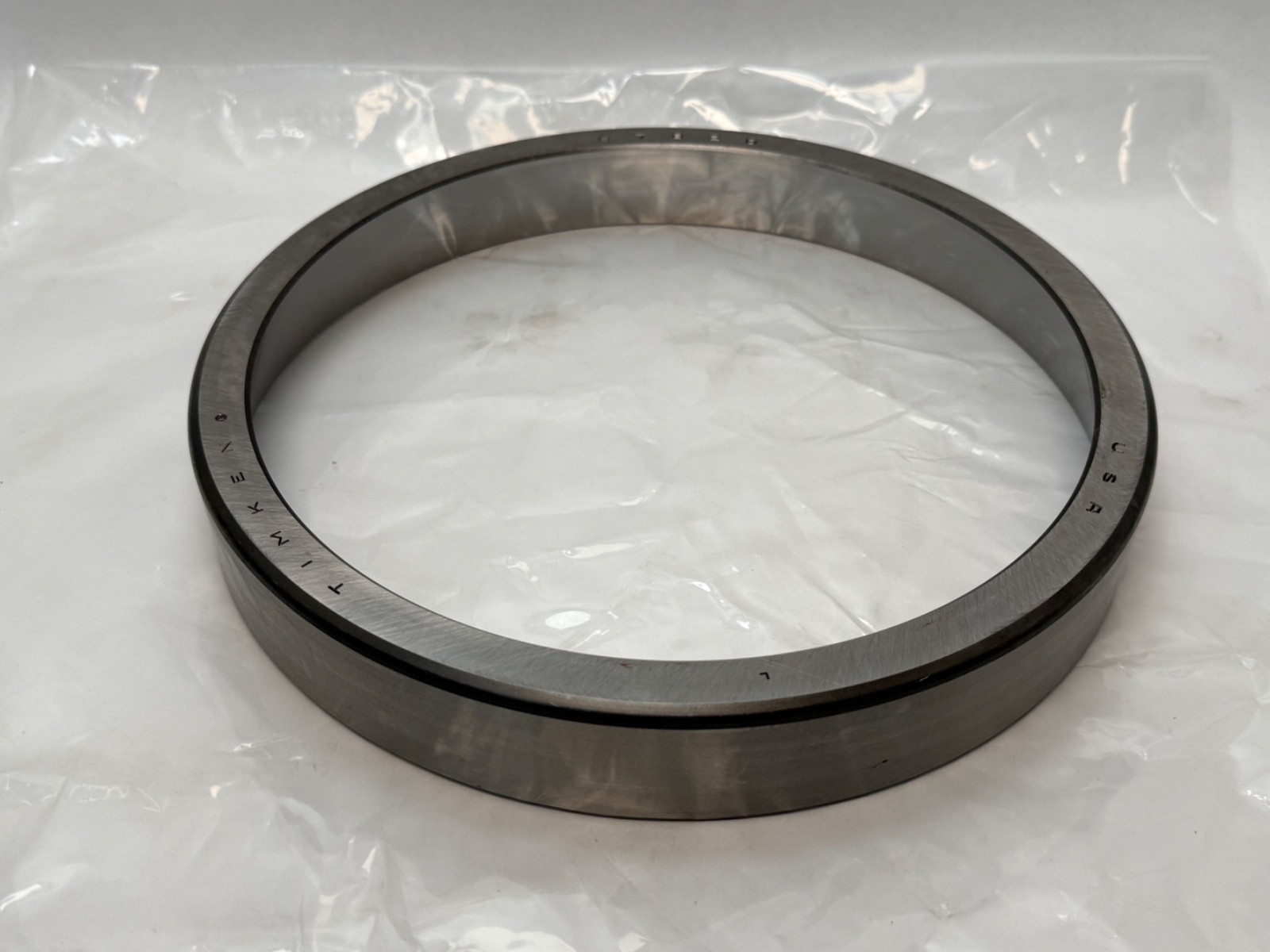

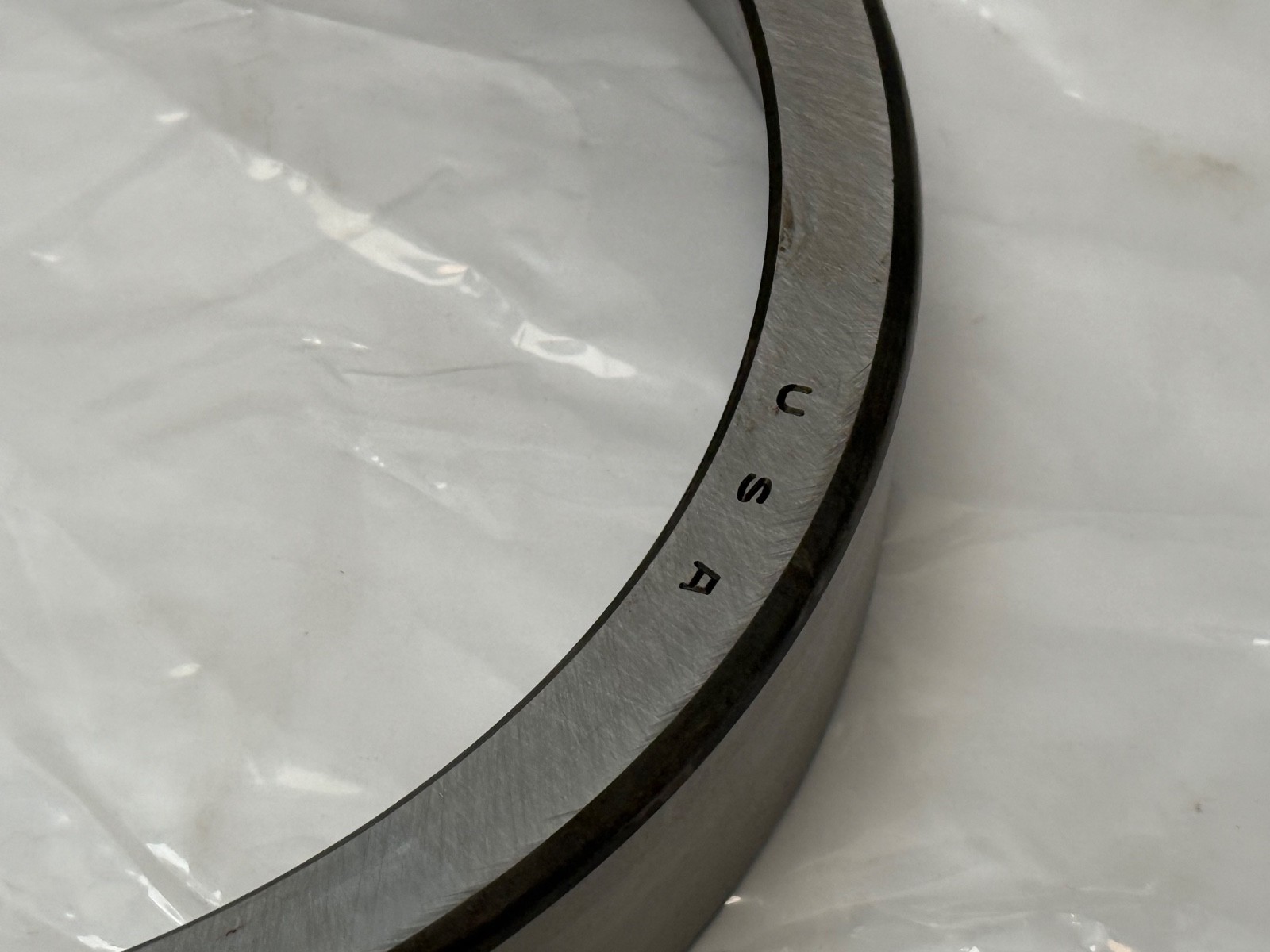

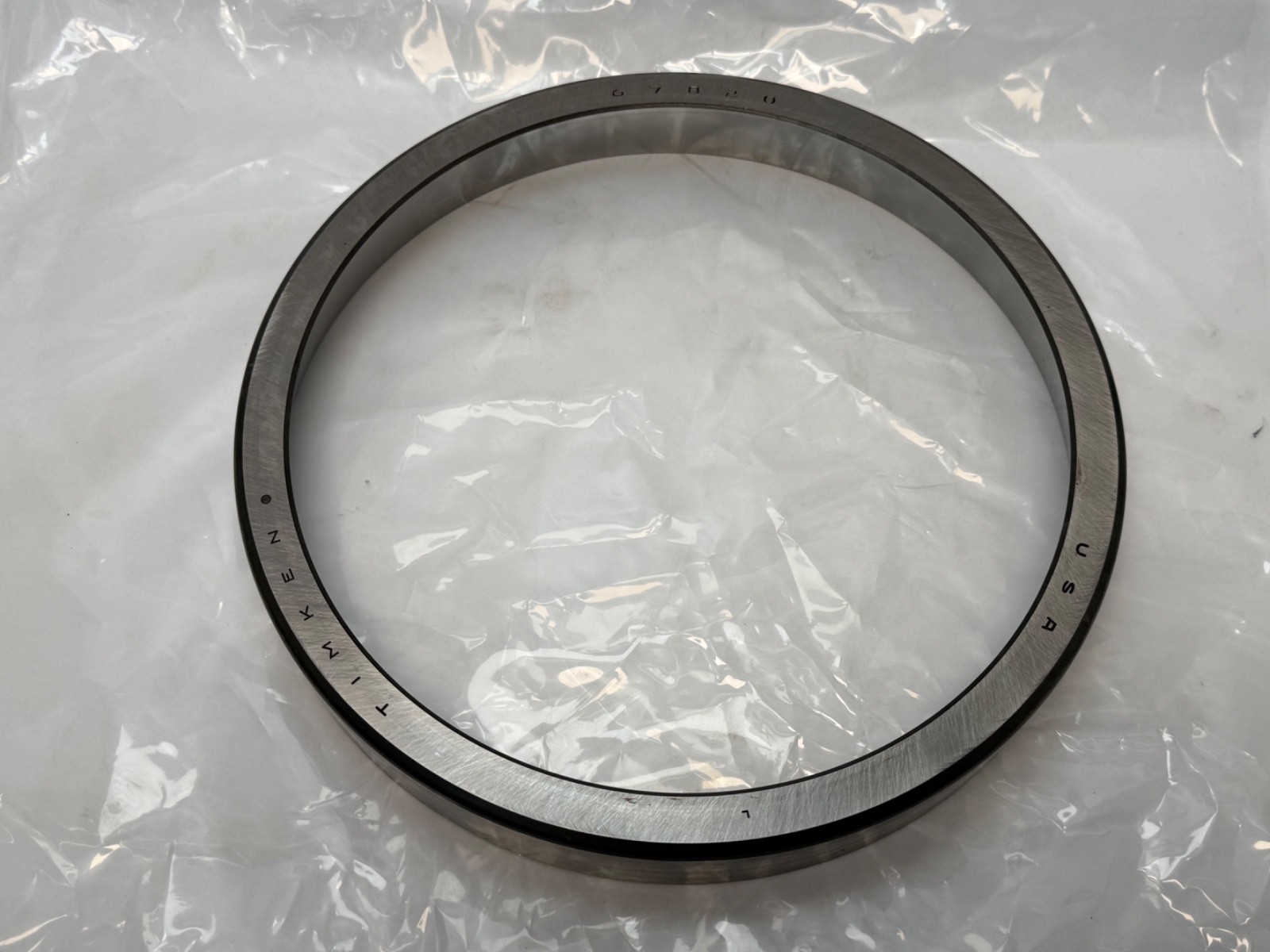

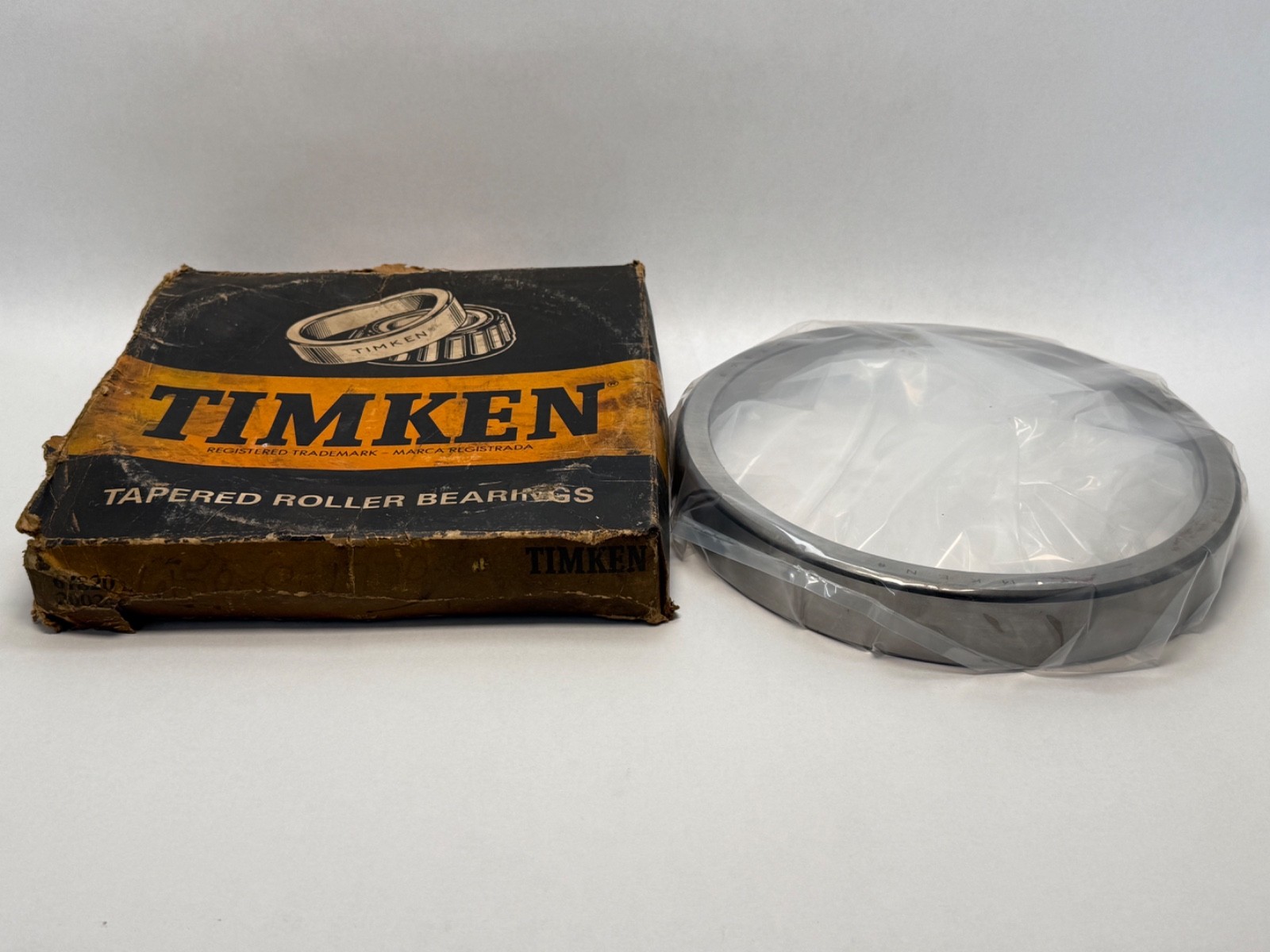

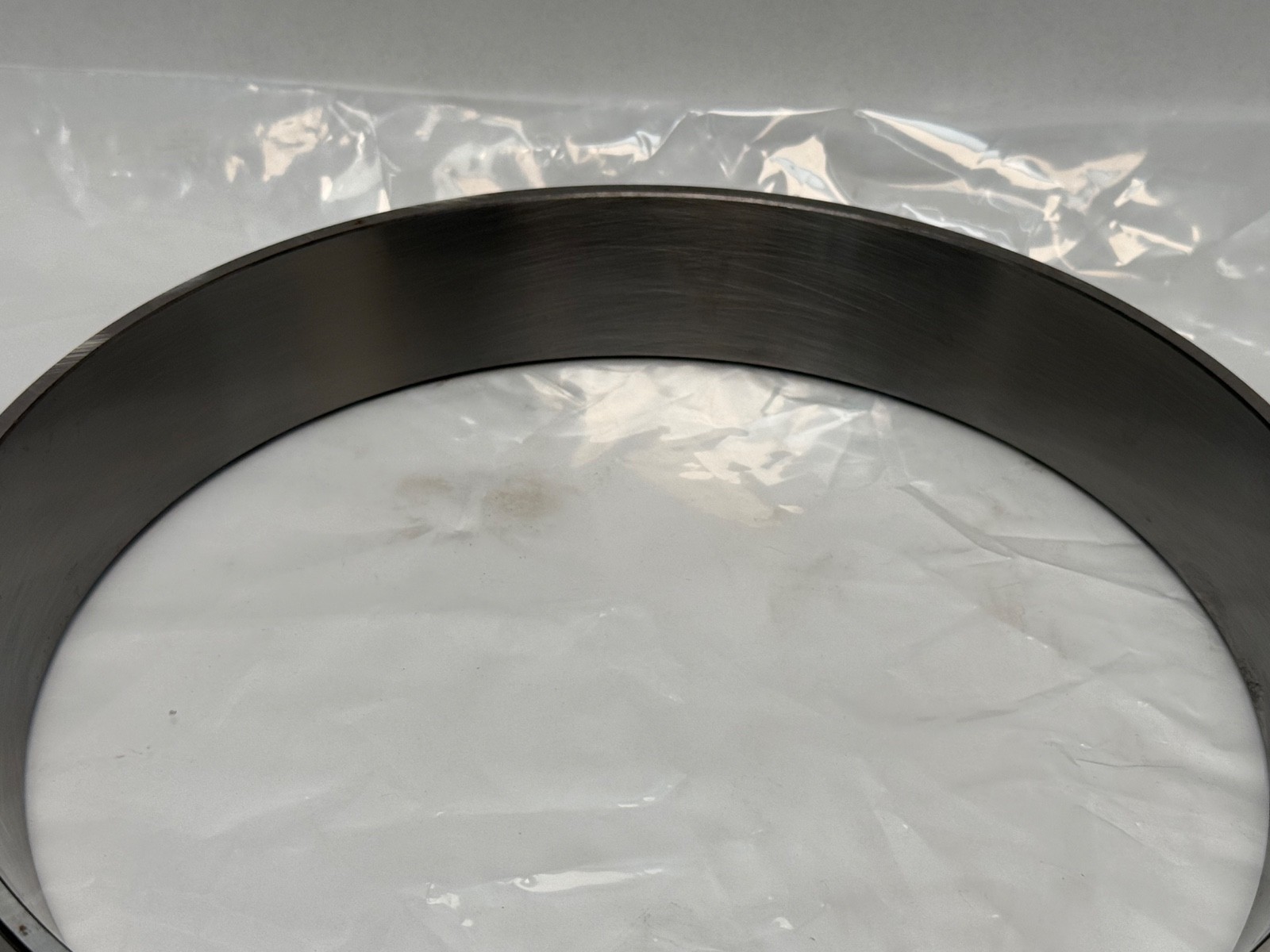

Timken 67820 is a single-row imperial tapered roller bearing cup — the outer ring, with its tapered raceway. Bearing Type: Tapered roller bearing cup, single row, imperial. Outside Diameter: 10.5000 in (266.7 mm). Outer Ring Width: 1.5000 in (38.1 mm). e Factor: 0.48. Y Factor: 1.26. Geometry Factor (Cg): 0.131. Item Weight: 16.4 lb (7.5 kg). Number Of Rows: 1. Precision Class: Not specified.
678 — the 67800 imperial series, a heavy large-bore tapered roller family.
20 — the cup within that series, an unflanged outer ring pressed into a straight housing bore.
e Factor: 0.48 is the load ratio at which the calculation switches between the radial and the combined-load equation, and Y Factor: 1.26 converts an axial component into an equivalent radial load. Those two numbers are what an engineer needs to rate the assembly once the cone is chosen. Geometry Factor (Cg): 0.131 feeds the lubrication life adjustment.
Housing Backing Shoulder Diameter, frontface (Da): 10.25 in (259.10 mm). Housing Backing Shoulder Diameter, backface (Db): 9.69 in (246.13 mm). Max Housing Fillet Radius: 0.130 in (3.30 mm) — the largest fillet in the housing bore that the cup corner will clear.
Unit Quantity: 1 Pc. Cup only — the outer ring. The matching cones are the Timken 67885 and 67887, each on a 7.5000 in shaft.

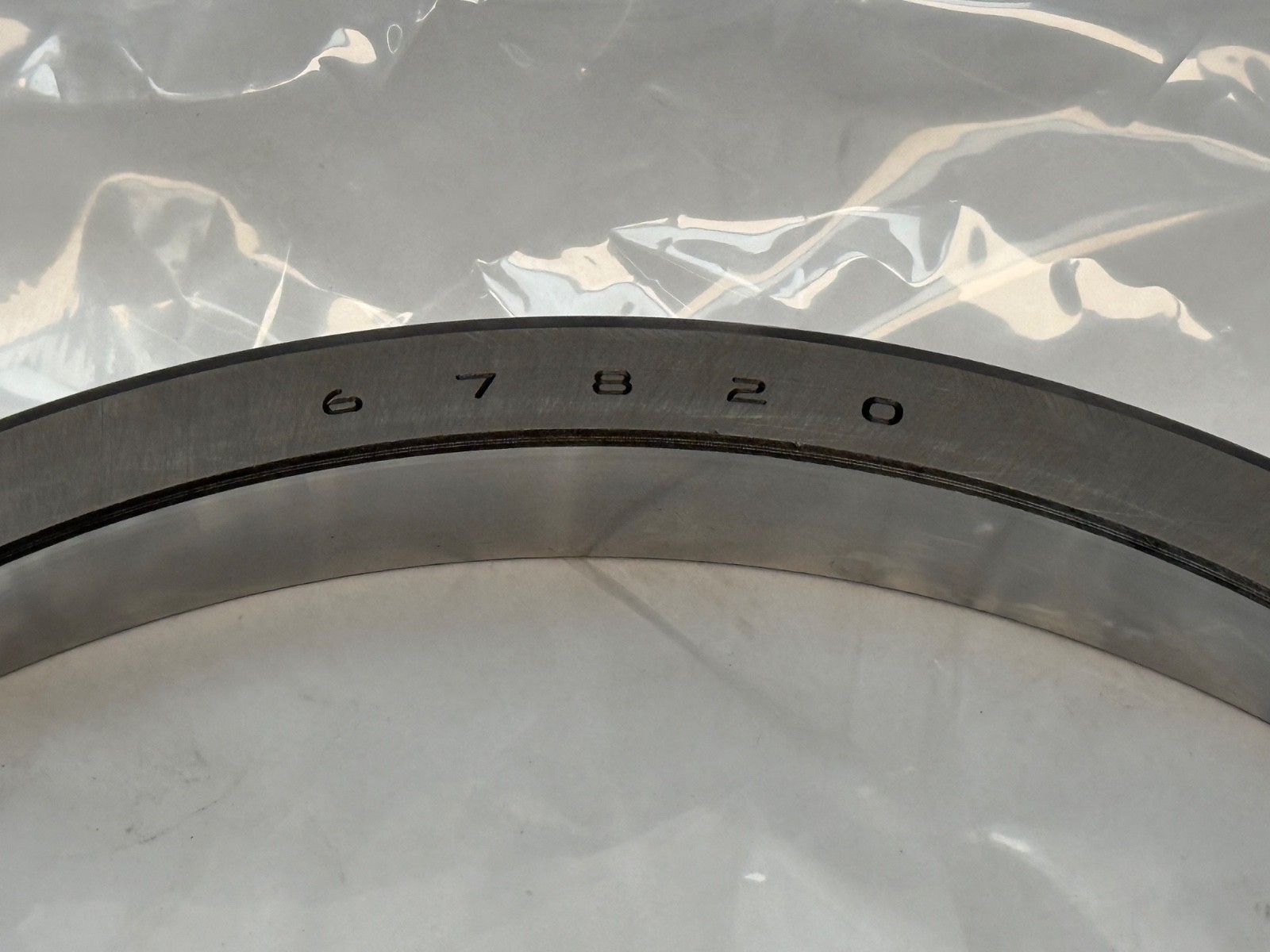

Part Number: 67820. Searchable variants: 67820 cup, Timken 67820, 67-820, 67820 race. Timken catalogues the complete single-row assembly as 67885 / 67820. The 67820-B is the flanged execution of this cup and a separate part number. The 67830 is the alternative cup for the same cones.
