Availability:
1 in stock
Double tapered roller bearing cup, 10-1/2 in OD, 3-5/16 in wide. One-piece outer ring with two raceways, taking two single cones in a two-row assembly.
List Price
$238.32
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Timken |
|---|---|
| MPN | 67820D |
| Model | 67820 D |
| Bearing Type | Tapered Roller Bearing Cup |
| OD | 10.5000 in (266.700 mm) |
| Condition | New – Open box |
|---|---|
| Series | 67800 |
| Condition Note | Made In USA, New Old Stock, Rust |
| Mpn Variants | 67820D, 67820-D, 67820 D |
| Rolling Elements | Tapered Roller |
| Number Of Rows | 2 |
| Harmonization Code | 8482.2 |
| Cup Part Number | 67820D |
| Bearing Material | Case-Hardened Steel |
| Cup Width | 3.3125 in (84.138 mm) |

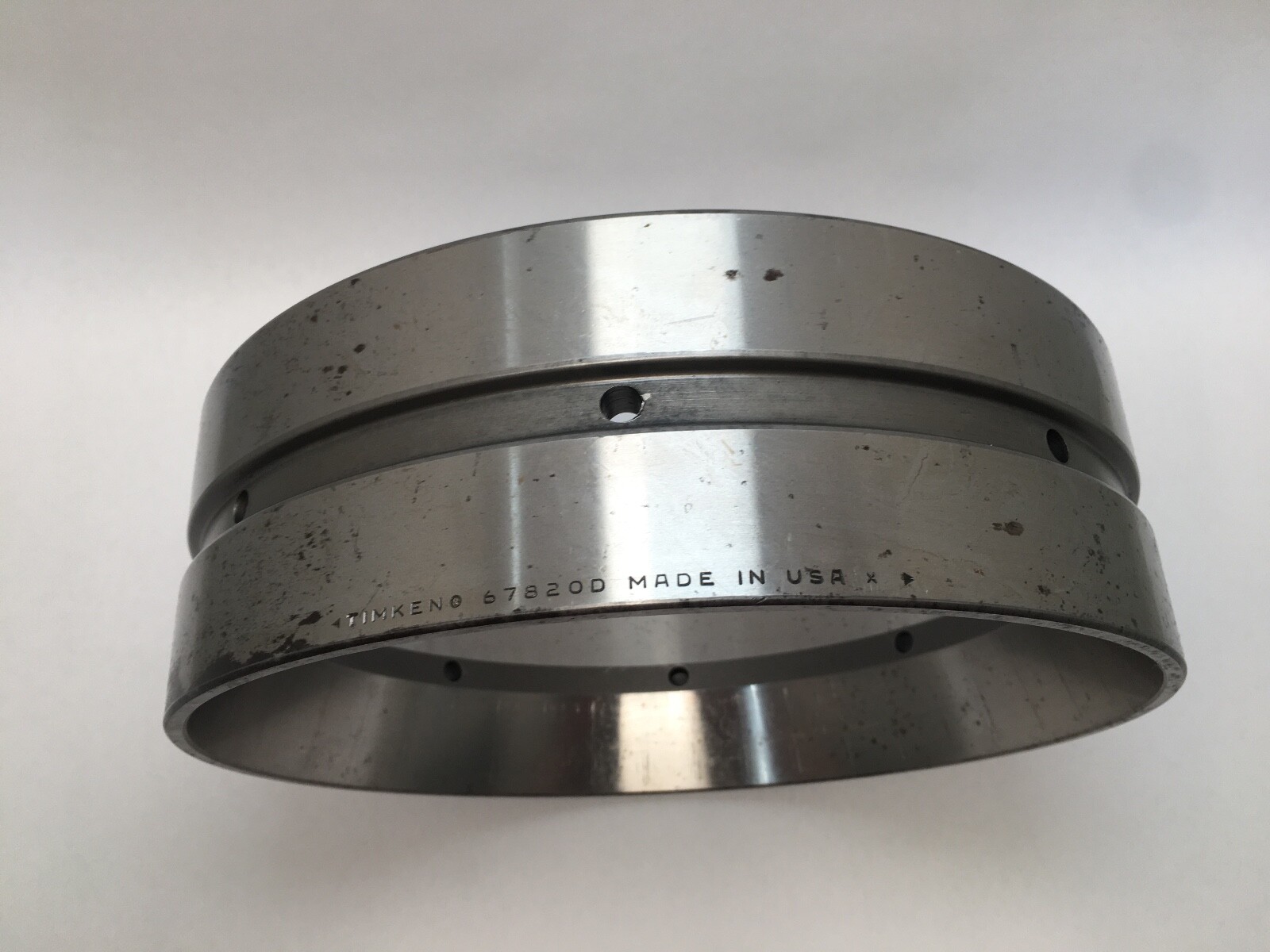

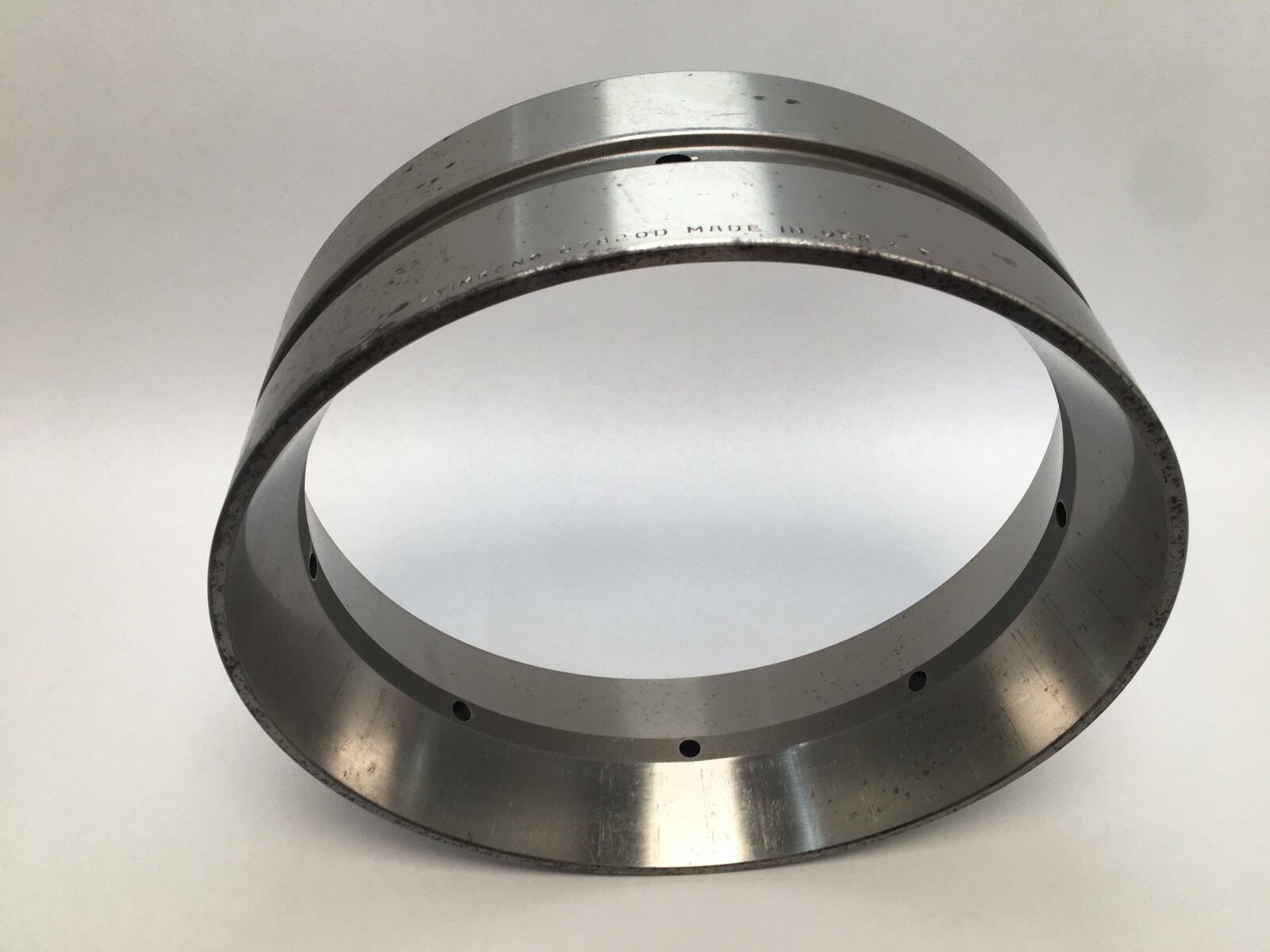

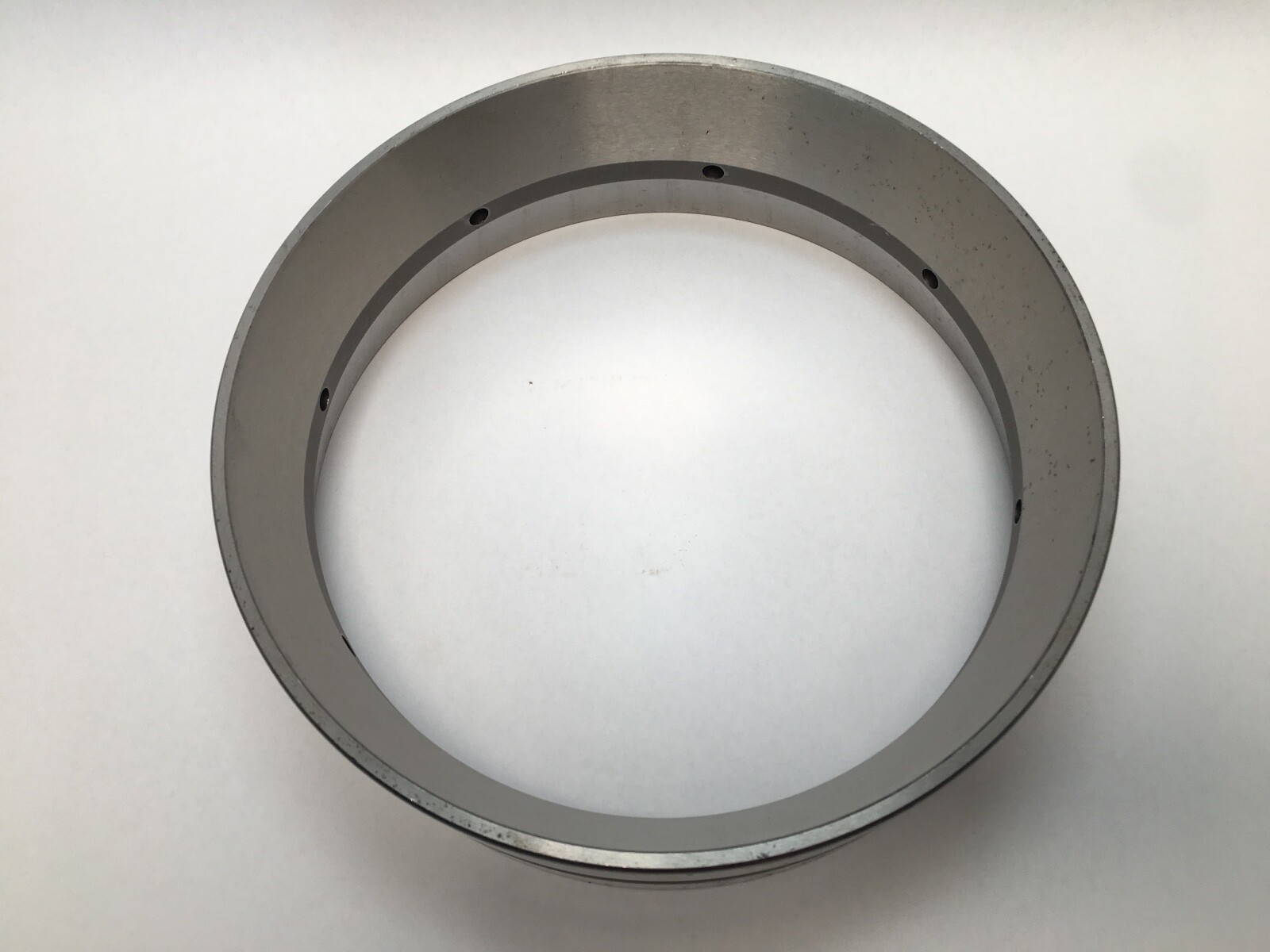

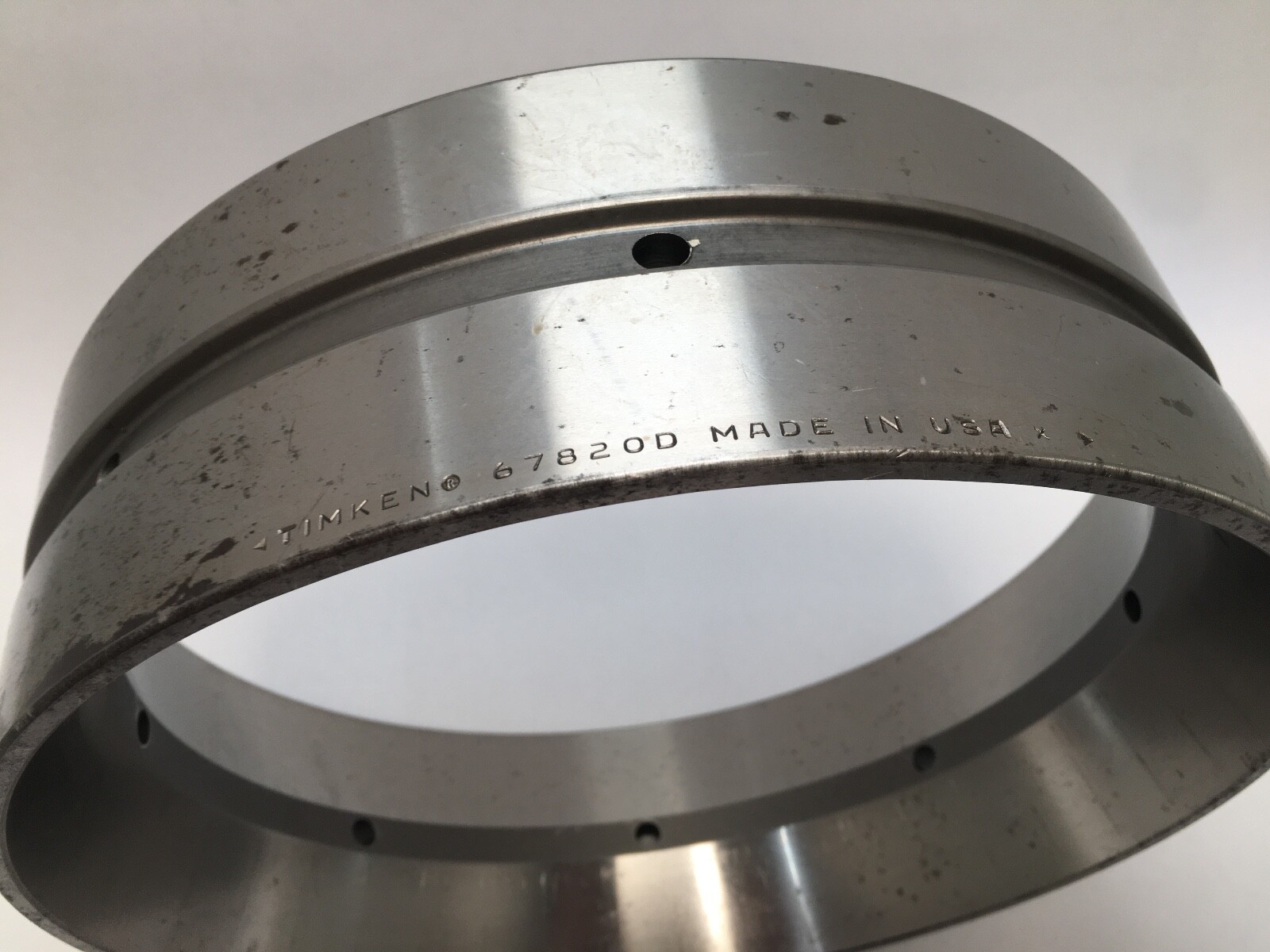

Timken 67820D is a double tapered roller bearing cup with a 10-1/2 in outside diameter and a 3-5/16 in width. It is a one-piece outer ring carrying two raceways, taking two single cones in a two-row assembly.
67820 — Timken’s inch tapered roller cup number, 10-1/2 in OD.
D — double cup. One outer ring with two opposed raceways in place of two single cups.
Outside Diameter: 10.5000 in (266.700 mm). Cup Width: 3.3125 in (84.138 mm). Rolling Elements: Tapered Roller. Number Of Rows: 2. Bearing Material: Case-Hardened Steel. Series: 67800. The double cup holds both rows in one ring, so the two cones carry combined radial load and thrust in both directions from a single housing bore.

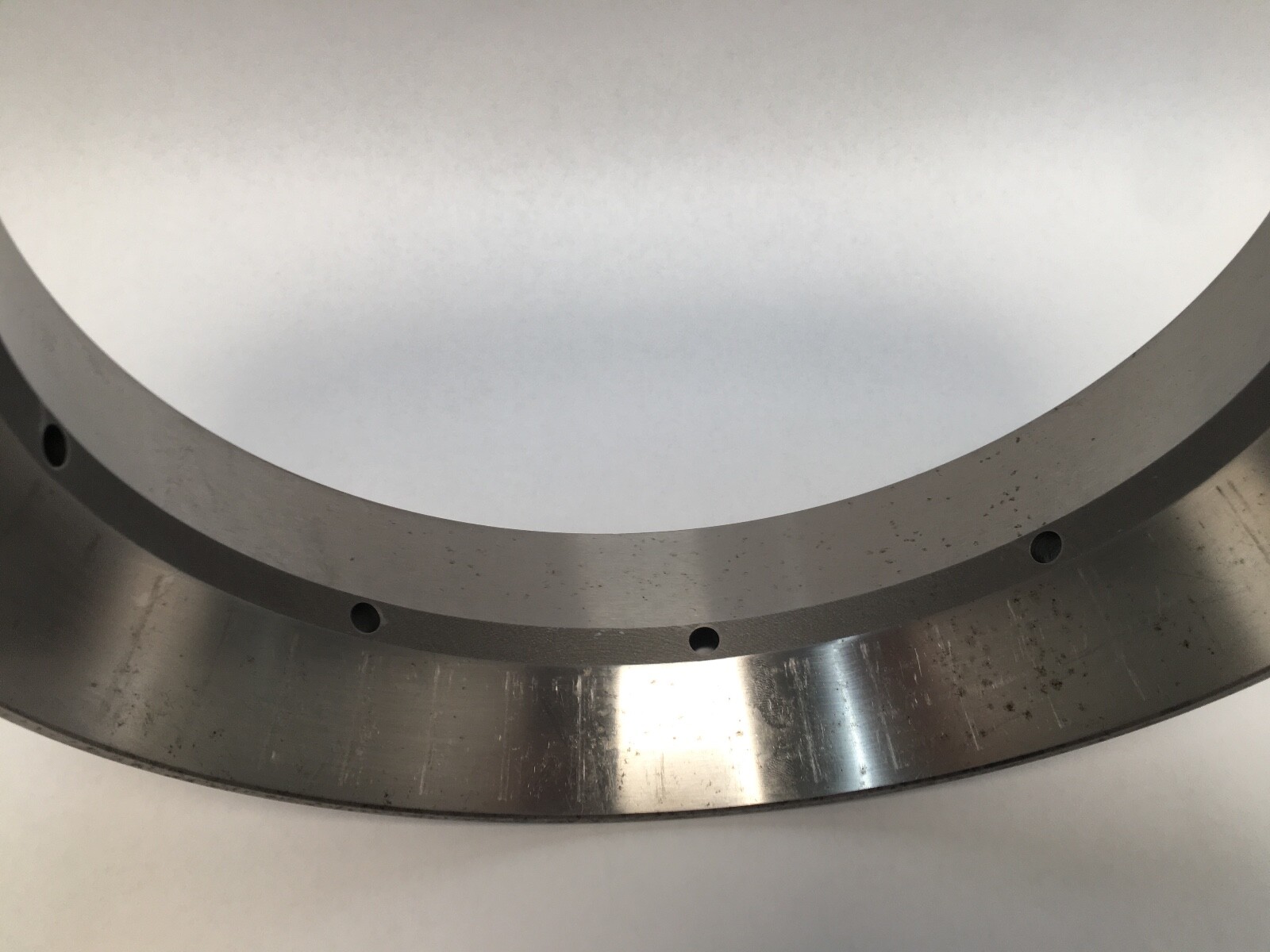

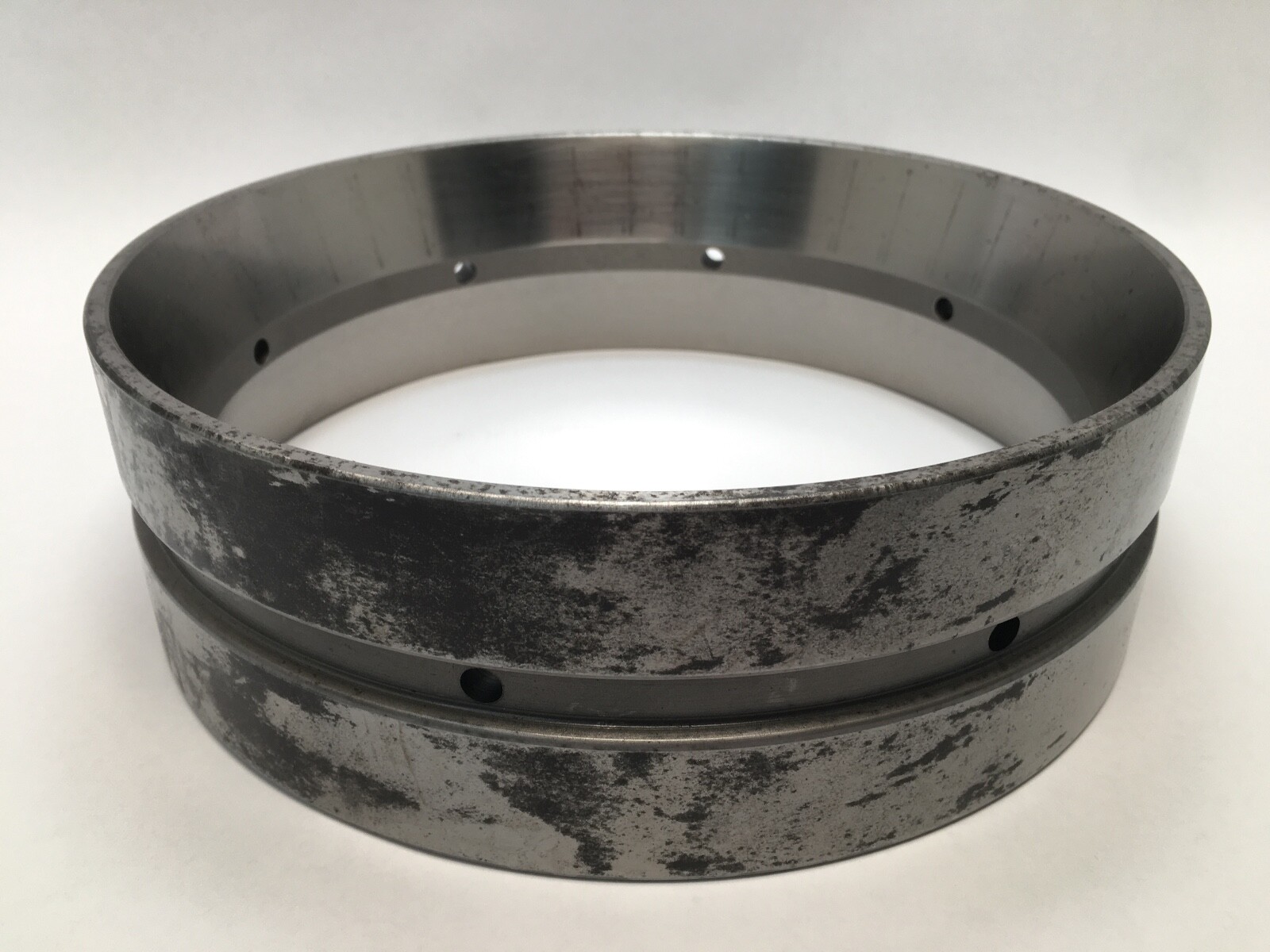

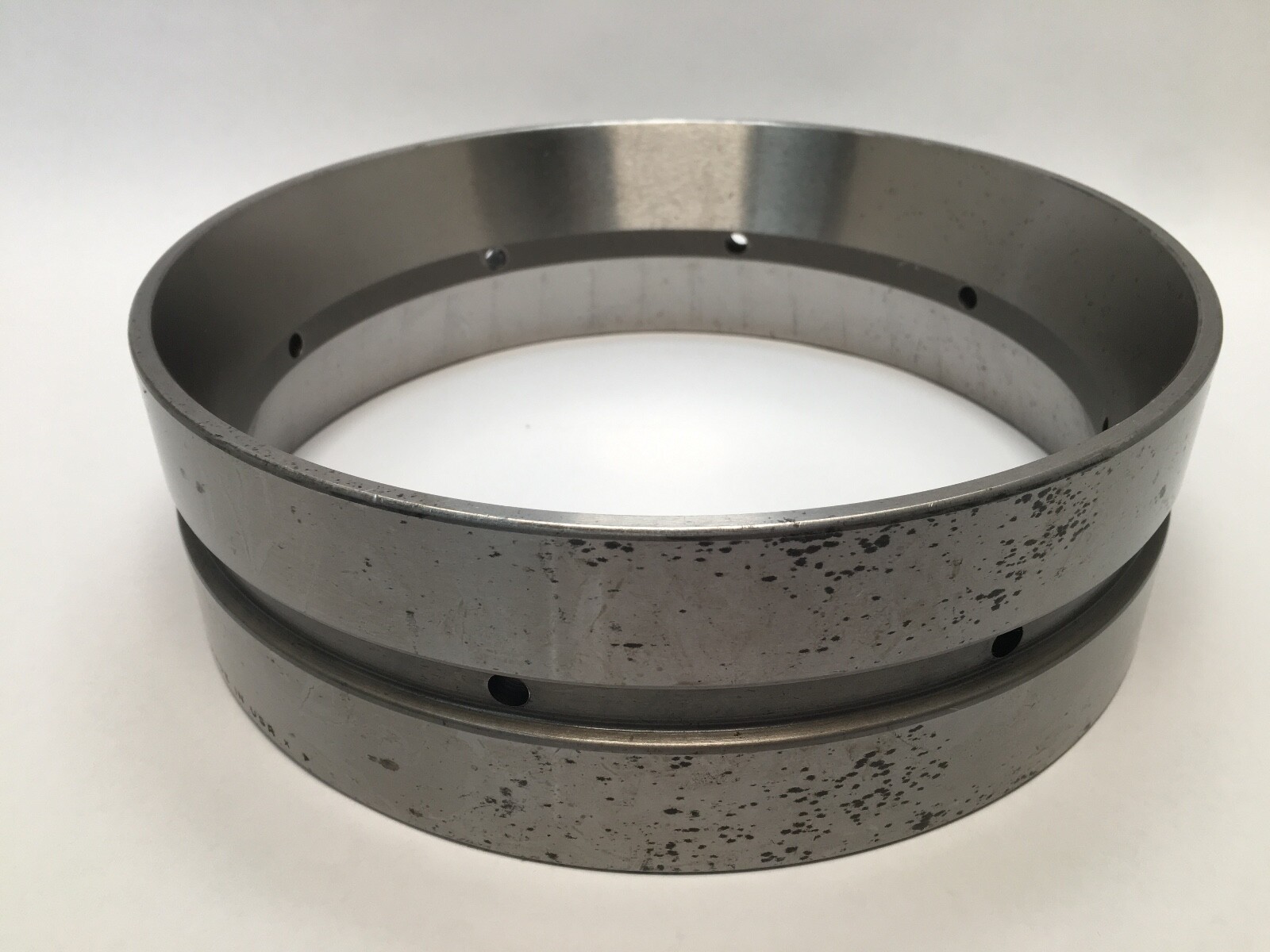

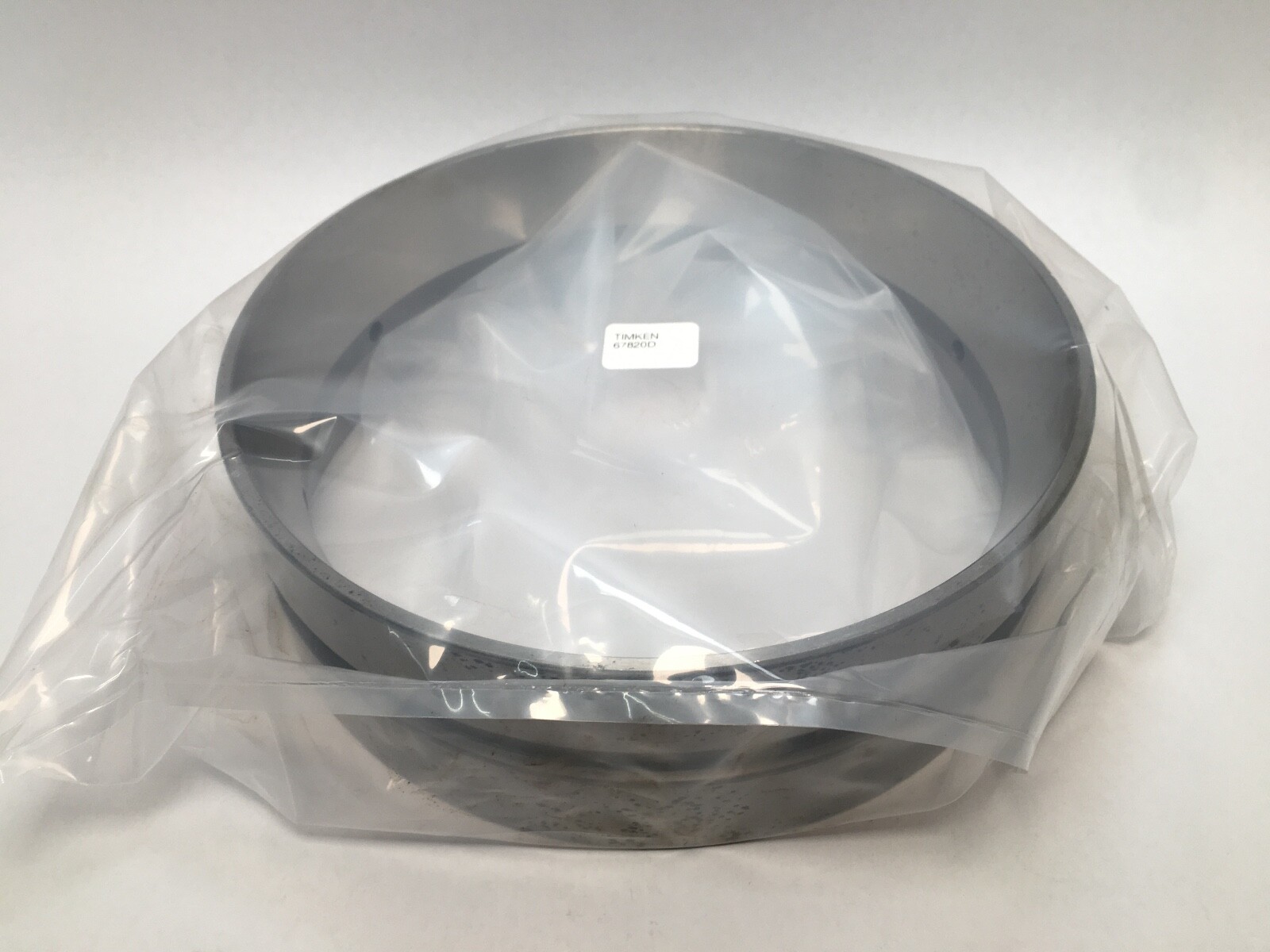

Unit Quantity: 1 Pc. Double cup only, new old stock with surface rust.
67820 is an industry-standard inch tapered roller cup number. The single 67820 cup mates with the 67887 cone. Harmonization Code: 8482.2.
