Central Surplus Bearing Finder
A faster way to search our bearing inventory Today we’re launching the Central Surplus Bearing
Availability:
1 in stock
Flanged tapered roller bearing cup, 3.5433 in OD, 0.6250 in width, 3.7268 in flange OD. Class 3 precision, K factor 1.83, through-bored housing location.
List Price
$52.29
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Timken |
|---|---|
| MPN | 362-B-3 |
| Model | 362 B #3 |
| Bearing Type | Tapered Roller Bearing Cup |
| OD | 3.5433 in (90 mm) |
| Width | 0.6250 in |
| Series | 362 |
|---|---|
| Material | Carburized Steel |
| Precision Rating | Class 3 |
| Item Weight | 0.7 kg (1.5 lb) |
| Harmonization Code | 8482.20.00 |
| Base Number | 362-B |
| Overall Width | 0.6250 in (15.875 mm) |
| Mpn Variants | 362B, 362-B, 362 B, 362B-3, 362-B *3, 362B#3 |
| Precision Class | Class 3 |
| K Factor | 1.83 |
| E Factor | 0.32 |
| Rolling Elements | Tapered Roller |
| Number Of Rows | 1 |
| Cup Part Number | 362-B |
| Design Units | Imperial |
| Bearing Material | Carburized Steel |
| Industry Terms | flanged cup; TSF cup; flanged tapered roller race; Class 3 flanged cup |
| Common Misspellings | Timken 362 B-3; Timkin 362B-3; Timken 362B3; Timken 326-B |
| Application Types | Gearboxes; axle and wheel hub assemblies; industrial machinery housings |

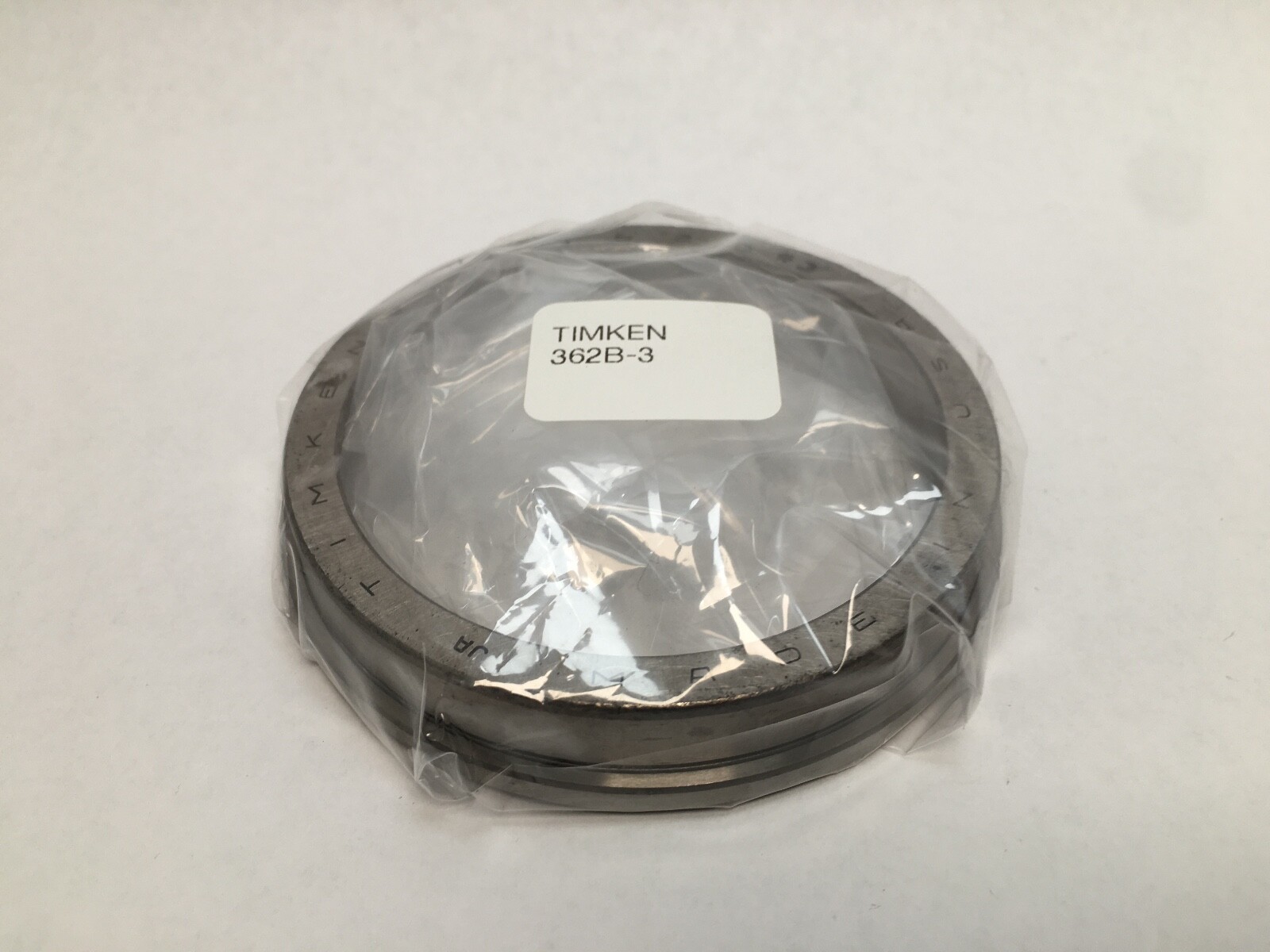

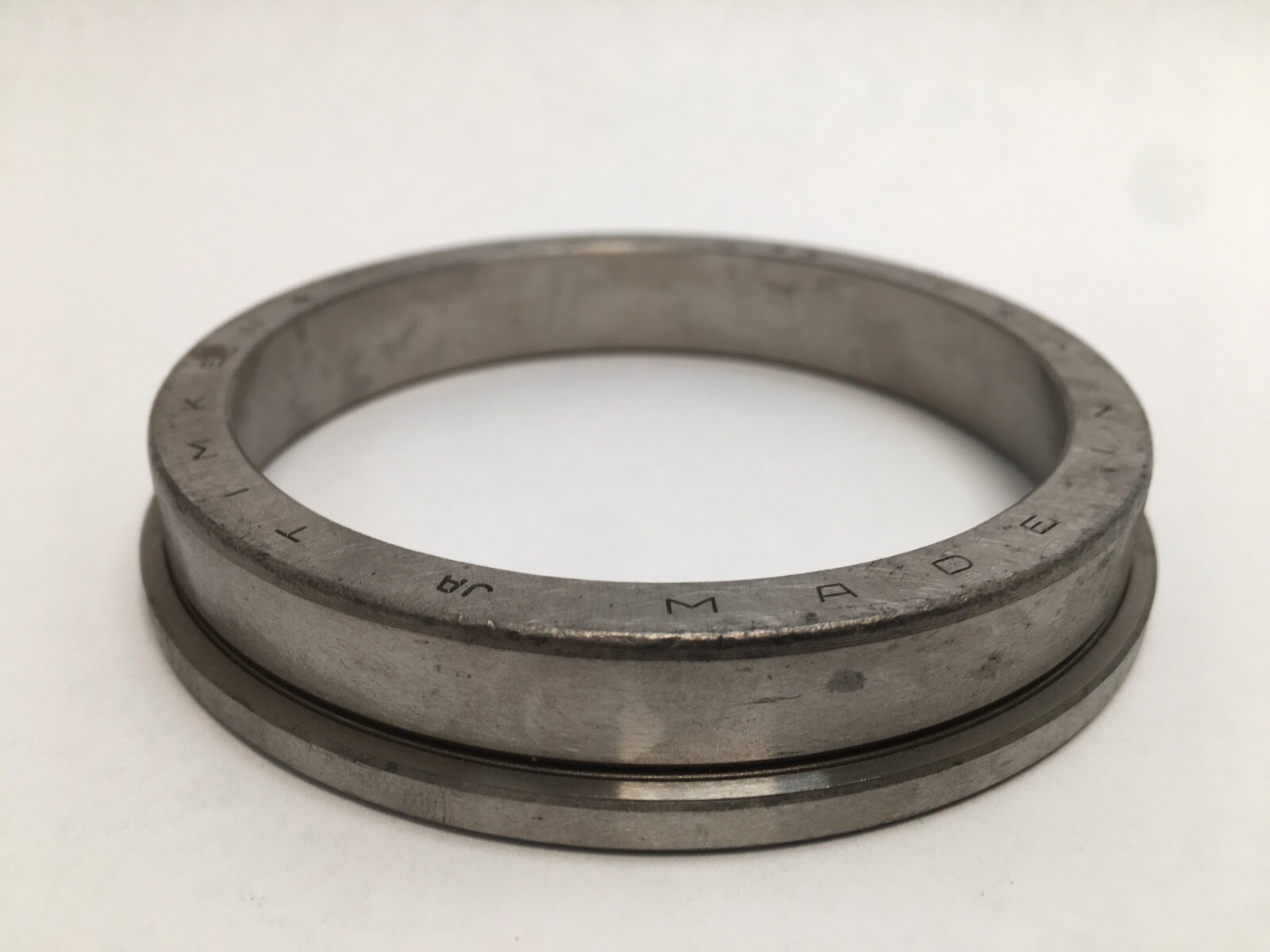

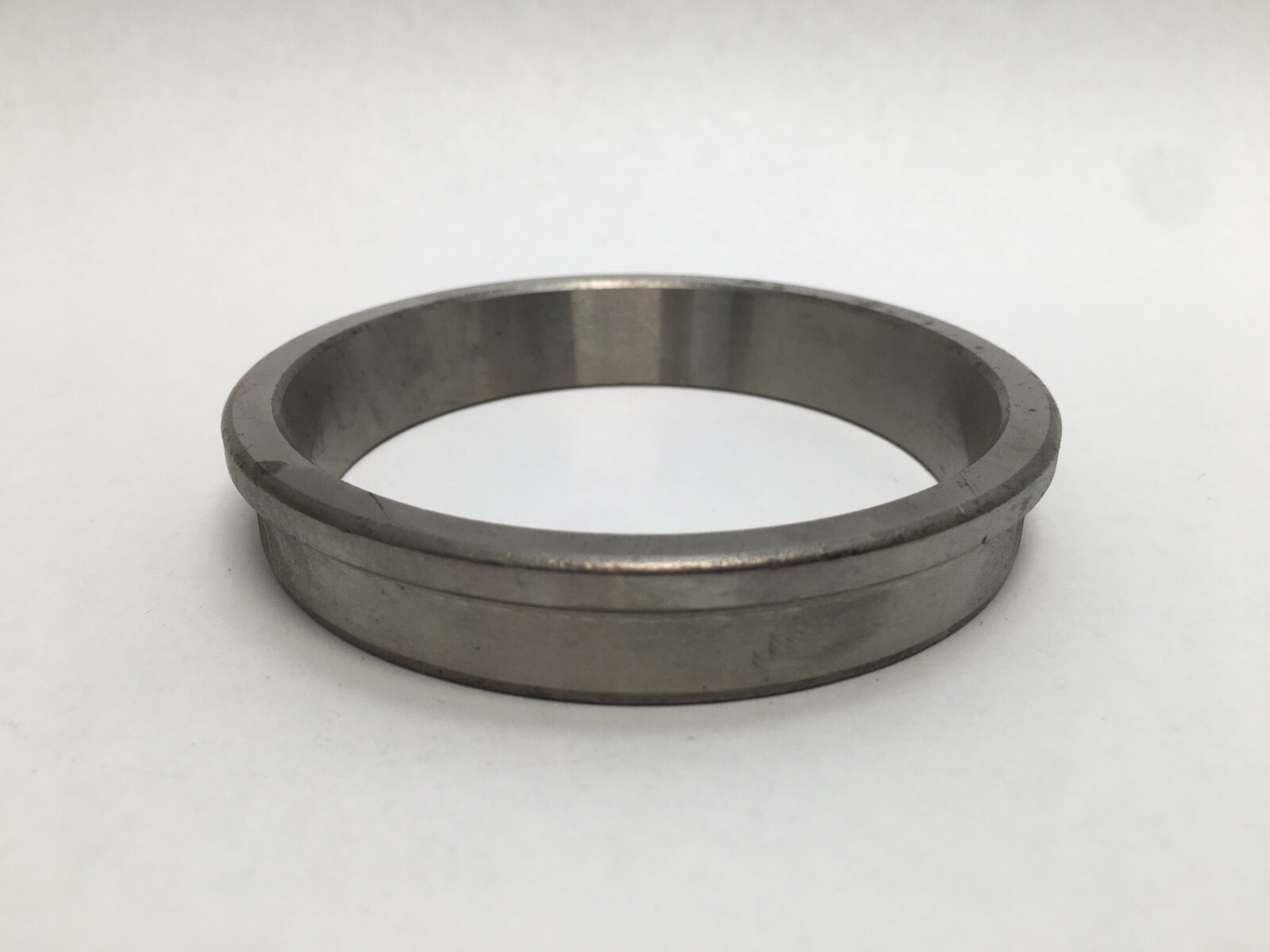

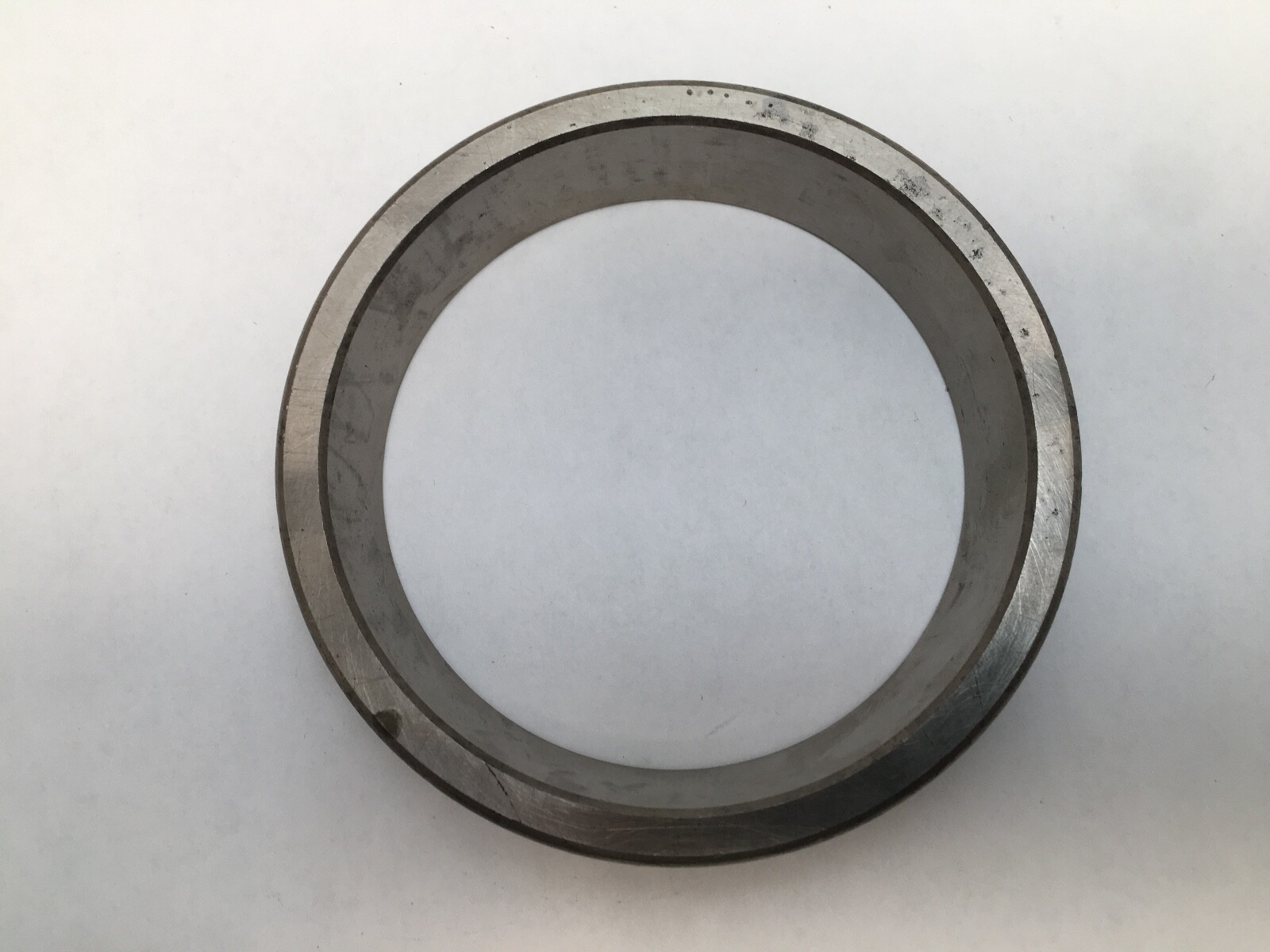

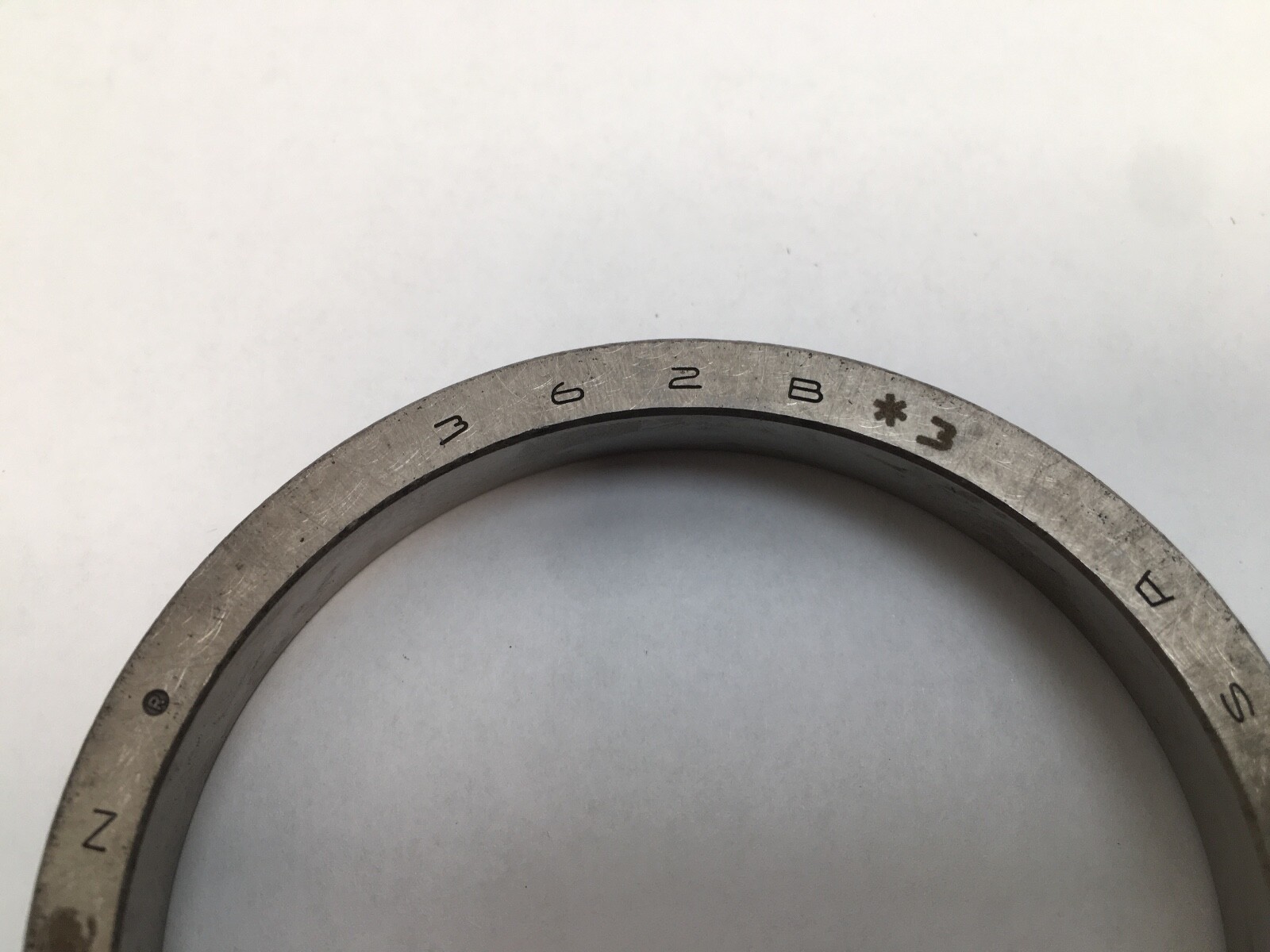

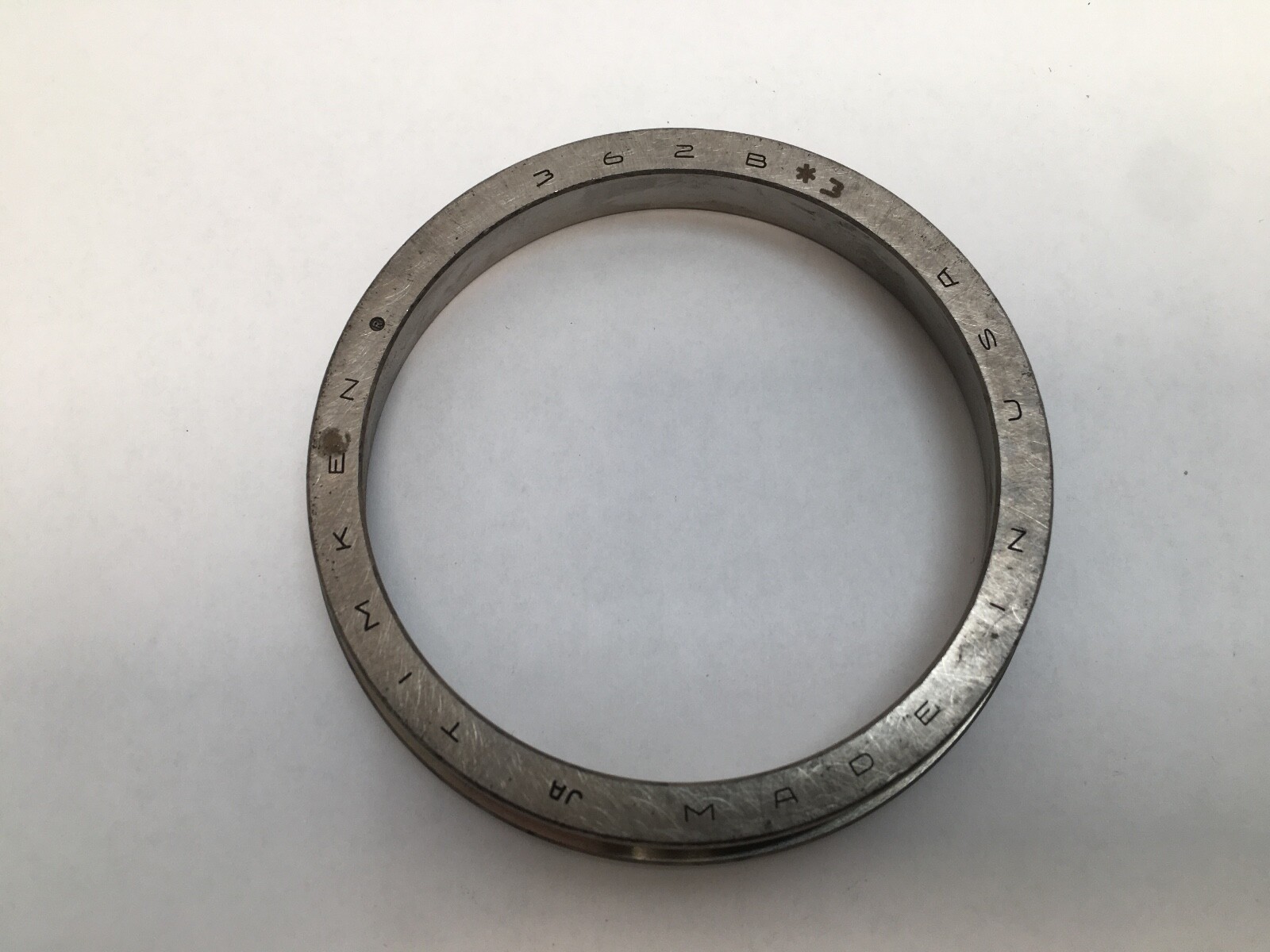

Timken 362-B *3 single flanged tapered roller bearing cup, the outer ring of a TSF-design tapered roller bearing. Outside Diameter: 3.5433 in (90 mm). Overall Width: 0.6250 in (15.875 mm). Flange Outside Diameter: 3.7268 in (94.661 mm). Flange Width: 0.1875 in (4.763 mm). Bearing Material: Carburized Steel. Design Units: Imperial. Series: 362. Unit Quantity: 1 Pc.
362 — the cup series and its envelope.
B — flanged outer ring. The flange locates the cup axially and aligns seals in a through-bored housing.
*3 — Precision Class 3, a tighter tolerance than standard, giving closer running location and lower running vibration.
K Factor: 1.83. e Factor: 0.32. Y Factor: 1.88. Geometry Factor (Cg): 0.0773. Precision Class: Class 3. Number Of Rows: 1. Rolling Elements: Tapered Roller. Item Weight: 0.7 kg (1.5 lb). Harmonization Code: 8482.20.00. Country of Origin: United States.
Max Housing Fillet Radius: 0.03 in (0.8 mm). Housing Backing Shoulder Diameter – Frontface (Da): 3.40 in (86.11 mm). The flange face seats against the housing and sets the cup position directly. Cup only.
The flanged execution is specified by the Timken number 362-B. Searchable forms of the designation: 362B, 362-B, 362 B, 362B-3, 362-B *3.
3.5433 in (90 mm) outside diameter, 0.6250 in (15.875 mm) width and a 3.7268 in (94.661 mm) flange outside diameter.
Precision Class 3, a tighter tolerance than standard.
A cup, the outer ring of a tapered roller bearing.
