Availability:
1 in stock
Tapered roller bearing cone, 10.000 in straight bore, 1.8750 in wide. Class 3 precision, single row, stamped steel cage. Cone only, 1 Pc.
List Price
$1,682.97
1 in stock
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
Also Available From:
| MFR / Brand | Timken |
|---|---|
| MPN | EE134100-3 |
| Model | EE-134100 |
| Bearing Type | Tapered Roller Bearing Cone, Open |
| ID | 10.0000 in |
| Width | 1.8750 in |
| Series | 134000 |
|---|---|

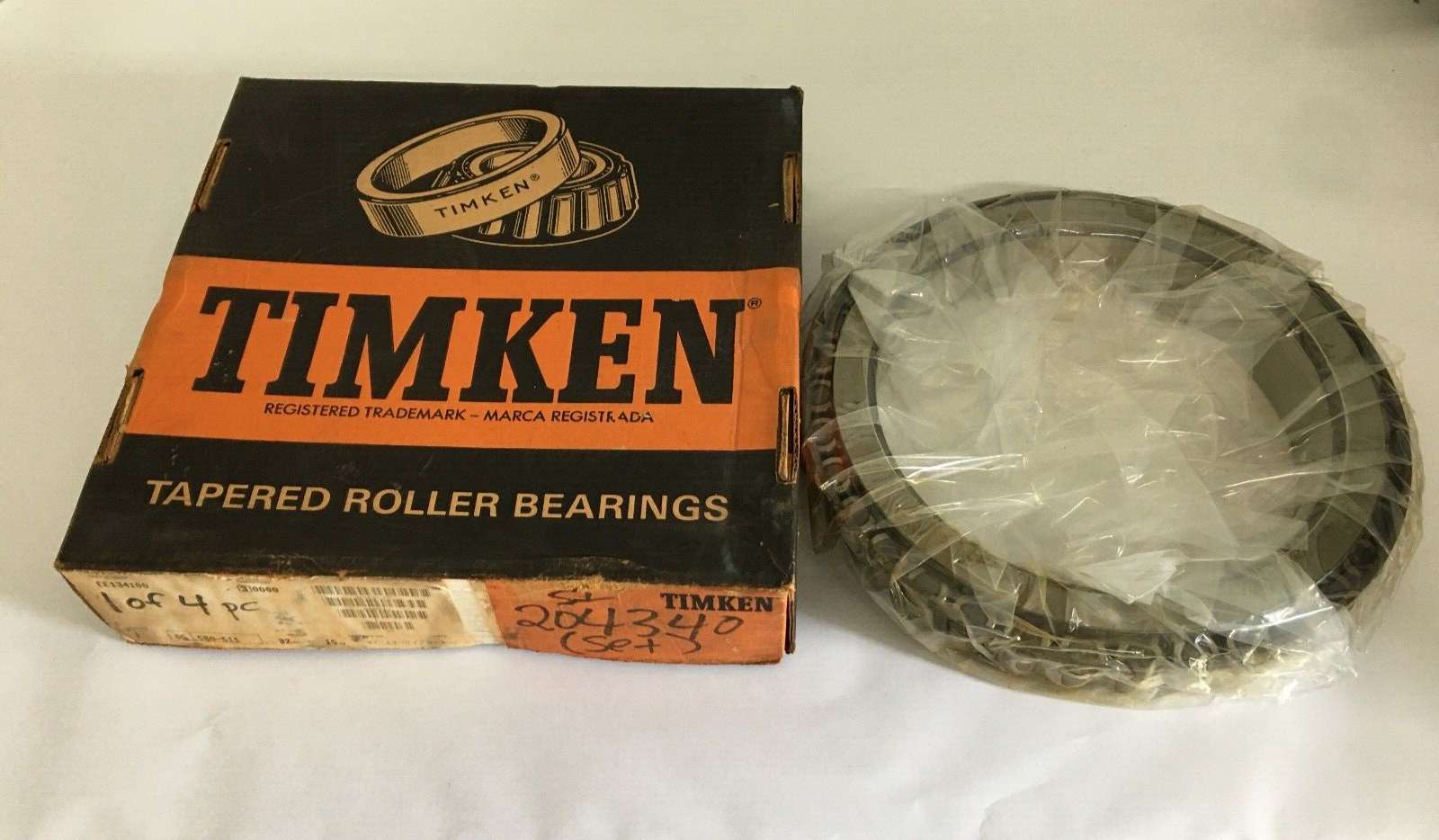

| Condition | New – Open box |
| Material | Case Carburized Steel |
| Base Number | EE134100 |
| Industry Terms | Tapered roller cone; taper bearing cone; inner ring and roller assembly; TS cone; Class 3 cone |
| Common Misspellings | Timkin; Timpken; EE13410-3; EE134100 -3 |
| Application Types | Heavy machinery shafts; gearboxes; mill and press equipment; high-load precision rotation |

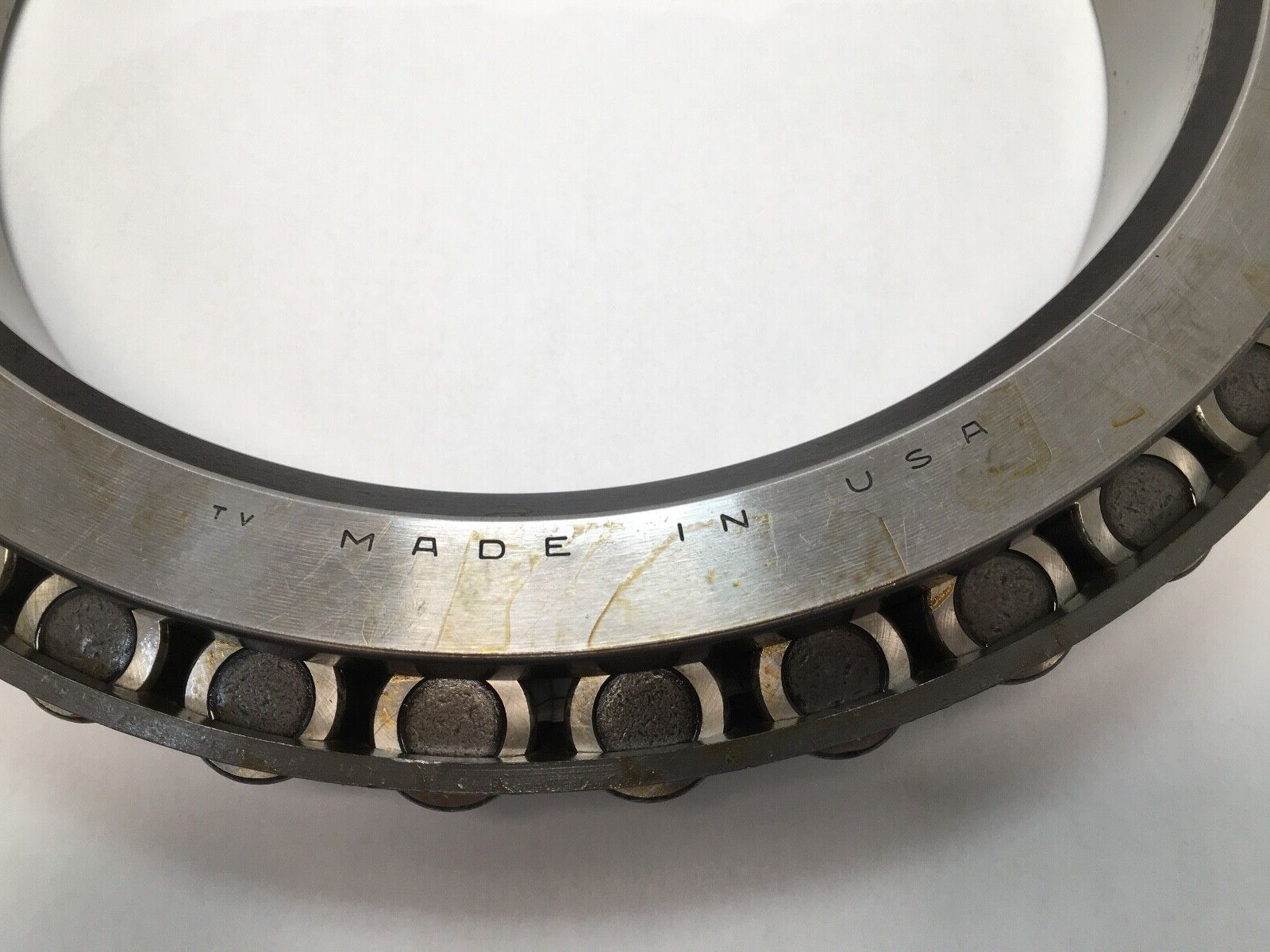

| Condition Note | Made In USA, New, Minimal Grease Stains, Precision Class 3 |
| Bore Shaft Size | 10.000 in (254.00 mm), straight bore |
| Mpn Variants | EE134100-3; EE134100*3; EE134100#3; EE 134100 3; EE134100; 134100 |
| Manufacturer Status | Timken inch tapered roller programme |
| Precision Class | Timken Class 3 |
| Min Temp | -54 °C |
| Cage Type | Stamped |
| Dynamic Load Rating | 179 kN / 40200 lbf |
| Static Load Rating | 320 kN / 71900 lbf |
| Precision Rating | Class 3 |
| Rolling Elements | Tapered Rollers |
| Max Temp | 120 °C |
| Item Weight | 16.0 lb (7.26 kg) |
| Cage Material | Steel |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | Without Snap Ring |
| Harmonization Code | 8482.20.00 |
| Design Units | Inch |
| Bearing Material | Case carburized steel |
| Part Number | EE134100-3 |
| Cross Reference 1 | SKF EE 134100 |
|---|---|
| Cross Reference 2 | NTN 4T-EE134100 |
| Cross Reference 3 | Bower EE134100 |

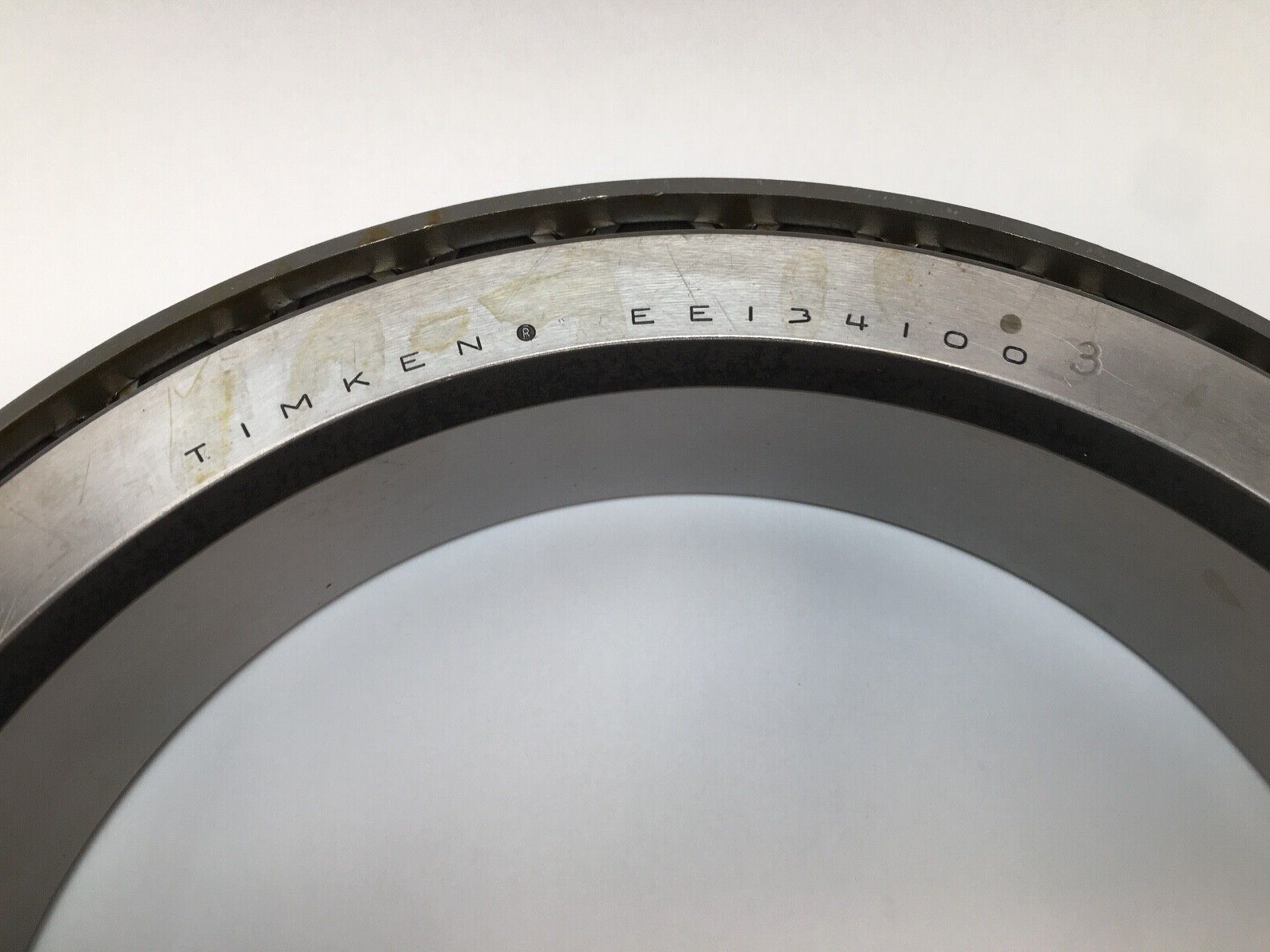

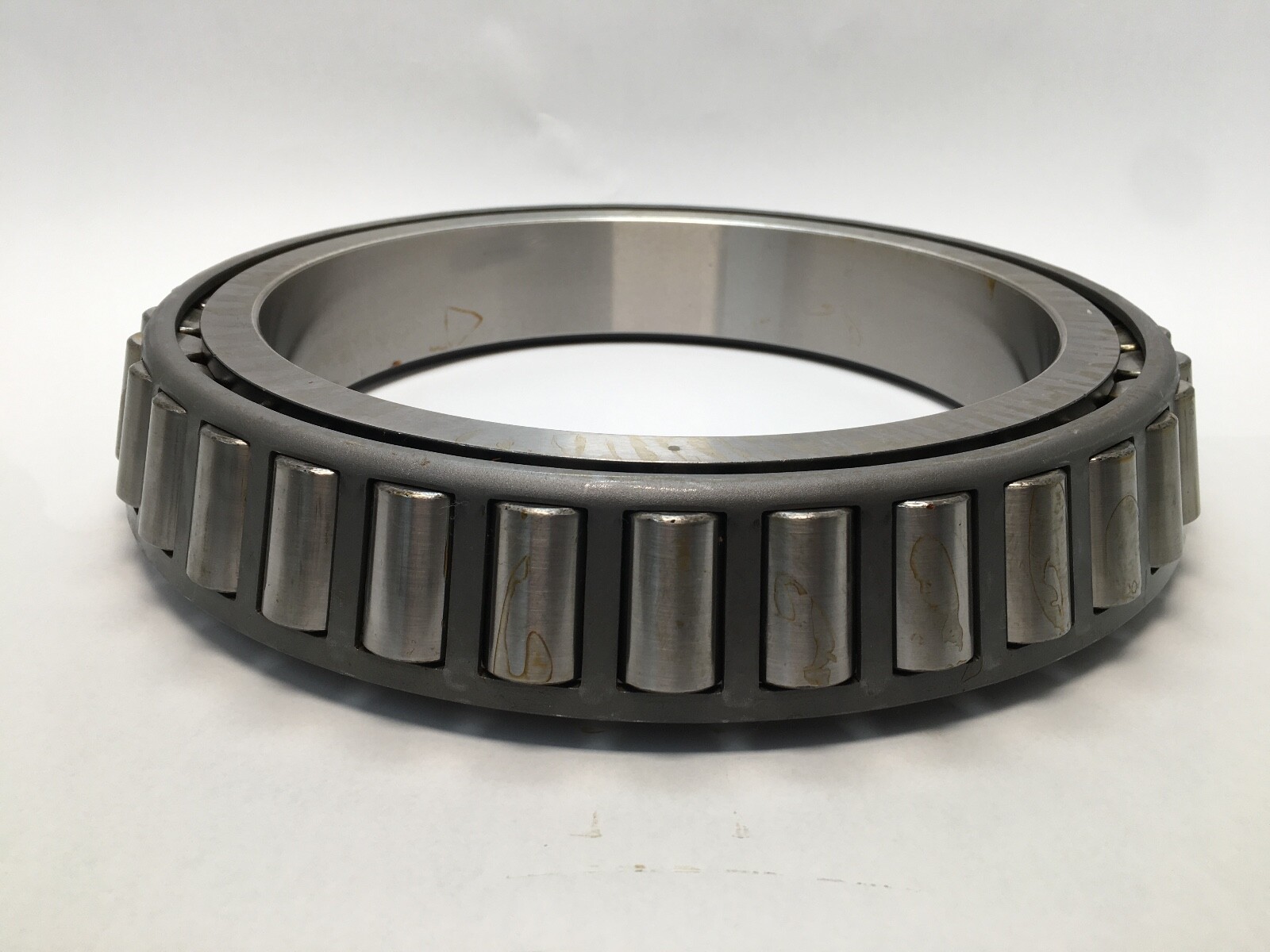

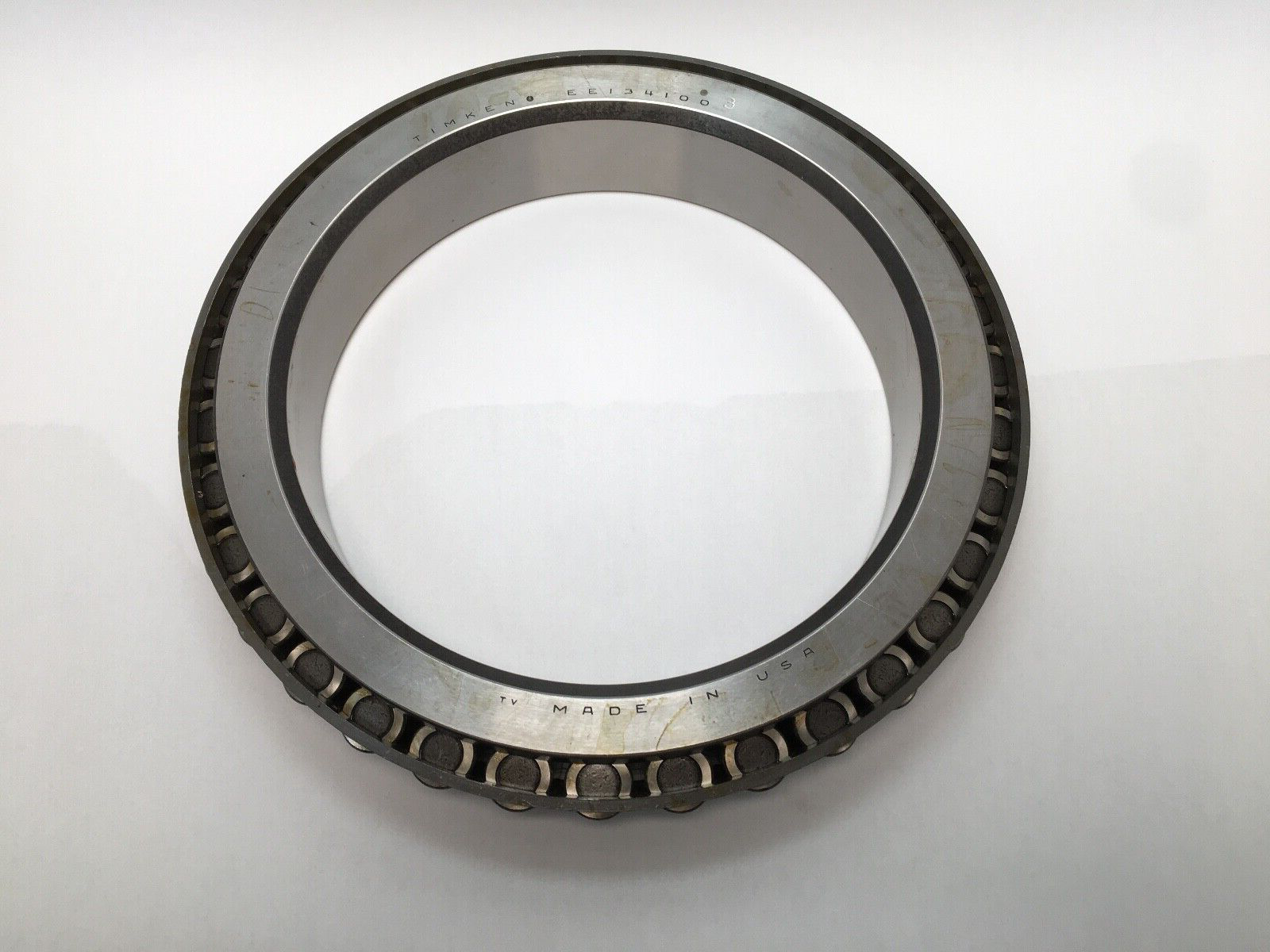

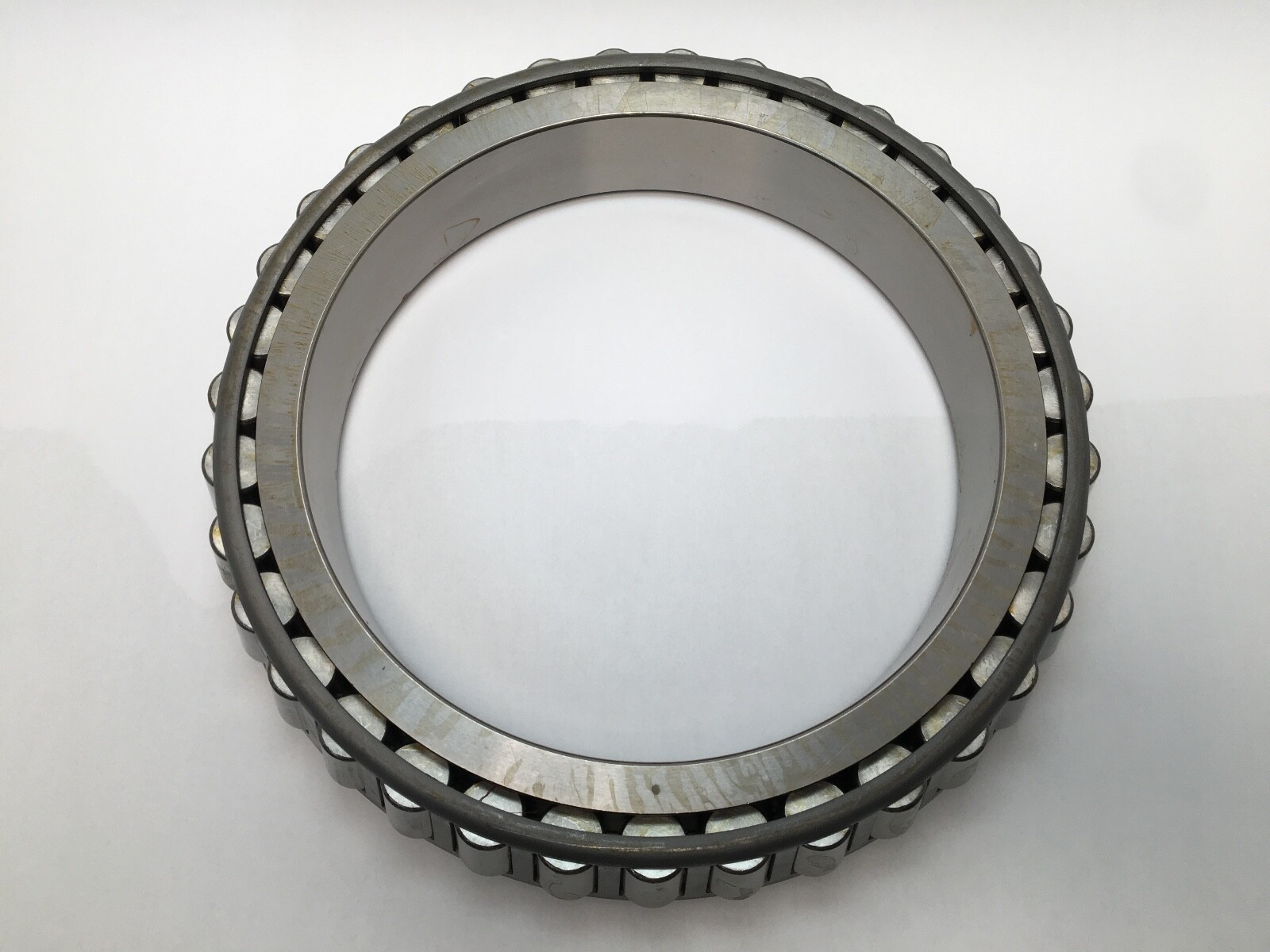

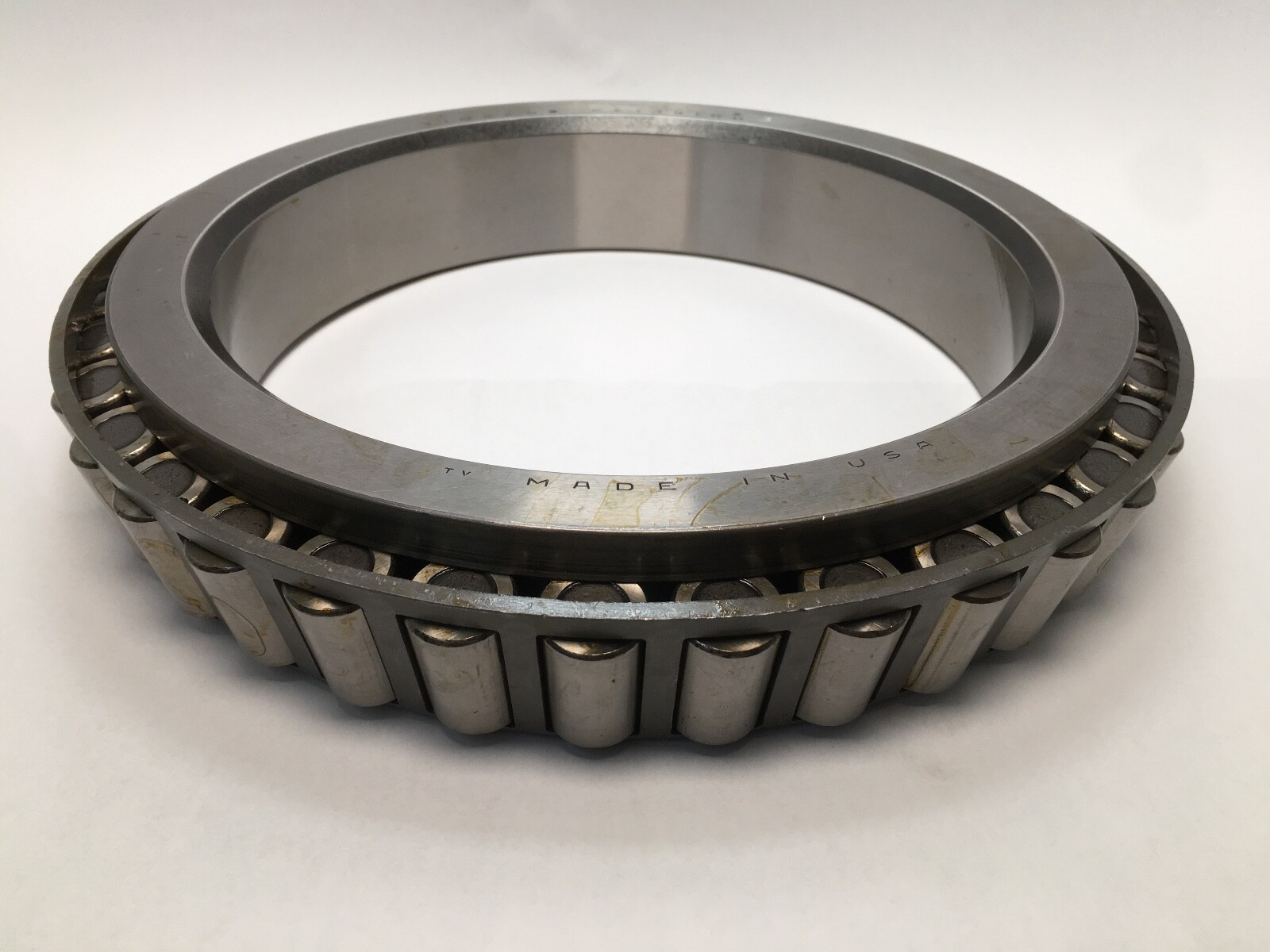

A Timken EE134100-3 tapered roller bearing cone: the inner ring complete with its roller set and cage, with a 10.000 in straight bore and a width of 1.8750 in. Cone only. A cone runs against a matching cup, which is a separate part number.
EE is a Timken inch tapered roller series prefix. The trailing -3 is Timken precision Class 3, a tighter bore, outside diameter and running accuracy grade than standard tolerance.
The dynamic load rating is 179 kN and the static rating 320 kN. Class 3 buys reduced radial and axial runout, which matters where the bearing sets the position of a shaft rather than merely carrying it. Case carburized steel gives a hard raceway over a tough core, which suits shock loading better than a through-hardened ring of the same size.
One cone, single row, in a stamped steel cage. The bore is straight.
The cone is an interference fit on the shaft and is driven or pressed on the inner ring face only. Cone and cup are set to a running clearance or preload on assembly, measured at the shaft rather than assumed from the parts.
The SKF EE 134100 and the NTN 4T-EE134100 are the same cone under other schemes. A cone in the same envelope at standard tolerance rather than Class 3 is a related size, because the precision grade is the point of this part number.
