Availability:
1 in stock

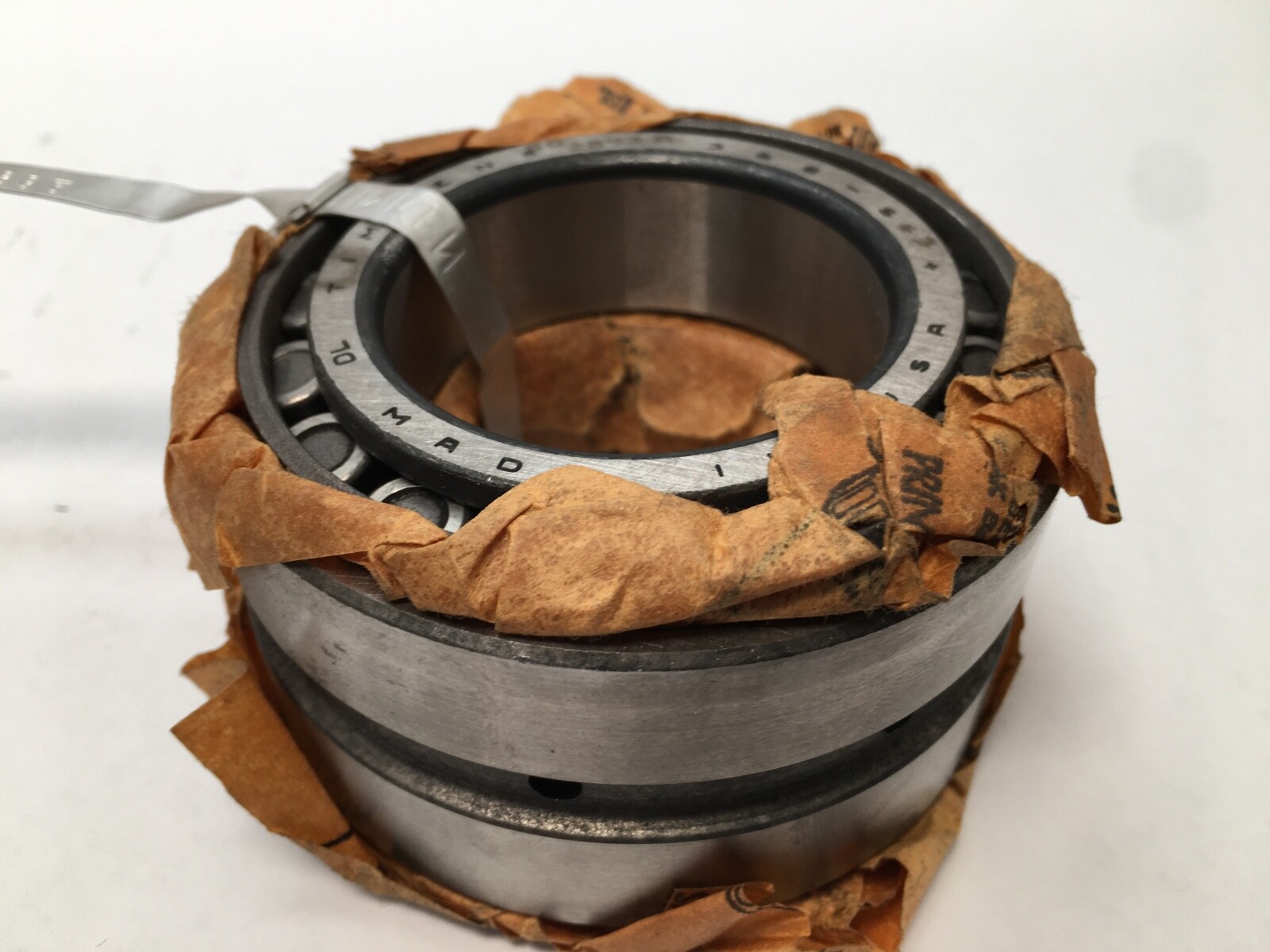

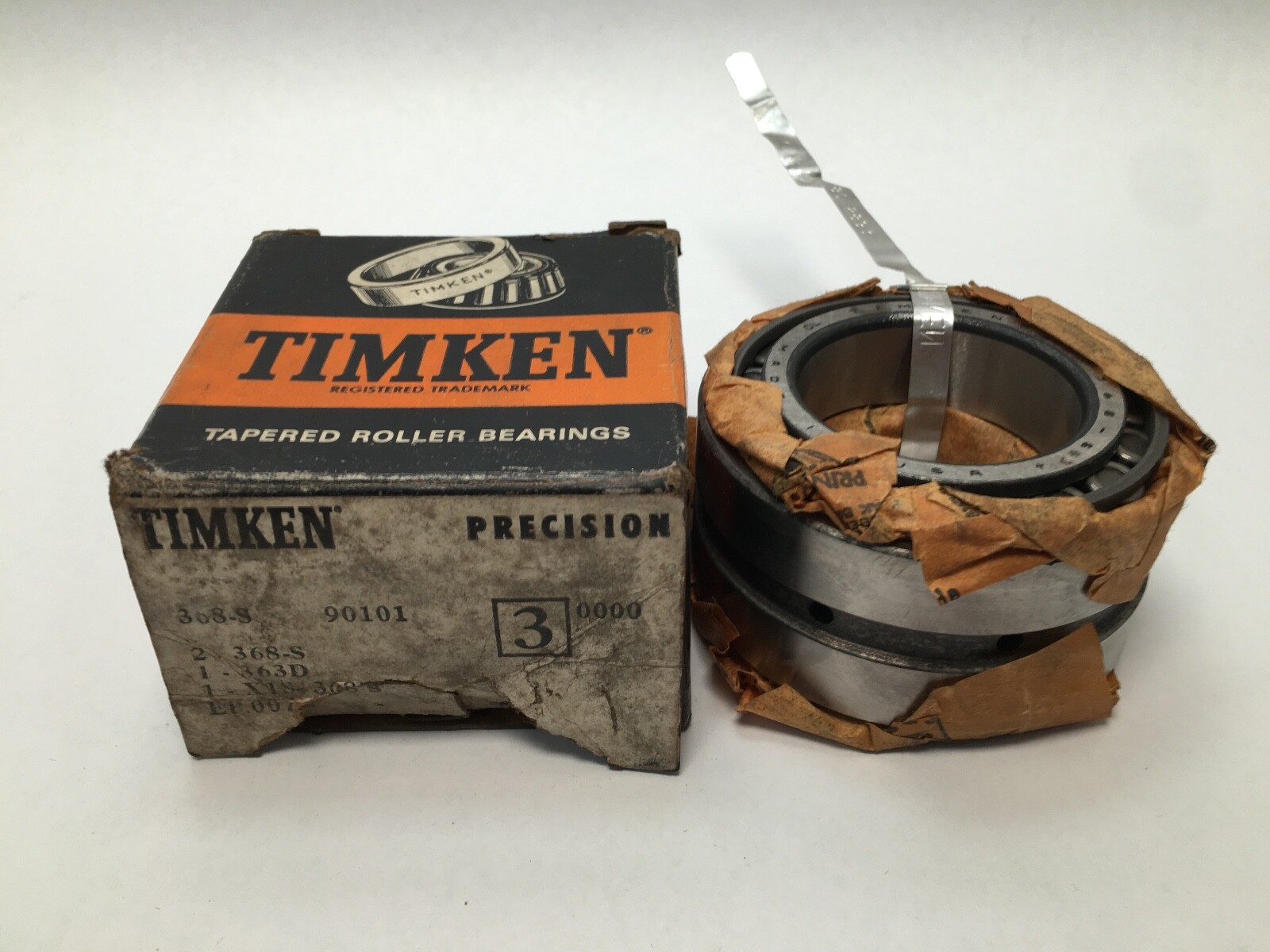

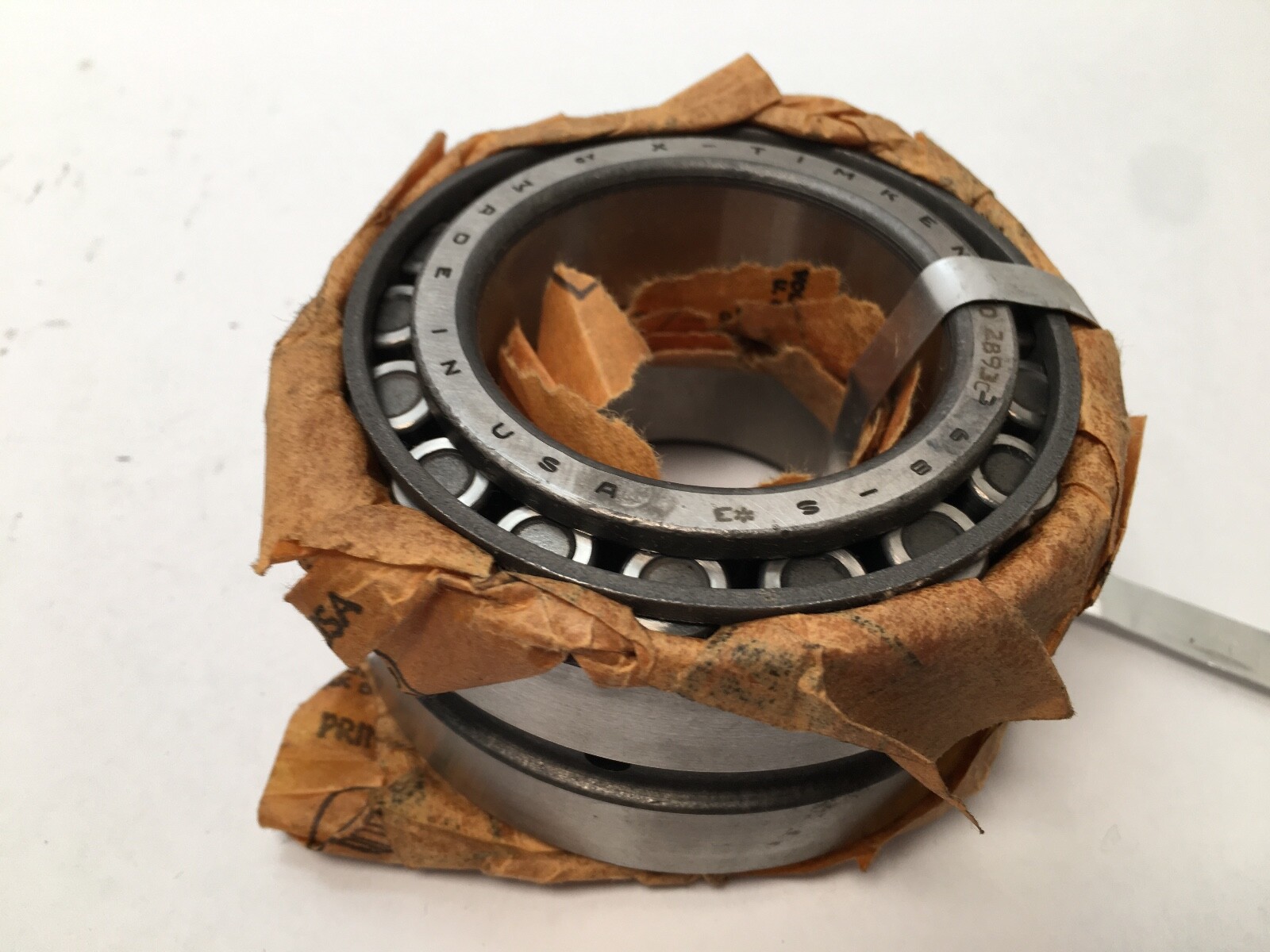

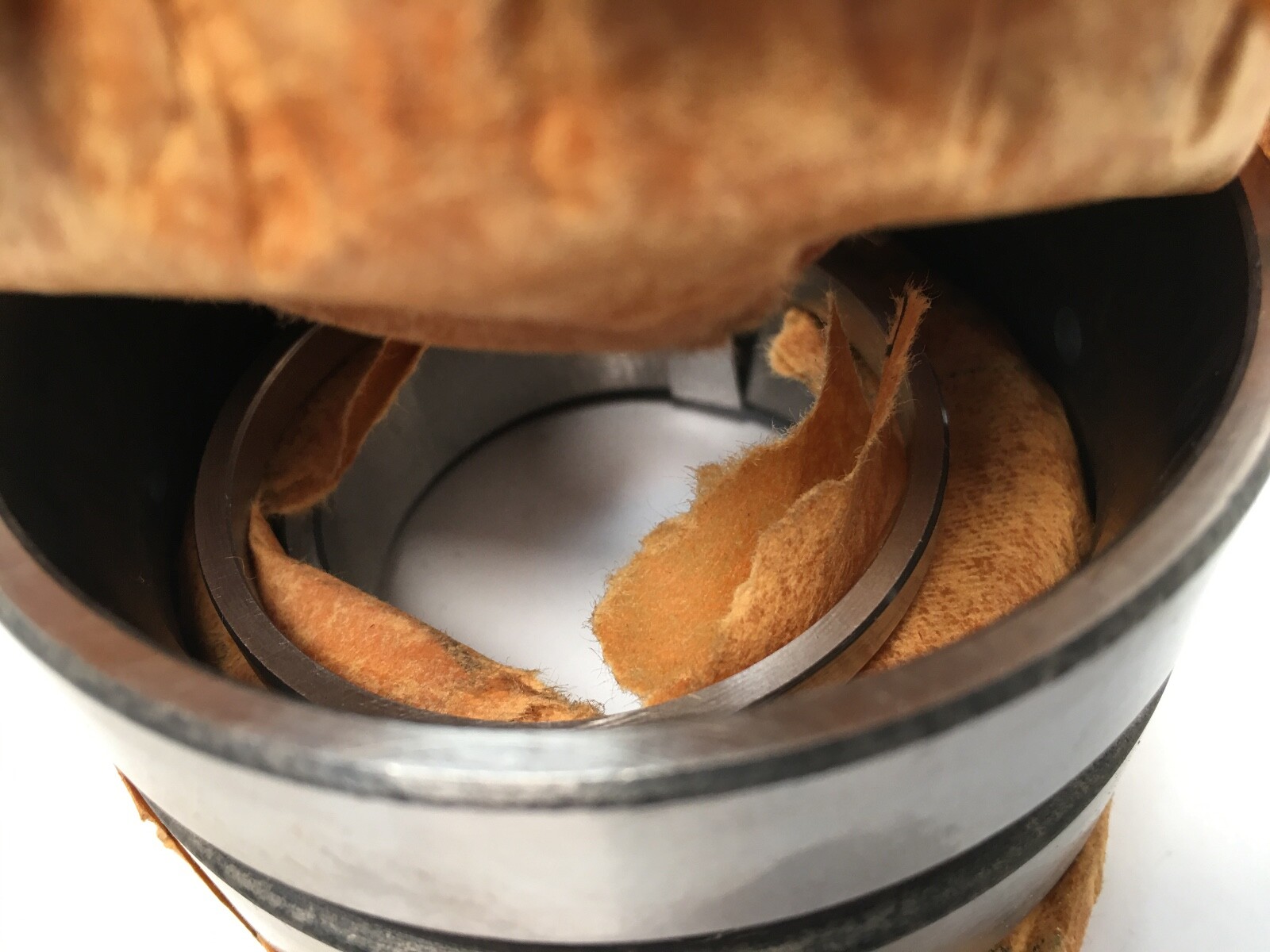

Double-row TDO tapered roller bearing set, 2.0313 in bore x 3.5433 in (90 mm) OD, Timken Class 3. Two 368S cones, 363D double cup and X1S-368S spacer.
List Price
$137.67
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Timken |
|---|---|
| MPN | 368S-90101 |
| Model | 368S / 363 D / X1S-368S |
| Bearing Type | Tapered Roller Bearing Cone, Open |
| ID | 2.0313 in (51.594 mm) |
| OD | 3.5433 in (90.000 mm) |
| Width | 22.225 mm |
| Material | Bearing Steel |
|---|---|
| Series | 360 |
| Base Number | 368S/363D |
| Industry Terms | TDO tapered roller bearing, double row taper bearing, double cup assembly with spacer, cone and cup set |
| Mpn Variants | 368S-90101, 368S/363D, 368S 363D X1S-368S, 368-S, 363-D, 368S-3 |
| Precision Class | Timken Class 3 |
| Rolling Elements | Tapered Roller |
| Number Of Rows | 2 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Harmonization Code | 8482.20.00.00 |
| Mounting Arrangement | TDO (back to back, one-piece double cup, cone spacer) |
| Cup Part Number | 363D |
| Cup Width | 1.6563 in (42.070 mm) |
| Cone Part Number | 368S |
Timken 368S-90101 two-row TDO (tapered double outer) inch tapered roller bearing, Class 3, supplied as two 368S cones, one 363D double cup and one X1S-368S cone spacer. Bore Diameter: 2.0313 in (51.594 mm). Outside Diameter: 3.5433 in (90.000 mm). Rolling Elements: Tapered Roller. Number Of Rows: 2. Precision Class: Timken Class 3.

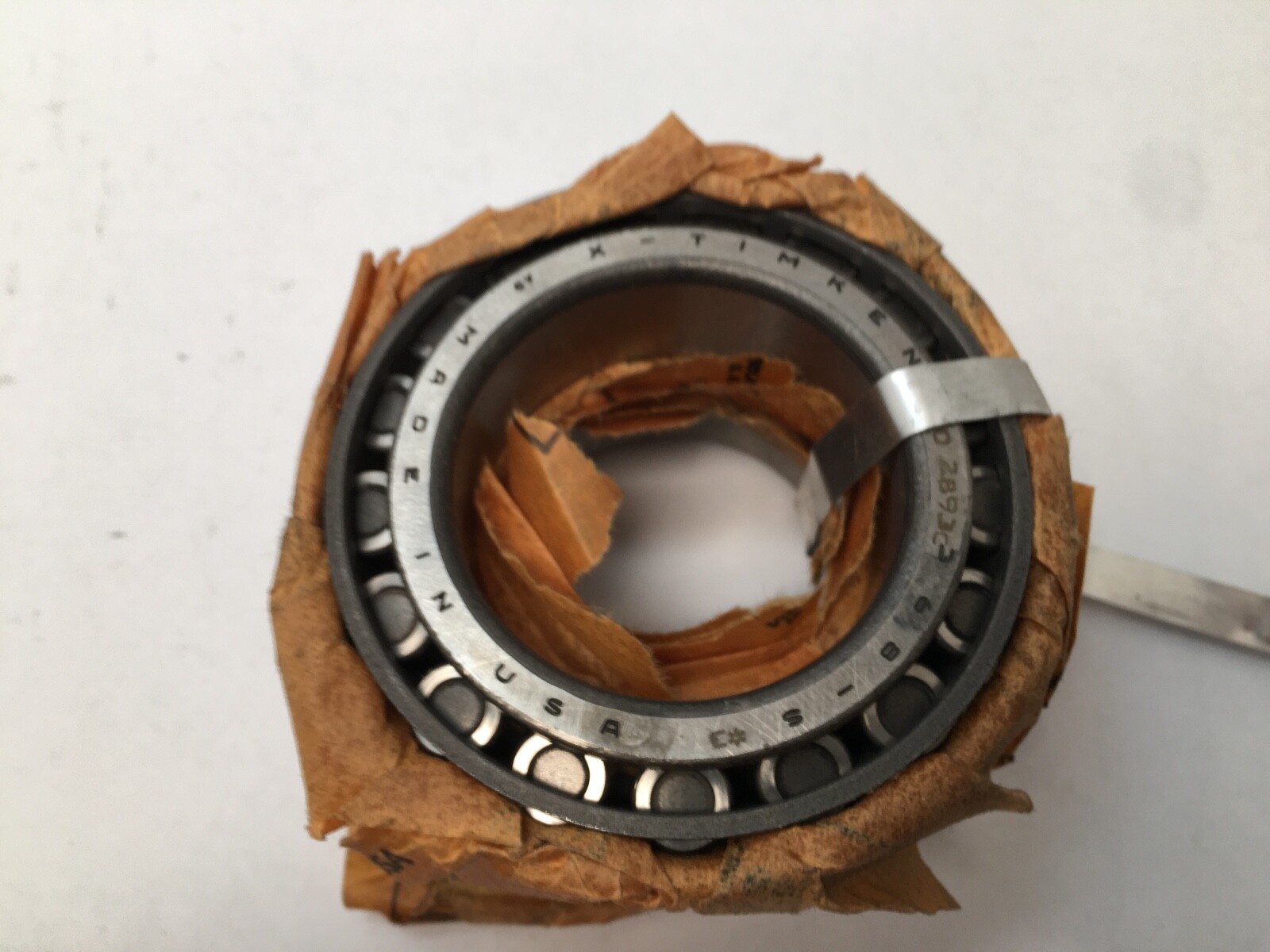

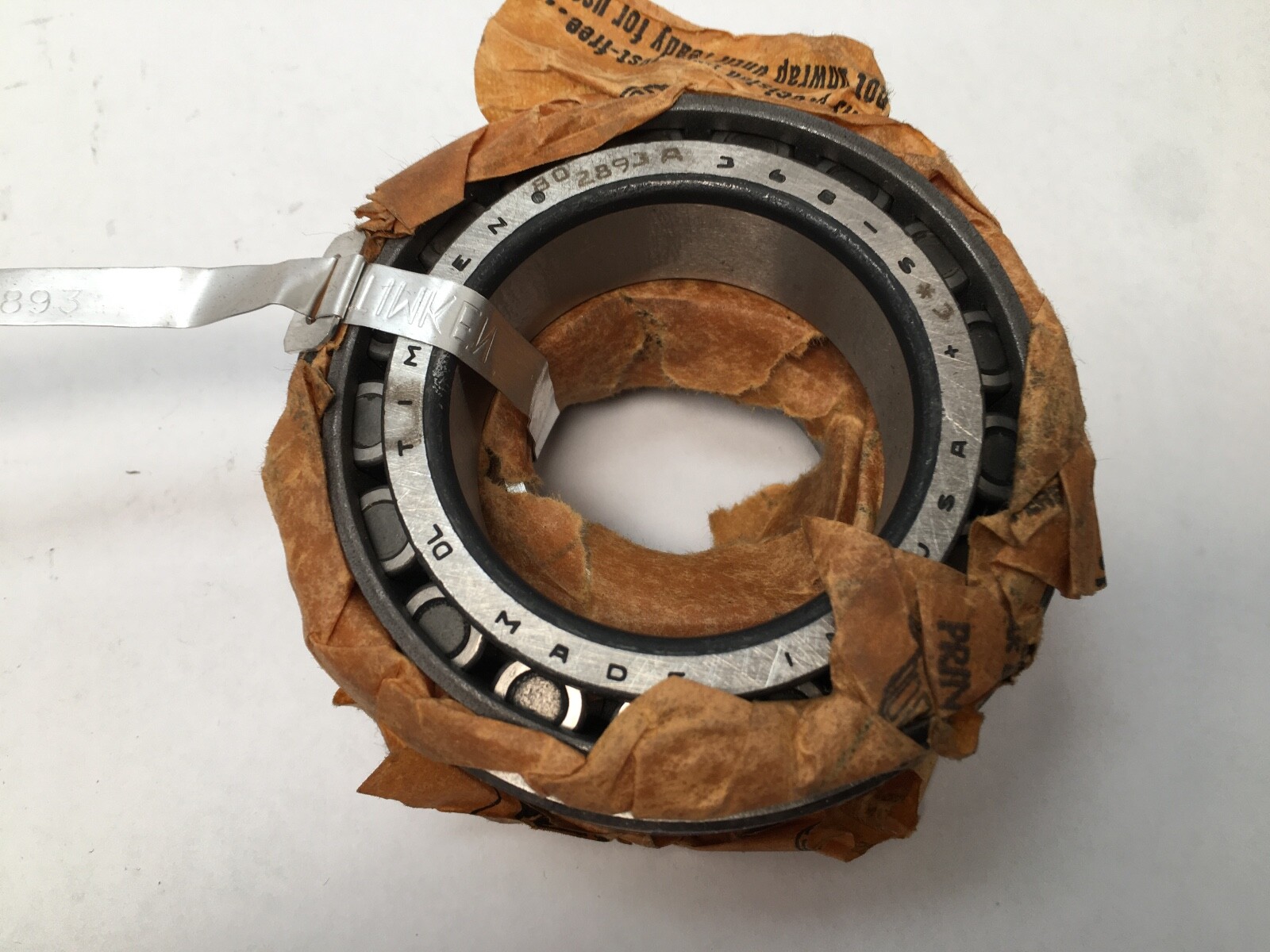

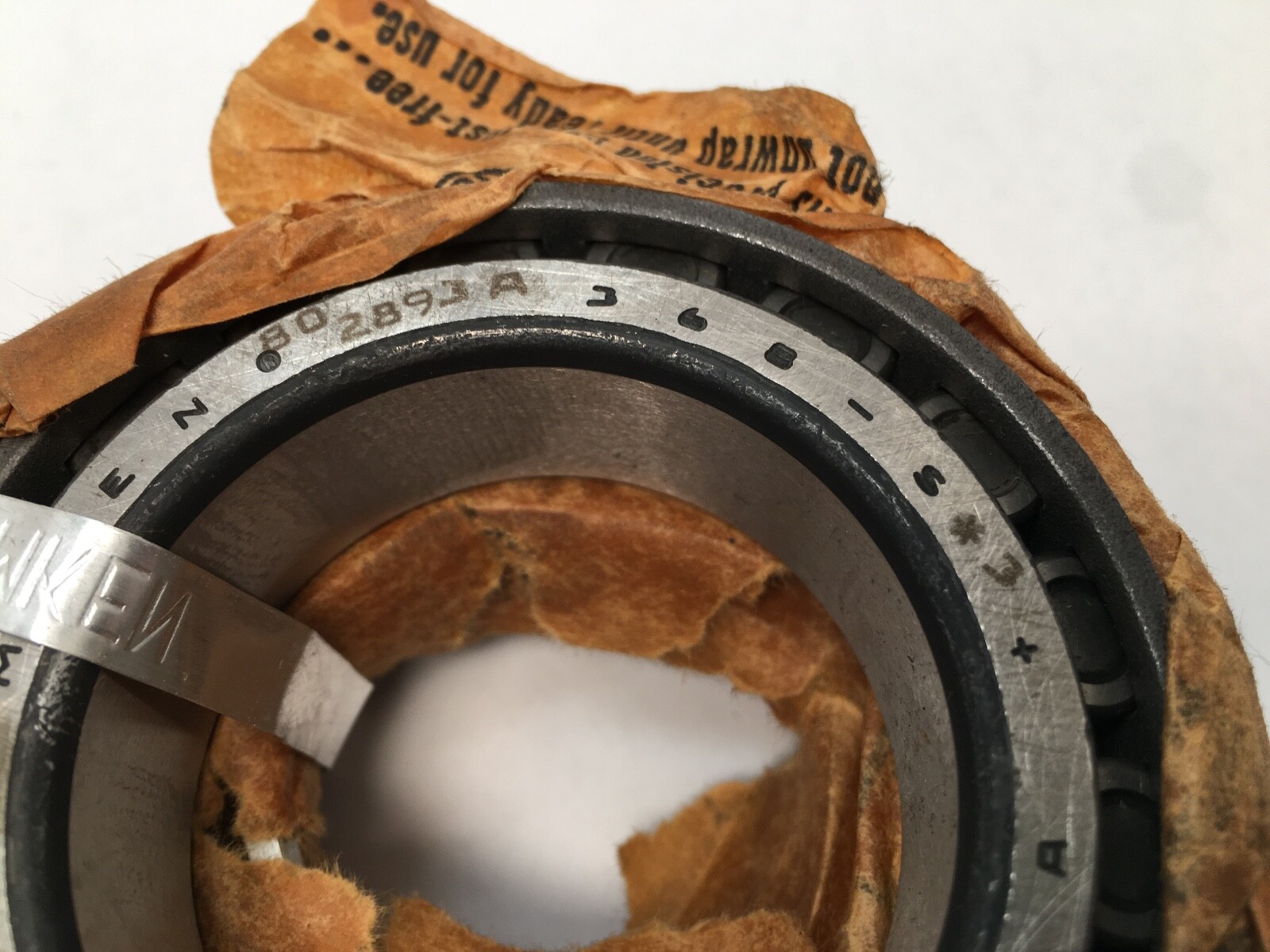

368S — Timken cone, 2-1/32 in bore, 360 series.

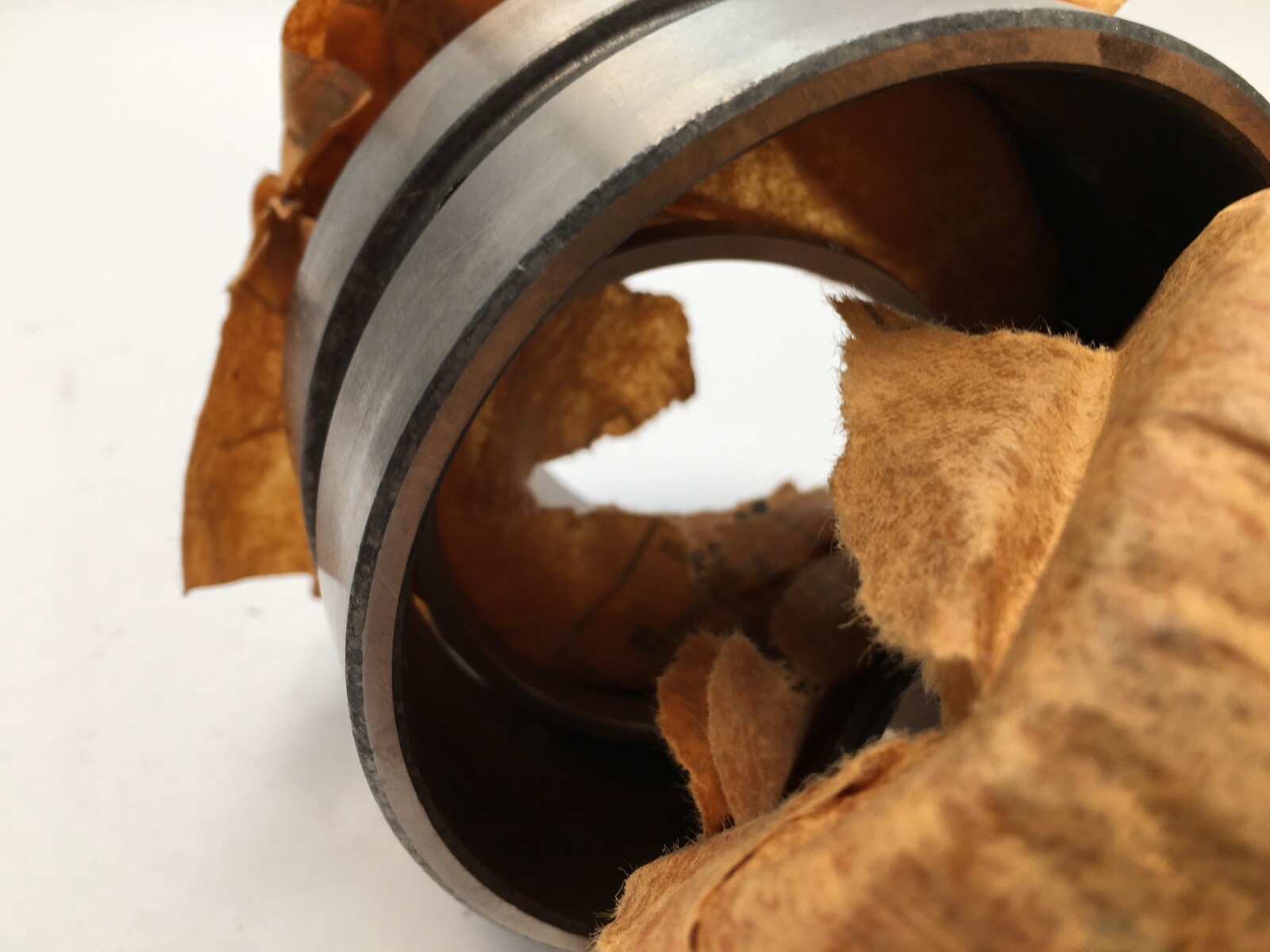

363D — Timken double cup, 90 mm OD: one outer ring with two raceways, taking two cones.
X1S-368S — Timken cone spacer for the 368S, setting the axial distance between the two cones.
-90101 — Timken assembly number for this cone, double cup and spacer combination.
*3 — Timken Class 3 precision: tighter tolerance and lower runout than the standard Class 2.

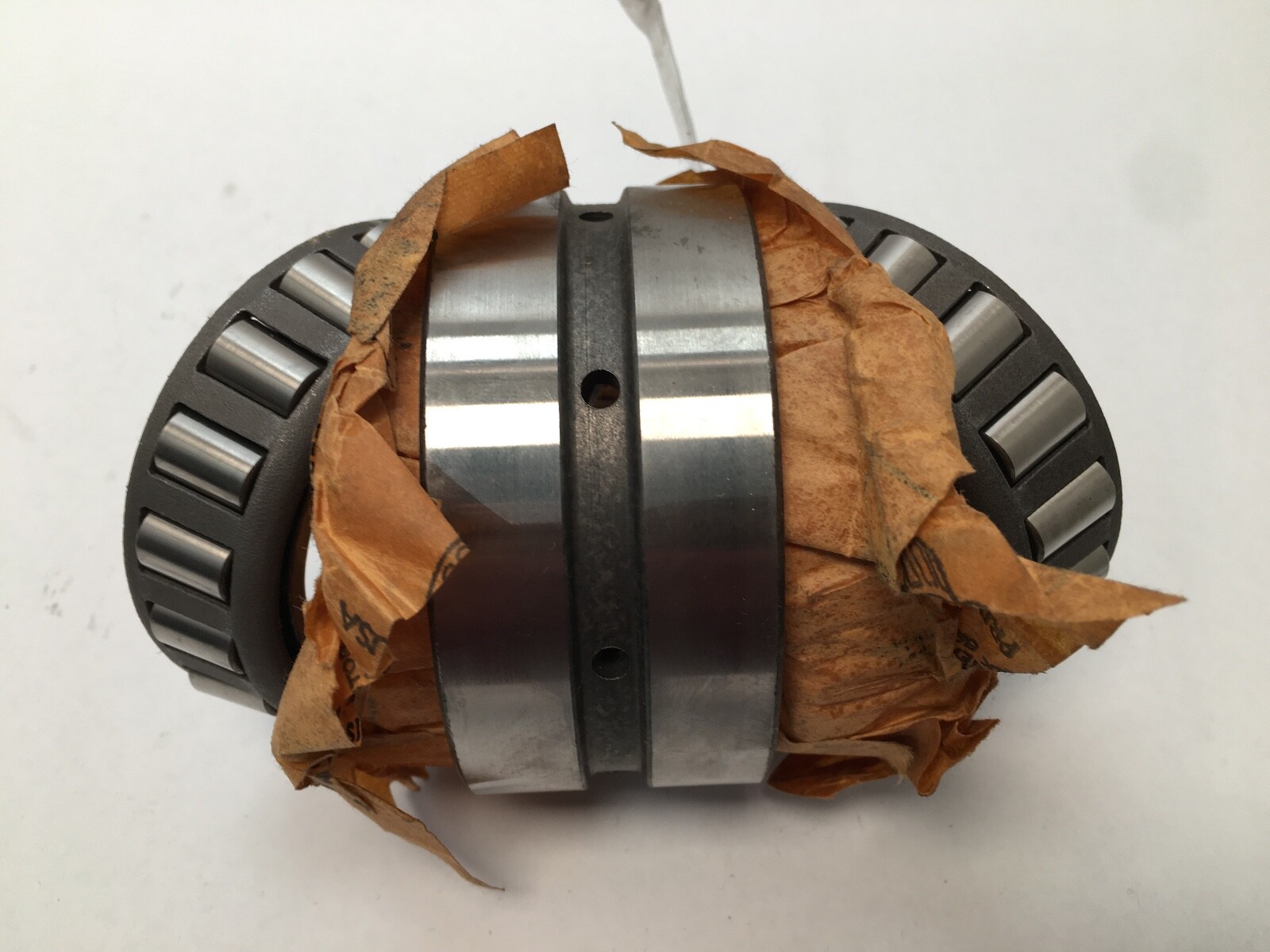

The two roller rows sit back to back in one double cup, carrying radial load and axial load in both directions. The spacer fixes the bearing setting between the cones.
Cup Width: 1.6563 in (42.070 mm). Max Housing Fillet Radius: 0.03 in (0.8 mm). Housing Backing Shoulder Diameter: 3.34 in (84.84 mm).
Unit Quantity: 1 Set, two 368S cones, one 363D double cup and one X1S-368S spacer (4 pieces). MPN Variants: 368S-90101, 368S/363D, 368S 363D X1S-368S.
Timken assembly 368S/363D with X1S-368S spacer, Class 3. Double cup: Timken 363D.
