Timken 13169D/13318 double-cone tapered roller bearing set, 1-11/16 in bore x 3-3/16 in OD, 13000 series. Two-row TDI cone running in 9/16 in wide 13318 cups.
List Price
$112.07
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Timken |
|---|---|
| MPN | 13169D/13318 |
| Model | 13169-D 13318 |
| Bearing Type | Tapered Roller Bearing Cone |
| ID | 1.6875 in (42.863 mm) |
| OD | 3.1875 in (80.963 mm) |
| Series | 13000 |
|---|---|
| Industry Terms | TDI tapered roller bearing, double cone and cup, two-row taper bearing, inch taper bearing |
| Mpn Variants | 13169D/13318, 13169D-13318, 13169-D 13318, 13169D 13318 |
| Precision Class | Not specified |
| K Factor | 1.11 |
| Rolling Elements | Tapered Roller |
| Number Of Rows | 2 |
| Harmonization Code | 8482.20.00 |
| Cup Part Number | 13318 |
| Design Units | Imperial |
| Cup Width | 0.5625 in (14.288 mm) |
| Cup Backface To Clear Radius | 0.06 in (1.52 mm) |
| Cone Part Number | 13169D |
| Cone Width | 1.3750 in (34.925 mm) |
| Cup Frontface Backing Diameter | 3.03 in (76.96 mm) |

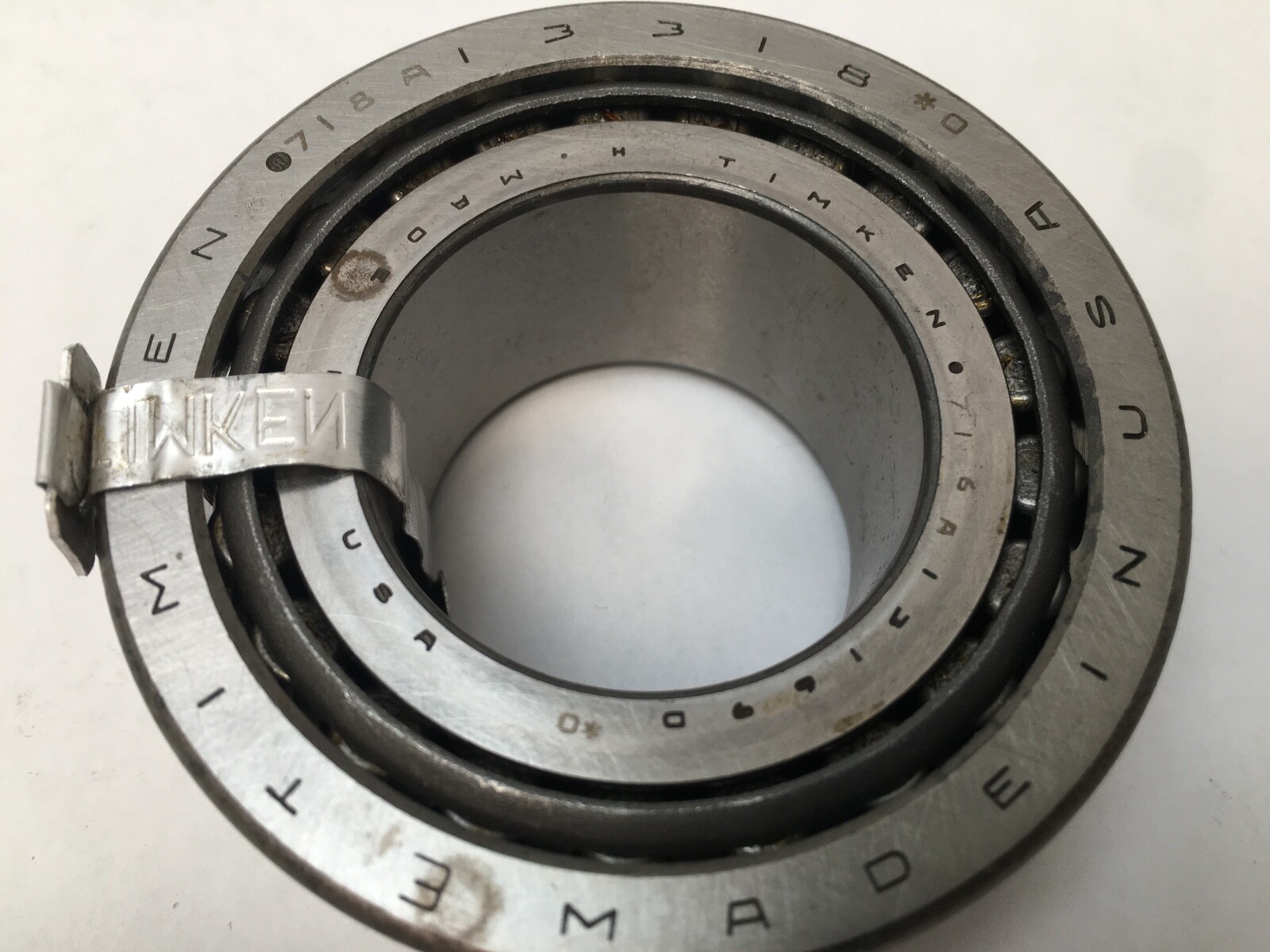

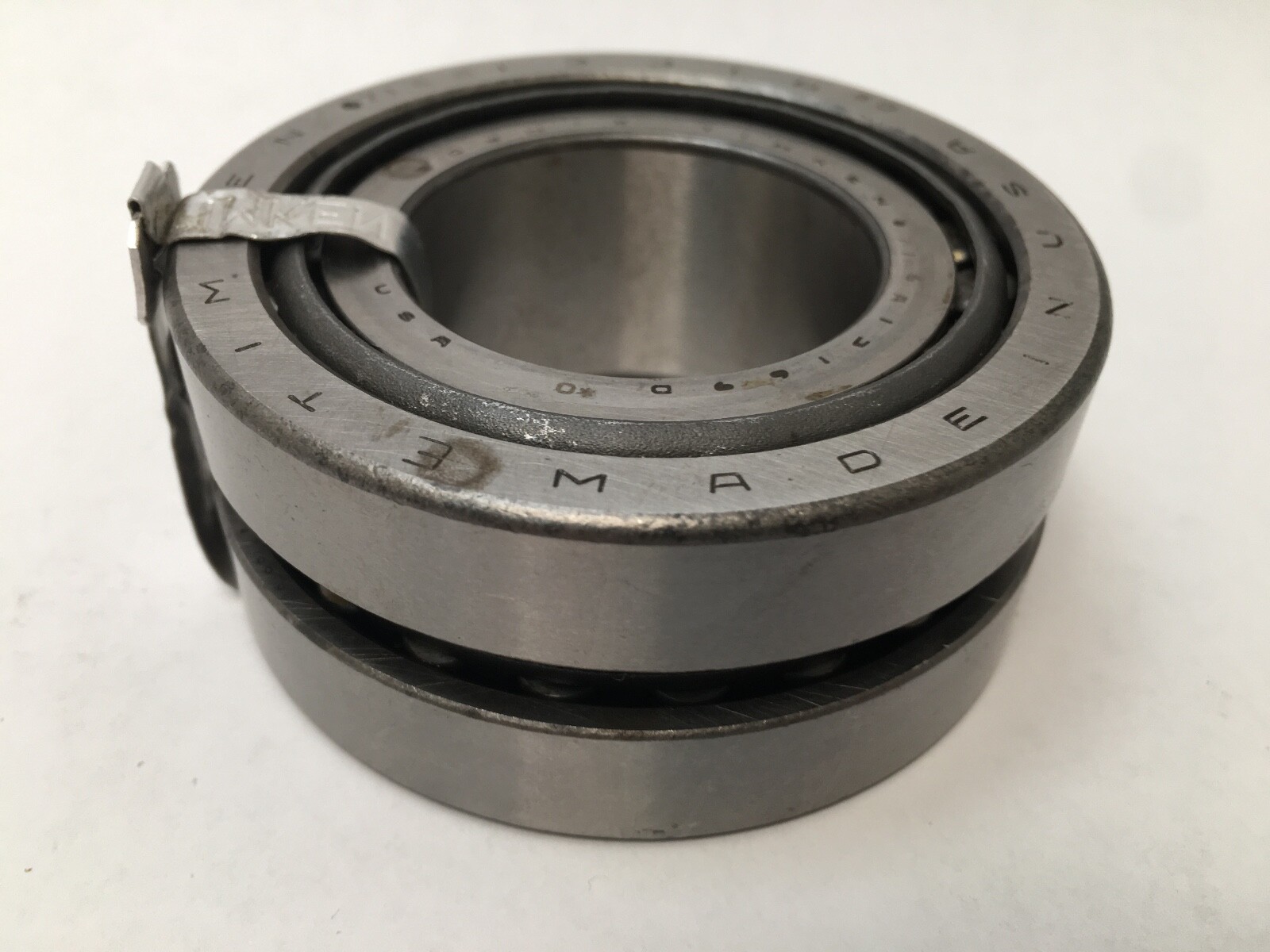

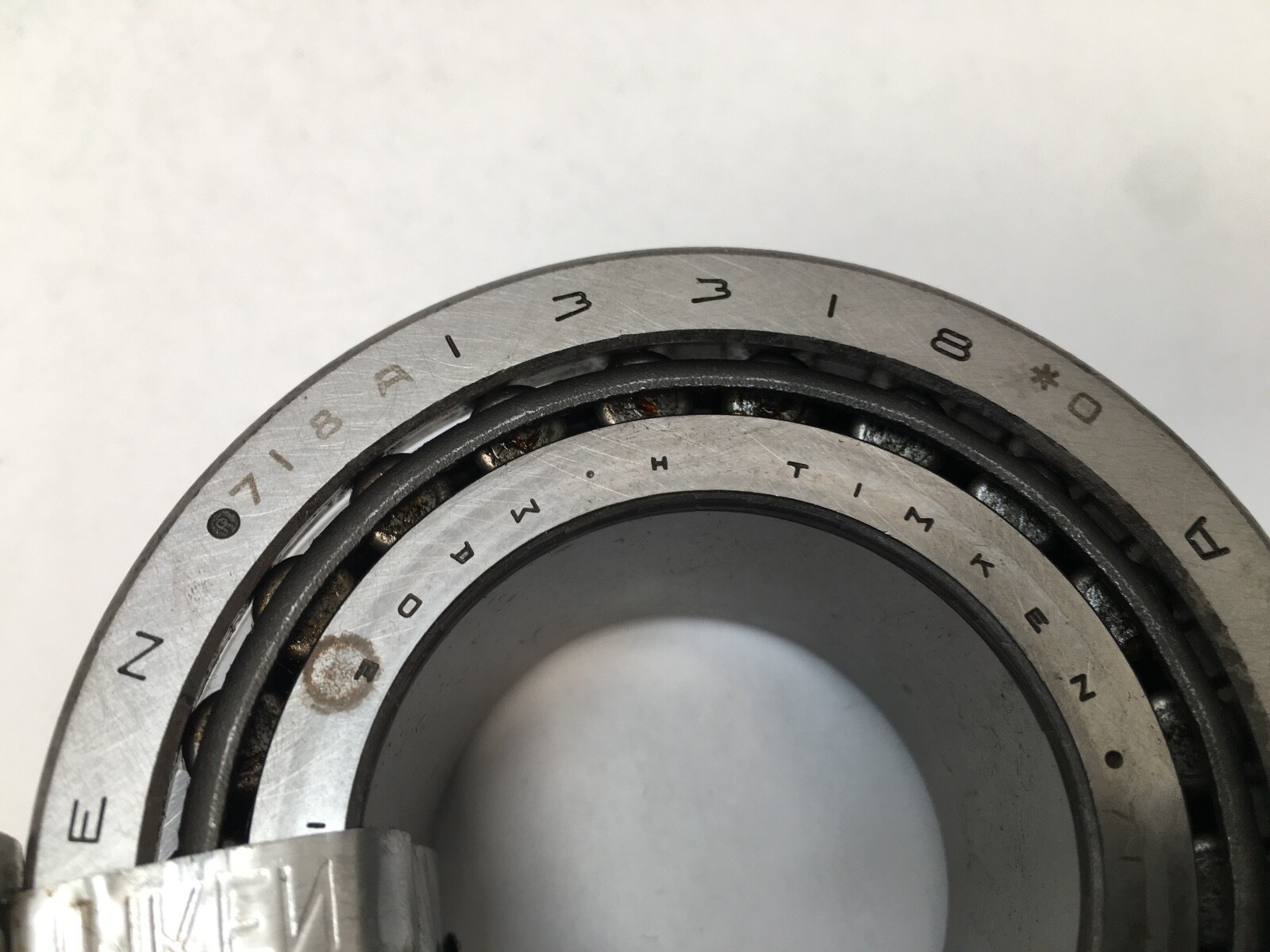

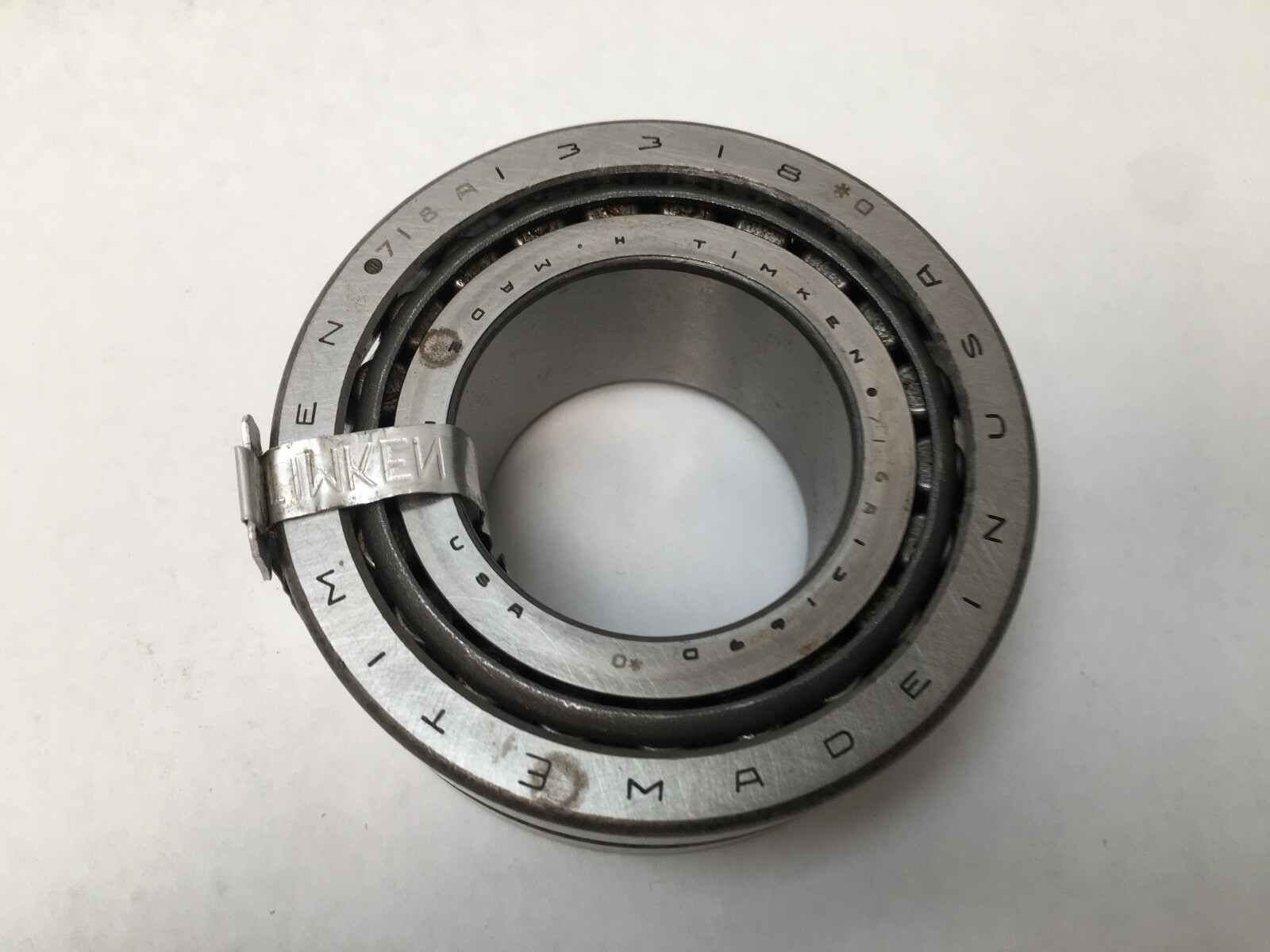

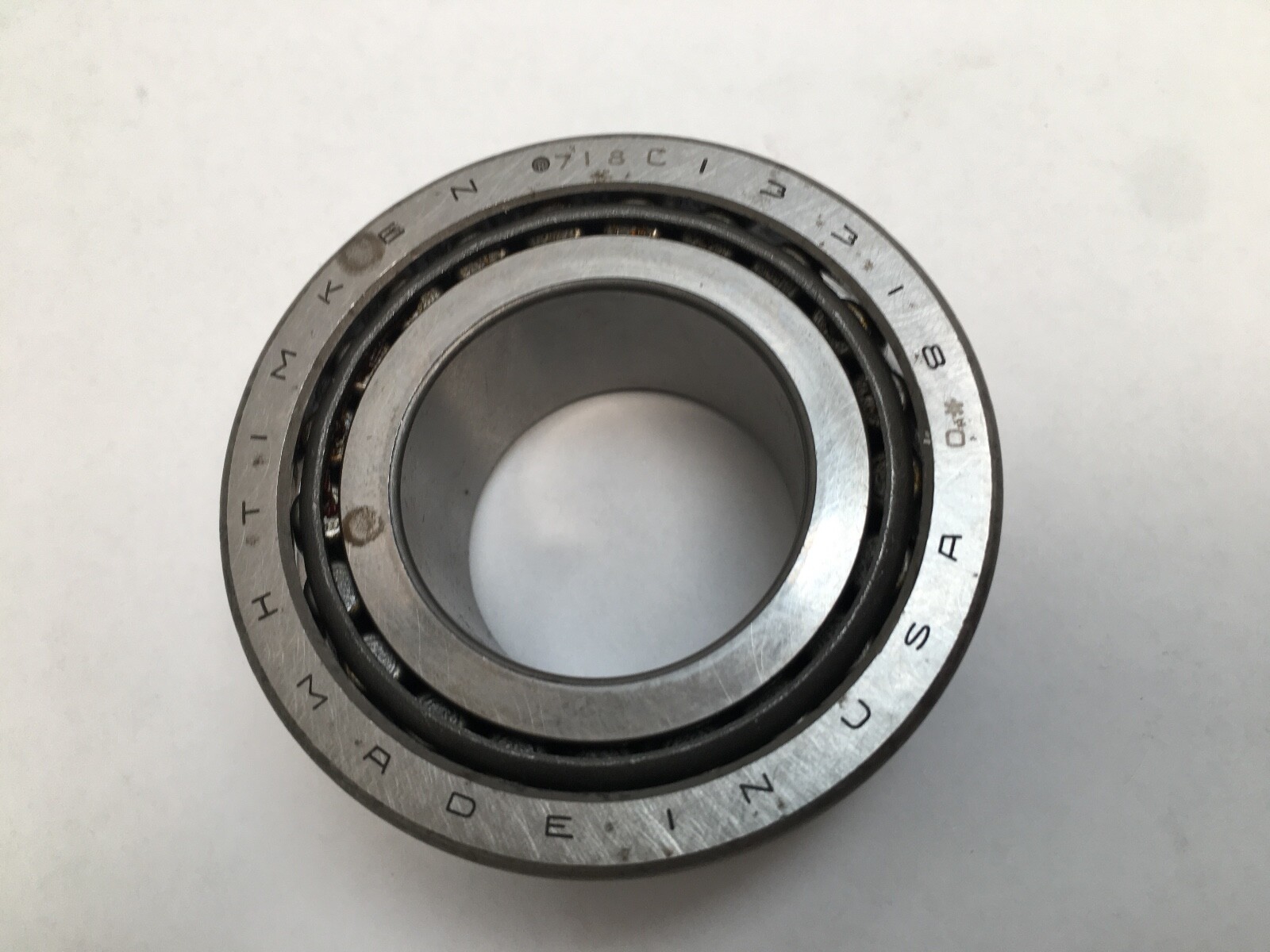

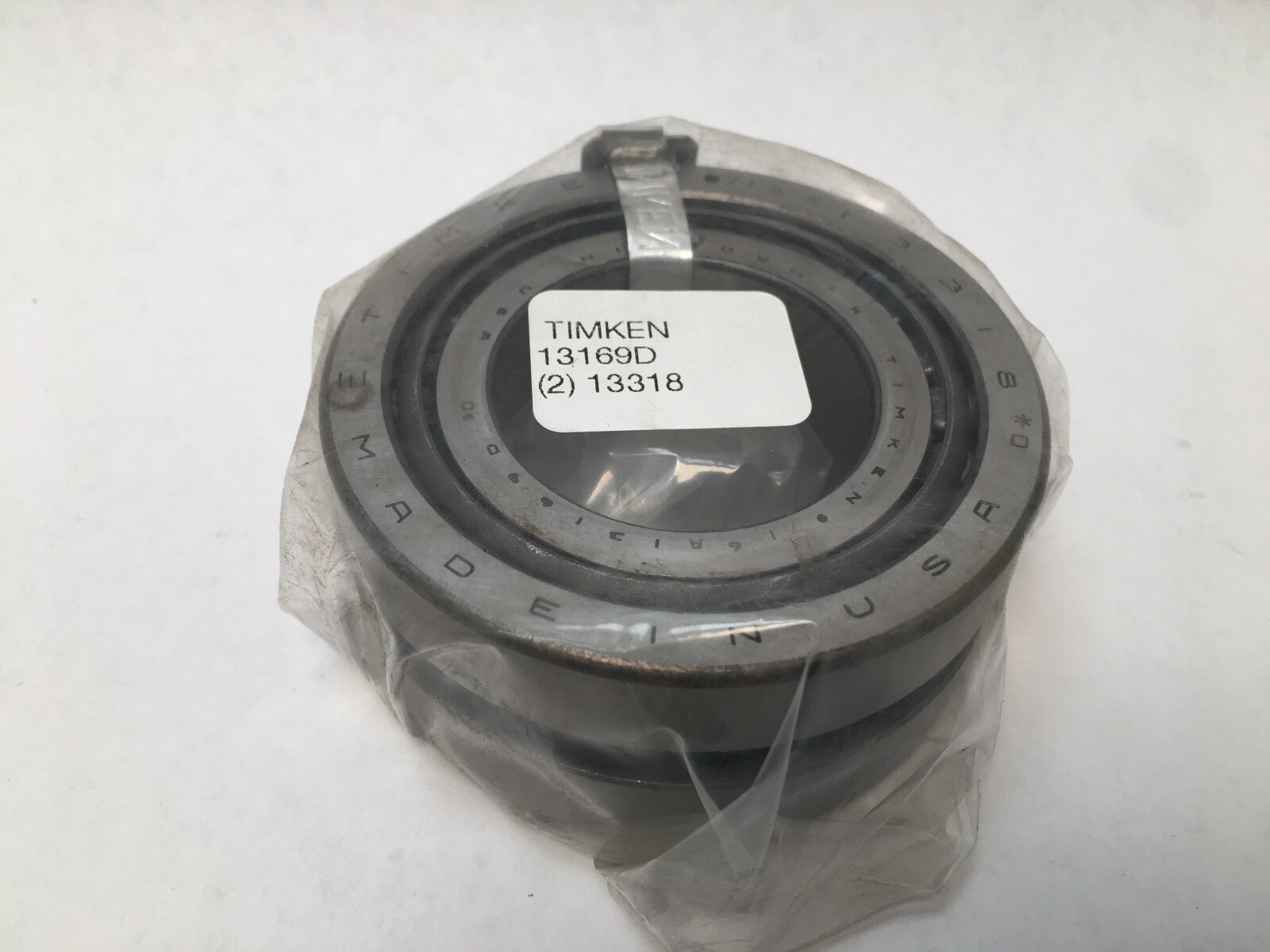

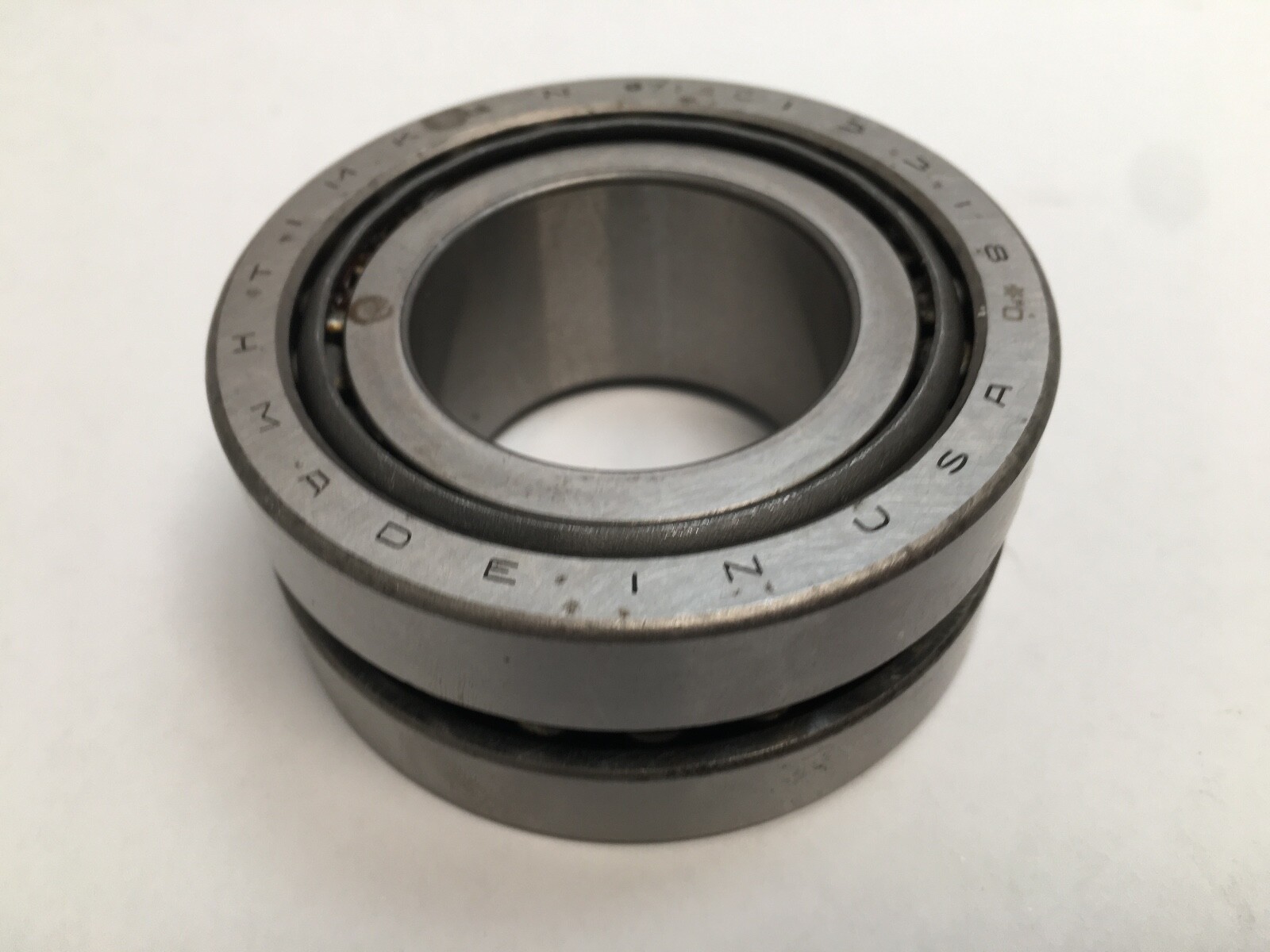

Timken 13169D/13318 is an inch tapered roller bearing set from the Timken 13000 series: a 13169D double cone with the 13318 single cup. The double cone carries two rows of tapered rollers and runs in two 13318 cups in a TDI (tapered double inner) arrangement. Bore Diameter: 1.6875 in (42.863 mm). Outside Diameter: 3.1875 in (80.963 mm). Condition: new old stock, made in USA.

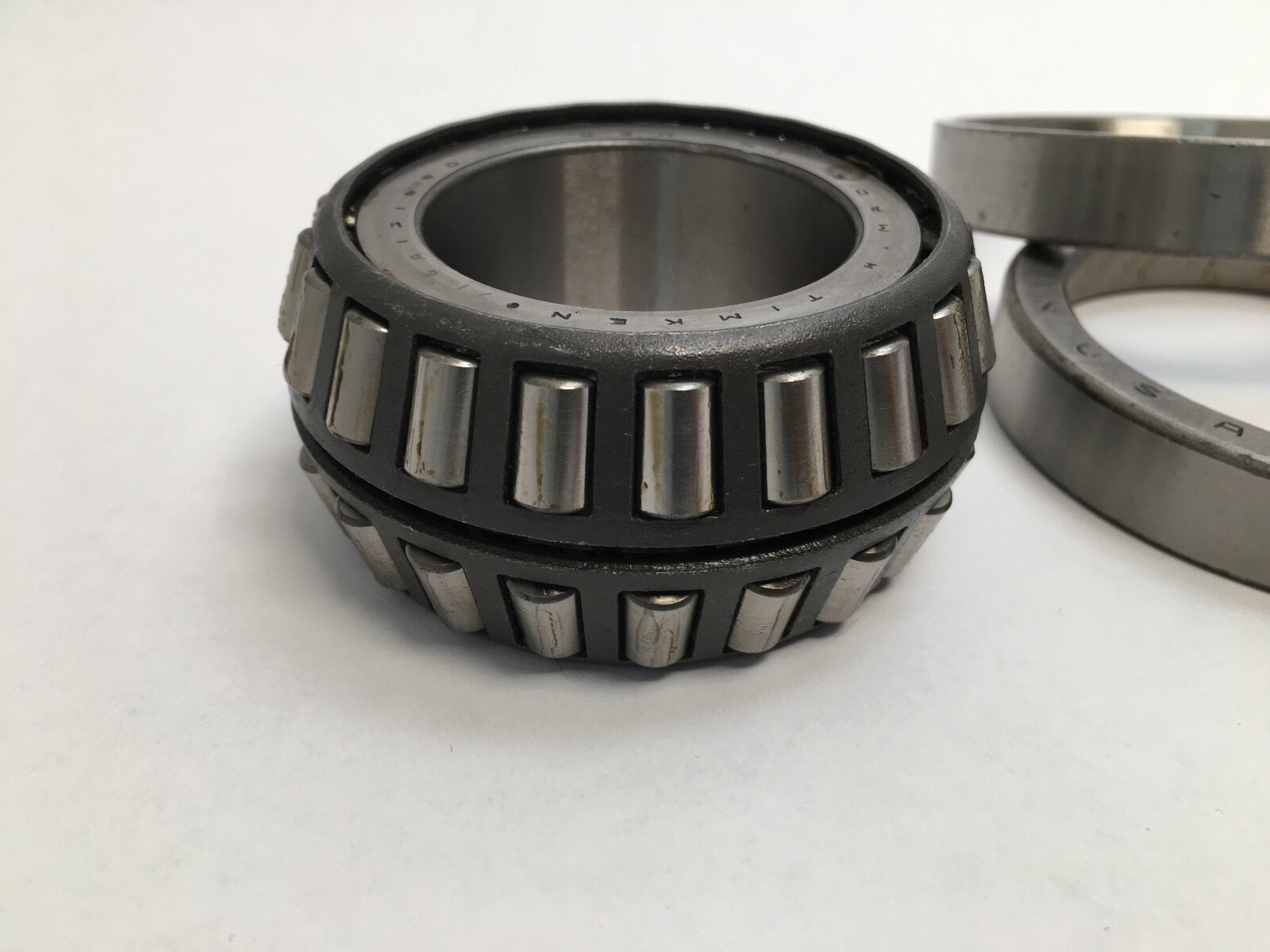

13169D — Timken double cone, 1-11/16 in bore. The D on a cone marks a one-piece double cone that takes two single cups.

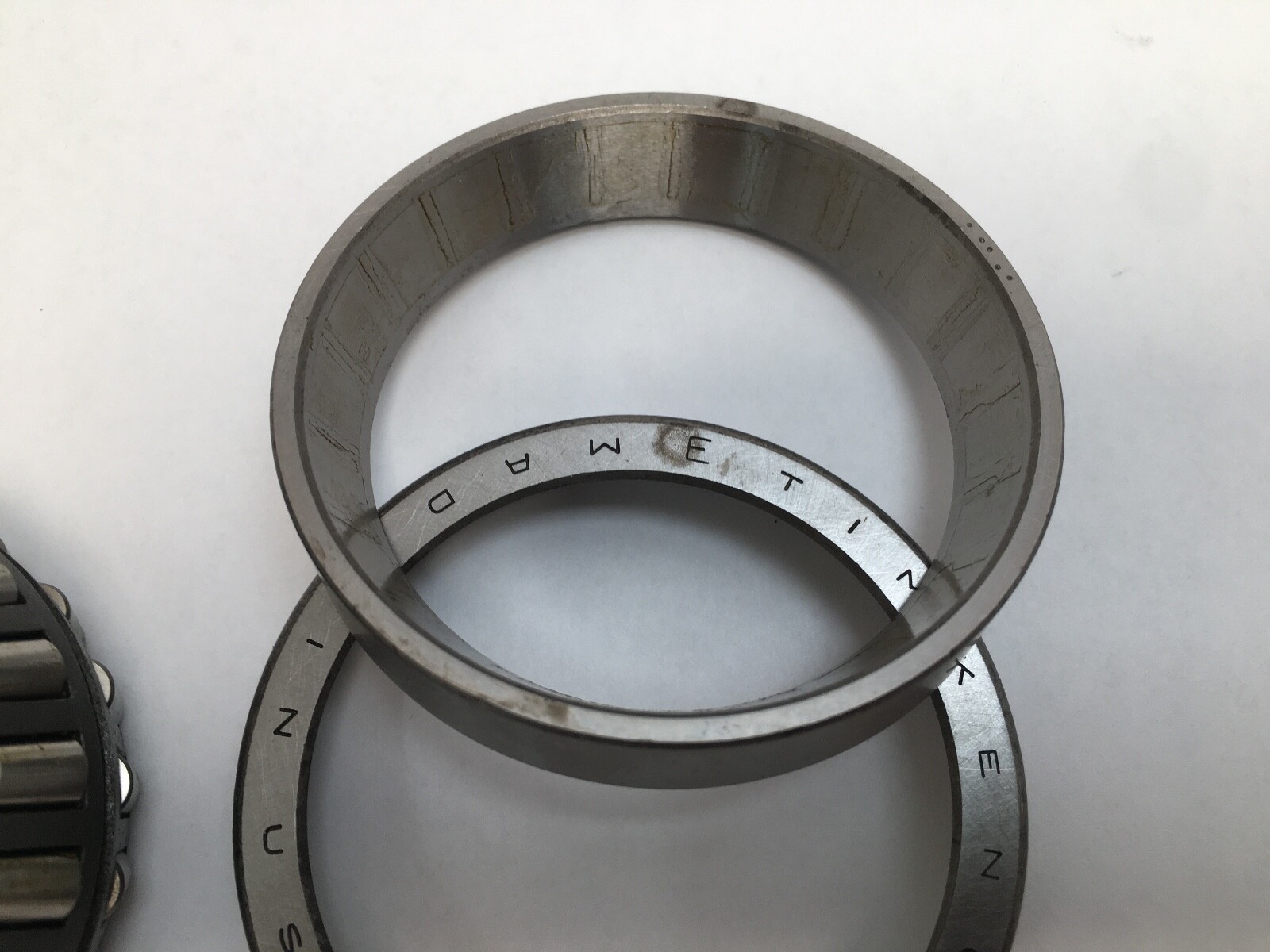

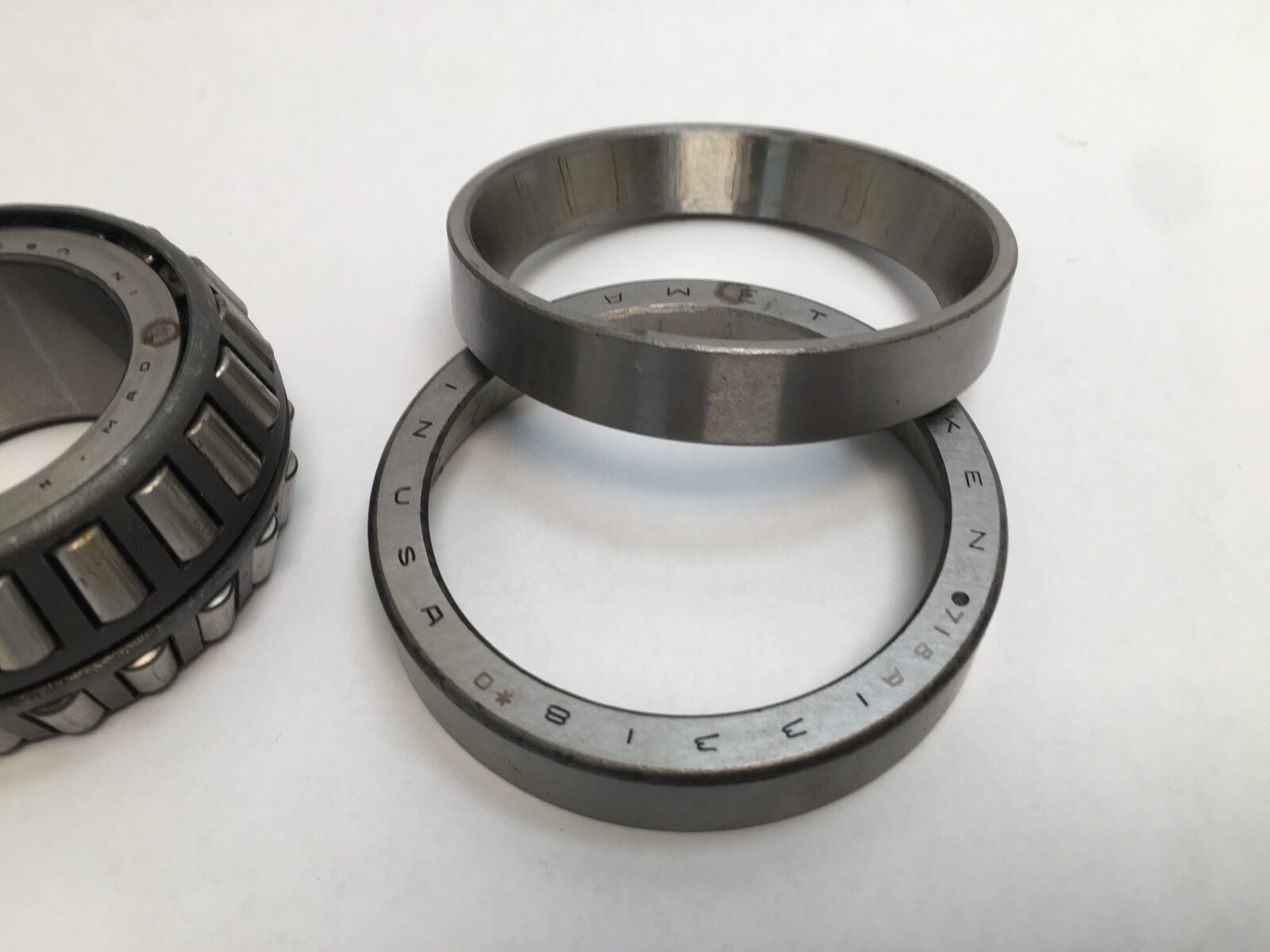

13318 — Timken single cup, 3-3/16 in outside diameter, 9/16 in wide.
Cone Width: 1.3750 in (34.925 mm). Cup Width: 0.5625 in (14.288 mm). Series: 13000. Rolling Elements: Tapered Roller. Number Of Rows: 2. The two-row double cone takes combined radial and thrust load in both axial directions from a single shaft seat.
Cup Backface To-Clear Radius: 0.06 in (1.52 mm). Cup Frontface Backing Diameter: 3.03 in (76.96 mm). Cup Backface Backing Diameter: 2.83 in (71.88 mm). K Factor: 1.11. ISO e Factor: 0.53. ISO Y Factor: 1.14. Geometry Factor (Cg): 0.0799.
The 13318 cup is the common cup of the Timken 13000 series and also mates with the 13175 and 13181 single cones and the 13176D double cone. The Class 3 precision version of this set is 13169D-3/13318-3.
