Availability:
2 in stock
Tapered roller bearing, complete cone and cup, 110 x 170 x 38 mm, high-capacity HR execution, pressed steel cage, P5 precision.
List Price
$673.10
2 in stock
2 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
Also Available From:
| MFR / Brand | NSK |
|---|---|
| MPN | HR32024XJP5 |
| Model | HR 32025XJ P5 / 32025X |
| Bearing Type | Tapered Roller Bearing Cone, Open |
| ID | 110 mm |
| OD | 170 mm |
| Width | 38 mm |
| Material | Chrome Steel |
|---|---|
| Series | 32000 |
| Condition | New |
| Lubricant | Oil |
| Base Number | 32022X |
| Industry Terms | Tapered roller bearing; metric taper roller cone and cup; single row taper bearing; high capacity tapered roller |
| Bore Shaft Size | 110 mm (4.331 in) |
| Mpn Variants | HR32022XJP5; HR 32022XJ P5; HR-32022-XJ-P5; HR32022XJ; 32022X; 32022XJ |
| Precision Class | P5 / ABEC 5 |
| Min Temp | -30 °C |
| Cage Type | Pressed |
| Dynamic Load Rating | 225 kN / 50,580 lbf (complete bearing) |
| Static Load Rating | 325 kN / 73,060 lbf (complete bearing) |
| Precision Rating | ABEC 5 / P5 |
| Rolling Elements | Tapered Roller |
| Max Temp | 120 °C |
| Item Weight | 6.20 lbs (2.81 kg) |
| Cage Material | Pressed Steel |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | Not specified |
| Harmonization Code | 8482.20.00.00 |
| Bearing Material | Chrome Steel |
| Part Number | HR32022XJP5 |
| Cross Reference 1 | SKF 32022 X/P5 |
|---|---|
| Cross Reference 2 | FAG 32022-X-P5 |
| Cross Reference 3 | NSK HR32024XJP5 (related size, 120 mm bore) |

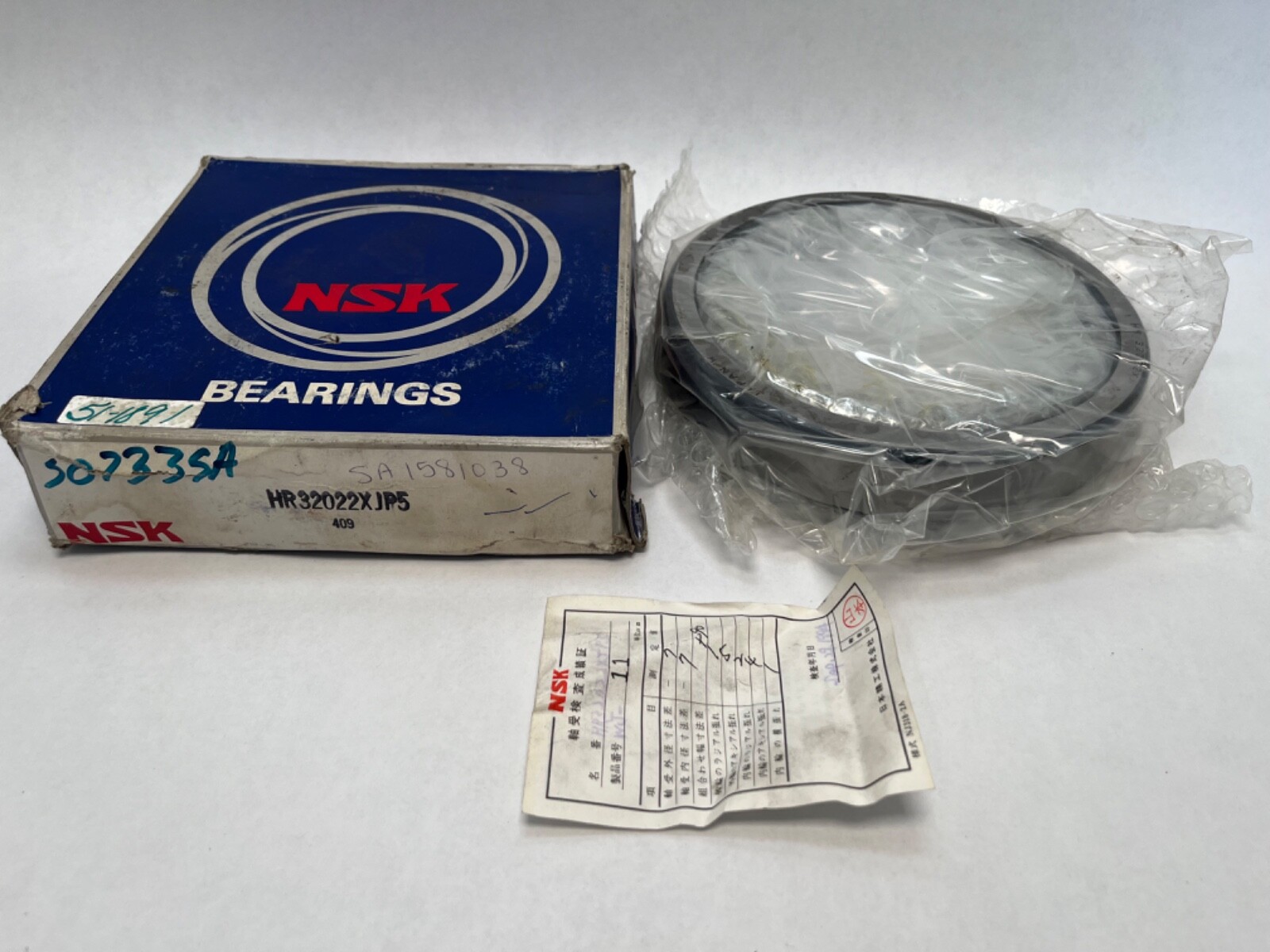

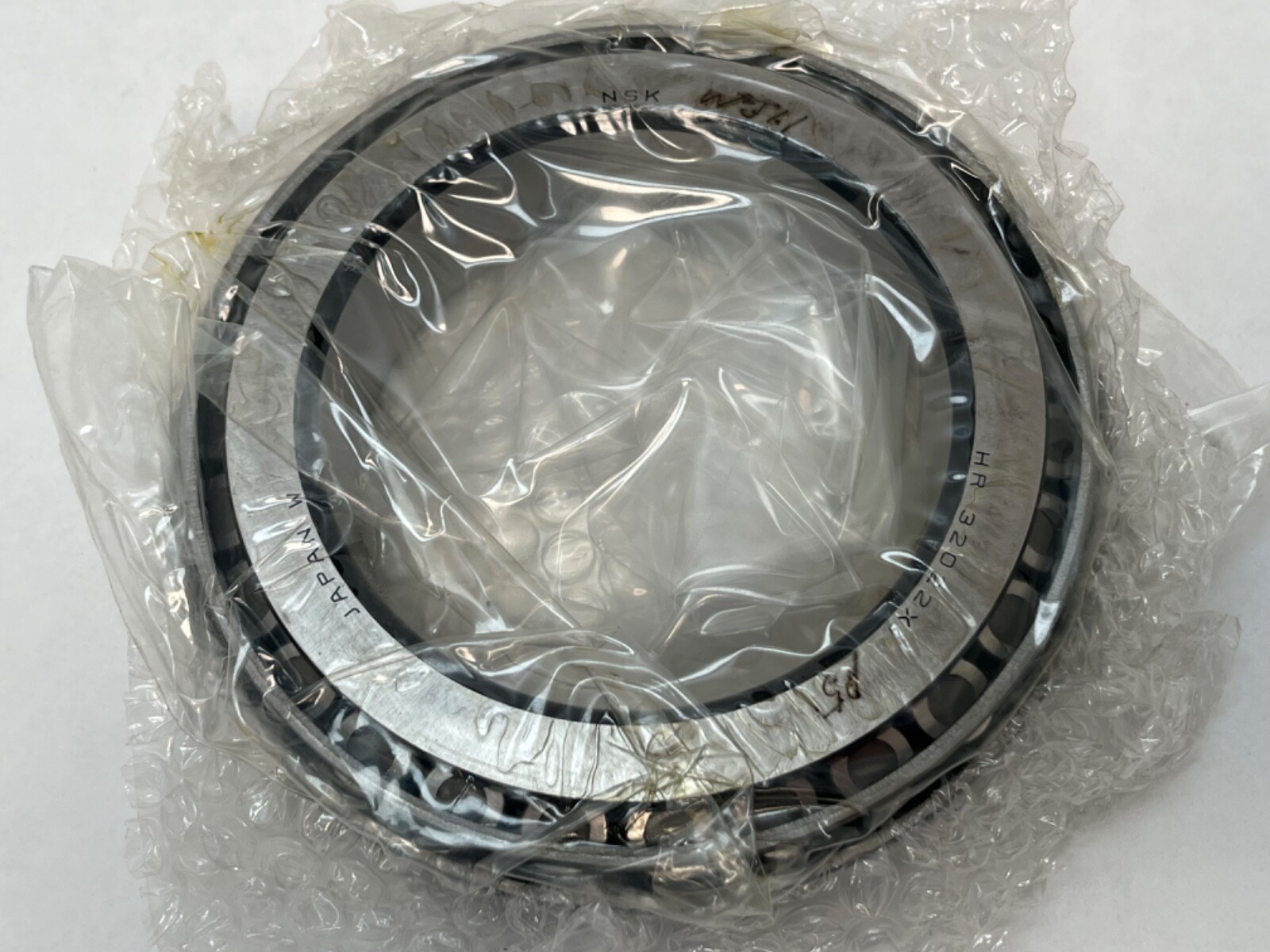

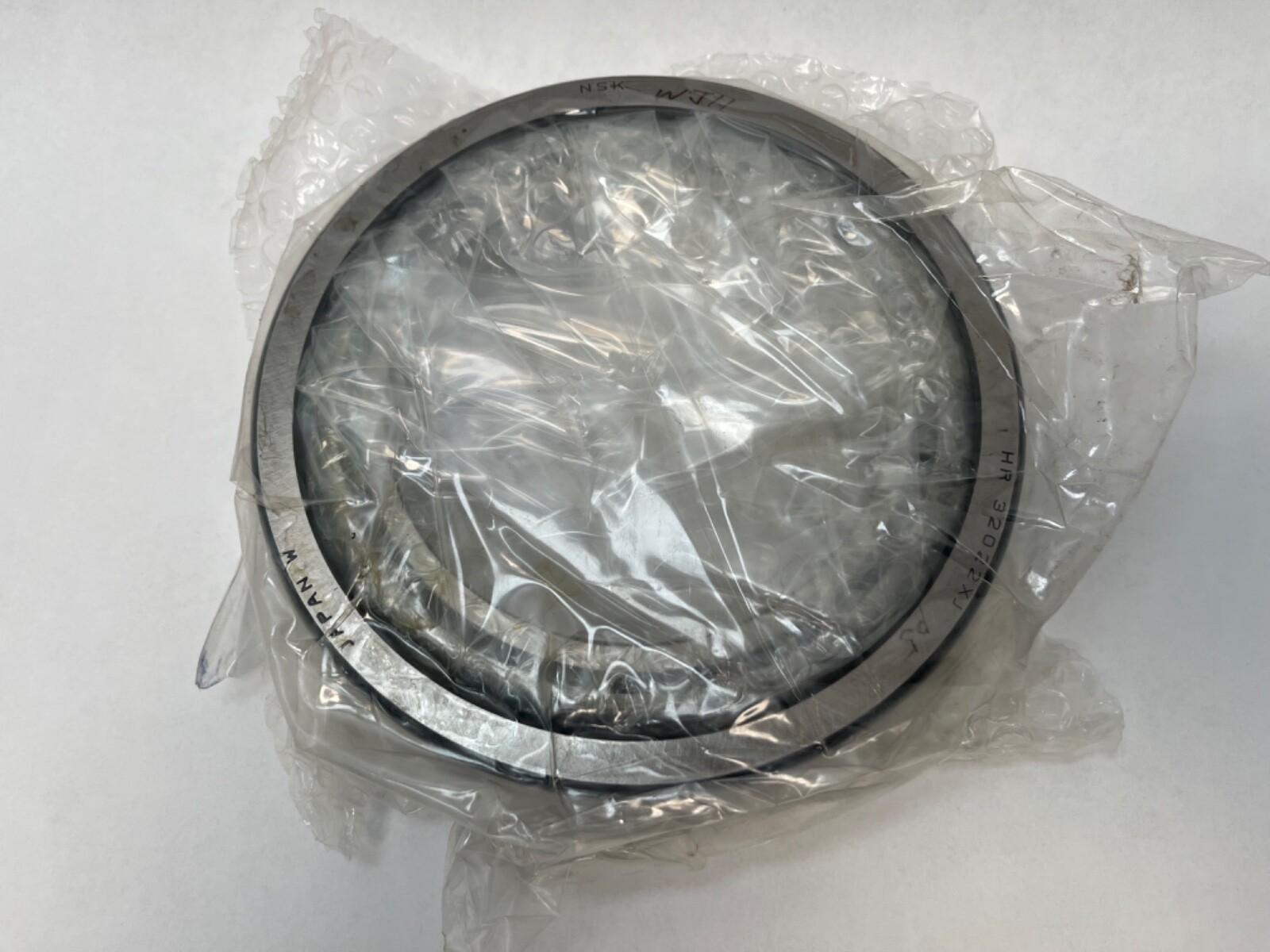

NSK HR32022XJP5 tapered roller bearing, a complete bearing comprising the cone with its roller and cage assembly and the matching cup. Bore: 110 mm. Outside diameter: 170 mm. Overall width: 38 mm. Series: 32000, metric single-row tapered roller. Straight bore, pressed steel cage.

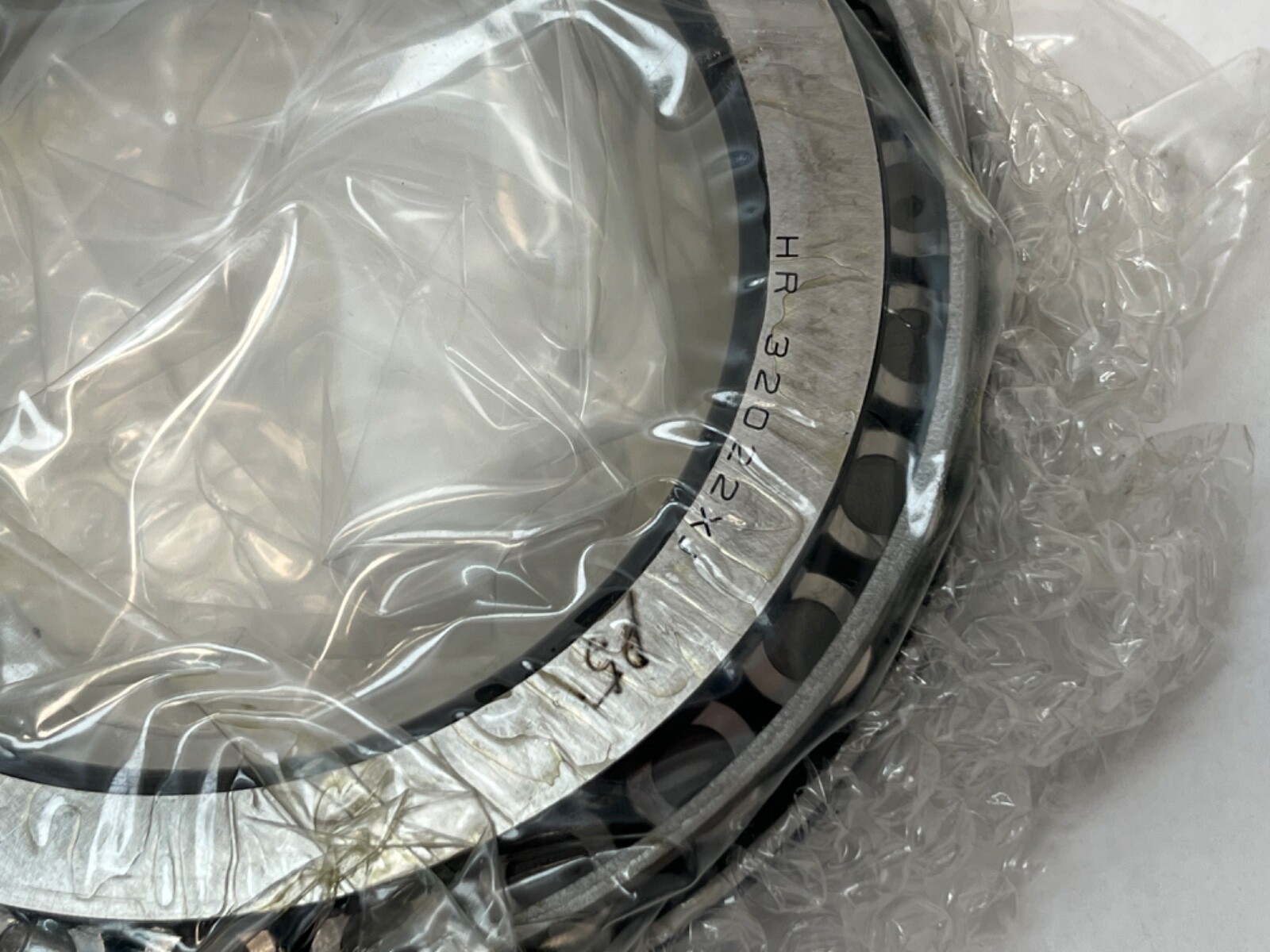

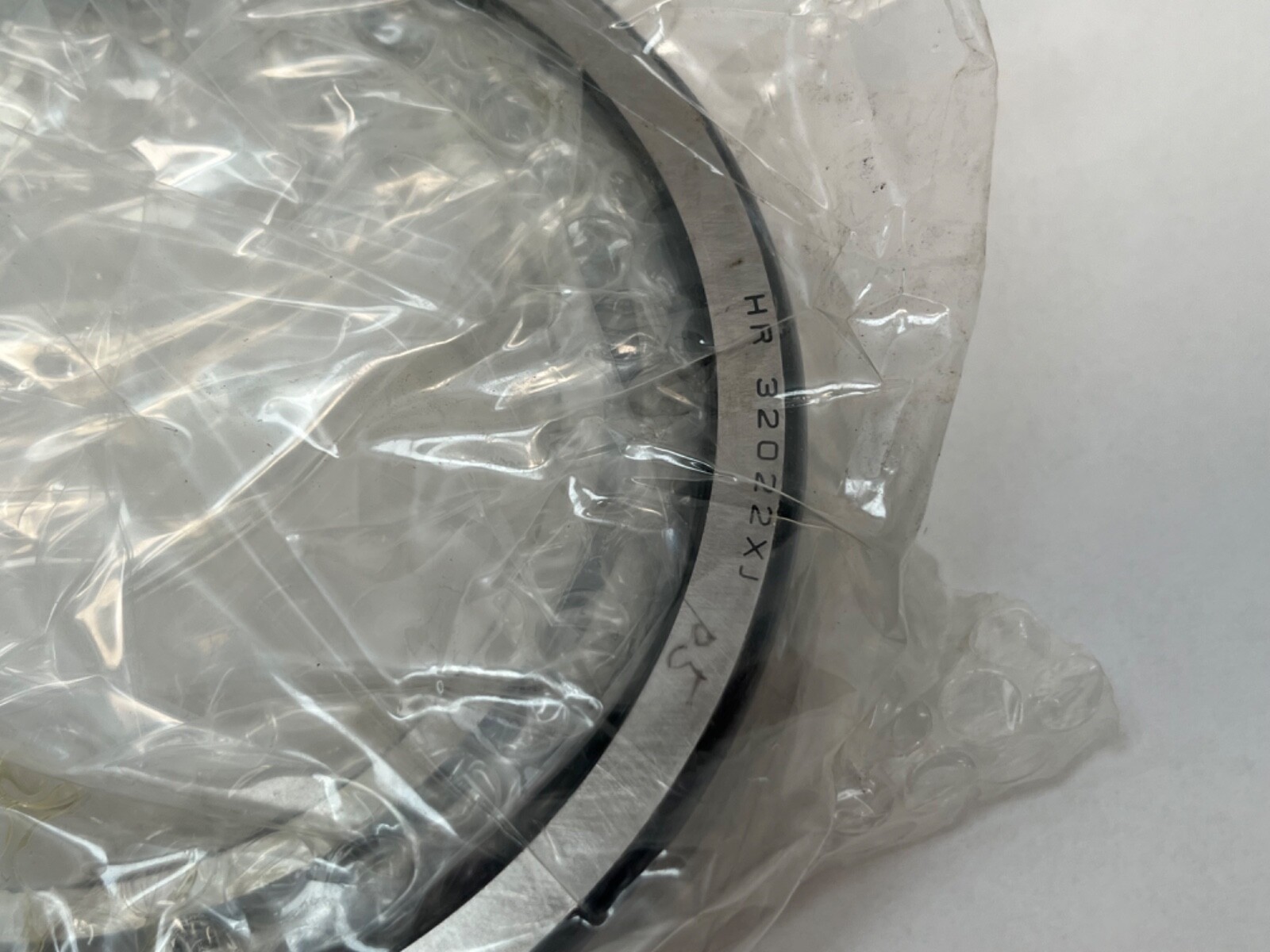

HR: NSK’s high-capacity uprate, a larger roller complement on the same envelope. 32022: series 320, bore code 22, 110 mm bore. XJ: pressed steel cage execution on the X ring geometry. P5: ISO class 5, ABEC 5. The bearing is also catalogued as 32022X.
Basic dynamic load rating: 225 kN. Basic static load rating: 325 kN. These are complete-bearing figures for the cone and cup together. Limiting speed: 2,400 rpm. A tapered roller bearing carries heavy radial load and heavy axial load in one direction through line contact along the roller, which is why the static figure sits well above the dynamic one. P5 class holds bore, outside diameter and running accuracy tighter than standard tapered roller tolerance. Operating temperature range: -30 to +120 °C.

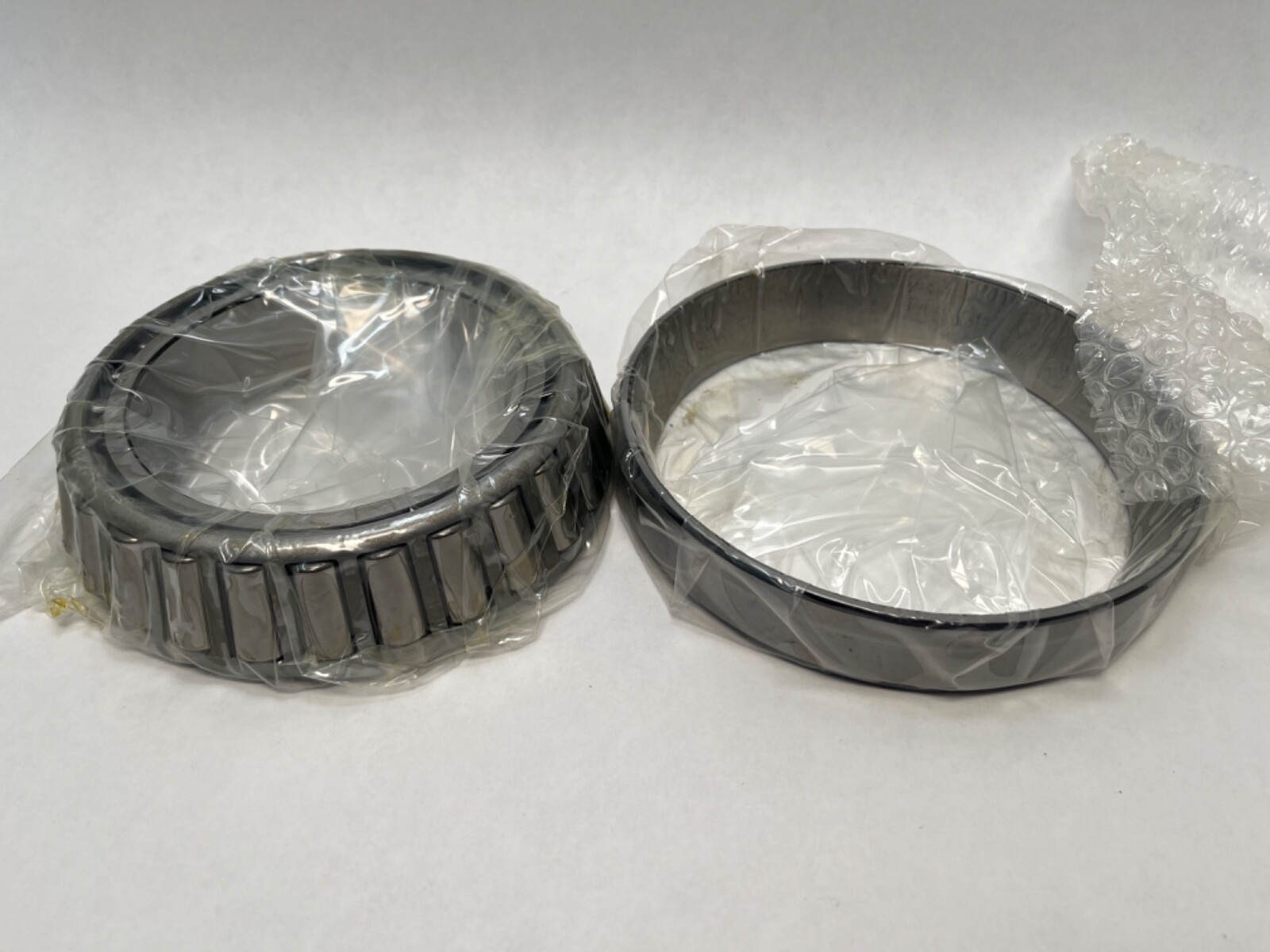

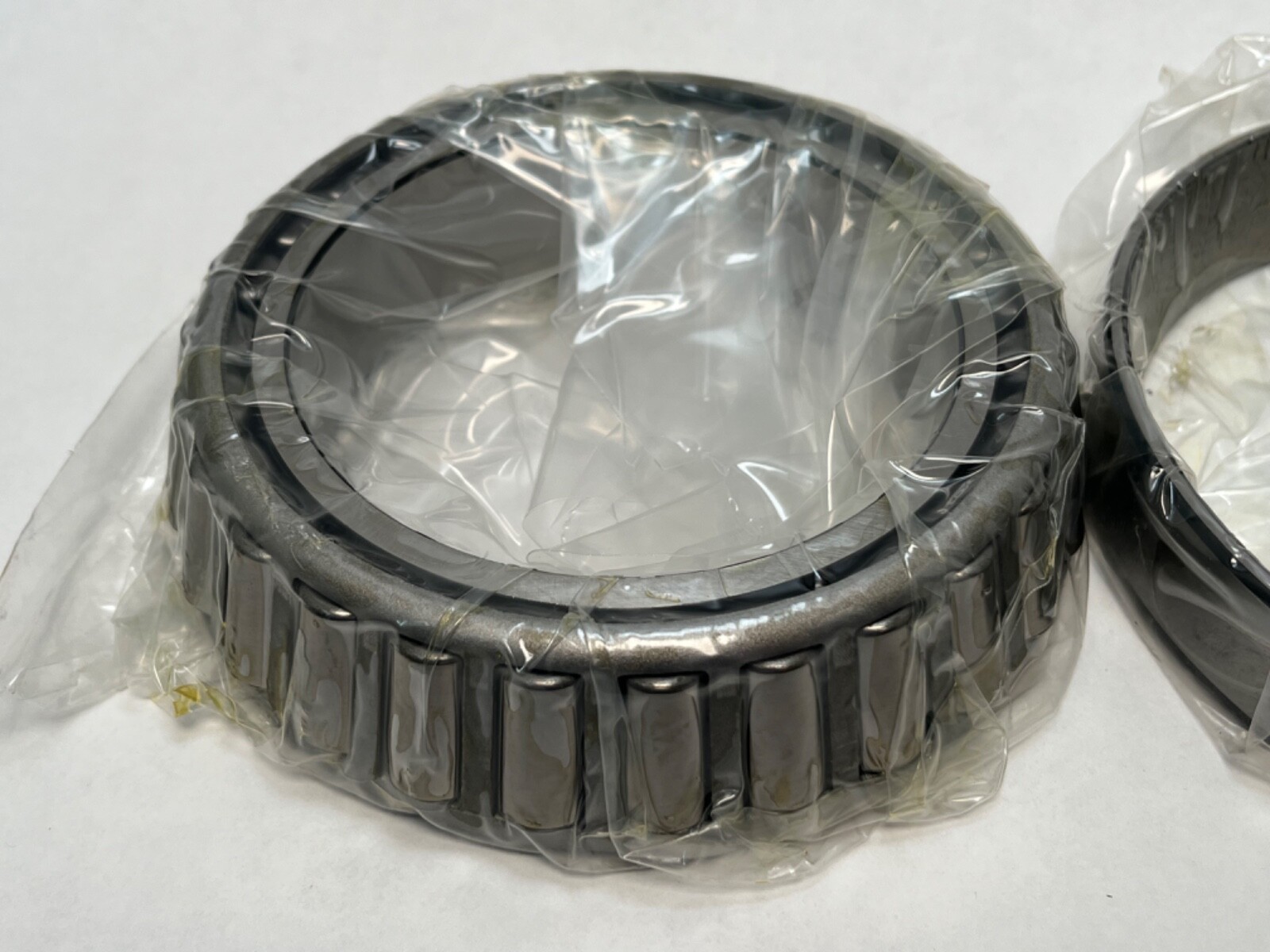

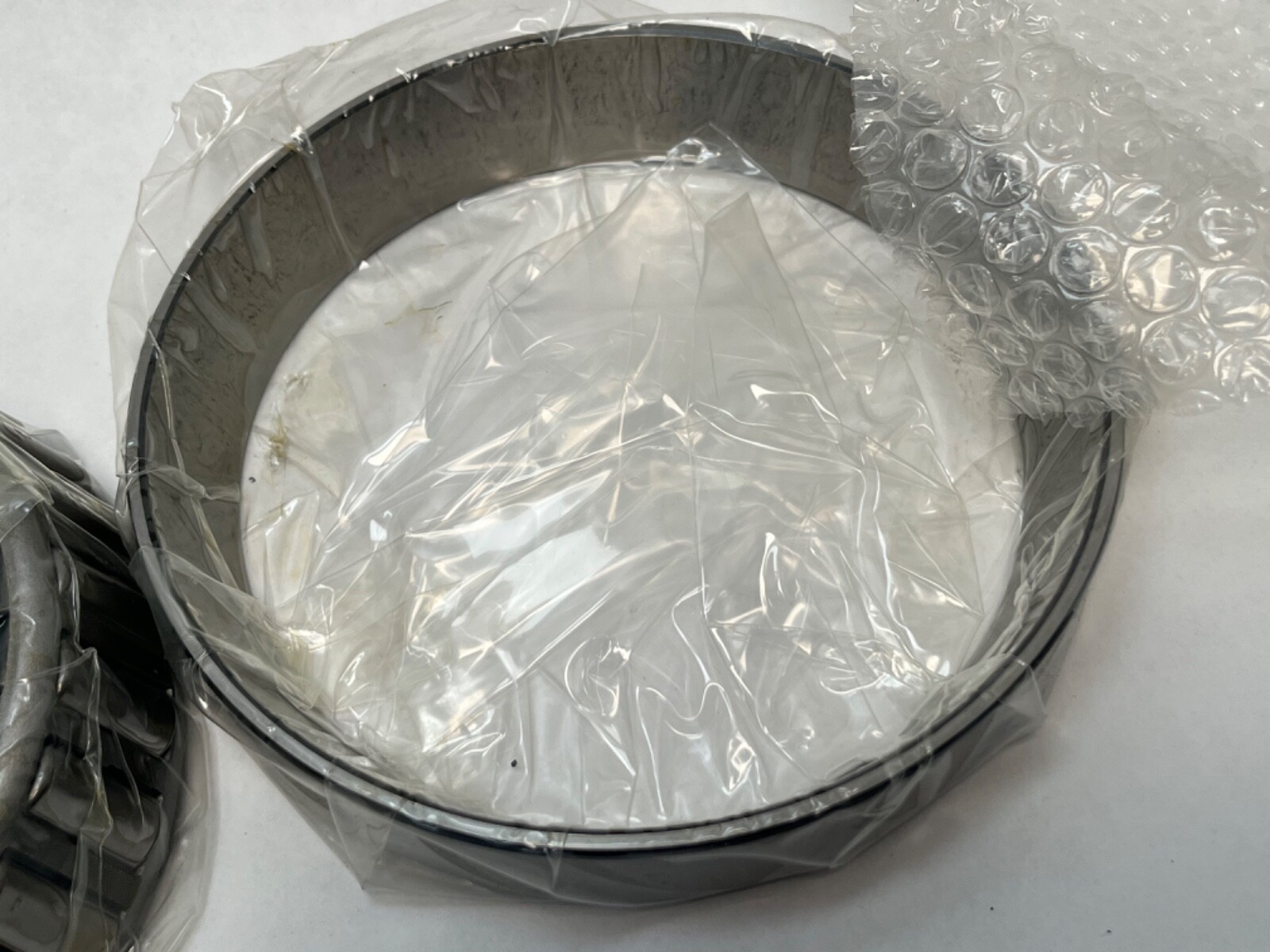

One complete bearing, 1 Pc: cone with rollers and cage, plus the matching cup.
The cone and cup are separable and mount from opposite sides of the housing. Axial clearance or preload is set at assembly by drawing the two halves together, and a tapered roller runs against an opposing bearing that takes thrust the other way. Oil lubrication suits the P5 class duty.
SKF 32022 X/P5 and FAG 32022-X-P5 are the same 110 x 170 x 38 mm complete tapered roller bearing in the same class. NSK HR32024XJP5 is a related size on a 120 mm bore with its own load ratings. Searchable forms: HR32022XJP5, HR 32022XJ P5, HR-32022-XJ-P5, 32022X, 32022XJ.
