Two-row tapered roller bearing assembly, 3-3/8 in bore, 5-3/8 in OD, with a one-piece double cup. Two 497 cones, one 493DC double cup and an X3S-497 spacer.
List Price
$210.04
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Timken |
|---|---|
| MPN | 497-90293 |
| Model | 497 / 493-DC / X3S-497 |
| Bearing Type | Tapered Roller Bearing Assembly |
| ID | 3.3750 in (85.725 mm) |
| OD | 5.3750 in (136.525 mm) |
| Mpn Variants | 497-90293; 49790293; 497/493DC/X3S-497; 493DC; X3S-497 |
|---|---|
| Rolling Elements | Tapered Roller |
| Number Of Rows | 2 |
| Cup Part Number | 493DC |
| Cone Part Number | 497 |

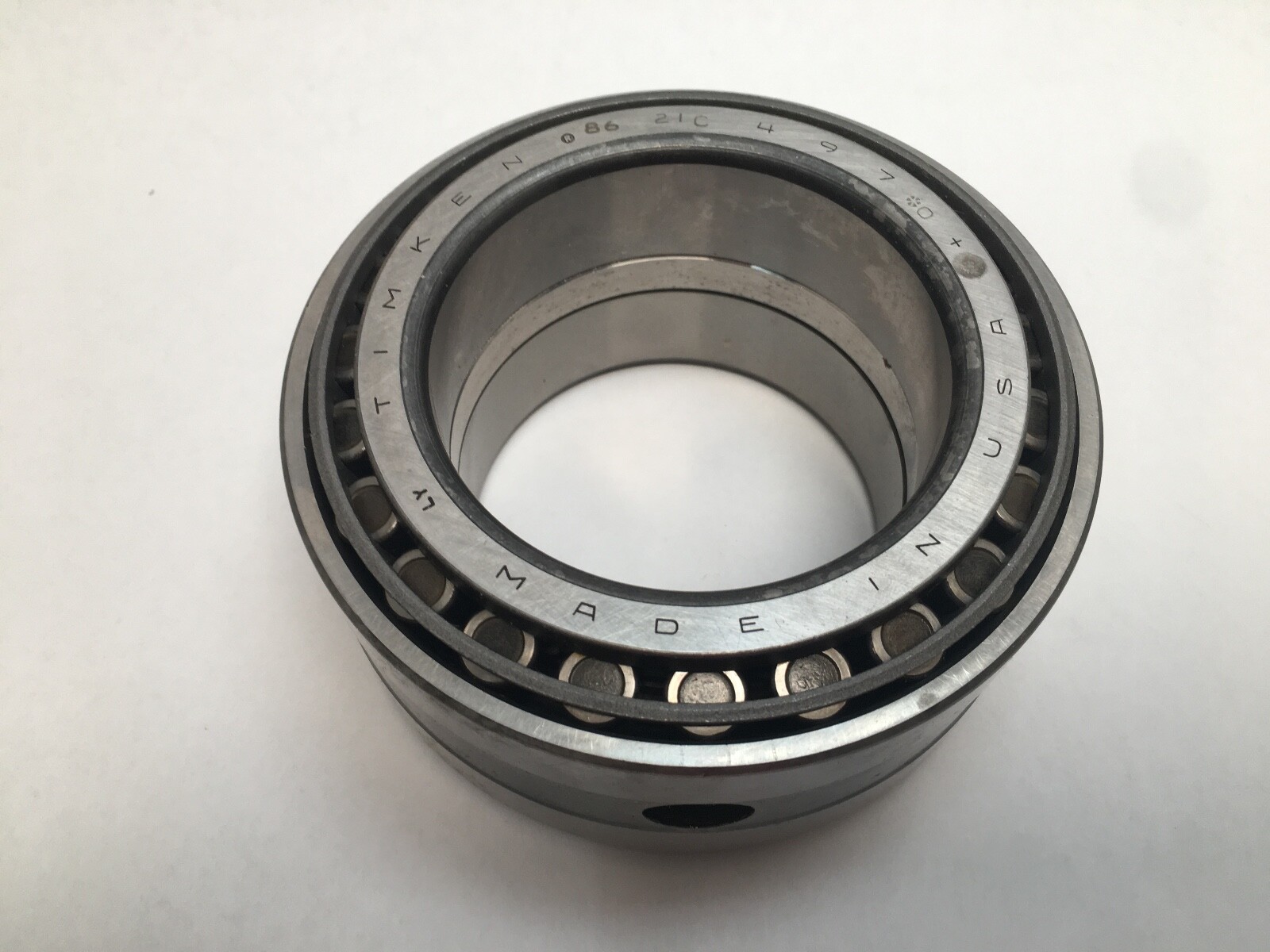

Timken 497-90293 is a two-row tapered roller bearing assembly with a 3-3/8 in bore and a 5-3/8 in outside diameter. It is built around a one-piece double cup that takes two single cones, with a cone spacer between them.
497-90293 — Timken’s assembly number for the complete two-row set.

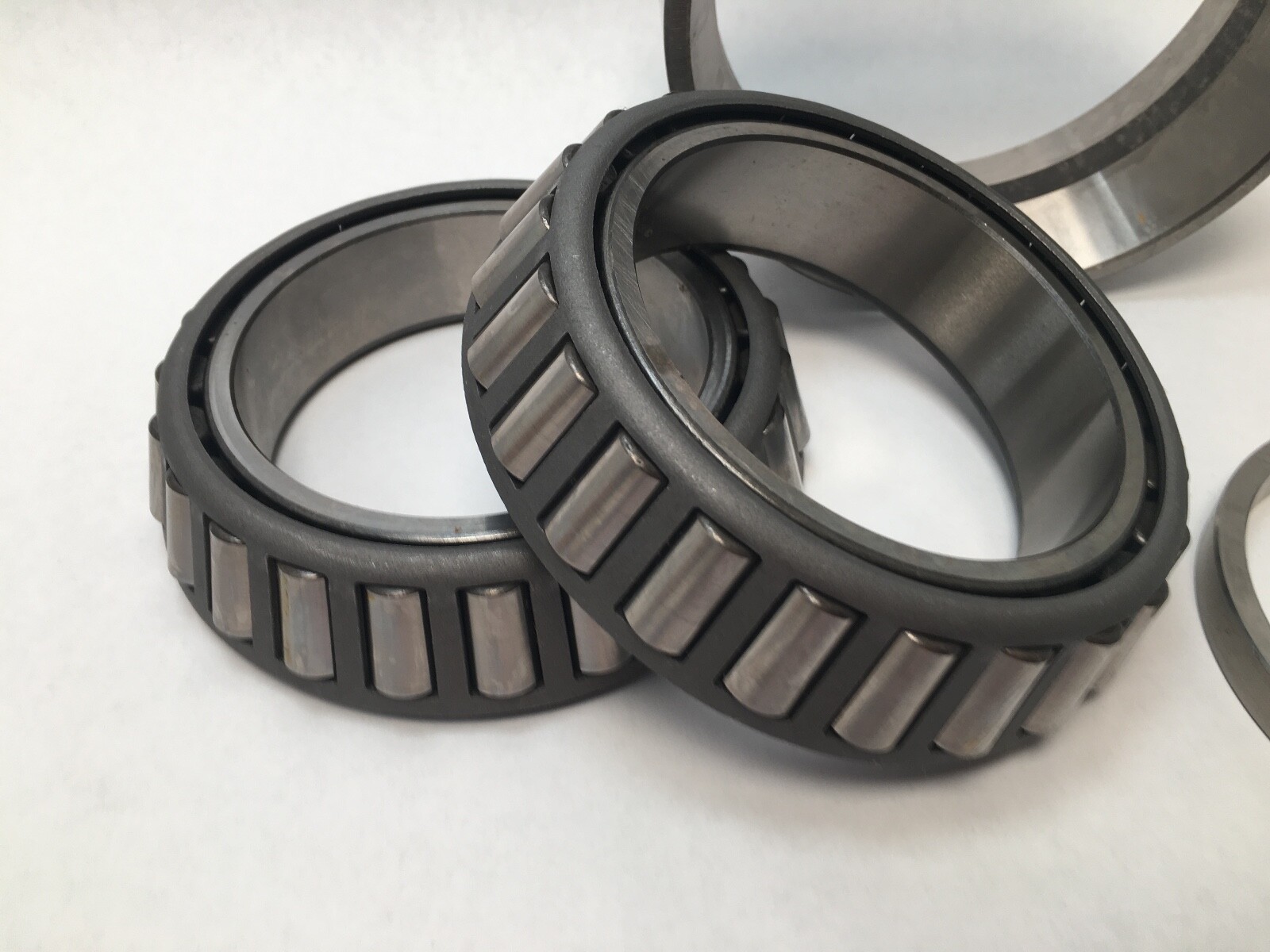

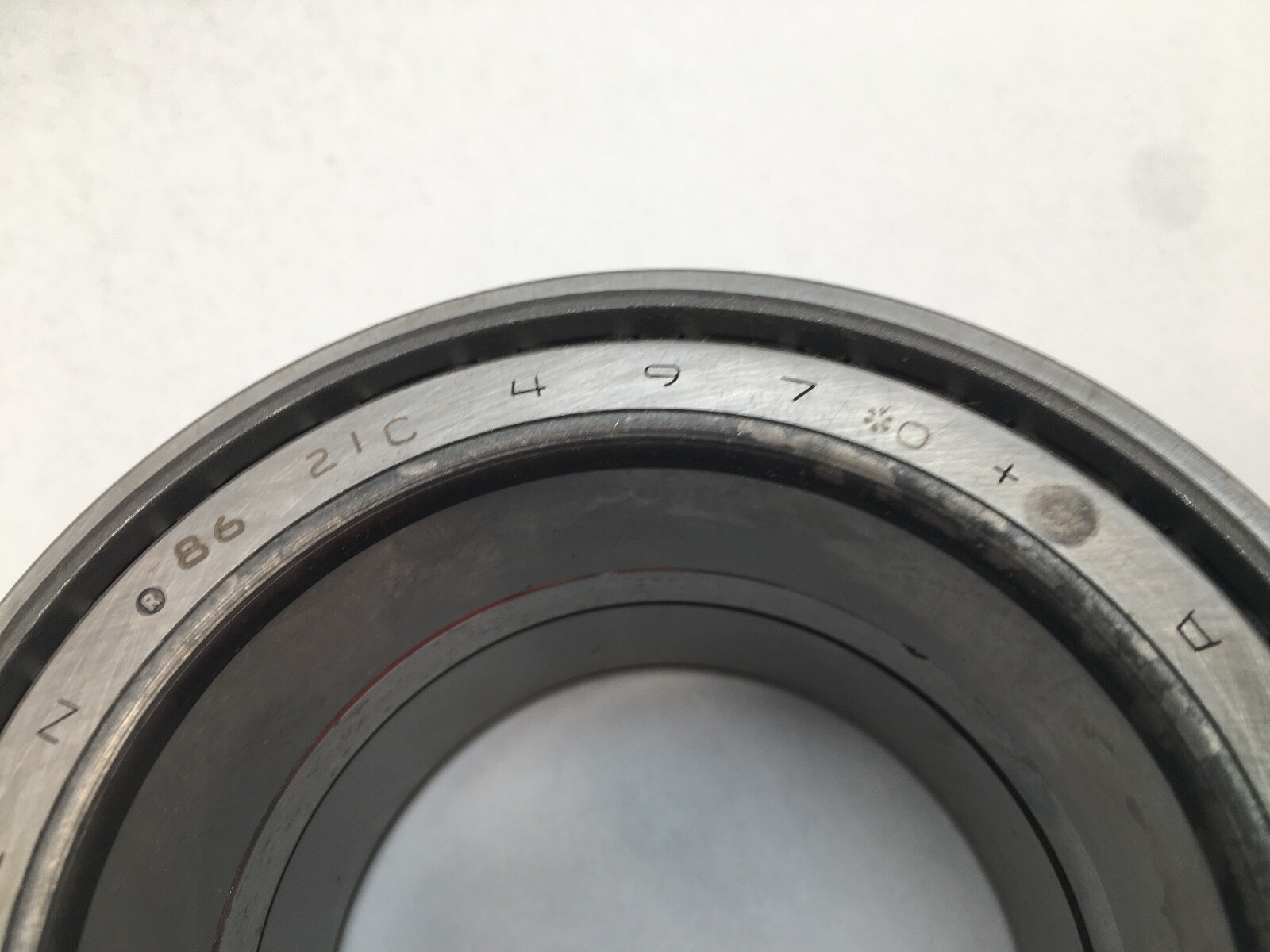

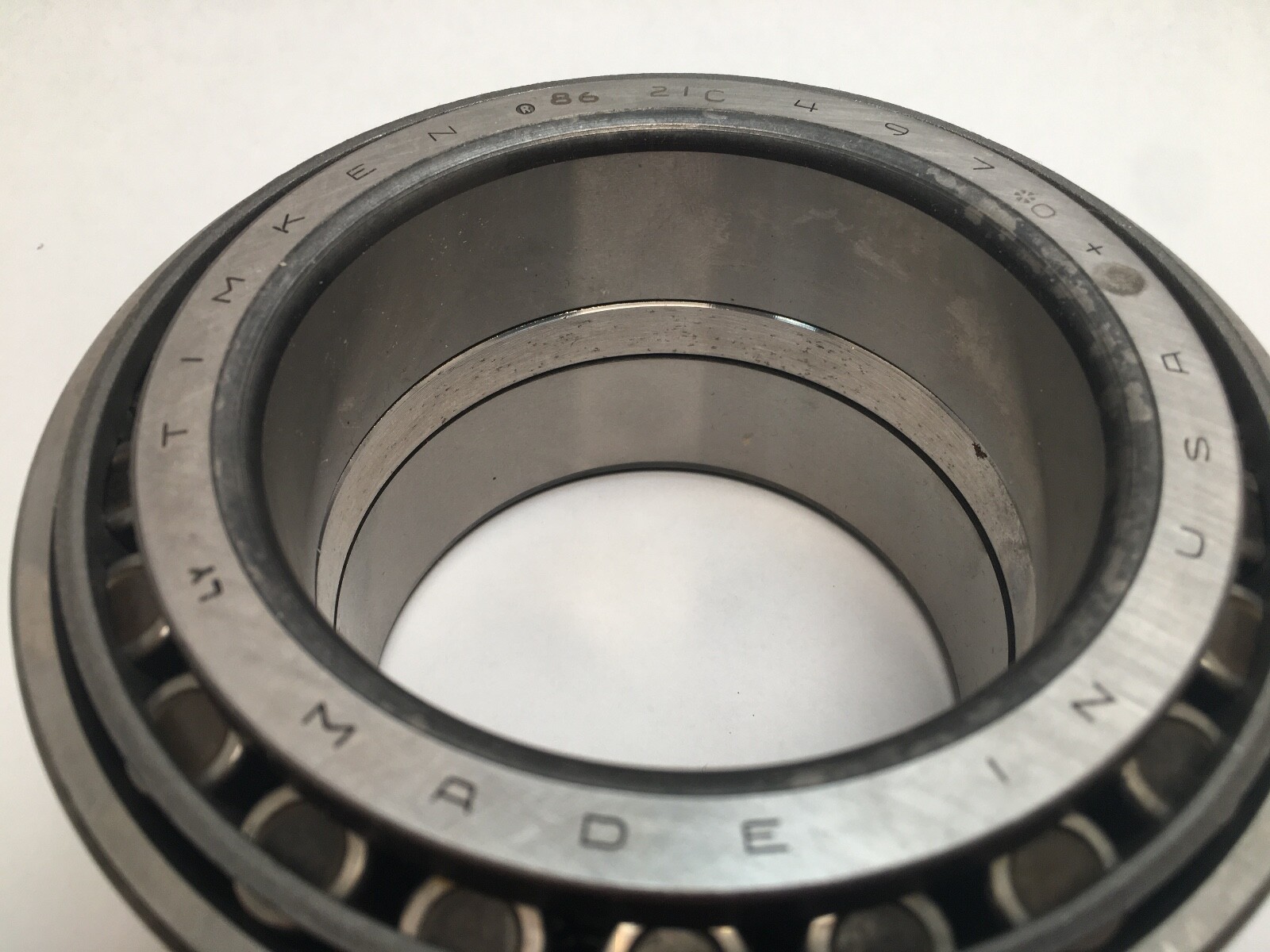

497 — the cone: inner ring, roller set and cage, 3-3/8 in bore. Two are in the set.

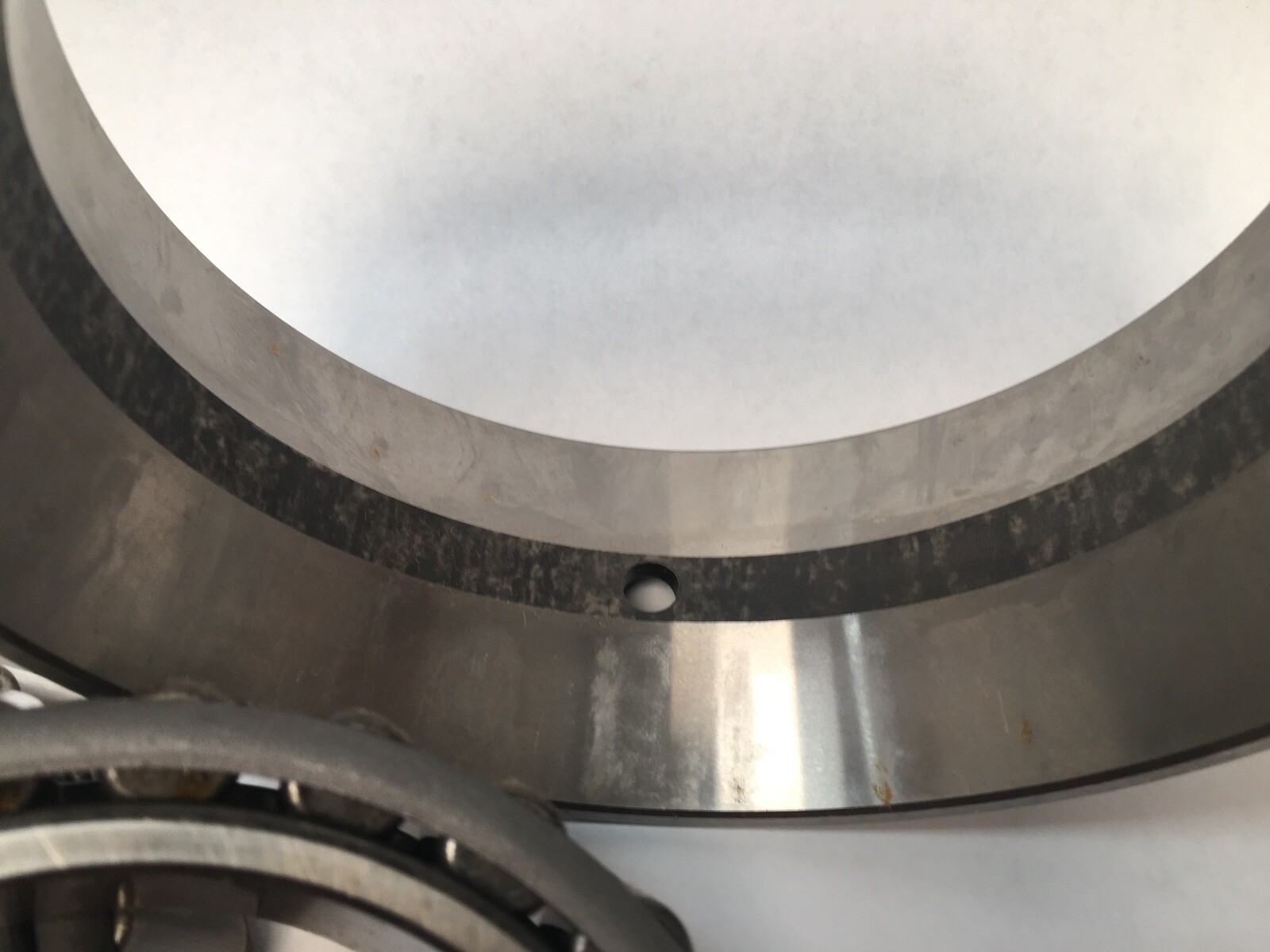

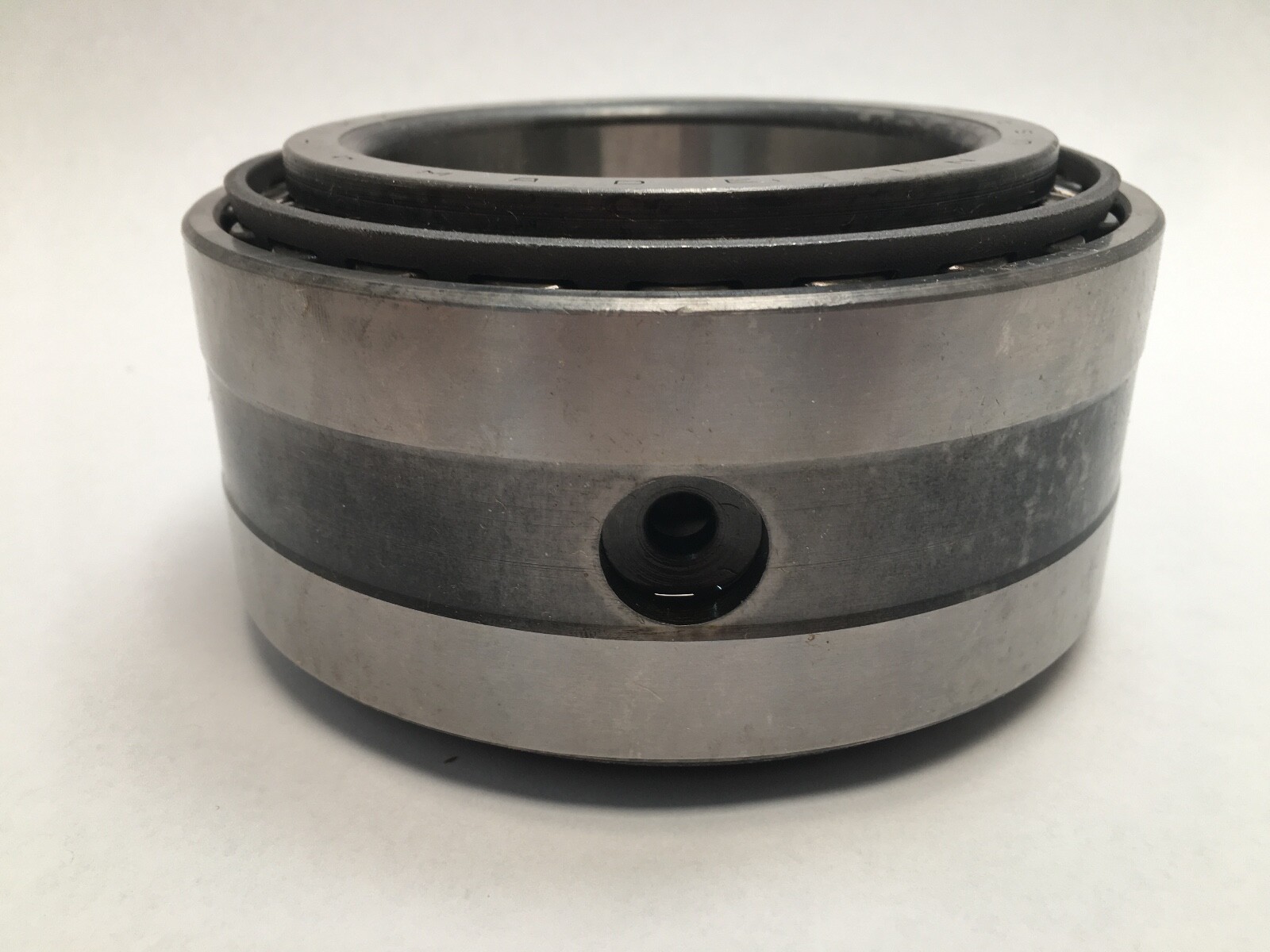

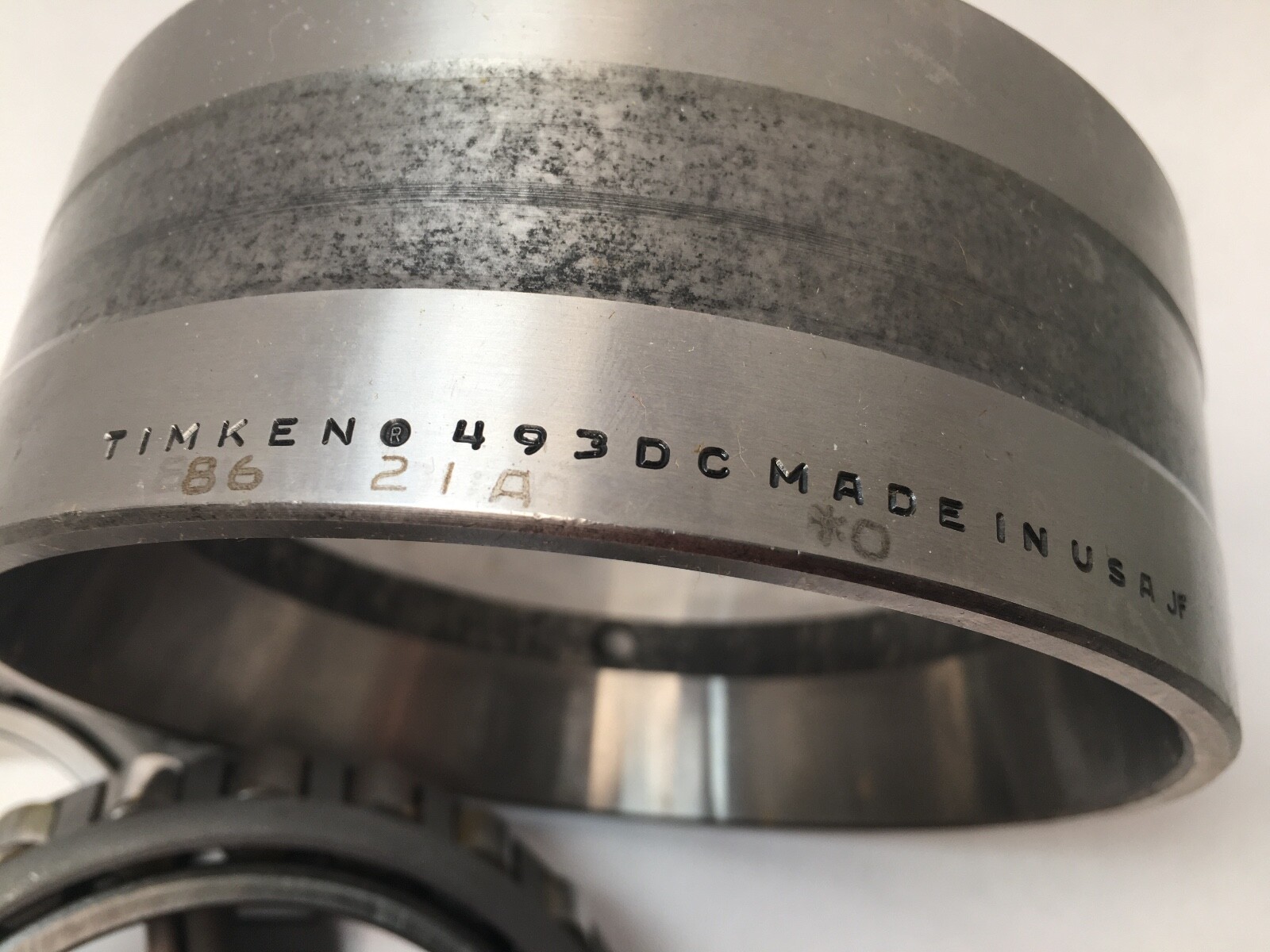

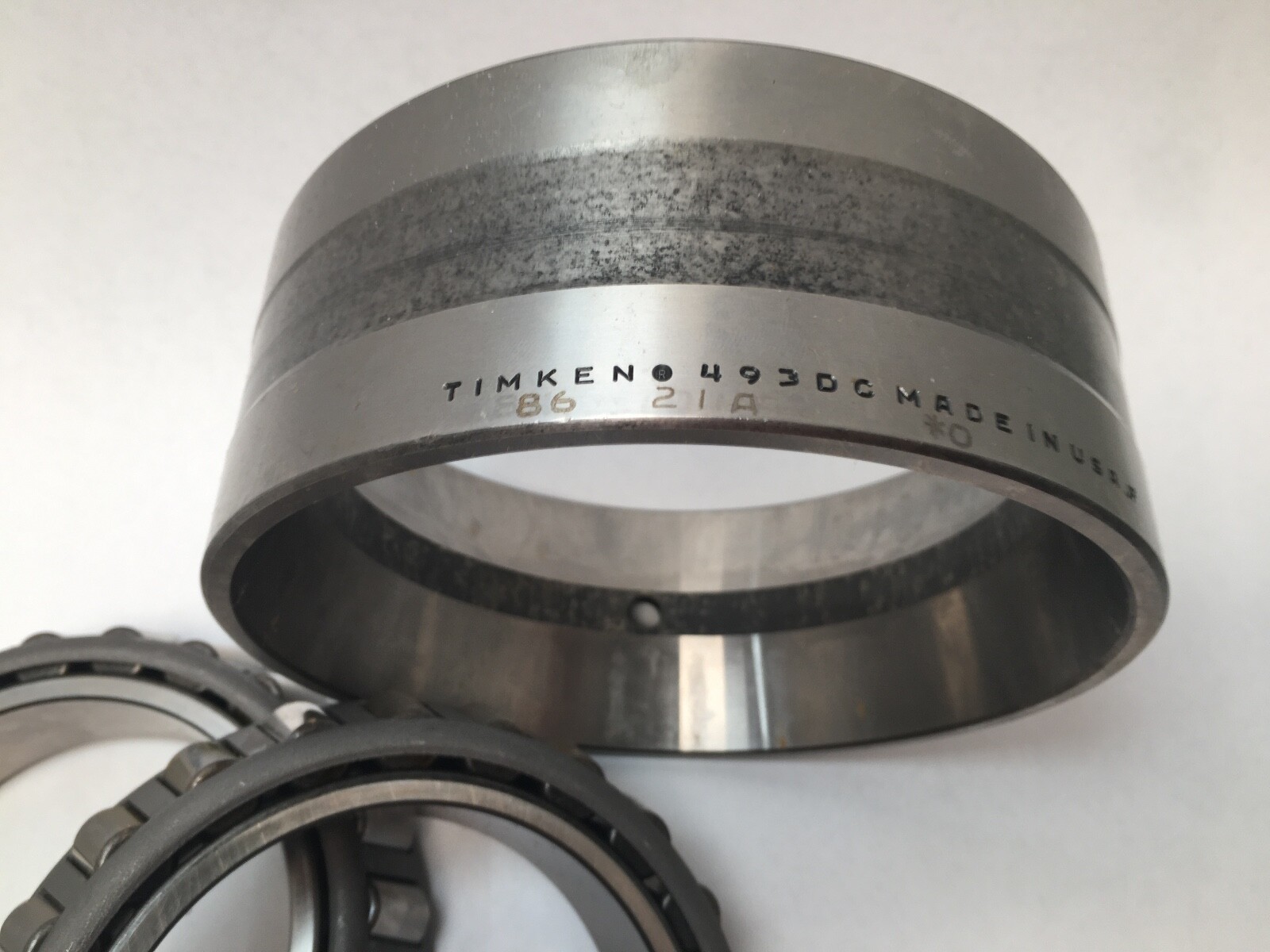

493DC — double cup. One outer ring carrying both raceways, 5-3/8 in OD, taking two 497 cones.

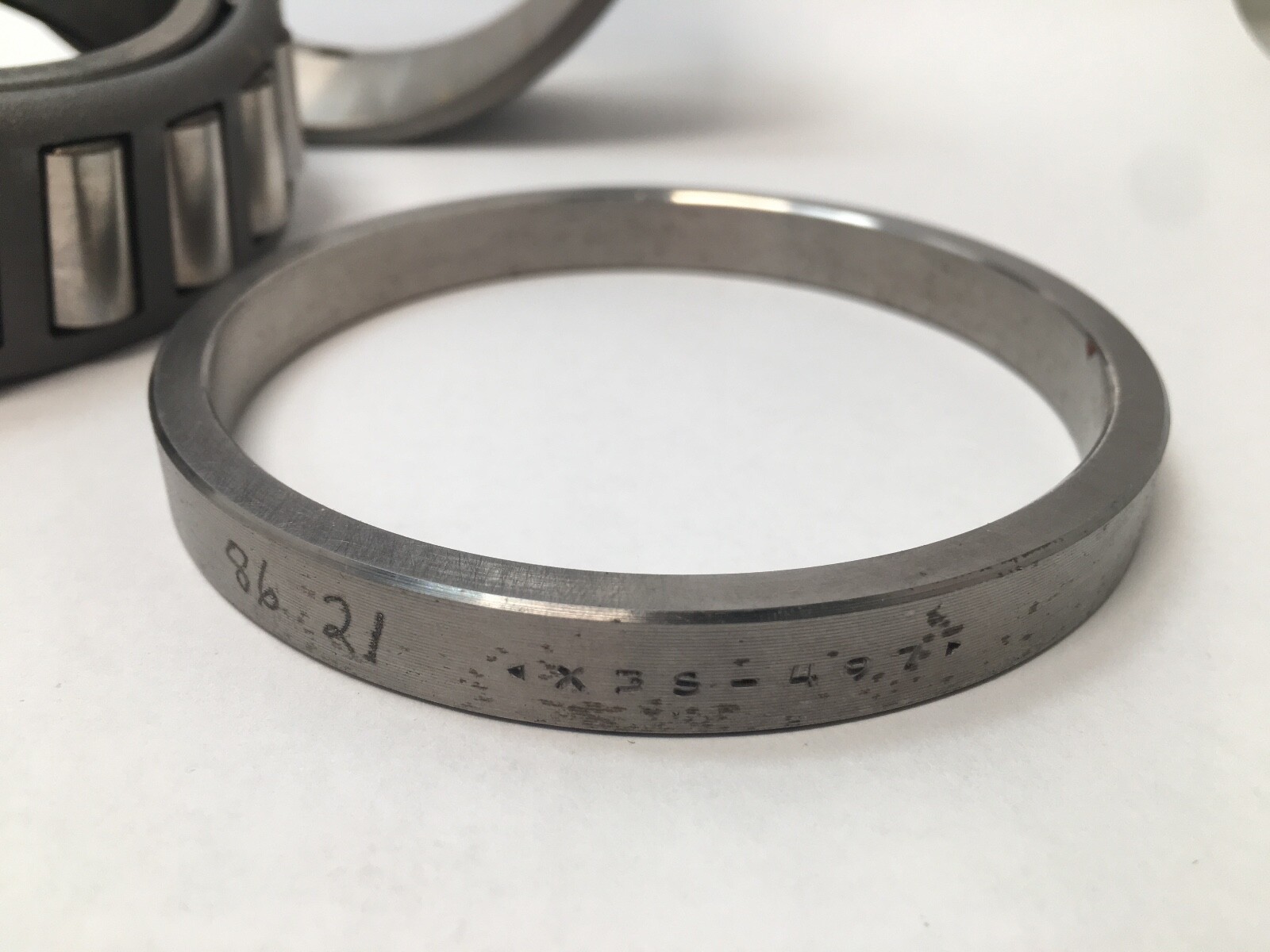

X3S-497 — cone spacer sized for the 497 cone pair.
Bore Diameter: 3.3750 in (85.725 mm). Outside Diameter: 5.3750 in (136.525 mm). Rolling Elements: Tapered Roller. Number Of Rows: 2. Unit Quantity: 4 Pcs. Cone Part Number: 497. Cup Part Number: 493DC. The two opposed rows carry combined radial load and thrust in both directions from a single bearing position.

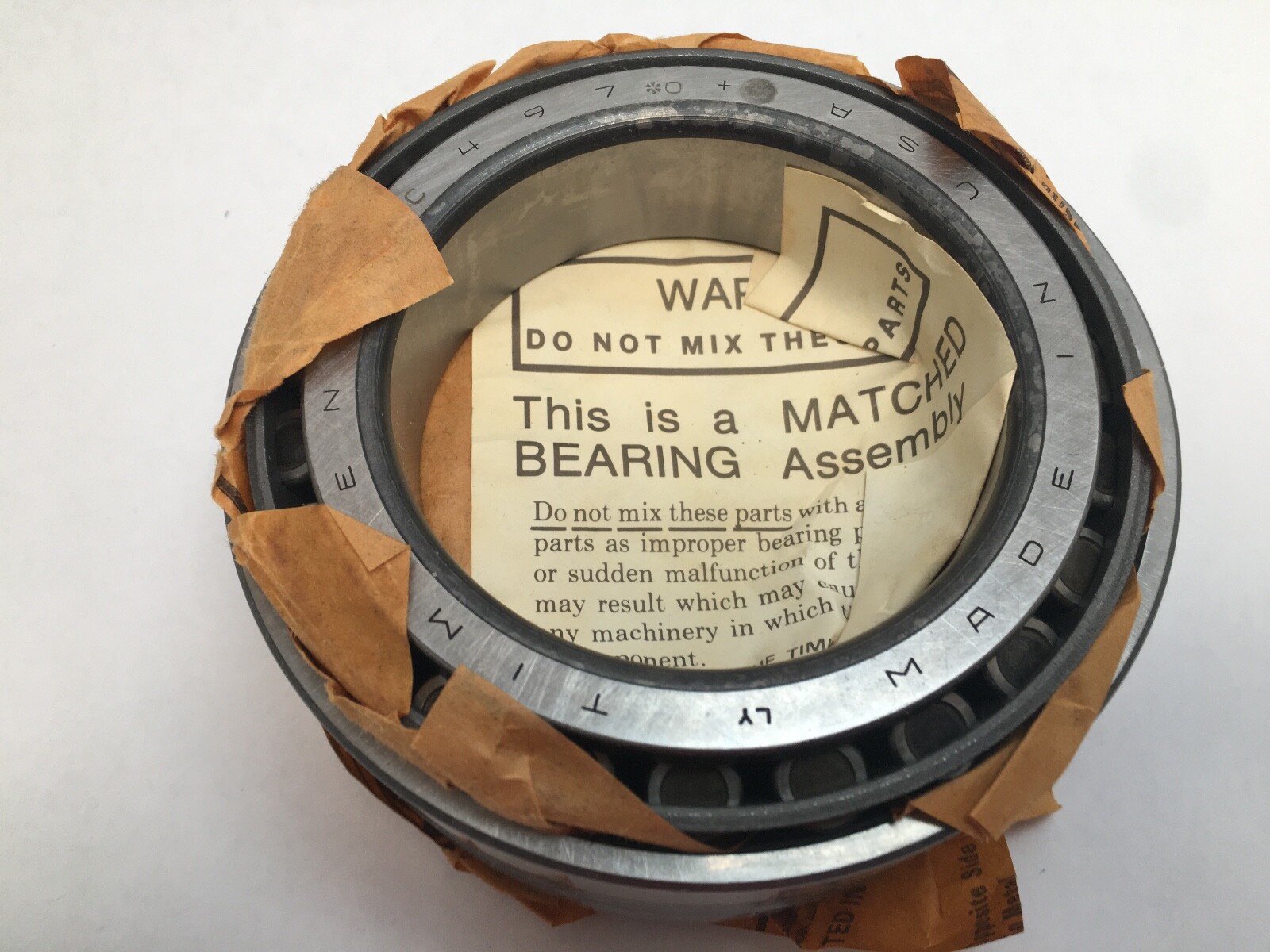

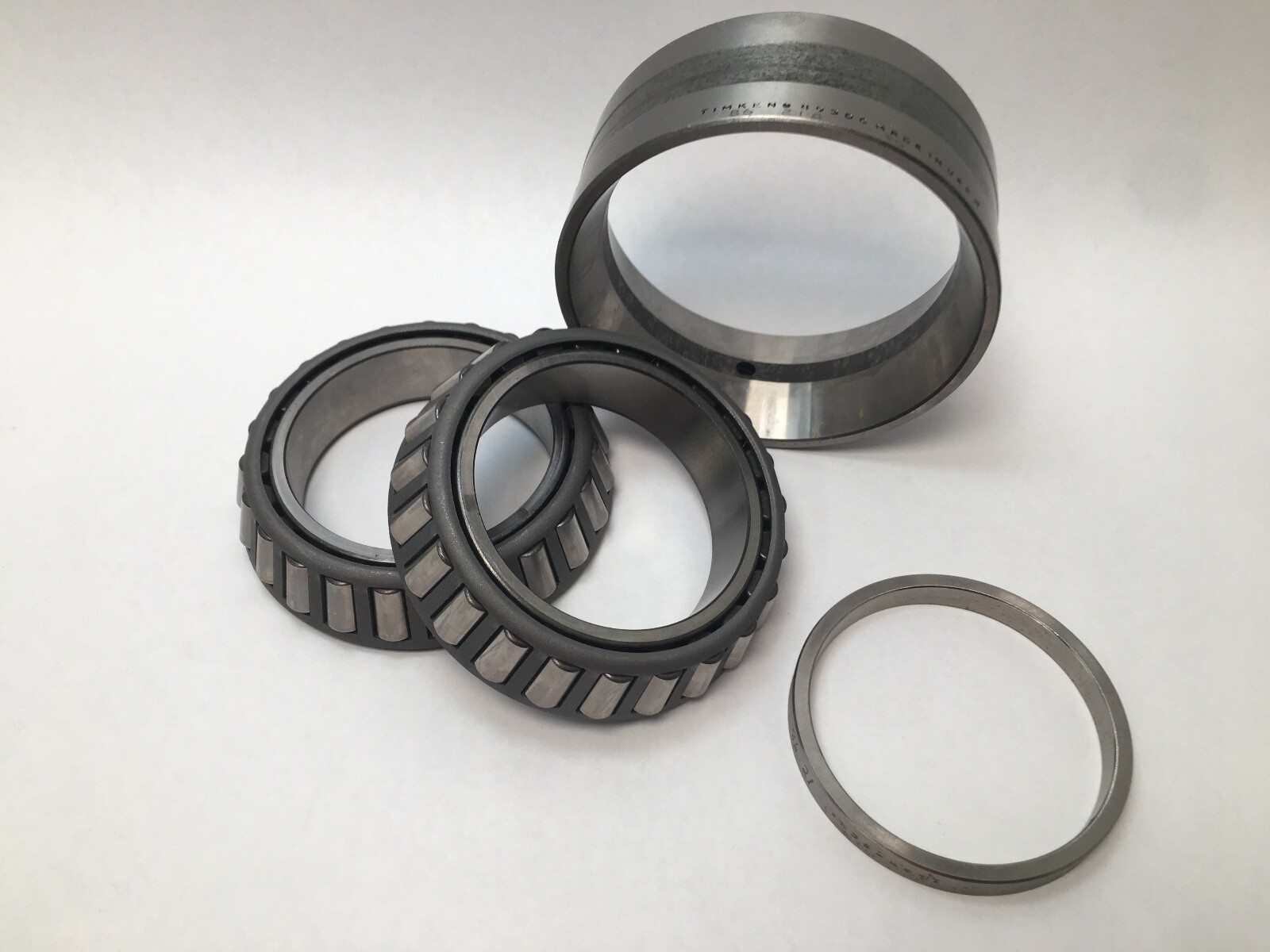

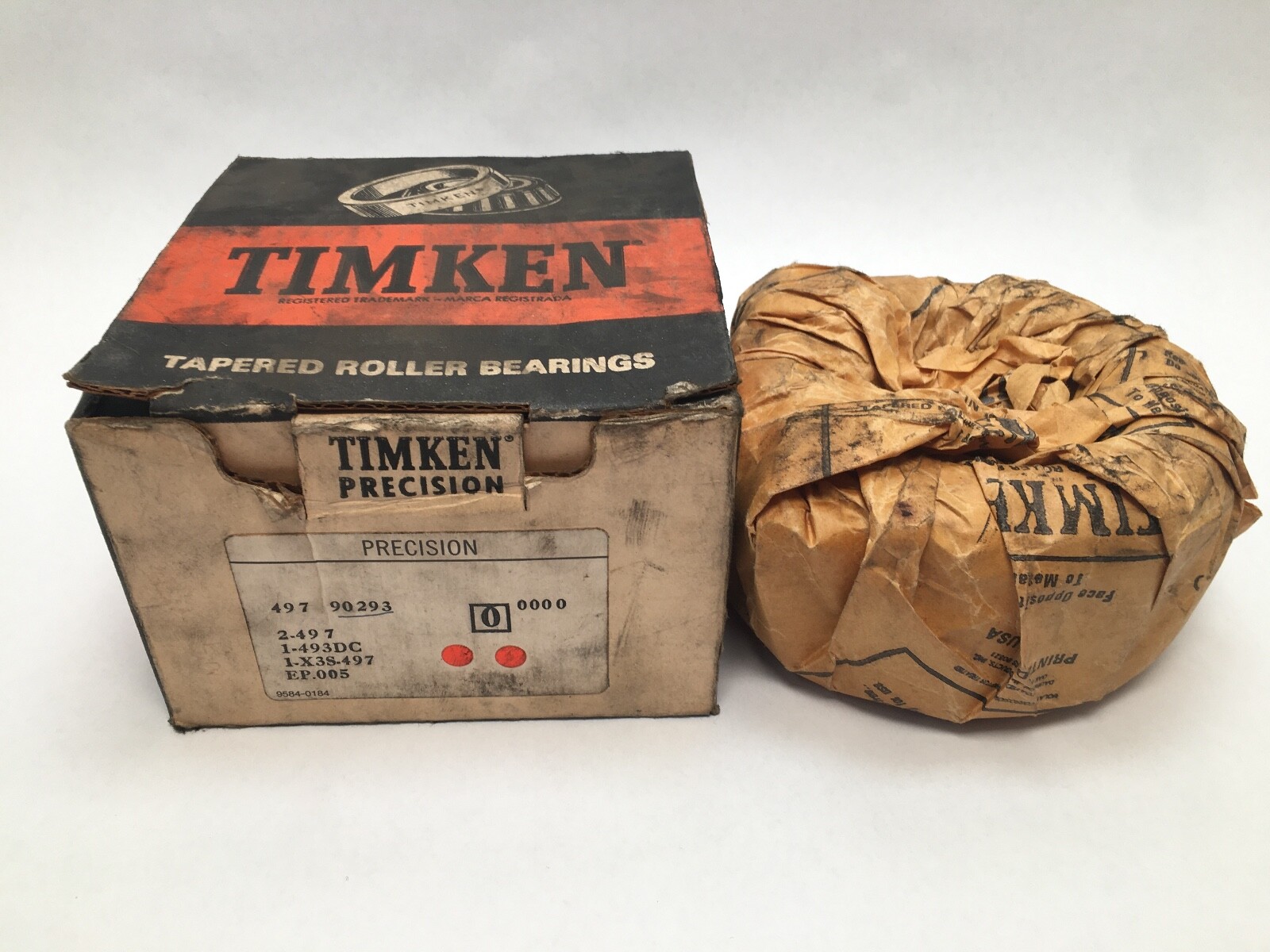

Set contents: two 497 cones, one 493DC double cup and one X3S-497 cone spacer, new old stock. The double cup carries both raceways in one outer ring.
497 and 493 are industry-standard inch tapered roller numbers. The 497 cone mates with the 493 single cup and the 493D double cup; this set is built on the 493DC double cup.
Bore Diameter: 3.3750 in (85.725 mm). Outside Diameter: 5.3750 in (136.525 mm).
Two 497 cones, one 493DC double cup and one X3S-497 cone spacer, 4 pieces in total.
The 497 cone mates with the 493 single cup and the 493D double cup. This set uses the 493DC double cup.
