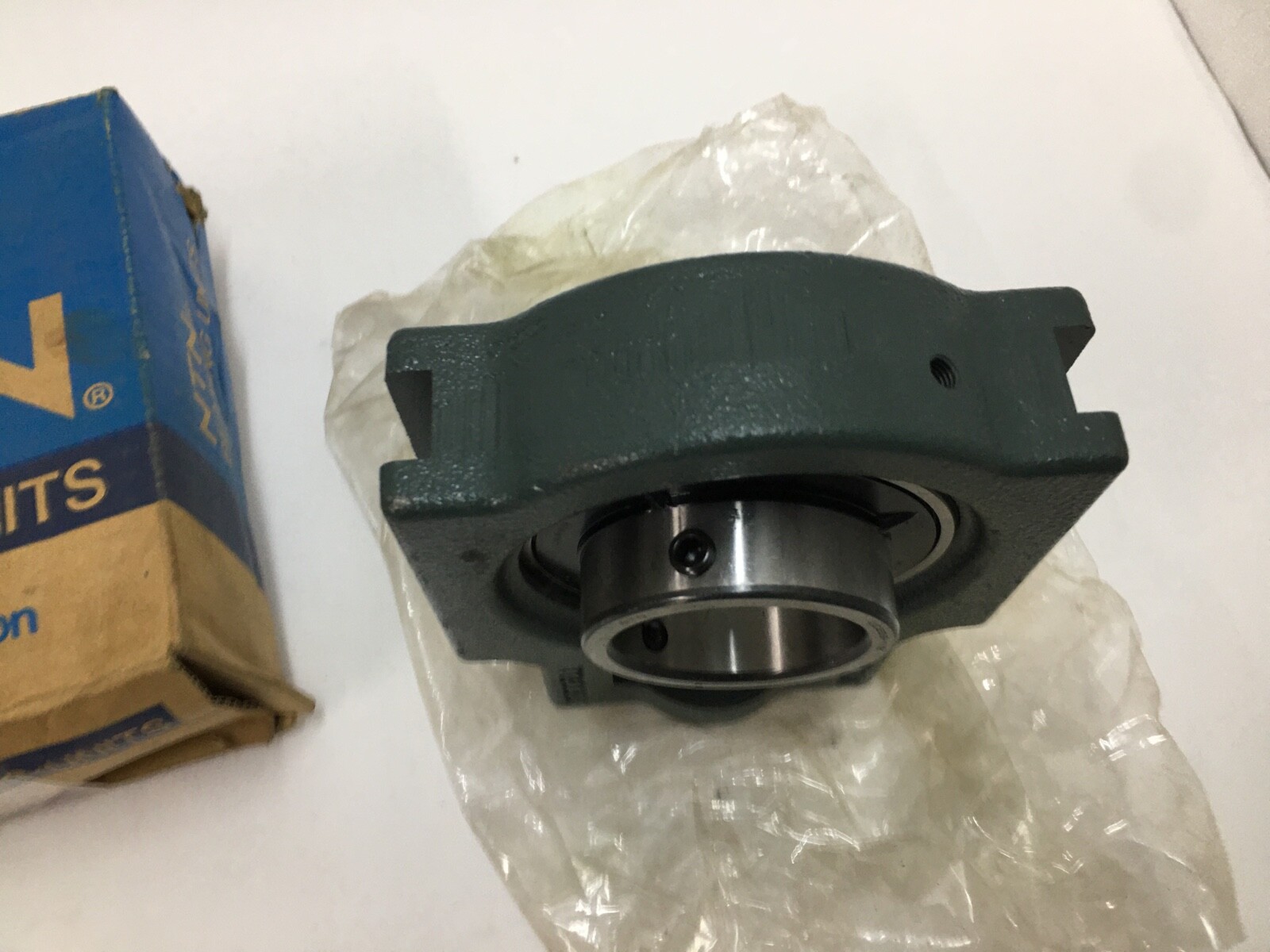

NTN UCT209-112D1 take-up ball bearing unit – image 1

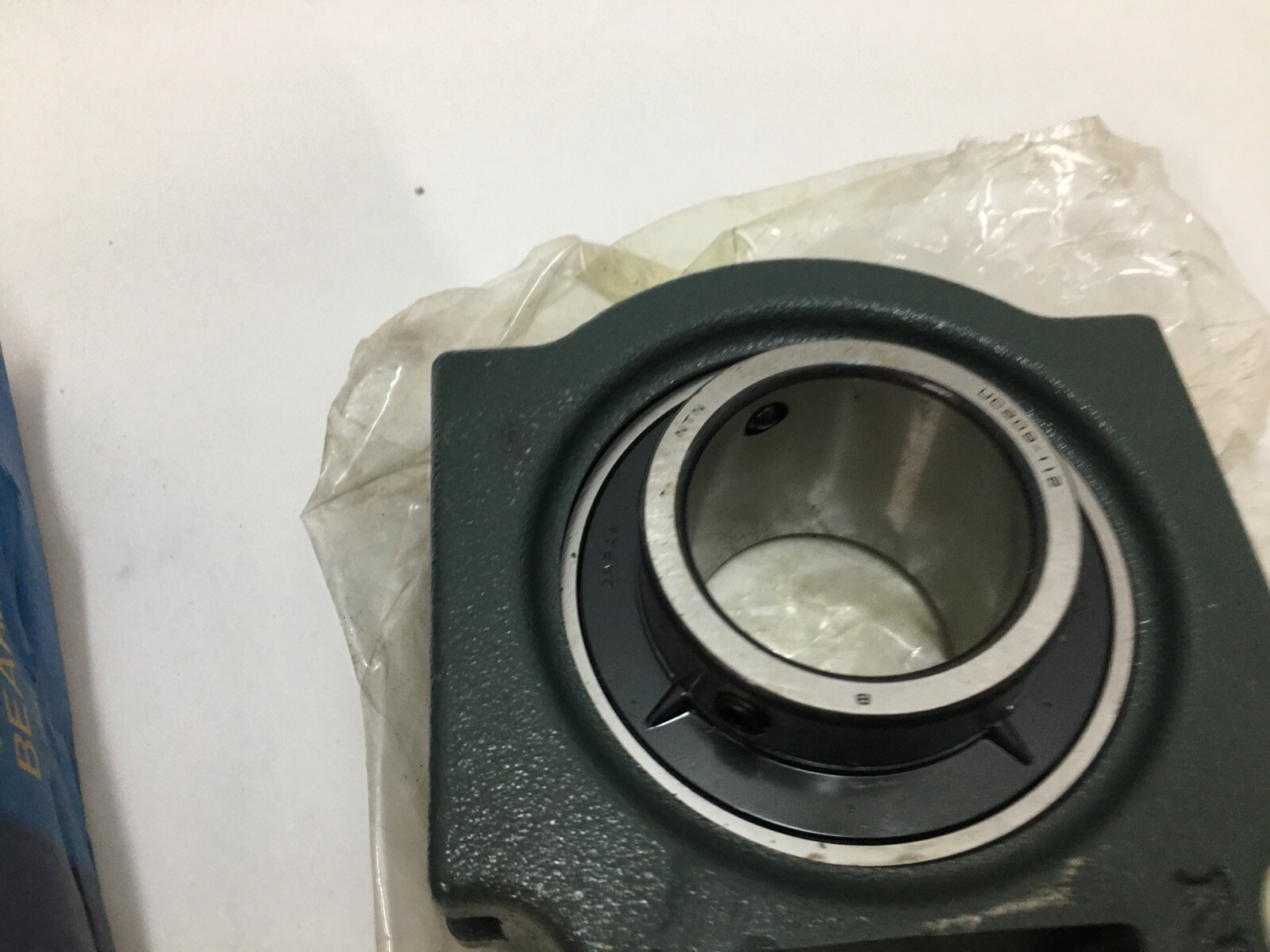

NTN UCT209-112D1 take-up ball bearing unit – image 2

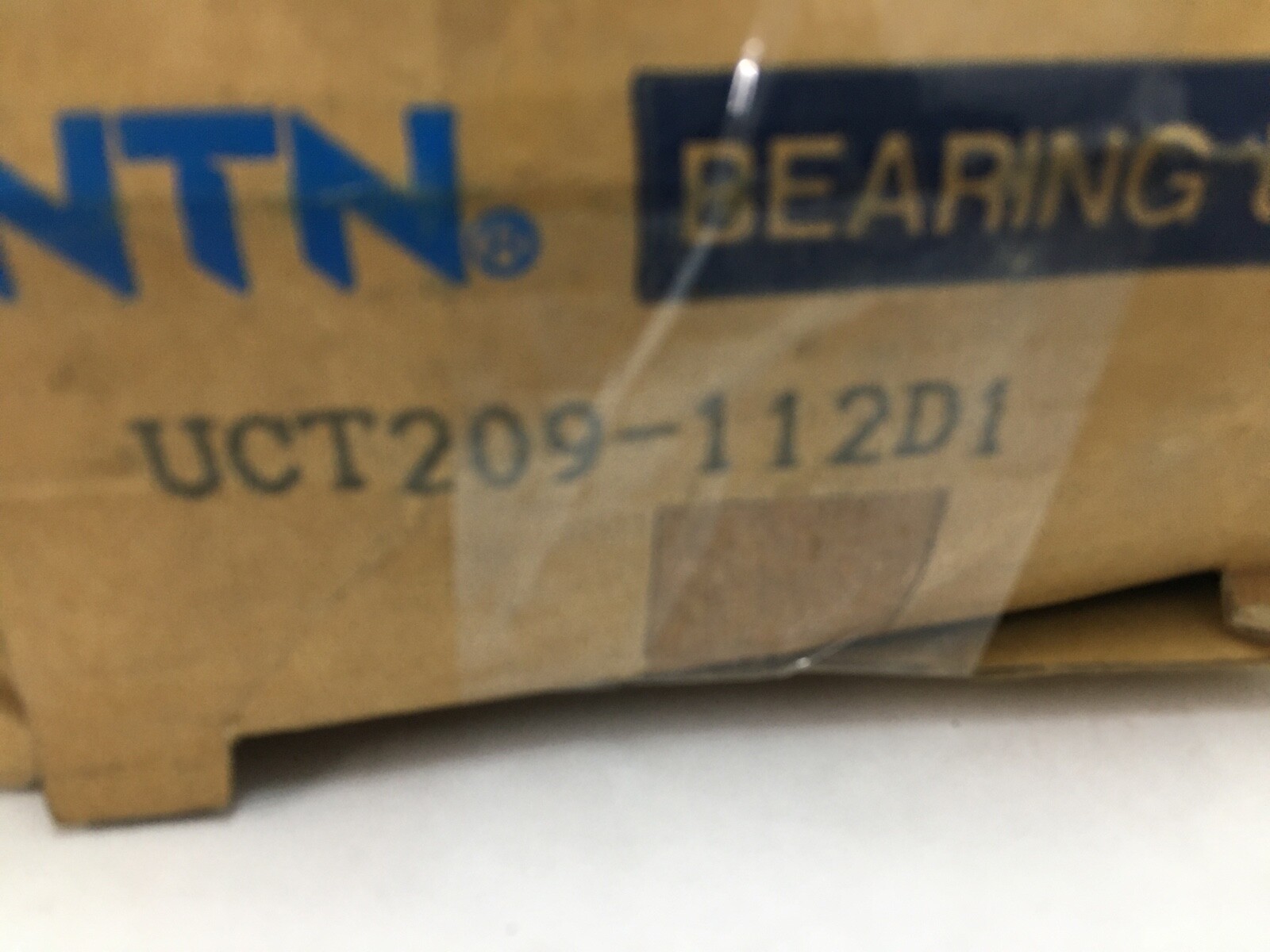

NTN UCT209-112D1 take-up ball bearing unit – image 3

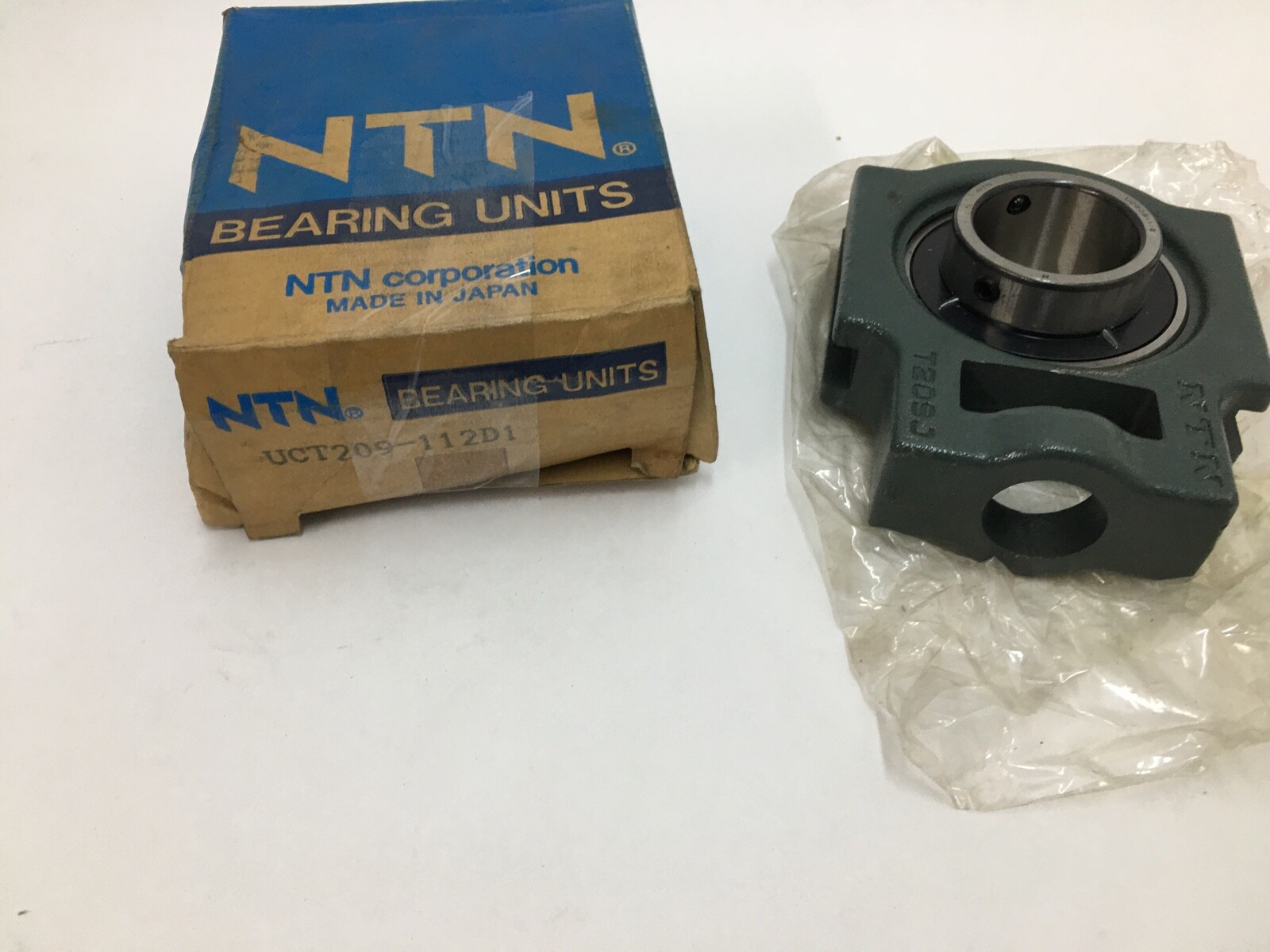

NTN UCT209-112D1 take-up ball bearing unit – image 4

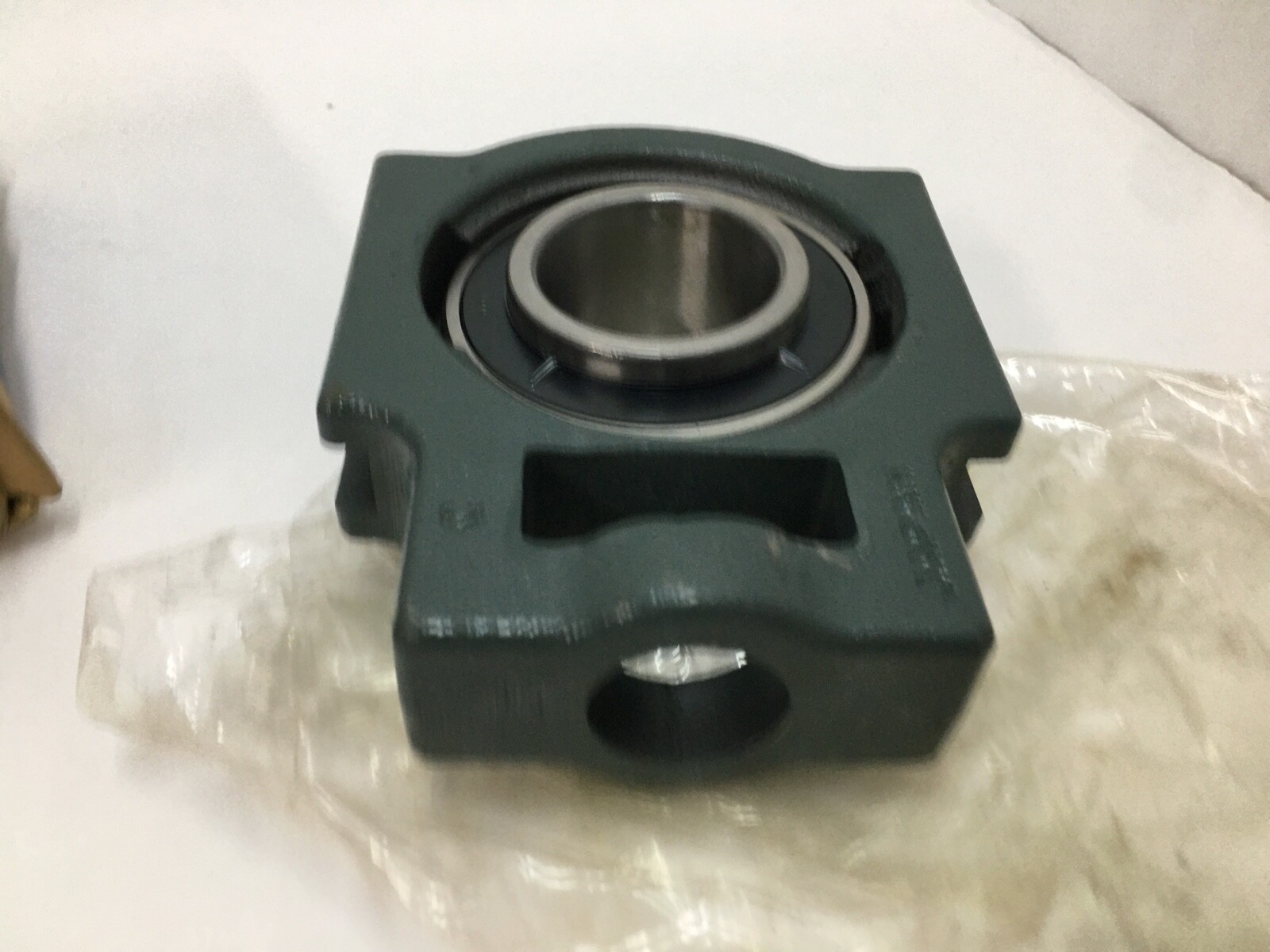

NTN UCT209-112D1 take-up ball bearing unit – image 5

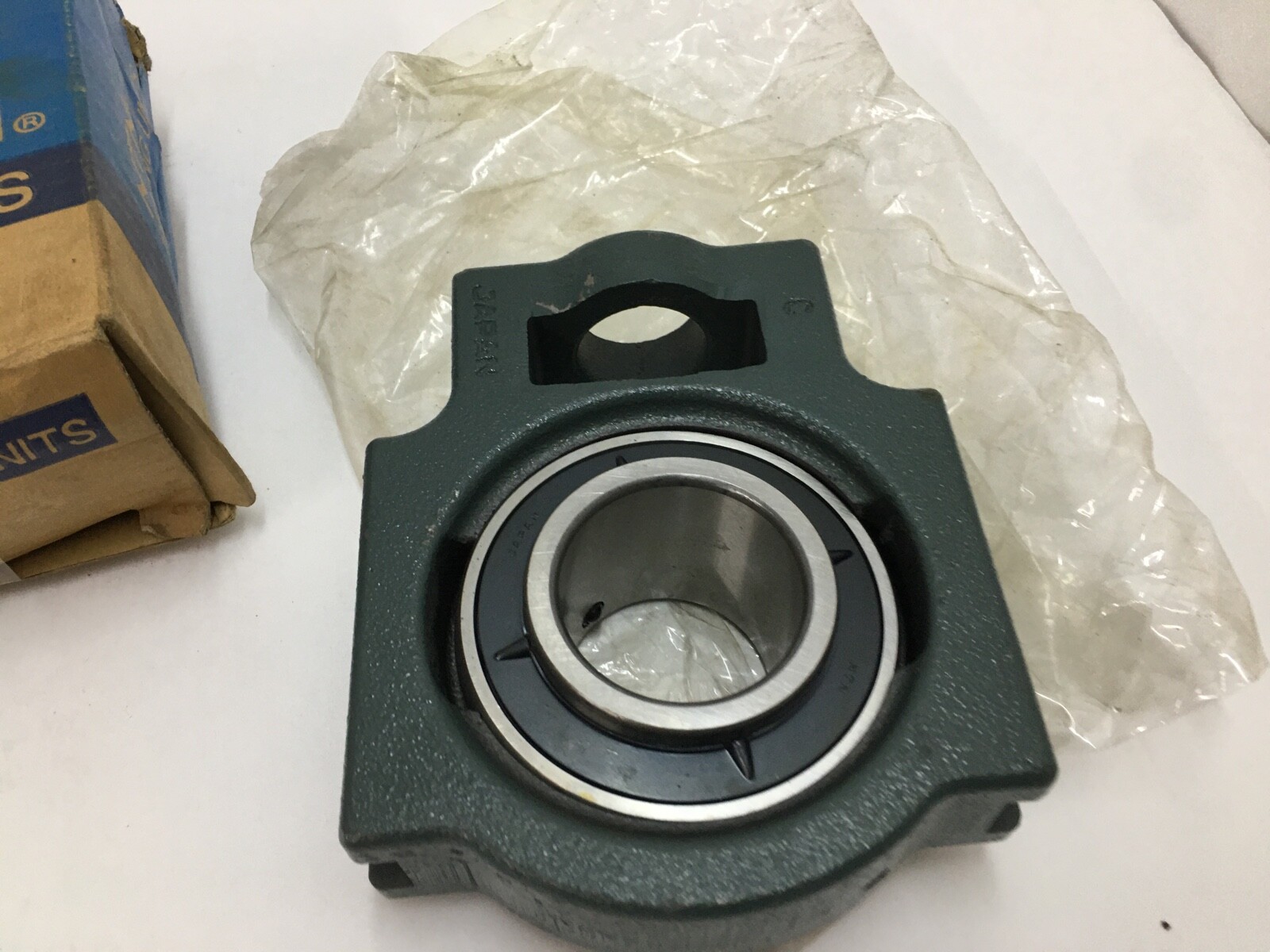

NTN UCT209-112D1 take-up ball bearing unit – image 6

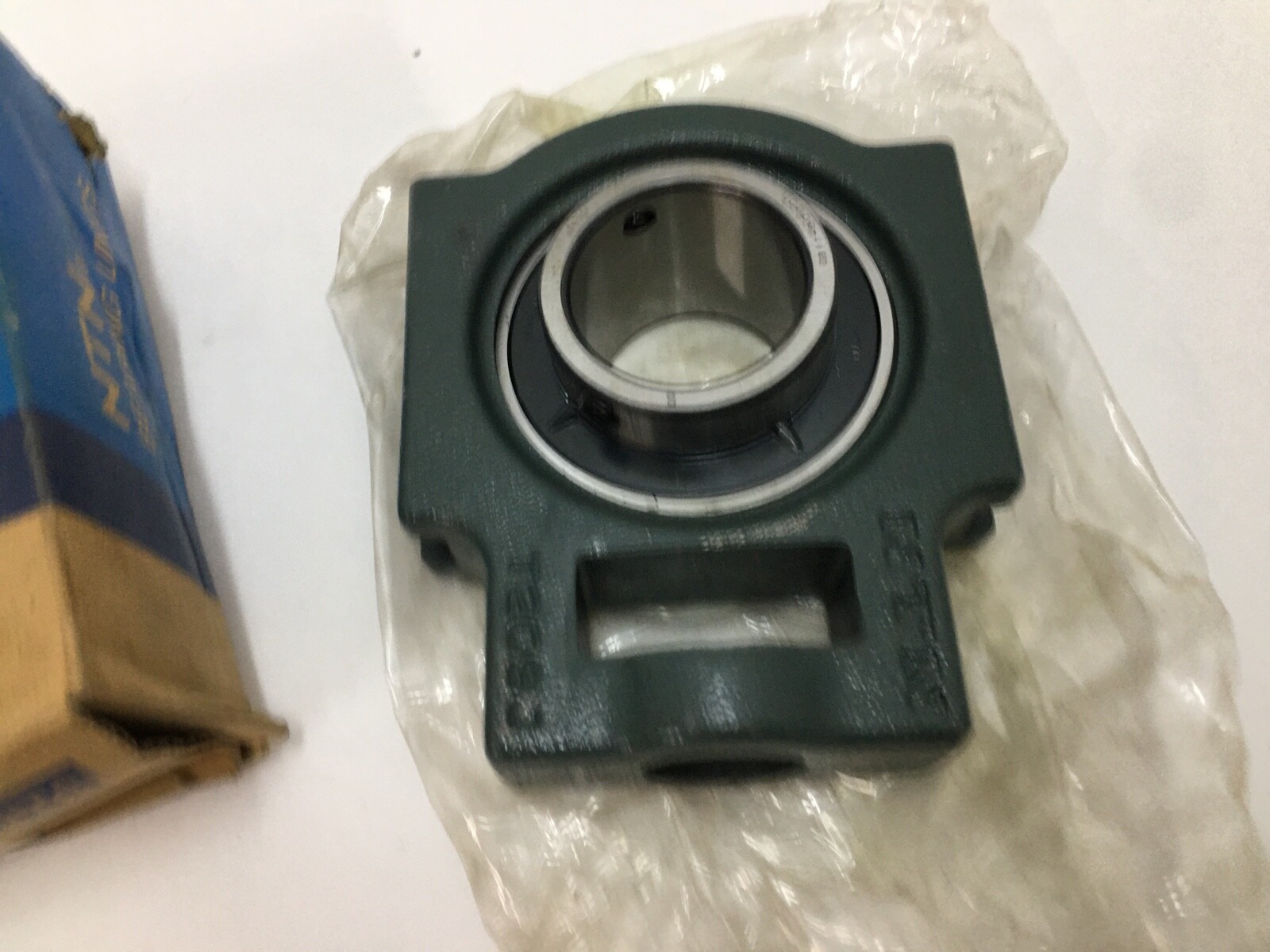

NTN UCT209-112D1 take-up ball bearing unit – image 7

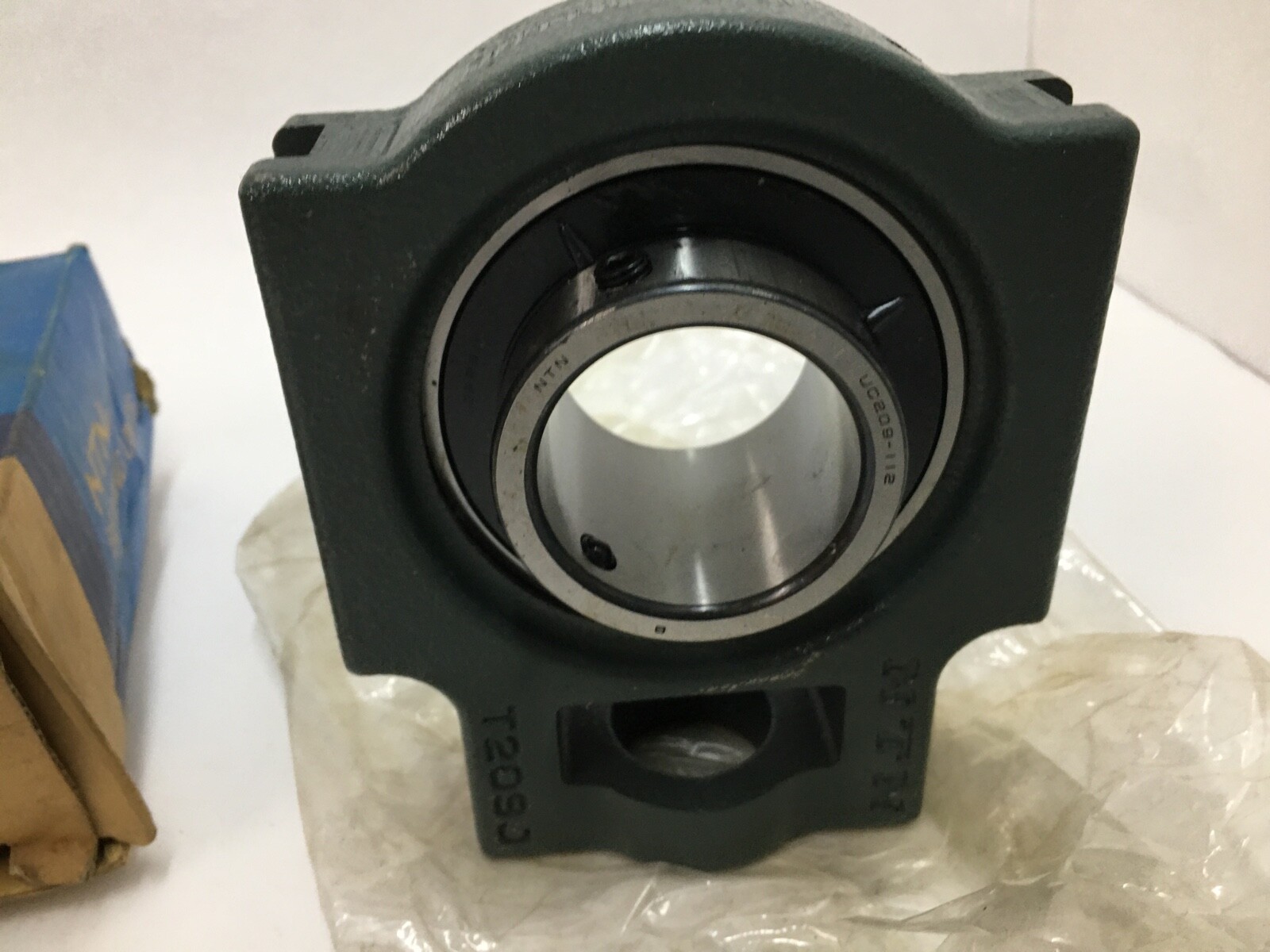

NTN UCT209-112D1 take-up ball bearing unit – image 8

13k+ reviews

See our eBay reviews

NTNUCT209-112D1Take-Up Unit – 1-3/4 in Bore, Cast Iron Housing, Set-Screw Locking, Non-Expansion

Name: NTN UCT209-112D1 Take-Up Unit – 1-3/4 in Bore, Cast Iron Housing, Set-Screw Locking, Non-Expansion
Brand: NTN
SKU: BF3#IQNMUY
Price: 65.68 USD
Availability: InStock

Condition: New

Availability:

1 in stock

Categories: Bearings, Take-Up Unit Bearing

Cast iron take-up unit, 1-3/4 in bore, set-screw locking, nitrile contact seals, spherical self-aligning insert, non-expansion, relubricatable.

Same day shipment

List Price

$65.68

1 in stock

Prefer eBay? Buy this item on our store (opens in a new tab)

Need Help?
Click Here To Contact Support

Specifications

Key Specifications

MFR / Brand	NTN
MPN	UCT209-112D1
GTIN	4547359229097
Model	UCT 209-112 D1
ID	1.7500 in (44.450 mm)
OD	85 mm (3.3460 in)

Technical Specifications

Series	UCT
Type	Take-Up Unit Bearing
Material	Cast Iron Housing, Chrome Steel Insert
Base Number	UCT209
Industry Terms	Take-up unit, take-up bearing, tension bearing, wide slot take-up
Application Types	Belt conveyors, chain drives, bucket elevators
Bore Shaft Size	1-3/4 in (44.450 mm)
Housing Style	Cast Iron Take-Up Unit
Locking Method	Two Set Screws
Replacement Insert	UC209-112D1
Mpn Variants	UCT209-112D1, UCT 209-112 D1, UC209112D1, UC209-112D1, T209D1
Min Temp	-40 °C
Dynamic Load Rating	32,500 N
Static Load Rating	20,400 N
Rolling Elements	Balls, Through-Hardened Steel
Max Temp	120 °C
Bearing Type	Mounted Ball Bearing Take-Up Unit
Item Weight	2.400 kg (5.292 lb)
Cage Material	Pressed Steel
Number Of Rows	1
Bore Type	Straight
Limiting Speed	3,450 rpm grease
Internal Clearance	CN
Duty Type	Light Duty
Locking Device	Set Screw
Insert Outer Ring	Spherical
Harmonization Code	8483.20.40
Housing Material	Cast Iron
Expansion Type	Non-Expansion
Part Number	UCT209-112D1

Cross-References

Cross Reference 1	Dodge WSTU-SC-112

Seller Part Number: BF3#IQNMUY

Product Description

What this part is:

NTN UCT209-112D1 mounted ball bearing take-up unit, 1 Pc, complete with insert. Cast iron wide-slot take-up housing T209D1 with UC209-112D1 insert, 1-3/4 in (44.450 mm) bore, two set screws in the extended inner ring.

Decoding the designation:

UCT — take-up unit: a UC insert with a set-screw locking collar in a cast iron take-up housing.

209 — insert size 209, 85 mm outside diameter.

-112 — inch bore, 1 and 12/16 in, which is 1-3/4 in (44.450 mm).

Specifications:

Housing Style: Cast Iron Take-Up Unit. Bore / Shaft Size: 1-3/4 in (44.450 mm). Bore Type: Cylindrical, straight. Locking Method: Two set screws. Insert Part Number: UC209-112D1. Housing Number: T209D1. Housing Material: Cast Iron. Outside Diameter: 85 mm (3.3460 in). Inner Ring Width: 49.200 mm (1.9370 in). Outer Ring Width: 22 mm (0.8660 in). Number Of Rows: 1. Rolling Elements: Balls, through-hardened steel. Cage Material: Pressed Steel. Internal Clearance: CN. Precision Rating: ISO Class 0 (ABEC 1 / P0). Seal Type: Contact. Seal Material: Nitrile Rubber. Insert Outer Ring: Spherical. Expansion Type: Non-expansion. Relubrication Feature: Outer ring relubricatable. Performance Class: Light duty. Dynamic Load Rating: 32,500 N (7,306 lbf). Static Load Rating: 20,400 N (4,586 lbf). Rotational Speed, Maximum: 3,450 rpm on grease. Operating Temperature Range: −40 to 120 °C (−40 to 250 °F). Item Weight: 2.400 kg (5.292 lb). Unit Quantity: 1 Pc.

Dimensions and mounting:

Overall Length: 145 mm (5.7187 in). Overall Height: 117 mm (4.5937 in). The housing slides in a take-up frame channel and is positioned by an adjusting screw. The spherical insert outer ring seats in a matching spherical housing bore.

Compatibility and replacement:

Cross-Reference 1: Dodge WSTU-SC-112. Series: UCT. Harmonization Code: 8483.20.40. GTIN: 4547359229097. MPN Variants: UCT209-112D1, UCT 209-112 D1, UC209112D1, UC209-112D1, T209D1.
