Ball bearing take-up unit, 1 in bore, eccentric locking collar, cast iron side-mount frame, shroud seals, 57.2 mm slot length, 92.1 mm total height.
List Price
$51.95
2 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Fafnir |
|---|---|
| MPN | RTU1 |
| GTIN | 087796057487 |
| Model | RTU 1 |
| ID | 1 in (25.4 mm) |
| Base Number | RTU1 |
|---|---|
| Bearing Insert Type | Ball |
| Bore Shaft Size | 1 in (25.4 mm) |
| Housing Style | Take-Up Unit, Side Mount |
| Locking Method | Eccentric Locking Collar |
| Relubrication | Grease fitting |
| Replacement Insert | G1100KRRB |
| Mpn Variants | RTU-1, RTU 1, Timken SAP material ID 101776841 |
| Manufacturer Status | Active |
| Additional Attributes | Total height H 92.1 mm (3.626 in); pitch height H1 76.2 mm; height H2 57.2 mm; total length L 102.4 mm (4.031 in); shaft length L1 67.5 mm (2.657 in); slot length L3 57.2 mm (2.252 in); housing width A 44.4 mm (1.748 in); slot width A1 13.5 mm (0.531 in); socket width A2 37.3 mm (1.469 in); adjustment screw bore N 19 mm (0.748 in); opening width N1 15.9 mm (0.626 in); opening height N2 31.8 mm (1.252 in); S1 26.9 mm; G 42.9 mm; P 34.9 mm; T 22.2 mm |
| Material | Cast Iron |
| Dynamic Load Rating | 15500 N (3490 lbf) |
| Static Load Rating | 7800 N (1750 lbf) |
| Series | RTU |
| Type | Take-Up Unit Bearing |
| Bearing Type | Mounted Take-Up Ball Bearing Unit |
| Item Weight | 3.3 lb (1.50 kg) |
| Number Of Rows | 1 |
| Relubrication Feature | Grease fitting |
| Design Units | Imperial |
| Part Number | RTU1 |
| Closure Type | Shroud Seal |

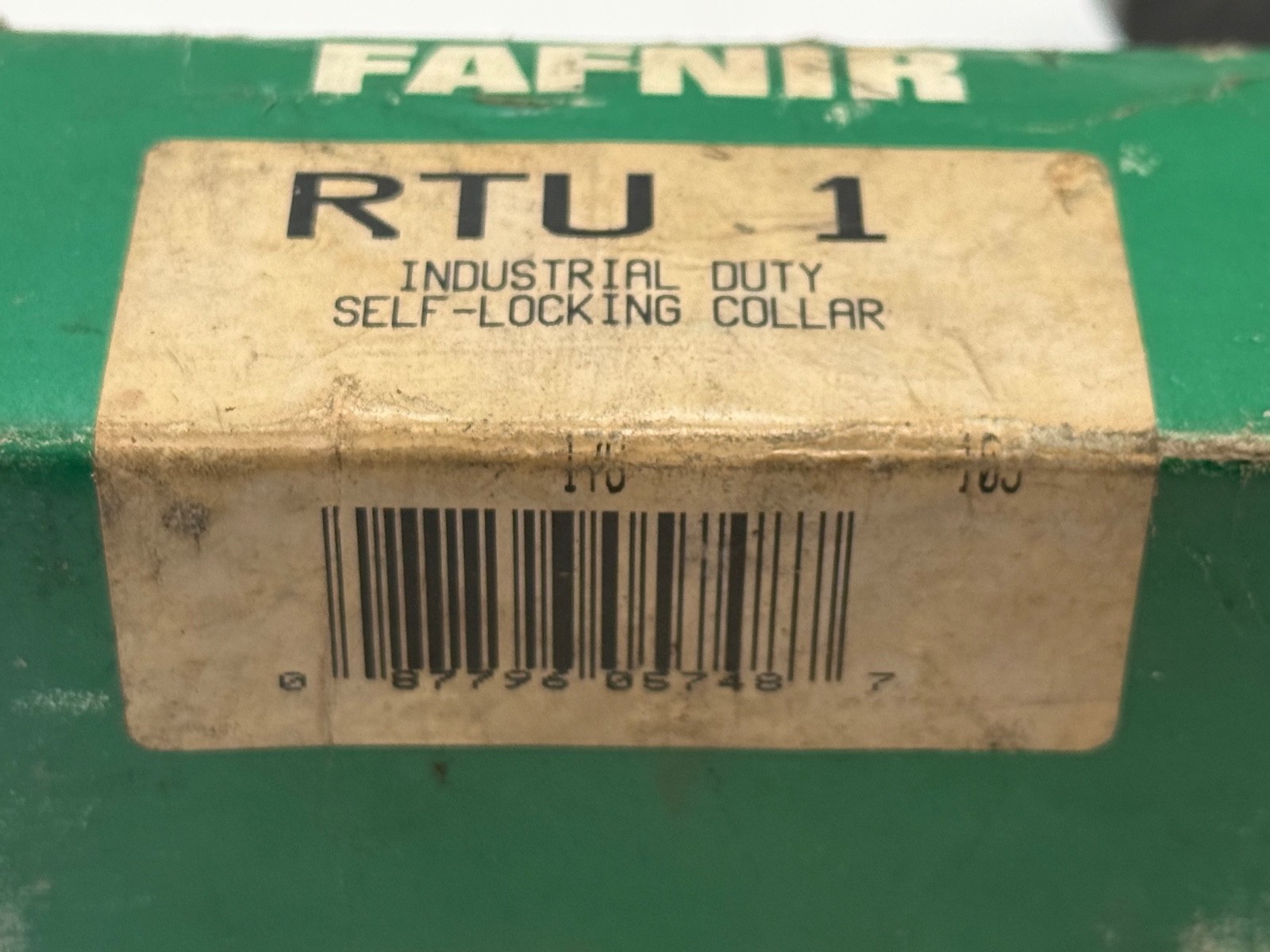

Fafnir RTU1, a ball bearing take-up unit from Timken’s Fafnir mounted ball bearing range. Bore / Shaft Size: 1 in (25.4 mm). Housing Style: take-up, side-mount frame. Material: cast iron. Locking Method: eccentric locking collar. Closure Type: shroud seal. Insert Bearing: G1100KRRB wide inner ring ball bearing. Series: Industrial. GTIN: 087796057487.

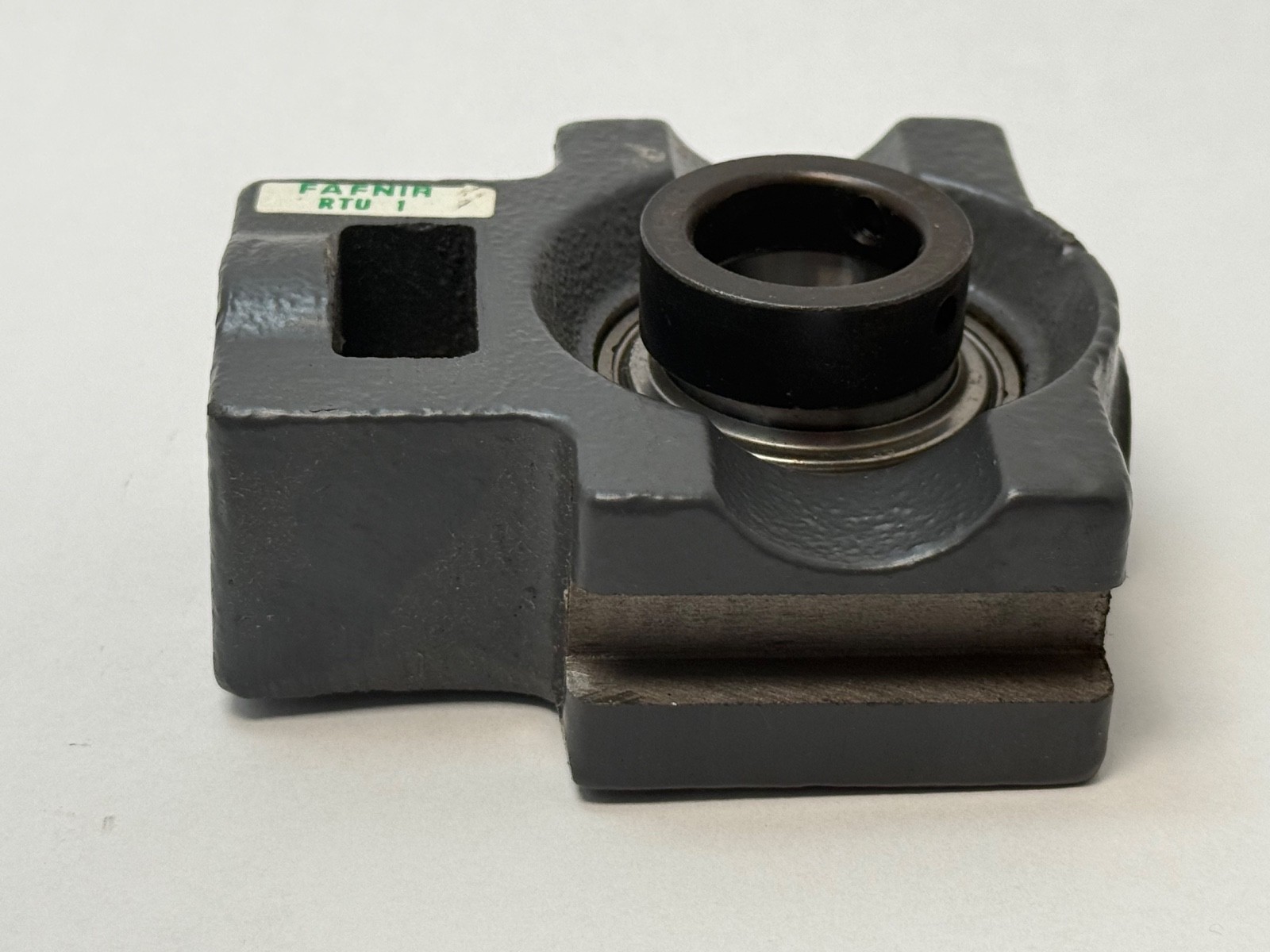

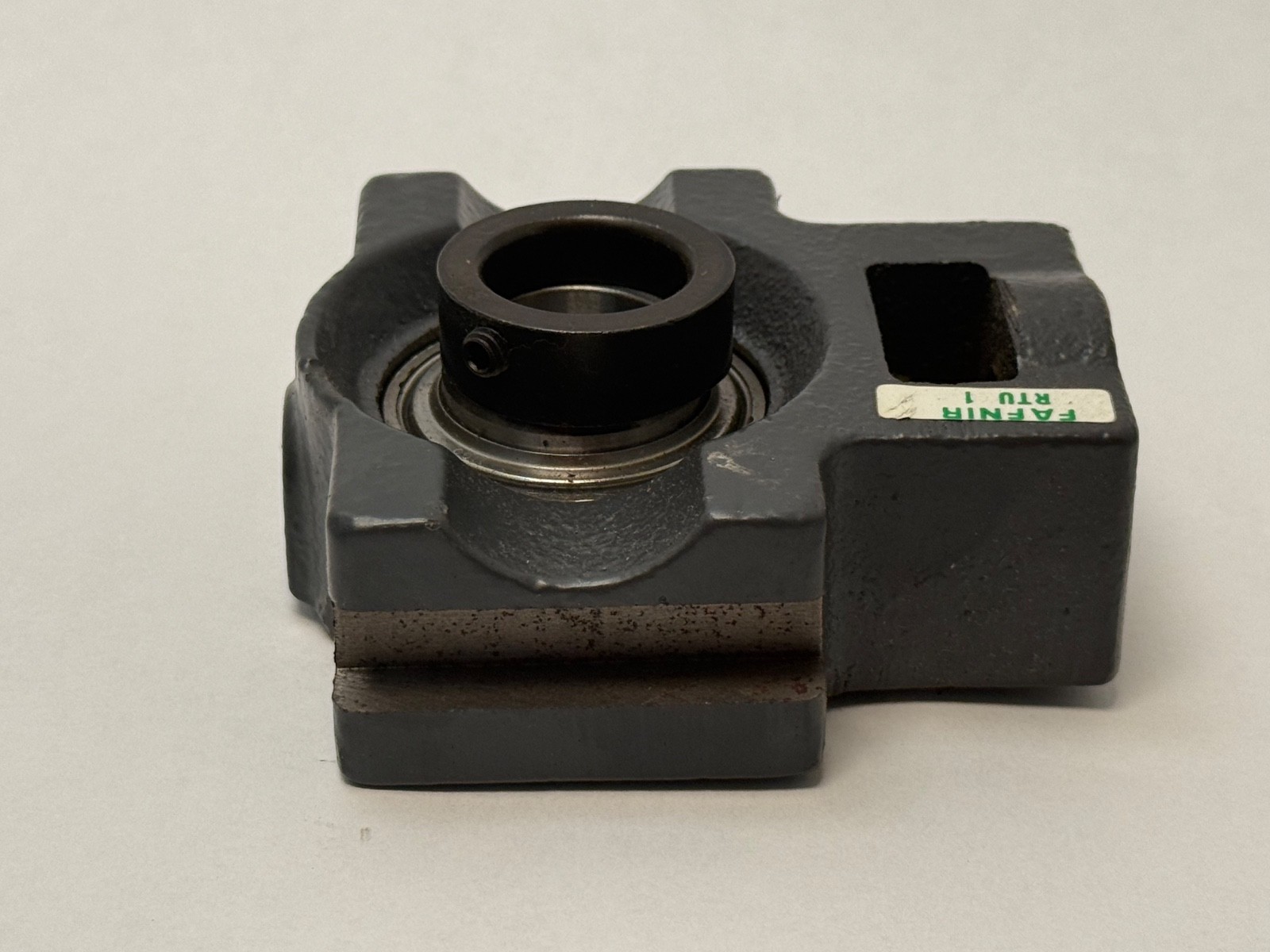

RTU — Fafnir take-up mounted bearing, cast iron side-mount frame carrying an eccentric locking collar insert.
1 — shaft size, 1 in.

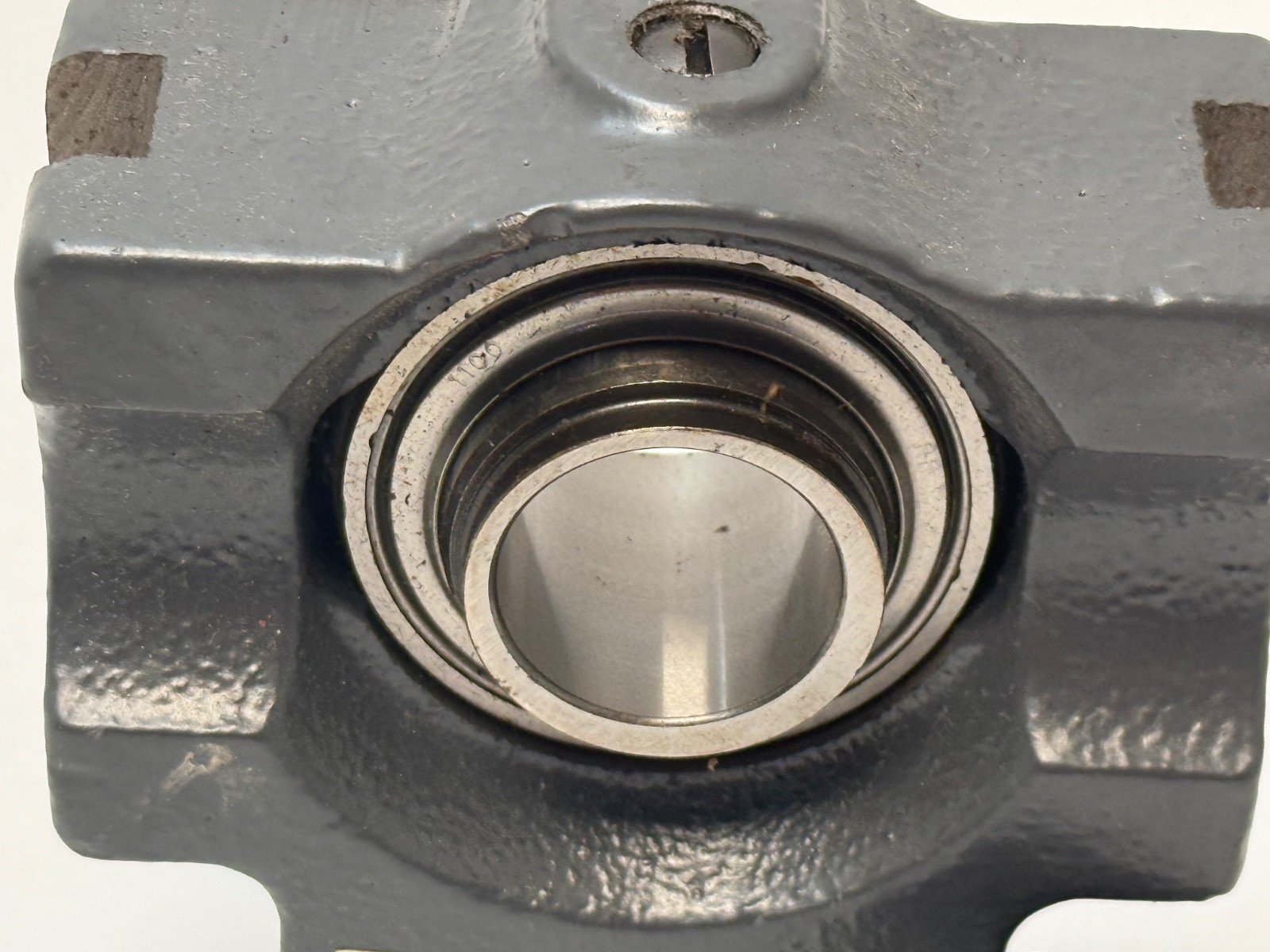

G1100KRRB — the wide inner ring insert bearing fitted in the frame, with its extended inner ring and eccentric collar seat.
Dynamic Load Rating: 15,500 N (3,490 lbf). Static Load Rating: 7,800 N (1,750 lbf). Item Weight: 3.3 lb (1.50 kg).

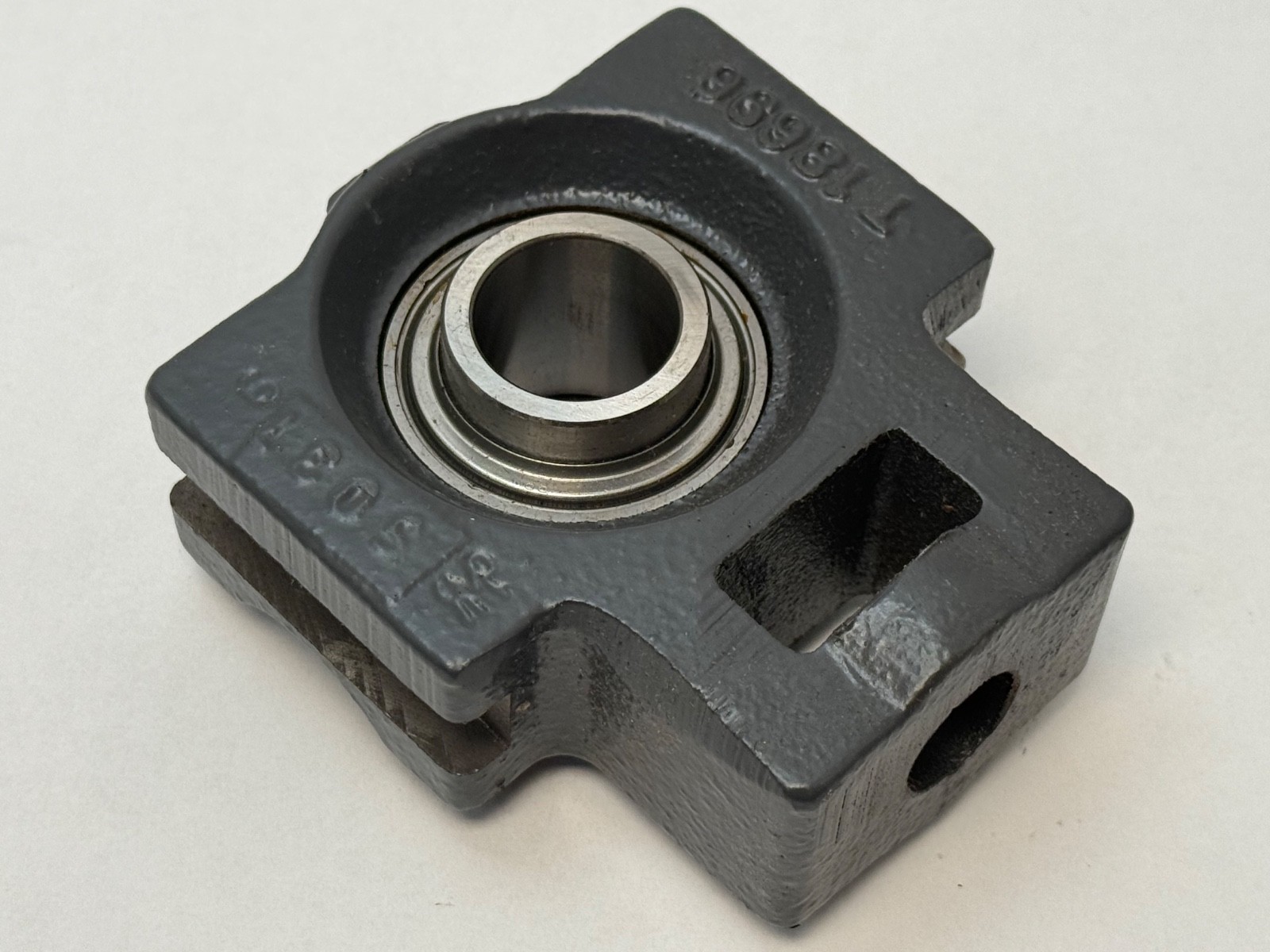

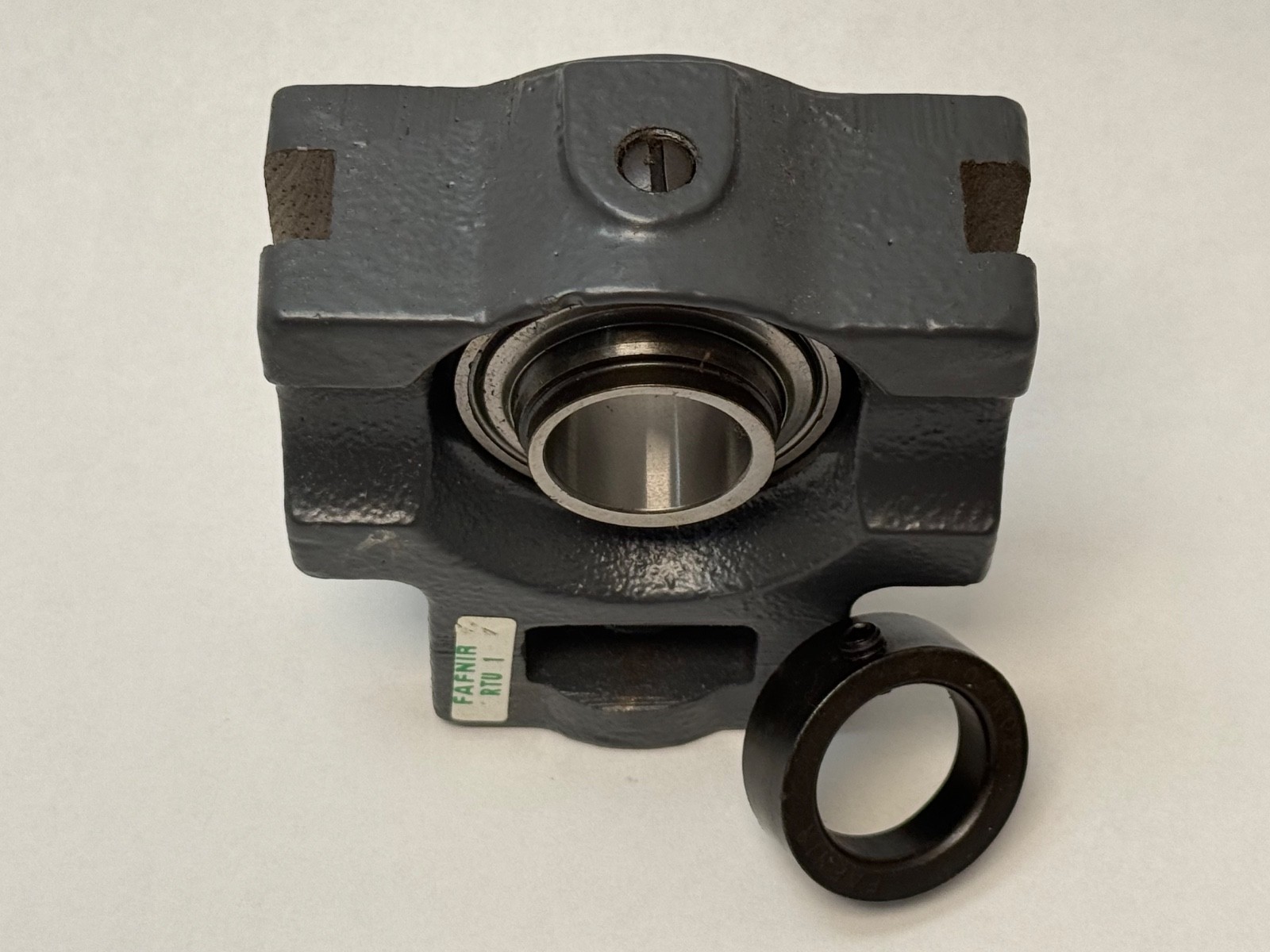

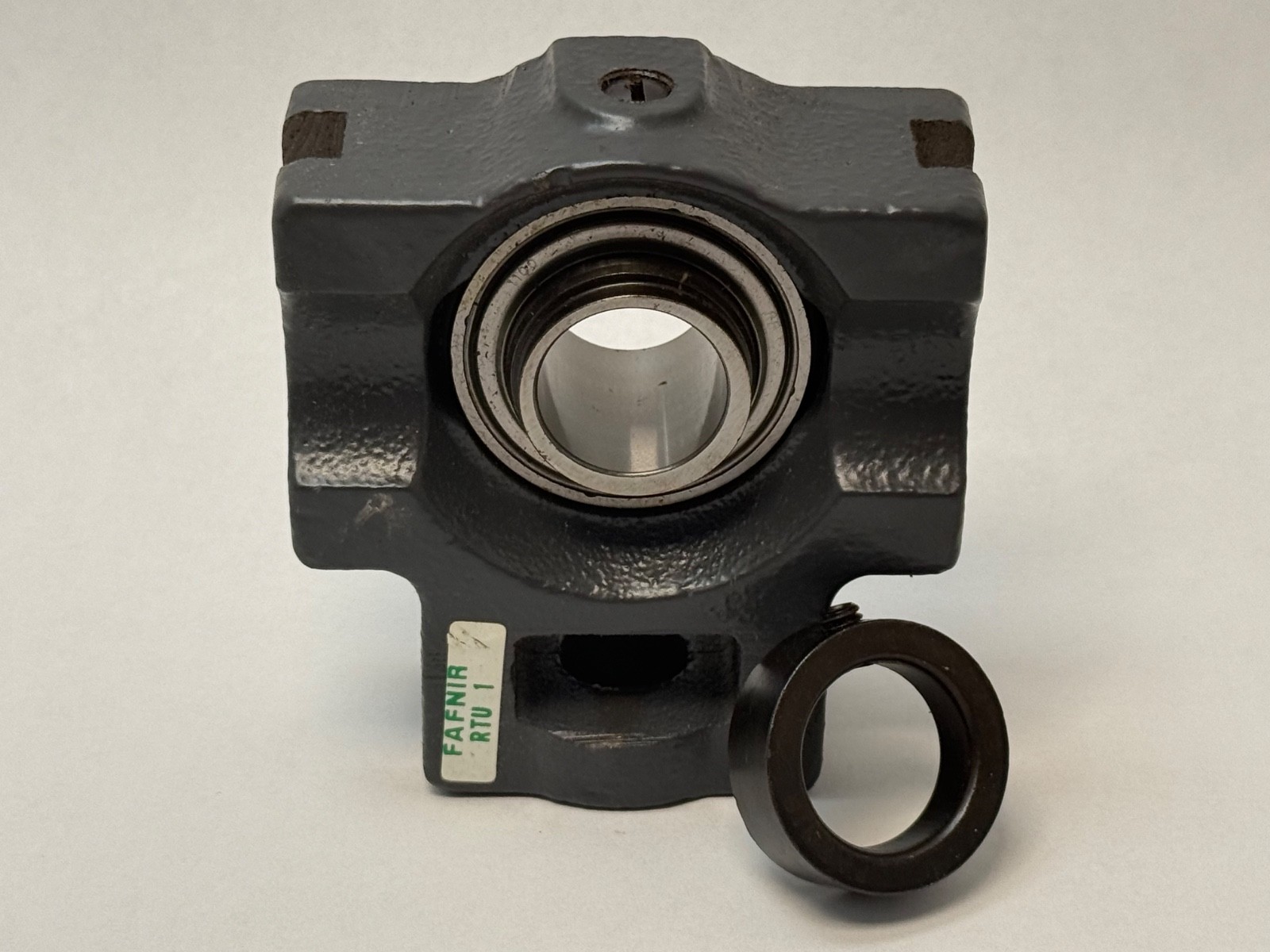

A take-up unit carries the bearing in a frame that slides along a machined slot, so the shaft centre can be moved to tension a belt or a chain and then locked. The eccentric collar grips the shaft by rotating against the extended inner ring in the direction of shaft rotation, which needs no shaft machining and no setscrew flat. The shroud seal shields the ball track from conveyor dust and washdown carryover.

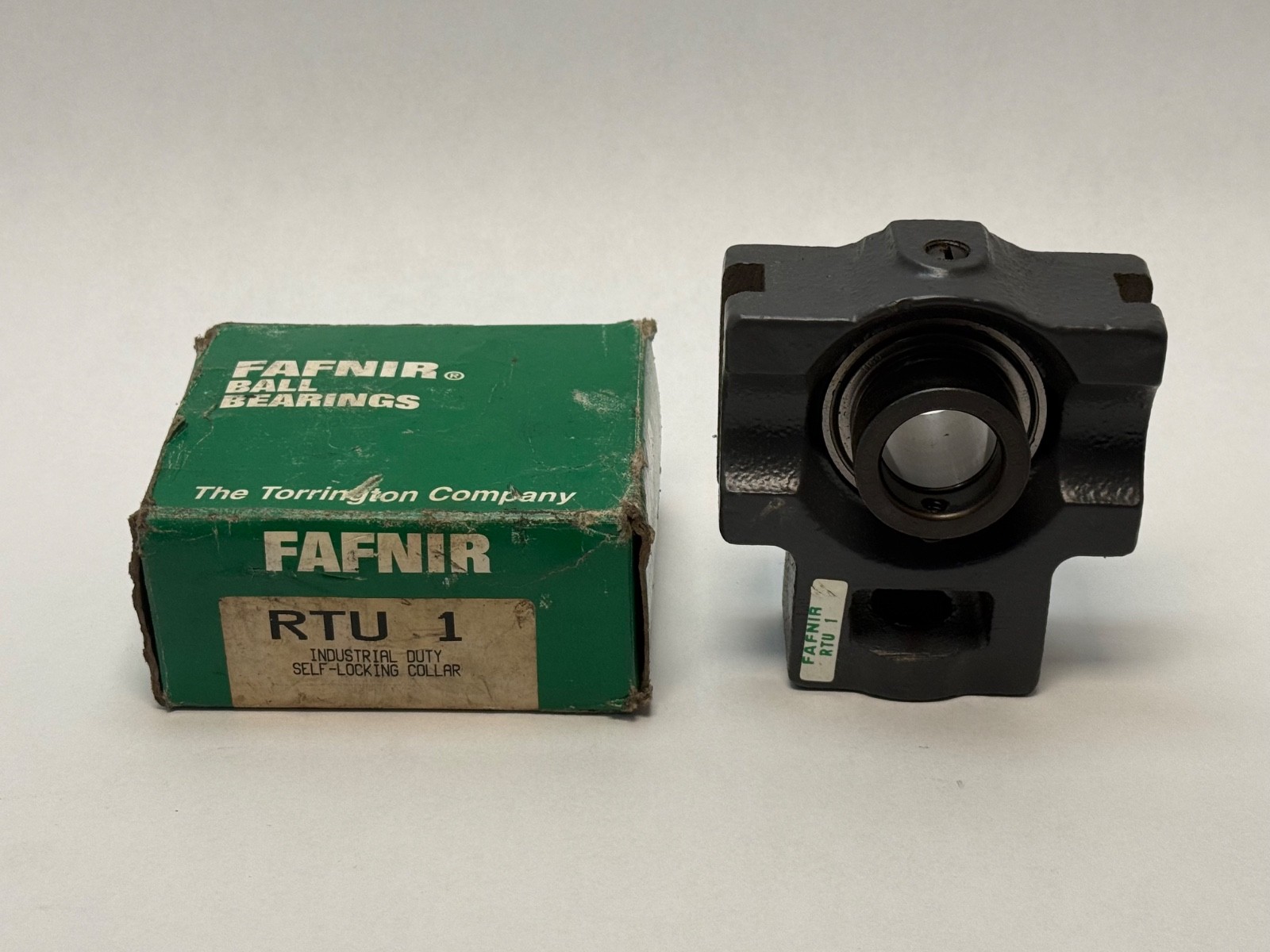

Unit Quantity: 1 Pc. One complete take-up unit, cast iron frame, insert bearing, eccentric collar and seals assembled.
Total Height H: 92.1 mm (3.626 in). Pitch Height H1: 76.2 mm. Height H2: 57.2 mm. Total Length L: 102.4 mm (4.031 in). Shaft Length L1: 67.5 mm (2.657 in). Slot Length L3: 57.2 mm (2.252 in). Housing Width A: 44.4 mm (1.748 in). Slot Width A1: 13.5 mm (0.531 in). Socket Width A2: 37.3 mm (1.469 in). Adjustment Screw Bore N: 19 mm (0.748 in). Opening Width N1: 15.9 mm (0.626 in). Opening Height N2: 31.8 mm (1.252 in). Dimension S1: 26.9 mm (1.059 in). Dimension G: 42.9 mm (1.689 in). Dimension P: 34.9 mm (1.374 in). Dimension T: 22.2 mm (0.874 in).
Searchable variants of the number: RTU1, RTU-1, RTU 1. Timken’s SAP material ID for this item is 101776841. The insert on its own is catalogued as the Fafnir G1100KRRB.
