Availability:
1 in stock

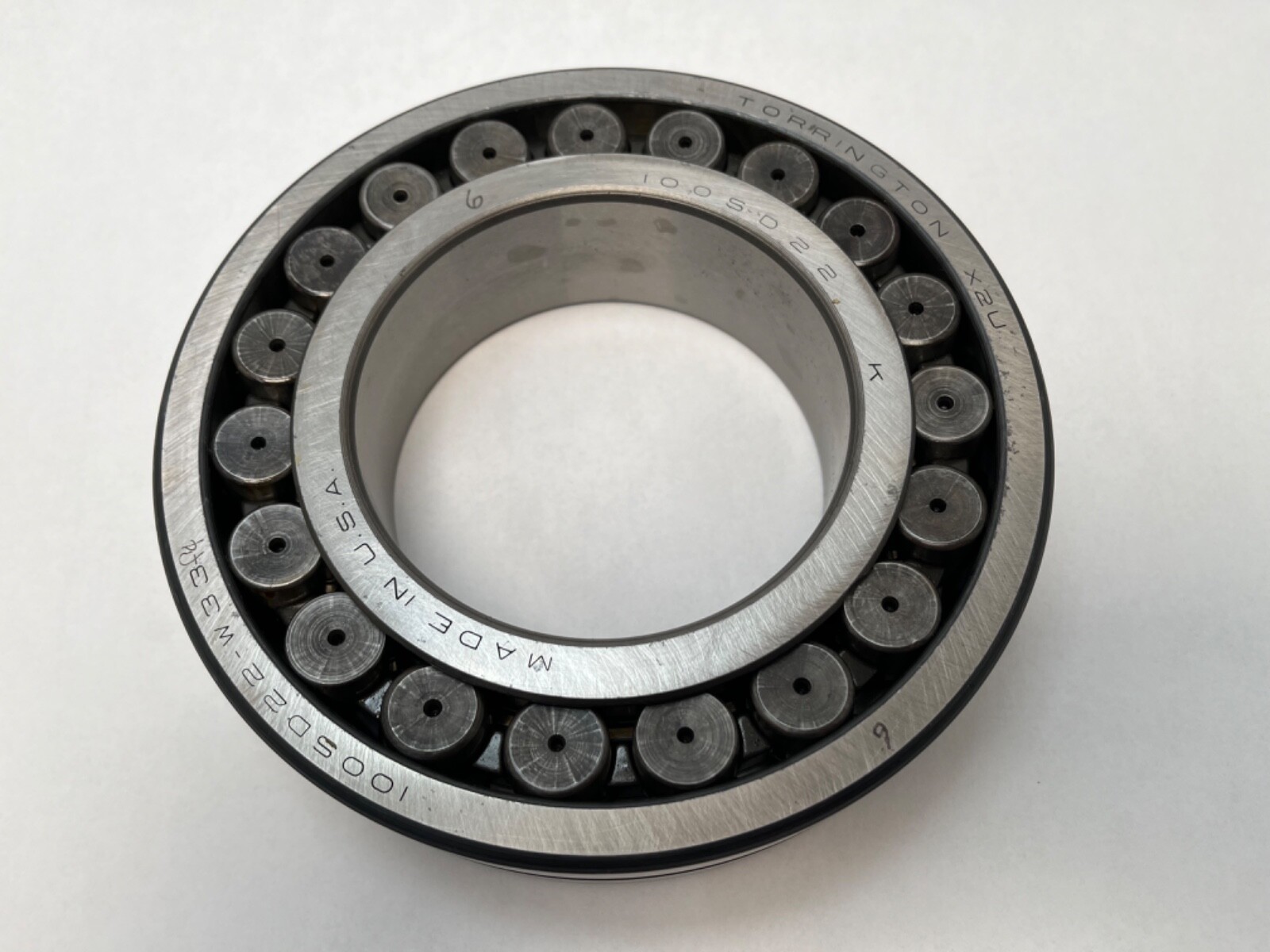

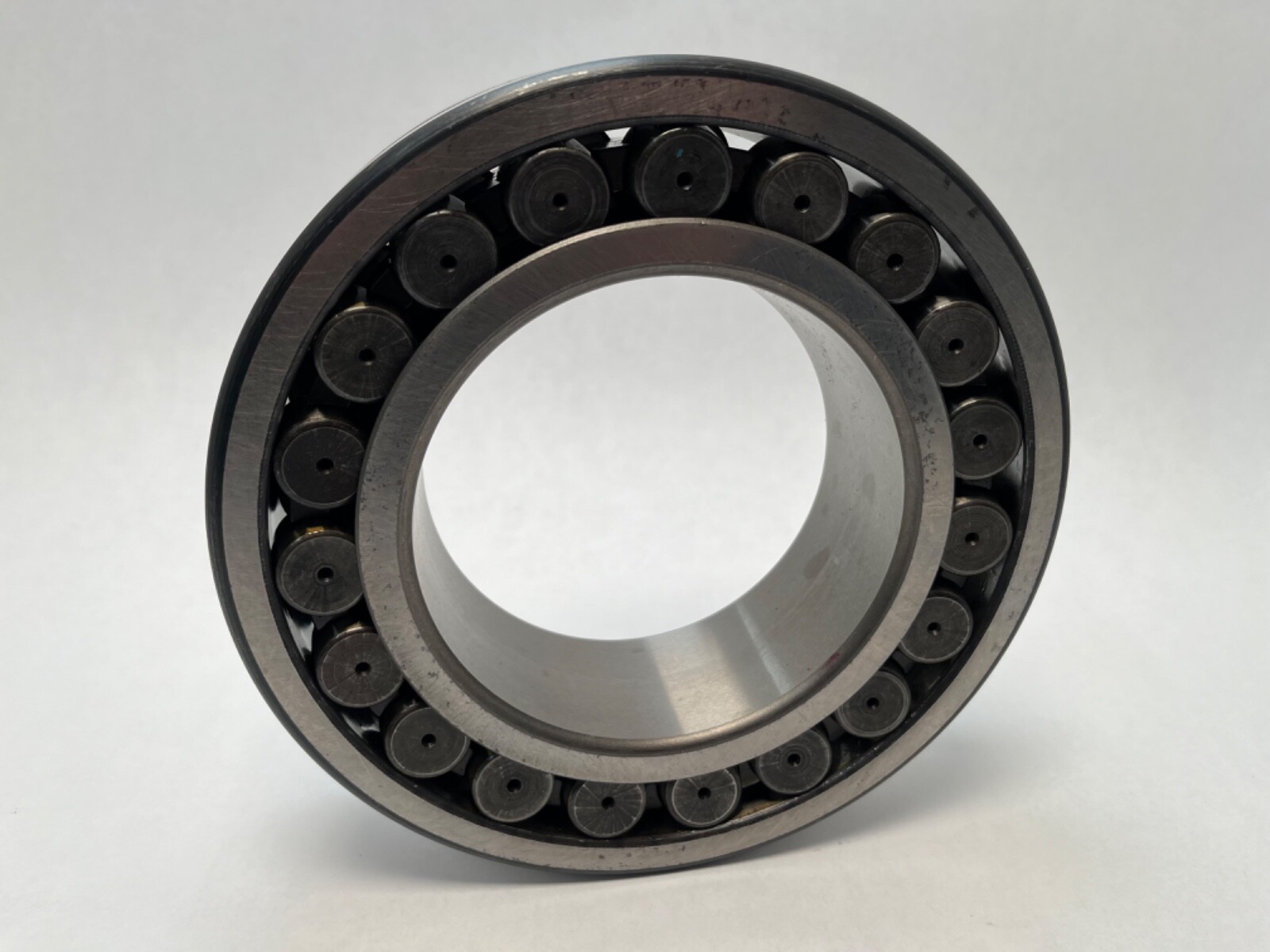

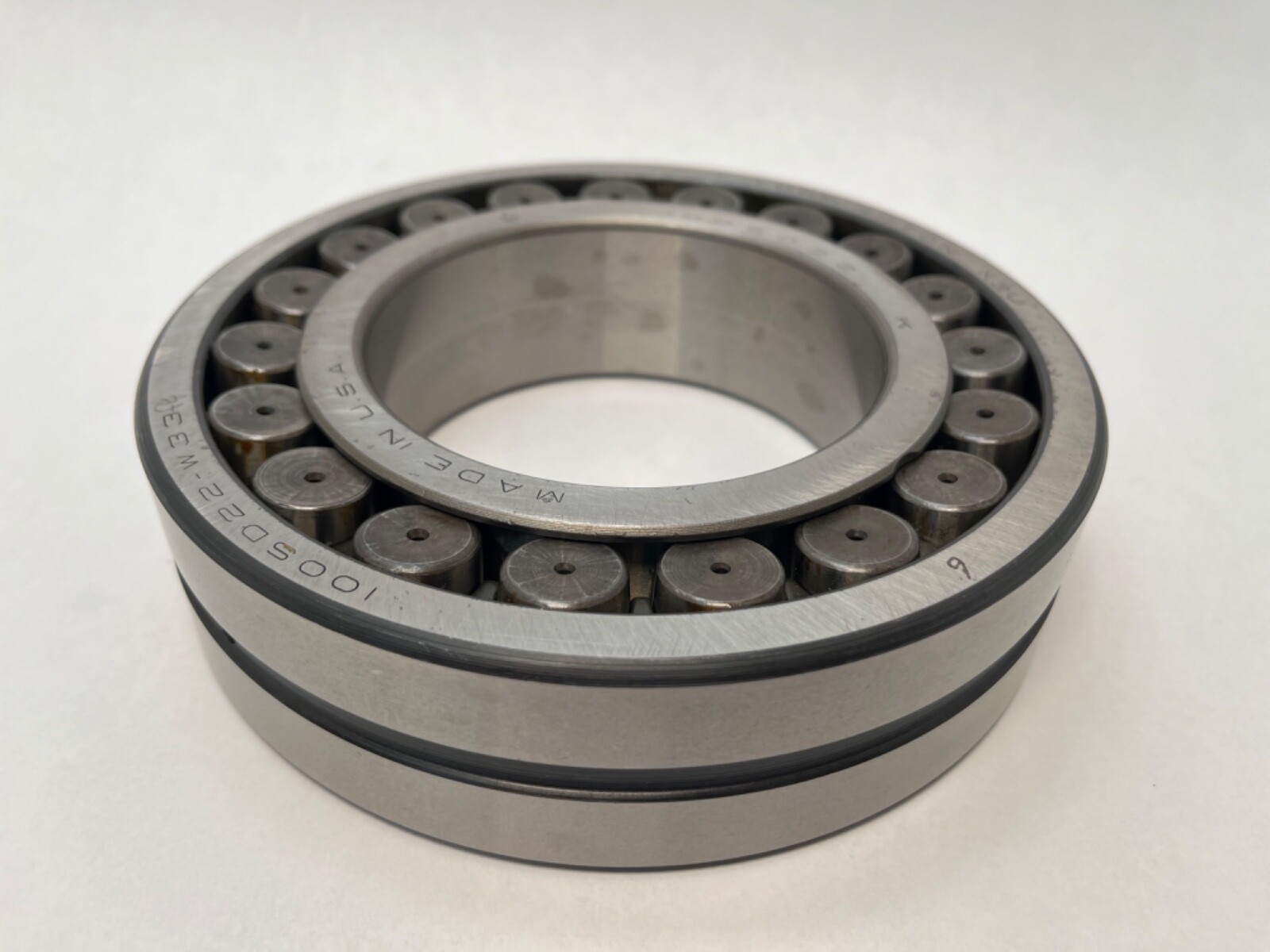

Torrington 22220KW33 spherical roller bearing, 100 mm tapered bore x 180 mm OD x 46 mm wide, W33 lube groove, normal clearance. Successor: Timken 22220KEJW33.
List Price
$91.04
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Torrington |
|---|---|
| Model | 22220KW33 |
| Bearing Type | Spherical Roller Bearing, Open |
| ID | 100 mm |
| OD | 180 mm |
| Width | 46 mm |
| Bore | Taper Bore |
|---|---|
| Dynamic Load Rating | 435,000 N (Successor 22220KEJW33 data) |
| Static Load Rating | 502,000 N (Successor 22220KEJW33 data) |
| Rolling Elements | Spherical Roller |
| Number Of Rows | 2 |
| Bore Type | Tapered 1:12 |
| Snap Ring Included | No |
| Internal Clearance | CN |
| Mpn Variants | 22220KW33, 22220-K-W33, 100SD22, 100SD22K |
| Compatible With Replaces | Timken 22220KEJW33 (current successor design) |
| Additional Attributes | Successor 22220KEJW33 data: e factor 0.24; Y0 2.78; Y1 2.85; Y2 4.24; shaft backing shoulder 120 mm; housing backing shoulder 163 mm; max fillet radius 2 mm. Adapter sleeve: H320 |
| Design Units | Metric |
| Cross Reference 1 | Timken 22220KEJW33 |
|---|---|
| Cross Reference 2 | SKF 22220 EK |
| Cross Reference 3 | FAG 22220-E1-K |
| Cross Reference 4 | NSK 22220EAKE4 |

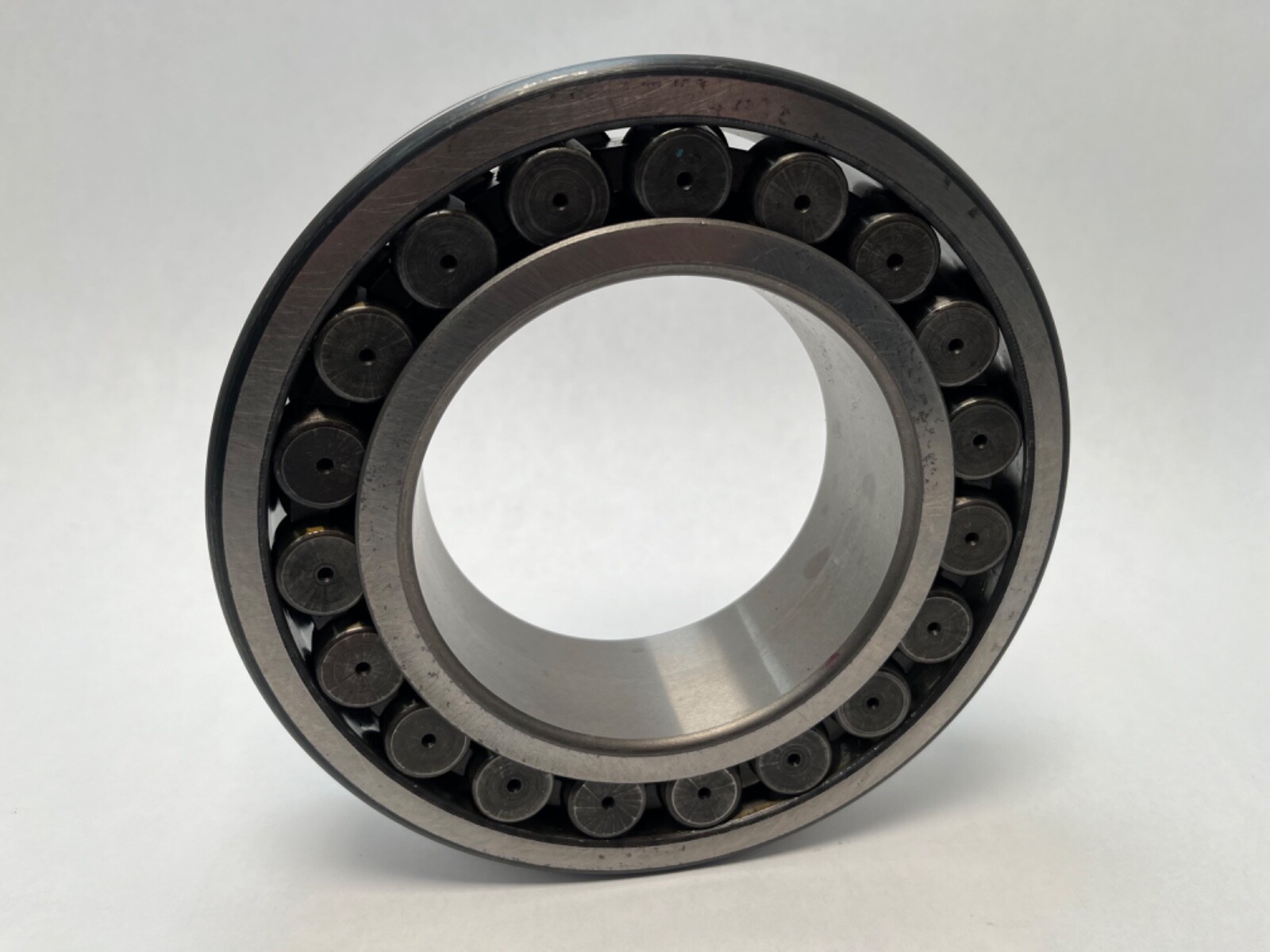

Torrington 22220KW33 double-row spherical roller bearing: 100 mm tapered bore, 180 mm outside diameter, 46 mm width, W33 lubrication groove, normal clearance. Torrington is a Timken brand; the current Timken design is 22220KEJW33.
222 — spherical roller bearing, ISO dimension series 22.
20 — bore code. 20 × 5 = 100 mm bore.

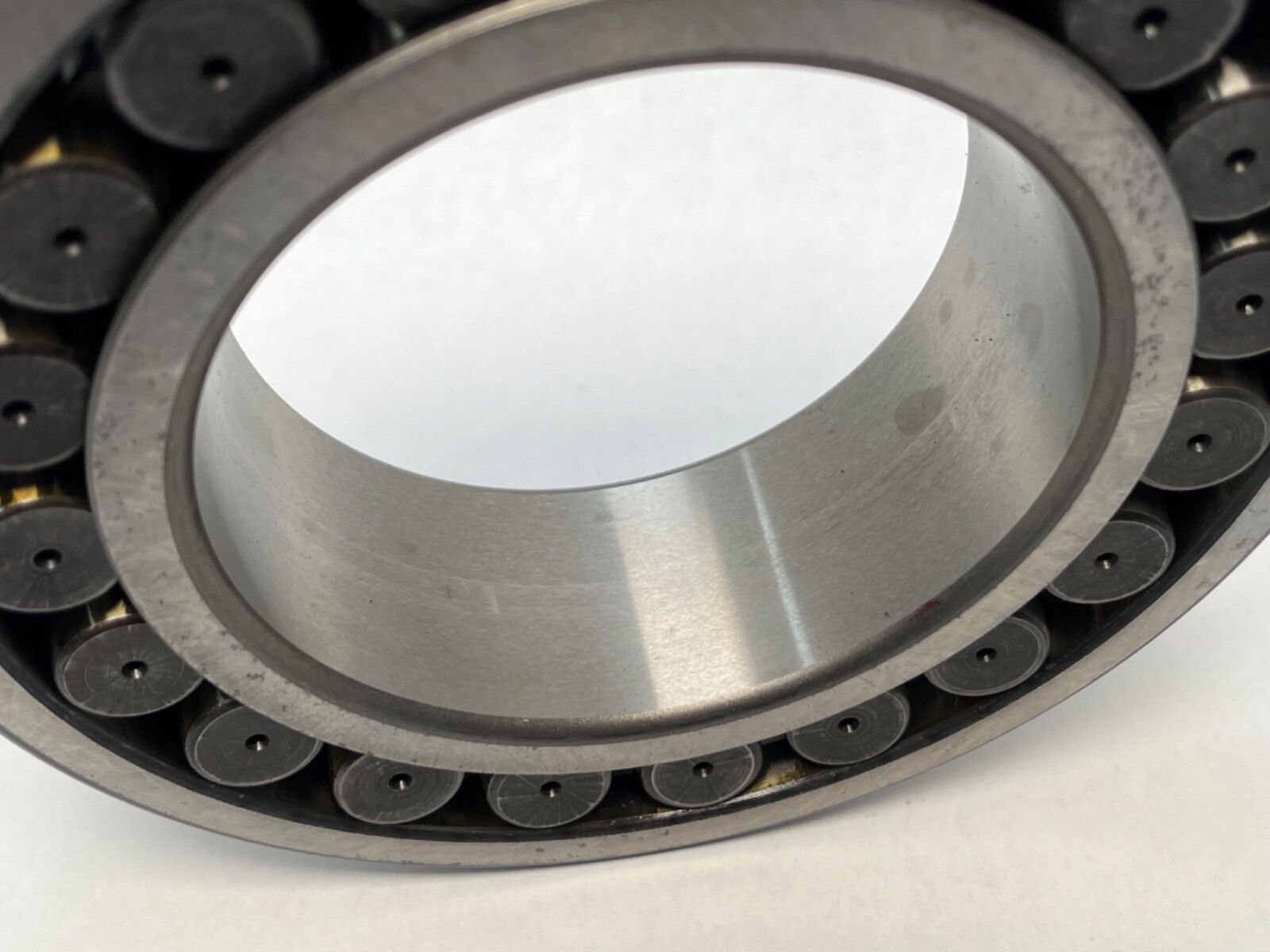

K — 1:12 tapered bore for adapter-sleeve or tapered-journal mounting.

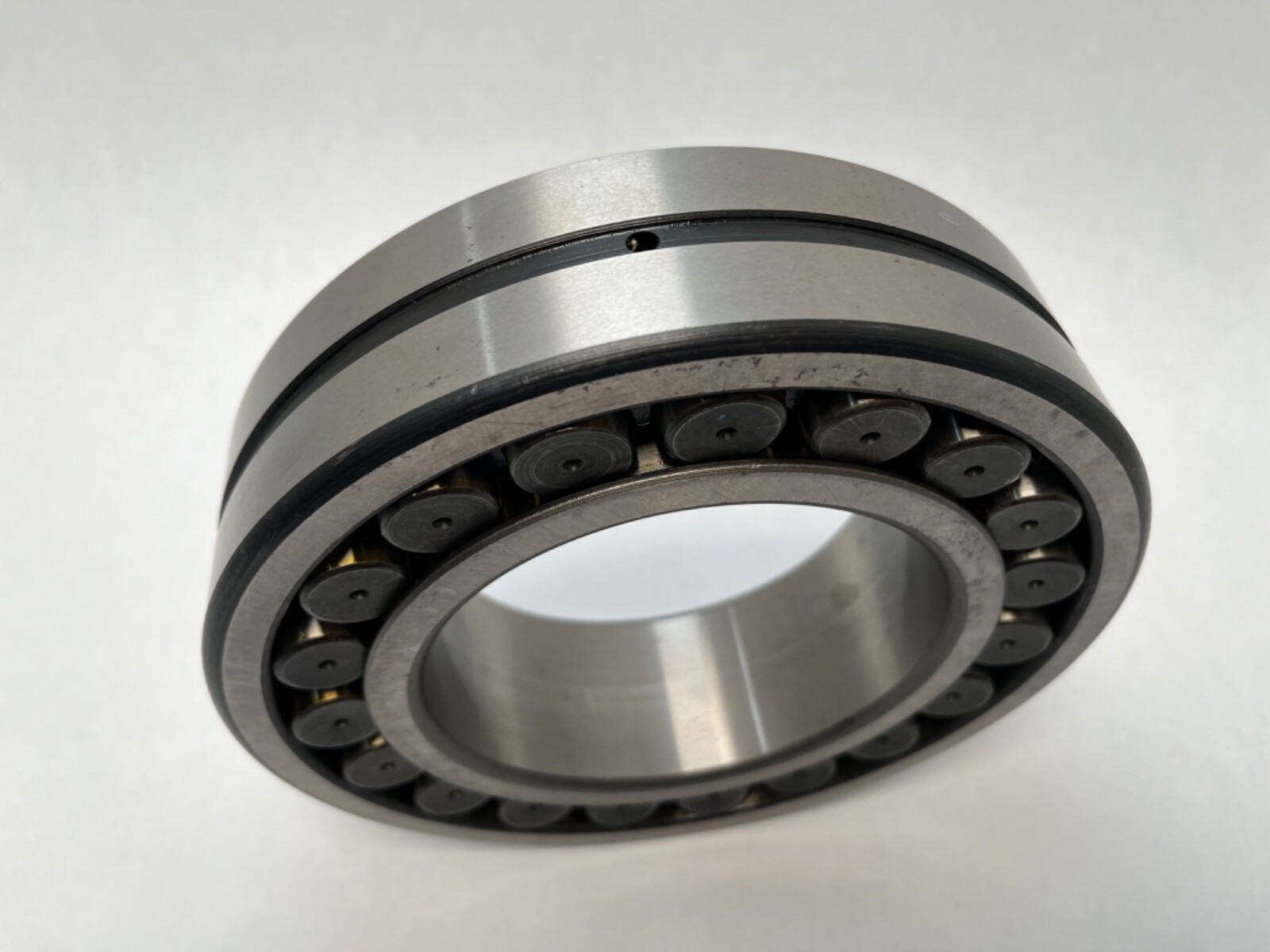

W33 — lubrication groove with three radial holes in the outer ring.

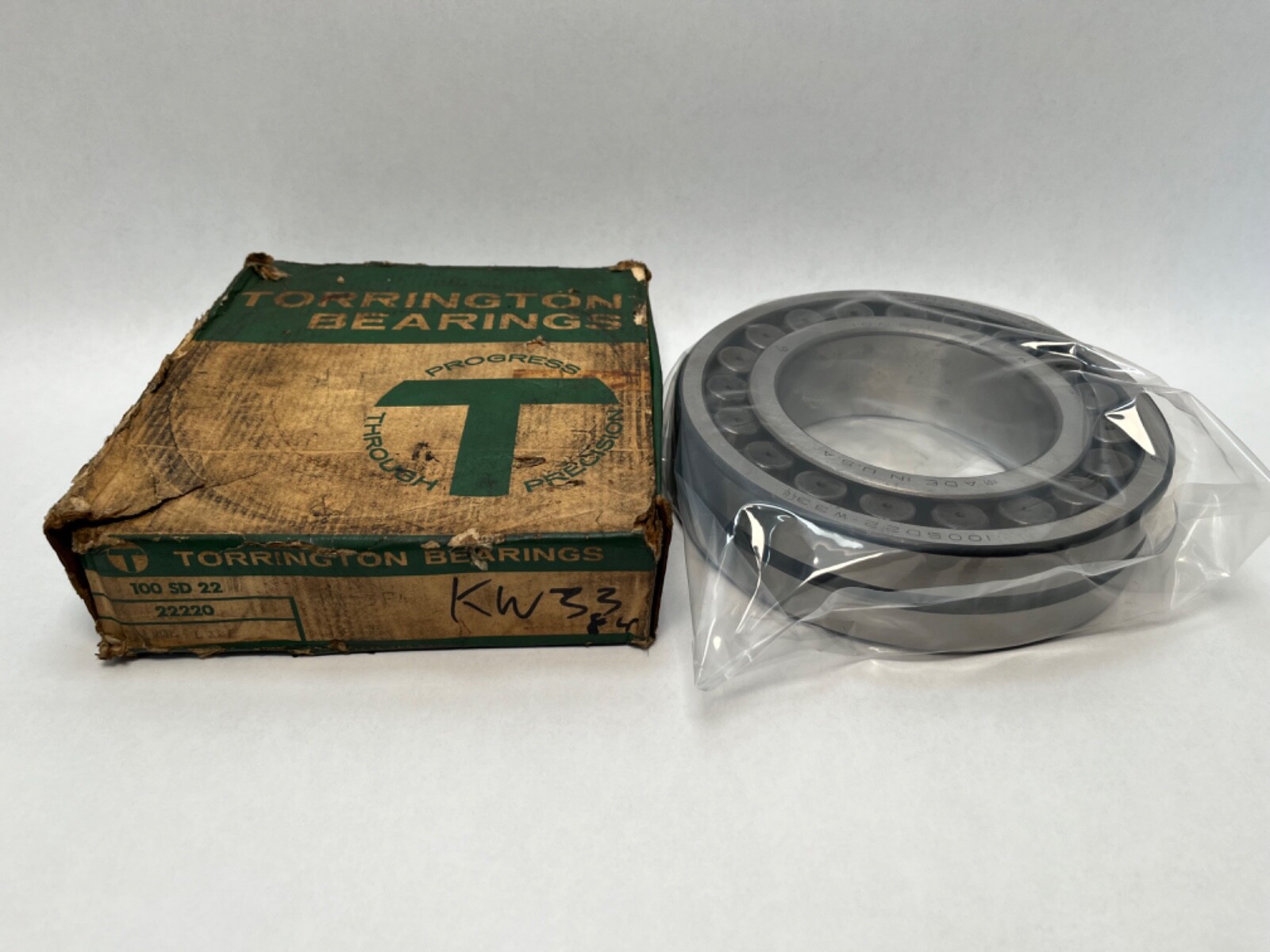

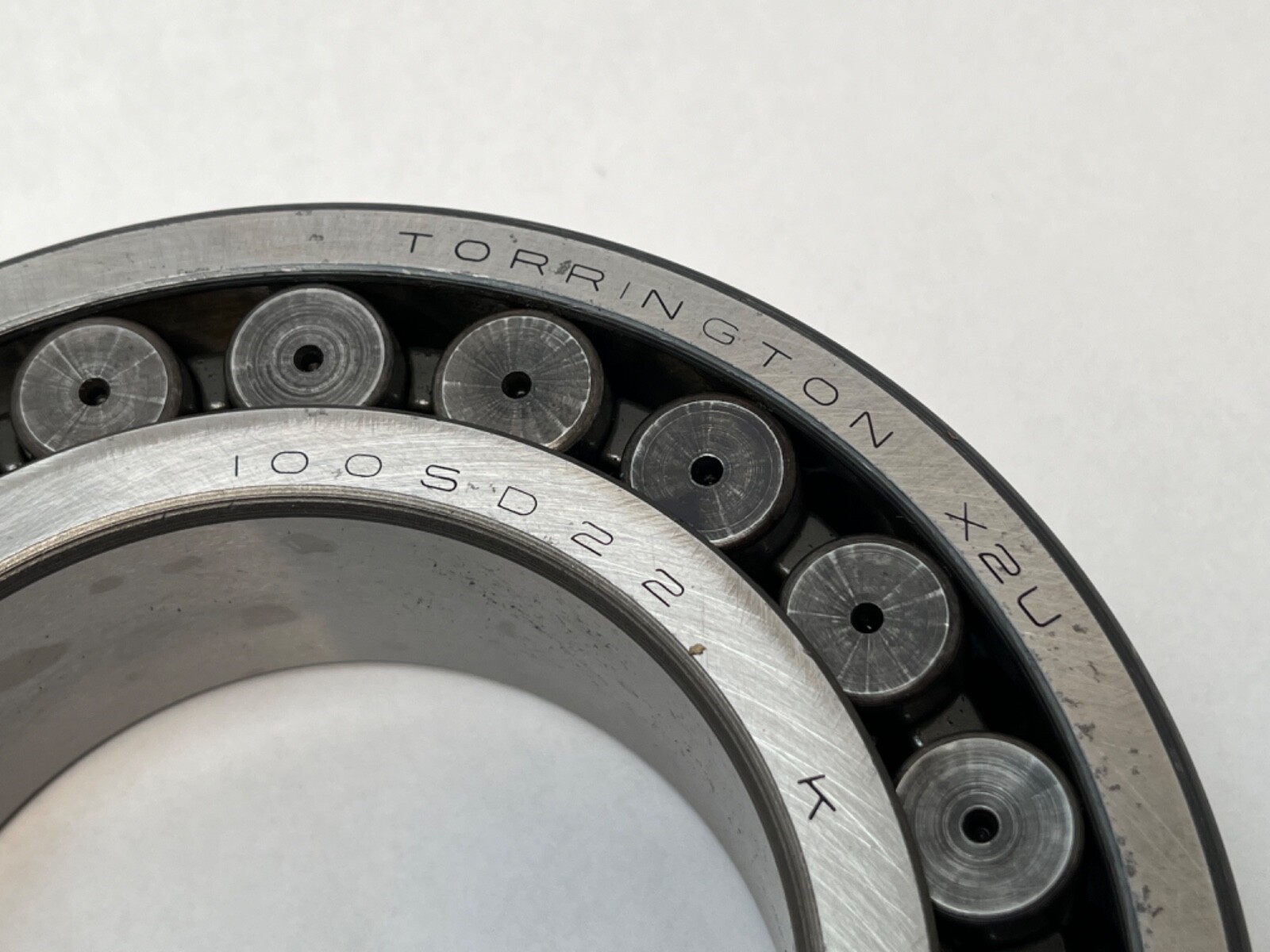

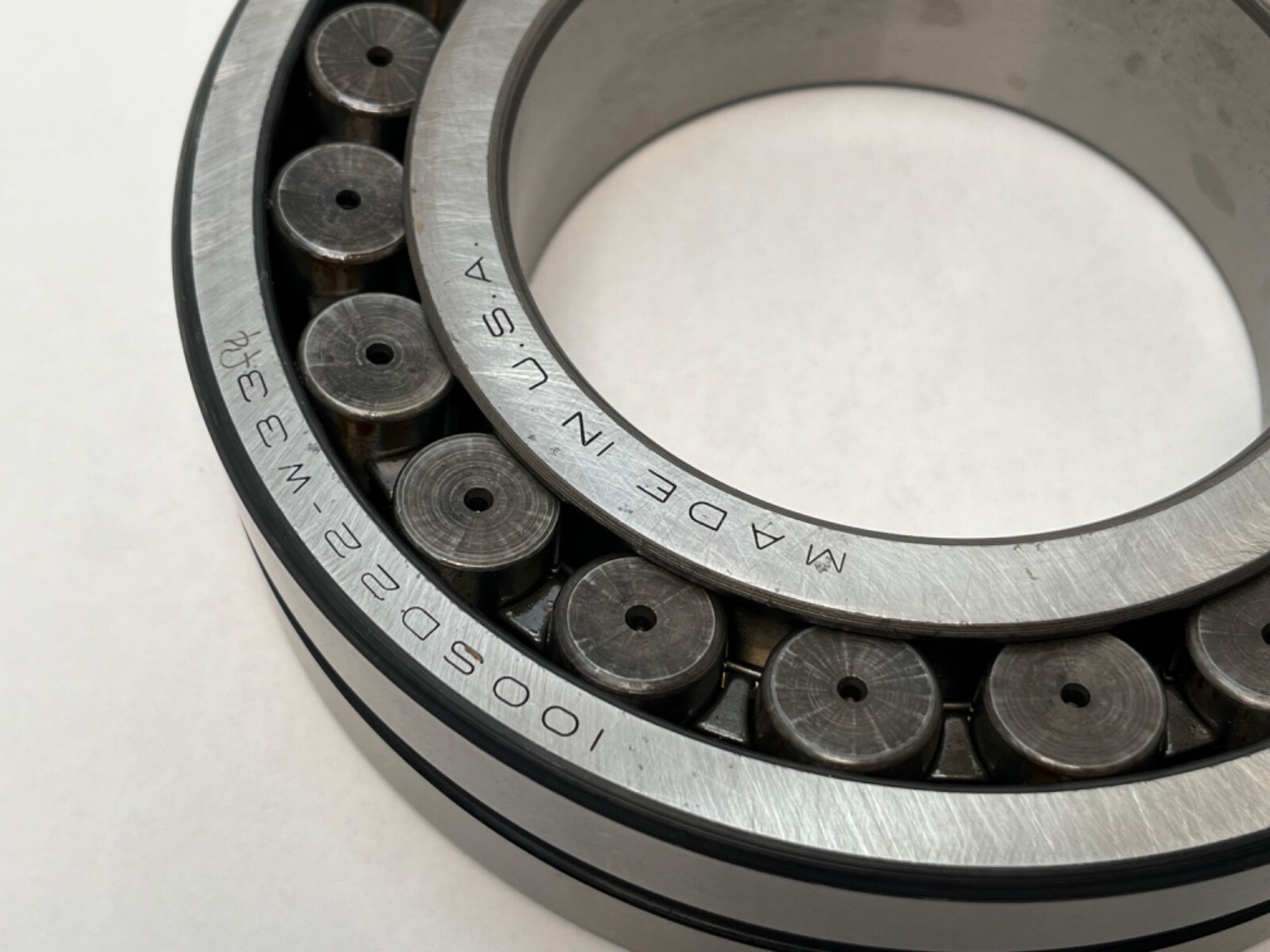

100SD22 — Torrington SD-system designation for the same 100 mm bore, series 22 spherical roller bearing.
Bore Diameter: 100 mm. Outside Diameter: 180 mm. Overall Width: 46 mm. Bore Type: Tapered 1:12. Rolling Elements: Spherical Roller. Number Of Rows: 2. Internal Clearance: CN. Closure Type: Open. Lubricant: grease or oil.
Successor 22220KEJW33 data: Dynamic Load Rating: 435,000 N. Static Load Rating: 502,000 N. Reference Speed: 3,100 rpm grease; 3,800 rpm oil. e factor: 0.24. Y1: 2.85. Y2: 4.24. Y0: 2.78.

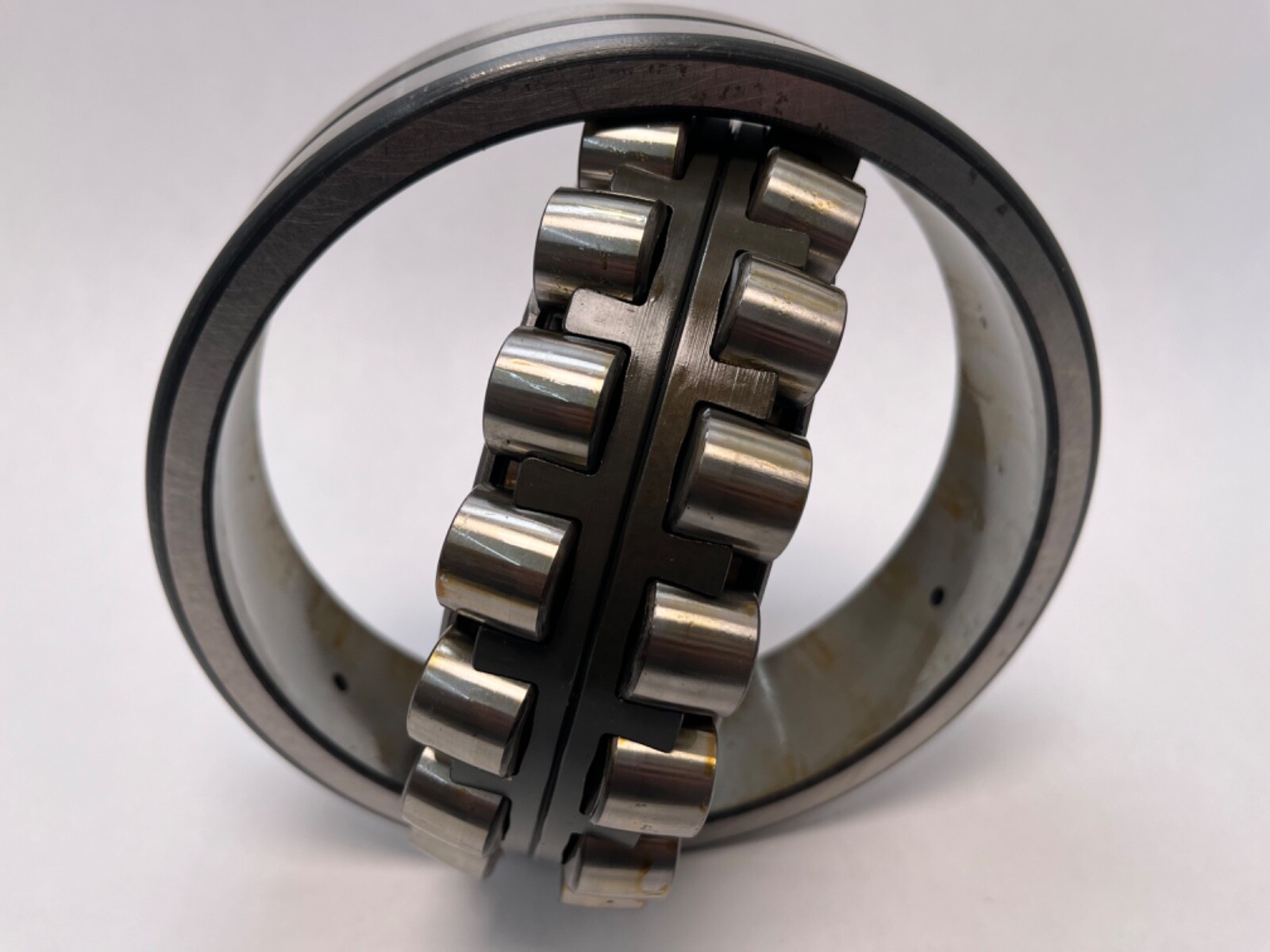

The spherical outer raceway lets the bearing self-align under shaft deflection while carrying heavy radial load and axial load in both directions. The W33 groove feeds grease or oil to the centre of both roller rows.
Successor 22220KEJW33 data: Shaft Backing Shoulder Diameter: 120 mm. Housing Backing Shoulder Diameter: 163 mm. Maximum Fillet Radius: 2 mm. Related part: H320 adapter sleeve with KM20 locknut and MB20 lockwasher.
Unit Quantity: 1 Pc. One complete bearing.
Same 100 × 180 × 46 mm tapered-bore, normal-clearance envelope: Timken 22220KEJW33, SKF 22220 EK, FAG 22220-E1-K, NSK 22220EAKE4, NTN 22220EAKW33.
