Availability:
1 in stock

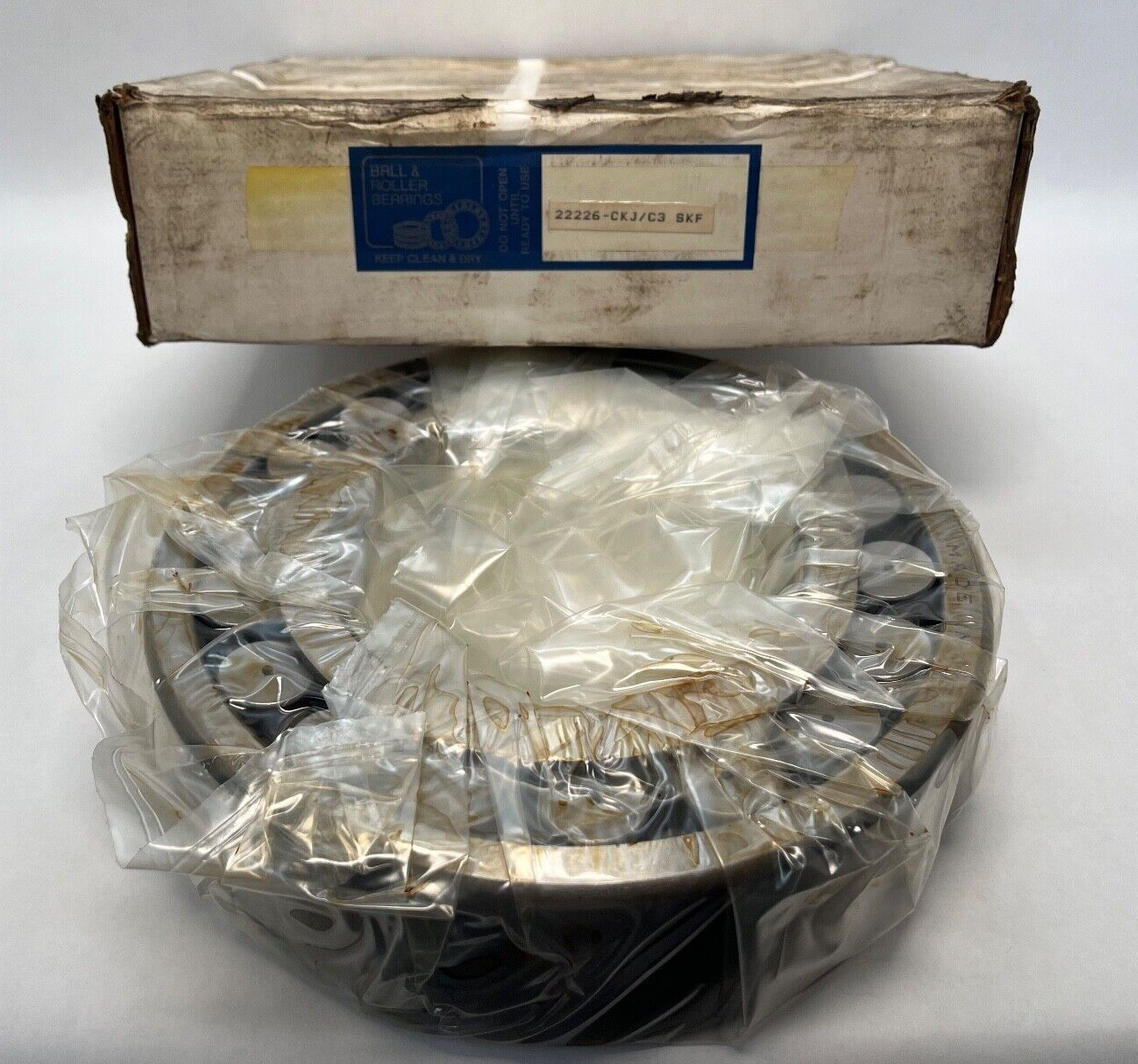

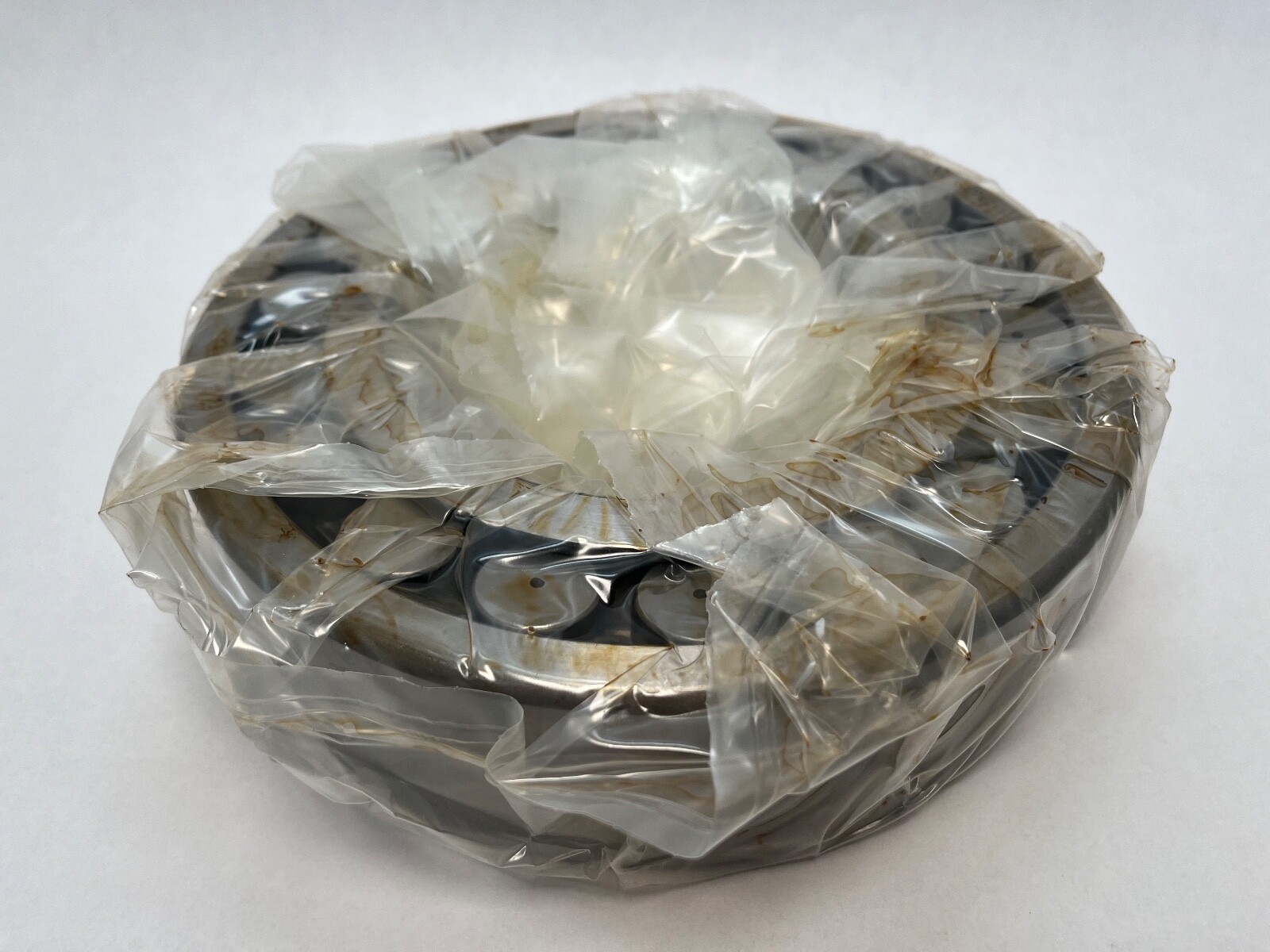

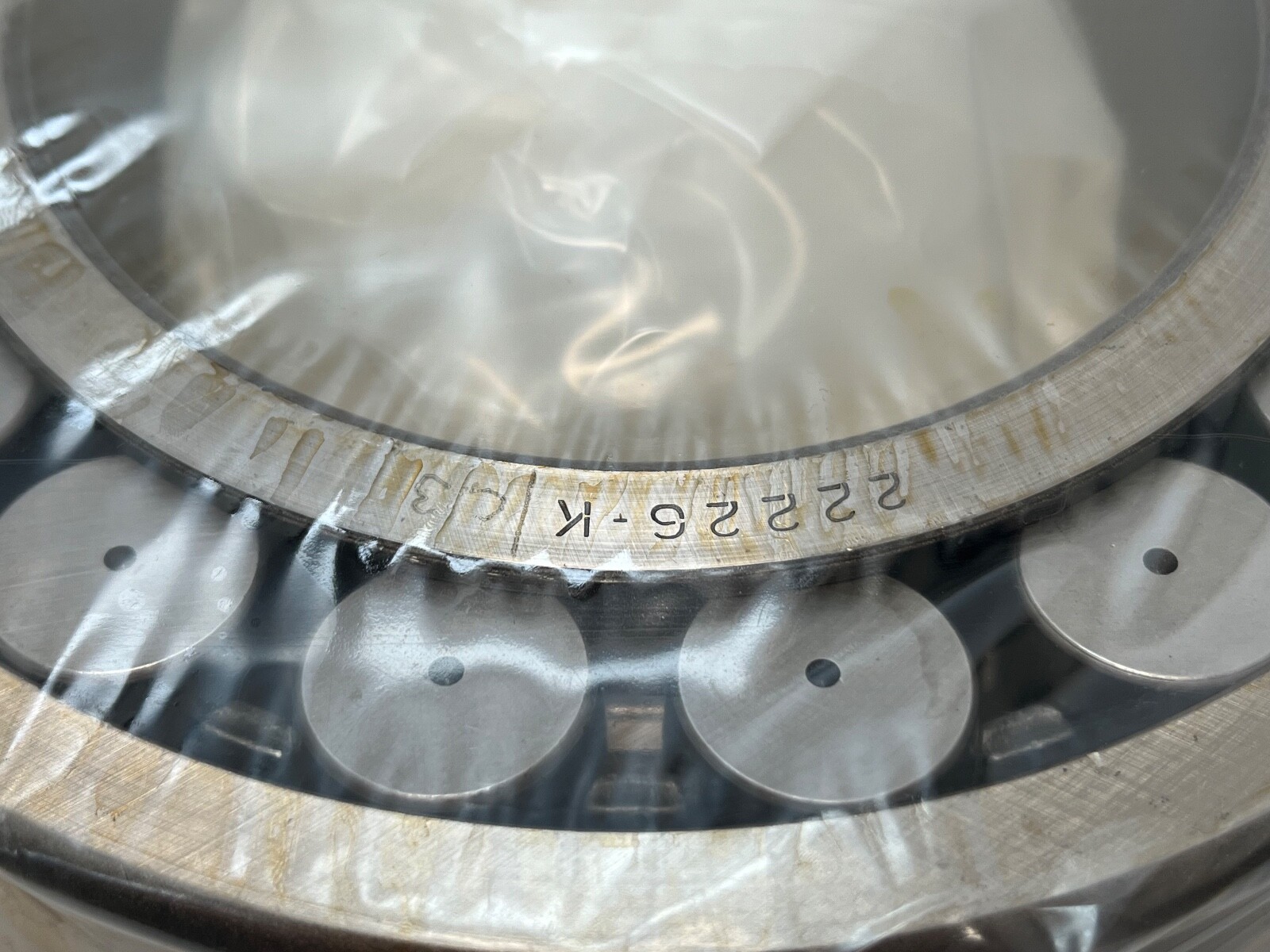

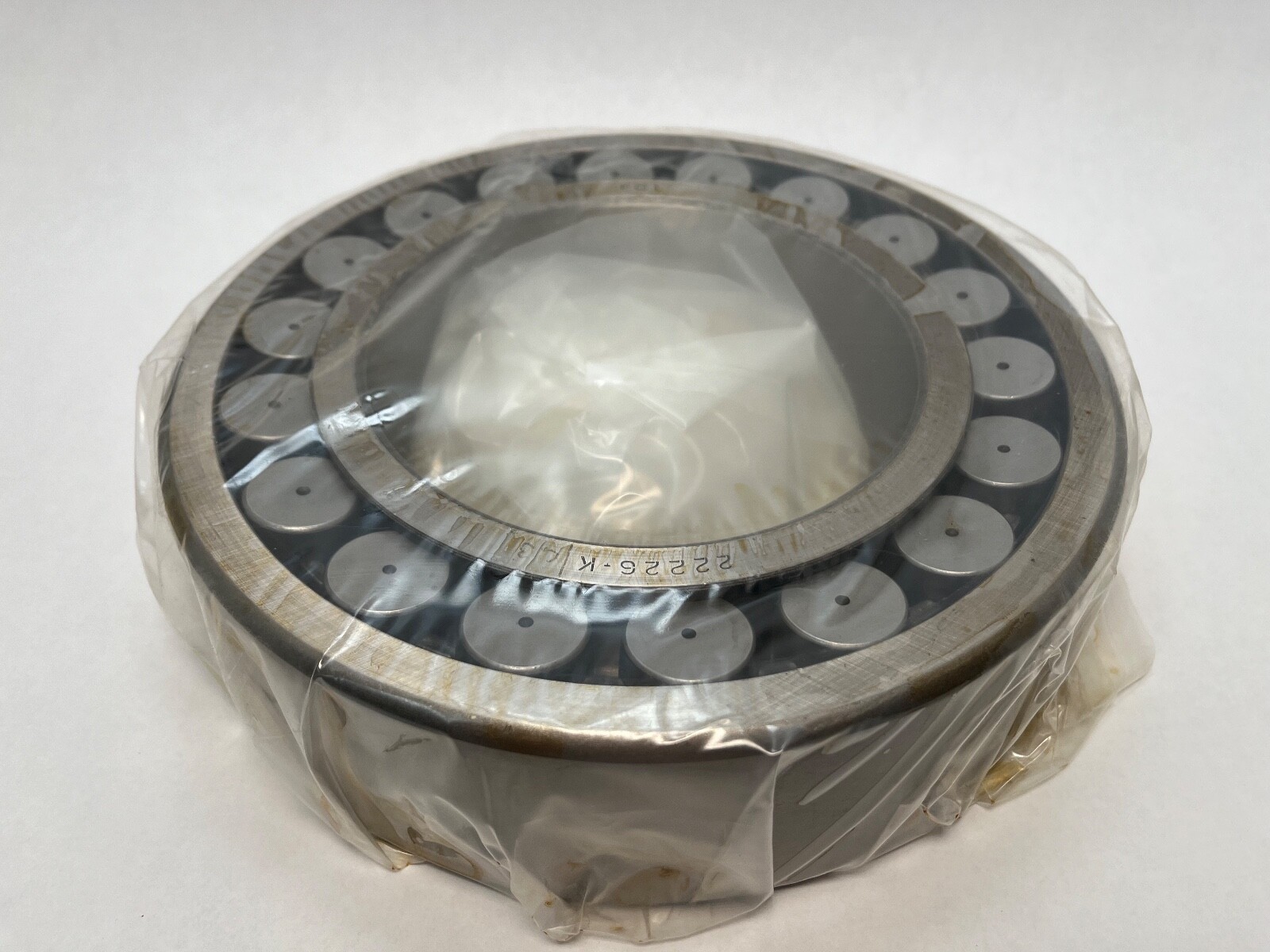

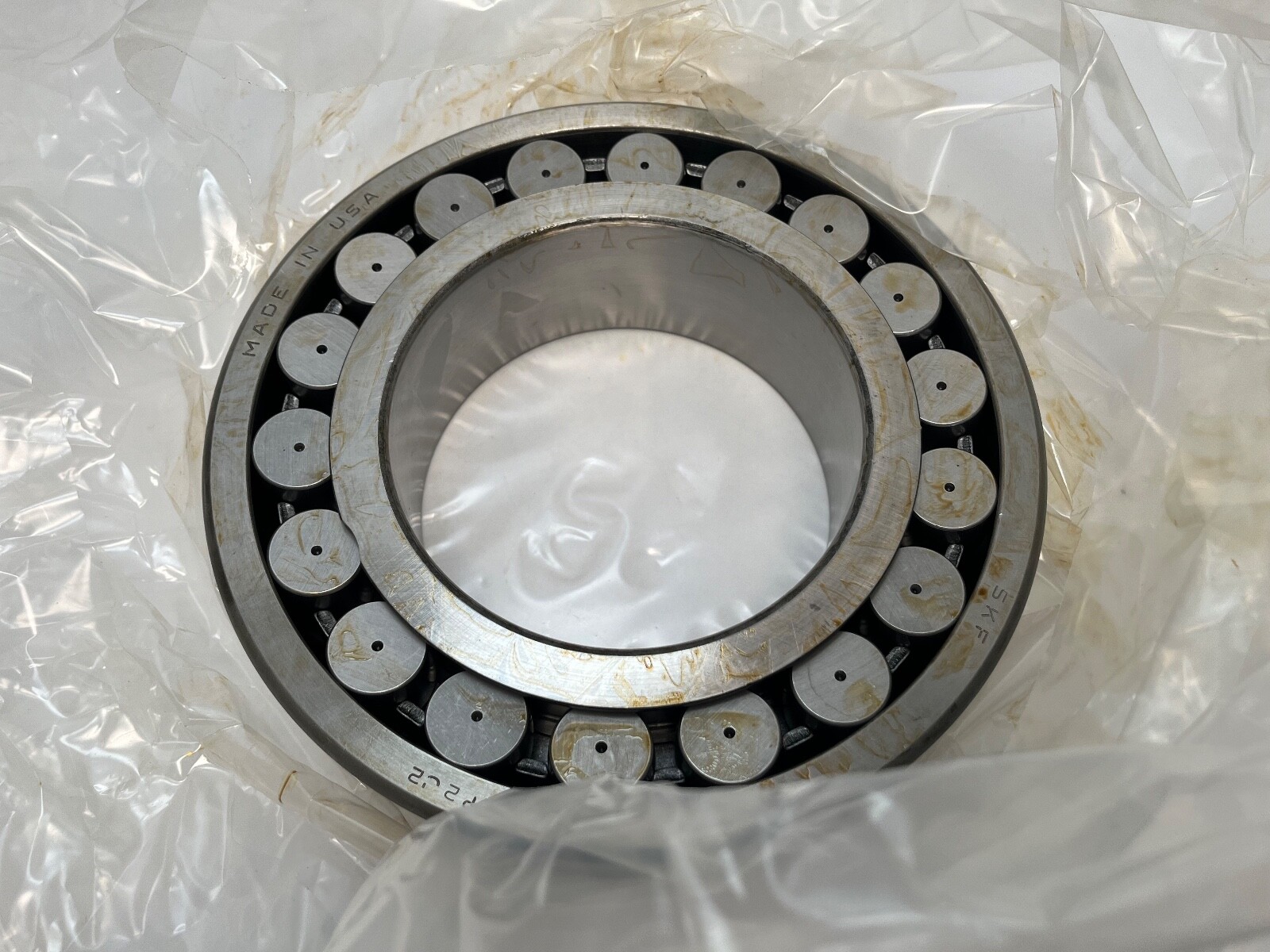

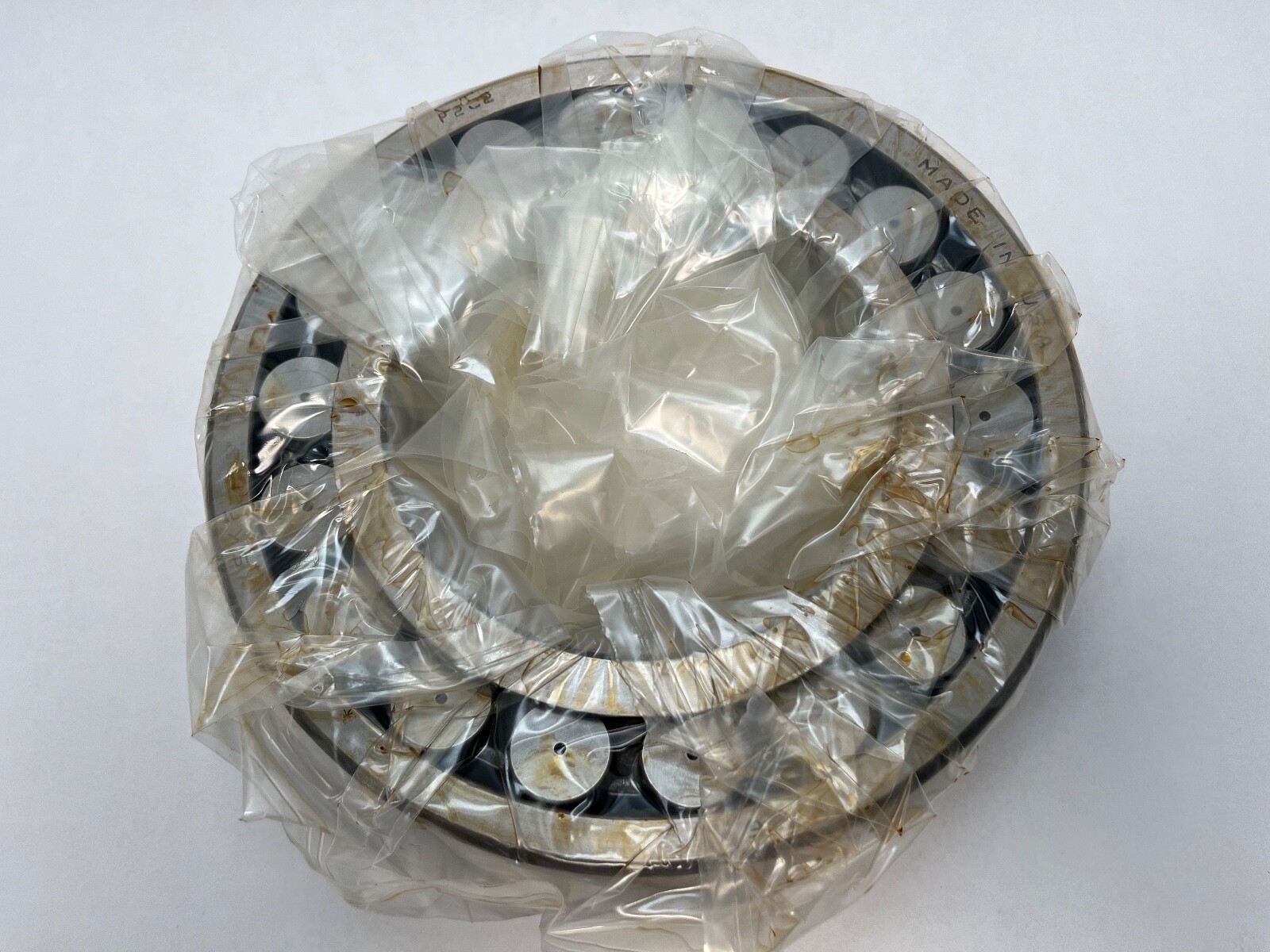

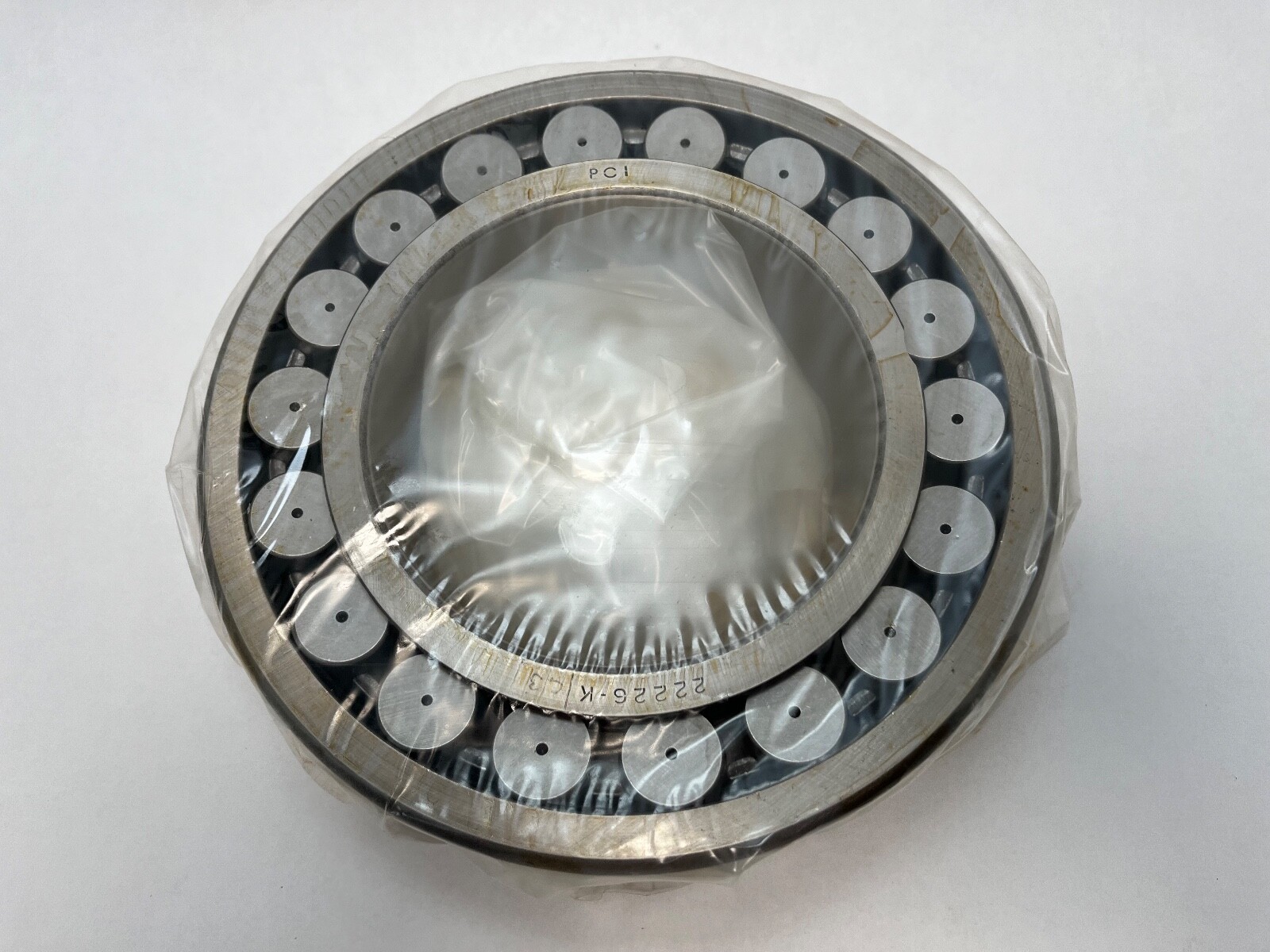

SKF 22226 CKJ/C3 spherical roller bearing, 130 x 230 x 64 mm, 1:12 tapered bore, C3 clearance, pressed steel cage. Mounts on an H326 adapter sleeve.
List Price
$328.89
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | SKF |
|---|---|
| Model | 22226 C K J C3 / 22226E / 22226 CC K J C3 |
| Bearing Type | Spherical Roller Bearing, Open |
| ID | 130 mm |
| OD | 230 mm |
| Width | 64 mm |
| Material | Bearing Steel |
|---|---|
| Series | 22200 |
| Lubricant | Oil/Grease |
| Base Number | 22226 |
| Industry Terms | spherical roller bearing, tapered bore spherical, self-aligning roller bearing, 222 series bearing |
| Common Misspellings | 22226CKJ C3, 22226 CKJC3, 2226 CKJ/C3, 22226KC3 |
| Application Types | adapter sleeve mounting, pillow block housings, conveyors, fans, gearboxes |
| Overall Width | 64 mm |
| Mpn Variants | 22226 CKJ/C3, 22226-CKJ-C3, 22226-C-K-J-C3, 22226CKJC3, 22226 C K J C3, 22226CCKJ |
| Additional Attributes | Adapter sleeve: H326; Locknut: KM; Lock washer: MB; Internal design: SKF C |
| Rolling Elements | Spherical Roller |
| Cage Material | Pressed steel |
| Number Of Rows | 2 |
| Bore Type | Tapered 1:12 |
| Internal Clearance | C3 |
| Harmonization Code | 8482.30.00 |
| Cross Reference 1 | SKF 22226 EK/C3 – E design, same envelope, K, C3 |
|---|---|
| Cross Reference 2 | FAG 22226-E1-K-C3 – E1 design, same envelope, K, C3 |
| Cross Reference 3 | Timken 22226KEJW33C3 – EJ design, W33 groove, K, C3 |
| Cross Reference 4 | NSK 22226CDKE4C3 – CD design, same envelope, K, C3 |
SKF 22226 CKJ/C3 double-row spherical roller bearing with tapered bore. Bearing type: Spherical Roller Bearing. Bore Diameter: 130 mm. Outside Diameter: 230 mm. Overall Width: 64 mm. Bore Type: Tapered 1:12. Internal Clearance: C3. Number Of Rows: 2. The self-aligning outer raceway accommodates shaft misalignment and deflection under heavy radial load.
22226 — ISO 222 series spherical roller bearing, bore code 26 = 130 mm bore, 230 mm OD, 64 mm width.
C — SKF C internal design.
K — tapered bore, taper 1:12.
J — pressed steel cage.
C3 — radial internal clearance greater than normal, for applications with higher operating temperature or tight fits.
Cage Material: Pressed steel. Seal type: Open. Closure Type: Open. The tapered bore mounts on an adapter sleeve or withdrawal sleeve, and the C3 clearance allows for the clearance reduction that occurs as the bearing is driven up the taper.
Mounts on an SKF H326 adapter sleeve (115 mm shaft) with KM locknut and MB lock washer.
Same envelope, 1:12 tapered bore and C3 clearance, in other internal designs: SKF 22226 EK/C3, FAG 22226-E1-K-C3, Timken 22226KEJW33C3, NSK 22226CDKE4C3. Base Number: 22226. Harmonization Code: 8482.30.00.
